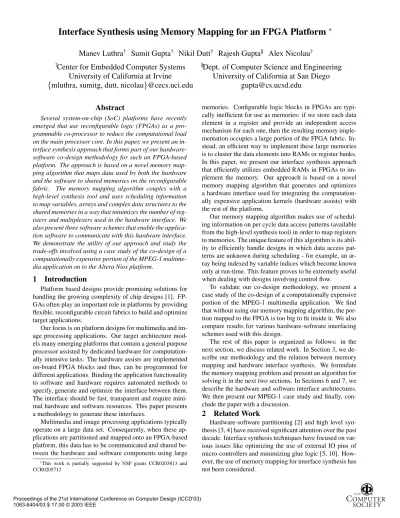

Interface Synthesis using Memory Mapping for an FPGA Platform

(1)

Interface Synthesis using Memory Mapping for an FPGA Platform

Manev Luthra

^†

Sumit Gupta

^†

Nikil Dutt

^†

Rajesh Gupta

^§

Alex Nicolau

^†

†

Center for Embedded Computer Systems

^§

Dept. of Computer Science and Engineering University of California at Irvine University of California at San Diego mluthra, sumitg, dutt, nicolau

@cecs.uci.edu gupta@cs.ucsd.edu

Abstract

Several system-on-chip (SoC) platforms have recently emerged that use reconfigurable logic (FPGAs) as a pro- grammable co-processor to reduce the computational load on the main processor core. In this paper, we present an in- terface synthesis approach that forms part of our hardware- software co-design methodology for such an FPGA-based platform. The approach is based on a novel memory map- ping algorithm that maps data used by both the hardware and the software to shared memories on the reconfigurable fabric. The memory mapping algorithm couples with a high-level synthesis tool and uses scheduling information to map variables, arrays and complex data structures to the shared memories in a way that minimizes the number of reg- isters and multiplexers used in the hardware interface. We also present three software schemes that enable the applica- tion software to communicate with this hardware interface.

We demonstrate the utility of our approach and study the trade-offs involved using a case study of the co-design of a computationally expensive portion of the MPEG-1 multime- dia application on to the Altera Nios platform.

1 Introduction

Platform based designs provide promising solutions for handling the growing complexity of chip designs [1]. FP- GAs often play an important role in platforms by providing ﬂexible, reconﬁgurable circuit fabrics to build and optimize target applications.

Our focus is on platform designs for multimedia and image processing applications. Our target architecture mod- els many emerging platforms that contain a general purpose processor assisted by dedicated hardware for computationally intensive tasks. The hardware assists are implemented on-board FPGA blocks and thus, can be programmed for different applications. Binding the application functionality to software and hardware requires automated methods to specify, generate and optimize the interface between them.

The interface should be fast, transparent and require minimal hardware and software resources. This paper presents a methodology to generate these interfaces.

Multimedia and image processing applications typically operate on a large data set. Consequently, when these applications are partitioned and mapped onto an FPGA-based platform, this data has to be communicated and shared between the hardware and software components using large

This work is partially supported by NSF grants CCR0203813 and CCR0205712

memories. Configurable logic blocks in FPGAs are typically inefficient for use as memories: if we store each data element in a register and provide an independent access mechanism for each one, then the resulting memory imple- mentation occupies a large portion of the FPGA fabric. In- stead, an efficient way to implement these large memories is to cluster the data elements into RAMs or register banks.

In this paper, we present our interface synthesis approach that efﬁciently utilizes embedded RAMs in FPGAs to implement the memory. Our approach is based on a novel memory mapping algorithm that generates and optimizes a hardware interface used for integrating the computationally expensive application kernels (hardware assists) with the rest of the platform.

Our memory mapping algorithm makes use of scheduling information on per cycle data access patterns (available from the high-level synthesis tool) in order to map registers to memories. The unique feature of this algorithm is its abil- ity to efﬁciently handle designs in which data access patterns are unknown during scheduling - for example, an array being indexed by variable indices which become known only at run-time. This feature proves to be extremely useful when dealing with designs involving control ﬂow.

To validate our co-design methodology, we present a case study of the co-design of a computationally expensive portion of the MPEG-1 multimedia application. We ﬁnd that without using our memory mapping algorithm, the portion mapped to the FPGA is too big to ﬁt inside it. We also compare results for various hardware-software interfacing schemes used with this design.

The rest of this paper is organized as follows: in the next section, we discuss related work. In Section 3, we describe our methodology and the relation between memory mapping and hardware interface synthesis. We formulate the memory mapping problem and present an algorithm for solving it in the next two sections. In Sections 6 and 7, we describe the hardware and software interface architectures.

We then present our MPEG-1 case study and ﬁnally, conclude the paper with a discussion.

2 Related Work

Hardware-software partitioning [2] and high level synthesis [3, 4] have received signiﬁcant attention over the past decade. Interface synthesis techniques have focused on various issues like optimizing the use of external IO pins of micro-controllers and minimizing glue logic [5, 10]. How- ever, the use of memory mapping for interface synthesis has not been considered.

(2)

Code Generation Assembly/Machine

and P&R Logic Synthesis Compiler

Software (with Interface)

Behavioral C Synthesis Interface

Synthesis High−Level

(Interface) (HW) VHDL RTL RTL

VHDL

Behavioral C (HW Part) Behavioral C

(SW Part)

Partitioning HW/SW C/C++ Variant

System Specification

Core

FPGA Based Platform Processor

Peri−

−pherals I/O

FPGA

Figure 1. Role of interface synthesis in a co-design methodology

Most previous work on memory mapping and allocation of multi-port memories has focused on purely data ﬂow designs (no control constructs) [4, 6, 8]. They do not deal with unknown data access patterns because no control ﬂow is involved. Memory mapping and register binding algorithms in the data path synthesis domain are based on variable life- time analysis and register allocation heuristics [4, 7].

Earlier work on memory mapping for FPGAs has not utilized scheduling information [7]. Several groups have looked at packing uneven sized data structures into ﬁxed aspect ratio memories availabe on FPGAs [9].

3 Role of Interface Synthesis and Memory Mapping in a Co-Design Methodology

Interface synthesis is an important aspect of our hardware-software co-design methodology, as shown in Figure 1. In our approach, we rely on a C/C++ based description for the system model. After hardware-software partitioning, the hardware part is scheduled using a high- level synthesis tool [3] and the scheduling information is passed to the interface synthesizer.

This interface synthesizer – described in detail in the rest of the paper – generates the hardware interface and re- instruments the software component of the application to make appropriate calls to the hardware component via this interface. It also passes the addresses of all registers that have been mapped to memories in the hardware interface to the high-level synthesis tool.

The RTL code generated by the high-level synthesis tool and the interface synthesizer are then downloaded to the FPGA. Similarly, the software component is compiled and downloaded into the instruction memory of the processor.

3.1 Memory Mapping

Multimedia and image processing applications process large amounts of data. After partitioning, the hardware component has to operate on the same data that the software operates on. Thus, the hardware component needs to store this data on the FPGA (see Section 6 for how this is achieved). The way this data is mapped to a memory has tremendous impact on the complexity of the multiplexers and the generated control logic. Ideally, we would store

Unit 1

Functional Functional Unit M

Functional Unit M Functional Unit 1

P Ports1 P Ports2 P Portsk

Mem 1 Mem 2 Mem k

1 Port 1 Port 1 Port Elem 1 Elem 2 Elem 3

1 Port Elem N

K : 2M Mux

(b) (a) N : 2M Mux

Elem 2

Elem N Elem 3

Elem 1

Figure 2. (a) Unmapped Design: Registers for each data element (b) Mapped Design: Data elements mapped to memories, K N, where K and N are the number of mem- ory banks and variables respectively.

all data in a single large memory. However, such a memory would require as many ports as the maximum number of simultaneous memory accesses in any cycle [8]. This is impractical for programmable FPGA platforms, since they provide memories with only a limited number of ports [12, 13]. Consequently, memories with a larger number of ports have to be implemented using individual registers.

This requires a large number of registers and complex, large multiplexers as shown in Figure 2(a).

In our memory mapping approach, we utilize scheduling information – available from the high-level synthesis tool – about data accesses and the cycles that they occur in. We can then map the data elements to memory banks, given constraints on the maximum number of ports each memory in the target FPGA can have. This approach eliminates the use of registers for storage, thus, saving a large amount of area.This way, we can also use much smaller and faster multiplexers in the data-path as illustrated in Figure 2(b).

Arrays and data structures are mapped to memories after being broken down into their basic constituents (variables).

These can then be mapped in a way identical to regular variables. Consequently, these basic constituents might get mapped to non-contiguous memory addresses. In Section 7 we show how this drawback can typically be overcome by making a few changes to the application software.

4 Problem Formulation

We are given a set of n variables, V vi; i 1 2 n that are accessed (read and written) by all the kernels of the application. In our current model, only one kernel executes at any given time. This implies that contention for variable accesses between two kernels can never occur. Note that, each element in an array or data structure is considered as a distinct variable viin V ; so for example, an array of size n will have n entries in V . We are also given a set of mem- ory resource types, Mtype mj; j Zwhere the sub- script j indicates the maximum number of ports available.

The number of read ports of memory type mjare given by Portsreadmjand write ports by Portswritemj.

(3)

Algorithm 1: MapVariablesToMemories(V )

Output: Memory instances used in the design M,

Mapping between memory instances and variablesφ 1 : Initialize M /0

2 : foreach (viV ) do

3 : L GetListOfCandMems(M, vi)

4 : if (L /0) then /* Create a new memory instance */

/* with a minimal number of ports to satisfy vi*/

5 : Add new instancemp nof memory type mpto M 6 : φmp n vi/* map vion nth instance of mp

7 : else /*Lis not empty */

8 : Pickmj kmpLwith lowest cost 9 : if (mp mj) then

/* Add new qth instance of mem type mpto M */

10: M Mmpq

11: φmp q φmj k/* Move variables tomp q*/

12: M Mmj k/* Discardmj k*/

13: φmp q φmpqvc

14: else /* map vctomj k*/

15: φmj k φmj kvc

16: endif

17: endif 18: endforeach

Figure 3. The memory mapping algorithm Definition 4.1 The memory mapping problem is to find a memory allocationφ :Mtypes ZV that is a mapping of memory instances to variables assigned to them in the design. This mapping also gives the list M of all the mem- ory instances allocated to the design. φmj nrepresents the list of variables mapped to the n-th instance of mem- ory type mj. The optimization problem is to minimize the total number of memory instances, given by sizeM, with the constraint that for each memory instancemj nused in the design, the number of simultaneous accesses during any cycle should not exceed the number of memory ports available on mj.

5 Mapping Algorithm

The problem deﬁned above is an extension of the memory mapping and value grouping problem for datapath synthesis, which is known to be NP-complete [14]. We adopt a heuristic approach to solving it; our memory mapping algorithm is listed in Figure 3. The algorithm processes variables in the order that they are declared in the application.

For each variable to be mapped to a memory instance, the algorithm calls GetListO f CandMems to get a list of candi- date memory instances (L) onto which the current variable vccan potentially be mapped (line 3 in Figure 3).

If this list is empty, a new memory instance with just enough ports for vi is created, and vi is mapped to it (lines 4 to 6). If the list is non-empty, we pick the memory instance with the lowest cost. If the number of ports available on this memory instance are sufﬁcient to map vito it, then vi is added to the list of variablesφmj kmapped to this instance; otherwise, a new memory instance mp qwith enough ports is created. The old memory instancemj k is discarded after all variables mapped to it have been re- mapped tomp q. Finally, viis mapped tomp q(lines 9 to 13 in the algorithm).

The algorithm for the function GetListO f CandMems is listed in Figure 4. This algorithm considers each memory

Algorithm 2: GetListOfCandMems(M, vc)

Return: Available Memories ListL 1 : Initialize ListL /0

2 : foreach (memory instancemj kM) do 3 : if (vcdoes not conﬂict withφmj kin any cycle)

or (mj khas enough ports to map vc) then 4 : L L^mj kmj

5 : Costmj k PortsreadmjPortswritemj

6 : else /*either conﬂict or insufﬁcient ports inmj k*/

7 : if (there exists mpMtypewith enough ports 8 : to map all variables frommj kand vc) then 9 : L L^mj kmp

10: Costmj k PortsreadmpPortswritemp

11: endif 12: endif 13: endforeach

Figure 4. Determining the list of available memories instance mj k in M already allocated to the design, and adds this instance to the list L of candidate memory in- stances if the variable vccan be mapped tomj k. A vari- able vccan be mapped tomj kwhen, vcdoes not conﬂict in terms of reads or writes with any other variable mapped tomj k, ormj k has enough ports for accessing vari- able vcbesides all the variables already mapped to it (line 3 in Figure 4). Note that these two contraints are identical, i.e., if one is true, it implies that the other is also true.

If mj k does not have enough ports to map variable vc, then we try to ﬁnd a memory of type mp, such that, an instance of mp will satisfy the port constraints when vari- ables vcandφmj k(variables already mapped tomj k) are mapped to it. If such a memory type exists, it marks memory instance mj kfor an upgrade to an instance of memory type mp(pj) and adds it toL(lines 7 to 9).

The algorithm in Figure 4 also calculates a cost for map- ping vcto each memory instance inL. This cost equals the total number of read and write ports of the memory instance.

Assume that A is the total number of hardware kernels, s is the length of the longest schedule among these kernels, while z is the maximum number of memory accesses occur- ing in a single cycle by any one variable. Then, lines 2 and 3 in Figure 4 individually contribute n and Asz to the time complexity respectively. So the GetListofCandMems algo- rithm has a worst case time complexity of OnAsz. The loop in line 2 of the MapVariablesToMemories algorithm in Figure 3 causes the GetListofCandMems algorithm to exe- cute n times. Thus, the worst case time complexity of the MapVariablesToMemories algorithm is On²Asz.

5.1 Construction of Conflict Graphs

The GetListOfCandMems algorithm determines if vari- able vccan be mapped to memory instancemj kby check- ing for potential conﬂicts with the variables φmj kthat have already been mapped tomj k. This is done for every cycle. Thus, in every cycle, we create conflict graphs where nodes represent variables and edges denote a conﬂict between variables (both variables are accessed in that cycle).

To understand how we use these conﬂict graphs, consider a design with three variables v1, v2and v3. Assume that v1

and v2are accessed during cycle 1, while v2and v3are accessed during cycle 2. The corresponding conﬂict graphs

(4)

V1 V V

3

2

V1 V

V2

3 V1 V

V2

V1 V 3

V2 3

(a) Cycle 1 (b) Cycle 2 (c) Plain Nodes (d) Colored Nodes

Figure 5. (a) Conflict graph for cycle 1 (b) Conflict graph for cycle 2 (c) Conflict graph with colorless nodes (d) Con- flict graph with multi-colored nodes

for the two cycles are given in Figures 5(a) and 5(b). If we have only one memory resource type, namely, a dual ported memory m2, then, each of the three variables can be mapped to the same instance of the dual ported memory without vi- olating the port constraints. This is because only two of the three variables conﬂict in any cycle. If we had represented this using a single conﬂict graph for all cycles, variable v2

would not have been mapped to memory because two con- ﬂict edges would have been associated with it, even though the accesses occur in different cycles.

Let us explore this further with another example. Con- sider an array arr consisting of three elements, arr 1, arr 2 and arr 3. The corresponding variables in V are v1, v2and v3. Also, assume that dual ported memories are the only memory types available. In any given cycle, if there are multiple accesses to arr using variable indices i and j (for example arr iand arr j), then we cannot determine which elements of the array actually conflict until runtime. Hence, we create conflict edges between each pair of elements in arr in the conflict graph corresponding to that cycle. This results in the fully connected conflict graph shown in Fig- ure 5(c). We can conclude from this conflict graph that none of the three variables can be mapped to the same memory instance since the memory has only two ports.

But, this is an incorrect conclusion because only two of the three variables will be accessed in any cycle. This implies that the three variables can be mapped to a dual ported memory. Thus, we ﬁnd that per cycle conﬂict graphs are, by themselves, not powerful enough to capture all the information necessary to perform effective memory mapping.

To address such issues, we introduce the notion of accu- mulating colors in the nodes of the conﬂict graphs of each cycle. From among a group of variables VG, if access of any one in a cycle rules out access of the rest in that cycle, then the nodes corresponding to each variable in the group VGare marked with the same color cG. This color is unique from that of all other groups. A node can accumulate colors by being a member of more than one such group.

Applying this to our example, we get the conﬂict graph depicted in Figure 5(d). v1, v2and v3form a group corre- sponding to access by arr i. Each of these three variables are marked with one color since accessing any one of them rules out accessing the other two. Similarly, v1, v2and v3

form another group corresponding to access by arr jand are marked with a second color. Thus, each of the three nodes/variables end up accumulating two colors.

The number of ports needed to map a set of variables to a single memory instance, is equal to the maximum number

m_P1

Memory Controller

Ports CPU

Bus

Logic Block 1

Ports

App. L1

Logic PortsLa

Control App.

Logic Block a

Mapped Memory (M) Ports

Ports P1

P2

Pk

m

P2

Pk

Interface Bus 1 Port Processor

Core FPGA

Figure 6. The hardware interface architecture of colors in any cycle of all the variables being mapped to that memory instance. In our example, the number of colors accumulated by v1, v2and v3is two. Thus, we can safely map these three variables to a dual ported memory. We use this coloring technique while creating the per cycle conﬂict graphs used by our memory mapping algorithm. Note that although we need to store each per cycle conﬂict graph, we found that for large applications such as MPEG, the storage sizes are easily manageable.

6 The Hardware Interface Architecture

An overview of the architecture obtained after hardware interface synthesis is shown in Figure 6. The bus interface generated is speciﬁc to the bus protocol used. The control logic contains memory mapped registers that can be used to reset or start/stop execution of any of the application logic blocks through software. It also contains registers reﬂecting the execution status and logic for interrupt generation, masking, et cetera. The memory controller services all memory access requests for data residing in the mapped memory M. It is designed to give a higher priority to access requests by the application logic blocks. An access request by software is serviced only if a free port is currently available on the memory instance.

7 The Software Interface

In the hardware interface shown in Figure 6, the memory M uses a contiguous address space. Hence, data declara- tions in the software code have to be reordered so that they conform to the order in which they were mapped to this address space. The example in Figure 7 illustrates this. Note that, when multiple arrays or data structures get sliced apart due to memory mapping, it is possible to perform address translations in the memory controller in order to abstract the memory architecture details from software.

The software can interface and share data with the hardware mapped to the FPGA by either transferring all the data to the hardware, or they can use a shared memory [11], as explained in the next two sections.

7.1 Data Transfer Based Scheme

In a data transfer scheme, all the shared data is copied from the processor (or main) memory to the mapped memory. Then, the hardware executes and the results are moved back from the mapped memory to the main memory.

(5)

int array1[256];

int array2[256]; int array1[256];

int element1;

int element2;

int element3;

int element1;

int element3;

int array2[256];

int element2;

Map New Memory

} *dm = 0xF800; } *dm = 0xF800;

struct example { struct example {

Figure 7. Modified address offsets in the software interface after memory mapping

The advantage of using this scheme is that the execution speed of the software portion of the application is independent of the memory used by the hardware. The disadvan- tages are: (a) the large communication costs of copying data from software to hardware and back, and (b) the creation of heavy bursts of trafﬁc on the processor bus, which can potentially starve other devices that want to use it. Thus, to amortize the communication cost, the hardware-software partitioning has to be done in such a manner that communication between hardware and software is minimized.

7.2 Shared Memory Based Schemes

The other way hardware and software can interface is through shared memory (i.e. M in Figure 6 is shared). This can be done by using shared memory with no local storage or shared memory with local storage. In the scheme with no local storage, variables and data structures in the shared memory are declared such that the compiler does not ap- ply any memory optimizations and uses processor registers minimally (for example, by declaring them as volatile in the C code). Other forms of local storage like processor caches are also bypassed when accessing the shared memory. Data to be processed by software is always read from the shared memory (in hardware) and the results are immediately written back (no caching). Due to its simplicity, this scheme can be used with any processor.

In contrast, the shared memory with local storage scheme can only be used when the processor supports ex- plicit instructions for ﬂushing all local storage to memory.

The clear advantage of both these schemes is the zero data transfer (communication) cost between software and hardware. However, the shared memory with no local storage scheme has the additional advantage that it maintains data coherency since the data is not buffered inside the processor’s local memory. But, this causes extra trafﬁc on the processor bus whenever the software portion of the application is running. A disadvantage of both schemes is that a larger access time for mapped memory can degrade performance signiﬁcantly. Thus, the performance with these schemes depends critically on the speed of the processor bus, the mapped memory and associated access logic.

8 Experimental Setup and Results

We used Altera’s Nios development platform [12] for im- plementing the system. This platform consists of a soft core of the Nios embedded processor (no caches) to which various peripherals can be connected for customization. Once the system has been customized, it can be synthesized and mapped onto an FPGA based board provided by Altera. The

HW Module Area Max Freq RAM Bits

Nios System 2800 LCs 47 MHz 26496

Unmapped User-deﬁned 9750 LCs 27 MHz 0 Mapped User-deﬁned 2450 LCs 32 MHz 2048

Table 1. Logic synthesis results for an Altera APEX20KE EP20K200EFC484-2X FPGA target

user can use dedicated RAM block bits inside the FPGA to implement memories having two or fewer ports. The entire system, consisting of the Nios processor and its standard peripherals, the main memory, the CPU bus and the user- deﬁned module operate at a frequency of 33.33 MHz. The user-deﬁned module is connected to the CPU bus and contains the hardware interface and all application logic.

We synthesized application kernels using a parallelizing high level synthesis framework called SPARK [3]. This framework takes a behavioral description in C as input and generates synthesizable register-transfer level VHDL.

The VHDL was synthesized using the logic synthesis tool, Leonardo Spectrum. The resultant netlist was mapped to the FPGA using the Altera Quartus tool. The portions of the application that were not mapped to hardware, were compiled and mapped onto the processor on the FPGA platform using the compiler suite from the Nios development toolkit.

8.1 Case Study: MPEG-1 Prediction Block In this section, we present a case study using a multimedia application to evaluate the effectiveness of our mapping algorithm and to study the trade-offs between the three interfacing and communication schemes described in Section 7. We used the prediction block from the MPEG-1 multi- media application.

To begin with, three computationally intensive kernels in the application were identified using profiling information and these were mapped to hardware without using our interface synthesis approach. The globals declared by this application were 53 integer variables and two integer arrays of 64 entries each; making a total of 181 integer data elements. The results of conventional logic synthesis of the user-defined module are listed in Table 1. Note that, the maximum frequencies shown in the table are only the es- timates by the logic synthesis tool and were found to be slightly conservative. We could not integrate this design with the Nios embedded system because it was too big to fit inside the FPGA, given that the capacity of the FPGA was 8320 Logic Cells (LCs).

Next, we applied the memory mapping algorithm to the 181 data elements in the design and came up with a new memory conﬁguration. Then, we made a new memory controller based on this new memory map and reperformed conventional logic synthesis on the user-deﬁned module.

The results obtained are shown in Table 1. The area, speed and the number of RAM block bits used by the rest of the Nios embedded system (without the user-defined module) have also been shown for reference. The observed 75% re- duction in area, along with the 19% increase in operating frequency, clearly shows the benefits of our memory mapping technique. As a result, we were also able to fit the hardware inside the FPGA easily.

(6)

Scheme Entity SW (ms) HW (ms) Speedup Kernel 1 110 1217 9 2

Data Kernel 2 110 1217 9 2

Transfer Kernel 3 108 1217 9 0

Based Misc 42 96 -

Total 370 132 2 8

Shared Kernel 1 178 12 14 8

Memory Kernel 2 178 12 14 8

with no Kernel 3 183 12 14 8

Local Misc 42 60 -

Storage Total 581 96 6 1

Shared Kernel 1 116 12 9 7

Memory Kernel 2 116 12 9 7

with Kernel 3 109 12 9 1

Local Misc 42 59 -

Storage Total 383 95 4 0

Table 2. Execution times for 500 iterations of various ker- nels of the application

For studying the three interfacing and communication schemes described in Section 7, the memory mapped ver- sion of the user-deﬁned module was integrated with the Nios embedded system. The variables and data structures in the application were re-arranged as per the new memory map and appropriate function calls were inserted to invoke the hardware. Execution times were recorded using a timer peripheral that had been integrated with the Nios system.

Table 2 shows the breakup of execution times of various parts of the application based on a run of 500 iterations of the application. For the data transfer based scheme, the value given in parentheses for each kernel (under the HW column) indicates the cost of copying data from main memory to mapped memory and then vice-versa after execution.

Miscellaneous cost represents the cost of executing every- thing other than the three kernels. Under the HW column, it represents the cost of running that portion of the application in software, which did not get mapped to hardware. It also includes all software overheads of using the hardware.

Figure 8 shows the variation in execution time for each of the three schemes as the application shifts execution from software to hardware. This graph shows that the shared memory with local storage scheme performed the best from among the three, for various hardware software partitions.

The data transfer based scheme was the fastest software only scheme; so taking it as the reference, the shared memory with local storage scheme gave a speedup of 3 9.

9 Conclusions and Future Work

We presented an interface synthesis approach that forms part of a hardware-software co-design methodology tar- geted at FPGA-based platforms. This approach is based on a novel memory mapping algorithm that maps the data elements operated on by both, software and hardware, to shared memories. These shared memories, thus, form a hardware interface between the hardware and software components of the application. We also presented three software schemes for bridging between the hardware interface and the application software. Results for experiments performed on an MPEG-1 application demonstrated an im- provement in performance by a factor of 3 9 when three application kernels were accelerated in hardware using our

0 0.2 0.4 0.6 0.8 1

SW only Kernel 1 in HW

Kerns 1 &

3 in HW

Kerns 1 &

2 in HW

Kerns 1, 2,3 in HW

Normalized Exec Time

36%

30%

Shared Memory with no Local Storage

Data Transfer Based Shared Memory with Local Storage

Figure 8. Execution times for 500 iterations of the appli- cation with different hardware software partitions interface synthesis approach. In future work, we want to validate our methodology for other FPGA platforms and develop a generalized hardware-software synthesis framework that includes task analysis and partitioning. We also want to investigate improvements to the heuristic used in the memory mapping algorithm.
