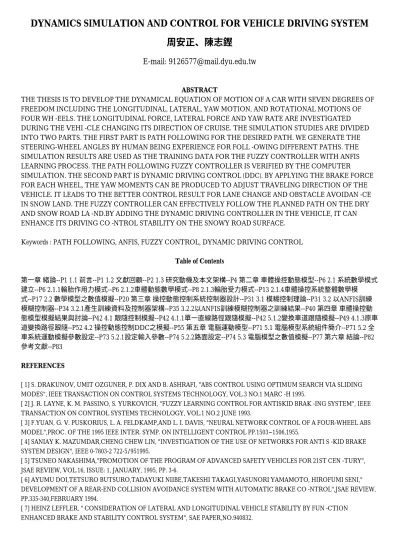

DYNAMICS SIMULATION AND CONTROL FOR VEHICLE DRIVING SYSTEM 周安正、陳志鏗
E-mail: [email protected]
ABSTRACT
THE THESIS IS TO DEVELOP THE DYNAMICAL EQUATION OF MOTION OF A CAR WITH SEVEN DEGREES OF FREEDOM INCLUDING THE LONGITUDINAL, LATERAL, YAW MOTION, AND ROTATIONAL MOTIONS OF FOUR WH -EELS. THE LONGITUDINAL FORCE, LATERAL FORCE AND YAW RATE ARE INVESTIGATED DURING THE VEHI -CLE CHANGING ITS DIRECTION OF CRUISE. THE SIMULATION STUDIES ARE DIVIDED INTO TWO PARTS. THE FIRST PART IS PATH FOLLOWING FOR THE DESIRED PATH. WE GENERATE THE STEERING-WHEEL ANGLES BY HUMAN BEING EXPERIENCE FOR FOLL -OWING DIFFERENT PATHS. THE SIMULATION RESULTS ARE USED AS THE TRAINING DATA FOR THE FUZZY CONTROLLER WITH ANFIS LEARNING PROCESS. THE PATH FOLLOWING FUZZY CONTROLLER IS VERIFIED BY THE COMPUTER
SIMULATION. THE SECOND PART IS DYNAMIC DRIVING CONTROL (DDC). BY APPLYING THE BRAKE FORCE FOR EACH WHEEL, THE YAW MOMENTS CAN BE PRODUCED TO ADJUST TRAVELING DIRECTION OF THE VEHICLE. IT LEADS TO THE BETTER CONTROL RESULT FOR LANE CHANGE AND OBSTACLE AVOIDAN -CE IN SNOW LAND. THE FUZZY CONTROLLER CAN EFFECTIVELY FOLLOW THE PLANNED PATH ON THE DRY AND SNOW ROAD LA -ND.BY ADDING THE DYNAMIC DRIVING CONTROLLER IN THE VEHICLE, IT CAN ENHANCE ITS DRIVING CO -NTROL STABILITY ON THE SNOWY ROAD SURFACE.
Keywords : PATH FOLLOWING, ANFIS, FUZZY CONTROL, DYNAMIC DRIVING CONTROL Table of Contents
第一章 緒論--P1 1.1 前言--P1 1.2 文獻回顧--P2 1.3 研究動機及本文架構--P4 第二章 車體操控動態模型--P6 2.1 系統數學模式 建立--P6 2.1.1輪胎作用力模式--P6 2.1.2車體動態數學模式--P8 2.1.3輪胎受力模式--P13 2.1.4車體操控系統整體數學模 式--P17 2.2 數學模型之數值模擬--P20 第三章 操控動態控制系統控制器設計--P31 3.1 模糊控制理論--P31 3.2 以ANFIS訓練 模糊控制器--P34 3.2.1產生訓練資料及控制器架構--P35 3.2.2以ANFIS訓練模糊控制器之訓練結果--P40 第四章 車體操控動 態模型模擬結果與討論--P42 4.1 跟隨控制模擬--P42 4.1.1單一直線路徑跟隨模擬--P42 5.1.2變換車道跟隨模擬--P49 4.1.3原車 道變換路徑跟隨--P52 4.2 操控動態控制DDC之模擬--P55 第五章 電腦運動模型--P71 5.1 電腦模型系統組件簡介--P71 5.2 全 車系統運動模擬參數設定--P73 5.2.1設定輸入參數--P74 5.2.2路面設定--P74 5.3 電腦模型之數值模擬--P77 第六章 結論--P82 參考文獻--P83
REFERENCES
[ 1] S. DRAKUNOV, UMIT OZGUNER, P. DIX AND B. ASHRAFI, "ABS CONTROL USING OPTIMUM SEARCH VIA SLIDING MODES", IEEE TRANSACTION ON CONTROL SYSTEMS TECHNOLOGY, VOL.3 NO.1 MARC -H 1995.
[ 2] J. R. LAYNE, K. M. PASSINO, S. YURKOVICH, "FUZZY LEARNING CONTROL FOR ANTISKID BRAK -ING SYSTEM", IEEE TRANSACTION ON CONTROL SYSTEMS TECHNOLOGY, VOL.1 NO.2 JUNE 1993.
[ 3] F.YUAN, G. V. PUSKORIUS, L. A. FELDKAMP,AND L. I. DAVIS, "NEURAL NETWORK CONTROL OF A FOUR-WHEEL ABS MODEL",PROC. OF THE 1995 IEEE INTER. SYMP. ON INTELLIGENT CONTROL PP.1503~1506,1955.
[ 4] SANIAY K. MAZUMDAR,CHENG CHEW LIN, "INVESTIGATION OF THE USE OF NETWORKS FOR ANTI S -KID BRAKE SYSTEM DESIGN", IEEE 0-7803-2 722-5/951995.
[ 5] TSUNEO NAKASHIMA,"PROMOTION OF THE PROGRAM OF ADVANCED SAFETY VEHICLES FOR 21ST CEN -TURY", JSAE REVIEW, VOL.16, ISSUE: 1, JANUARY, 1995, PP. 3-6.
[ 6] AYUMU DOI,TETSURO BUTSURO,TADAYUKI NIIBE,TAKESHI TAKAGI,YASUNORI YAMAMOTO, HIROFUMI SENI,"
DEVELOPMENT OF A REAR-END COLLISION AVOIDANCE SYSTEM WITH AUTOMATIC BRAKE CO -NTROL",JSAE REVIEW, PP.335-340,FEBRUARY 1994.
[ 7] HEINZ LEFFLER, " CONSIDERATION OF LATERAL AND LONGITUDINAL VEHICLE STABILITY BY FUN -CTION ENHANCED BRAKE AND STABILITY CONTROL SYSTEM", SAE PAPER,NO.940832.
[ 8] IPL.-LNG. ALFERED PRUCKNER,DIPL.LNG MICHAEL SEEMANN, "DYNAMIC DRIVING CONTROL SYSTE -M(DDC) ON A FULL VEHICLE MODEL IN ADAMS", 1997 ADAMS USER CONFERENCE PAPERS.
[ 9] KAZUO TANAKA,MANABU SANO, "TRAJECTORY STABILIZATION OF A MODEL CAR VIA FUZZY CONTROL ",FUZZY SETS AND SYSTEM,VOL.70,ISSUE:2-3,MARCH 20,1995,PP.155-170.
[10] TH.FRAICHARD,PH.CARNIER, "FUZZY CONTROL TO DRIVE CAR-LIKE VEHICLES",ROBOTICS AND AUT -ONOMOUS SYSTEM,VOL:34,ISSUE:1,JANUARY 31,2001,PP.1-22.
[11] U.KIENCKE,A.DAIB, "OBSERVATION OF LATERAL VEHICLE DYNAMICS",CONTROL ENG.PRACTIVE,VOL.
5,NO.8,PP.1145-1150,1997 [12] J. M. CHO, D.H. HWANG, K.C. LEE, J.W. JEON, D.Y. PARK, Y.J. KIM AND J.S. JOH, "DESI -GN AND IMPLEMENTATION OF HILS SYSTEM FOR ABS ECU OF COMMERCIAL VEHICLES", IEEE, VOL . 2, PP.1272-1277, 2001.
[13] KAORU SAWASE,YOSHIAKI SANO, "APPLICATION OF ACTIVE YAW CONTROL TO VEHICLE DYNAMICS BY UTILIZING DRIVING/BREAKING FORCE", JSAE REVIEW VOL.20, NO.2, APRIL, 1999, PP. 289 -295.
[14] K.H ROBERT,A.M KENNETH, "ANALYSIS OF TRACTION CONTROL SYSTEMS AUGMENTED BY LIMITED SLIP DIFFERENTIALS", SAE PAPER,NO.940831.
[15] DR.-ING. ANTON VAN ZANTEN, DIPL.-ING. RAINER ERHARDT, DIPL.-ING. GEORG PFAFF, "ESP ELECTRONIC STABILITY PROGRAM", BOSCH, FIRST EDITION, 1999.
[16] J. Y. WONG, "THEORY OF GROUND VEHICLE", JOHN WILEY & SON, THIRD EDITION,1993.
[17] HENRY,J.J.,AND MEYER,W.E. , "THE SIMULATION OF THE TRACTION ON WET PAVEMENT",PROCEED -ING,XVIII INTERNATIONLER CONGRESS,FEDERATION INTERNATIONALE DES SOCIETES DINGENIEUR -S DES IECHNIQUES DE L'AUTOMOBILE,HAMBURG.,W.GERMANY,1980.
[18] WOLF-DIETER JONNER,HERMANN WINNER,LUDWIG DREILICH, "ELECTROHYDRAULIC BRAKE SYSTEM TH -E FIRST APPROACH TO BRAKE-BY-WIRE TECHNOLOGY", SAE PAPER,NO.960991.
[19] U.KIENCKE,L.NIELSEN, "AUTOMOTIVE CONTROL SYSTEMS",SPRINGER, 2000.
[20] J. L. HARNED, L. E. JOHNSTON AND G. SCHARPF, "MEASUREMENT OF TIRE BRAKE FORCE CHARAC -TERISTICS AS RELATED TO WHEEL SLIP (ANTILOCK) CONTROL SYSTEM DESIGN," SAE PAPER,NO. 69214.
[21] 李連春,"液壓防止鎖死剎車系統控制器設計之研究",成功大學碩士論文,1997.
[22] 張瑞宗,"模糊脈寬調變控制液壓防鎖死煞車系統之研究",成功大學碩士論文,1999.
[23] 林秋豐, 林劍鳴, "差分煞車導向控制系統之研究",中國機械工程學會第十五屆全國學術研討會, 自動化工程類, 1998, P.477~484.
[24] 尤正吉,"車輛操控模式之分析", 台灣大學博士論文,1998.
[25] 黃毅偉," 車輛動態特性分析及虛擬實境技術應用於汽車駕駛模擬器之研製",彰化師範大學碩士論 文,2000.
[26] 吳金華,"汽車防鎖定煞車系統",全華科技圖書股份有限公司，1997.
[27] 趙治勇,楊成宗,"汽車煞車系統ABS理論與實際",全華科技圖書股份有限公司,1998.
[28] 賴耿陽, "車輛驅動及控制,"復漢出版社,PP.5-50,1993.
[29] 洪士超, "防鎖死煞車系統之模糊控制",大葉大學碩士論文,1997.
[30] 王晟宇, "自走式機器人之路徑規劃與控制",大葉大學碩士論文,1998.
[31] 裕隆公司,"A32車系修護手冊（上）",裕隆汽車製造股份有限公司,1995.
