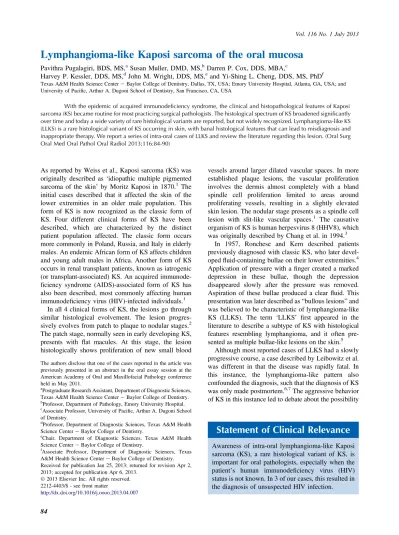

Lymphangioma-like Kaposi sarcoma of the oral mucosa
Pavithra Pugalagiri, BDS, MS,aSusan Muller, DMD, MS,bDarren P. Cox, DDS, MBA,c
Harvey P. Kessler, DDS, MS,dJohn M. Wright, DDS, MS,eand Yi-Shing L. Cheng, DDS, MS, PhDf
Texas A&M Health Science Centere Baylor College of Dentistry, Dallas, TX, USA; Emory University Hospital, Atlanta, GA, USA; and University of Pacific, Arthur A. Dugoni School of Dentistry, San Francisco, CA, USA
With the epidemic of acquired immunodeficiency syndrome, the clinical and histopathological features of Kaposi sarcoma (KS) became routine for most practicing surgical pathologists. The histological spectrum of KS broadened significantly over time and today a wide variety of rare histological variants are reported, but not widely recognized. Lymphangioma-like KS (LLKS) is a rare histological variant of KS occurring in skin, with banal histological features that can lead to misdiagnosis and inappropriate therapy. We report a series of intra-oral cases of LLKS and review the literature regarding this lesion. (Oral Surg Oral Med Oral Pathol Oral Radiol 2013;116:84-90)
As reported by Weiss et al., Kaposi sarcoma (KS) was originally described as ‘idiopathic multiple pigmented sarcoma of the skin’ by Moritz Kaposi in 1870.1 The initial cases described that it affected the skin of the lower extremities in an older male population. This form of KS is now recognized as the classic form of KS. Four different clinical forms of KS have been described, which are characterized by the distinct patient population affected. The classic form occurs more commonly in Poland, Russia, and Italy in elderly males. An endemic African form of KS affects children and young adult males in Africa. Another form of KS occurs in renal transplant patients, known as iatrogenic (or transplant-associated) KS. An acquired immunode- ficiency syndrome (AIDS)-associated form of KS has also been described, most commonly affecting human immunodeficiency virus (HIV)-infected individuals.1
In all 4 clinical forms of KS, the lesions go through similar histological evolvement. The lesion progres- sively evolves from patch to plaque to nodular stages.2 The patch stage, normally seen in early developing KS, presents with flat macules. At this stage, the lesion histologically shows proliferation of new small blood
vessels around larger dilated vascular spaces. In more established plaque lesions, the vascular proliferation involves the dermis almost completely with a bland spindle cell proliferation limited to areas around proliferating vessels, resulting in a slightly elevated skin lesion. The nodular stage presents as a spindle cell lesion with slit-like vascular spaces.1 The causative organism of KS is human herpesvirus 8 (HHV8), which was originally described by Chang et al. in 1994.3
In 1957, Ronchese and Kern described patients previously diagnosed with classic KS, who later devel- opedfluid-containing bullae on their lower extremities.4 Application of pressure with afinger created a marked depression in these bullae, though the depression disappeared slowly after the pressure was removed.
Aspiration of these bullae produced a clearfluid. This presentation was later described as“bullous lesions” and was believed to be characteristic of lymphangioma-like KS (LLKS). The term ‘LLKS’ first appeared in the literature to describe a subtype of KS with histological features resembling lymphangioma, and it often pre- sented as multiple bullae-like lesions on the skin.5
Although most reported cases of LLKS had a slowly progressive course, a case described by Leibowitz et al.
was different in that the disease was rapidly fatal. In this instance, the lymphangioma-like pattern also confounded the diagnosis, such that the diagnosis of KS was only made postmortem.6,7The aggressive behavior of KS in this instance led to debate about the possibility
The authors disclose that one of the cases reported in the article was previously presented in an abstract in the oral essay session at the American Academy of Oral and Maxillofacial Pathology conference held in May 2011.
aPostgraduate Research Assistant, Department of Diagnostic Sciences, Texas A&M Health Science Centere Baylor College of Dentistry.
bProfessor, Department of Pathology, Emory University Hospital.
cAssociate Professor, University of Pacific, Arthur A. Dugoni School of Dentistry.
dProfessor, Department of Diagnostic Sciences, Texas A&M Health Science Centere Baylor College of Dentistry.
eChair, Department of Diagnostic Sciences, Texas A&M Health Science Centere Baylor College of Dentistry.
fAssociate Professor, Department of Diagnostic Sciences, Texas A&M Health Science Centere Baylor College of Dentistry.
Received for publication Jan 25, 2013; returned for revision Apr 2, 2013; accepted for publication Apr 6, 2013.
Ó 2013 Elsevier Inc. All rights reserved.
2212-4403/$ - see front matter
http://dx.doi.org/10.1016/j.oooo.2013.04.007
Statement of Clinical Relevance
Awareness of intra-oral lymphangioma-like Kaposi sarcoma (KS), a rare histological variant of KS, is important for oral pathologists, especially when the patient’s human immunodeficiency virus (HIV) status is not known. In 3 of our cases, this resulted in the diagnosis of unsuspected HIV infection.
84
absence of a unique clinical presentation and a prog- nostic difference, LLKS is better described as a histo- logical variant, rather than a clinicopathologic entity.
Fifty-three cases of LLKS have been reported in the English language literature and of these cases 30 were confined to the skin, while 23 were reported in the oral cavity.11-14This variant accounts for less than 5% of KS cases in 1 reported series.15LLKS histological pattern has also been reported in 3 of the clinical subtypes of KS (classic KS, endemic KS, and AIDS-associated KS), but as yet has not been seen in transplant-associated KS.
LLKS in the skin has been reported most frequently in older men between 59 and 80 years of age and most often in the skin of the lower extremity.8,10,14However, in their article studying microscopic patterns of intra- oral LLKS, Bunn et al. report LLKS occurring more frequently in females.11
The histological features of LLKS vary considerably from the traditional KS, in that they consist predomi- nantly of dilated vascular spaces, dissecting the dermal fibrous connective tissue stroma with a delicate strand- like papillary architecture. The endothelial cells lining the vascular spaces are bland, imparting a lymphangioma- like appearance. At times, typical areas of KS are not present in LLKS and LLKS may share histological features with other vascular tumors including lym- phangioendothelioma, hemangioendothelioma, and low- grade angiosarcoma.9 Similar to conventional KS, the identification of HHV8 in lesional tissue is diagnostic for the LLKS variant as well.9Immunohistochemical anal- ysis for the latency-associated nuclear antigen (also called latent nuclear antigen) is a sensitive and specific marker to establish HHV8 infection.16 Both endothelial markers (CD31 and CD34) and lymphatic markers (podoplanin, also called D2-40) are expressed in KS and its histological variants like LLKS. With the expression of both endo- thelial and lymphatic markers, the histogenetic origin of KS is still debated.1
Although LLKS has been incorporated as a subtype in a recently published microscopic study regarding intra-oral KS in South Africa,11LLKS is a rare variant of KS in the US. We present the first case study, collected from 3 institutions, on the clinical and
area that felt ‘boggy’ on palpation (Figure 1A). His medical history was significant for fatigue, night sweats, and chronic sinus problems. The HIV status of patient was unknown. A biopsy of the erythematous area showed mucosa lined by parakeratinized stratified squamous epithelium. Immediately underneath the epithelium, there were numerous dilated, anastomosing vascular spaces arranged in an edematousfluid-filled background in the lamina propria (Figure 1B and C). The delicate strand-like architecture of some of the anastomosing vessels protruded like papillary projections into the larger dilated spaces. The vascular spaces were lined by endothelial cells with bland morphology and vesicular nuclei. Very few of the vascular spaces contained erythrocytes. Most of the vascular channels were either empty or contained fluid. There was a prominent inflammatory infiltrate, predominantly lymphoplasmacytic in thefibrous stroma.
Underneath the superficial anastomosing blood vessels, there was a small cellular focus of spindle cells in the deeper portion of the specimen (Figure 1D and E).
However, there was minimal erythrocyte extravasation and no obvious mitotic cells. Except the focal area of spindle cells, the tissue was remarkably similar to inflamed granulation tissue. Immunohistochemical studies for HHV8 (Leica Microsystems, Buffalo Grove, IL, USA) and D2-40 (Covance, Princeton, NJ, USA) were performed and the results revealed positive staining for HHV8 (result not shown) and D2-40 (Figure 1F). A diagnosis of KS was therefore rendered on the basis of the positive HHV8 immunostaining in the nuclei of the lesional cells. The patient was then referred to an oncologist for evaluation of his HIV status and further treatment. The patient was found to be seropositive for HIV and received treatment for AIDS. The palatal lesion was reported to be resolved at the 6-month follow-up appointment.
Case 2
A 45-year-old white male patient, who was HIV sero- positive, had periodontal disease and a nodular mass of the maxillary alveolar ridge and palate. He was referred to an oral surgeon for tooth extraction and a biopsy of the mass to confirm the clinical provisional diagnosis
of KS. Histopathological analysis of the biopsy specimen revealed markedly dilated anastomosing vascular spaces lined by endothelial cells with a bland morphology in the lamina propria (Figure 2). The smaller vessels had a papillary architecture. Spindled cells, mitotic activity, and extravasation of erythrocytes were not seen. Immu- nohistochemistry showed positive staining for HHV8 in the lesional cells, and a diagnosis of LLKS was estab- lished. The positive immunostaining for D2-40 was observed only in the endothelial cells lining the lymphatic spaces and was less intense than in the other cases.
Case 3
A thin, but otherwise healthy appearing 37-year-old African American male presented with “granulation tissue” of the right and left retromolar areas. Both the
right and left retromolar lesions were excised and were diagnosed histologically as chronically inflamed granu- lation tissue. Seven months later the patient presented with swollen, necrotic appearing tissue in the same locations. A panoramic radiograph demonstrated mandibular bone loss beneath the soft tissue swellings.
His HIV status was unknown at the time of biopsy. The second biopsy specimens showed focal areas of granu- lation tissue similar to the first biopsy specimen. In addition, there were areas showing large anastomosing vascular channels lined by endothelial cells with a bland cytomorphology (Figure 3A and B). However, the majority of the specimen showed very closely arranged vascular spaces (Figure 3C). There was also a focal area of spindle cells, which had occasional mitoses. A plas- macytic infiltrate was noted. An immunohistochemical Fig. 1. Clinical, histological, and immunohistochemical features of case 1. (A) Intra-oral photograph shows the mirror image of an erythematous swelling in right maxillary tuberosity and palate area. (B) The characteristic anastomosing vessels impart a lymphangioma-like appearance (hematoxylin-eosin stain, original magnification 4). (C) Prominent papillary tufting is seen (hematoxylin-eosin stain, original magnification 10). (D) A focal area of spindle cells is seen in the deeper aspect of the specimen (hematoxylin-eosin stain, original magnification 4). (E) An absence of prominent extravasation of erythrocytes and any obvious mitoticfigures is noted (hematoxylin-eosin stain, original magnification 10). (F) Immunohistochemical studies for podoplanin (D2-40) demonstrate cytoplasmic staining in the cells lining the vascular spaces (anti-D2-40 stain, original magnification 20).
stain for HHV8 was performed and it showed positive nuclear staining which confirmed the diagnosis of KS.
D2-40 immunostaining also showed the presence of the protein in the endothelial cells lining the vascular spaces.
Case 4
A 54-year-old male presented with a purple mass extending to involve the posterior hard palate, soft palate, and oropharynx. He first noticed the mass 7 months ago. He had been HIV-positive for approxi- mately 2 decades and had been placed on highly active anti-retroviral therapy (HAART) therapy. At the time of presentation, he was not on HAART therapy and his CD4 count was reported to be 97. An incisional biopsy of the palatal lesion showed numerous dilated vascular
spaces (Figure 4). In addition, this specimen demon- strated a prominent papillary epithelial hyperplasia. An immunohistochemical study for HHV8 showed positive nuclear staining in the lesional cells and confirmed the diagnosis of KS. Immunohistochemical results for D2- 40 also demonstrated positive staining in the endothe- lial cells.
Case 5
A 35-year-old Caucasian male patient, whose HIV status was unknown, presented with bilateral purplish nodular lesions in the palate extending from the soft palate pos- teriorly to the premolar areas anteriorly and extending almost to the midline. An incisional biopsy of the affected area was performed and histological analysis is noted. No mitoticfigures are seen (hematoxylin-eosin stain, original magnification 10).
Fig. 3. Histological features of case 3. (A) Dilated vascular spaces arranged in anastomosing patterns are seen prominently in the lamina propria (hematoxylin-eosin stain, original magnification 4). (B) Prominent papillary tufting is noted (hematoxylin-eosin stain, original magnification 10). (C) Predominant areas showed closely arranged vascular spaces, simulating a spindle cell architecture (hematoxylin-eosin stain, original magnification 4).
revealed anastomosing dilated vascular spaces without a spindle cell component or significant erythrocyte extravasation (Figure 5A). Mitotic activity was sparse and no significant inflammatory component was seen (Figure 5B). A positive immunohistochemical reaction in the nuclei of the endothelial cells for HHV8 established the diagnosis of KS (Figure 5C). D2-40 immunostaining was also performed and observed to be positive in the endothelial cells lining the lymphatic spaces. Following the diagnosis of KS, the patient underwent additional tests and was reported to be seropositive for HIV.
DISCUSSION
LLKS has been described in endemic KS, AIDS- associated KS, and classic KS.8-10 All our intra-oral cases were AIDS-associated KS. Clinically, LLKS has been described as bullous or cystic lesions as well as red or purple patches, plaques, or nodules on the skin.
In all our 5 intra-oral cases, the lesions were described as erythematous swellings or nodular mass lesions.
The unusual histological pattern in the LLKS variant makes it essential for pathologists to be aware of this pattern to avoid misdiagnosis. It typically presents as Fig. 4. Histological features of case 4. (A) A prominent papillary epithelial hyperplasia is seen in the surface of the specimen (hematoxylin-eosin stain, original magnification 4). (B) Dilated vascular spaces without spindle cells are seen in the lamina propria (hematoxylin-eosin stain, original magnification 10).
Fig. 5. Histological and immunohistochemical features of case 5. (A) The characteristic appearance of LLKS is seen predomi- nantly with no focal areas of spindle cells (hematoxylin-eosin stain, original magnification 4). (B) A bland cytomorphology without any pleomorphism or mitoticfigures is observed (hematoxylin-eosin stain, original magnification 10). (C) Immuno- histochemistry for HHV8 demonstrates positive staining of nuclei, especially in cells lining the vascular spaces (anti-HHV8 stain, original magnification 20).
predominantly lymphoplasmacytic infiltrate has often been described in these lesions and is also seen in our intra-oral cases 1, 2, and 3. In a recent retrospective article studying 23 cases of intra-oral LLKS, Bunn et al.
report that the classic features of KS were present in most cases facilitating diagnosis.11 However, the spindle cell component with prominent extravasation of blood cells that typically characterizes KS was not present in most of our cases. Therefore, recognizing this lymphangioma-like pattern as a variant of KS helps to avoid misdiagnosis, especially in patients whose HIV status is unknown, such as in our cases 1, 3, and 5.
The development of bullous lesions or lymphangioma- like areas in KS is peculiar, and whether the lesional cells in these areas are neoplastic in nature has been a subject of debate. Ronchese and Kern attributed these areas to lymphangiectasia, secondary to obstruction by the neoplasm.4Gange and Jones contended that these bullous lesions were primarily a neoplastic process and not a secondary edematous change.17 Recent studies also demonstrated the presence of HHV8 in the cells lining the lymphangioma-like areas, which supports a neoplastic theory.9,18,19 In all our 5 intra-oral cases, the immuno- histochemical staining for HHV8 had shown positive staining in the cells in the lymphangioma-like areas.
This finding also supports the neoplastic nature of the lymphangioma-like areas in KS.
Although the histogenetic origin for KS cells has been debated, recently it has been shown that KS cells expressed lymphatic markers in addition to the pan- endothelial markers CD31 and CD34.20-22 Podoplanin (D2-40) is a membrane protein that has been reported to be expressed in lymphatic endothelial cells and also in KS lesional cells.20,24 Our results showed positive cytoplasmic and membranous staining in the lesional cells in all our 5 cases, similar to the results reported by Grayson and Pantanowitz.23 The positive immunore- activity for podoplanin in our series supports the hypothesis of a possible lymphatic origin or lymphatic differentiation in KS.
Another histological variant of KS that could also present with bullous skin lesions was recently described by Pantanowitz and Duke as lymphangiectatic KS.15
in which the typical KS features (spindle cell prolifer- ation with erythrocyte extravasation) are not evident. It is important for pathologists to recognize this unusual variant of KS, especially when the characteristic spindle cell component of KS is not present or the HIV status of the patient is not known.
REFERENCES
1. Weiss SW, Goldblum JR, Enzinger FM. Enzinger and Weiss’s Soft Tissue Tumors. 4th ed. St. Louis: Mosby; 2001.
2. Weedon D, Strutton G. Skin Pathology. 2nd ed. London:
Churchill Livingstone; 2002.
3. Chang Y, Cesarman E, Pessin MS, et al. Identification of herpesvirus-like DNA sequences in AIDS-associated Kaposi’s sarcoma. Science. 1994;266:1865-1869.
4. Ronchese F, Kern AB. Lymphangioma-like tumors in Kaposi’s sarcoma. AMA Arch Dermatol. 1957;75:418-427.
5. Borroni G, Brazzelli V, Vignoli GP, Gaviglio MR. Bullous lesions in Kaposi’s sarcoma: case report. Am J Dermatopathol.
1997;19:379-383.
6. Miller RM, Leibowitz MR. The radiological features of lymphangioma-like Kaposi’s sarcoma. A case report. S Afr Med J.
1979;56:146-148.
7. Leibowitz MR, Dagliotti M, Smith E, Murray JF. Rapidly fatal lymphangioma-like Kaposi’s sarcoma. Histopathology. 1980;4:
559-566.
8. Cossu S, Satta R, Cottoni F, Massarelli G. Lymphangioma-like variant of Kaposi’s sarcoma: clinicopathologic study of seven cases with review of the literature. Am J Dermatopathol. 1997;19:
16-22.
9. Ramirez JA, Laskin WB, Guitart J. Lymphangioma-like Kaposi sarcoma. J Cutan Pathol. 2005;32:286-292.
10. Davis DA, Scott DM. Lymphangioma-like Kaposi’s sarcoma:
etiology and literature review. J Am Acad Dermatol. 2000;43:
123-127.
11. Bunn BK, Carvalho Mde V, Louw M, Vargas PA, van Heerden WF. Microscopic diversity in oral Kaposi sarcoma. Oral Surg Oral Med Oral Pathol Oral Radiol. 2013;115:241-248.
12. Kalambokis G, Kitsanou M, Stergiopoulou C, Zioga A, Dimou S, Tsianos EV. Lymphangioma-like Kaposi’s sarcoma with gastric involvement in a patient with lung cancer. J Eur Acad Dermatol Venereol. 2005;19:653-654.
13. Posada Garcia C, Garcia-Cruz A, Garcia-Doval I, De La Torre C, Cruces MJ. Lymphangioma-like Kaposi sarcoma: case report.
Dermatol Online J. 2009;15:13.
14. Mohanna S, Sanchez J, Ferrufino JC, Bravo F, Gotuzzo E.
Lymphangioma-like Kaposi’s sarcoma: report of four cases and review. J Eur Acad Dermatol Venereol. 2006;20:1010-1011.
15. Pantanowitz L, Duke WH. Lymphoedematous variants of Kapo- si’s sarcoma. J Eur Acad Dermatol Venereol. 2008;22:118-120.
16. Hammock L, Reisenauer A, Wang W, Cohen C, Birdsong G, Folpe AL. Latency-associated nuclear antigen expression and human herpesvirus-8 polymerase chain reaction in the evaluation of Kaposi sarcoma and other vascular tumors in HIV-positive patients. Mod Pathol. 2005;18:463-468.
17. Gange RW, Jones EW. Lymphangioma-like Kaposi’s sarcoma. A report of three cases. Br J Dermatol. 1979;100:327-334.
18. Noel JC, de Thier F, de Dobbeleer G, Heenen M. Demonstration of herpes virus 8 in a lymphangioma-like Kaposi’s sarcoma occurring in a non-immunosuppressed patient. Dermatology.
1997;194:90-91.
19. Somos S, Farkas B. Immunomodulatory treatment with low-dose interferon-alpha and oral retinoic acid in lymphangioma-like Kaposi’s sarcoma. Anticancer Res. 2000;20:541-545.
20. Kandemir NO, Barut F, Gun BD, et al. Lymphatic differentiation in classic Kaposi’s sarcoma: patterns of D2-40 immunoexpression in the course of tumor progression. Pathol Oncol Res. 2011;17:
843-851.
21. Kahn HJ, Bailey D, Marks A. Monoclonal antibody D2-40, a new marker of lymphatic endothelium, reacts with Kaposi’s sarcoma and a subset of angiosarcomas. Mod Pathol. 2002;15:434-440.
22. Carroll PA, Brazeau E, Lagunoff M. Kaposi’s sarcoma-associated herpesvirus infection of blood endothelial cells induces lymphatic differentiation. Virology. 2004;328:7-18.
23. Grayson W, Pantanowitz L. Histological variants of cutaneous Kaposi sarcoma. Diagn Pathol. 2008;3:31.
24. Kalof AN, Cooper K. D2-40 immunohistochemistrye so far!
Adv Anat Pathol. 2009;16:62-64.
Reprint requests:
Pavithra Pugalagiri, BDS, MS Department of Diagnostic Sciences Baylor College of Dentistry
3302 Gaston Ave., Dallas, TX 75246, USA pavithra.kannan@gmail.com
