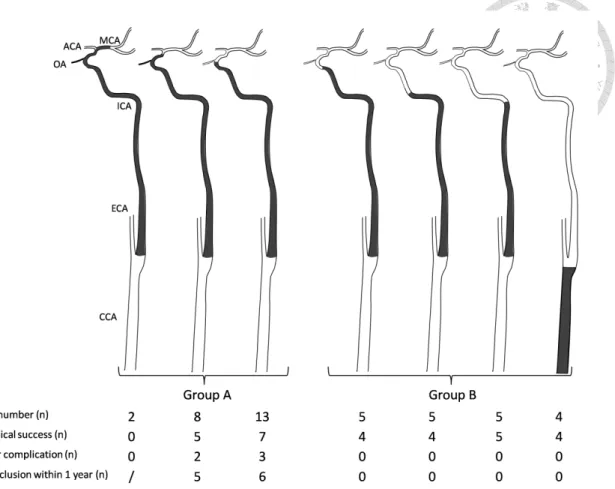

Figure 3-1: Sub-classification of carotid occlusions and their outcomes ... 40
Figure 3-2: One-year patency after endovascular recanalization for chronic carotid artery occlusion in different groups ... 41
V
表目錄
Table 1-1: Acquisition Protocols of CT scanners ... 11
Table 2-1: Summary of 22 Patients with 24 Dural AVFs ... 25 Table 2-2: Diagnostic Performance of Imaging Signs at Hybrid CTA ... 26
Table 2-3: Interobserver Agreement in Reading Imaging Signs at Hybrid CTA ... 27 Table 2-4: Comparison of DSA with Readers for Grades Assigned to 24 Dural AVFs . 28
Table 3-1: Demographics and clinical characteristics of all patients with chronic carotid occlusion. ... 42 Table 3-2: Odds ratio for clinical predictors of stent occlusion in technically successful patients ... 43 Table 3-3: Univariable non-parametric survival analysis of clinical predictors for one-year stent patency. ... 44
doi:10.6342/NTU201603776
Chapter 1
Hybrid Subtraction Computed Tomography Angiography
1.1 Introduction
Digital subtraction angiography (DSA), which is the standard for the diagnosis of intracranial vascular diseases, has a neurologic complication rate of 0.07%–1.3% [1,2].
Computed tomographic angiography (CTA) allows for rapid diagnosis and treatment decisions because acquisition of images is quick even in confused or uncooperative patients [3] and may be used as a first-line study in patients with acute ruptured cerebral aneurysm [4,5] and steno-occlusive diseases [6,7]. With algorithms for bone removal such as direct subtraction, local subtraction [8], and matched mask bone elimination (MMBE) [9], CTA provides even better image quality than standard CTA. The shortcomings of these various bone removal methods are complexity of use, operator dependence, high radiation dose, difficulties in differentiation of arterial loops or infundibula from the aneurysm, and the obscuring of an aneurysm in the cavernous internal carotid artery [9]. Hybrid CTA is a mixed bone subtraction and masking method for bone removal in CTA that can help demonstrate vessels close to or inside the skull bones.
1.2 Image Acquisition
Our routine CT angiographic protocol consisted of a combination of scanning before and after the administration of contrast material from the arch to the vertex (average, 32 cm) for direct subtraction. The acquisition protocol for each CT scanner is listed in Table 1-1. Twelve milliliters of contrast material (Ultravist 370; Bayer Schering Pharma, Berlin, Germany) was injected followed by 16 mL of normal saline at
1
a rate of 4 mL/sec for a bolus test, which was scanned at a 2-second interval at the level of the ascending aorta so that the time required for peak enhancement (Tpeak) could be obtained. Then, 60 mL of contrast material followed by 35 mL of normal saline at a rate of 4 mL/sec was injected for the CT angiographic acquisition. To minimize patient movement, the precontrast scan was obtained simultaneously during contrast material injection, and the postcontrast scan was obtained after a delay (Tdelay). The acquisition time plus the Tdelay was equal to Tpeak + 4 to 8 seconds according to the table speed to obtain an early venous phase at the level of skull base. Normal venous structures at skull base level should be faintly enhanced for better evaluation of arteries and veins.
The peak tube voltage (KVp) was 100KV rather than routine 120KV in our protocol for each scanner. For the same tube current, decrease of KVp from 120KV to 100KV resulted in about 1/3 dose reduction with acceptable contrast to noise ratio. The reduced dose was shift to the pre-contrast scan, which had half radiation dose of the post-contrast scan. This protocol did not increase the overall radiation doses of the patients. However, with the pre-contrast images, bone removal could be easily performed by software.
1.3 Image Processing
Using our subtraction CTA protocol, the result of direct subtraction could be adequate if the patient did not have motion during scanning. However, in most cases, registration for precontrast and postcontrast images should be performed first (Figure 1-1). The source images were transferred to a personal computer with operating system of Windows 7. A home-made prototype program written on Matlab was used.
Precontrast and postcontrast directories were selected, and the result would be saved in
doi:10.6342/NTU201603776 a new assigned directory. We used a rigid registration for pixels with density more than
150 Hounsfield Unit (HU). However, whole volume rigid registration was occasionally unsatisfactory. The whole volume was separated into many cubes consisting 32x32x32 pixels. Each cube was further registered in local region to achieve a better whole volume registration. After whole volume registration, the bones could be subtracted almost completely (Figure 1-2). Then, a mask was produced by using a threshold level of 150 HU in the precontrast images. The mask was slightly widened by means of dilation [10] with 1 pixel, as suggested in the original MMBE method [11], to allow for partial volume effects and slight mismatch between registered precontrast and postcontrast images. We performed subtraction in the masking area. Subtraction was sensitive to mis-registration, and our registration method could usually achieve the requirement. The postcontrast images were processed according to the mask: In the masking area, the value was defined as the postcontrast value minus the precontrast value plus 40 HU; out of the masking area, only the postcontrast value was preserved.
The purpose of adding 40 HU was to make a background similar to that of the soft tissue (soft tissue compensation) (Figure 1-3). The processed images were transferred to the workstation (Advanced Workstation 3.1, GE Healthcare) for reconstruction and evaluation.
1.4 Impact of Hybrid Subtraction CTA
Recently, many bone removal techniques, including direct subtraction CTA, and MMBE CTA, were developed for diagnosing cerebral aneurysms. In the algorithm of MMBE CTA, the transosseous or intraosseous vessels will be masked and become poorly visualized because partial volume effect and the dilation operation could change the vessel pixels (which touching the bone) into mask during processing. MMBE CTA
3
could obliterate minor mis-registration artifacts within the bone area. If registration was not perfect, the result of MMBE CTA would look better than subtraction CTA. By using direct subtraction CTA, one can obtain an image of the existence of contrast material (similar to DSA) that can be used for diagnosis. However, the contrast-to-noise ratio decreases, especially when a low-dose precontrast scan is used for masking.
MMBE CTA removes bone, as well as adjacent tissues, which are frequently affected by certain vascular disorders. Vessels traversing in or on the bones may also be eliminated. Our hybrid technique can be used to perform subtraction in the masked area and can keep postcontrast image data out of the masked area. (Figure 1-4, Figure 1-5)
Hybrid CTA has the advantage of demonstrating the transosseous or intraosseous vessels. (Figure 1-6) This makes diagnosis of vascular diseases in or adjacent to the bones possible. Hybrid CTA can provide a rapid diagnosis in many clinical situations because of its quick acquisition and non-invasive nature.
doi:10.6342/NTU201603776 Figure 1-1: Hybrid bone subtraction without registration (a) and after registration (b).
Mis-registration artifacts decreased significantly.
5

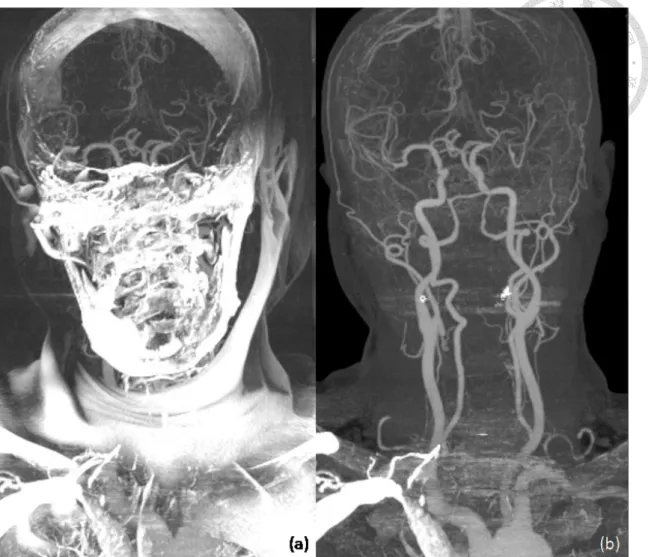

Figure 1-2: Thick maximal intensity projection (MIP) of subtraction CTA (a) without bone registration (b) with bone registration. The image quality improves after bone registration.
doi:10.6342/NTU201603776 Figure 1-3: Generation of hybrid bone subtraction CTA after registration. (a)
Postcontrast image (CTA). (b) Precontrast image. (c) Bone mask generated from precontrast image by threshold (>150HU) and 1-pixel dilatation. (d) MMBE image from CTA with soft tissue value (40HU) in bone mask. (e) Hybrid bone subtraction CTA with simple subtraction in the mask, resulting in lower density in the bone. (f) Hybrid bone subtraction CTA with soft tissue compensation to achieve an even background.
7

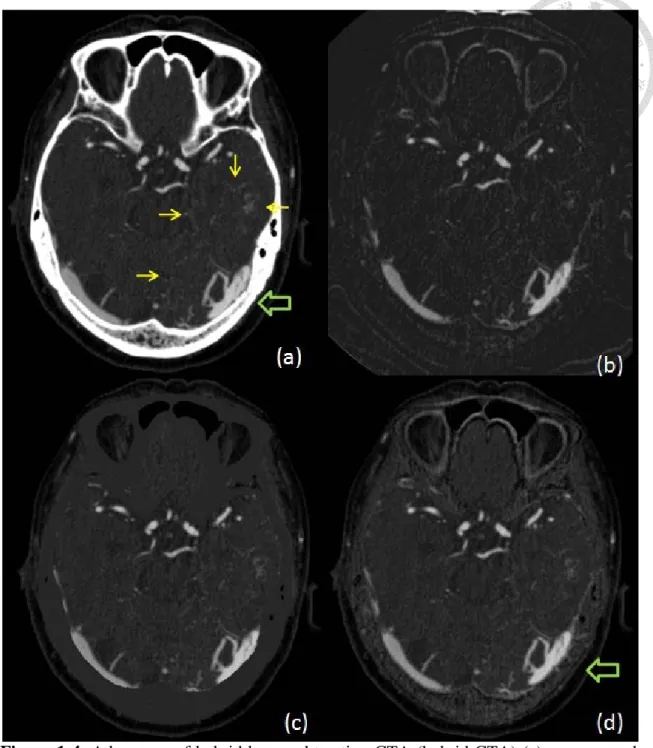

Figure 1-4: Advantage of hybrid bone subtraction CTA (hybrid CTA) (a) unprocessed CTA image showed early enhancing isolated left transverse sinus (large arrow) and multiple engorged medullary veins in left temporal lobe and left cerebellum (surrounded by small arrows). (b) subtraction CTA increased noises in the brain parenchyma, the engorged medullary veins were masked by noise. (c) MMBE CTA masked the information in and adjacent to bones. (d) hybrid CTA preserved the information in brain parenchyma, and added information in the bones (large arrow).
doi:10.6342/NTU201603776 Figure 1-5: Images in 60-year-old man with pulsatile tinnitus. Images were obtained
with (a) MMBE, (b) direct subtraction, and (c) hybrid subtraction (hybrid CTA). (b, c) Arrow = prominent transosseous arteries supplying the arteriovenous fistula. Tiny channels in the bone can be seen; these arteries are not seen on (a). Higher image noise can be seen on (b). In this case, hybrid CTA on (c) outlined the abnormal vessels best.
9

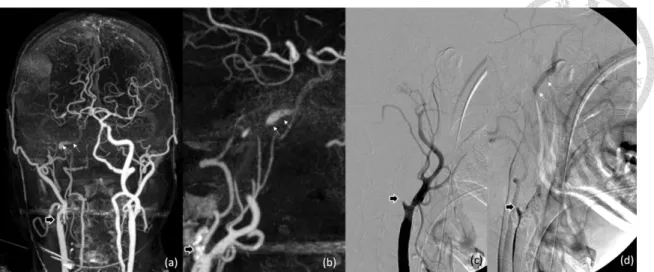

Figure 1-6: Maximal intensity projection (MIP) of hybrid CTA in frontal projection (a) and lateral projection (b). Lateral projection of right carotid angiography at early arterial phase (c) and late arterial phase (d). Black arrow indicated the occlusion point of proximal internal carotid artery (ICA). White arrows indicated reconstitution of petrous segment of ICA, which was clearly seen on hybrid CTA.
doi:10.6342/NTU201603776 Table 1-1: Acquisition Protocols of CT scanners
CT scanner Collimation (mm)
Pitch Rotation (sec)
KVp (kV)
Tube Current (mA) C-/C+
GE Lightspeed VCT
(before 2010) 32x0.625 0.969 0.4 100 200/400
GE Lightspeed VCT
(after 2010) 64x0.625 0.984 0.4 100 200/400
Siemens Sensation 64 64x0.6 0.8 0.33 100 243/484
Philips Ingenuity CT 64x0.625 1.015 0.4 100 100/250 KVp: Kilovoltage peak. C-: precontrast. C+: postcontrast.
11
Chapter 2
Hybrid CTA in Diagnosis and Treatment Planning of Dural Arteriovenous Fistulas
2.1 Introduction
Dural arteriovenous fistulas (AVFs) occur at dural sinuses, which are proximate to or inside the skull bones. Because of the overlapping bone structures, it is difficult to demonstrate the detailed vascular pattern and to make a diagnosis of dural AVF with conventional CTA, especially in small lesions. Magnetic resonance (MR) imaging and MR angiography were thought to be more useful in the diagnosis of dural AVF [12-14], but they cannot be used in patients with a non-MR-compatible pacemaker or in uncooperative patients. To our knowledge, the use of CTA for the diagnosis of dural AVF remains uncommonly reported. A hybrid CTA can help demonstrate vessels close to or inside the skull bones that makes diagnosis of dural AVF possible. The purpose of this study was to analyze the diagnostic effectiveness and application of CTA by using hybrid CTA algorithm in dural AVFs.
2.2 Materials and Methods
2.2.1 Patient and Control Populations
This study was approved by our institutional review board. In this study, the comparison between hybrid CTA and DSA, the determination of the presence of specific imaging signs for diagnosis of dural AVFs at hybrid CTA, and the test of inter-observer agreement were performed retrospectively. However, we used hybrid
doi:10.6342/NTU201603776 CTA in treatment planning before the patients underwent endovascular treatment. From
January 1, 2008, to March 31, 2009, 167 patients under-went both cerebral CTA and DSA in National Taiwan University Hospital (Taipei, Taiwan). We divided the patients into two groups: patients with a dural AVF (n=22, 10 women and 12 men; age range, 41–77 years; mean age, 60.3 years ± 11.3) and patients without a dural AVF, the control group. The control group (n=14, six female and eight male subjects; age range, 17–77 years; mean age, 61.9 years ± 17.1) included patients who did not have any cerebrovascular abnormalities noted at DSA; patients excluded from the control group included those with cerebral arteriovenous malformation (n=3), those with aneurysm (n=59), those with direct carotid artery–cavernous fistula (n=6), those with cerebral space-occupying lesions (n=2), those with dural sinus thrombosis (n=3), those with moyamoya disease (n=6), those with a large stroke (n=48), and those who had undergone external carotid artery–internal carotid artery bypass surgery (n=4).
2.2.2 Image Evaluation
Identification information was removed from the hybrid CT angiographic source images and maximum intensity projection images, and the images were evaluated independently by two neuroradiologists who were blinded to the clinical data and results of diagnostic CT and DSA. The methods of interpretation included multiplanar reformation (MPR), maximum intensity projection (MIP), and volume rendering. The comparison between hybrid CTA and DSA, the determination of presence of imaging signs for diagnosis of dural AVFs, and the test of inter-observer agreement were performed retrospectively with high-brightness liquid crystal display monitors (3 megapixels, 1536 3 2048 native resolution, monochrome). From the final post-processed images, the readers recorded the presence and location (left side, right
13
side, or midline) of dural AVFs and the presence of imaging signs, including engorged arteries, transosseous enhanced vessels, engorged extracranial veins, engorged cortical veins, asymmetric sinus enhancement, and the associated dural sinus occlusion. We assigned grades to the dural AVFs by using the system proposed by Cognard et al [15].
DSA images were used as the reference standard.
2.2.3 Treatment Planning
The treatment was planned according to the grade of dural AVF. In our institution, transvenous embolization was the method of choice for treating dural AVFs if there was no normal cortical vein draining into the lesion sinus and the lesion sinus was accessible.
We used all available imaging data for treatment planning, including images from hybrid CTA, DSA, and MR angiography. Treatment planning with hybrid CTA was performed before the patients received endovascular treatment. We applied the imaging data to analyze the best route to approach the point of the fistula. We usually designed two routes for the transvenous approach for each case. In those patients with an occluded sinus, we always tried to cross the occluded access site. If the transvenous approach failed or preservation of normal cortical venous drainage was technically difficult, we changed the treatment to transarterial embolization (eg, occlusion of the feeder vessels and fistulas with liquid embolic material or applying coils to the fistula after accessing the fistula from the arterial route).
2.2.4 Statistical Analysis
We compared the imaging findings and grades of dural AVF obtained with hybrid CTA with those obtained with DSA. Sensitivity, specificity, positive predictive value, and negative predictive value were calculated for the six CT angiographic imaging
doi:10.6342/NTU201603776 findings (engorged artery, transosseous enhanced vessels, engorged extracranial vein,
engorged cortical vein, asymmetric sinus enhancement, and dural sinus occlusion) individually and overall. The adjusted Wald method was used to estimate the 95%
confidence intervals (CIs) of observed rates. The Cohen un-weighted κ statistic was used to assess the level of inter-observer agreement with regard to imaging signs for diagnosis of dural AVFs seen with hybrid CTA. A value of less than 0.20 implied poor agreement; values of 0.21–0.40, fair agreement; values of 0.41–0.60, moderate agreement; values of 0.61–0.80, substantial agreement; and values of 0.81–1.00, almost perfect agreement [16]. The 95% CI and Cohen κ were computed with online calculators [17,18].
2.3 Results
2.3.1 Patients
Of 22 patients, two (patients 8 and 10) had two dural AVFs each; thus, there were a total of 24 dural AVFs. Table 2-1 lists the demographic information, clinical manifestations, lesion locations, treatments, and outcomes for the 22 patients with 24 dural AVFs. There was no significant difference in age distribution (P=0.579) and birth sex (P=0.728) between the control subjects and patients with dural AVF.
2.3.2 Imaging Analysis
All 24 dural AVFs were examined with DSA and hybrid CTA. In all 24 lesions, at least two of the six imaging signs were present (Figure 1-5, Figure 2-1). Overall, the most common imaging finding was asymmetric sinus enhancement; this was not present in only the two patients with a dural AVF in the superior sagittal sinus. In the control
15
group, three subjects had a false-positive finding (two patients had a transosseous enhanced vessel, one patient had asymmetric sinus enhancement) and two had a false-negative finding (both had asymmetric sinus enhancement). The sensitivity, specificity, positive predictive value, and negative predictive value of the two readers in consensus are listed in Table 2-2. The κ test (Table 2-3) revealed a high level of interobserver agreement in the reading of the imaging signs. The best agreement was in regard to sinus occlusion and asymmetric sinus enhancement, followed by transosseous enhanced vessels.
As compared with the grade assigned with DSA (Table 2-4), the observed agreement between DSA and the readers was 100% for cavernous sinus, hypoglossal, and clival lesions and 78%–89% for lesions in the transverse sigmoid sinus.
2.3.3 Treatment Planning
Treatment planning by using hybrid CTA was performed before the patients received endovascular treatment. Hybrid CTA can provide additional information in identifying the best route of approach to treat the dural AVF. In osteodural type dural AVFs, the pathway between the drained sinus and the fistula is very tortuous and small.
Hybrid CTA can provide the road map about the best route to approach the lesion (Figure 2-2). In those dural AVFs that involved only the dura mater, hybrid CTA can localize exactly the fistula site inside the dura mater and its relationship to adjacent normal cerebral venous drainage and sinus (Figure 2-3). Hybrid CTA can also provide a high-resolution birds-eye view of the dural AVFs (Figure 2-4), which cannot be obtained with DSA. Although the drained sinus of the dural AVF was occluded, hybrid CTA can provide the information about localization and pathway for the trial to cross the occluded sinuses. In this series, nine patients were treated with the transvenous
doi:10.6342/NTU201603776 approach, seven patients who were originally to be treated with the transvenous
approach were treated with the transarterial approach, seven patients made a decision not to receive any treatment during the study period, and one patient was treated with stereotactic radiosurgery (Table 2-1). All nine patients in whom the transvenous approach was used were treated by using a route planned according to the results of hybrid CTA. In the patients who finally were treated with the transarterial approach (Figure 2-4), either treatment failed with the transvenous route or use of this route was not safe.
2.4 Discussion
The difficulty of bone removal limits the application of CTA in the diagnosis of dural AVF. In one re-cent report [19], CTA had a sensitivity of 15.4% in the diagnosis of dural AVF. In our study, we proved that hybrid CTA is a promising tool for the diagnosis of dural AVF. DSA can help in the diagnosis of dural AVF, can depict the supplying arteries, and can aid characterization of the draining system of dural AVF.
The latter determines the clinical presentation, grade, and therapeutic strategy in patients with a dural AVF [15,20,21]. Our results suggest that hybrid CTA could be used to determine the diagnosis in all types and grades of dural AVFs, to demonstrate the feeder artery, to aid localization of the lesion, and to show the pattern of venous drainage. One patient in the control group had a false-positive sign of asymmetric early venous enhancement. From DSA, we found that the patient had dominant drainage of the superior sagittal sinus to the right transverse sinus, which was less enhanced compared with the left side at hybrid CTA. We speculate that the vein of Labbé was diluted more at the dominant right transverse sinus owing to nonopaque blood flow coming from the superior sagittal sinus. Asymmetric opacification of the transverse and
17
sigmoid sinuses during CTA is a rather common finding, likely secondary to the preferential direction of opacified blood flow to the dominant sinus at the early time of arterial scanning. This asymmetry disappears when late-phase venous scans are obtained. Two patients had a false-positive sign of transosseous enhanced vessels in the occipital bone near the sigmoid sinus. We speculate that these were emissary veins. We were not able to identify the direction of the vessels inside the cranium with hybrid CTA. We need to emphasize that finding at least two imaging signs present is the key to making the right diagnosis in dural AVFs.
Two patients with a dural AVF in the superior sagittal sinus did not have asymmetric sinus enhancement. In general, the vertex superior sagittal sinus becomes densely enhanced near the end of the scan. As such, enhancement asymmetry may not be apparent in a patient with a dural AVF at or close to the vertex superior sagittal sinus.
However, other signs allowed diagnosis of dural AVF even in these patients with dural AVF of the superior sagittal sinus. Dural AVFs can be divided into two major groups according to their locations: cavernous sinus and non-cavernous lesions. In cavernous sinus dural AVFs, frequent findings include asymmetric early sinus enhancement and engorgement of the extracranial veins (frequently superior ophthalmic veins). Engorged arteries are infrequently seen in cavernous sinus dural AVFs because of their relatively small size. In non-cavernous dural AVFs, engorged arteries are more frequently seen.
Engorgement of cortical veins and extracranial veins depend on the size and the drainage patterns of the dural AVF. On the basis of our results, hybrid CTA is highly sensitive for different types of dural AVFs, especially in patients with the osteodural-type lesion. Hybrid CTA has the advantage of demonstrating the transosseous vessels and also the fistula inside the bone structures.
doi:10.6342/NTU201603776 On the basis of our study results, hybrid CTA may also provide sufficient
information for treatment planning. Hybrid CTA can provide additional information for identifying the route of approach to treat dural AVFs. Identification of the draining venous pattern is important for the treatment of dural AVFs [22,23]. Pretreatment planning with hybrid CTA was feasible in our series. Transvenous embolization is one of the treatments of choice for most dural AVFs. Hybrid CTA can be used to eliminate the bone structure, while the image noise in non-bone areas is not increased, and to obtain better three-dimensional volume data.
Our study had limitations. Because this was a retrospective study, the tube current for precontrast scanning could only be reduced by half. The radiation dose for precontrast scanning was slightly higher than that in the scanning protocol recommended for MMBE CTA, in which one-quarter tube current is suggested for a precontrast scan. The effective tube current–time product used in our hybrid CT angiographic scanning protocol was similar to that used in a study on the use of MMBE study [24]; however, the tube voltage is 100 kVp rather than 120 kVp in the proposed hybrid CTA protocol. For example, with the same machine (scanner B in our study) and same irradiated length, the irradiation dose (estimated CT dose index volume) was 9.4 mGy for the precontrast scans and about 18.8 mGy for the post-contrast scans with the hybrid CTA protocol and 7.8 mGy and 28.1 mGy, respectively, in the other MMBE protocols [24]. So, the total irradiation dose is lower with hybrid CTA than with other MMBE methods. A lower peak kilovolt is not used because of the concern about contrast-to-noise ratio on the images.
19
Another limitation of our study was the small number of cases. We could not conclude that hybrid CTA can be used for the diagnosis in all patients with a dural AVF.
False-positive and false-negative rates may be under-estimated because it is difficult to have a large number of patients who undergo DSA without positive hybrid CT angiographic, MR imaging, or MR angiographic findings. In addition, we used subjective findings that have not been well established for diagnosing retro-grade cortical veins. These need to be better defined with further research. In conclusion, we found that hybrid CTA is a valuable tool for the diagnosis of dural AVF. It can provide the key information necessary for treatment planning. Further studies in larger series of patients are warranted.
Note:
This part was published on Radiology 2010.
Lee CW, Huang A, Wang YH, Yang CY, Chen YF, Liu HM. Intracranial Dural Arteriovenous Fistulas: Diagnosis and Evaluation with 64-Dector Row CT Angiography.
Radiology. 2010; 256: 219-228.
doi:10.6342/NTU201603776 Figure 2-1: Patient 8. (a) Lateral DSA image after left external carotid injection shows
isolated left transverse sigmoid sinus dural AVF. (b) Coronal hybrid CT angiogram shows asymmetric sinus enhancement (large arrows), engorged cortical veins (small arrows), and incidental small right proximal transverse sinus dural AVF (arrowheads).
Images from (c) hybrid CTA and (d) MMBE CTA show isolated, occluded transverse sinus. Transosseous enhanced vessels (arrows on c) could be demonstrated only on hybrid CT angiogram.
21
Figure 2-2: Patient 15. Images in 48-year-old man with pulsatile tinnitus and dizziness.
(a) Maximum intensity projection image from hybrid CTA shows dural AVF (arrow) with early enhancement and engorged drainage vein at the left clivus to the paraspinal area. (b) hybrid CTA source image shows fistula in the left clivus (arrow). (c) DSA image of left external carotid artery (L ECA) demonstrates a fistula (arrow) at the left hypoglossal-clival area with paraspinal drainage. The lesion was treated with the transvenous approach according to findings from hybrid CTA through the route of the anterior internal spinal venous plexus. (d) Precontrast image obtained after embolization shows coils inside left clivus.
doi:10.6342/NTU201603776 Figure 2-3:Patient 13. Images in 60-year-old man with pulsatile tinnitus. (a) Lateral
projection of left external carotid artery demonstrates a type IIA dural AVF (Cognard et al [4] classification) at the left transverse-sigmoid sinus area. (b) Left common carotid artery angiogram obtained in the venous phase shows the left vein of Labbé (arrows) also draining into the left transverse sinus. (c) Hybrid CT angiogram obtained with volume rendering shows the fistula (red arrows) actually located at the dura next to the sigmoid sinus. The vein of Labbé (open arrows) is next to the fistula and drains into the transverse sinus.
23

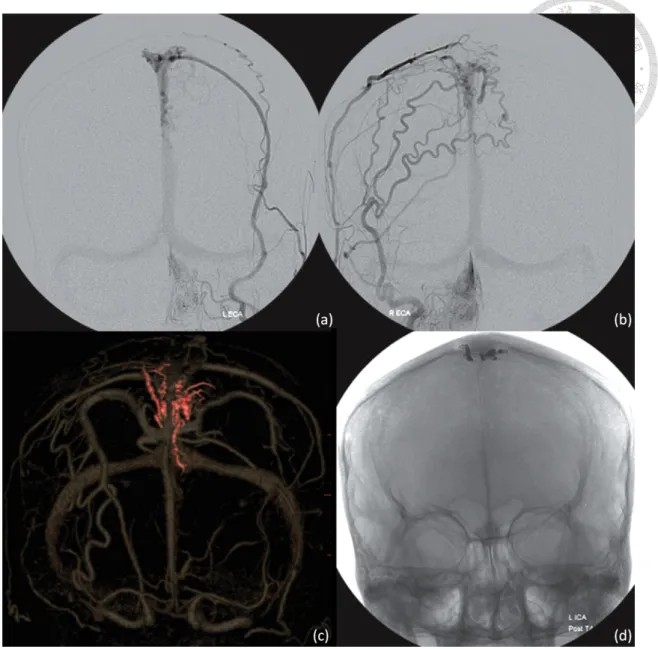

Figure 2-4: Images in 56-year-old woman with pulsatile tinnitus. (a, b) DSA images of bilateral external carotid arteries demonstrate the fistula, engorged cortical vein, and superior sagittal sinus. The relationship between the fistula and the superior sagittal sinus is not clearly shown. (c) Hybrid CT angiogram obtained with volume rendering depicts the fistula inside the bilateral paramedian posterior frontal bones (red), the engorged cortical drainage vein (red), and patent superior sagittal sinus. After transarterial approach with coils deploying in the venous side of the fistula, complete obliteration of the lesion was achieved. (d) Plain radiograph shows platinum coils inside the bilateral paramedian posterior frontal bones.
doi:10.6342/NTU201603776 Table 2-1: Summary of Demographic Information, Clinical Manifestations, Lesion
Locations, Treatments, and Outcomes in 22 Patients with 24 Dural AVFs
Patient
No./Sex/Age(y)
Location Clinical Manifestation Treatment Outcome
Cavernous sinus
1/M/60 CS Chemosis TAE Good
2/M/65 CS Ophthalmoplegia TVE Good
3/F/68 CS Chemosis TVE Good
4/F/69 CS Chemosis TVE Good
5/F/76 CS ICH None SP
Noncavernous sinus
6/F/49 TS Tinnitus None -
7/F/41 TS Tinnitus None -
8a/M/67 TS Incidental TAE Good
9/M/40 TS Tinnitus TVE Good
10a/F/77 TS Dementia TVE Good
11/F/66 TS Tinnitus TAE Fair
12/F/77 TS and adjacent dura Tinnitus SRS Fair
13/M/60 Dura adjacent to TS Tinnitus None -
8b/M/67 SS Venous infarct TVE Good
10b/F/77 Hypoglossal Incidental None -
14/M/50 CH Tinnitus TVE Good
15/M/48 CH Tinnitus, dizziness TVE Good
16/M/60 CH Tinnitus TAE Fair
17/F/56 SSS Tinnitus TAE Good
18/M/46 SSS Incidental None -
19/M/50 Frontal base Incidental None -
20/M/53 Occipital dura Tinnitus TAE Good
21/M/63 Cerebellar falx SAH TAE Good
22/F/62 Parietosphenoid
osseous-dura
Tinnitus TVE Good
Note: Patient 8 and 10 had two dural AVFs (8a and 8b and 10a and 10b, respectively) For patients 8a, 10b, 18, and 19, in the Clinical Manifestation column, incidental means that there were no AVF-associated clinical manifestations, and AVF was detected incidentally when CTA was performed for other diseases.
At presentation, patient 18 had transient ischemic attack, and vertebral artery dissection was diagnosed.
CS=cavernous sinus, TS=transverse sigmoid sinus, SS=sigmoid sinus, CH=clivo-hypoglossal area, SSS=superior sagittal sinus, ICH=intracerebral hematoma, SAH=subarachnoid hemorrhage, TAE=transarterial embolization, TVE=transvenous embolization, SRS=stereotactic radiosurgery
A fair outcome was defined as partial symptom relief
25
Table 2-2: Diagnostic Performance of Imaging Signs at Hybrid CTA
Imaging Sign Sensitivity Specificity Positive Predictive Value
Negative Predictive Value
Engorged artery
Value 0.95(19/20) 1.00(18/18) 1.00(19/19) 0.95(18/19)
95% CI 0.75, 1.00 0.85, 1.00 0.85, 1.00 0.74, 1.00
Transosseous enhancing vessels
Value 0.95(19/20) 0.89(16/18) 0.90(19/21) 0.94(16/17)
95% CI 0.75, 1.00 0.66, 0.98 0.70, 0.99 0.71, 1.00
Engorged extracranial veins
Value 0.81(13/16) 1.00(22/22) 1.00(13/13) 0.88(22/25)
95% CI 0.56, 0.94 0.87, 1.00 0.80, 1.00 0.90, 1.00
Engorged cortical veins
Value 1.00(7/7) 1.00(31/31) 1.00(7/7) 1.00(31/31)
95% CI 0.68, 1.00 0.90, 1.00 0.68, 1.00 0.90, 1.00
Asymmetric sinus enhancement
Value 0.96(23/24) 0.93(13/14) 0.96(23/24) 0.93(13/14)
95% CI 0.78, 1.00 0.66, 1.00 0.78, 1.00 0.66, 1.00
Sinus occlusion
Value 0.89(8/9) 1.00(29/29) 1.00(8/8) 0.97(29/30)
95% CI 0.54, 1.00 0.90, 1.00 0.71, 1.00 0.82, 1.00
Overall
Value 0.93(89/96) 0.98(129/132) 0.97(89/92) 0.95(129/136)
95% CI 0.85, 0.97 0.93, 1.00 0.90, 0.99 0.90, 0.98
Note.—Data are for the 22 patients with dural AVFs and 14 control subjects. Numbers in parentheses are numbers of subjects and were used to calculate the values as proportions.
doi:10.6342/NTU201603776 Table 2-3: Interobserver Agreement in Reading Imaging Signs at Hybrid CTA
Imaging Sign κ Value 95% CI
Engorged artery 0.84 0.67, 1.00
Transosseous enhanced vessels 0.95 0.84, 1.00
Engorged extracranial vein 0.56 0.29, 0.83
Engorged cortical vein 0.92 0.78, 1.00
Asymmetric sinus enhancement 0.94 0.83, 1.00
Dural sinus occlusion 1.00 1.00, 1.00
27

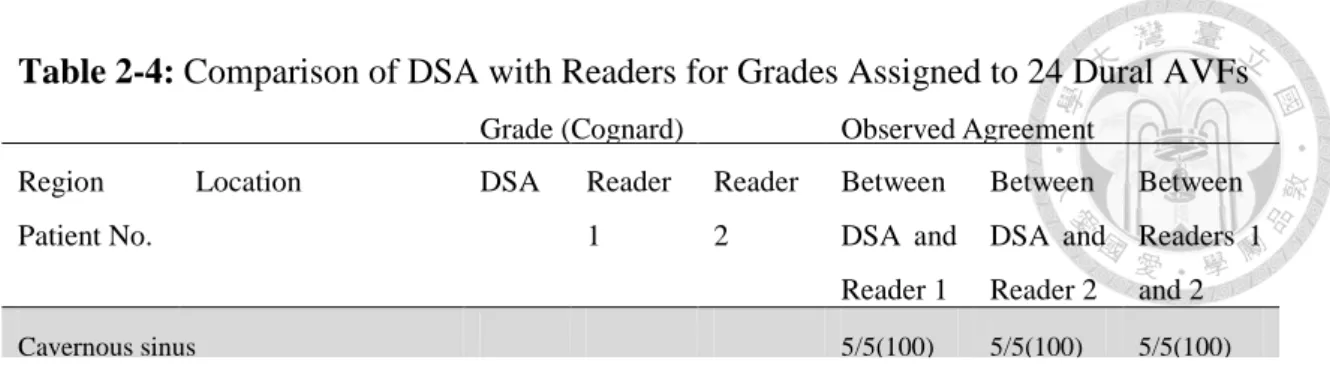

Table 2-4: Comparison of DSA with Readers for Grades Assigned to 24 Dural AVFs
Grade (Cognard) Observed Agreement Region
Patient No.
Location DSA Reader
1
Reader 2
Between DSA and Reader 1
Between DSA and Reader 2
Between Readers 1 and 2
Cavernous sinus 5/5(100) 5/5(100) 5/5(100)
1 CS I I I
2 CS I I I
3 CS I I I
4 CS I I I
5 CS IIA+B IIA+B IIA+B
Transverse sigmoid sinus 7/9(78) 8/9(89) 7/9(78)
6 TS I I I
7 TS I I I
8a TS I I I
9 TS IIA IIA+B I
10a TS IV IV IV
11 TS IIA IIA+B IIA
12 TS and adjacent dura IIA IIA IIA
13 Dura adjacent to TS IIA IIA IIA
8b Sigmoid sinus IV IV IV
Hypoglossal and clival areas 4/4(100) 4/4(100) 4/4(100)
10b Hypoglossal area I I I
14 CH I I I
15 CH I I I
16 CH I I I
Superior sagittal sinus 2/2(100) 2/2(100) 2/2(100)
17 SSS IV IV IV
18 SSS IV IV IV
Other 4/4(100) 4/4(100) 4/4(100)
19 Frontal base IV IV IV
20 Occipital dura IV IV IV
21 Cerebellar falx IV IV IV
22 Parietosphenoid osseous-dura
I I I
Overall 22/24(92) 23/24(96) 22/24(92)
Note: Patients 8 and 10 had two dural AVFs each (8a and 8b and 10a and 10b, respectively). Number in parenthesis is the percentage. CS=cavernous sinus, TS=transverse sigmoid sinus, CH=clival-hypoglossal area, SSS=superior sagittal sinus.
doi:10.6342/NTU201603776
Chapter 3
Predicting Procedure Successful Rate and 1-Year Patency After Endovascular Recanalization for Chronic Carotid
Artery Occlusion by CT Angiography
3.1 Introduction
In chronic internal carotid artery (ICA) occlusion, the hemodynamics may be normal, or severely impaired, depending on recruitment of cerebral collaterals [25,26].
When ICA stenosis progresses to occlusion, the reduction of blood supply to the perfused territory is usually compensated by extracranial–intracranial (EC/IC) and intracranial collaterals. In fact, an ICA chronic total occlusion (CTO) bears a considerable risk of ipsilateral ischemic stroke. According to some reports, patients with carotid CTO also have a risk of recurrent stroke of approximately 6.3% [27]. In addition, the risk of recurrent stroke increases to approximately 12% per year in CTO patients who also have compromised hemodynamic status [28,29]. Other researchers have reported a risk of recurrent stroke as high as 86% in a 7-year follow-up study [30].
Furthermore, advanced imaging techniques have uncovered microstructural changes in normal appearing brain tissue in such patients [31]. Such findings have been related to functional disability, higher mortality, and a decline in psychomotor speed, executive functions, and working memory [31].
Over the last few decades, the prevention of secondary stroke in patients with carotid disease has improved with more rigorous control of blood pressure and the introduction of statins combined with anti-platelet therapy [32,33]. Medical treatment
29
has become the prevailing doctrine in treating carotid CTOs and aggressive treatment of carotid CTOs remains controversial [34]. The carotid occlusion surgery study (COSS) compared the benefit of superficial temporal artery — middle cerebral artery (MCA) bypass vs. medical treatment in preventing stroke in carotid CTO [35]. The 30-day event rate in the surgical group was approximately 14.4% and the 2-year outcome rate did not differ significantly between the surgical (21%) and the medical groups (22.7%), although vessel patency was demonstrated in 90% of patients [35,36].
With the latest advancements in stenting and hybrid-surgical technique, some recent non-randomized studies have shown the feasibility of carotid artery stenting (CAS) and carotid endarterectomy (CEA) in carotid CTO [37-40]. In addition, their results suggest that such interventions might improve neurocognitive function in carotid CTO patients [37-40]. CEA success rates were also shown to differ depending on the ultrasound findings in CTO [39].
The patient selection criteria for the treatment of carotid CTOs are still controversial. In few small-series reports, in acute to chronic ICA occlusion from cervical to petrous segment could be endovascularly recanalized with high successful rates with frequent complication such as subarachnoid hemorrhage (SAH), arterial dissection, symptomatic and asymptomatic embolic events [41-43]. It is rare to find report about how to predict the technical success rates, complication rates, and re-occlusion after endovascular recanalization using non-invasive technique such as CTA. In this study, we retrospectively analyzed the pre-procedural CTA in patients with carotid CTO and its relationship to short-term outcomes including technical success rates, complication rates, and re-occlusion after endovascular recanalization.
doi:10.6342/NTU201603776 3.2 Materials and Methods
3.2.1 Subjects
This retrospective study was approved by our Institutional Review Board. All medical images and records were analyzed and reviewed. Patients who were diagnosed and confirmed with carotid CTOs by CTA (and who subsequently underwent endovascular recanalization within 3 months of the CTA) were included in the study.
The endovascular recanalization was performed at least 2 months after initial diagnosis of carotid occlusion. The exclusion criteria were: (1) acute occlusion of the carotid artery; (2) severe carotid stenosis with string sign on CTA but occlusion on angiography before recanalization; (3) history of previous stenting of the occluded artery; (4) viable head–neck malignancy or prominent radiation necrosis; and (5) severe disabling stroke precluding further recanalization. Hybrid CTA images were used for evaluation. The endovascular recanalization procedure was performed, as previously described [37,38].
The medical conditions, results of the recanalization (success or failure), presence of a major event within 30 days, and patency on follow-up imaging studies were recorded.
The patency or re-occlusion was assessed by ultrasound and/or CTA.
Patients were divided into two groups according to the extent of ICA occlusion based on the ICA classification proposed by Bouthillier et al. [44]. In this system, the ICA is divided into seven segments, i.e., C1, cervical; C2, petrous; C3, lacerum; C4, cavernous; C5, clinoid; C6, ophthalmic; and C7, communicating. C5 was used as the landmark, or milestone, to divide the patients into groups A and B. Group A patients had occlusions which involved the ICA up to the clinoid segment and beyond, while group B patients had occlusions which were proximal to the clinoid segment of the ICA or involved only the common carotid artery.
31
3.2.2 Patient Outcomes
Technical success was defined as complete patency of the occluded vessel shown on immediate post-procedural angiography. A periprocedural major complication was defined as a neurological or cardiovascular event within 30 days. Events which occurred after 30 days were defined as delayed complications. Stent patency was evaluated within 1 year of the recanalization using follow-up CTA or carotid duplex ultrasound.
Re-occlusion was defined as no flow shown on the follow-up imaging studies.
3.2.3 Statistical Analysis
All clinical variables were compared between the two groups. The student t-test was used for continuous data and the chi-square test was used for categorical data. A logistic regression model was used to analyze clinical predictors and clinical outcomes.
The regression coefficient was analyzed by the Wald test. Multivariable regression and stratified analysis were used to control confounders. The 1-year vascular patency was also analyzed by Kaplan–Meier survival curve analysis. Patients with a follow-up time of b1 year were considered as right censored. The predictors were compared by Wilcoxon test. The significance level was set at .05. Statistical analyses were conducted using SAS software, version 9.4 (SAS Institute, Inc., Cary, North Carolina).
3.3 Results
From January 2008 to July 2015, 41 patients with a total of 42 carotid CTOs were included in the analysis. The one patient with bilateral occlusions was treated in two sessions. Thirty-two CTO arteries (32/42, 76%) in 31 patients were symptomatic (including 23 ipsilateral minor strokes; nine transient ischemic attach). Ten patients (10/41, 24%) had non-specific symptoms such as dizziness, fainting, or neurocognitive
doi:10.6342/NTU201603776 decline. The extent of occlusion in group A (N = 23) included 13 occlusions from the
carotid bulb to the clinoid segment of the ICA, eight from the bulb to the supraclinoid ICA, and two from the bulb to the MCA. The extent of occlusion in group B (N = 19) included four occlusions at the common carotid artery (CCA) alone, five at the cervical ICA, five from the bulb to the petrous ICA, and five from the bulb to the cavernous ICA (Figure 3-1).
In total, 29 arteries (29/42, 69%) were successfully recanalized. One patient (who failed revascularization) had an acute SAH during the procedure, while the other 12 patients with failed recanalizations had no acute or new onset of symptoms. The technical success rate was 52% (12/23) in group A and 89% (17/19) in group B. The major complication rate in group A was 22% (5/23) and 0 in group B. The 1-year reocclusion rate was 92% (11/12) in group A and 0 in group B. One patient was lost to follow-up after successful recanalization in group B. When comparing group A with group B, technical success rate (P = 0.0093) and stent patency (P b 0.001) were significantly different (Table 3-1). Based on univariable logistic regression analysis of technical success, group B had a higher success rate than group A (odds ratio: 7.79; CI:
1.45–41.73; P = 0.0165). Since diabetes was a possible confounder, it was used to adjust the logistic regression model. The group effect was still significant based on multivariable logistic regression (odds ratio: 12.71; CI: 2.06–78.44; P = 0.0062).
Analysis of stent patency was performed in 28 patients who were successfully recanalized. Chi-square tests showed that the group effect (P=0.001) and diabetes (P=0.004) were associated with stent occlusion (Table 3-2). Stratified analysis showed that the group effect was significant in diabetic patients (odds ratio: 75.00; CI:
1.16–4868.64; P = 0.0027) and non-diabetic patients (odds ratio: 87.00; CI:
33
2.99–2531.93; P = 0.0002). However, the odds ratio was lower in the pooled estimate (corrected Mantel Haenszel odds ratio: 82.05; CI: 5.96–1129.50). Major complications occurred in five patients in group A (5/23, 21.7%) and four occurred within 7 days. In group A, there was one subarachnoid hemorrhage (SAH), three ischemic infarcts (one immediate post-procedure and two acute in-stent thromboses on the 1st day and 5th day, respectively) and one delayed stroke (1/23, 4.3 due to stent occlusion on the 40th day.
Two patients died (one SAH and one acute in-stent thrombosis). Other 3 had good recovery. No immediate or delayed major complication or death occurred in group B.
On the follow-up images within 1 year, of the 29 successfully recanalized arteries, 17 arteries (one in group A; 16 in group B) were patent, 11 (11 in group A; 0 in group B) were occluded, and one had no follow-up imaging. In group A, the only patent artery was followed-up for only 2 months after recanalization. In group B, five arteries were patent on the follow-up images performed within 8 months.
Based on survival analysis of stent occlusion at one-year follow-up, of the 28 subjects deemed technically successes, six subjects with <1 year of follow-up were considered right-censored. One patient was excluded due to loss of follow-up after successful procedure. Eleven occlusion events, all in group A, were recorded. The median time of re-occlusion was 4 months (95% CI: 1–7 months). Based on univariable analysis of the clinical predictors, only the group effect was significant (P < 0.0001) by Wilcoxon test (Table 3-3). The Kaplan–Meier survival curve for groups A and B is shown in Figure 3-2.
doi:10.6342/NTU201603776 3.4 Discussion
Our results showed that CTA can predict the successful rate and 1-year patency rate after endovascular recanalization in patients with carotid CTO. Patients with an occlusion proximal to the clinoid segment of the ICA (group B) had a higher rate of successful recanalization, fewer periprocedural major complications, and better 1-year patency rates as compared with those patients whose occlusions were located at, or distal to, the clinoid segment of the ICA (group A). The group B result is consistent with other small-number series [41,42]; however, group A result has never been reported. This might be a result of reporting bias since failure cases were not reported.
Compared with group A, our group B patients had a higher technical success rate (89%), no periprocedural complications, and no re-occlusions within one year. Only a few studies have shown the feasibility of CAS and CEA in carotid CTO [37-40], and their reported successful rates were usually lower than in treating patients with carotid stenosis. Since our group A patients had higher rates of technical failure (48%), periprocedural complications (22%), and re-occlusion within one year (92%), this would effectively cancel out the overall benefit of recanalization for carotid CTO if we analyzed both patient groups together. Appropriate patient selection for recanalization of carotid CTOs can demonstrate the benefit of such an invasive procedure over medical management. The results of our study suggest that patients with carotid CTOs that are proximal to the level of clinoid segment of the ICA on CTA are more appropriate candidates for recanalization.
The underlying reason for selecting the clinoid segment of the ICA as the milestone for successful recanalization in carotid CTO is unclear but it may be related to local ICA anatomic structure. The clinoid segment is located between the proximal
35
dural ring and the distal dural ring. The ICA becomes intradural after the distal dural ring [44]. The distal dural ring is a complete ring that entirely surrounds the ICA and fuses laterally with the adventitia of the ICA. We speculate that the relatively stronger tightening effort by the distal dural ring may be responsible for preventing successful recanalization beyond this point.
A recent report has mentioned that MR angiography and CTA may overestimate the presence of an ICA occlusion due to false-positive findings [45]. However, all cases in our study were confirmed as CTOs during the endovascular procedure that was later performed.
Ultrasound studies have been used to predict the success rates of CEA in carotid CTO [39]. Two series have shown that 60% and 80% of ICA occlusions, respectively, had some degree of EC/IC collaterals [30,46]. The ipsilateral ophthalmic artery has been considered an important EC/IC collateral in ICA occlusion or severe stenosis [46-48].
We found good outcomes in 89.5% of the 19 patients with patent collaterals from the ophthalmic artery to the ICA in group B. However, the outcomes in a subgroup (occlusion from bulb to clinoid segment) of 13 patients in group A were still poor.
Although these 13 patients had ophthalmic artery collaterals, the technical success rate (54.8%, 7/13) was low, the complication rate (23.0%, 3/13) was high, and the re-occlusion rate (85.7%, 6/7) within 1 year was high. This indicates that the ophthalmic artery collateral is not a major factor in predicting outcomes after endovascular recanalization in carotid CTO. In our series, all group A patients had relatively long occluded segments, i.e., their segments extended from the carotid bulb to the ophthalmic artery orifice and beyond. We speculate that the longer the occluded
doi:10.6342/NTU201603776 segment, the poorer the outcome after recanalization of the carotid CTO. We also found
that diabetes was a probable clinical predictor of short-term patency, but this requires further validation.
Our study had several limitations including its retrospective nature and the lack of regular angiographic follow-up. Using either ultrasound or CTA, we could not identify mild to moderate re-stenosis which might have existed before occlusion. The higher censored rate potentially resulted in an overestimation of favorable outcomes in the group B patients. Patients without clinical events might have been less intensively followed-up. However, in our non-parametric survival analysis, the results were still valid even when the occlusive event occurred in the group B patient at the time of censoring. In this study, we only analyzed the anatomic differences between the two groups, and other factors (such as the length of time the vessel was occluded or the hemodynamic status) were not evaluated. Patients probably had longer occlusion times in group A, causing higher technical failure rates and more complications. However, accurate measurements of the length of time the vessel was occluded was not possible in the current study, since we had no data regarding the date the vessel began to occlude.
We presume that the longer the occlusion time and the longer the occluded segment, the harder the thrombus becomes. It is more difficult to recanalize a vessel with chronic thrombi compared with fresh thrombi (as has been noted in the recanalization of acute occlusion of major vessels). Clinically, evaluation of cerebral hemodynamic status involves assessment of cerebral vascular reserve (CVR) which provides information on cerebral autoregulation and collateral circulation [49]. CVR is defined as a shift between cerebral blood flow and cerebral blood flow velocity before and after administration of a potent vasodilatory stimulus such as acetazolamide (Diamox) or 8%
37
CO 2 inhalation. In patients with carotid CTOs, CVR has been shown to play a useful role in patient selection. However, the data from different papers is controversial. CVR may identify asymptomatic patients with carotid occlusion who belong to a high-risk subgroup for ischemic stroke [50]. An impaired CVR has significantly correlated with ipsilateral ischemic stroke. In asymptomatic carotid CTO patients, the annual ipsilateral ischemic event risk was 1.8% in patients with good CVRs compared with 7.1% in patients with impaired CVRs. In symptomatic patients, the annual risk of stroke in patients with symptomatic carotid CTO was 3–6% in patients with good CVRs compared with 10–17% in patients with impaired CVRs [51-53]. However, others have reported that reduced CVR plays no major role in stroke recurrence among symptomatic patients [54, 55]. Moreover, spontaneous improvement in CVR has been demonstrated during the first few months after ICA occlusion [56, 57]. We suggest that a CVR study might be useful in symptomatic patient selection when considering recanalization in the presence of carotid CTO. Endovascular recanalization, such as stenting, should be performed after CTA and should target patients with occluded ICAs proximal to the clinoid segment.
3.5 Conclusion
CTA may play a role in patient selection and may predict successful rate and 1-year patency after endovascular recanalization in patients with carotid CTOs. Patients with occlusions proximal to the clinoid segment of the ICA had a higher success rate after recanalization, less periprocedural major complications, and better patency rates as compared with those whose occlusion was located at, or distal to, the clinoid segment of the ICA.
doi:10.6342/NTU201603776 Note:
This part was published on Internal Journal of Cardiology 2016.
Lee CW, Lin YH, Liu HM, Wang YF, Chen YF, Wang JL. Predicting procedure successful rate and 1-year patency after endovascular recanalization for chronic carotid artery occlusion by CT angiography. International Journal of Cardiology. 2016 Jul 9;221:772-776.
39
Figure 3-1: Sub-classification of the 42 carotid chronic total occlusions in 41 patients and their outcomes.
doi:10.6342/NTU201603776 Figure 3-2: Kaplan-Meier Product Limit survival functional estimates for group A (red)
and group B (blue) patients after endovascular recanalization for chronic carotid artery occlusion.
41
Table 3-1: Demographics and clinical characteristics of all patients.
Variable Total (N=42) Group A
(N=23)
Group B (N=19)
P value
Age – yrs (SD) 65.45(9.96) 65.48(10.57) 65.42(9.46) 0.98
Male gender – no. (%) 34(81) 17(74) 17(89) 0.20
Right side –no. (%) 19(45) 11(48) 8(42) 0.71
Successful – no. (%) 29 (69) 12(52) 17(89) 0.0093**
Major complication – no. (%) 5(12) 5(22) 0(0) 0.03*
Patency (N=28) – no. (%) 17(61) 1(8) 16(100) <0.0001**
Stent number (N=29) – no. (SD) 2.25(1.40) 2.42(1.56) 2.12(1.31) 0.60
Symptomatic – no. (%) 32(76) 17(74) 15(79) 0.70
Coronary heart disease – no. (%) 26(62) 13(57) 13(68) 0.43
Diabetes – no. (%) 12(29) 10(43) 2(11) 0.0186*
Hypertension – no. (%) 32(76) 18(78) 14(74) 0.73
Hyperlipidemia – no. (%) 25(60) 13(56) 12(63) 0.66
Cancer – no. (%) 9(21) 4(17) 5(26) 0.48
Smoking – no. (%) 17(40) 9(39) 8(42) 0.85
The P-value was obtained using the chi-square test for categorical data, and the t-test for continuous data.
doi:10.6342/NTU201603776 Table 3-2: Odds ratio for clinical predictors of stent occlusion in technically successful
patients (N = 28).
Variable Odds ratio (CI) P-value
Group effect 253.00(9.44-6777.47) <0.001**
Old age (age > 55) 0.36(0.049-2.59) 0.30
Male gender 0.60(0.072-5.03) 0.64
Right side 0.94(0.21-4.29) 0.93
Symptomatic 1.11(0.21-6.01) 0.90
Coronary heart disease 0.73(0.15-3.65) 0.70
Diabetes 13.13(1.92-89.52) 0.004*
Hypertension 1.88(0.29-11.97) 0.50
Hyperlipidemia 1.87(0.37-9.63) 0.45
Cancer 0.24(0.02-2.41) 0.20
Smoking 2.00(0.41-9.71) 0.39
The P-values were obtained by chi-square test.
43
