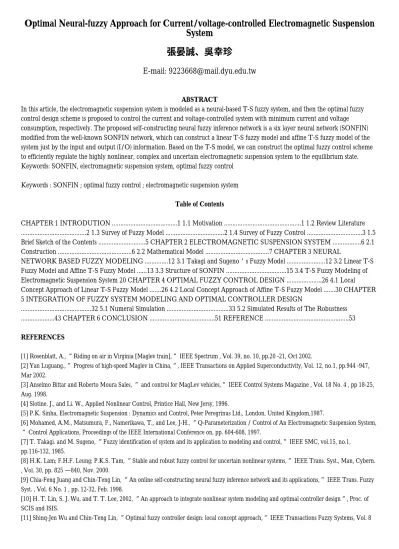

Optimal Neural-fuzzy Approach for Current/voltage-controlled Electromagnetic Suspension System
張晏誠、吳幸珍
E-mail: [email protected]
ABSTRACT
In this article, the electromagnetic suspension system is modeled as a neural-based T-S fuzzy system, and then the optimal fuzzy control design scheme is proposed to control the current and voltage-controlled system with minimum current and voltage consumption, respectively. The proposed self-constructing neural fuzzy inference network is a six layer neural network (SONFIN) modified from the well-known SONFIN network, which can construct a linear T-S fuzzy model and affine T-S fuzzy model of the system just by the input and output (I/O) information. Based on the T-S model, we can construct the optimal fuzzy control scheme to efficiently regulate the highly nonlinear, complex and uncertain electromagnetic suspension system to the equilibrium state.
Keywords: SONFIN, electromagnetic suspension system, optimal fuzzy control Keywords : SONFIN ; optimal fuzzy control ; electromagnetic suspension system
Table of Contents
CHAPTER 1 INTRODUTION ...1 1.1 Motivation ...1 1.2 Review Literature ...2 1.3 Survey of Fuzzy Model ...2 1.4 Survey of Fuzzy Control ...3 1.5 Brief Sketch of the Contents ...5 CHAPTER 2 ELECTROMAGNETIC SUSPENSION SYSTEM ...6 2.1 Construction ...6 2.2 Mathematical Model ...7 CHAPTER 3 NEURAL
NETWORK BASED FUZZY MODELING ...12 3.1 Takagi and Sugeno’s Fuzzy Model ...12 3.2 Linear T-S Fuzzy Model and Affine T-S Fuzzy Model ...13 3.3 Structure of SONFIN ...15 3.4 T-S Fuzzy Modeling of Electromagnetic Suspension System 20 CHAPTER 4 OPTIMAL FUZZY CONTROL DESIGN ...26 4.1 Local Concept Approach of Linear T-S Fuzzy Model ...26 4.2 Local Concept Approach of Affine T-S Fuzzy Model ...30 CHAPTER 5 INTEGRATION OF FUZZY SYSTEM MODELING AND OPTIMAL CONTROLLER DESIGN
...32 5.1 Numeral Simulation ...33 5.2 Simulated Results of The Robustness ...43 CHAPTER 6 CONCLUSION ...51 REFERENCE ...53 REFERENCES
[1] Rosenblatt, A., ”Riding on air in Virginia [Maglev train],” IEEE Spectrum , Vol. 39, no. 10, pp.20 -21, Oct 2002.
[2] Yan Luguang.,” Progress of high-speed Maglev in China,”, IEEE Transactions on Applied Superconductivity, Vol. 12, no.1, pp.944 -947, Mar 2002.
[3] Anselmo Bittar and Roberto Moura Sales, ” and control for MagLev vehicles,” IEEE Control Systems Magazine , Vol. 18 No. 4 , pp 18-25, Aug. 1998.
[4] Slotine. J., and Li. W., Applied Nonlinear Control, Printice Hall, New Jersy, 1996.
[5] P.K. Sinha, Electromagnetic Suspension : Dynamics and Control, Peter Peregrinus Ltd., London, United Kingdom,1987.
[6] Mohamed, A.M., Matsumura, F., Namerikawa, T., and Lee, J-H., ”Q-Parameterization / Control of An Electromagnetic Suspension System,
” Control Applications, Proceedings of the IEEE International Conference on, pp. 604-608, 1997.
[7] T. Takagi. and M. Sugeno, ”Fuzzy identification of system and its application to modeling and control,” IEEE SMC, vol.15, no.1, pp.116-132, 1985.
[8] H.K. Lam; F.H.F. Leung; P.K.S. Tam, ”Stable and robust fuzzy control for uncertain nonlinear systems,” IEEE Trans. Syst., Man, Cybern.
, Vol. 30, pp. 825 —840, Nov. 2000.
[9] Chia-Feng Juang and Chin-Teng Lin, ”An online self-constructing neural fuzzy inference network and its applications,” IEEE Trans. Fuzzy Syst. , Vol. 6 No. 1 , pp. 12-32, Feb. 1998.
[10] H. T. Lin, S. J. Wu, and T. T. Lee, 2002, ”An approach to integrate nonlinear system modeling and optimal controller design”, Proc. of SCIS and ISIS.
[11] Shinq-Jen Wu and Chin-Teng Lin, ”Optimal fuzzy controller design: local concept approach,” IEEE Transactions Fuzzy Systems, Vol. 8
No. 2 , pp. 171-185, Apr. 2000.
[12] K. Tanaka, T. Taniguchi, and H. O. Wang, ”Fuzzy control based on quadratic performance function,” in 37th IEEE Conf. Decision Contr., Tampa, FL, pp. 2914—2919, 1998.
[13] Tanaka, K.; Taniguchi, T.; Wang, H.O., “Model-based fuzzy control of TORA system: Fuzzy regulator and fuzzy observer design via LMI
’s that represent decay rate, disturbance rejection, robustness, optimality,” in Proc. FUZZ-IEEE'98.
[14] Shinq-Jen Wu, “Affine-TS-model-based Optimal Fuzzy Controller Design Local-concept Approach,” submitted by IEEE Transactions Fuzzy Systems,2003.
[15] Fujita, M., Namerikawa, T., Matsumura, F., and Uchida, K., ” Synthesis of An Electromagnetic Suspension System,” IEEE Transactions on Automatic Control, Vol. 40, No. 3, pp. 530-536, March, 1995.
[16] Namerikawa, T,; Fujita, M., ”Modeling and robustness analysis of a magnetic suspension system considering structured uncertainties,”
Proceedings of the 36th IEEE Conference on , Vol. 3, pp. 2559 -2564 , 1997.
[17] Tanaka, K.; Ikeda, T.; Wang, H.O,” Robust stabilization of a class of uncertain nonlinear systems via fuzzy control: quadratic stabilizability, H∞ control theory, and linear matrix inequalities,” Fuzzy Systems, IEEE Transactions on , Vol. 4, no. 1, pp. 1-13 ,Feb, 1996.
[18] Ohtake, H.; Tanaka, K.; Wang, H.O.,”Fuzzy modeling via sector nonlinearity concept,” IFSA World Congress and 20th NAFIPS International Conference, Joint 9th , Vol. 1, pp. 127-132, 25-28 July 2001.
[19] Ohtake, H.; Tanaka, K.; Wang, H.O, ”A construction method of switching Lyapunov function for nonlinear systems,” Fuzzy Systems, FUZZ-IEEE'02. Proceedings of the 2002 IEEE International Conference on , Vol. 1, pp.221-226, 2002.
[20] Sung-Kyung Hong; Langari, R.; Joongseon Joh ,” Fuzzy modeling and control of a nonlinear magnetic bearing system,” Control Applications, Proceedings of the 1997 IEEE International Conference on , pp.213-218, 5-7 Oct 1997.
