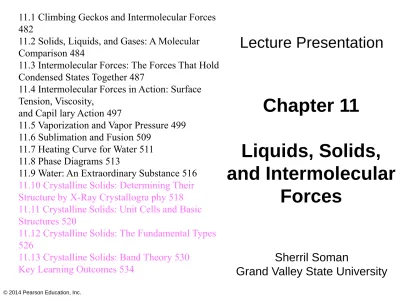

© 2014 Pearson Education, Inc.
Sherril Soman
Grand Valley State University
Lecture Presentation
Chapter 11
Liquids, Solids, and Intermolecular
Forces
11.1 Climbing Geckos and Intermolecular Forces 482
11.2 Solids, Liquids, and Gases: A Molecular Comparison 484
11.3 Intermolecular Forces: The Forces That Hold Condensed States Together 487
11.4 Intermolecular Forces in Action: Surface Tension, Viscosity,
and Capil lary Action 497
11.5 Vaporization and Vapor Pressure 499 11.6 Sublimation and Fusion 509
11.7 Heating Curve for Water 511 11.8 Phase Diagrams 513
11.9 Water: An Extraordinary Substance 516 11.10 Crystalline Solids: Determining Their Structure by X-Ray Crystallogra phy 518 11.11 Crystalline Solids: Unit Cells and Basic Structures 520
11.12 Crystalline Solids: The Fundamental Types 526
11.13 Crystalline Solids: Band Theory 530
Key Learning Outcomes 534
© 2014 Pearson Education, Inc.
© 2014 Pearson Education, Inc.
Climbing Geckos
11.1 Climbing Geckos and Intermolecular Forces
11.1
© 2014 Pearson Education, Inc.
Three Phases of Water
Notice that the densities of ice and liquid water are much larger than the
density of steam.
Notice that the densities and molar volumes of ice and liquid water are much closer to each other than to steam.
Notice that the density of ice is larger than the
density of liquid water.
This is not the norm, but is vital to the development
of life as we know it. 11.2
© 2014 Pearson Education, Inc.
11.2 Solids, Liquids, and Gases: A Molecular Comparison
• Fixed = keeps shape when placed in a container
• Indefinite = takes the shape of the container
Properties of the Three Phases of Matter
11.2
© 2014 Pearson Education, Inc.
Solids
• Some solids have their particles arranged in an orderly geometric pattern; we call these crystalline solids.
– Salt and diamonds
• Other solids have particles that do not show a regular
geometric pattern over a long range; we call these amorphous solids.
– Plastic and glass
11.2
© 2014 Pearson Education, Inc.
Liquids
• The particles in a liquid are closely packed, but they have some ability to move around.
• The close packing results in liquids being incompressible.
• But the ability of the particles to move allows liquids to take the shape of their container and to flow. However, they don’t have enough freedom to escape or expand to fill the container.
11.2
© 2014 Pearson Education, Inc.
Gases
• In the gas state, the particles have complete freedom of motion and are not held together.
• The particles are constantly flying around, bumping into each other and the container
• There is a large amount of space between the particles, compared to the size of the particles.
– Therefore, the molar volume of the gas state of a material is much
larger than the molar volume of the solid or liquid states.
11.2
© 2014 Pearson Education, Inc.
Phase Changes
11.2
© 2014 Pearson Education, Inc.
11.3 Intermolecular Forces: The Forces That Hold Condensed States Together
• Temporary polarity in the molecules due to unequal electron distribution leads to
attractions called dispersion forces.
• Permanent polarity in the molecules due to their structure leads to attractive forces
called dipole–dipole attractions.
• An especially strong dipole–dipole
attraction results when H is attached to an extremely electronegative atom. These
are called hydrogen bonds.
Kinds of Attractive Forces
11.3
© 2014 Pearson Education, Inc.
Dispersion Forces
• Fluctuations in the electron distribution in atoms and molecules result in a temporary dipole.
– Region with excess electron density has partial (–) charge
– Region with depleted electron density has partial (+) charge
• The attractive forces caused by these temporary dipoles are called dispersion forces.
– Aka London Forces
• All molecules and atoms will have them.
• As a temporary dipole is established in one
molecule, it induces a dipole in all the surrounding molecules.
11.3
© 2014 Pearson Education, Inc.
Dispersion Force
11.3
Dispersion Forces Illustrated (1)
At a given instant, electron density, even in a nonpolar molecule like this one, is not perfectly uniform.
11.3
Dispersion Forces Illustrated (2)
The region of
(momentary) higher electron density attains a small (–) charge …
When another nonpolar molecule approaches …
… the other end of the molecule is slightly (+).
11.3
Dispersion Forces Illustrated (3)
… this molecule induces a tiny dipole moment …
… in this molecule.
Opposite charges ________.
11.3
© 2014 Pearson Education, Inc.
Size of the Induced Dipole
• The magnitude of the induced dipole depends on several factors.
• 1. Polarizability of the electrons
– Volume of the electron cloud
– Larger molar mass = more electrons = larger electron cloud = increased
polarizability = stronger attractions
• 2. Shape of the molecule
– More surface-to-surface contact = larger induced dipole = stronger attraction
11.3
© 2014 Pearson Education, Inc.
Effect of Molecular Size on Size of Dispersion Force
The Noble gases are all nonpolar atomic elements.
The stronger the attractive forces
between the molecules, the higher the boiling
point will be.
11.3
© 2014 Pearson Education, Inc.
Effect of Molecular Shape on Size of Dispersion Force
11.3
small, compact, symmetrical molecules elongated molecules
© 2014 Pearson Education, Inc.
Dipole–Dipole Attractions
11.3
© 2014 Pearson Education, Inc.
Effect of Dipole–Dipole Attraction on Boiling and Melting Points
11.3
© 2014 Pearson Education, Inc.
Dipole Movement and Boiling Point
11.3
© 2014 Pearson Education, Inc.
Attractive Forces and Solubility
• Solubility depends, in part, on the attractive forces of the solute and solvent molecules.
– Like dissolves like
– Miscible liquids will always dissolve in each other
• Polar substances dissolve in polar solvents.
– Hydrophilic groups = OH, CHO, C═O, COOH, NH
2, Cl
• Nonpolar molecules dissolve in nonpolar solvents.
– Hydrophobic groups = C—H, C—C
Pentane, C
5H
12is a nonpolar molecule.
Water is a polar molecule.
Immiscible Liquids
11.3
Slide 23 of 61 General Chemistry: Chapter 12 Copyright © 2011 Pearson Canada Inc.
O
2and N
2and both substances are nonpolar;
M.W.: O
2> N
2; O
2has the higher boiling point
NO has the highest boiling point of the three because of its additional permanent dipole.
Boiling point: NO > O
2> N
2Please the following substances in order of decreasing boiling point.
N
2NO O
211.3
© 2014 Pearson Education, Inc.
Chemistry: A Molecular Approach, 3rd Edition Nivaldo J. Tro
Example 11.1 Dipole–Dipole Forces
A molecule has dipole–dipole forces if it is polar. To determine if a molecule is polar, (1) determine if the molecule contains polar bonds and (2) determine if the polar bonds add together to form a net dipole moment (Section 9.6).
(a) CO2
(1) Since the electronegativity of carbon is 2.5 and that of oxygen is 3.5
(Figure 9.8), CO2 has polar bonds.
(2) The geometry of CO2 is linear.
Consequently, the dipoles of the polar bonds cancel, so the molecule is not polar and
does not have dipole–dipole forces.
Solution
Which of these molecules have dipole–dipole forces?
a. CO
2b. CH
2CI
2c. CH
4FIGURE 9.8 Electronegativities of the Elements Electronegativity generally increases as we move across a row in the periodic table and decreases as we move down a column.
11.3
© 2014 Pearson Education, Inc.
Chemistry: A Molecular Approach, 3rd Edition Nivaldo J. Tro
Example 11.1 Dipole–Dipole Forces
(c) CH4
(1) Since the electronegativity of C is 2.5 and that of hydrogen is 2.1, the C—H bonds are nearly nonpolar.
(2) In addition, since the geometry of the molecule is tetrahedral, any slight polarities that the bonds might have will cancel. CH4 is therefore nonpolar and
does not have dipole–dipole forces.
For Practice 11.1
Which molecules have dipole–dipole forces?
a. CI4 b. CH3Cl c. HCI Continued
(b) CH2Cl2
(1) The electronegativity of C is 2.5, that of H is 2.1, and that of Cl is 3.0.
Consequently, CH2Cl2 has two polar bonds (C—Cl) and two bonds that are nearly nonpolar (C—H).
(2) The geometry of CH2Cl2 is tetrahedral. Since the C—Cl bonds and the C—H bonds are different, their dipoles do not cancel but sum to a net dipole moment. The molecule is polar and
has dipole–dipole forces.
11.3
© 2014 Pearson Education, Inc.
Hydrogen Bonding
• When a very electronegative atom is bonded to hydrogen, it strongly pulls the bonding
electrons toward it.
– O─H, N─H, or F─H
11.3
© 2014 Pearson Education, Inc.
Boiling Points of Group 4A and 6A Compounds
11.3
Hydrogen Bonding Forces Comparison
• Trend of bonding force in single H-bond:
H—F··· H—F > H—O··· H—O > H—N··· H—N
F H
F H F
H 2 H-bond/per molecule
1 H-bond/per F atom 140o
O H H
O H H
O H H O
H H
O H H
4 H-bond/per molecule 2 H-bond/per O atom
• Trend of boiling points:
Boiling point: H 2 O > HF > NH 3
MW: 18 20 17 11.3
© 2014 Pearson Education, Inc.
Chemistry: A Molecular Approach, 3rd Edition Nivaldo J. Tro
Example 11.2 Hydrogen Bonding
One of these compounds is a liquid at room temperature. Which one and why?
Solution
The three compounds have similar molar masses:
Formaldehyde 30.03 g/mol
Fluoromethane 34.03 g/mol
Hydrogen peroxide 34.02 g/mol
So the strengths of their dispersion forces are similar. All three compounds are also polar, so they have dipole–dipole forces. Hydrogen peroxide, however, is the only one of these compounds that also contains H bonded directly to F, O, or N. Therefore, it also has hydrogen bonding and is likely to have the highest boiling point of the three. Since the example stated that only one of the compounds was a liquid, you can safely assume that hydrogen peroxide is the liquid. Note that, although fluoromethane contains both H and F, H is not directly bonded to F, so fluoromethane does not have hydrogen bonding as an intermolecular force. Similarly, formaldehyde contains both H and O, but H is not directly bonded to O, so formaldehyde does not have hydrogen bonding either.
For Practice 11.2
Which has the higher boiling point, HF or HCl? Why?
H-bond
11.3
© 2014 Pearson Education, Inc.
11.4 Intermolecular Forces in Action: Surface Tension, Viscosity, and Capillary Action
Surface Tension
11.4 Spherical Water
Droplets
© 2014 Pearson Education, Inc.
Viscosity
• Viscosity is the resistance of a liquid to flow.
• Larger intermolecular attractions = larger viscosity
11.4
• T cP
© 2014 Pearson Education, Inc.
Capillary Action
• Capillary action is the ability of a liquid to flow up a thin tube against the influence of gravity.
– The narrower the tube, the higher the liquid rises.
• Capillary action is the result of two forces working in conjunction, the cohesive and adhesive forces.
– Cohesive forces hold the liquid molecules together.
– Adhesive forces attract the outer liquid molecules to the tube’s surface.
11.4
Slide 33 of 61
Meniscus formation
Copyright © 2011 Pearson Canada Inc.
General Chemistry: Chapter 12
Figure 12-14 Capillary Action Figure 12-12
Wetting of a surface
co > ad
co(like) > ad(unlike) co < ad
co < ad
FIGURE 12-13
co < ad
11.4
© 2014 Pearson Education, Inc.
11.5 Vaporization and Vapor Pressure The Molecular Dance
melting (s) (l) vaporization (l) (g)
sublimation (s) (g)
freezing (l) (s) condensation (g) (l)
deposition (g) (s)
11.5
© 2014 Pearson Education, Inc.
Heat of Vaporization
• The amount of heat energy required to vaporize one mole of the liquid is called the heat of
vaporization, DH vap .
– Sometimes called the enthalpy of vaporization
• It is always endothermic; therefore, DH vap is +.
• It is somewhat temperature dependent.
DH condensation = −DH vaporization
liquid gas(vapor)
vaporization condensation11.5
© 2014 Pearson Education, Inc.
Chemistry: A Molecular Approach, 3rd Edition Nivaldo J. Tro
Example 11.3 Using the Heat of Vaporization in Calculations
Sort
Calculate the mass of water (in g) that can be vaporized at its boiling point with 155 kJ of heat.
You are given a certain amount of heat in kilojoules and asked to find the mass of water that can be vaporized.
Strategize
The heat of vaporization gives the relationship between heat absorbed and moles of water vaporized. Begin with the given amount of heat (in kJ) and convert to moles of water that can be vaporized. Then use the molar mass as a conversion factor to convert from moles of water to mass of water.
Conceptual Plan
Given: 155 kjFind: gH2O
11.5
© 2014 Pearson Education, Inc.
Chemistry: A Molecular Approach, 3rd Edition Nivaldo J. Tro
Example 11.3 Using the Heat of Vaporization in Calculations
Continued
For Practice 11.3
Calculate the amount of heat (in kJ) required to vaporize 2.58 kg of water at its boiling point.
For More Practice 11.3
Suppose that 0.48 g of water at 25 °C condenses on the surface of a 55 g block of aluminum that is initially at 25 °C.
If the heat released during condensation goes only toward heating the metal, what is the final temperature (in °C) of the metal block? (The specific heat capacity of aluminum is 0.903 J/g °C.)
Solution
Relationships Used
DHvap = 40.7 kJ/mol (at 100 °C) 18.02 g H2O = 1 mol H2O
Solve
Follow the conceptual plan to solve the problem.
11.5
© 2014 Pearson Education, Inc.
Dynamic Equilibrium
11.5
liquid gas(vapor)
vaporization condensation© 2014 Pearson Education, Inc.
Vapor Pressure
• the weaker the attractive forces, the higher the vapor pressure.
11.5
Vapor pressure illustrated
• FIGURE 12-17
Mercury manometer
Vapor pressure of liquid
P
vapindependent of V
liqP
vapindependent of V
gasP
vapdependent on
T
© 2014 Pearson Education, Inc.
Vapor Pressure Curves
11.5
© 2014 Pearson Education, Inc.
Boiling Point
• The normal boiling point is the temperature at which the vapor pressure of the liquid = 1 atm.
• The lower the external pressure, the lower the boiling point of the liquid. P T
11.5
Slide 42 of 61
An Equation for Expressing Vapor Pressure Data
Copyright © 2011 Pearson Canada Inc.
General Chemistry: Chapter 12
FIGURE 12-20
Vapor pressure data plotted as lnP versus 1/T
ln P = -A ( ) + B 1 T
A = ΔH
vapR
ln = - ( - ) P
2P
11 T
21
T
1ΔH
vapR
Fig11-28, nonlinear linear
11.5
© 2014 Pearson Education, Inc.
Clausius–Clapeyron Equation
• The slope of the line × 8.314 J/mol ∙ K = DH vap .
In J/mol
ln P = -A ( ) + B 1 T
A = ΔH
vapR
11.5
© 2014 Pearson Education, Inc.
Chemistry: A Molecular Approach, 3rd Edition Nivaldo J. Tro
Example 11.4 Using the Clausius–Clapeyron Equation to Determine Heat of Vaporization from Experimental
Measurements of Vapor Pressure
The vapor pressure of dichloromethane was measured as a function of temperature, and the following results were obtained:
Determine the heat of vaporization of dichloromethane.
A =
ΔH
vapR
11.5
© 2014 Pearson Education, Inc.
Chemistry: A Molecular Approach, 3rd Edition Nivaldo J. Tro
Example 11.4 Using the Clausius–Clapeyron Equation to Determine Heat of Vaporization from Experimental
Measurements of Vapor Pressure
Solution
ContinuedTo find the heat of vaporization, use an Excel spreadsheet or a graphing calculator to make a plot of the natural log of vapor pressure (ln P) as a function of the inverse of the temperature in kelvins (1/T). Then fit the points to a line and determine the slope of the line. The slope of the best-fitting line is –3773 K. Since the slope equals –ΔHvap/R, we find the heat of vaporization as follows:
A = ΔH
vapR
11.5
© 2014 Pearson Education, Inc.
Chemistry: A Molecular Approach, 3rd Edition Nivaldo J. Tro
Example 11.5 Using the Two-Point Form of the Clausius–Clapeyron Equation to Predict the Vapor Pressure at a Given Temperature
Sort
You are given the normal boiling point of methanol (the temperature at which the vapor pressure is 760 mmHg) and the heat of vaporization. You are asked to find the vapor pressure at a specified temperature that is also given.
Methanol has a normal boiling point of 64.6 °C and a heat of vaporization (Δ Hvap) of 35.2 kJ/mol. What is the vapor pressure of methanol at 12.0 °C?
Given:
Find:
ln = - ( - ) P
2P
11
T
21
T
1ΔH
vapR
11.5
© 2014 Pearson Education, Inc.
Chemistry: A Molecular Approach, 3rd Edition Nivaldo J. Tro
Continued
Strategize
The conceptual plan is essentially the Clausius–Clapeyron equation, which relates the given and find quantities.
(Clausius–Clapeyron equation, two-point form)
Conceptual Plan
Solve
First, convert T1 and T2 from C to K.
Then, substitute the required values into the Clausius–Clapeyron equation and solve for P2.
Example 11.5 Using the Two-Point Form of the Clausius–Clapeyron Equation to Predict the Vapor Pressure at a Given Temperature
11.5
© 2014 Pearson Education, Inc.
Chemistry: A Molecular Approach, 3rd Edition Nivaldo J. Tro
Solution
ContinuedExample 11.5 Using the Two-Point Form of the Clausius–Clapeyron Equation to Predict the Vapor Pressure at a Given Temperature
ln = - ( - ) P
2P
11
T
21
T
1ΔH
vapR
11.5
© 2014 Pearson Education, Inc.
Chemistry: A Molecular Approach, 3rd Edition Nivaldo J. Tro
Continued
Check
The units of the answer are correct. The magnitude of the answer makes sense because vapor pressure should be significantly lower at the lower temperature.
For Practice 11.5
Propane has a normal boiling point of –42.0 °C and a heat of vaporization (Δ Hvap) of 19.04 kJ/mol. What is the vapor pressure of propane at 25.0 °C?
Example 11.5 Using the Two-Point Form of the Clausius–Clapeyron Equation to Predict the Vapor Pressure at a Given Temperature
11.5
© 2014 Pearson Education, Inc.
Supercritical Fluid
• As a liquid is heated in a sealed container, more vapor collects, causing the pressure inside the container to rise, the density of the vapor to increase, and the density of the liquid to decrease.
• At some temperature, the meniscus between the liquid and vapor disappears, and the states commingle to form a
supercritical fluid.
• Supercritical fluids have properties of both gas and liquid states.
11.5
© 2014 Pearson Education, Inc.
• The temperature required to produce a supercritical fluid is called the critical temperature.
• The pressure at the critical temperature is called the critical pressure.
• At the critical temperature or higher temperatures, the gas cannot be condensed to a liquid, no matter how high the pressure gets.
The Critical Point
11.5
© 2014 Pearson Education, Inc.
11.6 Sublimation and Fusion
solid gas sublimation deposition
Sublimation and Deposition
melting (s) (l) vaporization (l) (g) sublimation (s) (g)
freezing (l) (s) condensation (g) (l) deposition (g) (s)
11.6
© 2014 Pearson Education, Inc.
Melting and Freezing
melting (s) (l) vaporization (l) (g) sublimation (s) (g)
freezing (l) (s) condensation (g) (l) deposition (g) (s)
11.6
Melting = Fusion
© 2014 Pearson Education, Inc.
Heat of Fusion
• The amount of heat energy required to melt one mole of the solid is called the heat of fusion, DH
fus.
– Sometimes called the enthalpy of fusion
• It is always endothermic; therefore, DH
fusis +.
• It is somewhat temperature dependent.
DH
freezing= −DH
fusion Generally much less than DH
vap DH
sublimation= DH
fusion+ DH
vaporization11.6
© 2014 Pearson Education, Inc.
Heats of Fusion and Vaporization
11.6
© 2014 Pearson Education, Inc.
11.7 Heating Curve of Water
11.7
© 2014 Pearson Education, Inc.
Segment 1 solid (Temp)
• Heating 1.00 mole of ice at −25.0 °C up to the melting point, 0.0 °C
• q = mass × C s × DT
– Mass of 1.00 mole of ice = 18.0 g – C
s= 2.09 J/mol ∙ °C
11.7
© 2014 Pearson Education, Inc.
Segment 2
phase change (s+l)
• Melting 1.00 mole of ice at the melting point, 0.0 °C
• q = n ∙ DH fus
– n = 1.00 mole of ice – DH
fus= 6.02 kJ/mol
11.7
© 2014 Pearson Education, Inc.
Segment 3
liquid(Temp)
• Heating 1.00 mole of water at 0.0 °C up to the boiling point, 100.0 °C
• q = mass × C s × DT
– Mass of 1.00 mole of water = 18.0 g – C
s= 2.09 J/mol ∙ °C
11.7
© 2014 Pearson Education, Inc.
Segment 4
phase change l+g
• Boiling 1.00 mole of water at the boiling point, 100.0 °C
• q = n ∙ DH vap
– n = 1.00 mole of ice – DH
fus= 40.7 kJ/mol
11.7
© 2014 Pearson Education, Inc.
Segment 5 gas(Temp)
• Heating 1.00 mole of steam at 100.0 °C up to 125.0 °C
• q = mass × C s × DT
– Mass of 1.00 mole of water = 18.0 g – C
s= 2.01 J/mol ∙ °C
11.7
© 2014 Pearson Education, Inc.
11.8 Phase Diagrams
A—B, solid-vapor equilibrium.
A—D, solid-liquid equilibrium.
A—C, liquid-vapor equilibrium.
Triple point
deposition
11.8
© 2014 Pearson Education, Inc.
11.8
© 2014 Pearson Education, Inc.
Phase Diagrams for Other Substances
11.8
© 2014 Pearson Education, Inc.
11.9 Water – An Extraordinary Substance
11.9
• The hydrogen bonds present in water
result in a relatively high boiling point.
Hydrogen Bonding Forces Comparison
• Trend of bonding force in single H-bond:
H—F··· H—F > H—O··· H—O > H—N··· H—N
F H
F H F
H 2 H-bond/per molecule
1 H-bond/per F atom 140o
O H H
O H H
O H H O
H H
O H H
4 H-bond/per molecule 2 H-bond/per O atom
• Trend of boiling points:
Boiling point: H 2 O > HF > NH 3
MW: 18 20 17 11.3
© 2014 Pearson Education, Inc.
11.10 Crystalline Solids: Determining
Their Structure by X-Ray Crystallography
Diffraction from a Crystal
© 2014 Pearson Education, Inc.
X-Ray Diffraction Analysis
© 2014 Pearson Education, Inc.
Chemistry: A Molecular Approach, 3rd Edition Nivaldo J. Tro
Example 11.6 Using Bragg’s Law
Solution
When an X-ray beam of λ = 154 pm was incident on the surface of an iron crystal, it produced a maximum
reflection at an angle of θ = 32.6°. Assuming n = 1, calculate the separation between layers of iron atoms in the crystal.
To solve this problem, use Bragg’s law in the form given by Equation 11.8. The distance, d, is the separation between layers in the crystal.
For Practice 11.6
The spacing between layers of molybdenum atoms is 157 pm. Calculate the angle at which 154 pm X-rays produces a maximum reflection for n = 1.
© 2014 Pearson Education, Inc.
11.11 Crystalline Solids: Unit Cells and Basic Structures
• Unit cells are three-dimensional.
– Usually containing two or three layers of particles
• Unit cells are repeated over and over to give the macroscopic crystal structure of the solid.
• Starting anywhere within the crystal results in the same unit cell.
• Each particle in the unit cell is called a lattice point.
• Lattice planes are planes connecting equivalent points in unit cells throughout the lattice.
Unit Cells
© 2014 Pearson Education, Inc.
Orthorhombic a ≠ b ≠ c
all 90°
Seven Unit Cells
Hexagonal a = c < b 2 faces 90°
1 face 120°
Cubic a = b = c
all 90°
Tetragonal a = c < b
all 90°
Monoclinic a ≠ b ≠ c 2 faces 90°
Rhombohedral a = b = c
no 90°
Triclinic
a ≠ b ≠ c
no 90°
© 2014 Pearson Education, Inc.
The Cubic Crystalline Lattices
© 2014 Pearson Education, Inc.
Simple Cubic
© 2014 Pearson Education, Inc.
Body-Centered Cubic
© 2014 Pearson Education, Inc.
Face-Centered Cubic
© 2014 Pearson Education, Inc.
Chemistry: A Molecular Approach, 3rd Edition Nivaldo J. Tro
Example 11.7 Relating Density to Crystal Structure
Aluminum crystallizes with a face-centered cubic unit cell. The radius of an aluminum atom is 143 pm. Calculate the density of solid crystalline aluminum in g/cm3.
Sort
You are given the radius of an aluminum atom and its crystal structure. You are asked to find the density of solid aluminum.
Strategize
The conceptual plan is based on the definition of density.
Since the unit cell has the physical properties of the entire crystal, you can find the mass and volume of the unit cell and use these to calculate its density.
Solve
Begin by finding the mass of the unit cell. Determine the mass of an aluminum atom from its molar mass. Since the face-centered cubic unit cell contains four atoms per unit cell, multiply the mass of aluminum by 4 to get the mass of a unit cell.
Given:
Find: d
r = 143 pm, face-centered cubic
© 2014 Pearson Education, Inc.
Chemistry: A Molecular Approach, 3rd Edition Nivaldo J. Tro
Example 11.7 Relating Density to Crystal Structure
Continued
d = m/V
m = mass of unit cell
= number of atoms in unit cell × mass of each atom V = volume of unit cell
= (edge length)3
Solution
Conceptual Plan
© 2014 Pearson Education, Inc.
Chemistry: A Molecular Approach, 3rd Edition Nivaldo J. Tro
Example 11.7 Relating Density to Crystal Structure
Continued
Next, calculate the edge length (l) of the unit cell (in m) from the atomic radius of aluminum. For the face-centered cubic structure, l = 2 2r.
Calculate the volume of the unit cell (in cm) by converting the edge length to cm and cubing the edge length. (Use centimeters because you will want to report the density in units of g/cm3.)
Finally, calculate the density by dividing the mass of the unit cell by the volume of the unit cell.
© 2014 Pearson Education, Inc.
Chemistry: A Molecular Approach, 3rd Edition Nivaldo J. Tro
Example 11.7 Relating Density to Crystal Structure
Continued
Check
The units of the answer are correct. The magnitude of the answer is reasonable because the density is greater than 1 g/cm3 (as you would expect for metals), but still not too high (because aluminum is a low-density metal).
For Practice 11.7
Chromium crystallizes with a body-centered cubic unit cell. The radius of a chromium atom is 125 pm. Calculate the density of solid crystalline chromium in g/cm3.
© 2014 Pearson Education, Inc.
Closest-Packed Structures First Layer
• With spheres, it is more efficient to offset
each row in the gaps of the previous row
than to line up rows and columns.
© 2014 Pearson Education, Inc.
Closest-Packed Structures Second Layer
• The second layer atoms can sit directly over the atoms in the first layer—called an AA pattern.
• Or the second layer can sit over the holes
in the first layer—called an AB pattern.
© 2014 Pearson Education, Inc.
Hexagonal Closest-Packed Structures
© 2014 Pearson Education, Inc.
Cubic Closest-Packed Structures
© 2014 Pearson Education, Inc.
11.12 Crystalline Solids: The Fundamental Types
• Crystalline solids are classified by the kinds of particles found.
• Some of the categories are subclassified by the kinds of attractive forces holding the particles together.
Classifying Crystalline
Solids
© 2014 Pearson Education, Inc.
Types of Crystalline Solids
© 2014 Pearson Education, Inc.
11.13 Classifying Crystalline Solids
• The structures of metals and covalent network solids result in every atom’s orbitals being
shared by the entire structure.
• For large numbers of atoms, this results in a large number of molecular orbitals that have approximately the same energy; we call this an energy band.
Band Theory
© 2014 Pearson Education, Inc.
