Efficient Shape Retrieval Using Elliptical Shape Coding
JIA-MING LI AND WEI-YANG LIN*
Department of Computer Science and Information Engineering, National Chung Cheng University, Taiwan
ABSTRACT
This paper presents a novel shape representation, called elliptical shape coding, and uses it to develop an efficient shape retrieval algorithm. The elliptical shape coding transforms an original shape, which is a single, closed contour in our experiments, into a periodic signal. The alignment between two shapes is accomplished efficiently by performing convolution of the corresponding periodic signals.
Unlike previous approaches, we taking advantage of a priori knowledge hidden in the shape structure to produce shape matches with a significantly lower computational cost. Experimental results on an MPEG-7 shape database demonstrate the effectiveness of the proposed method.
Key word: shape matching, shape retrieval, object presentation.
1. INTRODUCTION
The recognition of shapes in images is one of the fundamental issues in the development of content-based image retrieval systems. It is challenging due to the deformations within one shape category. The robustness of a shape representation to such variations can have significant impact on the retrieval accuracy. There has been extensive works in the area of shape representation for object recognition.
Shapes have been represented by their outline curves (Gdalyahu & Weinshall, 1999;
Basri, Costa, Geiger & Jacobs, 1998), structural graphs (Coughlan & Ferreira, 2002;
Luo & Hancock, 2001), shape context (Belongie, Malik & Puzicha, 2002), shock graphs (Sebastian, Klein & Kimia, 2004), and curvature scale space (Mokhtarian, Abbasi & Kittler, 1997), among others. In this paper, we introduce a novel shape representation, called elliptical shape coding. A shape retrieval algorithm utilizing the elliptical shape coding is also presented. We emphasize that we are not presenting a complete solution to shape retrieval, but rather a shape descriptor suitable for shape retrieval applications.
The rest of this paper is organized as follows. Section 2 provides the details of the proposed elliptical shape coding and shape retrieval algorithm. Section 3 shows experimental results on an MPEG-7 database. We make concluding remarks and discuss future works in Section 4.
2. RELATED WORKS
There have been many approaches to shape matching. How to define a shape and how to measure the shape similarity are important steps before matching two shapes. According to a survey conducted in this study, there are two major approaches to shape matching: feature-based and brightness-based.
Feature-based approaches involve the spatial property such as edge or silhouette features. Zahn and Roskies (1972) used Fourier descriptors to describe silhouettes. Amit, Geman and Wilder (1997) utilized decision trees by learning the spatial property of keypoints. Gdalyahu and Weinshall (1999) applied dynamic programming approaches using silhouette curves for matching. Although silhouettes are simple and efficient to compare, they ignore internal contours and are difficult to extract from real images. There are several approaches to the use of shape descriptors for general objects to provide greater discriminative power. Lowe (1999) used gray-level information around the keypoints, called SIFT. Belongie et al. (2002) proposed shape context to collect information around a point.
Brightness-based approaches make use of intensity values of images. Lades et al. (1993) used elastic graph matching that involves the use of geometry and photometric properties to describe features. Turk and Pentland (1991) used principal components analysis (PCA) in the area of face recognition. These approaches also have been used for handwritten digit recognition in Lecun, Bottou, Bengio and Haffner (1998), face recognition in Moghaddam, Jebara and Pentland (2000), and 3D object recognition in Murase and Nayar (1995).
3. SHAPE MATCHING AND RETRIEVAL
3.1 The Elliptical Shape Coding
Let ψ denote the set of discrete sampling points along a contour:
[ ] ⎥
⎦
⎢ ⎤
⎣
=⎡
=
N
N y y yN
x x p x
p
p K
K K
2 1
2 2 1
ψ 1 (1)
where N denotes the number of sampling points. The mean vector m and the covariance matrix C of the set ψ are given by
1 1
1 1 ;
N N T
k k
k k
m x y
N = N =
=
∑ ∑
(2)1
1 N ( k )( k ) .T
k
C p m p m
N =
=
∑
− − (3)Since C is a symmetric matrix, there exists an orthogonal matrix V such that
VDVT
C = (4)
where D is the diagonal matrix whose diagonal entries λ1 and λ2 are the eigenvalues of C. The eigenvectors, corresponding to the eigenvalues λ1 and λ2, are denoted by v1 and v2, respectively. Note that v1 and v2 are orthonormal vectors.
(a) (c)
(b) (d) Figure 1. (a) Original shape in the form of binary image. (b) The set of points sampled along
the outer contour of the shape. v1 and v2 are the eigenvectors of the covariance metric C. (c) An ellipse centered at m and having its major axis parallel to v1 is drawn. The feature value at the point pi is defined as Equation (9). (d)We obtain a periodic signal s[n] by computing feature value at each point.
In analyzing the properties of a contour, it is convenient to work with a coordinate system associated with the contour. Hence, a new coordinate system is defined by using the origin m and coordinate frames v1 and v2. An example is shown in Figure 1(b). Given a set of sampling points ψ, the coordinate transformation from the original coordinate system to the new coordinate system is
) ' (
'
2
1 p m
v v y x
T i T i
i ⎥ −
⎦
⎢ ⎤
⎣
=⎡
⎥⎦
⎢ ⎤
⎣
⎡ (5)
where ( ', ')x y represent the i-th point in terms of the new coordinate system. i i Figure 1(c) shows the point sequence after performing coordinate transformation.
Then, an ellipse centered at the new origin and having its major axis parallel to the new y-axis is drawn. The ellipse could be specified by the following equation:
2 2
1 2
' ' 1.
x y
λ +λ = (6)
Or, it could be expressed as functions of one parameter:
' 1cos ;
x = λ θ (7)
' 2sin ,
y = λ θ (8)
where θ∈[0, 2π]. An ellipse obtained in this way contains important information about a contour. For example, if an ellipse is long and thin, the shape behind it must be slender. Now, we could encode shape information into a periodical signal by using the ellipse. For the i-th point, we draw a straight line from that point to m.
The intersection of the line and the ellipse is denoted by qi. The feature value at the point pi is defined as
i i i .
s = p m− − q m− (9)
A periodic signal s[n] is obtained by repeating the same procedure on each point.
For a contour with N sampling points, the elliptical shape coding generates a periodic signal s[n] with fundamental period N. An example is shown in Figure 1(d).
3.2 Shape Alignment
Because shapes are sampled with arbitrary starting points, alignment has to be performed before computing a similarity metric. Consider that a contour is sampled twice, each with different starting point. The periodic signals generated by the elliptical shape coding will be related by an unknown offset n0. The discrete-time convolution of these two periodic signals is given by
∑
>=< − −
=
⊗
−
N
k sk n sn k
n s n n
s[ 0] [ ] [ 0][ ] (10)
where we use the notation n = <N> to indicate summation over any N consecutive values and the symbol ⊗ to denote periodic convolution. In order to estimate the value of n0, we flip one of the signal and then compute the convolution of the flipped signal and the other one. Without losing generality, we assume that the flipped signal is s[n0− n]. The discrete-time periodic convolution of s[n0− n] and s[n] is given by
∑
>=<
−
−
=
⊗
−
=
N k
k n s k n s n s n n s
n] [ ] [ ] [ ][ ]
[ 0 0
ξ (11)
where ξ[n] is also a periodic signal with fundamental period N. It is easy to show that the maximum value of the periodic signal ξ[n] is located at n = n0. Hence, the alignment between two shapes is defined to be the solution of
arg max [ ].
n ξ n (12)
One could simply find the maximum value of ξ[n]. Then, the index of the maximum value provides the offset between the two shapes.
3.3 The Similarity Measure
After the shape alignment, the similarity σi,j between the i-th and j-th shapes is measured using the normalized cross-correlation (Lin, Boston & Hu, 2005) as follows:
1
, 10 1
2 2
0 0
[ ] [ ] . [ ] [ ]
i j
N
i j
i j Nn N
n n
s n s n s n s n σ
−
=
− −
= =
=
∑
∑ ∑
(13)
The value of the normalized cross-correlation ranges between −1 and 1. A higher value means a better match. The complexity of the proposed method consists of three parts. First, the computation of the mean vector and covariance matrix can be accomplished in O(N), where N is the number of sampling points. Second, the construction of the periodic signal takes O(N). Third, the normalized correlation costs O(N). For a personal computer equipped with a Pentium IV 2.8GHz processor and 2GB memory, a single comparison of two shapes with N = 100 takes about 0.69 milliseconds.
4. EXPERIMENTS
In this section, the proposed method is tested on the MPEG-7 CE shape-1 database (Latecki, Lak¨amper & Eckhardt, 2000), which is a widely accepted evaluation platform for shape matching. Note that our method has only one parameter N , which is the number of sample points on the outer contour of a shape. On the other hand, the state-of-the-art approaches have several parameters and their values could have significant impact on the matching performance. In general, parameter tuning is a nontrivial task for users who do not have a thorough understanding about the algorithm.
The MPEG-7 CE-Shape-1 database consists of 1400 shapes and 70 classes, i.e.
each class has 20 shapes. The retrieval accuracy is reported by the so-called Bullseye test: Every shape is matched with all the other shapes in a dataset. We keep 40 shapes with the highest similarity scores and discard the others. Among the 40 retrieved shapes, we count the correct hits, i.e. the number of shapes belonging to the same class as the query shape. There are at most 20 hits for each query. The accuracy of shape retrieval is the ratio of the number of correct hits to the highest possible correct hits (which is 20×1400 in this experiment). Figure 2 shows a query image and the 40 images retrieved by the proposed method.

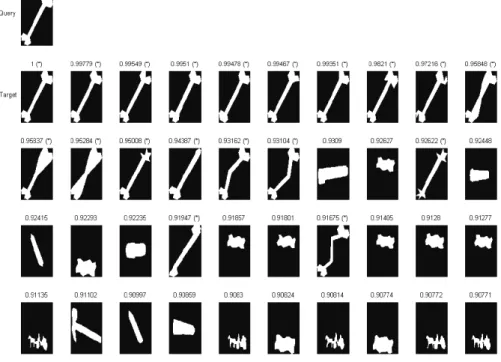

Figure 2. A retrieval example on the MPEG-7 database. In this case, the number of correct hits is 19 and hence the retrieval rate is 19/20 = 0.95.
We conduct sampling uniformly along contours and take N sampling points for each shape. Note that some shapes in the MPEG-7 database have mirror symmetry. To handle mirrored shapes, we match a query to an original shape and also its mirrored shapes, and keep matches with higher similarity scores. Table 1 shows the retrieval rates and average matching times for various N . We observed that the elliptical shape coding achieves high speed while maintaining good accuracy.
Table 1. Retrieval accuracy (in %) and speed (in millisecond) for bullseye test on the MPEG-7 database
N 50 75 100 125 150 175
retrieval rates (%) 68.23 68.44 68.49 68.48 68.52 68.43 average matching times(ms) 0.64 0.66 0.69 0.77 0.79 0.83
5. CONCLUSION AND FURTURE WORKS
Many approaches have been proposed for shape retrieval. But the accuracy of shape retrieval meets a bottleneck due to its subjective nature, i.e. different persons have different ideas about whether two shapes are similar. We tried to tackle this challenging issue by incorporating online learning from user feedback. However, most of the existing algorithms for shape retrieval are too slow for online applications. In this paper, we introduce a novel shape representation, called elliptical shape coding, and demonstrate its effectiveness in shape retrieval. The proposed algorithm achieves good accuracy with a significantly reduced retrieval time on the MPEG-7 database.
For the future works, we would like to exploit the relevance feedback that involves users in the shape retrieval process. In other words, users are allowed to label retrieval results as relevant or irrelevant. Using online learning from user-labeled samples, the system could iteratively adapt the retrieval results to meet the user’s query concept.
