1

Chapter 1. Introduction

1.1. Brief introduction of cancer

Cancer has remained top spot among the ten leading causes of death in Taiwan for

31 years. It is estimated that one person died of cancer in an average of every 3 minutes and 25 seconds, indicating the severe damage to human beings. Cancers usually arise from genomic instability,¹ making cells become uncontrolled in proliferation and differentiation. By genome evolution, cancer cells have potential to proceed metastasis to other locations in body through blood and lymphatic systems, endangering one’s health enormously.

Oncogenes and tumor-suppressor genes have been confirmed to correlate with the production of cancers.² The former are genes that has the potential to cause cancer, while the latter are, as its name, the genes which help to restrain formation of cancers. Once the function of tumor-suppressor genes such as Tp53 is disrupted, genomic instability drives cancer cell formation.³

Substances causing genomic mutation are called carcinogens, and can be roughly divided into three categories: chemical carcinogens, physical carcinogens, and biological carcinogens. Chemical carcinogens include organic and inorganic compounds, physical carcinogens contain radiation, especially ultraviolet and X-ray exposure, and biological

(24)

2

carcinogens comprise viruses and other microorganisms.

1.2. Inhibition of topoisomerase

Each human cell contains DNA with approximately 1.8 m long, winding around the nucleus tightly.⁴ Due to the double-helix structure of DNA, it is crucial for DNA to unwind its double strands in order to obtain information from genes. Topoisomeraseis an extremely important enzyme which contains a conserved tyrosine residue to react with phosphodiester bond in DNA, forming phosphotyrosine to cut the double strands.

Once the break has formed, DNA can be untangled or unwound, followed by reconnecting DNA backbone to alter the topology.⁵

Topoisomerase can be divided into two types according to the number of strands cut in one round of performance.⁶ Type I topoisomerase cleaves one strand of DNA, making the other strand rotate around to release the stress from supercoiled and reanneal the break site. On the other hand, type II topoisomerase cleaves both strands in DNA double helix; thus, the unbroken DNA duplex can pass through the breakage. After religation, DNA loop may be able to increase or decrease the tension.

Since topoisomerase is essential for DNA functionality, several drugs and

treatments are designed to target this enzyme (Figure 1). For example, camptothecin (CPT) and topotecan are widely used in clinical treatment against topoisomerase I.⁷

(25)

3

Chemotherapeutic agents targeting topoisomerase II (TOP2) are classified into two categories. The first class of compounds, which trap the enzyme intermediate, a TOP2–DNA covalent complex, resulting in permanent DNA lesion are called TOP2 poisons. The second class of compounds, which diminish enzymatic activity of TOP2 and lead to cell death pathway, are called TOP2 inhibitors. Most of the clinically active drugs are TOP2 poisons, including etoposide, mitoxantrone, and doxorubicin.⁸

Figure 1. Chemical structures of drugs targeting topoisomerases I and II.

(26)

4

Doxorubicin (adriamycin) is an antibiotic agent that blocks the synthesis of DNA by intercalating into DNA double strands, and further inhibits the function of TOP2 from religation. Cancer cells with rapid proliferation and high levels of TOP2 expression are most sensitive to doxorubicin. Doxorubicin is widely used for treating leukemias as well as cancers in breast, ovaries, multiple myeloma, and others.^{4, 9} However, the radical oxygen species (ROS) generated by interaction of doxorubicin with irons may result in severe side effects, such as cardiotoxicity,⁹ acute infection of bowels,¹⁰ and secondary malignancies.¹¹ Moreover, cancer cells showing resistance to doxorubicin has emerged by alteration of NADPH metabolism,¹² variation in cellular glutathione levels, and regulation of gene expression and TOP2 activity.¹³ Finding new drugs in combination with low dosage of doxorubicin to trigger cell apoptosis is a promising approach to cancer therapy.

(27)

5

1.3. Mechanism of DNA repair

To regulate the cellular concentrations of four deoxyribonucleoside triphosphates

(dNTPs) is critical for DNA synthesis during replication and repair. Once the levels of dNTP pool are too high or too low, DNA may be prone to mutation. Ribonucleotide reductase (RNR), which catalyzes the reduction of ribonucleotides into the corresponding deoxyribonucleotides (dADP, dUDP, dCDP, and dGDP) through radical reaction, is composed of two different dimeric subunits often called R1 and R2. These two subunits are regulated by different cell cycles, with RNR controlled by the level of R2.¹⁴ Besides, R2 may be able to collaborate with multiple oncogenes for malignant transformation and tumorigenesis.¹⁵ R2 is often overexpressed in tumor cells,¹⁶ suggesting that R2 mediates the activity of DNA repair.

Double-strand breaks (DSB) can be repaired through non-homologous end joining (NHEJ) or homologous recombination (HR).¹⁷ NHEJ ligates the break ends directly without the assistance of homologous template, and mainly predominates in the G1 phase.¹⁸ Compared with NHEJ, HR repair takes place during S/G2 phases, and requires a long homologous strand (usually sister chromatids) to lead repair.^{18, 19} After DSB occurs, HR repair starts by resection at the 5’ end on either side of the break, providing 3’ overhangs of single strand DNA (Figure 2). Strand invasion then proceeds on a homologous template by 3’ overhang strand to form a D-loop junction. Afterwards,

(28)

6

non-crossover and crossover products can be generated from synthesis-dependent strand annealing (SDSA) pathway or double-strand break repair (DSBR) pathway that forms an intermediate harboring two Holliday junctions (HJ).¹⁹ HR requires more than 10000 dNTPs for incorporation into DNA strands during DSB invasion.²⁰ Therefore, RNR that mediates the recruitment of dNTPs, with R2 expressing through S and G2/M phases,¹⁶ plays a significant role for HR repair.

Figure 2. Mechanism of DNA homologous recombination.¹⁹

(29)

7

1.4. Biosynthetic pathway of dTTP in cells²¹

Among the four dNTPs in cells, dTTP is the only deoxyribonucleotide synthesized without RNR. The biosynthesis of dTTP can be divided into two pathways (Figure 3). In the de novo pathway, dUMP is catalyzed by rate-limiting enzyme thymidylate synthase (TS) to transform into dTMP. Thymidylate kinase (TMPK) then modifies dTMP to dTDP, followed by pyrophosphorylation through nucleotide diphosphate kinase to generate dTTP. For salvage pathway, dTMP is synthesized from thymidine with the help of thymidine kinase (TK). The subsequent phosphorylation steps are just the same as that in de novo pathway. Owing to the unique biosynthetic mechanism of dTTP, several cancer chemotherapeutic drugs are designed to focus on the inhibition of dTTP formation during DNA repair.

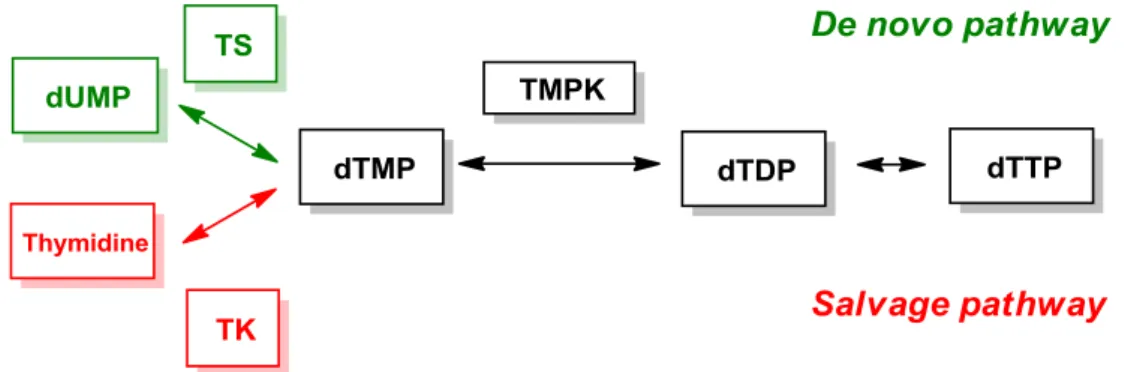

Figure 3. Biosynthetic pathways of cellular dTTPs.²²

(30)

8

1.5. Antimetabolite agents targeting dTTP formation

Among the enzymes involving in biosynthesis of dTTP, thymidylate synthase (TS)

is a potential target for dTTP inhibition.²³ It has been reported that several anticancer drugs including 5-fluorouracil (5-FU)^{23, 24} and raltitrexed (Tomudex),²⁵ a folate analog, block the function of TS (Figure 4), thereby diminishing the production of dTMP and dTTP. Consequently, imbalanced recruitment of dNTPs mediated by RNR will induce DNA breakage during replication or repair to cause cells death.

Figure 4. Chemical structures of drugs targeting thymidylate kinase (TS).

5-Fluorouracil (5-FU) is an analog of uracil with hydrogen atom at the C-5 position

being replaced by fluorine. Once entering into cells, 5-FU can camouflage as uracil to convert into several active metabolites including fluorodeoxyuridine monophosphate (FdUMP), fluorodeoxyuridine triphosphate (FdUTP) and fluorouridine triphosphate (FUTP) (Figure 5). FdUMP binds irreversibly to TS that catalyzes the transformation of dUMP into dTMP with the help of the one-carbon methyl donor 5,10-methylenetetrahydrofolate (CH₂THF), thereby blocking the binding site of normal

(31)

9

dUMP.²⁴ The formation of dTMP in de novo pathway is inhibited, causing thymineless death. Moreover, inhibition of TS may result in accumulation of dUMP, and enhance the level of dUTP in cells. DNA polymerase is unable to distinguish between dUTP and dTTP,²⁶ therefore, excessive amount of dUTP and FdUTP can be misincorporated into DNA. Such a futile process of misincorporation will eventually lead to DNA damage-induced cell death.

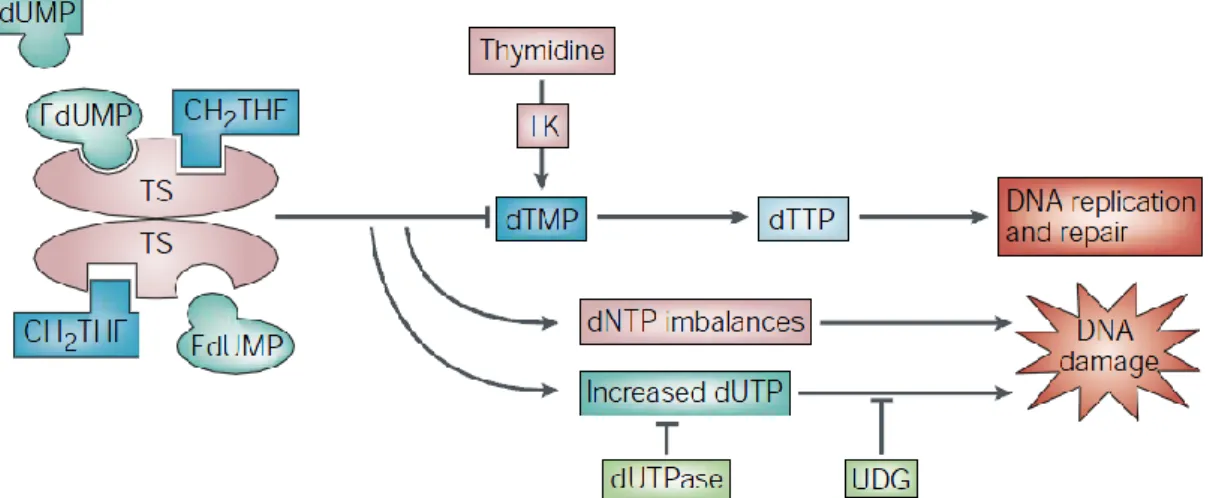

Figure 5. Mechanism of TS inhibition by 5-FU.²⁴

The treatment of 5-FU for cancer chemotherapy has been used more than 40 years.

However, many of the therapies that use 5-FU alone or in combination with other agents show drug resistance. For instance, p53 disruption makes human colorectal cancer cells less sensitive to 5-FU.²⁷ TS deficiency only sensitizes the p53- deficient cells to doxorubicin to a limit extent, probably due to the compensation of salvage pathway

(32)

10

mediated by TK.²⁸ Since tumor cells are frequently mutated in p53,²⁷ finding new anticancer drugs to inhibit the formation of dTTP without dependence on the expression of p53 will be particularly important.

1.6. Structure and physiology of TMPK

Because targeting TS may be complemented by TK through salvage pathway,

thereby diminishing the inhibition efficiency against TS,²⁴the enzymes participating in both dTTP biosynthetic pathways will be more reliable targets for drug development.

For example, TMPK is a good target because it stands at the junction of de novo and salvage pathways to catalyze the transfer of phosphate group from ATP to dTMP in the

presence of Mg²⁺.²⁹

Thymidylate kinase (TMPK) is a member of nucleoside monophosphate (NMP) kinase family.³⁰ The structure is usually a homodimer with each subunit composed of a central five-stranded β-sheet surrounded by α-helices(Figure 6).³¹ The enzymes are divided into three parts termed CORE domain, NMP binding site, and ligand-induced degradation (LID, residues 135-150) domain (Figure 6).^{31, 32} CORE domain is highly conserved among NMP kinases and contains the central parallel β-sheet as well as a phosphate binding loop (P-loop, residues 13-17) that controls the position of phosphate donor (ATP) for substrate recognition and catalysis. NMP binding region is largely

(33)

11

helical among most of the NMP kinases except guanylate monophosphate kinase. LID domain is flexible and covers a phosphate donor site partially for phosphate transfer.^{31, 32, 33}

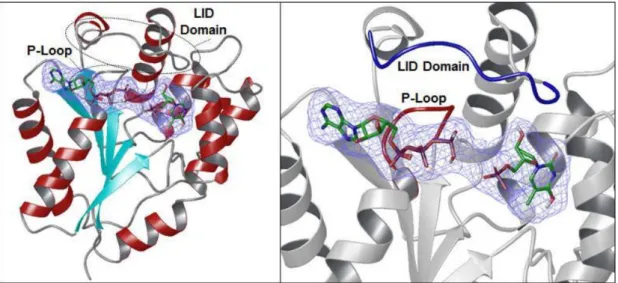

Figure 6. Ribbon structure of human TMPK (PDB ID: 1E2F). Left panel: central five-stranded β-sheet (light blue) surrounded by α-helices (red). Right panel: The P-loop (red) and LID domain (blue).³¹

When both the nucleotide binding sites are occupied, the active site of TMPK will exist as a globally closed conformation.^{34, 35} Several conformational changes of adenine-base binding loop (residue 178-188 for human TMPK), P-loop, and LID loop in the globally closed conformation of TMPK have been confirmed to correlate with the phosphorylation activity. The structure of TMPK in the presence of TMP and ADP is termed P-loop open form, and the partially closed form is observed in combination with TMP and AppNHp (an ATP analog). When TDP and ADP bind to TMPK, P-loop is

(34)

12

situated in a fully closed state.^{32, 34, 35} Among the catalytic process, the conformation of TMPK will change from open into closed form according to the movement of P-loop, and bring the phosphoryl donor close to the acceptor.^{31, 35} It is noted that the distance between Arg16 (P-loop) and the β,γ-phosphate bridging atom of ATP in the partially and fully closed conformation is closer than that in the open form. This is important for stabilizing the negative charge occurring during the phosphoryl transfer. Besides, the side chain of Asp15 that is essential in TMPK catalysis is too far away to interact with the 3’-hydroxyl group of TMP or the Arg97 residue in the open form.³⁵ Thus, the partially closed and fully closed conformations with P-loop may be structurally relevant to the catalytically active conformation, whereas the P-loop open form is an inactive state.^{34, 35}

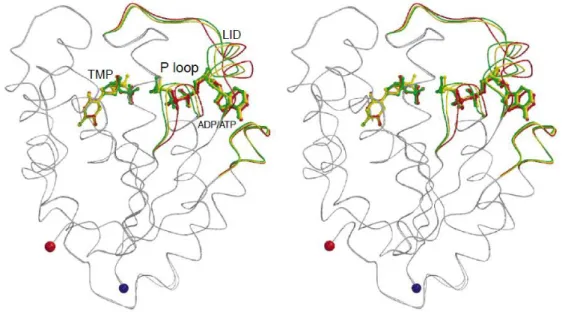

Figure 7. Movement of human TMPK structures: P-loop open (red), partially closed (yellow), and fully closed conformation (green) in response to binding of substrates.

(35)

13

P-loop, LID loop, and NMP binding site that change during catalytic process are colored.³⁵

Lavie and coworkers³⁶ classified TMPKs into two classes based on the position of basic residues (mostly Arg) in the active site. Type I TMPKs are mainly from eukaryotes (e.g. human and yeast). A basic residue occurs at position 10 in the P-loop that can interact with ATP; however the LID domain lacks this residue. In contrast, type II TMPKs are mainly from prokaryotes (e.g. E. coli). The basic residue is situated in the LID region (Arg153) rather than P-loop, which has a replacement of glycine.^30,^{31, 36} By understanding the classification and mechanism of TMPK, one can better control the activity of enzyme for further drug discovery.

1.7. The relationship between the doxorubicin sensitization by TMPK inhibition to

p53 status

In order to confirm the relationship between human TMPK and p53 status, Chang and coworkers have generated lentivirus shRNA for hTMPK knockdown, and assessed the effect on dTTP pools in either isogenic p53 (+/+) or p53 (-/-) HCT-116 colon cancer cells.³⁷ After infected by lentivirus for 3 days, the steady state level of dTTP diminished gradually up to 50% in TMPK silenced cells compared with normal cancer cells (scramble shRNA) in both p53 (+/+) and p53 (-/-) types, with the dTTP amount of p53

(36)

14

(+/+) cells higher then p53 (-/-) cells, indicating the essential role of TMPK in dTTP formation (Figure 8).

Additionally, the combination of TMPK silencing and genotoxic agents was also examined. As shown in Figure 9A, neither low dosage (0.5 μmol/L) of doxorubicin nor TMPK knockdown alone showed apparent effect on apoptotic induction. Nevertheless, TMPK silencing followed by doxorubicin treatment led to cell death (Annexin V-positive) in both p53 (+/+) and p53 (-/-) cells. On the other hand, 1 μmol/L administration of doxorubicin after TS deletion led to apoptosis with p53 (+/+) rather than p53 (-/-) cells (Figure 9B). These evidences revealed that low-dose doxorubicin in combination with TMPK knockdown was p53 independent, and was more effective than that with TS depletion (p53 dependent) to induce apoptosis of p53 deficient cells.

Figure 8. dTTP pool size measurement of lentiviral TMPK^shRNA and scramble^shRNA in p53-proficient and p53-null HCT-116 cells. (*, P = 0.06; **, P = 0.01; ***, P < 0.001 based on a two-tailed Student’s t test.)

(37)

15

Figure 9. Comparison of TMPK and TS knockdown on doxorubicin-induced apoptosis in p53(+/+) and p53(-/-) HCT-116 cells by FITC-labeled Annexin V apoptosis assay.

1.8. Confirming the characteristic role of hTMPK during DNA repair

Based on the aforementioned information, it is hypothesized that reducing the

formation of dTTPs by inhibiting TMPK function will sensitize tumor cells to doxorubicin. As the DNA breakage occurs after doxorubicin treatment, DNA repair will start by incorporating dNTPs into DSB site. Since HR requires more than 10000 dNTPs

(38)

16

to repair each DSB, the supply of dNTPs mediated by RNR is highly demanded.

Blocking TMPK function reduces the level of dTTP at damage site, and causes the imbalanced incorporation of four dNTPs during HR repair. Since DNA polymerase is unable to differentiate between dUTP and dTTP, surpluses amount of dUTP will misincorporate into DNA and trigger cell death finally (Figure 10).

R2, which is a subunit of RNR, is cell-cycle regulated and usually expresses during G2/M phases. Malignant tumor cells are cell-cycle checkpoint defected,³⁸ and thus show high G2/M-phase population after recovery from DNA damage, during which HR repair takes place along with R2 overexpression. On the other hand, the intact checkpoint functionality in normal cells reduces the population during S phase, and triggers cell quiescence into G0 phase, leading to low expression of R2 and less dUDP formation thereafter. Hence, TMPK knockdown will sensitize DNA damage only in tumor cells rather than normal cells.³⁹

Figure 10. Combined treatment of doxorubicin and hTMPK inhibitor to trigger cell apoptosis.²²

(39)

17

To confirm the hypotheses, Hu and Chang³⁹ first investigated the contribution of TMPK during DNA repair. γH2AX, the indicator of double-strand breaks, was higher in the TMPK knockdown MDA-MB231 breast cancer cells compared with control cells after recovery from a low-dosage doxorubicin treatment for 24 h, demonstrating that TMPK is essential for DNA repair in cancer cells (Figure 11a). Thereafter, uracil misincorporation test was conducted by inhibiting uracil N-glycosylase (UNG), an enzyme which removes erroneous uracil from DNA and forms single-strand breaks (SSBs) subsequently. After 24 h recovery from DNA damage, XRCC1 foci (SSBs marker) was reduced apparently by UNG knockdown in TMPK-knockdown cells (Figure 11b).

In order to make sure RNR will generate dUDP for incorporation during DNA repair in the absence of TMPK, the recruitment of RNR to DNA damage site was blocked by yellow fluorescent protein (YFP) fusion. The results showed that decline of RNR recruitment abolished the effect of TMPK knockdown during recovery from doxorubicin treatment (Figure 12a). Besides, TMPK and RNR were proved to co-localize and bind to the damage site of DNA, where is the place needed for dNTPs balance (Figure 12b). Furthermore, reducing the expression of R2 generated DNA repair in spite of TMPK silencing in tumor cells (Figure 12c). These evidences indicated that DNA repair required the cooperation of TMPK and R2 in RNR at the damage site.

(40)

18

TMPK is essential to DNA repair by preventing dUTP misincorporation.

(a) (b)

Figure 11. (a) γH2AX foci staining of MDA-MB231 cells with or without TMPK silencing after recovery from doxorubicin. (b) XRCC1 foci staining of LacZ or UNG lentivirus infected cells recovered from doxorubicin treatment for 24 h.

(a) (b)

(41)

19

(c)

Figure 12. (a) pCMV2-YFP-Nuc (vector) or pCMV2-YFP-Nuc-R1C (plasmid) transfected into TMPK or TMPK knockdown cells. (b) Laser-micro-irradiation of Hela cells followed by immunofluorescence staining. (c) γH2AX foci staining of MCF-7 cells with TMPK, R2 and TMPK/R2 knockdown at the indicated time points.

Given that TMPK knockdown will trigger apoptosis of tumor cells with low-dosage doxorubicin treatment, it is worthwhile to investigate the selectivity between cancer and normal cells. Breast cancer cell line MCF-7 as well as nontumorigenic H184B5F5/M10 and MCF10A were tested for the influence of TMPK silence during DNA repair. After recovery from DNA damage, γH2AX foci remained in MCF-7 cells but not H184B5F5/M10 or MCF10A cell lines, indicating the nontoxicity of TMPK knockdown toward normal cells (Figure 13). To further understand the reason for selectivity, Chang and coworkers used flow cytometry analysis to study the cell-cycle population of cell lines after doxorubicin treatment. H184B5F5/M10 and MCF10A cells showed higher population in G0/G1 phases compared with MCF-7 and MDA-MB231 cancer cells, which possessed larger S and G2/M phase populations after DNA damage (Figure 14), demonstrating lower integrity of checkpoint function in these cancer cells.

(42)

20

Figure 13. γH2AX foci staining of MCF-7, H184B5F5/M10, and MCF-10A cells transfected with TMPK siRNA after DNA damage recovery.

Figure 14. Flow cytometry of cells at the indicated time points after recovery from doxorubicin.

(43)

21

1.9. Screening inhibitors against hTMPK

Based on the significant characteristics of TMPK during DNA repair in tumor cells, searching for small molecules targeting TMPK will be a promising direction. Two methods have been developed for TMPK enzymatic assay.^{31, 40} The first method uses isotope labeled dTMP as the substrate. After incubation with TMPK, dTMP acquires a phosphate group from ATP, and the ratio between dTMP and dTDP are evaluated by the radiative intensities for calculation of enzymatic activity. However, this method requires long time and is not suitable for high-throughput screening even though it is accurate by using only one enzyme. Another wildly used method is NADH-coupled enzymatic assay.

This method comprises three enzymes, TMPK, pyruvate kinase, and lactate dehydrogenase (Figure 15). TMPK phosphorylates dTMP into dTDP along with the generation of ADP. The ADP then turns back to ATP by reacting rapidly with phosphoenolpyruvate (PEP) in the presence of pyruvate kinase. Pyruvate formed from PEP turns into lactate by lactate dehydrogenase with the cofactor NADH oxidized into NAD⁺. Since NADH shows absorbance at 340 nm, the activity of TMPK can be inferred from measurement of the absorbance at 340 nm. Two additional enzymes are required in this assay, and the sensitivity is limited by the low extinction coefficient of NADH. In addition, the accuracy of this assay may be interfered with any substrate absorbs near the region of 340 nm.

(44)

22

To circumvent the disadvantage of NADH-coupled enzymatic assay, Chang and coworkers⁴⁰ develop a new method termed luciferase-coupled TMPK assay, which has been used for screening hTMPK inhibitors. Luciferase catalyzes the oxidation of luciferin in the presence of ATP and generates luminescence. Hence, inhibiting TMPK will decrease the amount of ATP for luciferase. According to the intensity of luminescence, ATP remains after TMPK consumption can be determined accordingly.

Compared with the conventional assays, this method measures luminescence intensity which is more sensitive and rapid in determining the activity of hTMPK without the interference of substrate absorption (Table 1).

NADH-coupled enzymatic assay

Luciferase-coupled TMPK assay

Figure 15. Principles of NADH- and luciferase-coupled TMPK assays.

(45)

23

Table 1. Comparison of sensitivity in NADH- and luciferase-coupled TMPK assays.⁴⁰ hTMPK protein (μg) Luciferase-coupled assay NADH-coupled assay

0.01 3.8 ± 0.2^a Not detectable

0.05 18.2 ± 0.9^a Not detectable

0.10 36.5 ± 1.1^a 33.8 ± 7.4^a

1.00 89.3 ± 4.7^a 85.7 ± 6.1^a

0.50 177.3 ± 6.4^a 166.1 ± 4.0^a

1.00 373.4 ± 5.1^a 387.5 ± 9.7^a

a.Mean value (pmol of dTDP formation /min) of five independent experiments. Different concentrations (0.01 to 1 μg) of purified hTMPK protein were tested. In the luciferase-coupled assay, TMPK activity (ΔRLU/min) was converted to the amount of dTDP formation per minute. In the NADH-coupled assay, TMPK activity (ΔA_340nm/min) was estimated by the following equation: dTDP formation (pmol/min 100ul^-1) = ΔA_340nm 6.22 × 10⁵ / reaction time (min).

Using luciferase-coupled TMPK assay for high-throughput screening, a library of 21,120 small molecules was screened to find YMU1 as a potent compound (Figure 16), with IC50 0.061 ± 0.02 μM and Ki 0.22 ± 0.03 μM against TMPK.³⁹ As shown in Figure 17a, YMU1 itself did not give rise to genome toxicity in cells, unlike 5-FU which caused cell death without selectivity between normal and tumor cells. However, pretreatment of YMU1 followed by treatment with low-dosage doxorubicin demonstrated apparent DNA damage in tumor cells rather than normal cells (Figure 17b), indicating that YMU1 impaired DNA repair as effective as TMPK silencing.

To further verify that the combined use of doxorubicin and YMU1 was also verified to inhibit the growth of tumor cells, HCT-116 and MCF-7 cells were test and all showed

(46)

24

growth suppression (Figure 18a). Moreover, the size of tumor in mice treated with both YMU1 and doxorubicin was significantly smaller than that individually treated with YMU1 or doxorubicin (Figure 18b). Taken together, these results indicate that YMU1 has high potential in targeting human TMPK for tumor suppression. Therefore, YMU1 is a promising lead compound for development in cancer chemotherapy.

Figure 16. Chemical structure of YMU1.

(47)

25

(a) (b)

Figure 17. (a) 5000 cells of H184B5F5/M10, 3000 cells of MCF10A, MCF-7, and HCT-116 p53^(-/-) were treated with YMU1 or 5-FU at different concentration, and stained by crystal violet after 14 days. (b) γH2AX foci staining of cells after treated with vehicle or YMU1 along with doxorubicin exposure.

(a) (b)

Figure 18. (a) On treatment with vehicle or YMU1 for 72 h, followed by 4 h doxorubicin exposure, cells were incubated for colony formation over 14 days.

(b) Comparison of tumor growth in mice with combined treatment of YMU1 and doxorubicin or doxorubicin/YMU1 alone for two weeks.

(48)

26

(49)

27

Chapter 2. Results and Discussion

2.1.1. Structural feature of YMU1

Chemical structure of YMU1 can be divided into three parts: The heterocyclic core,

linker containing a six member ring, and the end group R (Figure 19). Based on the derivatives synthesized previously by Yeh,²² several structure features are considered to maintain the inhibitory activity against hTMPK, including the role of sulfur atom in core structure, the importance of N-alkylation with linker over O-alkylated analogs, the appropriate length of linker with a six member ring, and the alteration of the end group R. (Figure 20).

Figure 19. Structure of YMU1.

(50)

28

Figure 20. Some structural features of YMU1 derivatives.²²

2.1.2. Molecular dynamic simulation of YMU1 with TMPK

By means of molecular dynamic (MD) simulations of YMU1 with the crystal structure of TMPK, the inhibition mechanism can be further investigated. As shown in Figure 21, P-loop and LID region are connected by several residues including Arg16, Gly144, Ala145, Glu152, Asp15, Arg143, Ala17, and Ala180 via hydrogen-bond network. When YMU1 is incubated, the connection between LID and P-loop is disrupted, and the LID region is pushed outward. Arg16 in P-loop is supposed to interact with the heterocyclic core part of YMU1 by a π-π stacking, which can stabilize the disposition of YMU1 (Figure 22). In addition, YMU1 is able to dock into the ATP binding site and thus prevents Mg²⁺ from interacting with Asp15, a residue that is crucial for the activity of TMPK. O-alkylation derivatives cannot prevent this interaction, thus show poor inhibition against TMPK.³⁹ Moreover, the two carbonyl groups of YMU1 can chelate

(51)

29

one Mg²⁺ ion, therefore, a long linker will be disfavored. Further modification of YMU1 can be performed more practically with the assistance of the simulation results.

Figure 21. MD simulation of the mechanism of TMPK with or without YMU1.

Hydrogen bonds were indicated with dash lines and YMU1 was shown as bright blue structure.

Figure 22. Stabilzation of YMU1 in hTMPK via the π-π stacking interaction with Arg16.

2.1.3. Specific YMU1 derivatives proposed in this study

Although the previous study²² indicated that the end group R in YMU1 made no

(52)

30

apparent difference in TMPK inhibition, I still plan to synthesize the dimeric compounds having the R group containing another heterocyclic core structure to test their inhibitory activity against TMPK. Besides, I further modified the structure of YMU1 to investigate the importance of the sulfur atom in the heterocyclic core, and to enhance the hydrophilicity by changing substituents in the core structure and the R group.

Figure 23. Specific YMU1 derivatives.

2.1.4. Luciferase-coupled TMPK assay

After setting the research target, the next step is to identify the inhibitory activity of YMU1 derivatives against hTMPK in cancer cells with the combined use of low-dosage doxorubicin. In order to screen inhibitors more efficiently and accurately, Chang and coworkers have established a convenient protocol of luciferase-coupled TMPK assay (Figure 24).⁴⁰ Each test compound was dissolved in DMSO to a concentration of 5 mM,

(53)

31

and then diluted into different concentrations for tests. For example, a drug (10 μM) was transferred to a 96-well plate containing 10 μL of 0.5 μg TMPK for 10-min preincubation. Then, 30 μL of buffer solution containing 100 mM Tris-HCl (pH 7.5), 100 mM KCl, 10 mM MgCl2, 50 μM ATP and 100 μM dTMP were added to initiate the reaction. After 10 min, 200 μL of 100 μM 5,5’-dithiobis(2-nitrobenzoic acid) (DTNB) was added to stop the reaction. The sample solution (10 μL) was transferred to a 96-well plate, followed by adding 90 μL of luciferase assay buffer containing 50 mM Gly (pH 7.0), 0.1 μg luciferase, 0.5 mM EDTA, 50 μM luciferin, 5 mM MgCl2 and 0.1 % bovine serum albumin (BSA) into each well to measure the luminescence.

Figure 24. Protocol of luciferase-coupled TMPK assay.²²

(54)

32

2.1.5. General synthetic scheme

The general synthetic strategy for YMU1 derivatives is shown in Scheme 1. Using piperazine as the starting material, the substitution reaction with 1 equiv of alkyl halide (R³Cl) would generate a mono-substituted piperazine A. The substitution reaction of chloroacetyl chloride would be performed via addition–elimination mechanism to form disubstituted piperazine derivative B. Further substitution of the chlorine atom with iodine atom would be conducted by using sodium iodide as a nucleophile in acetone.

Finally, diverse heterocyclic compounds D would be introduced by coupling with the iodo-substituted C to give a series of the desired YMU1 derivatives E.

Scheme 1. General synthetic scheme for YMU1 derivatives.

2.2.1. Replacement of the sulfur atom in heterocyclic core

Heterocyclic core 2 was synthesized from the commercially available 2-chloro-4,6-dimethlylnicotinonitrile (1) and thiourea in n-butanol at 118 ^oC. The

(55)

33

oxidative cyclization reaction was then performed in conc. H2SO4 at 100 ^oC for 4 h to afford compound 3 (Eq. 1).

In the first part, we aimed to test the significance of the sulfur atom in heterocyclic core for TMPK inhibition. Yeh has changed the sulfur atom of YMU1 into sulfone, and found the derivative did not show inhibition against hTMPK. We further replaced the sulfur atom with oxygen, nitrogen, carbon, carbonyl, and N-benzyl group to investigate the role of sulfur atom in the heterocyclic core.

We first focused on constructing the heterocyclic core having an N-benzyl group.

The commercially available 1H-indazol-3(2H)-one (4) was treated with benzyl chloride and sodium hydroxide in H₂O at 70 ^oC for 2 h. The precipitates were collected and purified to afford compound 5 (Eq. 2).⁴¹

(56)

34

Using cyclohexane as the reducing agent, reduction of phthalimide (6) was promoted by aluminum chloride to afford phthalimidine 7⁴² as the carbon-substituted YMU1 derivative (Eq. 3).

The oxygen-containing heterocyclic core 9⁴³ was synthesized from salicylhydroxamic acid (8) with carbonyl diimidazole in THF at 70 ^oC (Eq. 4).

2.2.2. Synthesis of piperazine linkers

The commercially available piperazine was treated with Boc-anhydride (1 equiv) in the presence of a base DIEA to form the mono-Boc-protected piperazine 10 (Scheme 2).

The reaction of 2-chloroacetyl chloride with 10 provided compound 11, which underwent a substitution reaction with sodium iodide in acetone to give the iodo compound 12.

(57)

35

Scheme 2. Synthesis of compound 12.²²

2.2.3. Synthesis of YMU1 derivatives 13–17

The heterocyclic compounds 5–7 and 9 underwent substitution reactions with the iodo compound 12 in the presence of appropriate base to give the YMU1 derivatives 13 and 15–17, respectively (Scheme 3). Removal of the benzyl group from 13 was carried out by hydrogenation over Pd/C in MeOH to give compound 14.

Scheme 3. Synthesis of compounds 13–17.

Noteworthily, the substitution reaction of phthalimidine 7 with 12 could not be realized by using DIEA as shown in the general synthetic procedure. We thus tested different bases, including NaH, LiH and Cs₂CO₃, and solvents, including DMF, THF and CH₃CN, for this transformation (Table 2). The reaction using Cs₂CO₃ in CH₃CN at

(58)

36

50 ^oC showed the highest yield (entry 4).

Table 2. Reaction conditions for the synthesis of compound 16.

Entry Conditions Results

1 DIEA, CH₂Cl₂, rt, 5 d No reaction

2 NaH, DMF, rt, 5 d 16 (41%)

3 LiH, THF, reflux, 3 d 16 (16%) 4 Cs₂CO₃, CH₃CN, 50 ^oC, 36 h 16 (49%)

2.2.4. Structure–activity relationship of compounds 3–7, 9 and 13–18

After synthesizing a variety of derivatives by replacement of the sulfur atom in YMU1, we started to study the relationship between the structure and inhibitory activity.

As shown in Figure 25, benzo[d]isothiazol-3(2H)-one (BT) and 3 was used to compare with compounds 4–7 and 9 having heterocyclic cores, whereas compound 18 was used to compare with compounds 13–17.

(59)

37

Figure 25. Chemical structures of benzo[d]isothiazol-3(2H)-one (BT), compounds 3–7, 9, 13–18 and YMU1.

Table 3. Normalized TMPK inhibition of compounds BT, 3–7, 9, 13–18 and YMU1.⁴⁴

Compound Inhibition (%)^a Compound Inhibition (%)^a

BT 51.8 13 8.4 ± 2.5^b

3 19.6 14 0.6 ± 1.5^b

4 –3.3 15 18.7 ± 3.4^b

5 –4.5 16 2.2 ± 5.4^b

6 13.1 17 10.6 ± 7.6^b

7 –6.0 18 91.3 ± 5.7^b

9 –3.3 YMU1 70.0 ± 7.0^b

a.Normalized TMPK inhibition of the test compound compared with YMU1 as 70%

inhibition at 2 μM.

b.Data of quadruplicate experiments.

(60)

38

Table 3 shows the inhibitory activity of compounds at 2 μM using luciferase-coupled TMPK assay as the preliminary test. The normalized inhibition value was calculated according to a formula:

(inhibitory activity of compound) ÷ (inhibitory activity of YMU1) × 100%.

Though BT and 3 still possessed moderate TMPK inhibition, compounds 4–7 and 9 having different heterocyclic cores without sulfur atom revealed poor activity against TMPK. Moreover, compounds 13–17 without sulfur atom were also inactive to TMPK, whereas the sulfur-containing derivative 18 was highly active with 91% normalized inhibition against TMPK. These results confirmed that the sulfur atom placed in the heterocyclic core of YMU1 indeed played an important role in the TMPK inhibition activity. Once the sulfur atom is replaced by other atom or functional group, the efficiency of inhibition against TMPK will decrease dramatically.

2.3.1. Hydrophilic YMU1 derivatives

Lipophilicity refers to the ability of chemical compound to partition between organic and polar aqueous phases (two immiscible solvents).⁴⁵ Molecules with high capacity to form hydrogen bonds are more hydrophilic and tend to dissolve in high polar substances such as water. On the other hand, compounds having less hydrogen bonds often interact within themselves with London dispersion force, and are more favorable
