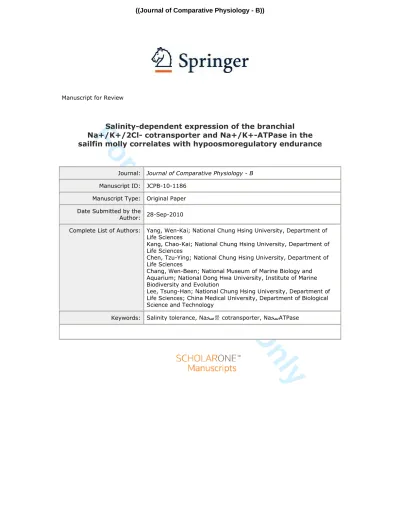

For Peer Review Only
Manuscript for Review
Salinity-dependent expression of the branchial Na+/K+/2Cl- cotransporter and Na+/K+-ATPase in the sailfin molly correlates with hypoosmoregulatory endurance
Journal: Journal of Comparative Physiology - B Manuscript ID: JCPB-10-1186
Manuscript Type: Original Paper Date Submitted by the
Author: 28-Sep-2010
Complete List of Authors: Yang, Wen-Kai; National Chung Hsing University, Department of Life Sciences
Kang, Chao-Kai; National Chung Hsing University, Department of Life Sciences
Chen, Tzu-Ying; National Chung Hsing University, Department of Life Sciences
Chang, Wen-Been; National Museum of Marine Biology and Aquarium; National Dong Hwa University, Institute of Marine Biodiversity and Evolution
Lee, Tsung-Han; National Chung Hsing University, Department of Life Sciences; China Medical University, Department of Biological Science and Technology
Keywords: Salinity tolerance, Naﲯ뿘 cotransporter, NaﲯATPase
For Peer Review Only
Submitted to Journal of Comparative Physiology B
Salinity-dependent expression of the branchial Na
+/K
+/2Cl
-cotransporter and Na
+/K
+-ATPase in the sailfin molly correlates with
hypoosmoregulatory endurance
Wen-Kai Yang
1†, Chao-Kai Kang
1†, Tzu-Ying Chen
1, Wen-Been Chang
2,3*, and Tsung-Han Lee
1,4*
1
Department of Life Sciences, National Chung-Hsing University, Taichung 402, Taiwan
2
National Museum of Marine Biology and Aquarium, Pingtung 944, Taiwan
3
Institute of Marine Biodiversity and Evolution, National Dong Hwa University, Hualien 974, Taiwan
4
Department of Biological Science and Technology, China Medical University, Taichung 404, Taiwan
†
WKY and CKK contributed equally to this paper.
*Corresponding author:
T. H. Lee, Department of Life Sciences, National Chung-Hsing University, 250, Kuo-Kuang Road, Taichung, 402 Taiwan. Tel: +886-4-2285-6141; fax: +886-4-2287-4740; E-mail:
[email protected]. Or W. B. Chang, National Museum of Marine Biology and Aquarium, 2, Houwan Road, Checheng, Pingtung, 944, Taiwan. Tel: +886-8-8825065; fax:
+886-8-8825066; email: [email protected].
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
Abstract
In the branchial mitochondrion-rich (MR) cells of euryhaline teleosts, the Na+/K+/2Cl- cotransporter (NKCC)
is an important membrane protein that maintains the internal Cl- concentration, and the branchial
Na+/K+-ATPase (NKA) is crucial for providing the driving force for many other ion-transporting systems. Hence
this study used the sailfin molly (Poecilia latipinna), an introduced aquarium fish in Taiwan, to reveal that the
potential roles of NKCC and NKA in sailfin molly were correlated to fish survival rates upon salinity challenge.
Higher levels of branchial NKCC were found in seawater- (SW-) acclimated sailfin molly compared to
freshwater- (FW-) acclimated individuals. Transfer of the sailfin molly from SW to FW revealed that the
expression of the NKCC and NKA proteins in the gills was retained over seven days in order to maintain
hypoosmoregulatory endurance. Meanwhile, their survival rates after transfer to SW varied with the duration of
FW-exposure and decreased significantly when the SW-acclimated individuals were acclimated to FW for 21
days.Double immunofluorescence staining showed that in SW-acclimated sailfin molly, NKCC signals were
expressed on the basolateral membrane of MR cells, whereas in FW-acclimated molly, they were expressed on
the apical membrane. This study illustrated the salinity-dependent expression of NKCC and NKA in branchial
MR cells to the post-transfer survival rates and evaluated the critical roles of NKCC and NKA in the
hypoosmoregulatory endurance of the sailfin molly.
Keywords: Salinity tolerance; Na+/K+/2Cl- cotransporter; Na+/K+-ATPase; Gill; Osmoregulation; Sailfin molly.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
Introduction
Euryhaline teleosts that inhabit either fresh water (FW) or seawater (SW) have to regulate their internal
water and ion concentrations in order to maintain a blood and tissue fluid osmolality within the range of
physiological homeostasis (Evans et al., 2005; Kaneko et al., 2008). In fish, the gill is the major organ
responsible for osmoregulation and ionoregulation (Hirose et al., 2003; Evans, 2008). In the gill epithelium, the
mitochondrion-rich cells (MR cells; i.e., chloride cells) are thought to be the “ionocytes” responsible for ion
uptake in FW and ion secretion in SW (Hirose et al., 2003; Hwang and Lee, 2007). These MR cells are
characterized by the presence of a rich population of mitochondria and an extensive tubular system in the
cytoplasm. The tubular system is continuous with the basolateral membrane and provides a large surface area
for the expression of ion transporting proteins such as the Na+/K+-ATPase (NKA, sodium-potassium pump, or
sodium pump), a key enzyme for ion transport (Marshall, 2002; Evans et al., 2005). NKA is a ubiquitous
membrane-spanning enzyme that actively transports Na+ and K+ out of and into animal cells, respectively. It is a
P-type ATPase consisting of an (αβ)2 protein complex. The molecular weights of the catalytic α-subunit and the
smaller glycosylated β-subunit are about 100 and 55 kDa, respectively (Scheiner-Bobis, 2002). NKA is crucial
for maintaining intracellular homeostasis because it provides a driving force for many other ion-transporting
systems (Hirose et al., 2003; Hwang and Lee, 2007). Most euryhaline teleosts exhibit adaptive changes in
branchial NKA activity following salinity changes (Marshall, 2002; Hwang and Lee, 2007). Most of the NKA
detected in fish gills by immunostaining is expressed in MR cells. Therefore, in fish gills, the NKA
immunoreactive (NKA-IR) cells are thought to be MR cells (Hirose et al., 2003; Hwang and Lee, 2007).
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
The functional and structural differentiation of the branchial MR cells is considerably influenced by
environmental salinity (Evans, 2008). In the current model of branchial MR cells in SW-acclimated teleosts, salt
secretion is mediated by NKA, Na+/K+/2Cl- cotransporter (NKCC), and cystic fibrosis transmembrane
conductance regulator (CFTR; the Cl- channel) for Cl- and “leaky” tight junction for Na+ (Marshall, 2002; Evans,
2008). Among them, NKCC is a member of the cation-chloride cotransporter (CCC) family (i.e., the solute
carrier family 12, SLC12) (Marshall and Bryson, 1998; Hebert et al., 2004; Gamba, 2005), and is crucial for
maintaining plasma osmolality in euryhaline teleosts in SW (Marshall, 2002; Hirose et al., 2003). In the gills of
euryhaline teleosts, studies on the CCC family mainly focused on NKCC (ion secretion) and Na+/Cl-
cotransporter (NCC; ion absorption) groups at present (Cutler and Cramb, 2002; 2008; Hiroi et al., 2008; Wang
et al., 2009). NKCC, which transports Na+, K+, and Cl- into animal cells simultaneously, maintains internal Cl-
concentration and regulates cell volume (Russell, 2000; Hebert et al., 2004; Gamba, 2005). In the gills of
SW-acclimated teleosts, the abundance of NKCC protein was significantly increased (Pelis et al., 2001;
Tipsmark et al., 2002, 2004; Wu et al., 2003; Scott et al., 2004; Wilson et al., 2004, 2007; Lorin-Nebel et al.,
2006; Tse et al., 2006; Hiroi and McCormick, 2007; Nilsen et al., 2007; Tang and Lee, 2007; Chew et al., 2009;
Peh et al., 2009; Flemmer et al., 2010; Kang et al., 2010). However, there was no direct evidence for a
relationship between branchial NKCC expression and survival of a salinity challenge in euryhaline teleosts. On
the other hand, the NCC was mainly expressed in fish gills (Hiroi et al. 2008), kidneys, and intestines (Cutler
and Cramb, 2008). In hypoosmotic environments, branchial NCC of the Mozambique tilapia (Oreochromis
mossambicus) was highly expressed in the gill (Hiroi et al. 2008; Inokuchi et al, 2008, 2009; Breves et al., 2010),
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
and branchial NCC-immunoreactive signals were found in the apical regions of MR cells (Hiroi et al. 2008).
Therefore, NCC was considered to be involved in ion absorption in hypoosmotic environments (Hiroi et al.
2008; Inokuchi et al, 2008, 2009).
A monoclonal anti-human NKCC antibody T4 (Lytle et al., 1995), considered that could recognize NKCC
and NCC (Lytle et al., 1995; Cutler and Cramb, 2002; Inokuchi et al., 2008; 2009), has been widely used in
many euryhaline teleosts as a marker to determine NKCC expression and distribution and to distinguish SW-
and FW-MR cells (Marshall, 2002; Evans et al., 2005; Hwang and Lee, 2007). In teleosts, immunohistochemical
staining with the T4 antibody on gills revealed that secretory and absorptive isoforms were localized to the
basolateral membrane of MR cells in SW-acclimated fish and the apical regions of MR cells in FW-acclimated
individuals, respectively (Wu et al., 2003; Hiroi and McCormick, 2007; Katoh et al., 2008; Inokuchi et al., 2008;
2009). Therefore, the existence or lack of branchial secretory isoforms (basolateral signals) was used to confirm
the presence or absence of branchial hypoosmoregulatory mechanism of sailfin molly in this study.
The sailfin molly (Poecilia latipinna), named for the large dorsal fins of the males, is an introduced
livebearing aquarium species in Taiwan (Froese and Pauly, 2010; Shao, 2010). They are natively distributed in
low elevations from North Carolina, USA, to Veracruz, Mexico (Nordlie et al., 1992; Ptacek and Breden, 1998;
Froese and Pauly, 2010) and have been introduced to many countries (Froese and Pauly, 2010). The natural
habitats of the sailfin molly are lakes, ponds, streams, salt marshes, estuaries, and coastal waters (Nordlie et al.,
1992; Froese and Pauly, 2010). In Taiwan, the euryhaline sailfin molly is mainly distributed in the lower reaches
(in FW) and river mouths (in brackish water, BW) over the southwestern part of the island (Shao, 2010).
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
Although negative ecological effects of the sailfin molly were not reported in Taiwan, they still had the potential
risks of their ecological impacts in other countries (Englund, 1999; Koehn and MacKenzie, 2004). The sailfin
molly is able to survive in environments of wide salinities (0-80 ‰; Nordlie et al., 1992; Gonzalez et al., 2005),
and proved to be an efficient osmoregulator upon salinity challenge (Gonzalez et al., 2005; Yang et al., 2009).
Previous studies reported that in the sailfin molly, both branchial NKA expression and plasma osmolality were
elevated with increasing salinities (Gonzalez et al., 2005; Yang et al., 2009).
Our preliminary results showed that SW-acclimated sailfin molly survived well after a direct transfer to FW;
however, only half of the fish survived when FW-acclimated individuals were transferred directly to SW.
Furthermore, when SW-acclimated sailfin molly was exposed to FW for different periods of time (FW-shower)
followed by a direct transfer back to SW (salinity challenge), we observed that the longer the duration of the
FW-shower, the higher the mortality of fish upon salinity challenge. These preliminary data implied that the
decreasing survival rates in the FW-shower sailfin molly were due to decreased ionoregulatory capacity upon
hyperosmotic challenge. Hence, in this euryhaline species, a study of the retention of branchial NKCC and NKA
expression (i.e., the current model of branchial SW-type MR cells/hypoosmoregulatory mechanism) when
exposed to hypoosmotic environments (e.g., FW) that correlates protein expression with fish survival rates upon
hyperosmotic (e.g., SW) challenge will clarify the mechanisms of hypoosmoregulatory endurance.
In the present study, we investigated the expression and localization of ion transporters of the model of
SW-type branchial MR cells including NKA and NKCC in experiments of salinity acclimation (FW, BW, or
SW). In addition, the survival rates and corresponding expression of branchial NKCC and NKA in sailfin molly
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
after FW-shower (transfer from SW to FW for different periods of time, followed by transfer back to SW) were
evaluated to reveal the potential role of NKCC and NKA in fish survival upon salinity challenge. Physiological
parameters (plasma osmolality and Cl- concentrations), biochemical expression (protein expression levels and
cellular localization of NKCC and NKA α-subunit and NKA activity), and survival rates after transfer were
analyzed in order to determine the hypoosmoregulatory mechanisms of the sailfin molly.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
Materials and methods
Fish and experimental environments
Adult sailfin molly (P. latipinna), 41.2 ± 3.4 mm in standard length, were captured in Linyuan, Kaohsiung,
Taiwan (120.38 °E 22.49 °N) and transported to the laboratory. SW (35‰) and BW (15‰) were prepared from
aerated dechlorinated tap FW by adding standardized amounts of the synthetic sea salt “Instant Ocean”
(Aquarium Systems, Mentor, OH, USA). The fish were acclimated to FW ([Na+] 0.22 ± 0.01 mM; [K+] 0.04 ±
0.01 mM; [Ca2+] 0.68 ± 0.01 mM; [Mg2+] 0.28 ± 0.01 mM; [Cl-] 0.14 ± 0.01 mM), BW ([Na+] 156.11 ± 4.50
mM; [K+] 5.72 ± 0.06 mM; [Ca2+] 9.29 ± 0.28 mM; [Mg2+] 30.34 ± 1.29 mM; [Cl-] 270.60 ± 12.07 mM), or SW
([Na+] 482.9 7± 12.73 mM; [K+] 11.38 ± 0.07 mM; [Ca2+] 15.34 ± 0.16 mM; [Mg2+] 67.87 ± 1.45 mM; [Cl-]
572.89 ± 24.24 mM) at 28 ± 1 °C with a daily 14 h:10 h L:D photoperiod in the laboratory. The water was
continuously circulated through fabric-floss filters and partially refreshed every two weeks. Fish were fed a
daily diet of commercial pellets ad libitum. In the following experiments, fish were not fed for at least 24 h and
were anesthetized with MS-222 (100-200 mg/L) before sampling.
Experimental design
Acclimation experiments
Sailfin molly was acclimated to FW, BW, or SW for at least four weeks before making physiological or
biochemical measurements.
Survival rates for different salinity-transfer regimes
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
The fish were transferred directly from the initial saline environment to another saline environment, and
their survival rate after transfer was determined. The numbers of surviving fish were recorded at different
time-points for 96 h after the transfer and then the survival rates of the fish were calculated. Meanwhile, the
survival rate of the control group, FW-acclimated fish transferred directly to FW, was compared to that of the
other transfer groups. Fish were fed as described above. Dead fish were immediately removed from the
experimental tanks to maintain the water quality.
FW-shower experiments
SW-acclimated fish were transferred directly to FW (FW shower) and the changing patterns of the plasma
osmolality, plasma Cl- concentrations, protein expression levels and distribution of branchial NKCC and NKA,
and NKA activity were analyzed at days 3, 7, 14, and 21 post transfer.
The effects of FW-shower on survival rates upon SW challenge
To determine the effects of FW exposure period on sailfin molly survival rates upon SW challenge,
SW-acclimated fish were exposed to FW for 3, 7, 14, or 21 days (FW-shower), followed by transfer back to SW
(SW challenge). Meanwhile, the survival rate of the control group, FW-shower fish which were transferred
directly to FW, was compared to that of the corresponding study group. To confirm the observed effects were
due to the salinity challenge and control for the stress of the transfer process, SW-acclimated fish were
transferred directly to FW, and vice versa. The survival rates of SW challenge groups exposed to different
FW-shower regimes and the control group were recorded and compared. Fish were fed as described above. Dead
fish were immediately removed from experimental tanks to maintain the water quality.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
Plasma analyses
Plasma from sailfin molly acclimated to FW, BW, or SW was collected according to Yang et al. (2009). In
brief, after centrifugation at 1,000 g at 4 °C for 20 min, the plasma was stored at -20 °C until analysis. Plasma
osmolality was measured with the Wescor 5520 vapro osmometer (Logan, UT, USA). Plasma Cl- concentrations
were determined using the ferricyanide method (Franson, 1985) using a Hitachi U-2001 spectrophotometer
(Tokyo, Japan) at 460 nm.
Sample preparation
The gills were dissected, rinsed in phosphate buffered saline (PBS; 137 mM NaCl, 3 mM KCl, 10 mM
Na2HPO4, 2 mM KH2PO4, pH 7.4), blotted dry, and stored immediately in a microcentrifuge tube at -80 °C until
homogenizing for immunoblotting and NKA activity assay. For cryosectioning and immunofluorescent staining,
the dissected gills were immediately fixed in methanol and dimethyl sulfoxide (DMSO) (vol/vol: 4: 1) at -20 °C.
Antibodies/antisera
Four primary antibodies/antisera were used in the present study: (1) NKCC: a mouse monoclonal antibody
(T4, Developmental Studies Hybridoma Bank, Iowa City, IA, USA) raised against the c-terminus of human
NKCC for immunoblotting (dilution 1:500) and immunofluorescent staining (dilution 1:50); (2) NKA: a mouse
monoclonal antibody (α5, Developmental Studies Hybridoma Bank) raised against the α-subunit of the avian
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
NKA for immunoblotting (dilution 1:2500); (3) NKA: a rabbit polyclonal antiserum (#11), which was kindly
provided by Prof. Pung-Pung Hwang (Institute of Cellular and Organismic Biology, Academia Sinica, Taipei,
Taiwan) raised against 565 amino acids of α-subunit of NKA (Hwang et al., 1998) for immunofluorescent
staining (dilution 1:100); (4) β-actin: a mouse monoclonal antibody (#8226, Abcam, Cambridge, UK) raised
against residues 1-100 of human β-actin was applied as the loading control for immunoblotting (dilution 1:5000),
as in previous studies on teleosts (Wang et al., 2008; Kang et al., 2010). The secondary antibodies were (i)
horseradish peroxidase (HRP)-conjugated goat anti-mouse IgG (#31430, Pierce, Rockford, IL, USA; dilution
1:5000) for immunoblotting; (ii) Alexa-Fluor-488 conjugated goat anti-rabbit IgG or
Alexa-Fluor-546-conjugated goat anti-mouse IgG (Molecular Probes, Eugene, OR, USA; dilution 1:50 or 1:200,
respectively) for immunofluorescent staining. Preliminary experiments of negative controls (sections stained
with only primary or secondary antibodies) were performed to confirm our results (data not shown).
Cryosectioning and immunofluorescent staining
After fixation at -20 °C for 3 h, gills of sailfin molly were washed with PBS and then infiltrated with
optimal cutting temperature (O.C.T.) compound (Sakura, Tissue-Tek, Torrance, CA, USA) overnight at 4 °C.
Then, the tissue was mounted in O.C.T. compound for cryosectioning. Cross sections of gills were cut at 5 µm
thick using a Cryostat Microtome (Microm HM 505E, Walldorf, Germany) at -25 °C. The sections were placed
on 0.01% poly-L-lysine (Sigma, St. Louis, MO, USA) coated slides, and kept in slide boxes at -20 °C until
immunofluorescent staining.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
Cryosections of the gills were rinsed with PBS and then incubated in 5% bovine serum albumin (BSA;
Sigma) and 2% Tween 20 (Merck, Hohenbrunn, Germany) in PBS for 30 min. For double staining, the
cryosections were washed with PBS and incubated with the polyclonal anti-NKA (#11) diluted in PBS overnight
at 4 °C. After incubation, the cryosections were washed several times with PBS, exposed to the secondary
antibody (Alexa-flour 546 goat anti-rabbit antibody) at room temperature for 2 h, and washed with PBS again.
After the first staining, the cryosections were incubated with PBS-diluted monoclonal anti-NKCC (T4) and
incubated for 2 h at room temperature. After incubation, the cryosections were washed with PBS several times,
and exposed to secondary antibody (Alexa-flour 488 goat anti-mouse antibody) at room temperature for 2 h, and
washed again with PBS several times. Finally, the sections were covered with a slip using clearmountTM
mounting solution (Zymed, South San Francisco, CA, USA) and imaged using a fluorescent microscope (BX50,
Olympus, Tokyo, Japan). The micrographs were taken with a digital camera (Coolpix 5000, Nikon, Tokyo,
Japan).
Preparation of gill homogenates
Frozen gills were rapidly thawed and homogenized in 700 µL SEID buffer (150 mM sucrose, 10 mM
EDTA, 50 mM imidazole, 0.1% sodium deoxycholate, pH 7.5) containing proteinase inhibitors (10 mg antipain,
5 mg leupeptin, and 50 mg benzamidine dissolved in 5 mL aprotinin) (vol/vol: 50:1). Homogenization was
performed in a 2-mL microtube with a Polytron PT1200E (Kinematica, Lucerne, Switzerland) at maximum
speed for 30 sec on ice. The homogenate was then centrifuged at 5,000 g, 4 °C for 5 min. The supernatants were
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
used for protein concentration measurements, enzyme activity assays, or immunoblotting. Protein
concentrations were determined with the BCA Protein Assay (Pierce) using BSA (Pierce) as a standard. The
supernatants were processed immediately for determination of NKA activity or stored at -80 °C for
immunoblotting.
Immunoblotting
For immunoblotting of branchial NKCC, aliquots containing 20 µg of branchial supernatants were added to
sample buffer and heated at 60 ºC for 15 min followed by electrophoresis on a 7.5% sodium dodecyl sulfate
(SDS)-polyacrylamide gel. The pre-stained protein molecular weight marker was purchased from Fermentas
(SM0671, Hanover, MD, USA). Separated proteins were transferred from unstained gels to PVDF membranes
(Millipore, Bedford, MA, USA) by electroblotting using a tank transfer system (Mini Protean 3, Bio-Rad,
Hercules, CA, USA). Blots were preincubated for 2 h in PBST (phosphate buffered-saline with 0.05% Tween 20)
buffer containing 5% (wt/vol) nonfat dried milk to minimize non-specific binding. Then the blots were cut into
upper (for NKCC) and lower (for β-actin) sections prior to antibody incubation. The blots were incubated
overnight at 4 °C with the primary antibodies (T4 or β-actin) diluted in 1% BSA and 0.05% sodium azide in
PBST. The blots were subsequently washed in PBST three times, followed by a 1-h incubation with
HRP-conjugated secondary antibody diluted in PBST. Then the blots were incubated with the SuperSignal West
Pico Detection Kit (#34082, Pierce) and signals were transferred to Kodak BioMax light film (#178 8207,
Eastman Kodak, Rochester, NY, USA). The immunoblotting protocol for the negative control, which was used
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
to confirm that the immunoreactivity was due to the presence of NKCC rather than non-specific binding, was
identical to that described above except that the pre-immune serum of mouse (BALB/c strain) was substituted
for the primary antibody (T4).
For immunoblotting of branchial NKA α-subunit, sample buffer was mixed with aliquots containing 25 µg
of branchial supernatant. The subsequent protocol was identical to that for branchial NKCC immunoblotting.
Immunoblots were scanned and imported as TIFF files. Immunoreactive bands were analyzed using MCID
software version 7.0 (Imaging Research, Ontario, Canada). The results were converted to numerical values in
order to compare the relative protein abundance of the immunoreactive bands.
Assay of NKA activity
Enzyme activity was measured using the NADH-linked method (McCormick, 1993) modified from Kang
et al. (2008). The reaction was started by mixing 10 µL sample supernatant and 200 µL reaction mixture (0.38
mM ATP, 1.50 mM phosphoenolpyruvate, 0.24 mM NADH, 2.48 U/mL lactate dehydrogenase, 2.70 U/mL
pyruvate kinase, 47.3 mM NaCl, 2.63 mM MgCl2．6H2O, 10.5 mM KCl, and 50 mM imidazole, pH 7.5) with or
without 0.75 mM ouabain per well; each sample was assayed in triplicate. The 96-well plate was read every 15
sec for up to 10 min in a VERSAmax microplate reader (Molecular Devices, Sunnyvale, CA, USA) at 340 nm
and 28 °C. The linear rate from 2 to 8 min was determined for each pair of triplicate wells. The standard curve
was determined using 10 µL ADP per well at concentrations of 0 to 30 nmol at 340 nm at 28 °C, and the plate
was read for at least 5 min after adding 200 µL reaction mixture (without 0.75 mM ouabain). The slope of the
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
standard curve should be from -0.012 to -0.015. The NKA activity was calculated as the difference in slope of
ATP hydrolysis (NADH reduction) in the presence and absence of ouabain, and the activity was expressed as
µmol ADP per mg protein per hour.
Statistical analysis
Values were expressed as means ± the standard error of the mean (SEM), unless stated otherwise. Survival
experiments were analyzed using the chi-square test, and the other experiments were compared using one-way
analysis of variance (ANOVA; Tukey’s pairwise method). The significance level was set at P<0.05.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
Results
Acclimation experiments
The plasma [Cl-] in the sailfin molly increased with environmental salinities, which was similar to the
pattern of plasma osmolality (Fig. 1). Immunoblotting of NKCC in gills from sailfin molly acclimated to
environments with different salinities (FW, BW, and SW) resulted in the major immunoreactive bands (range
form 130 to 170 kDa) compared with the results from negative controls (Figs. 2a, b). Quantification of the
immunoreactive bands revealed that the branchial NKCC protein abundance of SW-acclimated sailfin molly
(SWA) was significantly higher than that of FW- or BW-acclimated sailfin molly (FWA or BWA): about 18.7-
and 2.2-fold, respectively (Fig. 2c). The results of double immunofluorescent staining revealed that NKCC
signals (green) were colocalized to NKA-IR cells (red) in all groups (Fig. 3). In FW-acclimated sailfin molly,
signals were only found in the apical membrane of NKA-IR cells (arrow; Fig. 3c), whereas in BW-acclimated
sailfin molly, signals were found in the basolateral (arrowhead) or apical membrane of NKA-IR cells (Fig. 3f).
In SW-acclimated sailfin molly, however, signals were localized to the basolateral membrane of NKA-IR cells
(Fig. 3i). NKA-IR cells without NKCC signal were found in both BW- and FW-acclimated sailfin molly
(asterisks; Figs. 3c and f).
The survival rates for different salinity-transfer regimes
The survival rate was approximately 100% when FW-acclimated sailfin molly were transferred directly to
BW or vice versa (Fig. 4; FA/B; BA/F), which was similar to the control group in which FW-acclimated sailfin
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
molly were transferred to FW (FA/F). When the SW-acclimated sailfin molly were transferred directly to FW,
all the individuals survived (SA/F). In contrast, when the FW-acclimated sailfin molly were transferred directly
to SW, only half of the fish survived (chi-square test, P <0.001; FA/S). However, when the FW-acclimated
sailfin molly were pre-acclimated to BW for 12 and 24 h before a direct transfer to SW, the survival rates
increased significantly to 83% and 100%, respectively (FA/B12/S and FA/B24/S).
FW-shower experiments
Three days after transfer from SW to FW, the plasma osmolality and chloride concentrations in
SW-acclimated sailfin molly declined significantly (Fig. 5). The abundance of branchial NKCC protein reduced
gradually and was significantly decreased by seven days post-transfer (Fig. 6). NKA α-subunit protein
abundance and NKA activity in the gills were significantly decreased after 14 days post-transfer (Figs. 7 and 8).
The control group, SW-acclimated sailfin molly which were transferred to SW, showed no significant change in
the above parameters at all time-points (Figs. 5-8). Double immunofluorescent staining of cryosections of gills
revealed that basolaterally distributed NKCC signals were colocalized to NKA-IR cells at the third and seventh
days post transfer (Fig. 9c, f). In the 7-days-post-transfer fish, a few apical signals were found in some NKA-IR
cells (Fig. 9d-f). However, at the 14th day after transfer, all signals were found in the apical region of NKA-IR
cells (Fig. 9g-i). Furthermore, some NKA-IR cells without NKCC signal (asterisks) were found in both the
seven days- and 14 days-FW-shower fish (Fig. 9f, i).
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
The effects of FW-shower on survival rates upon SW challenge
When SW-acclimated sailfin molly were exposed to FW (i.e., FW-shower) for durations identical to that in
the previous experiment and subsequently transferred back to SW (SW challenge), their survival rates varied
with the duration (3, 7, 14, and 21 days) of the FW-shower (Fig. 10). In the 3 and 7 day FW-shower groups
(SA/F3/S and SA/F7/S), no mortality was found. In the 14 days FW-shower group (SA/F14/S), the survival rate
was reduced to about 80%, but there was no statistical difference between the study and control groups
(chi-square test, P=0.06). However, the survival rates of the 21 day FW-shower group (SA/F21/S) and the
FW-acclimated sailfin molly transferred directly to SW (FA/S) decreased significantly compared to the control
groups (chi-square test, P <0.001).
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
Discussion
In this study, we explained the relationship between the expression of branchial NKCC and NKA and the
survival rates of sailfin molly upon salinity challenge after chronic (acclimation) and acute (FW-shower)
experiments by reduced expression of branchial NKCC and NKA and the disappearance of branchial secretory
type MR cells. Moreover, our results revealed a correlation between the gradual reductions in expression of
branchial NKCC and NKA and decreasing survival rates after hyperosmotic challenge in sailfin molly.
In the acclimation experiments, branchial NKCC protein expression was higher in SW-acclimated sailfin
molly (SWA) than FW-acclimated fish (FWA; Fig. 2c), which was similar to the pattern of NKA expression
(Yang et al., 2009). These results conformed to the current model of Cl- excretion (Marshall, 2002; Hirose et al.,
2003; Evans, 2008), and were similar to studies of other SW-acclimated euryhaline teleosts. Furthermore, when
transferred from SW to FW, by seven days post transfer, the level of branchial NKCC protein expression
decreased to the levels measured in BW sailfin molly and the lowest expression levels, similar to those seen in
FW fish, were found in the 14- and 21-day post-transfer groups (Figs. 2 and 6). The changing branchial NKCC
expression profiles in sailfin molly transferred from SW to FW were similar to those observed in other species,
which indicated that the degradation of NKCC protein in hypoosmotic environments took about one week
(Tipsmark et al., 2002, 2004, 2008a, b; Lorin-Nebel et al., 2006).
Although higher levels of branchial NKA α-subunit protein and NKA activity were found in
SW-acclimated sailfin molly (Yang et al., 2009), which is similar to the pattern for branchial NKCC (this study),
NKA activity and NKA α-subunit protein abundance were not significantly decreased until 14 days after the fish
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
were transferred from SW to FW, which was later than the significant changes in the expression of NKCC (Figs.
6-8). Compared to changes in NKCC expression, slower degradation of NKA α-subunit protein expression
(Tipsmark et al., 2008a), NKA activity (Tipsmark et al., 2008b), or both (Tipsmark et al., 2002, 2004) were also
reported in other euryhaline teleosts. On the other hand, in some euryhaline teleosts, the abundance of mRNA or
protein or activity of branchial NKA altered quickly after transfer to hypoosmotic environments (about three
days post-transfer) (Uchida et al., 1997; Laiz-Carrión et al., 2005; Arjona et al., 2007; Tipsmark et al., 2008b;
Tomy et al., 2009). The different profiles of change in branchial NKA activity in different euryhaline teleosts
usually correlated with their natural habitats (Hwang and Lee, 2007). Freire et al. (2008) also considered that
osmoregulatory capabilities may be correlated with a species' evolutionary history or natural habitat. Therefore,
the time course of the pattern of NKA expression following environmental challenge might vary with teleostean
species.
Changes were also observed in the double immunofluorescent staining of NKCC and NKA in gills of
sailfin molly (Figs. 3 and 9). In the present study, the NKA-IR cells were mainly distributed in the interlamellar
region and the afferent artery region of the filaments (data not shown), which conformed to our previous study
(Yang et al., 2009). Previous immunostaining studies using the T4 antibody on gills showed that in
SW-acclimated euryhaline teleosts the NKCC signals were localized to the basolateral membrane of NKA-IR
cells (i.e., MR cells). However, the studies in FW-acclimated euryhaline teleosts exhibited three patterns of
immunostaining: (1) no positive signal (Hiroi and McCormick, 2007; Chew et al., 2009); (2) immunoreactive
signals localized to the basolateral membrane of MR cells (McComick et al., 2003; Prodocimo and Freire, 2006;
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
Tse et al., 2006; Hiroi and McCormick, 2007; Sardella and Kültz, 2009); and (3) immunoreactivity in the apical
region of MR cells (Wu et al., 2003; Hiroi et al., 2005b; Lorin-Nebel et al., 2006; Inokuchi et al., 2008; Katoh et
al., 2008; Ouattara et al., 2009; Choi et al., 2010; Flemmer et al., 2010; Kang et al., 2010).
In this study, the NKCC signals (green) in the gills of SW-acclimated sailfin molly (SWA; Fig. 3g-i) were
colocalized to the basolateral membrane of NKA-IR cells (red), similar to findings reported for other
SW-acclimated teleosts. However, in FW-acclimated sailfin mollies, the signals were only found in the apical
membrane of NKA-IR cells, similar to the findings of the third group described above, and some NKA-IR cells
were not exhibited any apical immunoreactive signal (FWA; Fig. 3a-c). NKA-IR cells without NKCC
immunoreactivity might occur because the apical region of that cell appeared in another section, the NKA-IR
cells were immature (Hiroi et al., 2005a), or these may be other types of MR cells that do not express either
apical- or basolateral-NKCC (Hiroi et al., 2008; Inokuchi et al., 2008). The ion-transport function (absorption or
secretion) of an MR cell can be indicated by the localization patterns of osmoregulation-related proteins at the
apical and basolateral membranes (Hiroi et al., 2008; Inokuchi et al., 2008). Therefore, according to previous
studies of branchial NKCC in euryhaline teleosts, in the sailfin molly, the basolateral-NKCC signals should be
NKCC1a, which was the secretory isoform highly expressed in fish gills (Cutler and Cramb, 2002; Mackie et al.,
2007; Hiroi et al., 2008; Inokuchi et al., 2008; Kang et al., 2010). On the other hand, in the sailfin molly, like the
other euryhaline teleosts, the apical-immunoreactive signals may be NCC, that was mainly expressed in fish
gills in hypoosmotic environments (Hiroi et al. 2008) rather than NKCC2, which was another NKCC isoform
and expressed prominently in non-gill tissues of other teleosts (Cutler and Cramb, 2008; Hiroi et al., 2008; Kang
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
et al., 2010). Therefore, the NKA-IR cells of BW-acclimated sailfin molly (BWA; Fig. 3d-f) with apical-,
basolateral-, or no-NKCC signals, which combine the characteristics of SW- and FW-type MR cells, suggest
that the gills of BW-acclimated fish were able to perform absorption and secretion simultaneously. Hence, the
BW-acclimated sailfin molly may be equipped with both hypo- and hyperosmoregulation mechanisms, like
Mozambique tilapia (Inokuchi et al., 2008).
After FW-shower, the changing profiles of branchial NKA-IR cells corresponded to the relative levels of
branchial NKCC protein expression (Figs. 7 and 9). The type of branchial NKA-IR cells in SW-acclimated
sailfin molly changed from SW-type to BW-type (by the seventh day) and then to FW-type (by the 14th day)
(Figs. 3 and 9). Change in morphology, type, or localization of branchial MR cells or NKA-IR cells after abrupt
hypoosmotic challenge were also reported in other euryhaline teleosts (Caberoy and Quinitio, 2000; Lin et al.,
2004, 2006; Hiroi et al., 2005a, 2008; Lorin-Nebel et al., 2006). Among them, the BW-type of NKA-IR cells in
Mozambique tilapia were found by three days after transfer from SW to FW (Hiroi et al., 2005a, 2008), and
were not found in FW-acclimated fish (Wu et al., 2003; Inokuchi et al., 2008). Therefore, in sailfin molly, the
BW-type of branchial NKA-IR cells may be a transitional type rather than the BW-dependent type. Furthermore,
in the sailfin molly, the transitional type of branchial NKA-IR cells may provide the buffering effect in response
to salinity challenge.
To compare the salinity tolerances of euryhaline teleosts, survival rates following direct or gradual transfer
between different salinity environments were determined (Hiroi and McCormick, 2007; Kang et al., 2010). In
this study, the sailfin molly survived well after transfer directly from BW to FW, and vice versa (BA/F and FA/B;
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
Fig. 4). When FW-acclimated sailfin molly were transferred to SW, the survival rates were improved by a
pre-acclimation in BW (FA/B12/S and FA/B24/S; Fig. 4). Therefore, the BW-type MR cells might facilitate
their euryhalinity during acclimation to different salinity environments. Similar results were reported in other
euryhaline teleosts such as Mozambique tilapia (Hwang, 1987), Japanese medaka (Oryzias latipes; Inoue and
Takei, 2003), and brook trout (Salvelinus fontinalis; Hiroi and McCormick, 2007). Furthermore, Nordlie et al.
(1992) reported that salinity tolerance was better in BW-inhabiting sailfin molly than that in FW-inhabiting fish
population. These results suggested that, when exposed to SW, pre-acclimation to BW usually increases the
salinity tolerance of FW-acclimated euryhaline teleosts, including sailfin molly. However, the SW-acclimated
sailfin molly survived successfully after transfer to FW (SA/F; Fig. 4). The different survival rates found under
the various regimes might occur because of the innate osmoregulatory ability determined by their natural
habitats (FW and BW; Nordlie et al., 1992) rather than the stressful environment (SW; Yang et al., 2009) or due
to the reduced hypoosmoregulatory mechanism of SW-acclimated sailfin molly.
After FW-shower, the reduced hypoosmoregulatory mechanism of SW-acclimated sailfin molly was
signified by decreased expression of NKCC and NKA, the representative ion transporters of current SW-model
MR cells, and was verified by FW-shower effects on survival rates upon SW challenge (Kang et al., 2010). In
this study, the decreased survival rates were correlated with the reduced expression of branchial NKCC and
NKA and the disappearance of basolateral NKCC1a-like-signals on NKA-IR cells (Figs. 6-10). Similar results
were reported in other euryhaline teleost such as brackish medaka (Oryzias dancena; Kang et al., 2010).
However, significant decrease in the survival rates occurred only when the levels of branchial NKCC protein,
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
NKA α-subunit protein, and NKA activity were significantly reduced. These results revealed that the
hypoosmoregulatory endurance of SW-acclimated sailfin molly after exposure to FW was maintained for at least
21 days. Taken together, our data showed that decreased expression of branchial NKCC and NKA α-subunit
proteins, as well as NKA activity and changing patterns of NKCC immunoreactivity in NKA-IR cells correlated
with reduction in the hypoosmoregulatory endurance of the sailfin molly (Figs. 6-10).
The branchial osmoregulatory mechanisms of the sailfin molly were responsible for the maintenance of
their homeostasis and survival upon salinity challenge. The gills of euryhaline teleosts normally absorb and
secrete Cl- in order to maintain constant plasma Cl- concentrations in various saline environments (Evans et al.,
2005). Euryhaline teleosts have excellent osmoregulatory abilities and can maintain their plasma osmolalities
within narrow physiological ranges in both hypoosmotic and hyperosmotic environments (Marshall and Grosell,
2006; Kaneko et al., 2008). The sailfin molly is an efficient osmoregulator that is able to maintain physiological
parameters, such as plasma Cl- concentrations (Fig. 1), plasma Na+ concentrations, plasma osmolality, and
muscle water content (Gonzalez et al., 2005; Yang et al, 2009) in environments of different salinities.
Furthermore, their physiological responses changed quickly. The plasma osmolality and Cl- concentrations of
SW-acclimated sailfin molly were efficiently regulated and maintained within a tolerated range within three
days after transfer to FW (Fig. 5). These results indicated that the osmoregulatory ability of the sailfin molly
was activated in order to maintain appropriate plasma parameters. Although the experimental designs were
different, Gonzalez et al. (2005) reported a similar pattern of change in plasma Cl- concentrations when sailfin
molly were transferred from SW to hypersaline water. Previous studies showed that changing patterns in plasma
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
osmolality in euryhaline teleosts were correlated with their primary habitats and salinity tolerance (Kato et al.,
2005; Bystriansky et al., 2006). Other studies also revealed that when exposed to hypoosmotic environments,
the plasma osmolality and/or Cl- concentrations of euryhaline teleosts decreased significantly in a very short
period of time (about one day post-transfer) and then maintained these lower levels (Claiborne et al., 1994;
Jensen et al., 1998; Seale et al., 2002; Lin et al., 2004, 2006; Laiz-Carrión et al., 2005; Motohashi et al., 2009;
Kato et al., 2010). In euryhaline teleosts, the crisis and regulatory phases accompany abrupt transfer to
hypoosmotic environments and express a rapid drop in plasma osmolality and Cl- concentrations in adapting to
hypoosmotic environments (Lin et al., 2004). Therefore, through effective osmoregulatory mechanisms, the
sailfin molly, like the other euryhaline species, is able to overcome changes in external salinity and reach a new
steady state of blood ion concentrations.
In conclusion, this study has identified the salinity-dependent expression and localization of NKCC in
branchial MR cells in the euryhaline sailfin molly. Expression of the NKCC protein was increased with
environmental salinity. Meanwhile, the NKCC-signals were localized to the apical region of FW NKA-IR cells
and the basolateral membrane of SW NKA-IR cells. In addition, the transitional type (BW-type) of branchial
NKA-IR cells may enhance their salinity tolerance due to the presence of different types of MR cells that can
buffer the effect of salinity challenge. We also performed the time-course transfer experiments in order to
illustrate the critical roles of NKCC and NKA in the hypoosmoregulatory endurance of the sailfin molly. As
indicated by the changing profiles of NKCC and NKA expression and localization and the survival rates, the
hypoosmoregulatory capability reduced gradually until 21 days after FW-shower. These results illustrated that
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
the sailfin molly was proved to be an efficient osmoregulator with gill NKCC and NKA expression altering in
response to acute or chronic salinity challenge in order to maintain ion and water homeostasis in environments
of different salinities.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
Acknowledgements
The monoclonal antibody of Na+/K+/2Cl- cotransporter (T4) and Na+/K+-ATPase α-subunit (α5) were
purchased from the Developmental Studies Hybridoma Bank maintained by the Department of Pharmacology
and Molecular Sciences, John Hopkins University School of Medicine, Baltimore, MD 21205, and the
Department of Biological Sciences, University of Iowa, Iowa City, IA 52242, under Contract N01-HD-6-2915,
NICHD, USA. This study was supported by a grant from the National Science Council of Taiwan to T.H.L.
(NSC 94-2311-B-005-009).
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
References
Arjona FJ, Vargas-Chacoff L, Ruiz-Jarabo I, Martín del Río MP, Mancera JM (2007) Osmoregulatory response of Senegalese sole (Solea senegalensis) to changes in environmental salinity. Comp Biochem Physiol A 148:413-421.
Breves JP, Hirano T, Grau EG (2010) Ionoregulatory and endocrine responses to disturbed salt and water balance in Mozambique tilapia exposed to confinement and handling stress. Comp Biochem Physiol A 155:294-300.
Bystriansky JS, Richards JG, Schulte PM, Ballantyne JS (2006) Reciprocal expression of gill Na+/K+-ATPase α-subunit isoforms α1a and α1b during seawater acclimation of three salmonid fishes that vary in their salinity tolerance. J Exp Biol 209:1848-1858.
Caberoy NB, Quinitio GF (2000) Changes in Na+, K+-ATPase activity and gill chloride cell morphology in the grouper Epinephelus coioides larvae and juveniles in response to salinity and temperature. Fish Physiol Biochem 23:83-94.
Chew SF, Tng YYM, Wee NLJ, Wilson JM, Ip YK (2009) Nitrogen metabolism and branchial osmoregulatory acclimation in the juvenile marble goby, Oxyeleotris marmorata, exposed to seawater. Comp Biochem Physiol A 154:360-369.
Choi JH, Lee KL, Inokuchi M, Kaneko T (2010) Acute responses of gill mitochondria-rich cells in Mozambique tilapia Oreochromis mossambicus following transfer from normal freshwater to deionized freshwater.
Fish Sci 76:101-109.
Claiborne J, Walton J, Compton-Mccullough D (1994) Acid-base regulation, branchial transfers and renal output in a marine teleost fish (the long-horned sculpin myoxocephalus octodecimspinosus) during exposure to low salinities. J Exp Biol 193:79-95.
Cutler CP, Cramb G (2002) Two isoforms of the Na+/K+/2Cl- cotransporter are expressed in the European eel (Anguilla anguilla). Biochim Biophys Acta 1566:92-103.
Cutler CP, Cramb G (2008) Differential expression of absorptive cationchloride-cotransporters in the intestinal
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Peer Review Only
and renal tissues of the European eel (Anguilla anguilla). Comp Biochem Physiol B 149:63-73.
Englund RA (1999) The impacts of introduced poeciliid fish and Odonata on the endemic Melagrion (Odonata) damselflies of Oahu Island, Hawaii. J Insect Conserv 3:225-243.
Evans DH (2008) Teleost fish osmoregulation: what have we learned since August Krogh, Homer Smith, and Ancel Keys. Am J Physiol 295:R704-R713.
Evans DH, Piermarini PM, Choe KP (2005) The multifunctional fish gill: dominant site of gas exchange, osmoregulation, acid-base regulation, and excretion of nitrogenous waste. Physiol Rev 85:97-177.
Flemmer AW, Monette MY, Djurisic M, Dowd B, Darman R, Gimenez I, Forbush B (2010) Phosphorylation state of the Na+-K+-Cl- cotransporter (NKCC1) in the gills of Atlantic killifish (Fundulus heteroclitus) during acclimation to water of varying salinity. J Exp Biol 213:1558-1566.
Franson MAH (1985) Standard methods for the examination of water and waste water. 16th ed. American Public Health Association, Washington, DC.
Freire CA, Amado EM, Souza LR, Veiga MP, Vitule JR, Souza MM, Prodocimo V (2008) Muscle water control in crustaceans and fishes as a function of habitat, osmoregulatory capacity, and degree of euryhalinity.
Comp Biochem Physiol A 149:435-446.
Froese R, Pauly D (2010) FishBase. World Wide Web electronic publication. version 2010/05.
www.fishbase.org.
Gamba G (2005) Molecular physiology and pathophysiology of electroneutral cation chloride cotransporters.
Physiol Rev 85:423-493.
Gonzalez RJ, Cooper J, Head D (2005) Physiological responses to hyper-saline waters in sailfin mollies (Poecilia latipinna). Comp Biochem Physiol A 142:397-403.
Hebert SC, Mount DB, Gamba G (2004) Molecular physiology of cationcoupled Cl- cotransport: the SLC12 family. Pflugers Arch 447:580-593.
Hiroi J, McCormick SD (2007) Variation in salinity tolerance, gill Na+/K+-ATPase, Na+/K+/2Cl- cotransporter and mitochondria-rich cell distribution in three salmonids Salvelinus namaycush, Salvelinus fontinalis and Salmo salar. J Exp Biol 210:1015-1024.
