Green Elevator Scheduling Based on IoT Communications
LAN-DA VAN , (Senior Member, IEEE), YI-BING LIN , (Fellow, IEEE), TSUNG-HAN WU , AND TZU-HSIANG CHAO
Department of Computer Science, National Chiao Tung University , Hsinchu 300, Taiwan Corresponding author: Lan-Da Van ([email protected])
This work was supported in part by the Ministry of Science and Technology (MOST) under Grant 108-2218-E-009-012, and Grant 106-2221-E-009-028-MY3, in part by the MOST Pervasive Artificial Intelligence Research (PAIR) Labs under Contract MOST 109-2634-F-009-026, and in part by the Center for Open Intelligent Connectivity from the Featured Areas Research Center Program within the framework of the Higher Education Sprout Project by the Ministry of Education (MOE) of Taiwan.
ABSTRACT In this paper, we propose an energy-saving elevator scheduling algorithm to reduce the car moving steps to achieve motor energy saving and green wireless communications. The proposed algorithm consisting of six procedures can attain fewer Internet of Things (IoT) message exchanges (i.e. communication transmissions) between the Scheduler subsystem and the Car subsystem via the core function AssignCar(r).
The function AssignCar(r) is capable of assigning a request to the nearest car through car search globally.
From the emulation results for four cars, this work shows that the proposed algorithm outperforms the previous work named as aggressive car scheduling with initial car distribution (ACSICD) algorithm with energy consumption reductions by 49.43%, 47.68%, 37.89%, and 47.65% for up-peak, inter-floor, down- peak, and all-day request patterns, respectively.
INDEX TERMS Car moving step, car scheduling, communication transmissions, elevator system, energy saving, green communications, internet of things (IoT), sensor, waiting/journey time.
I. INTRODUCTION
Due to modern building construction methods and new gov- ernment regulations of lifting equipment, the elevator tech- nologies have been significantly advanced in the past decade, especially for the purpose of carrying the passengers. During technology revolution, energy saving for green buildings in smart cities is highly demanded. The modern elevators are the potential energy consumption source since the elevator cars carry many passengers every day under the commands exchanged through the exiting wired communication net- works as a part of a smart building. Since the cars and the scheduler of the elevator system interact with each other for car moves, inefficient elevator scheduling will lead to redundant communication transmissions and unnecessary car moves such that more energy will be consumed. Herein, we design an energy-saving elevator scheduling that reduces the car moving steps to attain energy reduction and green communications under wireless communications.
There exist many elevator group control studies [1]–[20]
including the single-car elevator [1], [7], [8], multi-car
The associate editor coordinating the review of this manuscript and approving it for publication was Ilsun You .
elevator [9], [10], [13], [16] and double-decker elevator [14].
Most elevator system studies focus on car scheduling to save waiting times or journey times of the passengers. Approaches based on genetic [12], neural network [3], [5], fuzzy [4], [11], and reinforcement learning scheduling (RLS) [15] attempt to minimize the waiting/journey times. Other approaches attempt to reduce the energy consumption from the view- points of circuit structure, circuit control, and scheduling con- trol. Several of them [17]–[20] address the energy issue using the scheduling control algorithms. In [19], Zhang et al. pro- posed an ant colony optimization method considering energy and scheduling for the elevator group control system (the details will be described in the Appendix). However, these scheduling control algorithms cannot easily exercise online scheduling in practice due to batch request demand and iter- ative learning behavior. Furthermore, to our best knowledge, the Internet of Things (IoT) communications associated with green elevator scheduling have not yet been explored. In par- ticular, existing elevator systems utilize wired communica- tions. In an elevator system called ElevatorTalk [1], we have shown that IoT technologies can be used to implement dis- tributed elevator scheduling, and wireless communication can also be used in the elevator systems without degrading the
This work is licensed under a Creative Commons Attribution 4.0 License. For more information, see http://creativecommons.org/licenses/by/4.0/
FIGURE 1. Configuring an 8-car elevator system through the ElevatorTalk GUI (N = 8).
real-time performance of the cars. We have measured the wireless delay [1], where the expectation is 59.14 ms and the variance is 9.094.
ElevatorTalk has excellent passenger journey time per- formance as compared with the previous approaches [1].
Another elevator performance measure is ‘‘moving steps’’
that determine energy consumption for car motor and wireless IoT communication. Specifically, reducing the car moves will result in fewer IoT message exchanges to achieve green wire- less communications. Unfortunately, how to reduce the car moving steps in a systematic way is still open. An interesting question is: how to manage the cars as ‘‘green elevators’’
by saving moving steps under the acceptable journey time.
To achieve this goal, we propose an energy-saving elevator scheduling algorithm that assigns a request to the nearest car through car search globally. Therefore, the energy consump- tion of the elevator can be accordingly reduced due to fewer car moving steps and wireless IoT message exchanges.
The remainder of this paper is organized as follows.
Section II demonstrates the proposed energy-saving elevator scheduling algorithm. Section III evaluates and compares energy saving of the developed system with other solutions.
The last section summarizes our work.
II. ELEVATORTALK PROCEDURES AND ENERGY-SAVING ELEVATOR SCHEDULING ALGORITHM
In [1], we proposed the ElevatorTalk platform that allows one to implement a distributed car scheduling algorithm based on wireless IoT communication. Figure 1 illustrates
how an 8-car elevator system is configured through the ElevatorTalk graphical user interface (GUI). In this figure, ElevatorTalk includes the Panel subsystem, the Scheduler subsystem, and the Car subsystem. Every subsystem except for the Panel subsystem consists of an input part (repre- sented by an icon on the left-hand side in Figure 1) and an output part (represented by an icon on the right-hand side in Figure 1). The Panel subsystem (Figure 1 (e)) issues requests to the output part of the Scheduler subsystem (Figure 1 (d)) and the input part of the Scheduler subsystem (Figure 1 (c)) sends instructions to the output part of the Car subsystem (Figure 1 (b)). After finishing the instruction from the Scheduler subsystem (Figure 1 (c)), the input part of the Car subsystem (Figure 1 (a)) sends current floor to the output part of the Scheduler subsystem (Figure 1 (d)).
The instructions and the responses are implemented by IoT message exchanges. The proposed energy-saving ele- vator scheduling algorithm implemented in [1] consists of six procedures including Panel, ReqArrival, SchCar(n), UpTaskCar(n), DownTaskCar(n), and Car(n). Procedure ReqArrival has three functions which are AssignCar(r), MoveUp(r), and MoveDown(r). In our previous work [1], the aggressive car scheduling with initial car distribution (ACSICD) stores new arrival requests in the global structures.
Then, the cars select the requests to serve independently.
ElevatorTalk is an IoT platform where three subsystems are implemented as IoT devices that communicate with each other through wired or wireless communication. Although most elevator systems are centralized with wired commu- nication, wireless communication allows the structure of distributed cars better. In a distributed car structure, it is essential to reduce the number of message exchanges for car moves. In other words, it is important to reduce car moves to achieve green wireless communication as well as car motor energy saving. This paper proposes the energy-saving eleva- tor scheduling algorithm that reduces the car moving steps to achieve the goal of energy saving for IoT communication.
Unlike the previous proposed solution ACSICD, as long as a new request is issued by Procedure Panel in the Panel subsystem, the energy-saving elevator scheduling algorithm immediately assigns the request to a ‘‘carefully’’ selected car nby Procedure ReqArrival in the Scheduler subsystem. Then Procedures SchCar(n), UpTaskCar(n), and DownTaskCar(n) in the Scheduler subsystem direct the n-th car to serve this request. When the n-th car reaches the floor that has a request with the same direction, the n-th car serves the request even if the request is not assigned to the n-th car. The system symbols used to describe the algorithm are listed in Table 1.
A. PROCEDURE Panel AND ReqArrival
Procedure Panel shown in Figure 2 interacts with the elevator car operating panels (ECO) that can be a traditional panel in the hall of each floor or a smart user interface (UI) interpreted by web browsers in cell phones, personal computers, and laptops.
TABLE 1. System symbols.
FIGURE 2. Flowchart for Procedure Panel.
An ECO panel issues a request when a passenger pushes the button, and then the request is received by Procedure Panel. The format of the m-th request is
FIGURE 3. Flowchart for Procedure ReqArrival.
rm = fs,rm, Drm, Srm, where fs,rm is the start floor from which rm is issued. Drm ∈ {Up, Down} is the moving direc- tion of rm. Srmis the set of target floors of the m-th request rm. In the loop (Steps P.2-P.5), the procedure waits for request rm from the ECO panel at Step P.3, and then sends the request to the Scheduler subsystem at Step P.4. We assume that the elevator system is shut down for maintenance after it has served M requests.
Procedure ReqArrival illustrated in Figure 3 is responsible for receiving requests from Procedure Panel and dispatching the requests to proper cars. Step R.1 initializes the related variables. Step R.2 creates N threads of SchCar(n) to process the requests assigned to the n-th car, where 1 ≤ n ≤ N . The procedure maintains the global data structures Uplist Luand Downlist Ld, where Lu stores all unserved fs,r that are the start floors of the requests with Dr = Upand Ld stores all unserved fs,rwith Dr = Down(Steps R.4-R.6). At Step R.7, the core function AssignCar(r) is responsible for assigning each request to a proper car in the Scheduler subsystem, which is elaborated in the next subsection.
B. FUNCTION AssignCar(r )
Function AssignCar(r) searches for the car that takes mini- mum car moving steps to handle r. The flowchart is illustrated in Figure 4, where the symbols for Function AssignCar(r) are defined in Table 2. Two variables n and X∗are initialized at Step A.1, where n is set to 1 to represent the first car and
FIGURE 4. Flowchart for Function AssignCar(r).
X∗is set to INF . X∗is used to store the temporary minimum moving steps to pick up request r. Steps A.2-A.14 are a loop to find the car to handle the request. Three local variables X , n∗, and d∗are used. The sign and absolute value of X denote the relative locations between request r and the n-th car and the actual moving steps for the n-th car to pick up request r, respectively. n∗ denotes the tentative nearest car to request r and d∗ is used to determine dn∗ (i.e. the moving direc- tion of the n∗-th car) when leaving Function AssignCar(r).
TABLE 2.Symbols for Function AssignCar (r ).
For a car n, Step A.3 sets X to fs,r − fn, where fs,r is the start floor of request r and fnis the current floor of the n-th car. Step A.4 uses the current moving direction of the n-th car dnto check if the n-th car is moving. If dnis Up, Func- tion MoveUp(r) at Step A.5 is invoked to update X (to be elaborated in Section II.C). Step A.6 sets d to Up. Step A.11 checks if X is 0. If so, Step A.15 sets n∗to n and breaks the loop. If X is not 0 at Step A.11, Step A.12 checks whether the absolute value of X is smaller than X∗. If so, Step A.13 sets X∗ to |X |, n∗ to n, and d∗ to d . At Step A.14, n is incremented by 1. If dnis Down at Step A.4, then Step A.7 is executed to update X . Step A.8 sets d to Down and the procedure proceeds to Step A.11. If dn is Idle at Step A.4, Step A.9 uses the sign of X to determine the relative locations between request r and the n-th car. If X > 0, the n-th car moves up to handle the request, the flow proceeds to Step A.6 and sets d to Up. If X< 0, to the contrary, the flow proceeds to Step A.8 and sets d to Down. If X equals 0 at Step A.9, it implies that the n-th car is Idle on fs,r and no other car can be closer to fs,r than the n-th car. Thus, Step A.10 sets d∗to Dr and then Step A.15 is executed to set n∗to n and breaks the loop. If n> N at Step A.2, Step A.16 is executed to check whether Dr is Up. If so, fs,r is included in Cs,u(n∗). The set Cs,u(n∗) stores the move-up requests to be handled by the n-th car. Otherwise, fs,ris included in Cs,d(n∗) for the move-down requests. Step A.19 sets dn∗to d∗. Then we exit AssignCar(r) and go back to Step R.3 of Procedure ReqArrival. Note that if the n-th car is moving, dn∗ will remain unchanged after Step A.19.
C. FUNCTION MoveUp(r )
The X value calculated at Step A.3 of AssignCar(r) does not represent the number of floors that the n-th car moves if this car needs to change its direction to pick up request r.
Figure 5 illustrates the relationship between a car and a request. Function MoveUp(r) recalculates X to obtain the actual moving steps between fs,r and fn according to four cases. Cases 1.1 & 1.2 (Figure 5 (a) and (b)) represent that fs,r of the request is higher than or equal to fnof the n-th move-up car (i.e. fs,r ≥ fn). Cases 2.1 & 2.2 (Figure 5 (c) and (d)) represent that fs,r of the request is lower than fn of the n-th move-up car (i.e. fs,r < fn). In Cases 1.1 & 2.2, the directions of the n-th car and the request are the same.
Conversely, in Cases 1.2 & 2.1, the directions of the n-th car
FIGURE 5. Four cases in Function MoveUp(r) for the request assignment.
and the request are opposite. Note that in Cases 1.2 & 2.2, the n-th car needs one more direction change before the n-th car picks up request r compared with Cases 1.1 & 2.1, respectively. The flowchart of Function MoveUp(r) is shown in Figure 6. If the value of X at Step MU.1 is positive or zero, the function proceeds to Step MU.2 (Case 1); otherwise, the function proceeds to Step MU.4 (Case 2). Two variables fhand fl, where fs,r ≤ fh ≤ F and 1 ≤ fl < fs,r, are used to store the highest and the lowest floors to be reached by the n-th car. Note that flis set to F (the height of the building) at Step MU.3 to indicate that flis unused when setting X at Step MU.12. The four cases are detailed as follows:
Case 1.1. (fs,rof request r with Dr = Upis above or equal to fn). Step MU.2 checks if Dr = Down. In this case, Dr is Up. We exit MoveUp(r) and go back to Step A.6 of AssignCar(r) (i.e. X = fs,r − fn, which has been set at Step A.3 of AssignCar(r) already).
Case 1.2. (fs,r of request r with Dr = Down is above or equal to fn). Step MU.3 sets fl to F . Then, the function proceeds to compute the fh value.
Step MU.8 checks if there exists any fs,r in Cs,u(n) that is higher than fn. If so, fh is set to F at Step MU.9. Otherwise, fh is set to maxfs,r, max Ct(n), max Cs,d(n) at Step MU.10. At Step MU.11, since fl is F , the func- tion goes to Step MU.12 to recalculate X as (fh− fn) + fh− fs,r.
Case 2.1. (fs,r of request r with Dr = Downis below fn).
Step MU.3 sets fl to F . The function proceeds to set fh at Steps MU.8-MU.10 as described in Case 1.2. Because fl equals F at Step MU.11, X is set to(fh− fn) + fh− fs,r at Step MU.12.
Case 2.2. (fs,r of request r with Dr = Up is below fn).
Step MU.5 checks if there exists any fs,rin Cs,d.

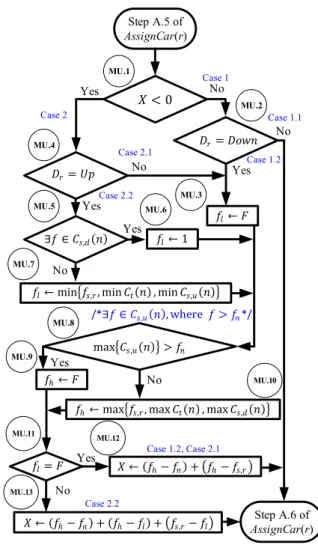

FIGURE 6. Flowchart for Function MoveUp(r).
If so, Step MU.6 sets fl to 1. Otherwise, fl is set to minfs,r, min Ct(n), min Cs,u(n) . The func- tion proceeds to set fhat Steps MU.8-MU.10 as described in Case 1.2. Since fl is not equal to F at Step MU.11, Step MU.13 updates X to (fh− fn) + (fh− fl) + fs,r − fl.
Function MoveDown(r) is the same as Function MoveUp(r) except for the direction reverses. This part is omitted.
D. PROCEDURE SchCar(n)
Procedure SchCar(n) instructs the n-th car to pick up and deliver the passengers to the destinations. Figure 7 illus- trates the flowchart using four global data structures.
dn is the current moving direction of the n-th car, where dn ∈ {Up, Down, Idle}. The up-request set Cs,u(n) indi- cates the set of all unhandled fs,r assigned to the n-th car with Dr= Up. Similarly, the down-request set Cs,d(n) contains all unhandled fs,r assigned to the n-th car with Dr= Down. The set Ct(n) includes the target floors that the n-th car has to stop in the current moving direction.
Herein, Ct(n) = ft,c(n, 1) ,ft,c(n, 2) , . . . ,ft,c(n,jn) , where ft,c(n, j) denotes the j-th target floor in the n-th car’s stop

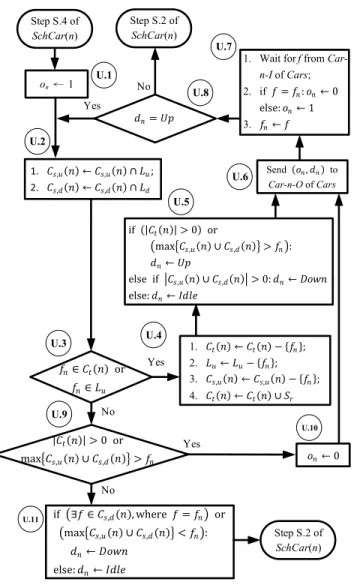

FIGURE 7. Flowchart for Procedure SchCar(n).
list Ct(n) for 1 ≤ j ≤jn and jn= |Ct(n)|. At Step S.1, dn is set to Idle, and Cs,u(n), Cs,d(n), and Ct(n) are set to empty.
At Step S.1.5, the procedure waits to receive the updated sta- tus fnof the n-th car from Procedure Car(n) (to be elaborated in Section II.F). Procedure SchCar(n) of the Scheduler sub- system and Procedure Car(n) of the Car subsystem must be synchronized. Therefore, Step S.1.6 sends message (0, Idle) to acknowledge Procedure Car(n) that the connection path is ready. After initialization, Procedure SchCar(n) enters a loop to handle the direction of the n-th car (Steps S.2-S.4).
Step S.2 checks the direction of the n-th car. If dn is Up, the flow proceeds to Step S.4 and invokes Procedure UpTaskCar(n) to instruct the n-th car to serve the assigned requests (to be elaborated in Section II.E). If dn is Down, Procedure DownTaskCar(n) at Step S.3 is invoked. Other- wise, when dnis Idle, the procedure stays at Step S.2 until dnis updated due to a new assigned request to the n-th car in Function AssignCar(r) described in Section II.B.
E. PROCEDURE UpTaskCar(n)
Procedure UpTaskCar(n) in Figure 8 handles the requests for the n-th car with dn= Up. Step U.1 assumes that the n-th car will open the door on this floor (on=1). When the n-th car arrives at a floor, the n-th car serves not only fs,r of the requests assigned to itself in Cs,u(n) but also unserved fs,r of the requests in Lu. Therefore, at Step U.2, the proce- dure compares Luand Cs,u(n) to remove fs,r of the requests that have already been served by other cars. At Step U.3, the n-th car checks if fn is in Ct(n) or Lu. If so, the pro- cedure goes to Step U.4 and then Steps U.4.1-U.4.3 remove current floor fnfrom Ct(n), Lu, and Cs,u(n) (i.e. passengers exit the n-th car). Then Step U.4.4 performs the union of set Ct(n) and Sr, where Sr is the set of the target floors of
FIGURE 8. Flowchart for Procedure UpTaskCar(n).
request r (i.e. passengers enter the n-th car and push the target floor buttons). At Step U.5, if Ct(n) is not empty or there exists a request with fs,r that is higher than fn (i.e.
maxCs,u(n)∪Cs,d(n)
>fn), then dnis set to Up. Otherwise, if Ct(n) is empty and there still exists a request in Cs,u(n) or Cs,d(n) (i.e. fs,r of the request is below fn), then dn is set to Down. If Cs,u(n), Cs,d(n), and Ct(n) are empty, dnis set to Idle. Step U.6 sends message(on,dn) to the n-th car of the Car subsystem and Step U.7.1 waits for f from the n-th car. Note that Steps U.7.2 and U.7.3 are designed to prevent redundant door open operations [1]. At Step U.8, if dn is not Up, the procedure returns to Step S.2 of SchCar(n).
Otherwise, the procedure proceeds to Step U.2 and the loop goes on. At Step U.3, if fnbelongs to neither Ct(n) nor Lu, the procedure proceeds to Step U.9. This step is the same as the first condition of Step U.5. If there exists a target floor or an unserved request whose fs,r is above the n-th car, the procedure proceeds to Step U.10 and sets onto 0 since no passenger enters/leaves fn. Otherwise, the procedure proceeds to Step U.11 and checks if there exists any request in Cs,d(n) whose fs,r is the same with fnor there still exists any request
FIGURE 9. Flowchart for Procedure Car(n).
in either the sets Cs,u(n) or Cs,d(n) whose fs,r is below fn. If so, the direction dnis set to Down. Otherwise, the n-th car becomes an idle car and the procedure returns to Step S.2 of SchCar(n). Since Procedure DownTaskCar(n) is the same as Procedure UpTaskCar(n) except for the direction reverses, we do not detail this part herein.
F. PROCEDURE Car(n)
The car subsystem has N threads and each of them exe- cutes Procedure Car(n) in Figure 9. For example, for an 8-car system, the Car subsystem has such threads for 1 ≤ n ≤ 8. Procedures SchCar(n) and Car(n) synchronize the communication at Step C.1 by a handshaking. In the Car subsystem, Procedure Car(n) continues to wait for the message(on,dn) from Procedure SchCar(n) in the Scheduler
TABLE 3.Symbols used in the performance evaluation.
subsystem described in Sections II.D and E. If on=1 at Step C.3, the car opens and closes the door to load/unload the passengers at Step C.4. If dnis Up at Step C.5, the car moves up one floor and fnis incremented by 1 at Step C.6.
If dn is Down at Step C.5, the car moves down one floor and fn is decremented by 1 at Step C.7. After fn is updated at Steps C.6 and C.7, through ElevatorTalk config- uration in Figure 1, Step C.8 sends fn to either Procedure UpTaskCar(n) or Procedure DownTaskCar(n) in the Sched- uler subsystem described in Section II.E. If dn is Idle at Step C.5, the flow proceeds to Step C.8 directly.
III. PERFORMANCE EVALUATION
In this section, we show the detailed experimental results and performance evaluation. In Section III.A, we use an energy consumption model to evaluate the energy consump- tion of various scheduling algorithms. In Section III.B, we describe four request patterns used for performance eval- uation. In Section III.C, performance comparisons of the energy-saving elevator scheduling algorithm and previous proposed algorithms are demonstrated.
A. ENERGY CONSUMPTION MODEL
We adopt the energy consumption model in [19] to evaluate the energy performance compared with other methods. The symbols used to describe the energy consumption model are listed in Table 3.

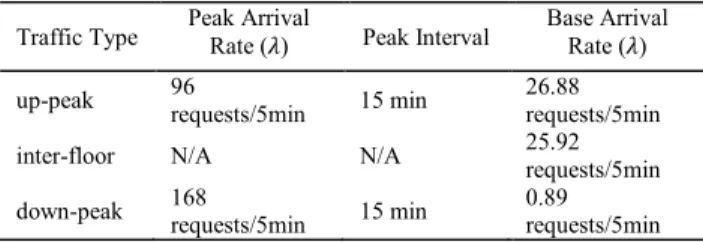

TABLE 4. The parameters of traffic types.
The total energy consumption E of an elevator system during the observation period T is
E = Ea+ Ev,
where Ea is the total acceleration and deceleration energy during T , which is defined by
Ea=XN
n=1Ea(n) =XN n=1
XRn
m=12 ×µn,m× ea. In the above equation, Ea(n) is the acceleration and decel- eration energy of the n-th car during T , Rnis the number of requests served by the n-th car during T ,µn,mis the number of stops between request rm0and request rm, where rm0 is the previous request served by the n-th car on its moving path to the start floor of request rm, and eais the energy consumed by one motor acceleration or deceleration (ea = 22.5kJ). Evis the total moving energy during T defined as follows:
Ev =XN
n=1Ev(n)
=XN n=1
XRn
m=1
Xµn,m
s=1[|θ (n, m, s) ׯq − q| ×g
×h(n, m, s)],
whereθ (n, m, s) is the number of passengers in the n-th car on the moving path from the s-th stop to the start floor of request rm, h(n, m, s) is the distance between the s-th stop and its next stop when the n-th car is on the moving path to the start floor of request rm. ¯q is the average mass of a passenger (¯q = 65kg), q is the difference between the counterweight mass and the mass of the n-th car (q = 100kg), and g is the acceleration of gravity (g = 9.8m/s2).
B. GENERATION OF REQUEST PATTERNS
In order to evaluate the performance of the proposed energy- saving elevator scheduling algorithm, we adopt three types of traffic including up-peak, inter-floor, and down-peak [2] for T = 60 minutes in a 16-floor building. The up-peak traffic occurs in the beginning of the workday while the down-peak traffic occurs at the end of the workday. Otherwise, the traffic type belongs to the inter-floor traffic. As shown in Table 4, three types of traffic are characterized by three parameters:
peak arrival rate, peak interval, and base arrival rate.
According to the peak arrival rate in the peak interval (i.e. 15 minutes) and the base arrival rate in the remain- ing interval, the inter-arrival times (τm) of the requests are
produced by
τm= −lnU λ ,
whereλ denotes the arrival rate in terms of the number of requests per second and U represents a random value in (0,1). We describe four types of generated request patterns according to three traffic types with different arrival ratesλ as follows:
Up-peak: The up-peak request indicates that the start floor is the base floor (i.e. 1F in our emula- tion) and target floor is randomly selected from 2F-16F with the same probability. The peak interval ranges from the 20-th minute to the 35-th minute during the 60-minute observation period.
Inter-floor: The inter-floor request indicates that the start floor and target floor are randomly selected from 1F-16F with the same probability, where the start floor and target floor are mutually exclusive.
Down-peak: The down-peak request indicates that the target floor is the base floor and start floor is randomly selected from 2F-16F with the same probability.
The peak interval ranges from the 30-th minute to the 45-th minute during the 60-minute obser- vation period.
All-day: The all-day request indicates that the start floor and target floor are selected according to the Poisson distribution defined in [15], where the all-day traffic consists of up-peak, inter-floor, and down-peak traffic. The request in all-day request pattern arrives at the interval from 7:00 AM-9:00 PM.
The up-peak, down-peak, and inter-floor request patterns have 522, 504, and 300 requests for 60 minutes, respectively, and all-day request pattern has 861 requests in our emulation experiment. Note that in our emulation, we assume each request r has only one target floor.
C. COMPARING ENERGY-SAVING ELEVATOR SCHEDULING ALGORITHM WITH THE PREVIOUSLY PROPOSED ALGORITHMS
We conduct timing emulation where Function sleep is utilized to emulate moving up/down one floor and door opening and closing in Procedure Car(n) in Section II.F. Based on the motor mechanical characteristics, the time for a car to move up/down one floor is not fixed [19]. Three car moving times are summarized as follows: 1) When a car moves up/down only one floor, the car moving time is 3.46s. 2) When a car moves up/down two floors, the car moving time is 4.9s.
3) When a car moves up/down more than two floors, the car moving time is set to 4.9s for the first two floors and 1.2s for each extra floor.
Through the above emulation setting, we emulate the proposed energy-saving elevator scheduling algorithm in

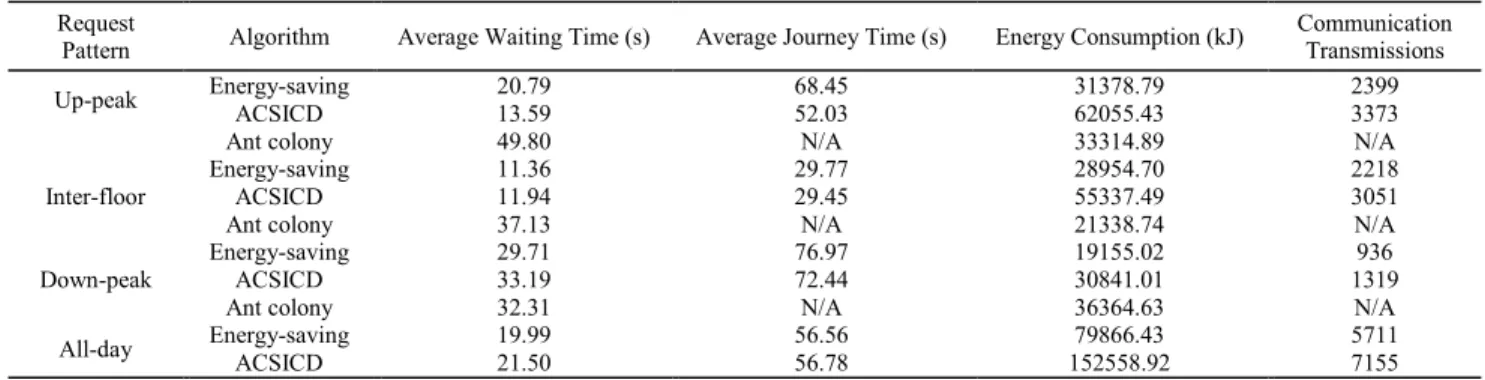

TABLE 5. Performance for three scheduling algorithms. N = 4, F = 16.
TABLE 6. Performance for two scheduling algorithms. N = 8, F = 16.
Section II and ACSICD [1] using the request patterns described in Section III.B. In our emulation experiments, we evaluate the performance by the average waiting/journey time and the energy consumption. The average waiting time Twis defined by
Tw=XM m=1
XN
n=1Tw(m, n)/M,
where Tw(m, n) denotes the duration between the arrival time tmof the m-th request and the time that the n-th car picks up the m-th request. The average journey time Tjis formulated by
Tj=XM m=1
XN
n=1Tj(m, n)/M,
where Tj(m, n) represents the duration between the arrival time tm of the m-th request and the time that the n-th car which handles the m-th request arrives at the target floor of the request. The energy consumption E is described in Section III.A. Table 5 shows the average journey times and the energy consumption of various algorithms with the up- peak, inter-floor, down-peak, and all-day request patterns for 4 cars. The proposed energy-saving elevator schedul- ing algorithm outperforms ACSICD with energy consump- tion reductions by 49.43%, 47.68%, 37.89%, and 47.65%
in terms of up-peak, inter-floor, down-peak, and all-day request patterns, respectively. On the contrary, compared with the energy-saving elevator scheduling algorithm, ACSICD reduces the average journey times in terms of up-peak, inter- floor, down-peak, and all-day request patterns by 23.99%, 1.07%, 5.89%, and -0.39%, respectively. Compared with the performance in [19], our approach outperforms the ant colony algorithm in terms of the energy consumption saving for up- peak and down-peak request patterns by 5.81% and 47.33%, respectively, where the detailed algorithm is described in Appendix.
For the emulations with 8 cars as shown in Table 6, the proposed energy-saving elevator scheduling algorithm outperforms ACSICD with energy consumption reduction by 48.34% for all-day request pattern. On the contrary, compared with energy-saving elevator scheduling algorithm, ACSICD reduces the average journey time for all-day request pattern by 0.19%.
The communication transmission in Tables 5 and 6 is the number of message exchanges between the Sched- uler subsystem and the Car subsystem to control the cars’
behavior. In terms of the communication transmissions, the energy-saving elevator scheduling algorithm can attain the reductions by 28.88%, 27.3%, 29.04%, and 20.18% for N = 4 for up-peak, inter-floor, down-peak, and all-day request patterns and 23.58% for N = 8 for all-day request pattern compared with ACSICD, respectively. Thus, the pro- posed algorithm can achieve green communications.
From Tables 5 and 6, compared with ACSICD, the energy-saving elevator scheduling algorithm has better energy saving in all request patterns because of the fewer car moving steps and communication transmissions with a small amount of increased average journey time.
IV. CONCLUSION
In this paper, the energy-saving elevator scheduling algo- rithm is proposed and verified to reduce the energy con- sumption in an elevator system with IoT communications.
Four types of request patterns including up-peak, inter-floor, down-peak, and all-day are used to verify the performance comparisons for 4 cars and the all-day request pattern is used to evaluate the performance comparison for 8 cars. Through these comparisons, this study outperforms ACSICD [1]
in all request patterns in terms of energy saving due to fewer car moving steps and communication transmissions
(i.e. IoT message exchanges) with acceptable average wait- ing/journey time. Although making cars busier in the eleva- tor system could achieve less average journey time, without carefully selecting a car for a request could incur more energy consumption. Furthermore, the evaluation of communication transmissions shows that the energy-saving elevator schedul- ing algorithm could achieve green communications in the ElevatorTalk system.
APPENDIX
In [19], the authors proposed an elevator scheduling using the ant colony optimization method to minimize energy con- sumption. Each elevator car and request are regarded as an ant and a target (i.e. food), respectively, where the requests and the cars are mutually connected to establish many paths.
The pathπn,mpossessing the pheromone (ϕkn,m) represents the path from the n-th ant (i.e. car) to the m-th food (i.e. request).
When the n-th car passes pathπn,mto serve the m-th request, the pheromone is strengthened. That means that the n-th car with a larger pheromone value and a lower energy consump- tion on the pathπn,mhas a higher probability to serve the m-th request. This algorithm computes all pheromones iteratively.
After k searching iterations, the car system has the converged scheduling. We use the configuration (4-car system with k =200) in [19] to demonstrate the ant colony optimization for elevator scheduling. The algorithm periodically collects requests. In each period, the collected requests are divided into two categories that are move-up requests and move-down requests. After receiving the requests, the algorithm starts to optimize the scheduling iteratively. The algorithm executes the following steps to find an optimized solution:
Step 1. After collecting the requests, set k to one, n to one, and Ekto zero. Ekis the total energy consumption for the N -car system in the k-th iteration.
Step 2. Sort the move-up requests of Luin an ascending- order list and the move-down requests of Ld in a descending-order list. Then, append the sorted list of the move-up requests to the sorted list of the move-down requests and construct a new request list Z . Set M to the number of requests in Z . Step 3. For 1 ≤ n ≤ N and 1 ≤ m ≤ M , initializeϕkn,m
to a positive constant A, and set pkn,mand En,mk to zero. pkn,mis the probability for the n-th car to serve the m-th request in the k-th iteration and Enk,m is the energy consumption produced by the n-th car when serving the m-th request in the k-th iteration.
Step 4. Generate an N -car scheduling for the request list Zin the k-th iteration.
Step 4.1. Set m to 1 (traverse from the first element of the request list Z ).
Step 4.2. For 1 ≤ n ≤ N , calculate the energy consump- tion of the k-th iteration Enk,mby
En,mk =2 ×µn,m× ea+Xµn,m
s=1[|θ (n, m, s)
× ¯q − q| × g × h(n, m, s)].
Step 4.3. For 1 ≤ n≤N , calculate probabilities pkn,mby
pkn,m= (ϕnk,m)α×(1/Enk,m)β PM
m=1(ϕnk,m)α×(1/Enk,m)β,
whereα and β are coefficients to control the influence ofϕkn,mand 1/Enk,m, respectively.
Step 4.4. For 1 ≤ n ≤ N , select the car with the highest probability pkn,mto serve the m-th request.
Step 4.5. Calculate the waiting time of the m-th request served by the selected car.
Step 4.6. Check if the waiting time exceeds the threshold.
If so, go back to Step 4.4 and select the car with the next highest probability. Otherwise, go to Step 4.7.
Step 4.7. Check if all the requests in Z are scheduled.
If so (i.e. m = M ), go to Step 5. Otherwise, increase m by 1 and go back to Step 4.2.
Step 5. Calculate total energy consumption Ek of the scheduling derived from Step 4 by
Ek = Eak+ Evk =XN
n=1Eak(n) +XN
n=1Evk(n)
=XN n=1
XRkn
m=12 ×µn,m×ea +XN
n=1
XRkn m=1
Xµn,m
s=1[|θ (n, m, s)ׯq − q|×g
×h(n, m, s)],
where Rknis the number of requests served by the n-th car in the k-th iteration.
Step 6. For 1 ≤ n ≤ N and 1 ≤ m ≤ M , update all the pheromones by
ϕnk+1,m =ρϕnk,m+1ϕnk,m,
whereρ denotes the weight in (0, 1] and 1ϕnk,m
denotes the incremental difference ofϕkn,m, which is defined as follows:
1ϕnk,m=
C
Ek, if the car n passes πn,m
0, otherwise, where C is a constant.
Step 7. Check if k = 200. If so, terminate the process and dispatch the requests. If no, increase k by 1 and go back to Step 4.
For example, as shown in Figure 10, in the final iteration (i.e. k = 200), all car-choosing probabilities are calcu- lated as follows: p2001,1 =max{p2001,1, p2002,1, p2003,1, p2004,1}, p2001,2 = max{p2001,2, p2002,2, p2003,2, p2004,2}, p2001,6 = max{p2001,6, p2002,6, p2003,6, p2004,6}, p2002,3 = max{p2002,3, p2001,3, p2003,3, p2004,3}, p2002,4 = max{p2002,4, p2001,4, p2003,4, p2004,4}and p2002,5 =max{p2002,5, p2001,5, p2003,5, p2004,5}. Therefore, after reaching the final iteration, each car has its exclusive sequence of requests, where r1, r2 and r6 are dispatched to Car 1 and r3, r4 and r5 are dispatched to Car 2.
Although the convergence of the ant colony algorithm for elevator scheduling is proven in [19], it is not a real-time

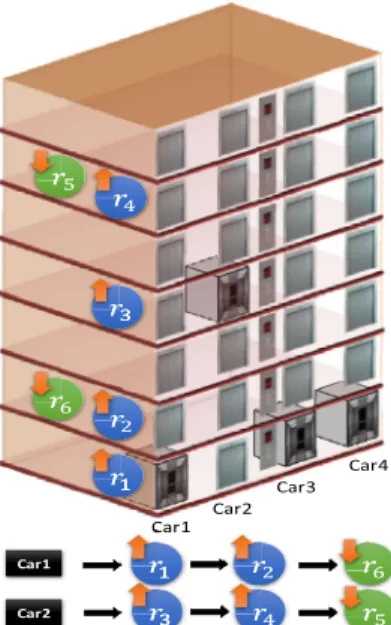

FIGURE 10. The optimized scheduling proceeded by the ant colony optimization.
scheduler because it must wait for a batch of request arrivals before it can conduct the scheduling optimiza- tion. Therefore, the ant colony algorithm may not be easily practiced in the real-time scenario with heavy passenger traffic.
ACKNOWLEDGMENT
The authors would like to thanks for Associate Editor’s review handling and Reviewers’ comments.
REFERENCES
[1] L.-D. Van, Y.-B. Lin, T.-H. Wu, and Y.-C. Lin, ‘‘An intelligent elevator development and management system,’’ IEEE Syst. J., to be published.
[2] G. Barney and S. D. Santos, Elevator Traffic Analysis, Design and Control, 2nd ed. Stevenage, U.K.: Peregrinus, 1985.
[3] B. L. Whitehall, D. J. Sirag, and B. A. Powell, ‘‘Elevator control neural network,’’ U.S. Patent 5 672 853, Sep. 30, 1997.
[4] R. Gudwin, F. Gomide, and M. A. Netto, ‘‘A fuzzy elevator group controller with linear context adaptation,’’ in Proc. IEEE Int. Conf. Fuzzy Syst., IEEE World Congr. Comput. Intell., vol. 1, May 1998, pp. 481–486.
[5] B. L. Whitehall, T. M. Christy, and B. A. Powell, ‘‘Method for continuous learning by a neural network used in an elevator dispatching system,’’
U.S. Patent 5 923 004, Jul. 13, 1999.
[6] M. Brand and D. Nikovski, ‘‘Optimal parking in group elevator con- trol,’’ in Proc. IEEE Int. Conf. Robot. Autom. (ICRA), vol. 1, Apr. 2004, pp. 1002–1008.
[7] S. Tanaka, Y. Uraguchi, and M. Araki, ‘‘Dynamic optimization of the oper- ation of single-car elevator systems with destination Hall call registration:
Part I. Formulation and simulations,’’ Eur. J. Oper. Res., vol. 167, no. 2, pp. 550–573, Dec. 2005.
[8] S. Tanaka, Y. Uraguchi, and M. Araki, ‘‘Dynamic optimization of the operation of single-car elevator systems with destination Hall call regis- tration: Part II. The solution algorithm,’’ Eur. J. Oper. Res., vol. 167, no. 2, pp. 574–587, Dec. 2005.
[9] T. Miyamoto and S. Yamaguchi, ‘‘MceSim: A multi-car elevator sim- ulator,’’ IEICE Trans. Fundamentals Electron., Commun. Comput. Sci., vols. E91–A, no. 11, pp. 3207–3214, Nov. 2008.
[10] A. Valdivielso and T. Miyamoto, ‘‘Multicar-elevator group control algo- rithm for interference prevention and optimal call allocation,’’ IEEE Trans. Syst., Man, Cybern. A, Syst. Humans, vol. 41, no. 2, pp. 311–322, Mar. 2011.
[11] J. Fernandez, P. Cortes, J. Munuzuri, and J. Guadix, ‘‘Dynamic fuzzy logic elevator group control system with relative waiting time consid- eration,’’ IEEE Trans. Ind. Electron., vol. 61, no. 9, pp. 4912–4919, Sep. 2014.
[12] E. O. Tartan, H. Erdem, and A. Berkol, ‘‘Optimization of waiting and journey time in group elevator system using genetic algorithm,’’ in Proc. IEEE Int. Symp. Innov. Intell. Syst. Appl. (INISTA), Jun. 2014, pp. 361–367.
[13] H. Ishihara and S. Kato, ‘‘The effectiveness of dynamic zoning in multi- car elevator control,’’ in Proc. IEEE 3rd Global Conf. Consum. Electron.
(GCCE), Oct. 2014, pp. 601–604.
[14] J. R. Fernandez and P. Cortes, ‘‘A survey of elevator group control systems for vertical transportation,’’ IEEE Control Syst. Magzine, to be published.
[15] L. Marcus and A. Elias, ‘‘Impact of machine learning on elevator control strategies,’’ KTH Roy. Inst. Technol., Stockholm, Sweden, Tech. Rep., 2015.
[16] Accessed: May 2019. [Online]. Available: https://multi.thyssenkrupp- elevator.com/en/
[17] S. Lee and H. Bahn, ‘‘An energy-aware elevator group control system,’’ in Proc. 3rd IEEE Int. Conf. Ind. Informat. (INDIN), Perth, WA, Australia, Aug. 2005, pp. 639–643.
[18] T. Zhang, S. Mabu, L. Yu, J. Zhou, X. Zhang, and K. Hirasawa, ‘‘Energy saving elevator group supervisory control system with idle cage assign- ment using genetic network programming,’’ in Proc. IEEE ICCAS-SICE, Aug. 2009, pp. 994–999.
[19] J.-L. Zhang, J. Tang, Q. Zong, and J.-F. Li, ‘‘Energy-saving scheduling strategy for elevator group control system based on ant colony optimiza- tion,’’ in Proc. IEEE Youth Conf. Inf., Comput. Telecommun., Nov. 2010, pp. 37–40.
[20] Z. Hu, Y. Liu, Q. Su, and J. Huo, ‘‘A multi-objective genetic algorithm designed for energy saving of the elevator system with complete informa- tion,’’ in Proc. IEEE Int. Energy Conf., Dec. 2010, pp. 126–130.
LAN-DA VAN (Senior Member, IEEE) received the Ph.D. degree from National Taiwan Uni- versity (NTU), Taipei, Taiwan, in 2001. Since February 2006, he has been the Faculty Mem- ber with the Department of Computer Sci- ence, National Chiao Tung University (NCTU), Hsinchu, Taiwan, where he is currently an Asso- ciate Professor. Since 2015, he has been the Deputy Director of NCTU M2M/IoT Research and Development Center. His research interests are in digital signal processing and adaptive/machine learning computation algo- rithms, architectures, chips, and systems and applications. He received the Best Poster Award in the iNEER Conference for Engineering Education and Research (iCEER), in 2005, and the Best Paper Award in the IEEE International Conference on Internet of Things (iThings2014), in 2014.
He served as the Chairman for the IEEE NTU Student Branch, in 2000, the IEEE Award for Outstanding Leadership and Service to the IEEE NTU Student Branch, in 2001. In 2014, he was a Track Co-Chair of the 22nd IFIP/IEEE International Conference on Very Large Scale Integration (VLSI- SoC), a Technical Track Co-Chair of the 2018 IEEE International Mid- west Symposium on Circuits and Systems (MWSCAS), a Special Session Co-Chair of the 2018 IEEE International Conference on DSP, an Area Co- Chair, in 2019, the Best Paper Award Committee Member of the IEEE Inter- national Conference on Artificial Intelligence Circuits and Systems (AICAS 2019), and a Publicity Co-Chair of the 32nd IEEE International System- on-Chip Conference (SOCC 2019). In 2020, he serves as a Tutorial Co-Chair for the 33rd IEEE International System-on-Chip Conference (SOCC 2020).
He served as an Associate Editor for the IEEE TRANSACTIONS ONCOMPUTERS, from 2014 to 2018. He has been serving as an Associate Editor for IEEE ACCESS, since 2018, and an Associate Editor for ACM Computing Surveys, since 2020.
YI-BING LIN (Fellow, IEEE) received the Ph.D.
degree from the University of Washington, USA, in 1990. From 1990 to 1995, he was a Research Scientist with Bellcore. He then joined National Chiao Tung University (NCTU), Taiwan, where he became a Lifetime Chair Professor, in 2010, and the Vice President, in 2011. From 2014 to 2016, he was a Deputy Minister with the Ministry of Sci- ence and Technology, Taiwan. Since 2016, he has been a coauthor of the books Wireless and Mobile Network Architecture(Wiley, 2001), Wireless and Mobile All-IP Networks (John Wiley, 2005), and Charging for Mobile All-IP Telecommunications (Wiley, 2008). He is an AAAS Fellow, ACM Fellow, and IET Fellow.
TSUNG-HAN WU received the B.S. and M.S.
degrees in computer science from National Chiao Tung University, Hsinchu, China, in 2012 and 2014, respectively, where he is currently pursuing the Ph.D. degree. His current research interests include the Internet of Things, machine learning, and elevator scheduling.
TZU-HSIANG CHAO received the B.S. degree in computer science from National Chiao Tung Uni- versity, Hsinchu, Taiwan, China, in 2018, where he is currently pursuing the M.S. degree. His cur- rent research interests include neural networks and reinforcement learning.
