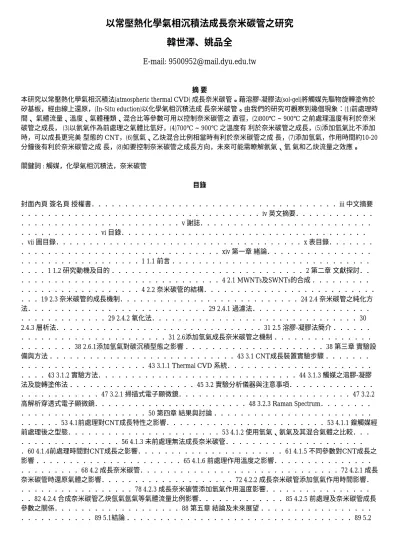

以常壓熱化學氣相沉積法成長奈米碳管之研究 韓世澤、姚品全
E-mail: [email protected]
摘 要
本研究以常壓熱化學氣相沉積法(atmospheric thermal CVD) 成長奈米碳管。藉溶膠-凝膠法(sol-gel)將觸媒先驅物旋轉塗佈於 矽基板，經由線上還原，(In-Situ eduction)以化學氣相沉積法成 長奈米碳管。由我們的研究可觀察到幾個現象：(1)前處理時 間、 氣體流量、溫度、氣體種類、混合比等參數可用以控制奈米碳管之 直徑，(2)800℃ ~ 900℃ 之前處理溫度有利於奈米 碳管之成長， (3)以氨氣作為前處理之氣體比氫好，(4)700℃ ~ 900℃ 之溫度有 利於奈米碳管之成長，(5)添加氫氣比不添加 時，可以成長更完美 型態的 CNT，(6)氫氣、乙炔混合比例相當時有利於奈米碳管之成 長，(7)添加氫氣，作用時間約10-20 分鐘後有利於奈米碳管之成 長，(8)如要控制奈米碳管之成長方向，未來可能需瞭解氨氣、氫 氣和乙炔流量之效應。
關鍵詞 : 觸媒，化學氣相沉積法，奈米碳管
