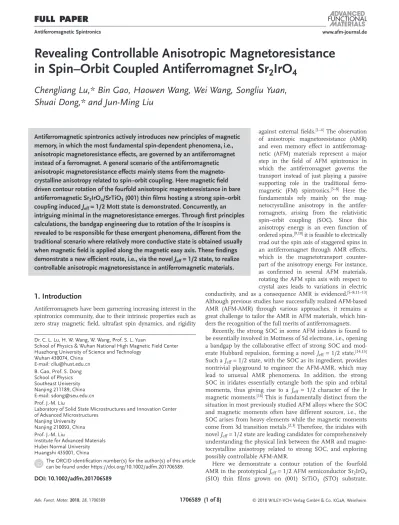

Revealing Controllable Anisotropic Magnetoresistance in Spin–Orbit Coupled Antiferromagnet Sr ₂ IrO ₄

Chengliang Lu, Bin Gao, Haowen Wang, Wei Wang, Songliu Yuan,* Shuai Dong, and Jun-Ming Liu*

Antiferromagnetic spintronics actively introduces new principles of magnetic memory, in which the most fundamental spin-dependent phenomena, i.e., anisotropic magnetoresistance effects, are governed by an antiferromagnet instead of a ferromagnet. A general scenario of the antiferromagnetic anisotropic magnetoresistance effects mainly stems from the magneto- crystalline anisotropy related to spin–orbit coupling. Here magnetic field driven contour rotation of the fourfold anisotropic magnetoresistance in bare antiferromagnetic Sr₂IrO₄/SrTiO₃ (001) thin films hosting a strong spin–orbit coupling induced J_eff = 1/2 Mott state is demonstrated. Concurrently, an intriguing minimal in the magnetoresistance emerges. Through first principles calculations, the bandgap engineering due to rotation of the Ir isospins is revealed to be responsible for these emergent phenomena, different from the traditional scenario where relatively more conductive state is obtained usually when magnetic field is applied along the magnetic easy axis. These findings demonstrate a new efficient route, i.e., via the novel J_eff = 1/2 state, to realize controllable anisotropic magnetoresistance in antiferromagnetic materials.

DOI: 10.1002/adfm.201706589

Dr. C. L. Lu, H. W. Wang, W. Wang, Prof. S. L. Yuan

School of Physics & Wuhan National High Magnetic Field Center Huazhong University of Science and Technology

Wuhan 430074, China E-mail: [email protected] B. Gao, Prof. S. Dong School of Physics Southeast University Nanjing 211189, China E-mail: [email protected] Prof. J.-M. Liu

Laboratory of Solid State Microstructures and Innovation Center of Advanced Microstructures

Nanjing University Nanjing 210093, China Prof. J.-M. Liu

Institute for Advanced Materials Hubei Normal University Huangshi 435001, China

The ORCID identification number(s) for the author(s) of this article can be found under https://doi.org/10.1002/adfm.201706589.

against external fields.^[1–4] The observation of anisotropic magnetoresistance (AMR) and even memory effect in antiferromagnetic (AFM) materials represent a major step in the field of AFM spintronics in which the antiferromagnet governs the transport instead of just playing a passive supporting role in the traditional ferromagnetic (FM) spintronics.^[5–8] Here the fundamentals rely mainly on the magnetocrystalline anisotropy in the antiferromagnets, arising from the relativistic spin–orbit coupling (SOC). Since this anisotropy energy is an even function of ordered spins,^[9,10] it is feasible to electrically read out the spin axis of staggered spins in an antiferromagnet through AMR effects, which is the magnetotransport counter- part of the anisotropy energy. For instance, as confirmed in several AFM materials, rotating the AFM spin axis with respect to crystal axes leads to variations in electric conductivity, and as a consequence AMR is evidenced.[5–8,11–13]

Although previous studies have successfully realized AFM-based AMR (AFM-AMR) through various approaches, it remains a great challenge to tailor the AMR in AFM materials, which hin- ders the recognition of the full merits of antiferromagnets.

Recently, the strong SOC in some AFM iridates is found to be essentially involved in Mottness of 5d electrons, i.e., opening a bandgap by the collaborative effect of strong SOC and mod- erate Hubbard repulsion, forming a novel J_eff = 1/2 state.^[14,15]

Such a J_eff= 1/2 state, with the SOC as its ingredient, provides nontrivial playground to engineer the AFM-AMR, which may lead to unusual AMR phenomena. In addition, the strong SOC in iridates essentially entangle both the spin and orbital momenta, thus giving rise to a J_eff = 1/2 character of the Ir magnetic moments.^[16] This is fundamentally distinct from the situation in most previously studied AFM alloys where the SOC and magnetic moments often have different sources, i.e., the SOC arises from heavy elements while the magnetic moments come from 3d transition metals.^[2,3] Therefore, the iridates with novel J_eff = 1/2 state are leading candidates for comprehensively understanding the physical link between the AMR and magnetocrystalline anisotropy related to strong SOC, and exploring possibly controllable AFM-AMR.

Here we demonstrate a contour rotation of the fourfold AMR in the prototypical J_eff= 1/2 AFM semiconductor Sr2IrO₄ (SIO) thin films grown on (001) SrTiO₃ (STO) substrate.

Antiferromagnetic Spintronics

1. Introduction

Antiferromagnets have been garnering increasing interest in the spintronics community, due to their intrinsic properties such as zero stray magnetic field, ultrafast spin dynamics, and rigidity

(2)

www.afm-journal.de www.advancedsciencenews.com

Concurrently, an abnormal magnetoresistance (MR) minimal is evidenced. With the help of first-principles calculations, the bandgap engineering due to the rotation of Ir’s isospins is revealed to be responsible for these phenomena, as a new route to manipulate the AFM-AMR.

2. Results and Discussion

2.1. Sample Preparation and Characterization

Because of IrO₆ octahedra rotation (α ≈ 11.8°) with respect to the c axis, Sr₂IrO₄ has an expanded tetragonal cell. The Ir isospins, containing remarkable orbital contribution, prefer the AFM order within the ab plane, and show a collective deviation of the isospins from the a axis, defining the isospin canting angle φ ≈ 13°.^[17,18] Jackeli et al. theoretically revealed that the angle φ rigidly tracks the lattice distortion α, i.e., α ≈ φ.^[19] A net moment was found to exist in each IrO₂ layer, arising from the isospin canting.^[17,20–23] By applying small magnetic field within the ab plane, a spin-flip transition can be triggered, resulting in a weak FM phase in Sr₂IrO₄.^[20,24,25] This provides a natural handle to drive the planar AFM orders by external magnetic field in Sr₂IrO₄. The magnetic structure is schematically shown in Figure 1a.

To preserve the spin–orbit coupled AFM orders, epitaxial Sr₂IrO₄ thin films with thickness of ≈40 nm were grown on (001) STO substrates, considering the good lattice fit between the film and the substrate. The Sr₂IrO₄ thin films exhibit a layer-by-layer growth mode, evidenced by the 2D reflection high energy electron diffraction (RHEED) image and intensity oscillations (Figure S1, Supporting Information). The thin films are of pure phase and high quality, identified by detailed structural characterizations (Figure S2, Supporting Information).^[26] The X-ray reciprocal space mappings shown in Figure 1b reveals

the coherent growth of the films on the substrates, and the in-plane and out-of-plane lattice parameters are found to be a/√2 = b/√2 = 3.905 Å and c/2 = 12.848 Å. A small tensile strain ε of only ≈0.46% is detected as expected. For a convenience, here a pseudo-tetragonal lattice expression that has a 45° in- plane rotation with respect to the tetragonal lattice is employed for the films, as schematically shown in Figure 1c.

Figure 2a presents resistivity (ρ) as a function of T for the film. A semiconducting behavior is seen in the entire T range, resulting from the J_eff = 1/2 Mott state.^[14] In the M(T) curves of both field cooling and zero field cooling (ZFC) sequences shown in Figure 2b, clear FM phase transition can be identified at T = TC≈ 230 K, arising from the Ir isospin canting as sketched in Figure 1a. Note that here the FM transition is sharp and the T_C is close to the value seen in Sr₂IrO₄ bulk crystals,^[20,24] confirming the high quality of our thin films. Further evidence to the weak FM phase is provided by M(H) measurements at various temperatures, and a saturated magnetization is estimated to be M_s ≈ 0.03 µB/Ir at T = 10 K (Figure S3, Sup- porting Information), which is slightly smaller than the value in bulk crystals.^[24] Accompanying with the field induced isospin- flip transition at H ≈ 0.2 T, ρ shows a quick decrease with H, evidencing a significant suppression of the spin-dependent transport scattering effect (Figure S3, Supporting Information).

By applying H along different directions, two interesting features can be seen in the MR data measured at various temperatures, shown in Figure 2c,d. First, the MR curves of H//[100]

and H//[110] are different from each other, and present an intriguing intercross at high field region, evidencing an uncon- ventional AMR phenomenon in the thin films. Second, accompanying with the intercross, the MR curve of H//[110] shows a break-in-slope upon sweeping-up H continuously. For instance, with H//[110] at T = 100 K, a minimal in the MR is seen at H ≈ 5.5 T. This unusual H-induced MR minimal is followed by evident hysteresis, indicating that the system undergoes a Figure 1. a) The top panel shows the locking effect between octahedral rotation α and isospin (red arrow) canting φ. The bottom panel shows the planar antiferromagnetic structure in Sr₂IrO₄. The olive arrows denote the net moment in each IrO₂ layer, arising from the isospin canting. The application of magnetic field in-plane would induce an isospin-flip transition, leading to a weak ferromagnetic phase. b) Reciprocal space mapping around the (109) plane of the Sr2IrO4 thin films grown on (001) SrTiO3 substrates. c) Schematic of the basal planes of tetragonal (blue square) and psudotetragonal (black square) Sr₂IrO₄.

(3)

metastable state when sweeping H. Similar MR minimal was recently seen in heavy fermion metal CeIn₃ with large SOC, while the critical field (≈60 T) was found to be one order of magnitude higher than the present case.^[27]

2.2. AMR Contour Rotation

To gain further insight into the field induced anisotropic transport, comprehensive AMR characterizations have been carried out, as shown in Figure 3. The device geometry for the AMR measurements is shown in Figure 3a, in which the exciting current I is applied always along the [100] direction, H is rotated in-plane, and Φ is defined as the angle between H and I. Four- fold AMR = [R(Φ) − R(0)]/R(0) effect is generally seen below TC

in the thin films, shown in Figure 3b,c. The fourfold AMR symmetry excludes a normal AMR origin which simply depends on the relative angle between the exciting current and magnetic field with a relationship of R(Φ) ≈ sinΦ, but should be mainly attributed to the magnetocrystalline anisotropy which depends on the relative angle between spin axis and crystal axis. This is further confirmed by a direct correspondence between the AMR symmetry and the tetragonal structure of Sr₂IrO₄.

An obvious effect seen in Figure 3b is that increasing the magnetic field up to H = 7 T causes an in-plane AMR contour rotation by about 45°. For instance, the pristine fourfold AMR

minima are changed to be maximal positions in the newly developed fourfold AMR. While the AMR contour rotation can be seen clearly, the AMR at 9 T may still be mixed with little low-field AMR component, indicating a much higher field that is desired to completely suppress the low field characteristic.

This AMR contour rotation can still be seen at T = 150 K and at a bit lower field H = 5 T, shown in Figure 3c. Such AMR contour rotation is consistent with the intercross behavior seen in the MR curves (Figure 2c,d). To distinguish the two types of fourfold AMR appearing before and after rotation, they are denoted as ARM-I and AMR-II, respectively.

Figure 3d presents complete AMR map at T = 50 K, which were collected under external magnetic field ranging from H = 0.1 to 9 T. Prior to the onset of the weak FM phase at H < 0.2 T, a twofold AMR is observed, which roughly follows a harmonic sinΦ dependence and can be ascribed to a standard noncrystal- line AMR. As H > 0.2 T, the weak FM phase emerges, which can be utilized to drive the AFM axis travelling basal plane of Sr₂IrO₄. As a consequence, the fourfold AMR-I arises. A closer checking identifies minima of the AMR-I at Φ ≈ 50° + nπ/2 (n = 0, 1, 2, 3). Note that the magnetic easy axis of Sr₂IrO₄ is along the [110] direction (Φ ≈ 45°, not exactly because of the isospin canting).^[17,18] Therefore, the fourfold AMR-I can be understood by the scheme of magnetocrystalline anisotropy, while a spot of contribution from normal AMR effect cannot be excluded considering the planar device geometry.

Figure 2. a) Resistivity and b) magnetization as a function of temperature. The TC ≈ 230 K is indicated by an arrow in (b). Magnetoresistance of the SIO thin films measured with field applied along different directions at c) T = 50 K and d) T = 100 K. The inset shows a sketchy of the measurements.

Solid (dashed) curves were obtained by sweeping up (down) H. The minima in MR curves with H//[110] are highlighted by green lines.

(4)

Further increasing H to ≈5 T causes significant suppression of the AMR-I, and instead activates another fourfold AMR symmetry (i.e., the AMR-II, in which the peaks are indicated by arrows) as H > 5 T, which has a ≈45° shift relative to the AMR-I. A critical field H_c of the AMR-I to AMR-II transition is estimated to be H = Hc≈ 5 T, by plotting the peak positions of the AMR as a function of H, shown in Figure 3e. The peak positions can be more precisely determined but do not change the symmetry of the AMR. Similar AMR transition can be seen in various temperatures below T_C (Figure S4, Supporting Infor- mation), and the critical field H_c shows gradual decrease with increasing T, shown in Figure 3f. By extrapolating the H_c–T curve, a critical field of H_c ≈ 10 T can be obtained at T = 0 K.

Regarding the AMR-II, it still has a repetition duration of ≈90°, while its minima appear along the pseudo-tetragonal axes of Sr₂IrO₄ (i.e., the [100] direction) which have a 45° shift relative to the basal magnetic easy axes (i.e., the [110] direction). In this sense, the emergence of the AMR-II could not be explained simply by the magnetocrystalline anisotropy as for the AMR-I.

This will be discussed in details by combining with first principles calculations in the discussion section.

Stable directions of the antiferromagnetically ordered spins are separated by the magnetocrystalline anisotropy energy, and switching in-between these states by overcoming the energy barrier

may lead to hysteresis. On one side, studying the switching dynamics would be of benefit to deeply understand the observed AMR effects. On the other side, for memory applications, hysteresis allows for nonvolatile recording, while nonhysteretic may provide low-loss in magnetic sensors.^[6,28] To address this, Figure 4a–c presents AMR traces recorded by rotating H from Φ = 0° to Φ = 360°, and then back to Φ = 0° at T = 50 K. Note that there is no hysteresis at the rotation starting position, which can be used to disregard buckling problems in our experiments. This is further confirmed by repeating the measurements with different initial angles. Evident hysteresis can be seen in the AMR traces especially at low field range. For instance, the hysteresis is as large as ΔΦ ≈ 14° at H = 0.3 T. Increasing H causes notable suppression in ΔΦ, and finally a rather small ΔΦ ≈ 1° is seen at H = 9 T. Figure 4d shows ΔΦ as a function of H, in which three regions can be identified. For H < 0.5 T, ΔΦ decreases rapidly from ≈14° to ≈5° upon increasing H. For 0.5 T < H < 5 T, ΔΦ enters a plateau without evident change. Further increasing H causes a step-like sudden decrease in ΔΦ(H) at H ≈ 5 T, and then ΔΦ again evolves with H steadily at a level of ΔΦ ≈ 1° till H = 9 T.

By comparing the AMR transition characteristics Φ(H) (Figure 3e) and the hysteresis evolution ΔΦ(H) (Figure 4d), we can see that the two show intimate correlation with each other. At low field region with H < 0.5 T, the fourfold AMR-I is Figure 3. a) Schematic of the anisotropic magnetoresistance measurement, in which the current is applied along the [100] direction, and magnetic field is rotated in-plane. Φ is the angle between magnetic field H and the current I. The anisotropic magnetoresistance measured under various magnetic field at b) T = 50 K and c) T = 150 K for the thin films. d) Anisotropic magnetoresistance map collected under a series of magnetic fields at T = 50 K for the thin films. The high-field AMR peaks are indicated by arrows. e) Peak positions of the AMR curves in (d) as a function of H, in which the contour rotation is clearly seen at Hc ≈ 5 T. AMR-I and AMR-II represent the AMR effect that appearing before and after the rotation. The relative shift between AMR-I and AMR-II is ≈45°. f) The critical field Hc (squares) of the AMR-I to AMR-II transition as a function of temperature. The dots represent fields of the MR minima at various temperatures.

(5)

gradually stabilized, and the hysteresis ΔΦ decreases from 14°

to 5° with increasing H. The relatively large ΔΦ may be due to additional contributions of stabilizing the weak FM phase. At 0.5 T < H < 5 T, the AMR-I possesses uniform hysteresis with a certain ΔΦ ≈ 5°, arising mainly from the magnetocrystalline anisotropy energy in Sr₂IrO₄ as discussed above. At 5 T < H < 9 T, however, the AMR-II shows a nearly nonhysteretic behavior with minor ΔΦ ≈ 1°, suggesting that the isospins could go freely through the crystal axes in the thin films.

2.3. Theory of AMR of Sr₂IrO₄

We now have shown the magnetic field induced fourfold AMR contour rotation and concurrent MR minimal in the spin–orbit AFM SIO/STO thin films. These phenomena have not been reported yet, to the best of our knowledge.

To understand the microscopic physics of the unusual anisotropic magneto-transport in the thin films, we performed calculations based on density functional theory (DFT) using Vienna ab initio simulation package (VASP). First, the bulk Sr₂IrO₄ is checked.

The magnetic ground state of Sr₂IrO₄ is confirmed to be the basal AFM arrange- ment with Ir isospins pointing along the [110] direction (magnetic easy axis). The

local moment of Ir is µ ≈ 0.498 µB with orbital moment µL≈ 0.341 µB and spin moment µS ≈ 0.157 µB, giving rise to a ratio of µL/µS≈ 2.17. Moreover, the calculated canting angle of Ir moment is φ ≈ ±10.7° with respect to the [110] direction.

These results are well agreeing with previous experimental and theoretical results.[17,21,22,29]

We then perform the calculations for strained Sr₂IrO₄ to simulate thin films on the top of (001) STO substrate. The calculated results are listed in Table 1. After including the strain Figure 4. Hysteretic AMR traces measured under various magnetic fields a) H = 0.3 T, b) H = 1 T, and c) H = 9 T at T = 50 K in SIO/STO thin films.

The magnetic field is rotated from Φ = 0° to 360° (black curves) and then backward from 360° to 0° (red curves). d) The derived hysteresis size ΔΦ as a function of H, in which step-like features are seen corresponding to the AMR-I and AMR-II.

Table 1. The energy difference for a minimal unit cell (eight formula units), local spin moment (µS) within the default Wigner–Seitz sphere, and orbital moment (µL) for each Ir of Sr₂IrO₄. The item of “isospin angle” means a canting angle relative to the initialized direction of the isospin.

Initial moments direction [110] [100]

Bulk SIO Energy [meV] 0 1.24

µ = µS + µL [µB/Ir] 0.498 0.496

isospin angle [°] ± 10.7 + 9.6/−11.6

µS[µB] 0.157 0.155

µL[µB] 0.341 0.341

SIO/STO (001) Energy [meV] 0 1.01

µ = µS + µL [µB/Ir] 0.476 0.473

isospin angle [°] ± 5.3 + 1.1/−8.7

µS[µB] 0.133 0.131

µL[µB] 0.343 0.342

Eg [meV] 35.0 25.9

(6)

effect, the magnetic easy axis remains the [110] direction. The ratio of µL/µS is found to be ≈2.58 for SIO/STO, although the total magnetic moment of Ir is almost unchanged (<5%) upon strain. The isospin canting angle is meanwhile derived to be φ ≈ 5.3° with respect to the [110] direction for SIO/STO. Physi- cally, strain can modify IrOIr bond angles in the ab plane, which tune the single-ion anisotropy, Dzyaloshinskii–Moriya interaction, as well as exchanges. Thus, the canting angles are naturally changed a little bit upon strain. The evolutions of both µL/µS ratio and φ with strain are in agreement with previous dynamical mean field theory calculations (DMFT).^[29]

As shown in Table 1, the calculated magnetocrystalline anisotropy energy is ΔE ≈ 1.01 meV (u.c.)⁻¹ (or ΔE ≈ 0.13 meV/Ir).

This is quite close to the calculated value (ΔE ≈ 0.19 meV/Ir) for Ba₂IrO₄.^[30] Such magnetocrystalline anisotropy can explain the AMR-I observed under relatively low magnetic field. As in many other magnetic systems, relatively stronger suppression of magnetic scattering (a consequence larger MR) would be expected when magnetic field is applied along the magnetic easy axis, which is confirmed by the results shown in Figure 2c,d. Then the AMR-I can be straightforwardly understood using this conventional mechanism of axis-dependent suppression of magnetic scattering.

Regarding the AMR-II, the relatively more conductive channel is shifted by ≈45° to along the [100] direction, although the [110] direction is the magnetic easy axis in Sr₂IrO₄. As aforementioned, an AMR-I to AMR-II transition field is derived to be H_c ≈ 10 T at T = 0 K, which corresponds to a Zeeman energy difference 0.12–0.2 meV/Ir if taking the Ir moment as 0.2–0.4 µB/Ir in Sr₂IrO₄.^[17,22] Therefore, H_c represents a critical field to overcome the magnetocrystalline anisotropy energy

barrier. Thus, when H > Hc, all the isospins should fully rotate accompanying the external magnetic field.

We further calculated band structures for cases with the Ir isospins pointing along the [110] and the [100] directions, as shown in Figure S5 in the Supporting Information. Similar to previous theoretical works,^[14,29,31] we found that taking the strong SOC and effective Hubbard repulsion U_eff into account is vital for the gap-opening in Sr₂IrO₄. A smaller bandgap (E_g^[100] ≈ 25.9 meV) is revealed as the Ir isospins are aligned along the [100] direction, as compared with the [110] direction (E_g^[110] ≈ 35.0 meV). It should be noted that the gap calculated using the generalized gradient approximation-Perdew–Burke–

Ernzerhof in VASP is typically smaller than the experimental one (or other theoretical values calculated using DMFT).^[14,29]

Even though, these values are qualitatively comparable, i.e., Eg[110] > Eg[100], which is in agreement with the previous calculated results.^[11] This difference can well explain the emergence of the AMR-II in the SIO/STO thin films. The bandgap E_g^[100] (≈25.9 meV) is always smaller than Eg[110] (≈35.0 meV).

The isospin’s direction can rotate with increasing magnetic field, not E_g’s. Under small magnetic fields, the energy is lower when isospins pointing along the [110] direction and the MR is larger along the [110], considering the magnetic easy axis. Under high magnetic fields, the weak FM magnetization is nearly saturated no matter the magnetic field is applied along the [100] or [110] direction. Thus the AMR-I, which is contributed by the suppression of magnetic scattering, should be negligible in this situation. Instead, since all isospins follow the magnetic field, the intrinsic bandgaps tuned by isospins’ direction will determine the transport, leading to the AMR-II.

Figure 5. The band structures are schematically shown as Ir isospin is aligned along the a) [100] and b) [110] directions. c) Sketch of H driven rotation of the Ir isospins mIr (red arrows) as H > Hc. Olive arrows represent the FM moments due to isospin-canting. Solid (dashed) arrows represent the initial (final) positions of the moments.

(7)

According to the calculated band structures, the minimal in the MR of H//[110] can be explained as following. Magnetic twin domains have been demonstrated in bulk SIO, owing to the tetragonal symmetry.^[22] In the present SIO/STO thin films, similar twinned magnetic domains are to be expected, since the tetragonal structure is preserved and the strain in the thin films is tiny, as evidenced by the structural characterizations. Upon increasing H, the domains are eventually aligned to let the FM moment approach H, leading to suppression of spin-scattering such as quick enhancement in MR at low fields (Figure 2c,d). As H ≥ H_c, the field is sufficient to overcome the anisotropy energy barrier, and thus the Ir isospins can pass the [100] direction (with smaller bandgap) and reach the final stable direction such as the [110] direction (with larger bandgap). Therefore, an MR minimal appears at H_c in the MR with H//[110]. A sketch is shown in Figure 5. This picture is supported by the fact that the fields of MR minima at various temperatures well follow the relationship of H_c(T) shown in Figure 3f.

3. Conclusion

In conclusion, well controllable AMR effect and concurrent MR minimal are evidenced in the Sr₂IrO₄ thin films hosting a novel Jeff = 1/2 Mott state, which can be observed in a broad temperature range up to the AFM transition. Our first-principles calculations reveal that these two phenomena should be mainly attributed to band structure engineering when rotating the AFM axis laterally in the thin films. Our results unequivocally link the J_eff = 1/2 Mott state to the AFM-based AMR, which would be scientifically interesting and important for AFM spintronics, since the realization of AMR represents an important step toward the manipulation and detection of AFM orders. In addition, our work evidences a direct correlation between the inherent AFM-lattice and the band structure in Sr₂IrO₄, which provides useful information to understand the nature of magnetic interactions in iridates.

4. Experimental Section

The Sr2IrO4 thin films were epitaxially grown on STO (001) substrate using pulsed laser deposition system equipped with in situ RHEED.

The growth parameters were carefully optimized, and the details could be found in the previous work.^[26] The film thickness of 40 nm was monitored by the RHEED intensity oscillations.

X-ray diffraction characterizations, including regular theta-2theta scan, reciprocal space mapping, and rocking curves were carried out using a Philips X’Pert diffractometer. Magnetic characterizations were performed using a superconducting quantum interference device by Quantum Design. The M(T) curves were measured for both field cooling and zero field cooling sequences, and the cooling and measuring field was set at H = 0.1 T. Magnetization as a function of H was measured at various temperatures after a ZFC sequence. During the magnetization measurements, H was applied along the [100] direction. Electric transport measurements with exciting current I//[100] direction were performed using a standard four-probe method in a Quantum Design physical property measurement system equipped with a rotator module.

With regard to the anisotropic magnetoresistance measurements, I was applied always along the [100] direction, and the magnetic field H was

rotated within the basal plane of the films. Maximum magnetic field allowed by the transport measurement set-up was 9 T.

In DFT calculations, the Hubbard repulsion U_eff= U−J = 3 eV was concluded and the SOC effect was considered with noncollinear spins.

The plane-wave cutoff was 550 eV and the 6 × 6 × 2 Monkhorst–Pack k-points mesh was centered at Γ points. Starting from the experimental tetragonal structure of bulk SIO, the lattice parameters and inner atomic positions were fully optimized till the Hellman–Feyman forces were all less than 0.01 eV A⁻¹.^[32] To simulate the strain in thin films, the in-plane lattice constants of SIO were fixed to be the same as the substrates.

The calculations were done without considering surface and interface, noting that the films were already 40 nm in thickness, sufficiently thick that the bulk properties were believed to be dominant. The isospin moments were initialized along particular axes (without canting), but not artificially constrained. The magnetic canting was obtained via self- consistent calculations.

Supporting Information

Supporting Information is available from the Wiley Online Library or from the author.

Acknowledgements

The authors acknowledge fruitful discussions with Prof. Marin Alexe, Dr. Xavi Marti, Dr. Ignasi Fina, and Prof. Dietrich Hesse. This work was supported by the National Nature Science Foundation of China (Grant Nos. 11774106, 11674055, 51332006, 51721001, and 51431006), the National Key Research Projects of China (Grant No. 2016YFA0300101).

Conflict of Interest

The authors declare no conflict of interest.

Keywords

anisotropic magnetoresistance, antiferromagnetic spintronics, spin–orbit coupling

Received: November 12, 2017 Revised: January 28, 2018 Published online: February 22, 2018
