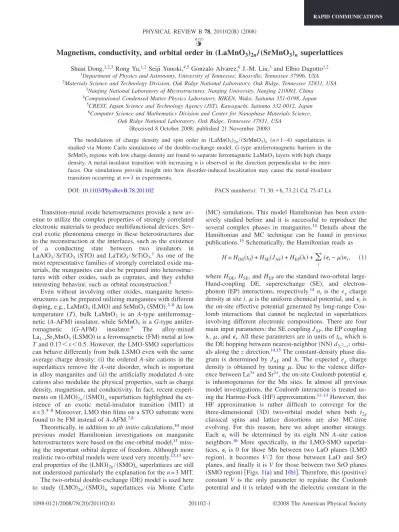

Magnetism, conductivity, and orbital order in (LaMnO

)

Õ (SrMnO

)

superlattices

Shuai Dong,^1,2,3Rong Yu,^1,2Seiji Yunoki,^4,5Gonzalo Alvarez,⁶J.-M. Liu,³and Elbio Dagotto^1,2

1Department of Physics and Astronomy, University of Tennessee, Knoxville, Tennessee 37996, USA

2Materials Science and Technology Division, Oak Ridge National Laboratory, Oak Ridge, Tennessee 32831, USA

3Nanjing National Laboratory of Microstructures, Nanjing University, Nanjing 210093, China

4Computational Condensed Matter Physics Laboratory, RIKEN, Wako, Saitama 351-0198, Japan

5CREST, Japan Science and Technology Agency (JST), Kawaguchi, Saitama 332-0012, Japan

6Computer Science and Mathematics Division and Center for Nanophase Materials Science, Oak Ridge National Laboratory, Oak Ridge, Tennessee 37831, USA

共Received 8 October 2008; published 21 November 2008兲

The modulation of charge density and spin order in 共LaMnO₃兲2n/共SrMnO₃兲n 共n= 1 – 4兲 superlattices is studied via Monte Carlo simulations of the double-exchange model.G-type antiferromagnetic barriers in the SrMnO₃regions with low charge density are found to separate ferromagnetic LaMnO₃layers with high charge density. A metal-insulator transition with increasingnis observed in the direction perpendicular to the inter- faces. Our simulations provide insight into how disorder-induced localization may cause the metal-insulator transition occurring atn= 3 in experiments.

DOI:10.1103/PhysRevB.78.201102 PACS number共s兲: 71.30.⫹h, 73.21.Cd, 75.47.Lx

Transition-metal oxide heterostructures provide a new av- enue to utilize the complex properties of strongly correlated electronic materials to produce multifunctional devices. Sev- eral exotic phenomena emerge in these heterostructures due to the reconstruction at the interfaces, such as the existence of a conducting state between two insulators in LaAlO₃/SrTiO₃ 共STO兲and LaTiO₃/SrTiO₃.¹As one of the most representative families of strongly correlated oxide ma- terials, the manganites can also be prepared into heterostruc- tures with other oxides, such as cuprates, and they exhibit interesting behavior, such as orbital reconstruction.²

Even without involving other oxides, manganite hetero- structures can be prepared utilizing manganites with different doping, e.g., LaMnO₃共LMO兲and SrMnO₃共SMO兲.^3–8At low temperature 共T兲, bulk LaMnO₃ is an A-type antiferromag- netic共A-AFM兲insulator, while SrMnO₃ is aG-type antifer- romagnetic 共G-AFM兲 insulator.⁹ The alloy-mixed La_1−xSrxMnO₃共LSMO兲is a ferromagnetic共FM兲metal at low T and 0.17⬍x⬍0.5. However, the LMO-SMO superlattices can behave differently from bulk LSMO even with the same average charge density: 共i兲 the ordered A-site cations in the superlattices remove the A-site disorder, which is important in alloy manganites and 共ii兲the artificially modulatedA-site cations also modulate the physical properties, such as charge density, magnetism, and conductivity. In fact, recent experi- ments on共LMO兲2n/共SMO兲nsuperlattices highlighted the ex- istence of an exotic metal-insulator transition 共MIT兲 at n= 3.^5–8Moreover, LMO thin films on a STO substrate were found to be FM instead ofA-AFM.^7,8

Theoretically, in addition to ab initiocalculations,¹⁰most previous model Hamiltonian investigations on manganite heterostructures were based on the one-orbital model,¹¹miss- ing the important orbital degree of freedom. Although more realistic two-orbital models were used very recently,^12,13sev- eral properties of the共LMO兲2n/共SMO兲nsuperlattices are still not understood particularly the explanation for then= 3 MIT.

The two-orbital double-exchange共DE兲model is used here to study 共LMO兲_2n/共SMO兲n superlattices via Monte Carlo

共MC兲simulations. This model Hamiltonian has been exten- sively studied before and it is successful to reproduce the several complex phases in manganites.¹⁴ Details about the Hamiltonian and MC technique can be found in previous publications.¹⁵ Schematically, the Hamiltonian reads as

H=H_DE共t0兲+H_SE共JAF兲+H_EP共␭兲+

兺

whereH_DE,H_SE, andH_EPare the standard two-orbital large- Hund-coupling DE, superexchange 共SE兲, and electron- phonon 共EP兲 interactions, respectively.¹⁴ ni is the eg charge density at sitei.␮is the uniform chemical potential, and⑀iis the on-site effective potential generated by long-range Cou- lomb interactions that cannot be neglected in superlattices involving different electronic compositions. There are four main input parameters: the SE couplingJ_AF, the EP coupling

␭,␮^{, and}⑀i. All these parameters are in units oft₀, which is the DE hopping between nearest-neighbor共NN兲d_3z²_−r²orbit- als along thezdirection.^14,15The constant-density phase dia- gram is determined by J_AF and ␭. The expected e_g charge density is obtained by tuning ␮. Due to the valence differ- ence between La³⁺and Sr²⁺, the on-site Coulomb potential⑀i

is inhomogeneous for the Mn sites. In almost all previous model investigations, the Coulomb interaction is treated us- ing the Hartree-Fock共HF兲approximation.^11–13However, this HF approximation is rather difficult to converge for the three-dimensional 共3D兲 two-orbital model when both t_2g classical spins and lattice distortions are also MC-time evolving. For this reason, here we adopt another strategy.

Each ⑀i will be determined by its eight NN A-site cation neighbors.¹⁶ More specifically, in the LMO-SMO superlat- tices, ⑀i is 0 for those Mn between two LaO planes 共LMO region兲, it becomes V/2 for those between LaO and SrO planes, and finally it isV for those between two SrO planes 共SMO region兲 关Figs.1共a兲and1共b兲兴. Therefore, this共positive兲 constant V is the only parameter to regulate the Coulomb potential and it is related with the dielectric constant in the PHYSICAL REVIEW B78, 201102共R兲 共2008兲
