Optimal planning of a dynamic pump-treat-inject

groundwater remediation system

Liang-Cheng Chang

a,

*

_{, Hone-Jay Chu}

a

_{, Chin-Tsai Hsiao}

b

a

Department of Civil Engineering, National Chiao Tung University, 1001 Ta Hsueh Road, Hsinchu, 30010, Taiwan, R.O.C

b_{Department of Information Management Chungchou Institute of Technology, Yuanlin, Changhwa, Taiwan, 510, R.O.C}

Received 21 September 2006; received in revised form 25 May 2007; accepted 29 May 2007

KEYWORDS Optimal planning; Differential dynamic programming; Genetic algorithm; Pump-treat-inject; Remediation

Summary This study integrates the genetic algorithm (GA) and constrained differential dynamic programming (CDDP) to design the pump-treat-inject system. The proposed model considers both the cost of installing wells (fixed cost) and the operating cost of pumping, injection and water treatment. To minimize the total cost while meeting the water quality constraints, the model can compute the optimal number and locations of wells, as well as the associated optimal pumping and injection schemes. Various numer-ical cases reveal that the requirement to balance the total volume between pumping and injection can significantly influence the final optimal design.

Introduction

Groundwater is a valuable natural resource. However, it is threatened by contaminants from industrial and waste dis-posal activities and the problem has become more serious in recent years. Contaminant removal to clean up the aqui-fer is very expensive and generally takes many years. Many approaches have been applied to this problem. The pump-and-treat (PAT) method is one of the most commonly ap-plied methods of groundwater remediation. By pumping out contaminated groundwater, treating the water and

injecting the clean water to confine the pollutant plume, the method is primary useful for decontaminating ground-water with highly soluble pollutants.

Effective design of a remediation system in groundwater requires consideration of more than just the effectiveness of the technological process involved. The first step neces-sary in planning is to define the goals of design. The most commonly used objective for the remediation design is to minimize costs associated with the remediation system. In recent years, optimization models have been developed to design a groundwater remediation system (Gorelick and

Voss, 1984; Taghavi et al., 1994; Aly and Peralta, 1999; Cul-ver and Shenk, 1998). Previously, the fundamental approach of an optimal design was concerned with how to operate only the pumping wells in the most contaminated area (Chang and Shoemaker, 1992; Huang and Mayer, 1997;

Zheng and Wang, 1999; Chang and Hsiao, 2002). Chang

* Corresponding author. Tel.: +886 3 5727293; fax: +886 3 6126511.

E-mail addresses: [email protected] (L.-C. Chang),

[email protected](H.-J. Chu),[email protected]

(C.-T. Hsiao).

a v a i l a b l e a t w w w . s c i e n c e d i r e c t . c o m

(2)

and Shoemaker (1992) applied constrained differential dy-namic programming (CDDP) to the optimal remediation de-sign of time-varying pumping rates, while considering only the operation cost.Huang and Mayer (1997)used a genetic algorithm (GA) to find the optimal extraction wells and cor-responding pumping rates in remediation design.Zheng and

Wang (1999) used an integrated approach which used the tabu search (TS) to define well locations and linear program-ming for optimizing pumping rate. Although Huang and

Mayer (1997) and Zheng and Wang (1999) examine both fixed cost and operation cost, they consider only a steady pump-ing rate.Chang and Hsiao (2002)integrated GA and CDDP to overcome the problem of simultaneously considering both the fixed costs of well installation and the operating costs of time-varying pumping rates.

The previously reviewed studies in optimization consider only the extraction wells. However, a cost-effective reme-diation system for soluble pollutants should include both the withdrawal and injection wells in general. The approach has the effectiveness of creating a capture area which con-tains and prevents the contamination from migrating (Cohen

et al., 1994; Bear and Sun, 1998; Wang et al., 1999; Cunn-ingham and Reinhard, 2002). Such a technique is referred to as pump-treat-inject (PTI), one of the PAT, in which the contaminated water is pumped then treated, and the treated water is re-injected into the aquifer (Bear and

Sun, 1998). The PTI technique has the function of hydraulic control that extraction wells locate in the dissolved plume to capture the contaminated water, and treated water is re-injected by injection wells to create a pressure ridge along the axis of the plume (Cohen et al., 1994; Wang

et al., 1999). Cunningham and Reinhard (2002) demon-strated that the flow of pumping and injection acts as a hydraulic barrier, protecting potential drawdown gradient from contamination, in much the same manner as a perme-able reactive barriers. More than one optimization method for the design of a PTI system has been developed.McKinney

and Lin (1995) used mixed-integer programming in creating an optimal design for the air-stripping treatment process. The objective is to minimize the total cost including fixed cost and operating costs of pumping and injection at five po-tential wells.Bear and Sun (1998)used the two-level hierar-chical optimization model to optimize the PTI design. At the basic level, well locations and pumping/injection rates are defined to maximize removal of contaminants. At the upper level, the number of wells for pumping/injection is opti-mized, so as to minimize the cost, taking maximum contam-inant level as a constraint. Their study neglects operating cost, however, which is a large part of remediation cost. Guan and Aral (1999) used a progressive genetic algorithm to optimize the remediation design. For a specified well number, their study defines the well locations and pumping or injection rates for each well. The proposed model consid-ers only the operating cost of steady pumping and injection. Hilton and Culver (2000) used a genetic algorithm to solve the same example asMcKinney and Lin (1995). The proposed model considers the fixed and operating cost of pumping and injection. Both studies consider pumping and injection rate equilibrium, i.e. total pumping volume equals total injection volume during the planning period. However, the pumping and injection rates for each well are steady in their studies. A few researchers have considered time-varying

pumping and injection rates. Minsker and Shoemaker

(1998) applied SALQR to design the in situ bioremediation, which involves determining time-varying pumping and injecting rates for the extraction and injection wells, respectively. The injection wells are used to stimulate the microbial population and accelerate degradation of pollu-tants by injecting electron accepters, nutrients, additional carbon or electron donor sources. However, the study con-sidered only the operating cost not the fixed cost.

Total cost of a PTI system should include the installation and operation cost, and, to be cost-effective, the operation policy should be time-varying because the dynamic policies are allowed to change as the contaminant plume moves. How-ever, optimal design for the PTI system is a highly complex problem and none of the previous works has examined this problem. Therefore, this study develops a hybrid algorithm by integrating the genetic algorithm (GA) and constrained dif-ferential dynamic programming (CDDP) to solve the dynamic PTI design problem. The optimal wells network and the opti-mal pumping or injection rates for each well are all computed by the proposed algorithm. The algorithm incorporates the time-varying policies of PTI system and also considers pump-ing and injection rate equilibrium for each time step.

Formulation of the planning model

The formulation to minimize both the fixed and operating costs of the system while determining the extraction or injection well network and pumping/injection rate is as follows: min WX ut;j;j2P ut;i;i2I t¼1;...;N JðWÞ ¼ X j a1yjðPÞ ( þX N t¼1 X j a2ut;jðPÞ½LjðPÞ htþ1;jðPÞ þ a3ut;jðPÞ ) þ X i a1yiðIÞ þ XN t¼1 X i

½a4ut;iðIÞ

( ) ð1Þ subject to fxtþ1g ¼ Tðxt; utðWÞ; t; WÞ; t¼ 1; 2; . . . ; N ð2Þ cN;l6cmax; l2 U ð3Þ X j ut;jðPÞ 6 Tumax; t¼ 1; 2; . . . ; N; j 2 P; P X ð4Þ uðpÞmin6ut;jðPÞ 6 uðpÞmax; t¼ 1; 2; . . . ; N; j 2 P; P X ð5Þ

uðinÞmin6ut;iðIÞ 6 uðinÞmax; t¼ 1; 2; . . . ; N; i 2 I; I X ð6Þ

hmin6ht;i6hmax; t¼ 1; 2; . . . ; N; i 2 W ð7Þ

X j ut;jðPÞ ¼ X i ut;iðIÞ; t¼ 1; 2; . . . ; N; j 2 P; P X; i 2 I; I X ð8Þ

where X is an index set defining all of the candidate well locations in the aquifer; W is a network alternative, which is the union of the pumping network P and injection network I (W = P[ I, P \ I = 0), and is the subset of candidate well locations (W X). W is represented by a chromosome in the GA described subsequently; J(W) is total cost of W. ut,j

(3)

time t. ut,iis injection rate at ith well in the injection

net-work I during time t. Lj(P) are the distance from the ground

surface to the lower datum of the aquifer for wellj; ht+1,j(P)

denote hydraulic head for well j at time t + 1; y(Æ) is the depth of well; a1is the well installation cost coefficient, a2

is the cost coefficient for pumping the contaminated ground-water, a3is the cost coefficient for the pumped water

treat-ment, and a4is the cost coefficient for injection water.

T(xt, ut(W), t) represents the transition equation.

xt= [ht:ct]T is the continuous state variable representing

heads htand concentrations ct, ut(W) represents the control

vector whose length depends on W. cmax represents the

maximum allowable concentration; U is the set of observa-tion wells. Tumaxrepresents the maximum allowable total

pumping rates from all extraction wells; uðpÞmaxand uðpÞmin

repre-sent the maximum and minimum allowable pumping rate in the extraction well; uðinÞmax and uðinÞmin represent the maximum

and minimum allowable injection rate in the injection well; hmax and hmin represents the upper and lower bounds of

hydraulic head.

Eq. (1) is the total for the whole system including the installation and operation for pumping and injection. The first and second components in Eq.(1)are the costs of the pumping subsystem, involving installation and pumping operation cost. The pumping operation cost includes extrac-tion and treatment costs. The third and fourth components in Eq.(1)are the costs of the injection subsystem, involving installation and injection operation costs. The fourth com-ponent in Eq.(1)assumed the cost to inject the water by gravity gradient is the minimal and can be neglected. There-fore, the operation cost for injection is only the cost to ob-tain the clean water. The transition equation in Eq.(2)is ISOQUAD (Pinder, 1978), an implicit finite element ground-water flow and transport model for a two-dimensional con-fined aquifer. The model computes changes in head and contaminant concentration due to pumping or injection. The mechanism of contaminant transport considered in the model includes advection, diffusion, dispersion, and lin-ear equilibrium sorption. The constraint in Eq.(3)ensures the water quality standard will be met at the specified mon-itoring wells at the end of the planning period. The con-straint in Eq. (4) specifies the capacity constraint for the treatment plants. The constraints in Eqs.(5) and (6)specify the capacity constraints for each pumping or injection well. The lower and upper bounds on the hydraulic head are listed in Eq.(7). The constraint in Eq.(8)is to maintain the volume equilibrium between pumping and injection during time t.

The algorithm of GCDDP: integration of a GA

and CDDP

As previous stated, this investigation integrates GA and CDDP to solve the problem defined by Eqs. (1)–(8). The problem is a mixed-integer nonlinear time-varying problem and includes discontinuous variables (pumping/injection well locations) and continuous variables (time-varying pumping/injection rates), and cannot be solved by a single conventional optimization scheme. Therefore, this study further explores the problem structure and reformulates the problem into a two-level optimization problem to facil-itate the application of GA and CDDP.

The main problem: min WX; ut;j;j2P ut;ii2I t¼1;...;N JðWÞ ¼X j a1yjðPÞ þ J 2ðPÞ þX i a1yiðIÞ þ J 3ðIÞ ð9Þ The sub-problem: J2ðPÞ ¼ min ut;j;j2P t¼1;...;N XN t¼1 ½a2ut;jðPÞ½LjðPÞ htþ1;jðPÞ þ a3ut;jðPÞ ( ) ð10Þ J3ðIÞ ¼ min ut;i;i2I t¼1;...;N XN t¼1

½a4ut;iðIÞ

( )

ð11Þ

subject to Eqs:ð2Þ–ð8Þ ð12Þ

Solving the two-level problem Eqs.(9)–(12)is equivalent to solving the original problem Eqs.(1)–(8). Firstly, the num-ber of pumping and injection wells is obtained in Eq. (9).Then, the optimal pumping rate from Eqs.(10)–(12)is determined. However, by the two-level formulation, the discrete nature of the original problem is considered in the main problem and facilitates the application of other computational efficient algorithms to solve the sub-problem and thus reduce the computational burden. The main prob-lem (Eq.(9)) is a discrete combinatorial problem and can be solved by GA. The decision variable for the main problem is network design W, that is a set of pumping (P) and extrac-tion (I) wells, and is a discrete variable. The network design is encoded as a chromosome in GA and the total cost for the network design (chromosome) is the sum of the optimal operation costs (J2ðPÞandJ

3ðIÞÞ and its fixed costs. The

opti-mal operating cost for a given network design is computed in the sub-problem using CDDP. The sub-problem repre-sented by Eqs. (10)–(12) contains the operation cost and constraints and is a continuous nonlinear dynamic optimiza-tion problem. A CDDP algorithm (Chang and Shoemaker,

1992; Culver and Shoemaker, 1992, 1993; Mansfield et al., 1998; Mansfield and Shoemaker, 1999) is suitable to solve the sub-problem because the functions are separable in time. In principle, the sub-problem can also be calculated by GA but this will dramatically increase the required com-putational resources.

The GCDDP algorithm (Hsiao and Chang, 2001; Chang and

Hsiao, 2002; Hsiao and Chang, 2002) shown inFig. 1is a GA with CDDP embedded to compute the optimal operation costs for each network design (a chromosome).Fig. 1 illus-trates the procedure of the algorithm which including parameter encoding, the fitness calculation, and the evolu-tion of the chromosomes through reproducevolu-tion, crossover and mutation. Fig. 1 is further clarified by the following step-by-step description.

Step 0: initialization

The algorithm begins with a set of chromosomes (network designs) that are represented by binary strings. For all the cases, there are 100 chromosomes for each generation. First this study encodes the network design as chromosomes and randomly generates an initial population. A chromosome is a binary string to represent the status of the well installation

(4)

on a candidate site. The binary encoding is simple to code and manipulate. Well selection is binary, encoding and decoding is straightforward (Chang and Hsiao, 2002). In this study, the status of the well installation on a candidate site differs from whatChang and Hsiao (2002)propose, and have three situations: not installing a well; installing a pumping well; or installing an injection well. Fig. 2is the example of encoding and decoding and there are 24 candidate sites to be encoded for each chromosome. Each candidate site requires 4-bit binary digits to indicate the status of the well installation. However, owing to the symmetrical condition of this study, only 16 wells need to be considered. There-fore, the bit numbers for a binary string (a chromosome) are 64. Decoding the binary digits, the genotype has 16 con-ditions and will be mapped to phenotype which has three situations, 0, 1, 2, to represent the status of well installa-tion. This study assumes Phenotype 0 represents not install-ing a well, 1 represents installinstall-ing a pumpinstall-ing well and 2 represents installing an injection well.

Step 1: evaluate the total cost and fitness value for each chromosome

The total cost for each chromosome, or network design, in-cludes the fixed and associated operation costs. The fixed cost in Eq.(9)can be evaluated easily for each network de-sign. For each chromosome, an embedded CDDP algorithm is applied to determine the optimal operating cost in Eqs. (10)–(12). The algorithm developed in this study is modified from that proposed by Chang and Hsiao (2002), with the modification for the derivatives of a transition equation. The modification is caused by considering the pump-treat-inject decontamination method.

The derivatives of the transition equation are adapted from Chang and Shoemaker (1992) with the modification with respect to ut. The transition equation is expressed in

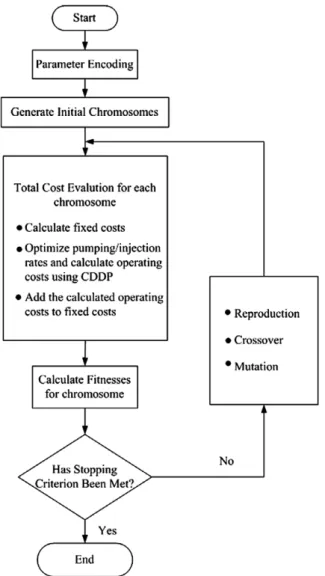

matrix form as: Figure 1 Flowchart of the GCDDP algorithm.

Figure 2 The example of chromosome encoding and decoding to represent the status of well installation on a candidate site (Phenotype 0 represents not installing a well, 1 represents installing a pumping well, 2 represents installing a injection well).

(5)

ð½A þ ½B=DtÞfhtþ1g ¼ ½B Dtfhtg fFhg þ ½Lhfutg ð13Þ ð½Nðhtþ1; utÞ þ ½M=DtÞfctþ1g ¼½M Dtfctg fFcg þ ½LcðutÞfc 0_c tþ1g ð14Þ

where the coefficients of the matrices and vectors are de-rived from the FEM flow and transport model.

Derivative of transition equation with respect to xt, utis:

oT oxt ¼ oxtþ1 oxt ¼ ohtþ1 oht ohtþ1 oct octþ1 oht octþ1 oct " # ð15Þ oT out ¼ oxtþ1 out ¼ ohtþ1 out octþ1 out " # ð16Þ

In Eq.(14), c0 _{represents the concentration of the pumping}

water or injection water. This study assumes c0

t¼ ctþ1 for

pumping water and c0

t¼ 0 for injection water, where ct+1

is the contaminant concentration of the groundwater in the aquifer.

Step 2: reproduce the best strings

Using tournament selection, GA selects parents from the string population based on the fitness of each string.

Step 3: perform crossover

Crossover involves randomly coupling the newly reproduced strings and each string pair partially exchanges information. Crossover aims to exchange gene information so as to pro-duce new offspring strings that preserve the best material from two parent strings. In general, the crossover is per-formed with a certain probability (pcross) so that it is

per-formed on a majority of the population, where pcross

ranges from 0.8 to 1.0. The following cases use the cross-over rate (pcross) equals 0.8.

Step 4: implement the mutation

Mutation restores unexplored genetic material to the popu-lation to prevent the GA from prematurely converging to a local minimum. A mutation probability (pmutat) is specified

so that random mutations can be made to individual genes. The value of pmutatnormally ranges from 0.01 to 0.05 (

Gold-berg, 1989). A mutation probability (pmutat) equals 0.01 in

the following cases. Before implementing a mutation, a ran-dom number with uniform distribution is generated. If this number is smaller than the mutation probability, mutation is performed. Otherwise, it is skipped. Notably, mutation changes a specific gene (0! 1 or 1 ! 0) according to the specific probability in the offspring strings that is produced by crossover operation.

Step 5: perform termination

After steps 1–4, a new population is formed. The new pop-ulation requires evaluating the total cost such as in step 1. Total cost evaluation is used to calculate the fitness and as-sess the stopping criterion. The stopping criterion is based

on the change of objective function value (total cost). If the best design does not improve over a pre-specified num-ber of generations or the iterations equal the maximum number of generations, the algorithm terminates. Other-wise, it goes back to step 1 for another cycle (another gen-eration). In the study, if the best design does not improve over ten generations or the generations number exceed thirty, the computation will terminate.

Results and discussion

This study presents the solutions obtained for a hypotheti-cal, isotropic confined aquifer with dimensions of 600 m by 1200 m to demonstrate the performance of the algorithm described above.Fig. 3 indicates the finite element mesh which has 91 finite element nodes, along with 24 candidate well sites, and 17 observation wells. The boundary condi-tions on the north and south sides are no-flow boundaries for head and concentration. Constant-head boundaries with 22 and 10 m are located on the west and east sides individ-ually, and constant-concentration boundaries with 0 mg/L are located on both west and east sides. The hydraulic head distribution prior to pumping is assumed to be steady and the initial peak concentration within the aquifer is 150 mg/L, and the water quality goal at the end of 5 years must be less than or equal to 0.5 mg/L (cmax) at all the

observation wells. There are 20 management periods and each period (Dt) is 91.25 days. Aquifer properties are listed inTable 1.Table 2presents the value of cost-related coef-ficients, a1, a2, a3and a4are explained in ‘‘Formulation of

the planning model’’ section that adapted fromChang and

Hsiao (2002) where the a4value depends on the case being

analyzed.

The performance of the proposed model was evaluated in a number of scenarios as presented in Table 3. Case 1 considers the pumping strategy only, and the decision vari-ables are pumping network and pumping rate. Other cases consider both pumping and injection strategies, and the decision variables are the network design and the rates of pumping and injection. For cases 1 and 2, the system is de-signed to dispose the treated pumping water into the river. Furthermore, case 2 also assumes that the system needs to import the clean water; as a result, the injection cost coef-ficients are much higher than those of cases 3 and 4. On the other hand, for cases 3 and 4, the system injects the treated water back into the aquifer. For case 3, the system is as-sumed to store temporally the treated water and then to in-ject it back to the aquifer. By contrast, for case 4, the rate of equilibrium between pumping and injecting as repre-sented by Eq.(8)is employed to force the system to inject the treated water back into the aquifer simultaneously. The results of all scenarios are summarized inTable 4.

Effect of design concept on the optimal design and performance

Eqs.(1)–(8)are the formulation for the optimal design of groundwater remediation system in general, and an individ-ual constraint in the formulation may relate to a design con-cept. As described in previous section, cases 1–4 make different design assumptions. This section will illustrate

(6)

how to formulate a design concept by constraints, and examines the influence of each design concept on the total cost and the decontaminating performance by comparing the numerical results of each case.Table 3 indicates the scenarios for all cases; Table 4 summarizes the results; andFig. 4 shows the pumping and injection rate at each time step for all the cases. Different colors inFig. 4 are

associated with the pumping and injection wells. The red is pumping; blue is injection. Case 1 considers the pumping system only and, as indicated inTable 4, and its optimal to-tal cost is $63,557. Although case 2 allows insto-talling both pumping and injection wells, the optimal design uses injec-tion wells only since the injecinjec-tion operainjec-tion cost, cost to obtain the clean injection water, for case 2 is cheaper than the pumping operation cost which involved the pumping and treatment. Case 2 has the lowest cost among all the cases as indicated byTable 4. However, since injection well system can only dilute the contaminant concentration but cannot remove the pollutants from the aquifer, case 2 is not a good design although it has the lowest cost. The situation can be illustrated byFig. 5, that shows the concentration distribu-tion at the final time step for all the cases. As shown by Fig. 5b, the remediation system of case 2 only pushes the groundwater contaminants away from the observation wells to meet the pollutant constraints instead of removing the contaminants from the aquifer. To correct this problem, case 3 required the system using the pumping well by adding a constraint ‘num(P) > 00_{, where num(P) is the number of}

pumping well. Case 3 also assumed the injected water came from the treated water so that the total injection cost was cheaper than in case 2.Table 4shows that only one pumping well and two injection wells were installed and the fixed cost of case 3 is lower than that of case 2. However, since the total pumping cost of case 3 was much higher than that of case 2, the total cost of case 3 was still higher than that of case 2. However, unlike case 2, case 3 removed the pol-lutants from the aquifer, as indicated byFig. 5c.

For cases 1–3, the system assumed all or part of the treated water was disposed to river and this may have an-other environmental impact that is not considered in the cost function. To avoid the potential environmental con-cern, one potential solution is to inject all the pumped and treated water back into the aquifer and design a closed water-circulation system to continuously wash the aquifer until the pollutant concentrations meet the water quality standard. There are several other measures such as the gra-Table 1 Aquifer properties of example application

Parameter Value Hydraulic conductivity 4.31· 104m/s Longitudinal dispersivity 70 m Transverse dispersivity 3 m Diffusion coefficient 1· 107_m2_/s Storage coefficient 0.001 Porosity 0.2

Sorption partitioning coefficient 0.245 cm3/g Media bulk density 2.12 g/cm3

Aquifer thickness 10 m

Ground elevation 120 m

Table 2 The value of cost coefficient in the cases and the values associated with the constraints

Coefficient Value a1 $12/m a2 $1000/(m3/s m Dt) a3 $40,000/(m3/s Dt) a4 $1, or 2000/(m3/s Dt) Tumax 2000 L/s

uðpÞmax; uðinÞmax 120 L/s

uðpÞ_min; uðinÞ_min 0 L/s

hmax 30 m hmin 0 m =10m 0-30 ppm 30-60 ppm 60-90 ppm 13 (x,y)=(0,0) 1 2 3 =22m h_b 4 5 y = 600 m 6 7 85 78 71 57 64 50 36 43 29 15 22 8 x = 1200 m Potential pumping/ injection well

90-120 ppm no-flow boundary 32 31 30 16 9 10 17 23 24 11 18 12 19 25 26 33 37 38 51 44 45 52 39 40 46 53 47 54 35 34 120-150 ppm 20 14 21 27 28 41 42 48 55 49 56 66 65 58 59 72 73 67 68 60 61 74 75 79 86 80 87 81 88 82 89 hb observation well 70 69 62 63 76 77 83 90 84 91

Figure 3 Finite element mesh, boundary conditions, initial plume, and locations of numbered observation and potential wells for all runs of the groundwater reclamation example.

(7)

dient control or the mass removal constraints to avoid the case 2 situation. But, all of them still have the problem of waste water disposal. Therefore, in case 4, a rate equilib-rium condition is added to enforce that the injection rate equals the pumping rate for each time step, and there will be no treated water disposal.Table 4shows that the num-ber of pumping wells increases to five and both the fixed and operation costs are all increased. In fact, case 4 has the largest total cost among cases 1–4, and this is not sur-prising from the optimization aspect since case 4 has the tightest constraints.Fig. 4d shows the pumping and injec-tion rates for all the time steps.Fig. 5d shows the concen-tration distribution at the final time step and it indicates that the designed system can remove the contaminants from the aquifer. Enforcing the rate equilibrium condition may have another advantage of reducing the groundwater

drawdown during the remediation process. Fig. 6 shows the drawdown contour line of cases 1 and 4 at the period when the aquifer had maximum drawdown. Comparing the contour line, the maximum drawdown is 8 m in case 1 but is 3 m in case 4. Case 4 even increased the water level (a negative drawdown) in the east region. These results dem-onstrate the advantage of applying pumping and injection wells simultaneously to reduce the drawdown and decrease the risk of environmental impact, the land subsidence. The additional cost of case 4 can be viewed as the cost to elim-inate the potential environmental concern.

The previous discussion shows that, to evaluate a design concept, one has to consider the system outcome in more detail besides only the direct fixed and operation costs. A practical pump-treat-inject system requires the pumping and injection wells be arranged in an appropriate manner.

a

b

c

d

Figure 4 (a) Total pumping/injection rate at each period in case 1. (b) Total pumping/injection rate at each period in case 2. (c) Total pumping/injection rate at each period in case 3. (d) Total pumping/injection rate at each period in case 4.

Table 4 The summaries of result for all cases

Case Number of pumping well Number of injection well Total pumping cost Total injection cost Total cost Fixed cost Operating cost Fixed cost Operating cost

1 2 0 2880 60,677 0 0 63,557

2 0 5 0 0 7200 32,869 40,069

3 1 2 1440 62,782 2880 0 67,102

4 5 5 7200 104,766 7200 0 119,166

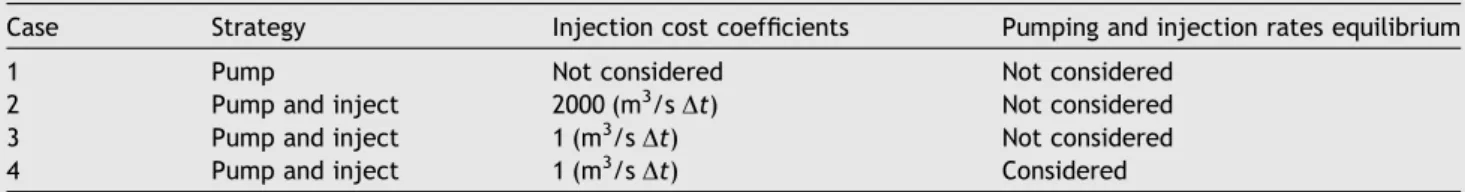

Table 3 The scenario summaries for each case

Case Strategy Injection cost coefficients Pumping and injection rates equilibrium

1 Pump Not considered Not considered

2 Pump and inject 2000 (m3/s Dt) Not considered

3 Pump and inject 1 (m3_{/s Dt)} _{Not considered}

(8)

Enforcing the rate equilibrium condition in the system de-sign can potentially reduce environmental concerns caused by the decontamination process but increasing the total cost.

The required average CPU time for all the cases is 103,668 s (29 h) on AMD CPU (Athlon(tm) XP2000 + 1.54 GHz). The computation loading will increase as the problem scale (nodes number) increased. However, since the

princi-a

b

c

d

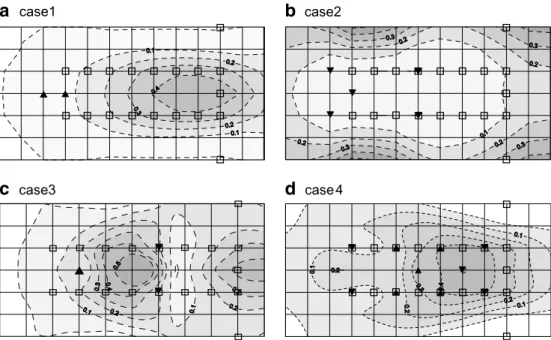

Figure 5 The optimal number of well and concentration distribution at the final period in cases 1–4 (unit: ppm) (m: pumping well, ._{: injection well).}

a

b

(9)

ple algorithm structure is GA for the proposed hybrid algo-rithm, the algorithm has great potential to reduce the com-puting time by parallel comcom-puting technology. Therefore, to apply the algorithm in a large field case in the future, a clus-ter machine may be the choice and this required more studies.

Conclusions

This study proposes an optimal planning model for ground-water remediation system based on the pump-treat-inject technique (PTI). The optimization model integrated CDDP and GA to design a pumping and injecting network system and the associated operation policy with a minimum total cost while simultaneously considering the fixed costs and time-varying operating costs. A PTI system using only inject-ing wells may have the lowest cost but is not a practical de-sign, since an injection well can only dilute the contaminant concentration but can’t remove the contaminants from the aquifer. This study has demonstrated how to define the optimal formulation to obtain a PTI design that is practical and cost-effective.

For groundwater remediation, the most environmentally friendly strategy is to recycle the treated water in the aqui-fer for the whole remediation process since the water recy-cling can reduce the potentially environmental concern caused by discharging the treated groundwater into surface water. By enforcing a rate equilibrium condition in the PTI design, the planning model can create a complete water recycling PTI system. However, a PTI system with the pump-ing and injectpump-ing equilibrium durpump-ing the decontamination process has a higher total cost than a system without it.

Although this study has investigated several cases, the objective is to minimize the total cost. However, other con-siderations are still possible for a future study. Since a remediation project may last for years, the installation schedule for the pumping or injecting wells in principle should consider the movement of the plume. That is, the wells should be installed when they are needed to reduce the present value of the installation cost. The problem can be formulated as a capacity expansion (optimal sched-uling) problem, and the kernel CDDP algorithm needs to be modified to solve it. Another possibility is to formulate the problem as to minimize the remediation time if time is the concern, and the objective function needs to be refor-mulated in this situation.

Acknowledgements

The work was supported by the National Science Council of the Republic of China for financially under Contract No. NSC 94-2211-E-235-002. The authors would like to thank Prof. Shan, H.-Y, Prof. M.A. Goodwin, anonymous reviewers and helpers.

References

Aly, A.H., Peralta, P.C., 1999. Comparison of a genetic algorithm and mathematical programming to the design of groundwater cleanup systems. Water Resources Research 35 (8), 2415–2425.

Bear, J., Sun, Y.W., 1998. Optimization of pump-treat-inject (PTI) design for the remediation of a contaminated aquifer: multi-stage design with chance constraints. Journal of Contaminant Hydrology 29 (3), 225–244.

Chang, L.C., Shoemaker, C.A., 1992. Optimal time-varying pumping for groundwater remediation application of a constrained optimal control algorithm. Water Resources Research 28 (12), 3157–3173.

Chang, L.C., Hsiao, C.T., 2002. Dynamic optimal groundwater remediation including fixed and operation costs. Ground Water 40 (5), 481–490.

Cohen, R.M., Vincent, A.H., Mercer, J.W., Faust, C.R., Spalding, C.P., 1994. Methods for monitoring pump-and-treat perfor-mance. EPA/600/R-94/123. R.S. Kerr Environmental Research Laboratory, Ada, OK, 102 pp.

Culver, T.B., Shoemaker, C.A., 1992. Dynamic optimal control for groundwater remediation with flexible management periods. Water Resources Research 28 (3), 629–641.

Culver, T.B., Shoemaker, C.A., 1993. Optimal control for ground-water remediation by differential dynamic programming with quasi-Newton approximations. Water Resources Research 29 (4), 823–831.

Culver, T.B., Shenk, G.W., 1998. Dynamic optimal ground water remediation by granular activated carbon. Journal of Water Resources Planning and Management-ASCE 124 (1), 59–64.

Cunningham, J.A., Reinhard, M., 2002. Injection–extraction treat-ment well pairs: an alternative to permeable reactive barriers. Ground Water 40 (6), 599–607.

Goldberg, David E., 1989. Genetic Algorithms in Search, Optimiza-tion, and Machine Learning. Addison-Wesley Publishing Company Inc., Reading, MA.

Gorelick, S.M., Voss, C.I., 1984. Aquifer reclamation design: the use of contaminant transport simulation combined with nonlinear programming. Water Resources Research 20 (4), 415–427.

Guan, J., Aral, M.M., 1999. Optimal remediation with well locations and pumping rates selected as continuous decision variables. Journal of Hydrology 221 (1), 20–42.

Hilton, A.B.C., Culver, T.B., 2000. Constraint handling for genetic algorithms in optimal remediation design. Journal of Water Resources Planning and Management-ASCE 126 (3), 128–137.

Huang, C., Mayer, A.S., 1997. Pump-and-treat optimization using well locations and pumping rates as decision variables. Water Resources Research 33 (5), 1001–1012.

Hsiao, C.T., Chang, L.C., 2001. Optimization of fixed and operating costs in groundwater remediation using optimal control and genetic algorithm. Journal of Hydroscience and Hydraulic Engineering-JSCE 19 (2), 11–30.

Hsiao, C.T., Chang, L.C., 2002. Dynamic optimal groundwater management with inclusion of fixed costs. Journal of Water Resources Planning and Management-ASCE 128 (1), 57–65.

Mansfield, C.M., Shoemaker, C.A., Liao, L.Z., 1998. Utilizing sparsity in time-varying optimal control of aquifer cleanup. Journal of Water Resources Planning and Management-ASCE 124 (1), 15–21.

Mansfield, C.M., Shoemaker, C.A., 1999. Optimal remediation of unconfined aquifers: numerical applications and deriva-tive calculations. Water Resources Research 35 (5), 1455– 1469.

McKinney, D.C., Lin, M.D., 1995. Approximate mixed-integer nonlinear programming methods for optimal aquifer remediation design. Water Resources Research 31 (3), 731–740.

Minsker, B.S., Shoemaker, C.A., 1998. Dynamic optimal control of in situ bioremediation of ground water. Journal of Water Resources Planning and Management-ASCE 124 (3), 149–161.

(10)

Pinder, G.F., 1978. Galerkin finite element models for aquifer simulation. Rep. 78-WR-5, Department of Civil Engineering, Princeton University, Princeton, NJ.

Taghavi, S.A., Howitt, R.E., Marino, M.A., 1994. Optimal control of ground-water quality management: nonlinear programming approach. Journal of Water Resources Planning and Manage-ment-ASCE 120 (6), 962–982.

Wang, J.C., Booker, J.R., Carter, J.P., 1999. Analysis of the remediation of a contaminated aquifer by a multi-well system. Computers and Geotechnics 25 (3), 171– 189.

Zheng, C., Wang, P.P., 1999. An integrated global and local optimization approach for remediation system design. Water Resources Research 35 (1), 137–148.
