1 1. INTRODUCTION
Singlelongitudinalmode (SLM) fiber lasers with stable output and wide wavelengthtuning range are attractive light sources for the applications in wave lengthdivisionmultiplexing (WDM) or dense WDM communications, optical testing, and fiber sensing systems [1–9]. In general, using tunable bandpass fil ter (TBF), fiber Fabry–Perot tunable filters (FFPTF) and fiber Bragg grating (FBG) inside the ring laser cavity loop have been proposed to generate the wave length lasing and tuning [10–12]. However, it is insuf ficient to stabilize the lasing wavelength of an erbium doped fiber (EDF) ring laser owing to the modehop ping and gain competition effects. To overcome the issue, several schemes have been proposed to achieve a stabilized SLM output. They include using a com pound ring resonator composed of a dualcoupler fiber ring, integrating two cascaded FFPTF of widely different free spectral ranges (FSRs) inside ring cavity, dualring scheme, using Saganc ring loop filter, and adding an extra periodic filter inside the cavity loop [13–17]. Here, we also could use the optical injection technology via the Fabry–Perot laser diose and EDFA to accomplish SLM output [18]. Furthermore, employing a shorter unpumped EDF inside fiber loop to act as a saturableabsorborbased (SAB) filter to achieve SLM output has also been investigated [19– 23].
In this paper, we propose and demonstrate a dual reflectedstructure EDF laser with a linear cavity employing a passive SAB filter and tunable bandpass 1 The article is published in the original.
filter (TBF) to achieve SLM lasing and wavelength tuning. Here, we can obtain the wavelength tuning range from 1530.0 to 1562.0 nm with the output pow ers of –13.7 to –7.6 dBm and optical signal to noise ratios (OSNR) of 35.4 and 47.9 dB/0.05 nm, respec tively. Besides, for the traditional EDF ring laser [1, 17], the measured output powers at both ends of the EDF gain spectrum (1530 and 1560 nm) would drop rapidly due to the decrease of EDF effective gain. However, in this measurement, when the TBF is tuned to the longer wavelength, the measured output power of proposed EDF laser would also increase. This is because the Er+ gain is suppressed and moves to the longer wavelength via the doublepass laser configura tion. Moreover, the output stability of the proposed EDF laser has also been analyzed and studied.
2. EXPERIMENT AND RESULTS
Figure 1 presents the experimental setup of dual reflectedstructure EDF laser. The proposed fiber laser consisted of an erbiumdoped fiber amplifier (EDFA), a TBF, a 1 × 2 and 50:50 optical coupler (OCP), a fiber mirror (FM) with 99.1% reflection in Cband, a polarization controller (PC), an optical cir culator (OC), and a piece of 1.5 m unpumped EDF. Here, the FM and OC were used to serve as two reflected mirrors for the EDF fiber laser. And the EDFA, constructed by an optical isolator (ISO), a 980/1550 nm WDM coupler, a 980 nm pump laser diode (LD), and a 10 m long EDF (Produced by
Fibercore DC1550F), was employed to act as the gain
medium of the EDF fiber laser. In the measurement, the total cavity length of the fiber laser was ~18 m long.
FIBER OPTICS
DualReflectedStructure ErbiumDoped Fiber Laser
in SingleLongitudinalMode for WavelengthTuning
1C. H. Yeha, *, C. W. Chowb, J. Y. Sungb, S. S. Lub, and Y. F. Wua, b
a Information and Communications Research Laboratories, Industrial Technology Research Institute (ITRI),
Hsinchu 31040, Taiwan
b Department of Photonics and Institute of ElectroOptical Engineering, National Chiao Tung University,
Hsinchu 30010, Taiwan
*email: [email protected], [email protected]
Received December 5, 2011; in final form, December 6, 2011; published online April 3, 2012
Abstract—In this work, we propose and demonstrate a dualreflectedstructure erbiumdoped fiber (EDF) laser with a linear cavity using a passive saturableabsorborbased (SAB) filter to achieve singlelongitudinal mode (SLM) lasing. Here, we can observe the wavelength tuning range between 1530.0 and 1562.0 nm with the output powers of –13.7 to –7.6 dBm and optical signal to noise ratios (OSNRs) of 35.4 and 47.9 dB/0.05 nm, respectively. Moreover, when the lasing wavelength is tuned to the longer wavelength grad ually, the obtained output power and SNR increase. This is because the Er+ gain can be suppressed and moves to the longer wavelength via the proposed fiber laser structure. In addition, the output stability of the proposed laser has also been analyzed and studied.
958
LASER PHYSICS Vol. 22 No. 5 2012
YEH et al.
The unpumped EDF was served as the SAB filter for filtering the sidemode of lasing wavelength [1]. The PC was employed to control the polarization status and maintain the maximum output power. The 3 dB bandwidth and tuning range of TBF were 0.4 and 30.0 nm (1530.0 to 1560.0 nm), respectively. And TBF inside the EDF laser cavity was employed to suppress the amplified spontaneous emission (ASE) and for wavelength tuning. In this measurement, the output wavelength and power was measured by an optical spectrum analyzer (OSA) with a 0.05 nm resolution and a power meter (PM), respectively.
Figure 2 presents the output optical spectra of pro posed dualreflectedstructure EDF laser in the wave length range of 1530 to 1562 nm, when the pump power of 980 nm LD is 42 mW. Besides, Fig. 2 also
shows the output ASE spectrum of EDFA before using in the proposed laser scheme, as shown in the dotted line. And we observe that the ASE power level of >⎯30 dBm is between 1528.0 and 1560.0 nm. Further more, the effective gain amplification is also distrib uted at the wavelength range. As illustrated in Fig. 2, when the lasing wavelength is tuned to the longer wavelength gradually, we can obtain a better suppres sion of ASE noise. And, we also observe the larger out put power as the lasing wavelength is tuned to the longer wavelength.
Figure 3 shows the output power and the measured OSNR versus different lasing wavelengths in the tuning range of 1530.0 to 1562.0 nm, while the pump power is 42 mW. As shown in Fig. 3, the observed output powers and SNRs are between –13.7 and –7.6 dBm and 35.4 and 47.9 dB/0.05 nm, respectively. Moreover, when the lasing wavelength is tuned to the longer wavelength gradually, the obtained output power and SNR increase in the whole Cband (1530.0 to 1560.0 nm). Actually, according to the past study of EDFA design FM TBF EDF WCP Unpumped 1.5 m EDF 980 nm LD PC CP OC 3 2 1 Output CP: 1 × 2 optical coupler FM: fiber mirror LD: laser diode OC: optical circulator
PC: polarization controller WCP: 980/1550 nm WDM coupler EDF: erbiumdoped fiber
TBF: tunable bandpass filter
Fig. 1. Experimental setup of dualreflectedstructure EDF laser.
ASE spectrum −10 −20 −30 −40 −50 −60 −70 1520 1530 1540 1550 1560 1570 Wavelength, nm Power, dBm
Fig. 2. Output spectra of proposed dualreflectedstruc
ture EDF laser in the wavelength range of 1530 to 1562 nm, when the pump power of 980 nm LD is 42 mW. Dotted line is the ASE spectrum of original EDFA before using in the proposed laser scheme.
Power OSNR −6 −8 −7 −9 −10 −11 −12 −13 −14 −15 1525 1533 1541 1549 1557 1565 Wavelength, nm 60 55 50 45 40 35 30 Power, dBm
Optical signal to noise ratio, dB
Fig. 3. Spectral profiles of output power and related signal
to noise ratio (SNR) versus different lasing wavelengths in the tuning range of 1530 to 1562 nm, while a pump power is 42 mW.
LASER PHYSICS Vol. 22 No. 5 2012
DUALREFLECTEDSTRUCTURE ERBIUMDOPED FIBER LASER 959
[18], the gain value in amplification bandwidth could be enhanced according to the doublepass propaga tion. Here, owing to the doublepass design of the EDF laser structure in linear cavity, the Er+ gain can be suppressed and shifts to the longer wavelength. As a result, the observed output power will increase gradu ally towards the longer wavelength. Besides, due to the bandwidth limitation of the TBF used in the experi ment, the lasing wavelength of >1562 nm cannot be measured. However, we believe that wavelengthtun ing range of our proposed EDF laser can be extended to Lband.
Here, we also study the output powers versus differ ent pump powers of the proposed EDF laser as illus
trated in Fig. 4. The lasing wavelength is set at 1550.0 nm.
In this measurement, the pump powers are between 19 and 42 mW. The threshold pump power of proposed laser is 22 mW, as seen in Fig. 4. When the pump pow ers are 22, 32, and 42 mW, the measured lasing powers are –16.2, –11.7, and –9.6 dBm, respectively.
The output stability is also important for the EDF laser. Thus, in order to realize the optical stabilities of output power and lasing wavelength, a shortterm observation of the proposed EDF laser is performed, as shown in Fig. 5, and the observation time is over 30 min. Here, the lasing wavelength is set at 1550.0 nm initially with –9.6 dBm output power. As shown in Fig. 5, the proposed configuration can reduce the wavelength variation (Δλ) of the laser within 0.05 nm and power fluctuation (ΔP) within 0.3 dB. Moreover, after two hours observation, the stabilized output of the proposed fiber laser is still maintained.
Furthermore, the inset of Fig. 5 is the delayed self homodyne frequency spectrum of the proposed EDF laser with a passive SAB filter at the wavelength of 1550.0 nm at –9.6 dBm output power. So, the optical circuit for measurement was consisted of a photode tector (PD) with 3 dB bandwidth of 1 GHz and a Mach–Zehnder interferometer with 25 km long stan dard singlemode fiber (SSMF). Clearly, no beating noises are observed in relative intensity to noise (RIN) spectrum of the proposed EDF laser. Hence, the pro posed fiber laser presents that a single frequency oscil lation can be achieved within the measuring band width of 500 MHz, as illustrated in the inset of Fig. 5. −8 −10 −12 −14 −16 −18 −20 −22 −24 15 20 25 30 35 40 45 Pumping power, mW Power, dBm
Fig. 4. Measured output powers and SNRs versus different
pump powers for the proposed EDF laser, when the lasing wavelength is set at 1550 nm. Power Wavelength 20 0 −20 −40 −60 −80 −100 0 100 200 300 400 500 Frequency, MHz RIN (dB/Hz) −9.4 −9.6 −9.8 −10.0 0 5 10 15 20 25 30 1550.10 1550.05 1550.00 1549.95 1549.90 1549.85 1549.80 Observing time, min
Power, dBm
Wavelength, nm

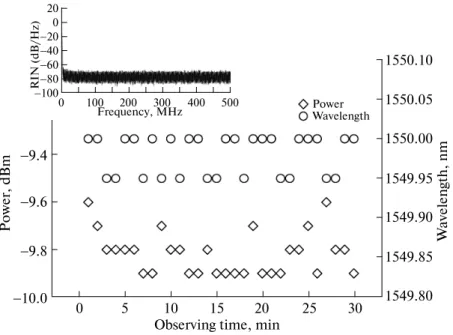

Fig. 5. Output stabilities of power and wavelength over the observation time of 30 min, when the lasing wavelength is 1550 nm
with –9.6 dBm output power initially. Inset is the delayed selfhomodyne frequency spectrum of the proposed EDF laser with a passive SAB filter.
960
LASER PHYSICS Vol. 22 No. 5 2012
YEH et al. 3. CONCLUSIONS
We have proposed and experimentally demon strated a dualreflectedstructure of EDF laser with a linear cavity employing a passive SAB filter and TBF for the SLM lasing and wavelength tuning. Here, we can obtain the wavelength tuning range from 1530.0 to 1562.0 nm with the output powers of –13.7 to ⎯7.6 dBm and SNRs of 35.4 and 47.9 dB/0.05 nm, respectively. Moreover, when the lasing wavelength was tuned to the longer wavelength gradually, the obtained output power and OSNR increased in the entire Cband (1530 to 1560 nm). Due to the double pass design of the EDF laser structure, the Er+ gain was suppressed and shifted to the longer wavelength. As a result, the observed output power will increase gradually towards the longer wavelength. Besides, the output variations of power and wavelength were mea sured within 0.3 dB and 0.05 nm for the proposed EDF laser.
