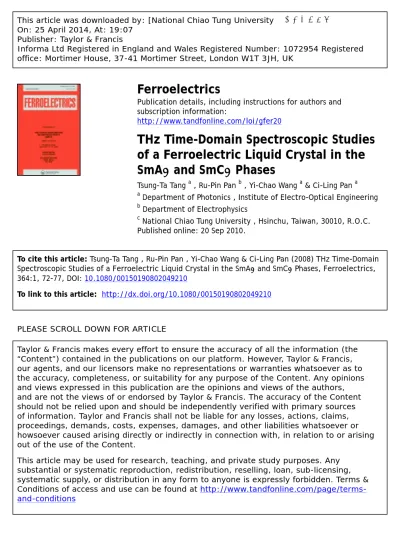

This article was downloaded by: [National Chiao Tung University 國立交通大學] On: 25 April 2014, At: 19:07
Publisher: Taylor & Francis
Informa Ltd Registered in England and Wales Registered Number: 1072954 Registered office: Mortimer House, 37-41 Mortimer Street, London W1T 3JH, UK
Ferroelectrics
Publication details, including instructions for authors and subscription information:
http://www.tandfonline.com/loi/gfer20
THz Time-Domain Spectroscopic Studies
of a Ferroelectric Liquid Crystal in the
SmA
∗ and SmC∗ Phases
Tsung-Ta Tang a , Ru-Pin Pan b , Yi-Chao Wang a & Ci-Ling Pan a a
Department of Photonics , Institute of Electro-Optical Engineering b
Department of Electrophysics c
National Chiao Tung University , Hsinchu, Taiwan, 30010, R.O.C. Published online: 20 Sep 2010.
To cite this article: Tsung-Ta Tang , Ru-Pin Pan , Yi-Chao Wang & Ci-Ling Pan (2008) THz Time-Domain Spectroscopic Studies of a Ferroelectric Liquid Crystal in the SmA∗ and SmC∗ Phases, Ferroelectrics, 364:1, 72-77, DOI: 10.1080/00150190802049210
To link to this article: http://dx.doi.org/10.1080/00150190802049210
PLEASE SCROLL DOWN FOR ARTICLE
Taylor & Francis makes every effort to ensure the accuracy of all the information (the “Content”) contained in the publications on our platform. However, Taylor & Francis, our agents, and our licensors make no representations or warranties whatsoever as to the accuracy, completeness, or suitability for any purpose of the Content. Any opinions and views expressed in this publication are the opinions and views of the authors, and are not the views of or endorsed by Taylor & Francis. The accuracy of the Content should not be relied upon and should be independently verified with primary sources of information. Taylor and Francis shall not be liable for any losses, actions, claims, proceedings, demands, costs, expenses, damages, and other liabilities whatsoever or howsoever caused arising directly or indirectly in connection with, in relation to or arising out of the use of the Content.
This article may be used for research, teaching, and private study purposes. Any substantial or systematic reproduction, redistribution, reselling, loan, sub-licensing, systematic supply, or distribution in any form to anyone is expressly forbidden. Terms & Conditions of access and use can be found at http://www.tandfonline.com/page/terms-and-conditions
1Department of Photonics and Institute of Electro-Optical Engineering 2Department of Electrophysics
3National Chiao Tung University, Hsinchu, Taiwan 30010, R.O.C.
We report complex refractive indices of a ferroelectric liquid crystal (FLC) ZLI-4654-000 from 0.3 to 3.0 THz by THz time-domain Spectroscopy. Extraordinary and ordinary refractive indices of this FLC in the SmA∗phase (67.9◦C) as well as the SmC∗phase (58.1◦C) are determined. The birefringence of the FLC varies with frequency but is comparable to its value in the visible, 0.13, while the imaginary indices of refraction in both phases are≤ 0.06. Absorption bands are found for ordinary waves in both phases and e-waves in SmA∗phases.
Keywords Ferroelectric liquid crystal; smectic; THz; far infrared; time-domain spec-troscopy; birefringence; absorption
Introduction
Recently, there have been increasing interests in the study of liquid-crystal-based devices for application in the sub-millimeter wave or THz (1 THz= 1012 Hz) frequency range. Several THz photonic devices with nematic-liquid-crystal-enabled functionalities have been demonstrated [1–7]. These include magnetically [1–3] and electrically tuned [4–6] phase shifters with phase shift beyond 360◦ at 1 THz and a two-element Lyot filter that can be continuously tuned from 0.388 THz to 0.564 THz [7].
With sub-millisecond response time, ferroelectric liquid crystals (FLCs) are widely employed for display and other photonic applications in the visible [8–10]. They are, there-fore, also attractive candidates for future THz photonic devices. For these applications, the knowledge of the extraordinary and ordinary refractive indices, neand no, as well as the
birefringence (n = ne− no) of FLCs in the far-infrared (submillimeter wave) or THz
frequency range is essential. Employing THz time-domain spectroscopy (THz-TDS) [11], we have shown that the THz (0.2–1.0 THz) birefringence of a well-known nematic LC, 4-n-pentyl-4-cyanobiphenyl (5CB), is in the range of 0.15 to 0.21, while that of 4-(trans -4-Pentylcyclohexyl)-benzonitrile (PCH5) is from 0.01 to 0.08 at room temperature [12– 14]. About the same values of birefringence (∼0.2) were reported in the LC mixture, E7
Received November 5, 2007; in final form November 13, 2007.
∗Corresponding author. E-mail: rpchao@mail.nctu.edu.tw
72
THz-TDS Studies of FLC in A∗and C∗ 73
Figure 1. The configuration of the FLC cell and its geometry with respect to the incident terahertz
wave. (See Color Plate X)
(by Merck) [15] and a liquid crystal polymer [16]. High-frequency dielectric relaxation of liquid crystals was revealed through a THz time-domain spectroscopic studies of liquid crystal colloids [17]. Strong Terahertz dichroism of MBBA on rubbed substrate was ob-served [18]. The isotropic liquid, liquid crystal and crystal phases of the bent-core liquid crystal P-8-PIMB were found to be clearly distinguished by their THz spectra [19].
In this work, we employ THz-TDS to determine the refractive indices of a ferroelectric liquid crystal from 0.3 to 3.0 THz, for the first time to our knowledge.
Experimental Methods
The cell was prepared by sandwiching the commercial available FLC, ZLI-4654-000 (Merck) between two fused silica windows. This FLC has a SmC∗ phase between −10 and 65◦C and a SmA∗ phase between 65 and 69◦C. Homogeneous alignment of the
FLC was achieved by rubbing the substrates that was coated with polyimide (SE-130B, Nissan). Precision-machined copper pieces, 289± 4 µm in thickness, were used both as spacers and electrodes for biasing the FLC cell up to 1500 Volts. The cell was mounted in a copper block for which the temperature can be varied and maintained within± 0.1◦C. The configuration of the cell and its geometry with respect to the incident terahertz wave are shown in Fig. 1.
An antenna-based THz-TDS system with a collimated beam at the sample position [11] had been used. A schematic of the THz-TDS system is shown in Fig. 2. Terahertz pulses, generated by femtosecond-laser-excited dipole-type antenna fabricated on low-temperature-grown GaAs, were collimated by an off-axis parabolic mirror and propagated through the sample at normally incidence. A pair of parallel wire-grid polarizers, before and after the sample, was employed in order to ensure the polarization state of THz wave. The THz fields of extraordinary wave (e-wave) and ordinary wave (o-wave) are parallel and perpendicular to the rubbing direction of FLC cell, respectively. The transmitted THz pulses were focused on another dipole-type antenna gated by time-delayed probe pulses and oriented to detect THz waves polarized parallel to the incident THz wave polarization. The beam size of the THz wave through the sample was about 0.8 cm in diameter. Our THz time-domain spectrometer can be purged with nitrogen and maintained at a relative humidity of 3.0± 0.5%.
Figure 2. The schematic experimental setup for THz time-domain spectrometer. PBS: Polarizing
Beam Splitter; P: polarizer; A: analyzer.
Results and Discussions
The complex optical constants are extracted from the THz-TDS in the usual manner. A brief account can be found from our previous papers [12–15]. Details will be published elsewhere. In Fig. 3, the THz-band real extraordinary and ordinary indices of refraction of the FLC in both the SmA∗ phase (67.9◦C) and the SmC∗ phase (58.1◦C) are shown. In the 0.3 to 3.0 THz range, we determine that nevaries between 1.54 and 1.59, while no
varies from 1.44 to 1.52 for the SmA∗ phase. For the SmC∗ phase, ne= 1.56∼1.64, and
no= 1.44∼1.51. The birefringence of ZLI-4654-000, n = ne-no, is thus between 0.03
and 0.16, depending on the phase and frequency. In comparison, the birefringence for the FLC in the visible region is reported to be 0.13 at 589 nm, according to the Merck data sheet.
Figure 3. The THz-band real extraordinary and ordinary indices of refraction of the FLC in the
SmA∗phase (67.9◦C) and SmC∗phase (58.1◦C).
THz-TDS Studies of FLC in A∗and C∗ 75
Figure 4. Frequency dependence of the THz-band extraordinary and ordinary absorption coefficients
of the FLC in the SmA∗phase (67.9◦C). To compare, both real and imaginary indices of refraction are also shown. The dashed lines indicate possible positions of the absorption bands.
Figure 5. Frequency dependence of the THz-band extraordinary and ordinary absorption coefficients
of the FLC in the SmC∗phase (58.1◦C). To compare, both real and imaginary indices of refraction are also shown. The dashed line indicates possible position of the absorption band.
Conclusions
We report THz-band complex refractive indices of a ferroelectric liquid crystal (ZLI-4654-000) measured by THz time-domain Spectroscopy. In the 0.3 to 3.0 THz range, extraordinary and ordinary refractive indices of the FLC in the SmA∗phase (67.9◦C) are determined to be ne= 1.54∼1.59, and no= 1.44 ∼ 1.52. For the SmC∗ phase (58.1◦C), we find ne=
1.56∼1.64,no= 1.44 ∼ 1.51. The birefringence of the FLC is thus between 0.03 and 0.16,
depending on the phase and frequency, comparable to its value in the visible, 0.13. The imaginary indices of refraction of both the SmA∗ and SmC∗ phases are≤ 0.06. Several broad absorption features can be discerned, for example, the ones near 1.4 and 1.75 THz in the SmA∗phase. These coincide with anomalous dispersion region of the FLC as expected. Further work is in progress for the identification of these absorption features.
The present study indicates that ferroelectric liquid crystals are also potentially useful for device applications in the THz frequency range. Faster response than that of devices based on nematic liquid crystals is expected.
Acknowledgments
This work was supported in part by the PPAEU-II and grant NSC 95-2221-E-009-249 from the National Science Council as well as the ATU program of the Ministry of Education of the Republic of China.
References
1. C. Y. Chen, C. F. Hsieh, Y. F. Lin, R. P. Pan, and C. L. Pan, Optics Express 12, 2625 (2004). 2. R. P. Pan, C. Y. Chen, T. R. Tsai, and C. L. Pan, Mol. Cryst. Liq. Crystl. 421, 157 (2004). 3. C. Y. Chen, T. R. Tsai, C. L. Pan, and R. P. Pan, Appl. Phys. Lett. 83, 4497 (2003).
4. T. R. Tsai, C. Y. Chen, C. L. Pan, R. P. Pan, and X.-C. Zhang,IEEE Microwave and Wireless
Components letters 14, 77 (2004).
5. C. F. Hsieh, R. P. Pan, T. T. Tang, H. L. Chen, and C. L. Pan,Opt. Lett. 31, 1112 (2006). 6. H. Y. Wu, C. F. Hsieh, T. T. Tang, R. P. Pan, and C. L. Pan, IEEE Photonics Technology Letters
18, 1488 (2006).
7. C. Y. Chen, C. L. Pan, C. F. Hsieh, Y. F. Lin, and, R. P. Pan, Appl. Phy. Letts. 88, 101107 (2006). 8. J. Kanbe, H. Inoue, A. Mizutome, Y. Hanyuu, K. Katagiri, S. Yoshihara, Ferroelectrics 114, 3
(1991).
9. D. D. Huang, E. P. Pozhidaev, V. G. Chigrinov, H. L. Cheung, Y. L. Ho, H. S. Kwok, Displays
25, 21 (2004).
THz-TDS Studies of FLC in A∗and C∗ 77
10. R. Buerkle, K.-H. Schweikert, E. Lueder, S. Breitfelder, F. R. Reichel, Proceedings of
SPIE-Advances in Optical Information Processing VII 2754, 154 (1996).
11. D. Mittleman, Sensing with Terahertz Radiation, 1st ed. (Springer, New York 2002). 12. T. R. Tsai, C. Y. Chen, C. L. Pan, R. P. Pan, and X.-C. Zhang, Appl. Opt. 42, 2372 (2003). 13. R. P. Pan, T. R. Tsai, C. Y. Chen, and C. L. Pan, J. Bio. Phys. 29, 335 (2003).
14. R. P. Pan, T. R. Tsai, C. Y. Chen, C. H. Wang , and C. L. Pan, Mol. Cryst. Liq. Crystl. 409, 137 (2004).
15. C. Y. Chen, C. F. Hsieh, Y. F. Lin, R. P. Pan, and C. L. Pan, Opt. Exp. 12, 2625 (2004). 16. F. Rutz, T. Hasek, and M. Koch, H. Richter, and U. Ewert, Appl. Phys. Lett. 89, 221911 (2006). 17. M. Oh-e, H. Yokoyama, M. Koeberg, E. Hendry, and M. Bonn, Opt. Exp, 14, 11433 (2006). 18. J. Nishizawa, T. Yamada, T. Sasaki, T. Tanabe, T. Wadayama, T. Tanno, and K. Suto, Appl. Surf.
Sci. 252, 4226 (2006).
19. Y. Takanishi, K. Ishikawa, J. Watanabe, H. Takezoe, M. Yamashita, and K. Kawase, Phys. Rev.
E 71, 061701 (2005).
