Parallel three-dimensional DSMC method using mesh refinement
and variable time-step scheme
Jong-Shinn Wu
∗, Kun-Chang Tseng, Fu-Yuan Wu
Department of Mechanical Engineering, National Chiao-Tung University, Hsinchu 30050, Taiwan Received 21 May 2004; accepted 3 July 2004
Abstract
Application of variable time-step and unstructured adaptive mesh refinement in parallel three-dimensional Direct Simulation Monte Carlo (DSMC) method is presented. A variable time-step method using the particle fluxes conservation (mass, momen-tum and energy) across the cell interface is implemented to reduce the number of simulated particles and the number of iterations of transient period towards steady state, without sacrificing the solution accuracy. In addition, a three-dimensional h-refined un-structured adaptive mesh with simple but effective mesh-quality control, obtained from a preliminary parallel DSMC simulation, is used to increase the accuracy of the DSMC solution. Completed code is then applied to compute several external and internal flows, and compared with previous results wherever available.
2004 Elsevier B.V. All rights reserved.
Keywords: Monte Carlo method; DSMC; Variable time-step; Unstructured adaptive mesh refinement; Mesh-quality control
1. Introduction
1.1. Rarefied gas dynamics
In some flow regimes, the Navier–Stokes equations fail to approximate the gas dynamics behavior and the particle nature of the matter must be taken into ac-count. One of these is the rarefied gas flow, which the mean free path becomes comparable with, or even larger than, the characteristic length of flow.
Applica-* Corresponding author.
E-mail address:[email protected](J.-S. Wu).
tions of high Knudsen number flows are now of prac-tical scientific and engineering importance[1]. Boltz-mann equation is generally considered as the govern-ing equation for all flow regimes, but either the direct analytical or numerical solution of Boltzmann equa-tion is very difficult to obtain for practical flows. An al-ternative method, known as Direct Simulation Monte Carlo (DSMC), was proposed by Bird[1,2]to com-pute the hypersonic flows under rarefied conditions. Later, Nanbu[3]was able to demonstrate mathemati-cally that the DSMC method is equivalent to solving the Boltzmann equation as the simulated particle num-bers become large. This method has become a widely
0010-4655/$ – see front matter 2004 Elsevier B.V. All rights reserved. doi:10.1016/j.cpc.2004.07.004
used computational tool for the simulation of gas flows in which molecular effects become important. Fur-ther applications of the DSMC method included gas flows around spacecraft[4,5], pumping characteristics of high vacuum pump[6,7], conductance computation of an orifice[8], the slider air bearing of the computer hard disk[9]and, recently, the micro-scale gas flows
[10–12], among others.
The basic idea of DSMC is to calculate practical gas flows through the use of no more than the colli-sion mechanics in a probabilistic way. The simulated molecules move in the computational domain so that the physical time is a parameter in the simulation and all flows are computed as unsteady flows. An impor-tant feature of DSMC is that the molecular motion and the intermolecular collisions are uncoupled over the time intervals that are much smaller than the mean col-lision time. Both the colcol-lision between molecules and the interaction between molecules and solid bound-aries are computed on a probabilistic basis. Hence, this method makes extensive use of random numbers. In most practical applications, the number of simulated molecules is extremely small as compared with the number of real molecules. The macroscopic quantities such as mean velocities and temperatures are sampled and averaged from cells. The details of the procedures and the consequences of the computational approxi-mations can be found in Bird[1,2]and are not repeated here for brevity.
1.2. Variable time-step method
In addition to the parallel implementation of the DSMC method[13–17], the other strategy to increase the computational speed is to reduce the number of simulated particles by varying particle or cell weight-ing in the computational domain, while maintainweight-ing relatively uniform particle distribution per cell, e.g., radial weighting for axisymmetric flow [1,2], parti-cle weighting[18]and variation of time-steps[18,19]. It can be shown that careless use of cell or particle weighting often introduces some detrimental effects to the statistical accuracy, which is caused by repeatedly cloning the particles in the flow field[18]. Ivanov et al.
[19]proposed a variable time-step method that divides the computational domain into four subdomains hav-ing shav-ingle time-step in each sub-domain. This results the reduction of number of simulation particles. Thus,
the variable time-step method may represent one of the simplest and most efficient ways of particle weighting that avoids the problem of particle cloning, if careful grid manipulation is done[18]. Not only does it satisfy the fluxes conservation (mass, momentum and energy) exactly when a simulated particle moves across cell interface during simulation, but also it reduces tremen-dously the number of iterations required for transient period towards steady state. It is thus appropriate to use the variable time-step in a highly varying size of mesh system, resulting from the solution-based adap-tive process, which is the objecadap-tive in the current study.
1.3. Unstructured adaptive mesh
The DSMC method requires the introduction of computational cells (meshes) similar to those in CFD, while the cells are mainly used for selecting colli-sion partners, sampling and averaging the macroscopic flow properties. Many physical problems involve very complicated geometry of objects; thus, unstructured mesh has been recommended to take advantage of the flexibility of handling this situation [2,10,12]. In addition, using unstructured mesh has the flexibility of applying graph-partitioning technique for parallel implementation of the DSMC method[16,21,22]. In principle, the size of cell used in DSMC method have to adapt according to the local density variation (i.e., less than the local mean free path) or have to be refined near the body surface to obtain accurate prediction of pressure, friction and heat transfer. However, these are not known a priori in general. For flow field having highly non-uniform density variation, generation of an appropriate mesh often becomes a very demanding and time-consuming task. The appropriate mesh used for final computation is often obtained through trial-and-error. Previously, the unstructured adaptive mesh has been suggested as a better solution to the above difficulties[18–25]. Thus, an efficient way to adapt the unstructured mesh to the DSMC solution is required to obtain an accurate DSMC solution under such circum-stances.
Among the very few studies along this line, Boy-d’s group[4,13,18]have developed a parallel DSMC software named MONACO, which incorporates the unstructured mesh refinement to make sure the cell size less than the local mean free path. For two-dimensional simulation, if the cell needs to be
re-fined, a node is simply added at the centroid to di-vide it into several subcells. After cell refinement, an edge swapping method (Delaunay triangulation) is ap-plied to improve the cell quality. Three-dimensional computational meshes are generated by a commercial code, named FELISA[20], which also has a capability for generating and adapting unstructured tetrahedral mesh.
In addition, Ivanov’s group[19] have proposed a parallel DSMC code named SMILE with adaptive grid refinement, which employs a Cartesian grid consist-ing of uniform background cells. Its main advantage is a simple and effective indexing of particle in cells to reduce the computational time. The linear dimen-sions of embedded cells depend on the magnitude of local density. The adaptation of linear dimensions is conducted in three directions depending on the den-sity gradient that provides a high spatial resolution in areas of strong flow gradients.
Harvey’s group [21,23] have applied a solution-based, two-dimensional re-meshing adaptive grid tech-nique (mesh regeneration using the advancing front method) in unstructured mesh to study the hyper-sonic flow field with highly non-uniform density varia-tion, involving shocks and expansion waves. However, some unexpected results such as lower accuracy for a refined mesh, as compared with a coarse mesh, arose due to smaller particle-per-cell caused by too many cells in the flow field.
LeBeau et al.[24]also proposed a parallel three-dimensional DSMC Analysis Code (DAC) that can be applied to a broad range of low-density flow prob-lems. A 2-level embedded Cartesian grid system, that is completely uncoupled from the surface represen-tation, is automatically generated by the software to relieve the user of this traditionally time-consuming task and ensures the accuracy of the simulation.
Recently, Wu et al. [25] also proposed a two-dimensional DSMC method combining unstructured adaptive mesh by using h-refinement technique. Some adaptation parameters and criteria have been adopted to reduce the number of cells, while maintaining the accuracy of the solution. In their study, anisotropic cell refinement is used to remove hanging nodes caused by isotropic cell refinement. It is very efficient but the mesh, having high aspect ratio, often appears since no mesh quality control is implemented, which is not ac-ceptable for an accurate DSMC method. In addition,
Wu and Tseng[16]have developed an efficient paral-lel DSMC code using graph-partitioning technique to dynamically re-decompose the unstructured mesh.
1.4. Objectives of the paper
Based on previous reviews, the objectives of the current research are, firstly, to complete a parallel three-dimensional DSMC code, incorporating variable time-step method and unstructured adaptive mesh; secondly, to analyze the combination in detail using a supersonic flow past a sphere; thirdly, to apply to com-pute a continuum twin-jet interaction in a near-vacuum environment and the pumping performance of a spirally grooved drag pump. Simulated results are then compared with previous simulation and experi-mental data wherever available.
The paper begins with descriptions of the parallel implementation of the DSMC method, variable time-step method, unstructured adaptive mesh and finally the overall combination of the above features. Results are then considered treating test problems and conclu-sions follow in turn.
2. Numerical method 2.1. Parallel DSMC method
In the current study, we have extended previ-ously implemented two-dimensional parallel DSMC code [14,16,17], which utilized multi-level graph-partitioning technique [16] to dynamically re-de-compose the computational domain, into a three-dimensional parallel DSMC code [22]. One of the main reasons to adaptively re-decompose the compu-tational domain is that load distribution is generally not known a priori for the DSMC simulation, espe-cially during the transient period of simulation. The advantage by using graph-based partitioning technique is the “dimensionless” nature of the graph theory; thus, the extension from two-[16]to three-dimensional[22]
code is conceptually straightforward. Details of the implementation can be found in Wu and Tseng [16, 22]and thus are only briefly described as follows.
The current DSMC method is implemented on an unstructured mesh using particle ray-tracing technique
by defining a cell neighbor-identifying array[12,14– 17,22,25], which takes the advantage of the cell con-nectivity information, and could be potentially hy-bridized with the continuum method, such as the N–S solver, using unstructured mesh. Number of particles in each cell is taken as the vertex (cell center in the DSMC mesh) weight and unitary weight is used for edge cut under the framework of graph theory. Stop at Rise (SAR) [26] scheme is used to determine when to repartition the computational domain by defining a degradation function, which represents the average idle time per time-step for each processor including the cost of repartition. Communication of particle data between processors only occurs when particle hits the inter-processor boundary, while communication of cell data only occurs when repartitioning the domain takes effect. Data for communication is sent and re-ceived as a whole to reduce the communication time between processors. From previous studies [16,22], the current parallel DSMC method using dynamic do-main decomposition generally runs 30–100% faster than that using static domain decomposition up to 64 processors on IBM-SP2 parallel machine, considering a high-speed lid-driven cavity flow as the test problem. For some complicated problems[16,22], the speedup can be even 200% faster since it is very hard to exactly partition the domain in a load-balanced manner before simulation if static domain decomposition is used.
The current parallel code, in SPMD (Single Pro-gram Multiple Data) paradigm, is implemented on the IBM-P690 parallel machines (distributed memory sys-tem) using message passing interface (MPI) to com-municate information among processors. In addition, it is essentially no code modification required to adapt to other parallel memory-distributed machines (e.g., PC-Cluster system) employing the same MPI libraries for data communication.
2.2. Variable time-step method
In DSMC, particle distribution per cell has been shown to be linearly proportional to the inverse of number density for two-dimensional flow if the con-stant weight for each particle is used and cell size scales exactly with local mean free path; that is, the number of simulated particles is lower in higher-density regions, while low-higher-density regions are over resolved [18]. More computational time is indeed
wasted in calculating the low-density regions than is needed, while the samples in high-density regions are not enough. This situation is even more obvious in three-dimensional flow, which the number of simu-lated particles per cell is squarely proportional to the inverse of gas density[18]. To obtain a more uniform distribution of simulated particles per cell through-out the computational domain withthrough-out detrimental ef-fects caused by particle cloning, a variable time-step method for DSMC is then proposed on the unstruc-tured mesh system as follows. Advantages of imple-menting the variable time-step scheme are to reduce both the simulated particle numbers and the number of iterations for transient period towards steady state, when the sampling normally begins in DSMC.
Fig. 1 shows the schematic diagram of the vari-able time-step concept for a simulated particle moves across the cell interface. Fluxes (mass, momentum and kinetic energy) conservation should be enforced ex-actly when a simulated particle crosses the cell inter-face. Thus, (1) W1Φ1 At1 = W2N2Φ2 At2
where W s, Φs (= m, mv, mv2/2 or other internal
energy) and t s are the particle weight, conserved flux quantity and time-step, respectively, and the num-bers at subscript represents cell numnum-bers. Note that
A represents the area of cell interface between cell
1 and 2. N2 is number of the simulated particle in
cell 2, which originated from cell 1. There are sev-eral choices of the corresponding parameters to satisfy Eq. (1), with which we can play. The best choice is to set N2= 1 (without particle cloning) and Φ1= Φ2
(without changing the velocity) across the cell inter-face, such that W1/t1= W2/t2 always holds. In

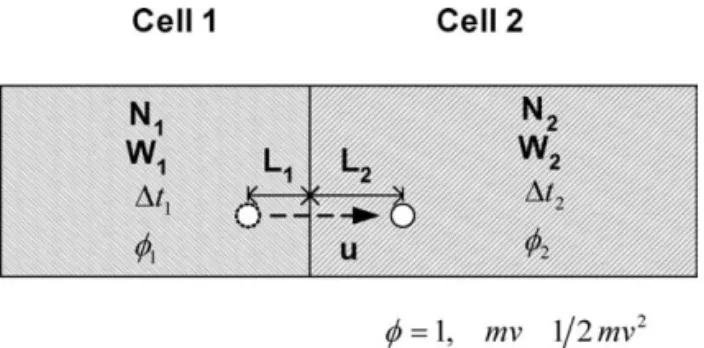

Fig. 1. Schematic diagram of variable time-step concept for a simu-lated particle crossing a cell interface.
other words, Wi/ti will be the same for all the cells
throughout the computational domain. Using this ap-proach, resulting number of simulated particles per cell for the three-dimensional flow scales with x (∼√3V
c, Vcis the cell volume)[18]if cell size is
pro-portional to the local mean free path, which otherwise scales with (x)2. In doing so, the simulated particle
will only have to adapt its weight that is proportional to the size of time-step, which is approximately commen-surable to the local mean free path if solution-based adaptive mesh is used. Of course, the remaining time for a simulated particle, when crossing cell interface, should be rescaled according to the ratio of time-steps in original and destination cells. In the DSMC code, a reference time-step is first computed by selecting a reference cell volume (often the minimum cell vol-ume). Then, time-steps in other cells are scaled using the fact Wi/ti= constant. The current
implementa-tion is comparatively flexible as compared with that of Markelov and Ivanov[19], where the computational domain was divided into few numbers of zones, within which time-step is constant in each zone.
2.3. Three-dimensional unstructured adaptive mesh
Similar to the h-refinement scheme for the two-dimensional unstructured triangular mesh presented previously[25], it has been extended to treat three-dimensional unstructured tetrahedral mesh in the cur-rent study. It is not as simple as it originally looks as compared with the two-dimensional case. In addition, a simple but effective mesh-quality control mechanism is added to improve the mesh quality for the three-dimensional case. Details about the general features, adaptation parameters and criteria and adaptation pro-cedures are then described next in turn.
2.3.1. General features
General features of the current three-dimensional mesh adaptation are proposed as follows:
(1) unstructured tetrahedral mesh; (2) h-refinement with mesh embedding;
(3) local cell Knudsen number (inversely proportional to density) and free-stream parameter (ratio of lo-cal density to free-stream value) as the mesh adap-tation parameters for external flow.
2.3.2. Adaptation parameter and criteria
All mesh adaptation methods need some means to detect the requirement of local mesh refinement to better resolve the flow features in the flow fields and hence to achieve more accurate numerical solutions. This also applies to the DSMC method. It is impor-tant for the adaptation parameter to detect a variety of flow features, but does not cost too much computation-ally. Often gradient of properties such as temperature, density or velocity is used as the adaptation parame-ter to detect rapid changes of the flow-field solution in CFD. However, by considering the statistical nature of the DSMC method, density may be adopted instead as the adaptation parameter[25]. Using density as the adaptation parameter in DSMC is natural since it is generally required that the cell size be much smaller than the local mean free path to satisfy the underly-ing assumption of DSMC, in which particle movement and collision can be uncoupled.
There are two adaptation criteria to determine if the cell should be refined or not. One is the density local Knudsen number, Knc, and the other is free-stream
pa-rameter φi. They are described in detail as follows.
Firstly, to use the density as an adaptation parame-ter, a local cell Knudsen number is defined as
(2) Knc= λc 3 √ Vc
where λcis the local cell mean free path based on VHS
model [18] and Vc is the volume of the tetrahedral
cell. When the mesh adaptation module is initiated, local Knudsen number at each cell is computed and compared with a preset value, Kncc. If Knc< Kncc in
some cells, then mesh refinement is required for those cells. This adaptation parameter is expected to be most stringent on mesh refinement (more cells are added); hence, the impact to DSMC computational cost might be high, but is required to obtain an accurate solution. Secondly, considering the practical applications of mesh adaptation in external flows, we have added an-other constraint, φi φ0, where φi, free-stream
para-meter of each cell, is defined as
(3)
φi= ρi ρ∞
and φ0 is a preset value, which is normally taken as
1.05. Not only does the above constraint help to re-duce the total refined number of cells to an acceptable
level by reducing greatly the number of cells in the free-stream region, but also it reduces the total com-putational time tremendously by using very large time-step (hence, very large particle weight) in this region.
2.3.3. Adaptation procedures
As mentioned earlier, the basic idea of refining the three-dimensional unstructured mesh by h-refinement is similar to that for two-dimensional unstructured mesh[25], but the corresponding h-refinement process is relatively complicated for three-dimensional un-structured tetrahedral mesh, as shown in Fig. 2 for removing hanging nodes. General procedures for the
current three-dimensional h-refinement scheme in-clude:
(1) Isotropic mesh refinement: Isotropic mesh refine-ment is employed for the cells, which flag for mesh refinement based on the adaptation criteria; (2) Removing hanging node(s): An-isotropic or
iso-tropic mesh refinement is utilized in the (inter-facial) cells next to those cells that have been isotropically refined, as shown inFig. 2, which will be detailed shortly;
(3) Mesh quality control: Isotropic mesh refinement is again used to remove the cells having high

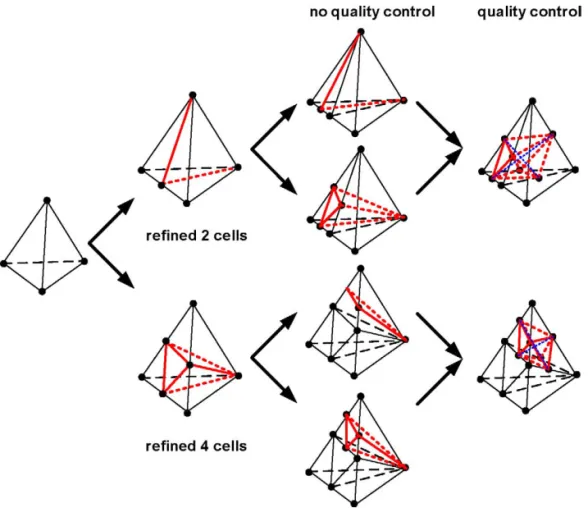

Fig. 3. Schematic diagram of mesh quality control for removing cells having high aspect ratio.
pect ratio, as shown inFig. 3, which is simple but effective in improving the mesh quality.
Besides, one other important step during the mesh adaptation procedures is to modify the old cell neigh-bor-identifying arrays and add the new cell neighbor-identifying arrays accordingly.

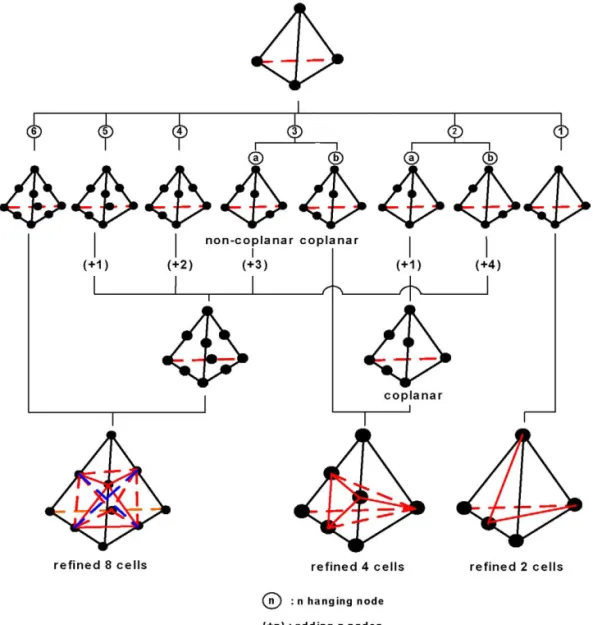

Next, we will explain how to remove hanging nodes (step 2 in the above) generated by isotropic mesh re-finement (step 1 in the above) as sketched inFig. 2. In brief summary, there are at most six types of hanging-node numbers for the tetrahedral mesh, in which there may exist different arrangements of the hanging-node location for each type, e.g., types 2a and 2b for two hanging nodes and types 3a and 3b for three hanging nodes, as shown in Fig. 2. General rule for remov-ing 2–6 non-coplanar hangremov-ing nodes (types 2b, 3a, 4, 5 and 6) is to add enough node(s) on the edge(s) such that eight refined tetrahedral cells are formed by
isotropic mesh refinement. For two or three coplanar hanging nodes (types 2a and 3b), node is either added on the edge of the same co-plane (type 2a) into type 3b such that four refined tetrahedral cells can be formed by an-isotropic mesh refinement. If only one hanging node is found, then two refined tetrahedral cells are formed by an-isotropic mesh refinement directly.
2.4. Overall DSMC computational procedure
In the current study, the overall procedure of the parallel DSMC method combining the variable time-step method and unstructured adaptive mesh is illus-trated in Fig. 4. Preliminary parallel DSMC simula-tion first carries on using the initial partisimula-tioned coarse mesh to gather enough samples for later mesh adap-tation. Approximately 50,000 sampling particles per cell are considered acceptable for statistical uncertain-ties since the density is a sampling quantity having zeroth-order velocity moment. Then, mesh refinement

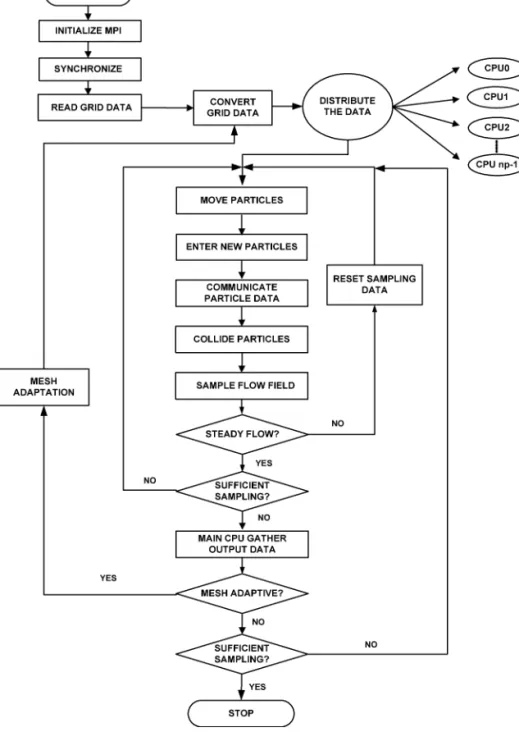

Fig. 4. Overall parallel DSMC computational procedure using variable time-step method and unstructured adaptive mesh.
is conducted for those cells flagging for refinement and the sampled data on the initial (coarse) parental cells are proportionally redistributed (based on the magni-tude of cell area) to the fine child cells accordingly. Note that mesh refinement is conducted in serial mode (on the server itself) rather than in parallel mode for the time being. This process repeats until the
adap-tation criteria are all satisfied in each cell or maxi-mum number of adaptation levels is reached. In the process, time-step in each cell is adjusted according to the concept of variable time-step discussed earlier. In practice, the mesh adaptation runs very fast since only integer operations are involved except adding po-sitions for new nodes. Most of the time is spent on
updating/modifying/adding cell neighbor-identifying arrays. We have used the concept of loops over nodes, instead of cells, by searching through the cells shar-ing the same node, which turns out to be very efficient. For example, for processing three million 3-D unstruc-tured tetrahedral cells, it takes less than 20 minutes on a 1.6-GHz (Intel) personal computer. Preliminary results show that the preprocessing time increases ap-proximately linearly with the number of cells. In spite of this fact, parallel implementation of the mesh adap-tation is currently in progress to make the most of the parallel computing resources.
The final-level unstructured adaptive mesh, with updated cell neighbor-identifying arrays and node co-ordinates, is then repartitioned using the final density distribution in each cell as the vertex weight. Finally, the parallel DSMC simulation carries on by increasing proportionally the number of simulated particles to the expected amount in the computational domain.
3. Results and discussions
The current implementation is verified and dis-cussed in detail by computing a three-dimensional su-personic flow past a sphere. Then, it is applied to sim-ulate a three-dimensional near-continuum twjet in-teraction in a near-vacuum environment and the pump-ing performance of a spirally grooved drag pump. Re-lated issues about the advantages of using variable time-step method and unstructured adaptive mesh will be discussed along with the presentation of simulation results, especially the case of supersonic flow past a sphere. In addition, physics of the flow field related to these problems will be described as brief as possible, since we are interested in demonstrate its capability in the current study.
All the DSMC simulations presented hereafter are carried on using 32 processors of IBM-P690 parallel machine using dynamic domain decomposition, unless
otherwise specified. Only evolution of domain decom-position will be shown later to demonstrate the effec-tiveness of dynamic domain decomposition. Details of the parallel performance are obviously out of the scope of the current paper and will be skipped in the discus-sion.
3.1. Supersonic flow past a sphere 3.1.1. Flow and simulated conditions
Considering a supersonic flow past a sphere, re-lated flow conditions are listed as follows: VHS nitro-gen gas, free-stream Mach number Ma∞= 4.2, free-stream number density n∞= 9.77E20 particles/m3, free-stream temperature T∞ = 66.25 K, stagnation temperature T0= 300 K, fully thermal accommodated
and diffusive sphere wall with the temperature Tw
(equal to T0). The corresponding free-stream Knudsen
number Kn∞is 0.1035, based on the free-stream mean free path and diameter of the sphere. Details of the flow and simulated conditions can be found inTable 1. These represent the flow conditions of the experiments by Russell[27]. The flow structure of this flow is sim-ulated as a three-dimensional case by considering only 1/16 of the full domain, which takes advantage of the flow-field symmetry. In addition, 20,000 time-steps are used to sample the flow properties.
3.1.2. Evolution of adaptive mesh and effects of variable time-step
To satisfy the constraint of the cell size and the save the number of cells in the free-stream region of an external flow, the local Knudsen number crite-rion (Kncc) and free-stream parameter (φ0) for mesh
adaptation are chosen as 2 and 1.05, respectively. Evo-lution of adaptive surface mesh at each level (level-0: 5353 cells; level-1: 22,510 cells; level-2: 164,276 cells) with mesh quality control is presented inFig. 5. InFig. 5(c) (level-2 adaptive surface mesh), it illus-trates that the high-density region due to the bow
Table 1
Complete listing of physical and VHS parameters of a supersonic flow past a sphere N2gas Kn= λ∞/D= 1.035E−1 D= 1.28E−2 (m) ReL= 30
p∞= 0.893 Pa n∞= 9.77E20 (#/m3) Ma∞= 4.2 U∞= 697.022 (m/s) mref= 4.65E−26 (kg) dref= 4.17E−10 (m) Tref= 273 (K) Tw= 300 (K) T0= 300 (K) T∞= 66.25 (K) Zra= 5 ω= 0.74

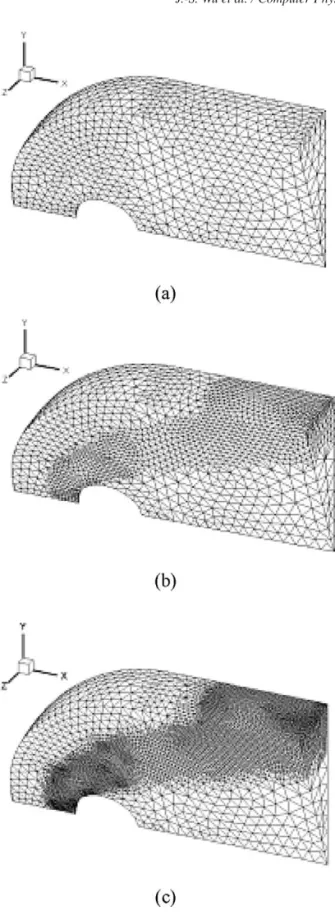

Fig. 5. Evolution of unstructured adaptive surface mesh at different levels for a supersonic flow past a sphere. (a) Level-0 (5353 cells); (b) level-1 (22,510 cells); (c) level-2 (164,276 cells).
shock around the sphere is clearly captured with much finer mesh distribution. In addition, the mesh distribu-tion in the free-stream region is comparably coarse as compared with the local mean free path due to appli-cation of the free-stream parameter mentioned earlier. Application of the free-stream parameter effectively reduces the number of cells in the free-stream region, where the cell-size requirement (x < λ) could be re-laxed due to nearly uniform density distribution (van-ishing density gradient) in this region.
Variation of particle distribution is reduced greatly as illustrated in Fig. 6, which shows the comparison of distribution of averaged particles per cell on level-2 adaptive mesh using constant time-step (CTS) and variable time-step (VTS) methods, with the same ref-erence (minimum) time-step (1.E−08). In this figure, using VTS method, the reduction of averaged number of particles per cell can be as large as 10-fold and 30-fold in the regions of oblique bow shock and wake re-gion behind the sphere, respectively. This is achieved by keeping both the particle weight and averaged par-ticle per cell the same in the reference cell (minimum cell, near the stagnation point in this case) for both VTS and CTS methods. Resulting simulated particles at steady state are reduced from 1.7 millions, using constant time-step (CTS), to 0.34 millions, using vari-able time-step (VTS) in this case (Fig. 7). In the other words, the statistical uncertainty in the minimum cell is kept approximately the same when comparing both methods. In addition, another benefit of applying VTS method to the current unstructured adaptive mesh is that it can reduce dramatically the number of iterations of transient period towards steady state, as illustrated inFig. 7. InFig. 7, the required number of iterations for transient period if VTS is applied is about only 25% of that if CTS is applied. This is because appro-priate time-step in each cell is used to approach steady state if VTS is used, rather than very small time-step is used in large cell if CTS is used. In the current case, if we expect roughly the same statistical uncertainty in the minimum cell to obtain macroscopic properties for both CTS and VTS methods, the combination of VTS and unstructured adaptive mesh could save the compu-tational time up to one order of magnitude. Not only does the above-mentioned combination decrease the computational cost greatly, but also it can adaptively satisfy the cell-size requirement (Knc> 1) in the flow

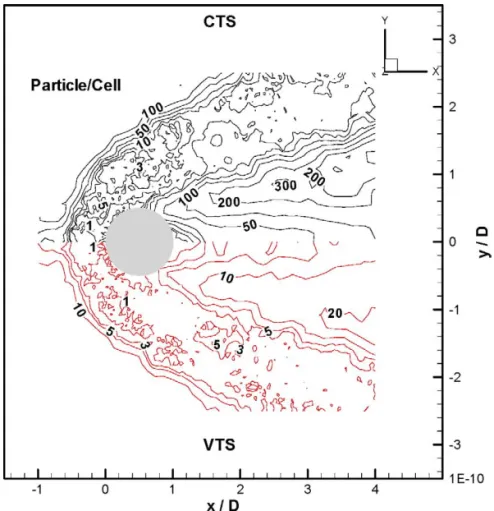

Fig. 6. Comparison of distribution of averaged particles per cell on level-2 adaptive mesh using constant time-step (CTS) and variable time-step (VTS) for a supersonic flow past a sphere.
cell Knudsen number is illustrated on both initial mesh and level-2 adaptive mesh. For the distribution of local cell Knudsen numbers, it shows all values are greater than unity (Knc> 1) except in the free-stream region,
where a free-stream adaptation criterion has been ap-plied to reduce the number of cells.
Corresponding number of cells at each level of mesh adaptation (Fig. 5) is summarized in Table 2
along with those without mesh quality control. The number of cells increases from 5353 (initial) to
Table 2
The number of cells at each level of mesh adaptation with or without mesh quality control
Level 0 1 2
mesh quality control
– No Yes No Yes
cell no. 5353 22,510 22,510 151,732 164,276
164,276 (level-2 with mesh quality control) and 151,732 (level-2 without mesh quality control). In-crease of number of cells due to the simple mesh quality control is relatively limited (∼ 8%), but it greatly improves the mesh quality, as illustrated in
Fig. 9(surface mesh), where the interfacial cells with larger aspect ratio (in the regions before and after the bow shock) without mesh quality control (upper part of Fig. 9) have been effectively removed as shown at the bottom of the same figure. Also the increase of computational time due to mesh quality control is computationally negligible since most operations of mesh quality control are only integer related as men-tioned earlier.
3.1.3. Evolution of domain decomposition

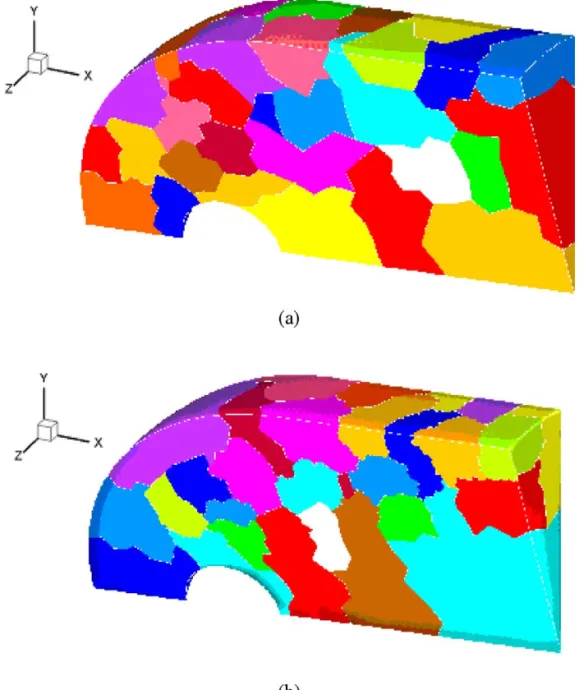

Fig. 10 illustrates the initial and final domain de-composition for a supersonic flow past a sphere using

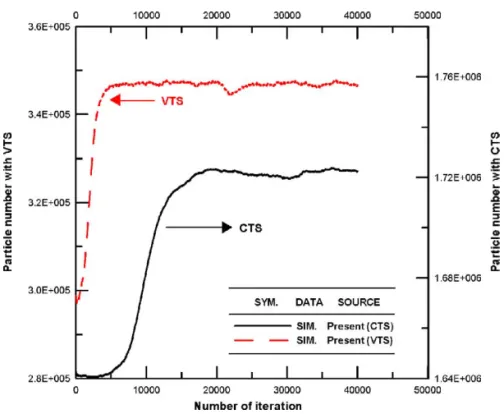

Fig. 7. Total number of simulated particles as a function of number of iteration using constant time-step (CTS) and variable time-step (VTS) for a supersonic flow past a sphere.

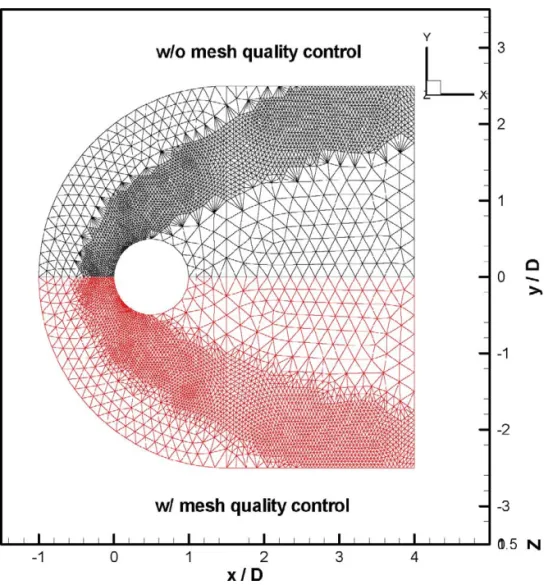

Fig. 9. Level-2 adaptive surface mesh distribution with (lower) and without (upper) mesh quality control for a supersonic flow past a sphere.
32 processors. Note that initial domain decomposition for initial un-adaptive mesh is obtained using the num-ber of particles as the weight for each cell assuming uniform density distribution, while the final domain decomposition is obtained via repeated graph repar-titioning, which reflects the steady-state density distri-bution. It is obvious that the initial domain decompo-sition has adapted to a totally different domain decom-position following the flow dynamics of the problem. This clearly shows the effectiveness of the dynamic domain decomposition, which has been discussed in detail in Wu and Tseng[16,22].
3.1.4. Density distributions

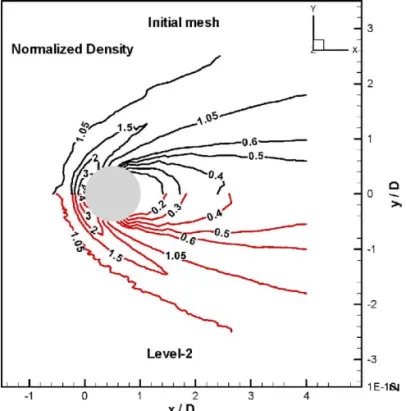

Fig. 11presents the normalized density contour us-ing both initial and level-2 adaptive mesh for a
su-personic flow past a sphere on axisymmetric plane. Results show that maximum density occurs near the stagnation point in front of the sphere and minimum density occurs in the wake region as expected. The dif-ference between the computational results using initial and level-2 adaptive mesh is obvious, which shows the use of adaptive mesh in the current study may not be trivial. Similar situation can also be found for other properties, such as translational/rotational tempera-tures and Mach number. In addition,Fig. 12shows the computational normalized density distribution along the centerline with experimental data by Russell[27]. Results show that the better agreement with experi-mental data is found using level-2 adaptive mesh near the stagnation region in front of the sphere due to bet-ter resolution of flow properties in the region.
Fig. 10. Evolution of domain decomposition for a supersonic flow past a sphere. (a) Initial; (b) final.
3.2. Twin-jet interaction in a near-vacuum environment
3.2.1. Flow and simulation conditions
Considering two parallel, near-continuum, under-expanded round jets issuing from sonic orifices into a near-vacuum environment, the flow field is simu-lated and compared with experimental data. Resimu-lated flow conditions are listed as follows: the test gas is
nitrogen gas; stagnation pressure P0= 870 Pa;
stag-nation temperature T0= 285 K; background pressure
Pb= 3.7 Pa; resulting pressure ratio P0/Pb= 235.
Background pressure effect is neglected in the simu-lation, similar to previous simulation by Dagum and Zhu [28]. Thus, vacuum boundary conditions at the outer boundaries are employed for simplicity. The cor-responding Knudsen number Knth (= λthroat/D) is
Fig. 11. Normalized density contour using initial and level-2 adaptive mesh for a supersonic flow past a sphere.
Fig. 13. Surface mesh distribution on x–y and y–z planes for the twin-jet interaction in a near-vacuum environment.
Fig. 14. Surface local cell Knudsen number distribution on initial and level-2 adaptive mesh for the twin-jet interaction in a near-vacuum environment.
challenging computational problem since it involves flow regimes from a near-continuum flow at the inlet to a near free-molecular flow at the outer boundaries, where the DSMC method may be the only available tool for analyzing this problem correctly.
Computational domain is reduced to 1/4 of the original physical domain by taking advantage of the flow symmetry. Height (H ), width (W ) and length
(L) of the simulation domain are taken long enough
as 10D, 10D and 20D, respectively, which D is the diameter of the orifice. Note that the distance between the two primary jet centerline is three times of the ori-fice diameter to match the experimental conditions. In order to compare to the previous simulation data, inter-nal energy is relaxed through the Borgnakke–Larsen model [29], using a fixed rotational collision num-ber of 5. The resulting simulation particles are about 8 millions at steady state and the number of cells is approximately 0.66 millions after 2 levels of mesh re-finement using Kncc= 2 (Fig. 13).Fig. 13(a) shows
the surface mesh along x–y and y–z planes, while
Fig. 13(b) illustrates the exploded view of the surface mesh in the same planes near the sonic orifice, where the mesh is refined to meet the adaptation criteria. Cor-responding local cell Knudsen number distribution is shown inFig. 14, where most of the flow field satisfies the general cell-size requirement except the locations very near the sonic orifice (0.5 < Kncc< 1). Besides,
20,000 time-steps are used to sample the particles for obtaining macroscopic properties. The reference (min-imum) time-step is 7.61E−09.
3.2.2. Density contour
Fig. 15 presents the normalized density contours (with respect to the density at the sonic orifice) at plane
z= 0, where the value of the contour is plotted as the
height. Density along the centerline of primary jets de-creases dramatically due to expansion, while the den-sity between the two jets increases rapidly initially and then decreases later in the main flow direction due to
Fig. 16. Property distribution along y-axis (symmetric line). (a) Nor-malized density; (b) rotational temperature.
the compression of particles expanding from the two jets. Thus, a secondary jet is clearly formed along y-axis between the two primary jets. Similar evidence for the formation of a secondary jet between the two
Fig. 17. Sketch of the spirally grooved drag pump.
jets exists also for temperature (translational and rota-tional) contours, which is not shown for brevity.
3.2.3. Centerline properties distribution
Figs. 16(a) and 16(b) show the density and rota-tional temperature distribution along the symmetric centerline (e.g., y-axis in Fig. 13, in the direction of major flow direction), respectively. Experimental data measured using laser induced fluorescence by Soga et al.[30]and DSMC simulation data by Dagum and Zhu[28]are also included for comparison. It is clear that current simulation data agree reasonably well with both experimental data[29]and previous DSMC sim-ulation data[27], where the computational domain is smaller as compared with the current simulation. Simi-lar trend is also found for rotational temperature distri-bution as shown inFig. 16(b). In addition, good agree-ment between the current simulation and experiagree-ments
Fig. 18. Adaptive surface mesh distribution and exploded views of the refined mesh for the spirally grooved drag pump (Pe/Pi= 100).
can be also found for density profiles at different y/D positions, which is not shown for brevity.
3.3. Flow field of a spirally grooved drag pump 3.3.1. Flow and simulated conditions
The use of turbomolecular pumps makes it possible to realize a clean (oil vapor free) vacuum, which is of-ten required by the semiconductor materials process-ing. Hence, the understanding of the related flow field in these molecular drag pump is very important to improve its the pumping performance. Nanbu et al.
[31]also computed and experimented pumping perfor-mance of the spiral drag pump with the different out-put pressures and geometrical variations of gap. Thus, as a final test case, we are interested in demonstrating the use of the current DSMC implementation to ana-lyze the pumping performance of a spirally grooved drag pump.
Considering a spirally grooved drag pump (Fig. 17), the rotor rotates counterclockwise, viewing from the top, flow field is simulated using the current DSMC implementation. Related flow conditions are listed as follows: the test gas is nitrogen gas; rotational speed of rotor ω= 36,000 rpm; inlet pressure Pi = 1 Pa;
outlet pressure Pe= 100 Pa; gas temperature T0=
296 K; axial length of rotor L= 115 mm, screw an-gle α= 15◦; width of ridge dr = 2.705 mm; width of
groove dg= 13.06 mm; depth of groove h = 4 mm;
gap between ridge and casing δ= 0.48 mm. Resulting compression ratio Pe/Pi is 100. Knudsen number at
the inlet Kni= 1.3249, while the Knudsen number at
the exit is Kne= 0.013249, both based on the width
of groove dg. Coriolis force due to rotation of the
ro-tor is considered in this case, but it is found that the effect is relatively small, less than 0.5% in this case. Treatment of pressure boundary conditions developed previously[32]is used to handle the inlet and outlet
Fig. 19. Pressure contour on the surface of the spiral groove
(Pe/Pi = 100), viewing at two angles by rotating 180◦ along x-axis.
pressure boundaries iteratively by assuming the equi-librium states at both inlet and exit. Besides, 300,000 time-steps are used to sample the particles for obtain-ing macroscopic properties. The reference (minimum) time-step is 2.18E−07.
3.3.2. Evolution of adaptive mesh
The flow is modeled by simulating a single groove only by taking advantage of the periodicity of the grooves at the circumference of the rotor. In addi-tion, rotational coordinate system is taken on the ro-tor such that the roro-tor remains still while the casing
Fig. 20. Velocity vector plot on the surface of the spiral groove
(Pe/Pi = 100), viewing at two angles by rotating 180◦ along x-axis.
rotates in the opposite direction. The resulting simu-lation particles are about 1.6 millions at steady state and the number of cells is approximately 0.42 mil-lions (initially 27,000 cells) after 2 levels of mesh re-finement using Kncc= 1. Note that the mesh at the
very small gap, where the periodic boundary condi-tions apply, refrains from mesh adaptation to make the
handling much easier when simulation particles move out of these boundaries.Fig. 18(a) shows the surface mesh, while Figs. 18(b) and 18(c) illustrate the ex-ploded view of the surface mesh near the inlet and exit, respectively, where the mesh is refined to meet the adaptation criteria. It is obvious that the mesh near the wall at inlet is refined twice due to the impact of inflow and the mesh near the exit is refined twice due to the higher pressure at the exit.Fig. 19(a) illustrates the surface pressure contours along the groove, while
Fig. 19(b) shows the same quantity by rotating 180◦ along x-axis direction. It shows that pressure remains approximately constant and low in the most part of the groove channel (∼ 80%) except at the walls where the inflow impinges, while it increases dramatically at the end of the groove channel due to the appearance of a vortex (reversed flow), which can be seen in the plot of stream line (Fig. 20).Fig. 20(a) clearly illus-trates that a strongly reversed flow occurs at the end of the groove channel in the groove close to the bottom due to very small velocities and high adverse pressure gradient. One the contrary, the flow is not reversed at the end of the groove channel near the case since the velocities are much larger due to the dragging of the high-speed rotating case (Fig. 20(b)). In addition, the computational throughput of this case is 32.162 lPa/s.
4. Conclusions
In the current study, a parallel three-dimensional DSMC method combining variable time-step and un-structured adaptive mesh is presented. In the paral-lel DSMC method, a multi-level graph-partitioning scheme is used to dynamically re-decompose the com-putational domain based on a decision policy, Stop at Rise (SAR) scheme, which determines the opti-mal timing for repartitioning. In addition, a variable time-step method using the concept of fluxes (mass, momentum and energy) conservation across the cell interface is implemented to further reduce the num-ber of simulation particles and required transient itera-tions towards steady state, without sacrificing solution accuracy. In addition, an h-refined unstructured adap-tive mesh with mesh quality control, obtained from a preliminary parallel simulation, is used to increase the accuracy of the DSMC solution. A supersonic flow past a sphere (Kn∞= 0.01035) is used as the
verification case. Detailed analysis shows that com-bination of variable time-step scheme with unstruc-tured adaptive mesh can increase the computational speedup to on order of magnitude without compromis-ing the accuracy of the solution, in addition to the par-allel speedup. A near-continuum twin-jet interaction
(Knthroat= 0.00385) in a near-vacuum environment
and a spirally grooved drag pump with compression ratio K= 100 are used to demonstrate its applications. All results are found to agree favorably with previous experimental and simulation data wherever available.
As mentioned earlier, it is relatively fast for the serial mesh adaptation module, development in paral-lelizing this module and incorporating into the parallel DSMC code is currently in progress and will be re-ported in the very near future.
Acknowledgements
This investigation was supported by the National Science Council, Grant No. NSC 92-2623-7-009-003 and National Space Program Office of Taiwan, Grant No. 92-NSPO(A)-PC-FA06-01. The authors also would like to express their sincere thanks to the computing resources provided by the National Cen-ter for High-speed Computing of National Science Council of Taiwan. Also, sincere thanks go to Dr. Wal-shaw for generously providing the partitioning library, PJOSTLE.
References
[1] G.A. Bird, Molecular Gas Dynamics and the Direct Simulation of Gas Flows, Oxford Univ. Press, New York, 1994. [2] G.A. Bird, Molecular Gas Dynamics, Clarendon Press, Oxford,
UK, 1976.
[3] K. Nanbu, Theoretical basis on the direct Monte Carlo method, in: V. Boffi, C. Cercignani (Eds.), Rarefied Gas Dynamics, vol. 1, Teubner, Stuttgart, 1986.
[4] I.D. Boyd, et al., J. Spacecraft and Rockets 31 (1994) 271. [5] K.C. Kannenberg, Computational method for the Direct
Sulation Monte Carlo technique with application to plume im-pingement, Ph.D. Thesis, Cornell University, Ithaca, NY, 1998. [6] Y.K. Lee, J.W. Lee, Vacuum 47 (1996) 807.
[7] Y.K. Lee, J.W. Lee, Vacuum 47 (1996) 297.
[8] A. Beskok, G.E. Karniadakis, Microscale Thermophys. En-grg. 3 (1) (1999) 43.
[10] E.S. Piekos, K.S. Breuer, Trans. ASME J. Fluids Engrg. 118 (1996) 464.
[11] R.P. Nance, et al., J. Thermophys. Heat Transfer 12 (1998) 447. [12] J.S. Wu, K.C. Tseng, Computers & Fluids 30 (2001) 711. [13] S. Dietrich, I.D. Boyd, J. Comput. Phys. 126 (1996) 328. [14] J.S. Wu, et al., Internat. J. Comput. Fluid Dynamics 17 (5)
(2003) 405.
[15] J.S. Wu, Y.Y. Lian, Computers & Fluids 32 (8) (2003) 1133. [16] J.S. Wu, K.C. Tseng, AIP Conference Proceedings 663 (2003)
406.
[17] J.S. Wu, K.C. Tseng, J. Fluids Engrg. ASME Trans. 125 (2003) 181.
[18] K. Kannenberg, I.D. Boyd, J. Comput. Phys. 157 (2000) 727. [19] M.S. Ivanov, et al., AIAA Paper No. 1998-2669.
[20] J. Peirö, et al., Felisa System Reference Manual, 1995. [21] C.D. Robinson, Particle simulations on parallel computers with
dynamic load balancing, Ph.D. Thesis, Imperial College of Sci-ence, Technology and Medicine, UK, 1998.
[22] J.S. Wu, K.C. Tseng, Internat. J. Numer. Meth. Engrg., 2004, in press.
[23] L. Wang, J.K. Harvey, The application of adaptive unstructured grid technique to the computation of rarefied hypersonic flows using the DSMC method, in: J. Harvey, G. Lord (Eds.), 19th International Symposium on Rarefied Gas Dynamics, vol. 843, 1994.
[24] R.G. Wilmoth, et al., AIAA Paper No. 1996-1812.
[25] J.S. Wu, et al., Internat. J. Numer. Meth. Fluids 38 (4) (2002) 351.
[26] D.M. Nicol, J.H. Saltz, IEEE Trans. Comput. 39 (9) (1988) 1073.
[27] D.A. Russell, Phys. Fluids 11 (8) (1968) 1679.
[28] L. Dagum, S.K. Zhu, J. Spacecraft and Rockets 31 (6) (1994) 960.
[29] C. Borgnakke, P.S. Larsen, J. Comput. Phys. 18 (1975) 405. [30] T. Soga, et al., Experimental study of interaction of
underex-panded free jets, in: Proceedings of 14th International Sympo-sium on RGD 1, 1984, p. 485.
[31] K. Nanbu, et al., Trans. Japan. Soc. Mech. Engrg. B 57 (1991) 172.
