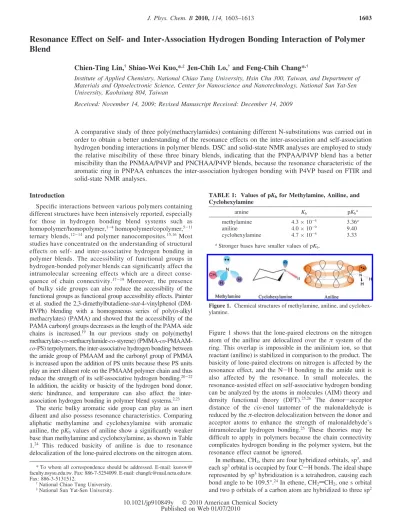

Resonance Effect on Self- and Inter-Association Hydrogen Bonding Interaction of Polymer Blend

Resonance Effect on Self- and Inter-Association Hydrogen Bonding Interaction of Polymer

Blend

Chien-Ting Lin,†_{Shiao-Wei Kuo,*},‡_{Jen-Chih Lo,}†_{and Feng-Chih Chang*},†

Institute of Applied Chemistry, National Chiao Tung UniVersity, Hsin Chu 300, Taiwan, and Department of Materials and Optoelectronic Science, Center for Nanoscience and Nanotechnology, National Sun Yat-Sen UniVersity, Kaohsiung 804, Taiwan

ReceiVed: NoVember 14, 2009; ReVised Manuscript ReceiVed: December 14, 2009

A comparative study of three poly(methacrylamides) containing different N-substitutions was carried out in order to obtain a better understanding of the resonance effects on the inter-association and self-association hydrogen bonding interactions in polymer blends. DSC and solid-state NMR analyses are employed to study the relative miscibility of these three binary blends, indicating that the PNPAA/P4VP blend has a better miscibility than the PNMAA/P4VP and PNCHAA/P4VP blends, because the resonance characteristic of the aromatic ring in PNPAA enhances the inter-association hydrogen bonding with P4VP based on FTIR and solid-state NMR analyses.

Introduction

Specific interactions between various polymers containing different structures have been intensively reported, especially for those in hydrogen bonding blend systems such as homopolymer/homopolymer,1-4_{homopolymer/copolymer,}5-11 ternary blends,12-14 _{and polymer nanocomposites.}15,16_Most studies have concentrated on the understanding of structural effects on self- and inter-associative hydrogen bonding in polymer blends. The accessibility of functional groups in hydrogen-bonded polymer blends can significantly affect the intramolecular screening effects which are a direct conse-quence of chain connectivity.17-19 _{Moreover, the presence} of bulky side groups can also reduce the accessibility of the functional groups as functional group accessibility effects. Painter et al. studied the 2,3-dimethylbutadiene-stat-4-vinylphenol (DM-BVPh) blending with a homogeneous series of poly(n-alkyl methacrylates) (PAMA) and showed that the accessibility of the PAMA carbonyl groups decreases as the length of the PAMA side chains is increased.19 _{In our previous study on poly(methyl} methacrylate-co-methacrylamide-co-styrene) (PMMA-co-PMAAM-co-PS) terpolymers, the inter-associative hydrogen bonding between the amide group of PMAAM and the carbonyl group of PMMA is increased upon the addition of PS units because these PS units play an inert diluent role on the PMAAM polymer chain and thus reduce the strength of its self-associative hydrogen bonding.20-22 In addition, the acidity or basicity of the hydrogen bond donor, steric hindrance, and temperature can also affect the inter-association hydrogen bonding in polymer blend systems.2,23

The steric bulky aromatic side group can play as an inert diluent and also possess resonance characteristics. Comparing aliphatic methylamine and cyclohexylamine with aromatic aniline, the pKbvalues of aniline show a significantly weaker base than methylamine and cyclohexylamine, as shown in Table 1.24 _{This reduced basicity of aniline is due to resonance} delocalization of the lone-paired electrons on the nitrogen atom.

Figure 1 shows that the lone-paired electrons on the nitrogen atom of the aniline are delocalized over the π system of the ring. This overlap is impossible in the anilinium ion, so that reactant (aniline) is stabilized in comparison to the product. The basicity of lone-paired electrons on nitrogen is affected by the resonance effect, and the N-H bonding in the amide unit is also affected by the resonance. In small molecules, the resonance-assisted effect on self-associative hydrogen bonding can be analyzed by the atoms in molecules (AIM) theory and density functional theory (DFT).25,26 _{The donor-acceptor} distance of the cis-enol tautomer of the malonaldehyde is reduced by the π-electron delocalization between the donor and acceptor atoms to enhance the strength of malonaldehyde’s intramolecular hydrogen bonding.25 _{These theories may be} difficult to apply in polymers because the chain connectivity complicates hydrogen bonding in the polymer system, but the resonance effect cannot be ignored.

In methane, CH4, there are four hybridized orbitals, sp3_{, and} each sp3

orbital is occupied by four CsH bonds. The ideal shape represented by sp3_{hybridization is a tetrahedron, causing each} bond angle to be 109.5°.24_{In ethene, CH2}

dCH2, one s orbital and two p orbitals of a carbon atom are hybridized to three sp2 * To whom all correspondence should be addressed. E-mail: kuosw@

faculty.nsysu.edu.tw. Fax: 886-7-5254099. E-mail: [email protected]. Fax: 886-3-5131512.

†_{National Chiao Tung University.} ‡_{National Sun Yat-Sen University.}

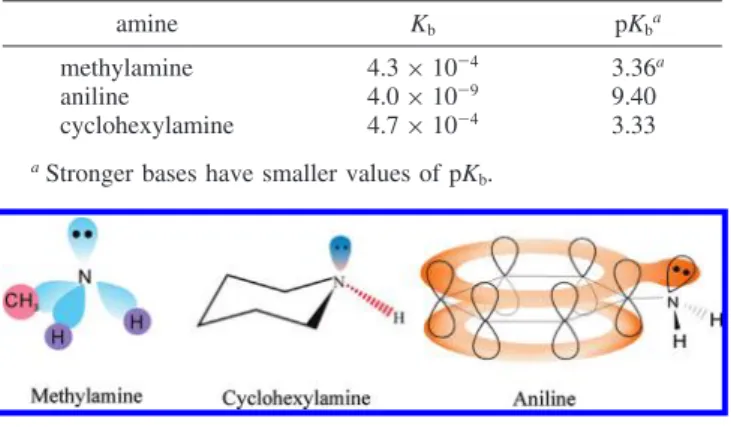

TABLE 1: Values of pKbfor Methylamine, Aniline, and

Cyclohexylamine amine Kb pKba methylamine 4.3× 10-4 3.36a aniline 4.0× 10-9 9.40 cyclohexylamine 4.7× 10-4 3.33 a

Stronger bases have smaller values of pKb.

Figure 1. Chemical structures of methylamine, aniline, and

cyclohex-ylamine.

10.1021/jp910849y  2010 American Chemical Society Published on Web 01/07/2010

orbitals. Therefore, the axes of these three orbitals lie in a plane directed toward the corners of an equilateral triangle with the carbon nucleus at the center, implying that these three bond angles between three sp2_{orbitals are 120°. The unhybridized p} orbital is perpendicular to the plane defined by the axes of the sp2_{orbitals. Figure 2 shows the chemical structures of three} poly(methacrylamides) used in this study. The lone-paired electrons on the nitrogen atom occupy one of the sp3_tetrahedral positions. In poly(N-phenyl methacrylamide), as shown in Figure 3, the lone-paired electrons on nitrogen delocalize over the π system of the aromatic ring and carbonyl group simultaneously, to reach a more stable state. The originally ideal tetrahedral is distorted, expanding the CsNsH or CsNsC bond angles while compressing the angle between lone pair and NsH bonding to form a near plane arranged by the phenyl group, nitrogen atom, and carbonyl group. The geometry is similar to a combination of sp2_{hybridization with one p orbital as ethene.} As a result, the NsH bonding occupies one of the sp2 hybridization positions, and the lone pair electrons occupy the p orbital to delocalize over the π system of the aromatic ring and carbonyl group. Therefore, compared with poly(N-meth-ylmethacrylamide), the electron-cloud distribution of the (Od)CsNsH group in poly(N-phenyl methacrylamide) is near a planar, and the self- and inter-association behaviors of the amide group in poly(N-phenyl methacrylamide) are not expected to be the same as in poly(N-methyl methacrylamide).

In a polymer blend with inter-association hydrogen bonding, competitive self-association exists between polymer chains of hydrogen-bond donors (i.e., phenol, amide, and acid). The competition of self- and inter-association hydrogen bonding in polymer blends affects the miscibility of polymer blends, and numerous investigations have been reported during recent years.27,28_{Some of these reports aim at the phase separation} caused by the difference in the interaction energy of the binary or ternary system.29,30 _{Liu et al.}27 _{reported that the strong} hydrogen-bonded self-association of the vinyl phenol segment

in poly(styrene-co-4-vinyl phenol)/poly(styrene-co-4-vinyl pri-dine) (STVPh/STVPy) blends dominates over the immiscibility-to-miscibility transition in controlling the surface composition. Extent of self- and inter-association hydrogen-bonded phenol controlled by the vinyl phenol content in STVPh, a controllable surface enrichment of polymer blends can be obtained. In our previous works about polymer blends of poly(vinyl phenol) (PVPh) and poly(acetoxystyrene) (PAS), we found that PVPh/ PAS polymer blends are immiscibile because the self-associative hydrogen bonding of the PVPh component is more favorable than the inter-associative hydrogen bonding between PVPh and PAS segments due to the strong intramolecular screening effect in this binary blend system. The incorporation of a styrene moiety (diluent segment) into the PVPh main chain is able to enhance its miscibility with PAS due to the decrease of the strong self-association in the PVPh component in the PVPh/ PAS blend.28_{The aim of this study is to explore the effect of} resonance on self- and inter-associative hydrogen bonding of poly(methacrylamides) with different N-substitution (i.e., meth-yl, cyclohexmeth-yl, and phenyl) by blending with poly(4-vinylpy-ridine) (P4VP). The specific hydrogen bonding interaction between the amide carbonyl and pyridine groups competes with self-association of amide groups. The main purpose of this study is to explore the difference of self- and inter-associative hydrogen-bond behaviors between P4VP and poly(methacry-lamides) with different N-substitutions and the effects of resonance of aromatic groups upon the miscibility.

Experimental Section

Materials. N-Methyl methacrylamide and N-phenyl meth-acrylamide were purchased from TCI Chemical Company which were purified by column chromatography and recrystallized before use. Poly(4-vinyl pyridine) (P4VP) was purchased from Aldrich Chemical. The radical initiator azobisisobutyronitrile (AIBN) was recrystallized from ethyl alcohol prior to use. Toluene was distilled under a vacuum and then used as the solvent for the polymerization. Methacryloyl chloride and cyclohexyl amine were used as received without further purification.

Synthesis. Synthesis of Cyclohexyl Methacrylamide. N-Cyclohexyl amine (0.05 mol), triethylamine (TEA, 0.05 mol), and 50 mL of dried THF were fed in a 250 mL round-bottom flask equipped with a magnetic stirrer, dropping funnel, and thermometer. The reaction mixture was cooled to 0-4°C, 0.06 mol of methacryloyl chloride in dried THF (20 mL) was added dropwisely to the reaction mixture over a period of 0.5 h, and the reaction mixture was stirred for 24 h at room temperature. After removing the formed solid quaternary ammonium salt, the solution was washed thoroughly with 5 wt % sodium hydroxide solution, dilute hydrochloric acid, and water, and then dried over anhydrous magnesium sulfate. After evaporation of the solvent, white N-cyclohexyl methacrylamide was obtained and purified by recrystallization.1_{H NMR (CDCl3, ppm): 1-1.8} (10H, cyclohexyl), 1.90 (3H, methyl), 3.7 (1H, NsCH), 5.22 and 5.59 (2H, CdCH2).

Synthesis of Poly(N-methyl methacrylamide), Poly(N-cy-clohexyl methacrylamide), and Poly(N-phenyl methacryla-mide). AIBN (1 wt % based on monomers) was used for the

degassed solution of N-methyl methacrylamide in toluene at 80 °C under a nitrogen atmosphere in a glass reaction flask equipped with a condenser. The mixture was stirred for ca. 36 h and poured into excess hexane under vigorous agitation to precipitate the crude poly(N-methyl methacrylamide) product. The crude product was purified by redissolving in toluene and

Figure 2. Chemical structures of poly(N-methyl methacrylamide)

(PNMAA), cyclohexyl methacrylamide) (PNCHAA), and poly(N-phenyl methacrylamide) (PNPAA).

Figure 3. N-Substitution of (a) PNMAA and (b) PNPAA, affecting

the lone pair electrons on the nitrogen atom and the π bonding electrons of the carbonyl group.

then added dropwisely into a large excess of hexane. This procedure was repeated several times, and then, the residual solvent of the final product was removed under a vacuum at 70 °C for 1 day to yield pure white poly(N-methyl methacrylamide). Table 2 summarizes molecular weight, Tg, and molar volume values31_{of these four homopolymers employed in this study.} Polymer Blending. Poly(methacrylamides)/P4VP blends with various compositions were prepared by solution casting. The tetrachloroethane solution containing about 10 wt % polymer mixtures was stirred for 24 h, and the solution was allowed to evaporate slowly at 60°C for 1 day. The blend was then dried at 120°C for 1 week to remove the residual solvent.

Characterizations. The glass transition temperature of the copolymer was determined using a Du-Pont DSC-9000 DSC system. The sample was kept at 250 °C for 1 min and then cooled quickly to 30°C from the melt of the first scan. The value of Tgwas obtained as the inflection point of the jump heat capacity at a scan rate of 20°C/min within the temperature range 25-280°C. All measurements were conducted under a nitrogen atmosphere. Molecular weights and molecular weight distributions were determined by matrix-assisted laser desorp-tion/ionization time-of-flight mass spectrometry (MALDI-TOF-MS). Infrared spectra of the copolymer films were determined by using the conventional NaCl disk method. The tetrachloro-ethane solution containing the blend was cast onto a NaCl disk. The film used in this study was thin enough to obey the Beer-Lambert law. FTIR measurements were performed on a Nicolet Avatar 320 FTIR spectrophotometer; 32 scans were collected at a spectral resolution of 1 cm-1.1_{H NMR spectra of} these homopolymers were recorded on a Bruker ARX300 spectrometer using CDCl3as the solvent. High-resolution

solid-state 13_{C NMR spectroscopy experiments were performed at} 25 °C using a Bruker DSX-400 spectrometer operating at a resonance frequency of 100.47 MHz. High-resolution solid-state 13_{C NMR spectra were acquired using the cross-polarization} (CP)/magic-angle spinning (MAS)/high-power dipolar decou-pling (DD) technique, with a 90 °C pulse width of 3.9 µs, a pulse delay time of 3 s, an acquisition time of 30 ms, and 2048 scans. A magic-angle sample-spinning rate of 5.4 kHz was used to avoid absorption overlapping. The proton spin-lattice relaxation time in the rotating frame (T1FH_{) was determined} indirectly via carbon observation using a 90°C τ-spin lock pulse sequence prior to CP. The data acquisition was performed at delay times (τ) ranging from 0.1 to 10 ms with a contact time of 1.0 ms.

Results and Discussion

Thermal Analyses. Differential scanning calorimetry (DSC) is one of the convenient methods to determine the miscibility in polymer blends. Figure 4 displays the second run DSC thermograms of all blends of PNMAA, PNCHAA, and PNPAA with P4VP at various compositions, and their Tg’s are sum-marized in Table 3. Clearly, PNMAA/P4VP blends are im-miscible based on DSC analyses, since all of the compositions of these two blends show two glass transition temperatures, indicating less effective inter-associative hydrogen bonding between the amide group of PNMAA and the pyridine group of P4VP. Two clear Tg’s are observed for the compositions, and the values of lower and higher Tgcorrespond to P4VP-rich and PNMAA-rich, respectively.

TABLE 2: Molar Volume, Molecular Weight, and Tgof the

Four Homopolymers Employed in This Studya

polymer Vb Mw Tg(°C) PNMAA 84.5 1800 255 PNCHAA 147.2 2000 149 PNPAA 128.2 1600 201 P4VP 84.5 60000 152 a

V, molar volume (mL/mol); Mw, molecular weight (g/mol).

b_{Obtained by the molar volume group contribution method.}31

Figure 4. DSC scans of (a) PNMAA/P4VP, (b) PNCHAA/P4VP, and (c) PNPAA/P4VP blends with different compositions.

TABLE 3: TgBehaviors of PNMAA/P4VP, PNCHAA/P4VP,

and PNPAA/P4VP Blends with Different Compositions Tg(°C)

composition

(amide/pyridine) PNMAA/P4VP PNCHAA/P4VP PNPAA/P4VP

100/0 255 149 201 90/10 165 190 75/25 152/256 170 200 50/50 154/252 169 210 25/75 160/250 168 211 10/90 158/246 0/100 152

In PNCHAA/P4VP blends (as shown in Figure 4b), all blends show a single glass transition temperature, indicating that there is more effective inter-associative hydrogen bonding between PNCHAA and P4VP than that of PNMAA/P4VP. Furthermore, all PNPAA/P4VP blends also show a single glass transition temperature (as shown in Figure 4c), indicating that the incorporation of a bulky side group into the poly(methacryla-mides) is able to enhance its miscibility with P4VP due to the decrease of the strong self-association in the poly(methacryla-mides) component that will be discussed in FTIR analyses.

Strength of Specific Interaction, as Determined by FTIR Spectroscopy. QualitatiWe Analysis of Experimental

ObserWa-tion. FTIR spectroscopy has been proven to be a powerful

technique to detect the presence of self-association within a given molecule and inter-association between two chemically dissimilar molecules. Figure 5 shows FTIR spectra recorded at room temperature for these three neat poly(methacrylamides) and scale-expanded FTIR spectra in the region of the carbonyl stretching vibration. Two carbonyl stretching bands in PNMAA were obtained by a curve-fitting procedure:32_{one centered at} 1670 cm-1and another centered at 1640 cm-1, corresponding to free and self-association hydrogen-bonded carbonyl groups, respectively.33_{Figure 6 shows scale-expanded (second-derivate)} infrared spectroscopy of the PNCHAA in the range 1580-1710 cm-1and the PNPAA in the range 1610-1720 cm-1. Clearly, the two main minima under zero-point line (dashed line) in the second-derivative spectra shown in Figure 6a of PNCHAA are observed for (1) the free carbonyl group units at 1665 cm-1 and (2) the self-associated, hydrogen-bonding carbonyl groups at 1635 cm-1. The peak positions of free and hydrogen-bonded carbonyl groups are similar to those in PNMAA. In PNPAA, the two main minima under zero-point line in the second-derivative spectra shown in Figure 6b of PNPAA are observed for (1) the free carbonyl groups unit at 1684 cm-1and (2) the self-associated, hydrogen-bonding carbonyl groups at 1659 cm-1. There were good correlations between the experimental spectra and theoretical fitting of the results.34,35 _However, because of broad second derivatives in the 1610-1720 cm-1 region, it seems that there are three carbonyl stretching bands: one is corresponding to the free carbonyl band, and the others are corresponding to the hydrogen-bonded carbonyl bands. There

Figure 7. IR spectrum recorded at 120°C of the NH stretching region

for (a) PNCHAA and (b) PNPAA.

Figure 5. FTIR spectra for three neat polymethacrylamides: PNMAA, PNCHAA, and PNPAA.

Figure 6. IR spectrum at the carbonyl stretching region and its second

are two possibilities: one is that there is an additional hydrogen-bonded dimer band as well as a multimer band, but the steric bulky aromatic group in PNPAA makes multimer formation difficult.32 _{The steric factor equally affects PNCHAA, but} PNCHAA does not have an aromatic ring; in addition, there are two clear minima under zero-point line in the second-derivative spectra shown in Figure 6a of PNCHAA. Thus, the possibility of a steric factor can be excluded. Alternatively, Choperena et al. reported that the π-orbitals on the aromatic ring can form weak hydrogen bonding with the O-H group in PVPh.36_{In the FTIR spectra in the N-H stretching region for} PNCHAA and PNPAA recorded at 120°C, as shown in Figure 7, the second derivative of PNPAA shows a slightly more broad peak at lower frequency which is corresponding to the self-associated band, indicating that the π-orbitals on the aromatic ring in PNPAA are able to form a self-associated hydrogen bond with the N-H group. However, the hydrogen-bond acceptor ability of the carbonyl group compares much higher with that of the π-orbitals on the aromatic ring.37_{It is too complicated to} resolve the self-associative hydrogen bonding with relatively weak aromatic · · · H-N bonding. As a result, the self-associated aromatic · · · H-N bonding in PNPAA is ignored to simplify the system in this study.

These results of PNPAA are different from those in PNMAA and PNCHAA. Moreover, Zhang et al.38_{pointed out that the} difference in wavenumber (∆νH) between the absorption bands of hydrogen-bonded and free pyridine groups could be used as a measure of the relative strength of hydrogen bonding, so the difference in wavenumber (∆νH) between the absorption peaks of hydrogen-bonded and free carbonyl group in PNPAA is smaller than that in PNMAA and PNCHAA, indicating that the relative strength of self-association hydrogen bonding in PNPAA is smaller than that in PNMAA and PNCHAA. The phenyl group makes the carbonyl stretching characteristics of PNPAA different from those in PNMAA and PNCHAA.

Figure 8 gives FTIR spectra of the carbonyl and pyridine vibrations region for P4VP-based blends. Upon mixing P4VP with PNMAA, a new band at 1633 cm-1is observed (see Figure 8a), which is characteristic of the inter-association of pyridine-amide interaction. In PNMAA/P4VP and PNCHAA/P4VP blends, the absorption band of hydrogen-bonded pyridine is

more obvious in the composition of 25/75; however, the absorption band of hydrogen-bonded pyridine is clear in all compositions in PNPAA/P4VP blends, indicating that the fraction of hydrogen-bonded pyridine in PNPAA/P4VP blends is higher than that in PNMAA and PNCHAA. Moreover, unlike self-associative interaction of poly(methacrylamides), the peak positions of hydrogen-bonded pyridine in three poly(mathacry-lamides)/P4VP blends are almost the same, no matter what the N-substitution is, indicating the strength of inter-associative hydrogen bonding is similar in these three binary blends.

Quantitative Analysis of Experimental Results via the Painter-Coleman Association Model. The Painter-Coleman association model31_{can be used to describe the thermodynamics} of polymer blends with hydrogen bonding, which can be written using the following scheme: where B1represents the

amide-NH group, A1represents the pyridine group, B2is the hydrogen-bonded dimer formed between two amide groups, Bh is the hydrogen-bonded multimer, and BhA1 is the inter-associative hydrogen bonding.

The change in the relative intensities of the free and hydrogen-bonded carbonyl bands varies systematically in favor of the former as temperature increasing, as shown in Figure 9, reflecting the decreasing fraction of hydrogen-bonded carbonyl groups present as a function of temperature. This is a measure of the enthalpy of hydrogen bond formation. The methodology employed to determine the enthalpy of hydrogen bond formation from infrared spectra has been discussed in detail in previous publications.32,39_{The equilibrium constant KBof self-association} of amide groups is related to the fFCdO_{values through}

and the KBat different temperatures could be calculated.

Figure 8. FTIR spectra at room temperature for (a) PNMAA/P4VP blends, (b) PNCHAA/P4VP blends, and (c) PNPAA/P4VP blends.

KB)

1 - fFCdO

[fFCdO]

Polymer blends with hydrogen bonding acceptor can be summarized as follows:

where φB and φA are the volume fractions of components B and A, respectively, in the blend, φB₁and φA₁are the volume fractions of free B and A groups, respectively, and r ) VA/VB, with VA and VB respectively being the molar volumes of components A and B. KBand KAappearing in eqs 1 and 2 are equilibrium constants, the definitions of which in terms of the hydrogen-bonded components can be determined from FTIR spectroscopic measurements. The fraction of carbonyl group in amide units that are free is given by

and the fraction of free carbonyl groups is equal to the number of chains that do not have a pyridine unit attached to one end, divided by the total number of amide units present; we can obtain

Finally, the fraction of free is simply the number of non-hydrogen-bonded pyridine groups divided by the total number of pyridine groups and, converting to volume fractions, we obtain:

Obviously, the equilibrium constants and hence the stoichi-ometry of hydrogen boning varied with temperature. This is simply described through the usual dependence on the enthalpy of hydrogen bond formation:

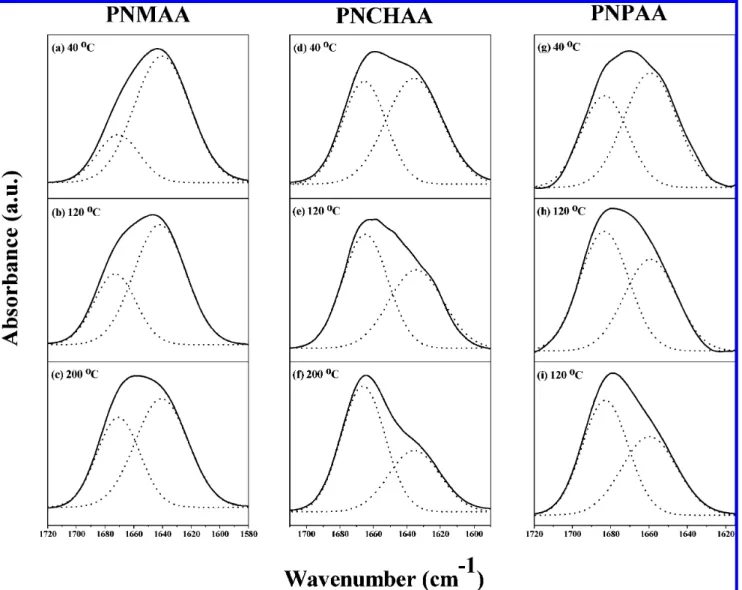

Figure 9. Infrared spectra and curve-fitting results of (a) PNMAA, (b) PNCHAA, and (c) PNPAA recorded at different temperatures in the region

1575-1720 cm-1. φ_B) φ_B 1 (1 - K_Bφ_B 1) 2

[

]

[

]

(

)

where KB° and K° are the values of the equilibrium constantsA determined at T° K (usually 298 K), R is the universal gas constant, and ∆hiis the molar enthalpy of the formation of

individual hydrogen bonds. Using eqs 7 and 8, we can calculate the equilibrium constants at different temperatures.

Let us pay attention in advance to self-associative hydrogen bonding in poly(methacrylamides). Figure 9 shows scale-expanded FTIR spectra of three pure poly(methacrylamides) in the region from 1575 to 1720 cm-1 at different temperatures from 40 to 220 °C. The curve-fitting limits were set to 1560-1740 cm-1, and the spectra were curve resolved into two bands using a lease-squares fitting procedure.37_{Lorenztian band} shapes were fixed, the ν of the two bands in PNMAA were restricted to ranges of 1670 ( 1 and 1640 ( 1 cm-1, and w1/2 was restricted to the range from 34.5 ( 1 to 43.0 ( 1 cm-1, respectively, for all of the least-squares fits. A value of aHB/aF ) 1.2 is employed to calculate the fraction of free and hydrogen-bonded carbonyl groups.32 _{The calculations of KB for the} different temperatures are listed in the final column of Table 4. A van’t Hoff plot of ln KBversus the reciprocal of temperature is shown in Figure 10, and we can obtain a value of 2.22 kcal/ mol for the enthalpy ∆hBof hydrogen bond formation from the slope of least-squares linear fit of the data in Table 6. The same methodology was employed to calculate the enthalpy of hydrogen bond formation of PNPAA and PNCHAA, with the values of 1.29 and 2.17 kcal/mol, respectively.

Here, we turn our attention to inter-associative hydrogen bonding in poly(methacrylamide)/P4VP blends. The numerical values of parameters necessary for the calculations of various quantities described above are summarized in Table 2, which are taken from the literature.31,32 _{Except free carbonyl and} hydrogen-bonded carbonyl groups in poly(methacrylamides), the temperature-dependent band in FTIR spectra of poly(methacryl-amide)/P4VP blends could correspond with the pyridine group in P4VP. In Figure 8, the band at 1633 cm-1in PNMAA/P4VP, PNCHAA/P4VP, and PNPAA/P4VP blends, which is charac-teristic of the hydrogen-bonded pyridine group, could be used to calculate the equilibrium constants KAat variable temperature by eqs 2-8. Figure 11 shows scale-expanded FTIR spectra and curve-fitting peaks of three poly(methacrylamide)/P4VP com-positions of 50/50 in the region from 1560 to 1730 cm-1at 40, 120, and 200 °C, and all of the curve-fitting results and the calculations of KB for the different temperatures are listed in Table 5. Again, a van’t Hoff plot of ln KAversus the reciprocal of temperature is shown in Figure 12, and we can obtain values of 3.24, 3.26, and 3.22 kcal mol-1for the enthalpy ∆hAof inter-associative hydrogen-bond formation of PNMAA/P4VP, PN-PAA/P4VP, and PNCHAA/P4VP blends, respectively, from the slope of least-squares linear fit of the data in Table 5.

Solid-State NMR Spectroscopy. In addition to FTIR, evidence on interactions in the blends can also be obtained from solid-state NMR spectroscopy, as demonstrated by changes in chemical shift and/or line shape. Figure 13 shows the selected 13_{C CP/MAS spectra of various PNCHAA/P4VP and PNPAA/} P4VP blends. Five peaks are also observed for pure P4VP where the peak at δ ) 123.9 ppm corresponds to the pyridine carbon atom (C-12). Pure PNCHAA and PNPAA display eight peaks

where the CdO carbonyl group is at 177.5 and 176.3 ppm, respectively. All other peaks are also assigned in Figure 13. Clearly, the pyridine carbons (C-12) shift downfield about 2.1 ppm significantly also indicating that the hydrogen bonding interaction between the amide group of PNCHAA and PNPAA the pyridine group of P4VP, this finding is consistent with the results of our FTIR spectroscopic analysis.

Solid-state NMR spectroscopy also has been used to better understand the phase behavior and miscibility of polymer blends. A single Tgbased on DSC analysis implies that the mixing of two blending components is in a scale of about 20-40 nm.10 The dimension of mixing smaller than 20 nm can be obtained through measurement of the spin-lattice relaxation time in the rotating frame (T1FH_).10 _{The T1F}H _{values of the blends were} measured through the delayed-contact13_{C CP/MAS experiments.} The (T1FH_{) values are calculated from eq 9:}

where τ is the delay time used in the experiment and Mτis the

corresponding resonance. Figure 14 present the values of -ln(Mτ/M0) plotted against τ of PNCHAA/P4VP blends. We

estimated the homogeneities of these polymer blends through

KB) K° expB

[

(

)

]

[

(

)

]

TABLE 4: Curve Fitting of the Fraction of Free and Hydrogen-Bonded Carbonyl Group of PNMAA, PNPAA, and PNCHAA

PNMAA PNCHAA PNPAA

temp (°C) fF(%) fb(%) KB fFa(%) fb(%) KB fFb(%) fb(%) KB 40 24.4 75.4 12.5 47.5 52.5 2.32 45.6 54.4 2.61 60 26.4 73.6 10.5 50.8 49.2 1.90 47.6 52.4 2.32 80 28.8 71.2 8.6 53.8 46.2 1.60 49.0 51.0 2.12 100 30.3 69.7 7.6 56.7 43.3 1.35 50.5 49.5 1.94 120 32.8 67.2 6.2 59.2 40.8 1.16 52.3 47.7 1.75 140 34.4 65.6 5.5 61.2 38.8 1.04 53.7 46.3 1.60 160 35.9 64.1 5.0 63.3 36.7 0.92 55.6 44.4 1.44 180 37.9 62.2 4.4 65.1 34.9 0.82 56.2 43.8 1.38 200 40.2 59.8 3.7 67.1 32.9 0.73 57.7 42.3 1.27 220 41.3 58.7 3.4 69.0 31.0 0.65 58.1 41.9 1.24 a

The ν of the two bands were restricted to ranges of 1665 ( 1 and 1635 ( 1 cm-1, and the w1/2was restricted to ranges of 31.0 ( 1 and 36.0 ( 1 cm-1, respectively. b_{The ν of the two bands were}

restricted to ranges of 1684 ( 1 and 1659 ( 1 cm-1, and the w1/2 was restricted to ranges of 27.0 ( 1 and 34.0 ( 1 cm-1, respectively.

Figure 10. van’t Hoff plot of ln KBversus reciprocal temperature for PNMAA, PNCHAA, and PNPAA.

ln(Mτ/M0) ) -τ/T1F H

quantitative analyses based on the PNCHAA-carbon (C-5) atom’s resonance at 46 ppm and the P4VP-carbon (C-9) atom’s resonance at 40 ppm. From the slopes of the fitted lines, we determined the values of T1FH_{, which are listed in Table 6, for} various compositions of PNCHAA/P4VP and PNPAA/P4VP

blends. From DSC scans, PNCHAA/P4VP blends show a single glass transition temperature; however, all PNCHAA/P4VP compositions display heterogeneous non-single-exponential behavior, indicating that these blends are not homogeneous on the scale at which spin diffusion occurs within the time T1FH_.

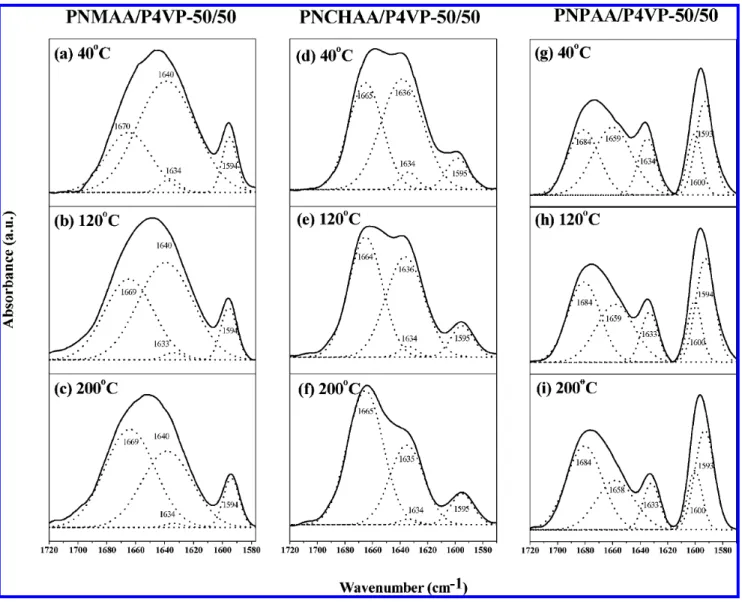

Figure 11. Scale-expanded infrared spectra and curve-fitting results of (a) PNMAA/P4VP-50/50, (b) PNPAA/P4VP-50/50, and (c) PNCHAA/

P4VP-50/50, from 1570 to 1720 cm-1at 40, 120, and 200°C.

TABLE 5: Curve Fitting of the Fraction of Free and Hydrogen-Bonded Carbonyl and Pyridine Groups in PNMAA/P4VP, PNCHAA/P4VP, and PNPAA/P4VP Compositions of 50/50

PNMAA/P4VP PNCHAA/P4VP PNPAA/P4VP

the fraction of free CdO and free pyridine

the fraction of free CdO and free pyridine

the fraction of free CdO and free pyridine temp (°C) fF Ia (%) fFIIb (%) fFIIIc (%) KA fFI (%) fFII (%) fFIII (%) KA fFI (%) fFII (%) fFIII (%) KA 40 0.178 0.074 0.396 85.3 0.240 0.088 0.348 57.5 0.238 0.045 0.308 151.8 60 0.196 0.100 0.403 60.1 0.251 0.111 0.360 42.8 0.246 0.062 0.316 105.3 80 0.205 0.118 0.413 47.9 0.258 0.133 0.375 33.0 0.250 0.079 0.328 77.4 100 0.220 0.143 0.423 37.4 0.272 0.163 0.390 24.7 0.261 0.097 0.336 60.2 120 0.236 0.172 0.436 28.7 0.280 0.185 0.406 20.1 0.274 0.117 0.340 47.8 140 0.247 0.195 0.448 23.5 0.291 0.205 0.415 17.2 0.292 0.136 0.345 39.8 160 0.266 0.223 0.456 19.5 0.312 0.232 0.421 14.4 0.308 0.153 0.349 35.0 180 0.282 0.244 0.462 17.0 0.332 0.263 0.431 11.8 0.321 0.176 0.354 28.6 200 0.303 0.268 0.465 14.9 0.339 0.286 0.449 9.9 0.329 0.191 0.361 25.2 220 0.322 0.296 0.474 12.5 0.351 0.308 0.458 8.6 0.346 0.214 0.368 21.4 a

fFIis the fraction of carbonyl groups in amide units that are free.bfFIIis the fraction of free carbonyl groups that do not have a pyridine unit attached to one end.c_f

There are two domains, with distinct mobility, present in this blend on a scale below 20 nm.40,41

Figure 15 presents the values of -ln(Mτ/M0) plotted against

τ of PNPAA/P4VP blends, and the values of T1FHare listed in Table 6. The homogeneities of these polymer blends are estimated through quantitative analyses based on the PNPAA-carbon (C-1) atom’s resonance at 46 ppm and the P4VP-PNPAA-carbon (C-9) atom’s resonance at 40 ppm. We obtained single-exponential decays in T1FH_{of the P4VP-carbon (C-9) atom’s} resonance at 40 ppm for all of the PNPAA/P4VP compositions, suggesting that these blends are homogeneous on the scale at which spin diffusion occurs within the time T1FH_{. Moreover,} the T1FH_{decays at 40 ppm of these two compositions are much} smaller than the T1FH_{decay of pure P4VP, and the composition} of 25/75 shows a shorter T1FH_{relaxation time than that of the} composition of 75/25. The shorter T1FH_{relaxation time that the} blend attained reflects the rigid nature of the blend, indicating that more addition of P4VP creates more or stronger inter-associative interaction between two components in the composi-tion of 25/75. Thus, the PNPAA/P4VP composicomposi-tion of 25/75 shows a higher Tgvalue than that of the composition of 75/25. The reason for these results of DSC, FTIR, and solid-state NMR analysis is mainly due to the electron delocalization effect. The phenyl group and cyclohexyl group are both more bulky than the methyl group, and the steric hindrance of the side-chain group in PNPAA and PNCHAA prevents the formation of hydrogen bonds.42_{Thus, the equilibrium constants KBat 40} °C of self-associative hydrogen bonding of PNPAA and PNCHAA are comparable to each other, and both of them are smaller than the KBof PNMAA at 40 °C.43_{However, Figure} 10 also shows the smaller slope of PNPAA than PNCHAA and PNMAA, indicating that steric bulk is not the factor to make a different enthalpy of self-associative hydrogen bonding of PNPAA from PNCHAA and PNMAA. The hydrogen-bonding strength of PNCHAA is stronger than that of PNPAA. The difference between PNPAA and PNCHAA is the resonance characteristics of PNPAA, and the resonance characteristics are also the absence of both PNMAA and PNCHAA. Comparing the free carbonyl group in PNMAA, PNPAA, and PNCHAA, the absorption frequency of the free carbonyl group in PNPAA is higher than that in PNMAA and PNCHAA, indicating that the aromatic group makes the carbonyl group in PNPAA more electrodeficient than the carbonyl group in PNMAA and PNCHAA.44_{The aromatic ring in PNPAA makes the carbonyl}

Figure 12. van’t Hoff plot of ln KAversus reciprocal temperature for PNMAA/P4VP, PNCHAA/P4VP, and PNPAA/P4VP blends.

Figure 13. 13_{C CP/MAS spectra of (a) PNCHAA/P4VP and (b)}

PNPAA/P4VP blends.

Figure 14. Solid-state NMR spectroscopic T1FHdecay curves for PNCHAA/P4VP blends with different compositions at (a) 40 ppm of the P4VP-ethylene-carbon atom’s resonance and (b) 46 ppm of the PNCHAA-P4VP-ethylene-carbon atom’s resonance.

group electron-deficient, resembling an electron-withdrawing group, so that the carbonyl group in PNPAA has a poorer ability to form a hydrogen bond with a smaller enthalpy of self-associative hydrogen bond formation.

However, in polymethacrylamide/P4VP blends, all of the PNPAA/P4VP compositions show single Tgand single-exponential decays in T1FH_{, indicating that there is more effective} inter-associative hydrogen bonding between the amide group of PNPAA and the pyridine group of P4VP. In Figure 11, the fraction of hydrogen-bonded pyridine in PNPAA/P4VP blends is larger than those in PNMAA/P4VP and PNCHAA/P4VP blends, although the enthalpy of inter-associative hydrogen bond formation from the van’t Hoff plot and the difference in wavenumber (∆νH) between the absorption peaks of hydrogen-bonded and free pyridine group are similar to each other in these three polymethacrylamide/P4VP blends. From the curve-fitting results at 40°C in Table 5, the value of fFI_{in PNPAA/P4VP is comparable to that in PNCHAA/P4VP} but smaller than that in PNMAA/P4VP, indicating that the total number of hydrogen bonds in PNPAA/P4VP, regardless of self-or inter-association, is comparable to that in PNCHAA/P4VP but

less than that in PNMAA/P4VP. However, the value of fFIII_in PNPAA/P4VP is smaller than that in PNMAA/P4VP and PN-CHAA/P4VP, and the value of fFII_{in PNPAA/P4VP is smaller} than that in PNMAA/P4VP and PNCHAA/P4VP. As a result, the fraction of inter-association in PNPAA/P4VP is larger than that in PNMAA/P4VP and PNCHAA/P4VP blends. All of these results indicate that resonance characteristics of PNPAA can increase the amount of inter-associative hydrogen bonding between PNPAA and P4VP to enhance the miscibility of PNPAA/P4VP blends but cannot affect the strength of inter-association hydrogen-bond formation.

Because of intramolecular screening effects, forming inter-association between two components will lose internal degree of rotational freedom (i.e., rotations around backbone bonds) and change the entropy in a binary blending system,45_{so self-association} is preferred to inter-association, except appearing a driving force. Table 7 lists the ratios of the equilibrium constants of inter-association (KA) and self-inter-association (KB) at 40 and 220°C, and the ratio of the enthalpy of inter-association (∆hA) and self-association (∆hB). Larger ∆hAthan ∆hBcannot ensure a miscible

Figure 15. Solid-state NMR spectroscopic T1FHdecay curves for PNPAA/P4VP blends with different compositions at (a) 40 ppm of the P4VP-ethylene-carbon atom’s resonance and (b) 46 ppm of the PNPAA-P4VP-ethylene-carbon atom’s resonance.

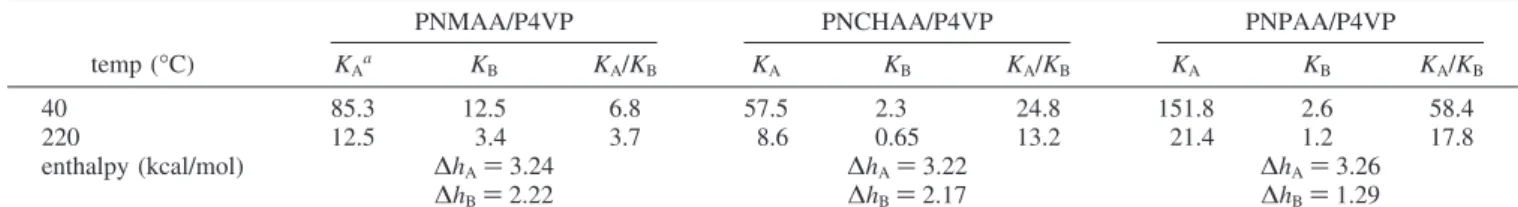

TABLE 7: Ratios of the Equilibrium Constants of Inter- and Self-Association and Ratios of the Enthalpy of Inter- and Self-Association in Three Polymethacrylamide/P4VP Blends

PNMAA/P4VP PNCHAA/P4VP PNPAA/P4VP

temp (°C) KAa KB KA/KB KA KB KA/KB KA KB KA/KB 40 85.3 12.5 6.8 57.5 2.3 24.8 151.8 2.6 58.4 220 12.5 3.4 3.7 8.6 0.65 13.2 21.4 1.2 17.8 enthalpy (kcal/mol) ∆hA) 3.24 ∆hA) 3.22 ∆hA) 3.26 ∆hB) 2.22 ∆hB) 2.17 ∆hB) 1.29 a_K

B is the self-association equilibrium constant, KA is the inter-association equilibrium constant, ∆hB is the enthalpy of self-association formation, and ∆hAis the enthalpy of inter-association formation.

TABLE 6: Values of T1GHof the Pure PNCHAA, Pure PNPAA, Pure P4VP, and Various Compositions of PNCHAA/P4VP and

PNPAA/P4VP Blends T1FH(ms) PNCHAA/P4VP PNPAA/P4VP composition amide/pyridine PNCHAA-ethylene, 46 ppm P4Vp, 40 ppm PNPAA-ethylene, 47 ppm P4VP-ethylene, 40 ppm 100/0 2.54 4.14 90/10 1.41/2.50 4.15 75/25 1.37/2.42 3.86 4.99 50/50 1.35/2.30 3.23/7.22 3.64 4.09 25/75 3.19/7.02 3.40 0/100 7.57 7.57

blend system. In PNMAA/P4VP blends, the value of ∆hAis larger than ∆hB, but immiscible PNMAA/P4VP results are obtained. Similar results are obtained from PNCHAA/P4VP blends. Actually, much larger KAthan KBdoes ensure a miscible blend.1_{The KA/KB} ratios in PNPAA/P4VP blends are higher than those in PNCHAA/ P4VP blends at different temperatures. As a result, PNPAA/P4VP blends are miscible over the entire composition range, but PN-CHAA/P4VP blends are immiscible on a scale below 20 nm. The much higher KA/KBratios in PNPAA/P4VP blends are a conse-quence of the planar delocalization. When a pyridine group in P4VP forms a hydrogen bond with the N-H group in PNPAA (see Figure 16), it is suggested that a planar delocalization, constructed by the aromatic-π system of pyridine in P4VP and the aromatic-π system and carbonyl-π system of the amide group in poly(N-phenyl methacrylamide)s via the lone-paired electrons on the nitrogen atom of PNPAA, is formed. This planar delocalization is a driving force to replace the self-association of PNPAA with inter-association to P4VP, and thus higher inter-associative equilibrium constants KB than that in PNMAA/P4VP at different temperatures, even though the phenyl group is more sterically hindered to prevent the formation of any kinds of hydrogen bonding. This planar delocal-ization is impossible in PNCHAA/P4VP blends, so the steric bulky cyclohexyl group hinders the formation of inter-association and self-association to obtain smaller KA/KBat different temperatures.

Conclusions

In this study, poly(N-methyl methacrylamide), poly(N-cyclo-hexyl methacrylamide), and poly(N-phenyl methacrylamide) are prepared and blended with P4VP, to investigate the resonance effect on self- and inter-associative hydrogen bonding. Through the least-squares curve-fitting procedure and the van’t Hoff plots, the enthalpy of self- and inter-associative hydrogen bonding formation can be obtained. All of the results indicate that PNPAA has a smaller enthalpy of self-associative hydrogen bonding formation than that of PNMAA and PNCHAA; however, the enthalpies of inter-associative hydrogen bonding formation of three poly-methacrylamides/P4VP blends (PNMAA/P4VP, PNPAA/P4VP, and PNCHAA/P4VP) are comparable. Moreover, the fractions and the equilibrium constants of inter-association under variable tem-peratures in PNPAA/P4VP are all obviously higher than those in PNCHAA/P4VP blends, indicating that the resonance characteristic of the aromatic ring in PNPAA substantially enhances the ratio ∆hA/∆hB to sacrifice its self-association. Thus, PNPAA/P4VP blends are miscible over the entire composition range and PN-CHAA/P4VP blends are immiscible from solid-state NMR spectroscopy.

Acknowledgment. This work was supported financially by the National Science Council, Taiwan, Republic of China, under Contract No. NSC 97-2221-E-110-013-MY3 and NSC 97-2120-M-009-003.

References and Notes

(1) Coleman, M. M.; Painter, P. C. Prog. Polym. Sci. 1995, 20, 1. (2) Kuo, S. W. J. Polym. Res. 2008, 15, 459.

(3) Yang, Z.; Han, C. D. Macromolecules 2008, 41, 2104.

(4) Zhang, X.; Takegoshi, K.; Hikichi, K. Macromolecules 1991, 24, 5756. (5) Motzer, H. R.; Painter, P. C.; Coleman, M. M. Macromolecules

2001, 34, 8390.

(6) Huang, H. L.; Goh, S. H.; Wee, A. T. S. Polymer 2002, 43, 2861. (7) Katime, I.; Parada, L. G.; Meaurio, E.; Cesteros, L. C. Polymer

2000, 41, 1369.

(8) Zhao, J. Q.; Pearce, E. M.; Kwei, T. K. Macromolecules 1997, 30, 7119.

(9) Chen, W. C.; Kuo, S. W.; Jeng, U. S.; Chang, F. C. Macromolecules

2008, 41, 1401.

(10) Kuo, S. W.; Chang, F. C. Macromolecules 2001, 34, 4089. (11) Kuo, S. W. Polymer 2008, 49, 4420.

(12) Kuo, S. W.; Liu, W. P.; Chang, F. C. Macromol. Chem. Phys. 2005,

206, 2307.

(13) Kuo, S. W. J. Appl. Polym. Sci. 2009, 114, 116.

(14) Kuo, S. W.; Chan, S. C.; Wu, H. D.; Chang, F. C. Macromolecules

2005, 38, 4729.

(15) Yen, Y. J.; Kuo, S. W.; Huang, C. F.; Chen, J. K.; Chang, F. C. J.

Phys. Chem. B 2008, 112, 10821.

(16) Ouyang, J. Y.; Zhou, S. Q.; Wang, F.; Goh, S. H. J. Phys. Chem.

B 2004, 108, 5937.

(17) Coleman, M. M.; Pehlert, G. J.; Painter, P. C. Macromolecules 1996,

29, 6820.

(18) Painter, P. C.; Veytsman, B.; Kumer, S.; Shenoy, S.; Graf, J. F.; Xu, Y.; Coleman, M. M. Macromolecules 1997, 30, 932.

(19) Painter, P. C.; Park, Y.; Coleman, M. J. Appl. Polym. Sci. 1998,

70, 1273.

(20) Chen, J. K.; Kuo, S. W.; Kao, H. C.; Chang, F. C. Polymer 2005,

46, 2354.

(21) Kao, H. C.; Kuo, S. W.; Chang, F. C. J. Polym. Res. 2003, 10, 111. (22) Kuo, S. W.; Kao, H. C.; Chang, F. C. Polymer 2003, 44, 6873. (23) He, Y.; Zhu, B.; Inoue, Y. Prog. Polym. Sci. 2004, 29, 1021. (24) Wade, L. G. Organic Chemistry; Prentice Hall: NJ, 1987. (25) Woodford, J. N. J. Phys. Chem. A 2007, 111, 8519.

(26) Jeffrey, G. A. An Introduction to Hydrogen Bonding; Oxford University Press: New York, 1997; Chapter 6.

(27) Liu, S.; Chan, C. M.; Weng, L. T.; Jiang, M. J. Polym. Sci., Part

B: Polym. Phys. 2005, 43, 1924.

(28) Kuo, S. W.; Chang, F. C. J. Polym. Sci., Part B: Polym. Phys.

2002, 40, 1661.

(29) Zhang, H.; Bhagwagar, D. E.; Graf, J. F.; Painer, P. C.; Coleman, M. M. Polymer 1994, 35, 5379.

(30) Kuo, S. W.; Lin, C. L.; Chang, F. C. Macromolecules 2002, 35, 278. (31) Coleman, M. M.; Painter, P. C. Miscible Polymer Blends:

Back-ground and Guide for Calculations and Design; DEStech Publications:

Lancaster, PA, 2006.

(32) Coleman, M. M.; Graf, J. F.; Painter, P. C. Specific Interactions

and the Miscibility of Polymer Blends; Technomic Publishing: Lancaster,

PA, 1991.

(33) Neelakandan, C.; Kyu, T. Polymer 2009, 50, 2885.

(34) Coleman, M. M.; Sobkowiak, M.; Pehlert, G. J.; Painter, P. C.

Macromol. Chem. Phys. 1997, 198, 117.

(35) Bhagwagar, Dt.E.; Painter, P. C.; Coleman, M. M.; Krizan, T. D.

J. Polym. Sci., Part B: Polym. Phys. 1991, 29, 1547.

(36) Choperena, A.; Painter, P. Macromolecules 2009, 42, 6159. (37) Kamelt, M. J.; Abboud, J. M.; Abraham, M. H.; Taft, R. W. J.

Org. Chem. 1983, 48, 2877.

(38) Zhang, S. H.; Jin, X.; Painter, P. C.; Runt, R. Polymer 2005, 45, 3933. (39) Cleveland, C. S.; Fearnley, S. P.; Hu, Y.; Wagman, M. E.; Painter, P. C.; Coleman, M. M. J. Macromol. Sci., Phys. 2000, B39, 197.

(40) Tanaka, H.; Nishi, T. Phys. ReV. B 1986, 33, 32.

(41) Stejskal, E. O.; Schaefer, J.; Sefcik, M. D.; Mckay, R. A.

Macromolecules 1981, 14, 275.

(42) Zhu, B.; Li, J.; He, Y.; Yamane, H.; Kimura, Y.; Nishida, H.; Inoue, Y. J. Appl. Polym. Sci. 2004, 91, 3565.

(43) Pehlert, G. J.; Painter, P. C.; Coleman, M. M. Macromolecules 1998,

31, 8423.

(44) Silverstein, R. M.; Bassler, G. C.; Morrill, T. C. Spectrometric

Identification of Organic Compounds; Wiley: Singapore, 1991; Chapter 3.

(45) Coleman, M. M.; Xu, Y.; Painter, P. C. Macromolecules 1994, 27, 127. JP910849Y

Figure 16. Planar delocalization over carbonyl, phenyl aromatic, and

pyridine aromatic π systems via the lone-paired electrons on the nitrogen atom constructed by an inter-associative hydrogen bond between PNPAA and P4VP units.
