中文摘要

在這民生網路子計畫中，我們對民生網路（Consumer networks）的定義為，它必需能夠處理操作在同一個頻帶的多種不同通訊標準，包括在同一個裝置或在電波接受範圍之內的通訊環境。而在多種具有潛力的無線網路標準中，正交分頻多工無線區域網路系統（OFDM WLAN）、WiMAX 無線技術、以及使用多頻帶正交多頻分工（Multi-band OFDM）之超寬頻系統（UWB）被選為討論的對象。因為這些系統都架構在正交分頻多工技術上，所以有必要針對影響系統效能的不理想特性作分析。相位雜訊在正交分頻多工技術中是一個主要的議題。本期計畫中，我們建立了相位雜訊的模型，並在正交分頻多工或是正交分頻多工多重存取的上行鏈路環境中估測相位雜訊。此外，對於我們所提出之民生網路系統架構中之連結層作了探討。多個具有無線網路聯結功能的終端設備，在沒有基礎建設的情況下，其間可能建立無線隨意網路。而在無線隨意網路裡的節點通常會被要求以最小的功率來傳送資料，同時又要顧到傳送距離來達到網路之連通性。為了以更具功率效率的方法來控制網路拓撲架構，我們探討在無線隨意網路中之最佳傳送距離(或發射功率)、服務範圍的大小以及網路連通性三者彼此之間的關係。關鍵字關鍵字關鍵字關鍵字：：：民生網路，正交分頻多工，多頻帶正交多頻分工，相位雜訊，無線隨意：網路，拓撲控制，叢集演算法。

(5)

英文摘要

In the project of Consumer networks, the term “”consumer networks” is promised to deal with multiple standards operating in the same frequency band, either within the same device or with a radio range. Among many potential wireless networks standards, OFDM WLAN, WiMAX, and UWB using multi-band OFDM are selected to be discussed.

Because that these three systems are based on OFDM technique, there is a need to analyze the non-ideal characteristics of such technique. Phase noise is the main issue in OFDM technique. In this subproject we build up the model of phase noise and estimate the phase noise in uplink OFDM/OFDMA.

Besides, we discuss the connectivity layer of system architecture for consumer networks. Plenty terminal equipments capable of wireless connectivity may construct wireless ad hoc networks under the situation of none infrastructure. Nodes in the wireless ad hoc networks are required to conserve the limited battery life with minimized transmission power. In addition, the wireless ad hoc networks are required to be connected. In order to control the topology structure in a power-efficient way, the discussion on relationships of the best transmission distance (or transmission power), the coverage of the service and network connectivity is given.

Keywords: Consumer network, OFDM, OFDMA, Phase Noise, Wireless Ad Hoc

(6)

前言

Part I Phase Noise Estimation in OFDM and OFDMA Uplink Communications

OFDM transmission technique has been adopted in several wireless communication standards for its capability of combating channel multipath fading with relatively low complexity while providing high spectral efficiency in comparison to single carrier transmission. An OFDMA system divides the available subcarriers into groups, called subchannels, and assigns one or multiple subchannels to multiple users for simultaneous transmission. OFDM is tremendously more sensitive to carrier frequency offset and phase noise than single carrier systems because the orthogonalities among OFDM subcarriers will be destroyed so that common phase error (CPE) and inter-carrier interference (ICI) will appear. OFDMA inherits from OFDM the weakness of being more sensitive to both of them than single carrier multiple access systems. Furthermore, because of the multiple phase noise of multiuser, phase noise will be more detrimental to uplink OFDMA systems if not carefully compensated

Part II Characterizing The Wireless Ad Hoc Networks by Using The Distance

Distributions

Wireless ad hoc network has been recognized as one of the possible solutions to realize the dream of pervasive computing especially when nodes are within the dead

zone, an area where the exiting fixed infrastructures are unavailable, since nodes in

the wireless ad hoc network can self-organize and operate without the help of the existing infrastructures. By using the multihop forwarding scheme, nodes in the wireless ad hoc networks exchange messages with other nodes that are not directly connected. However, due to the random deployment of the wireless ad hoc networks, the deployed network topologies are also random. As a result, some criterions are commonly used to characterize the random organized network.

(7)

Part III On The Distance Distributions of The Wireless Ad Hoc Networks

Since nodes in wireless ad hoc networks may be randomly and independently spread over the entire service area, the resulting network topologies are diverse and, thus, the separation distance between any selected node pair can be regarded as a random variable. Many characteristics of the wireless ad hoc networks are related to the separation distances between node pairs. One of the most important characteristics for the wireless ad hoc network to be applicable is the connectivity of the organized network. The most common approach to achieve the network connectivity is to maximize the transmission range so that nodes are connected. However, when the power consumption is considered, the transmission range should be optimized to the separation distance to its nearest neighbor.

Part IV Organizing an Optimal Cluster-Based Ad Hoc Network Architecture by the

Modified Quine-McCluskey Algorithm

When wireless nodes are in an area that is not covered by any existing infrastructure, one of the possible solutions to achieve the ubiquitous computing is to enable wireless nodes to operate in the ad hoc mode and selforganize themselves into a cluster-based network architecture. One of the general approaches to build up a cluster-based network architecture is to design an algorithm to organize wireless nodes into set of clusters. Within each cluster, a node is elected as a clusterhead (CH) to take responsible for the resource assignments and cluster maintenances. Many related algorithms have been proposed. The minimum connected dominating set (MCDS) approach tries to obtain an optimum configuration to be the virtual backbone of the wireless ad hoc networks. However, it is shown to be an NPhard problem. The most feasible alternative is to find an approximated heuristic algorithm to obtain a sub minimum connected dominating set. The general idea among the related literatures is to select CHs based on some attributes of the networks.

(8)

Part V A Clustering Algorithm to Produce Power-Efficient Architecture for

(N,B)-Connected Ad Hoc Networks

Wireless ad hoc network is a self-organizing network that can be rapidly deployed and operated without the help of the existing infrastructure. Possible examples of the wireless ad hoc networks can be found in the tactical military applications, disaster recovery operations, exhibitions and conferences. Since there is no existing fixed infrastructure in the wireless ad hoc network, organizing the randomly deployed nodes into a virtual backbone turns out to be an important design issue. One of the general approaches is to organize nodes into groups of clusters. Within each cluster, a node is elected as the local controller of that cluster and is called clusterhead (CH). Major advantages of this approach include frequency spatial reuse, smaller interference and the increase of system capacity.

(9)

研究目的

Phase noise issue is an important topic in OFDM and OFDMA systems because it will destroy the orthogonalities among subcarriers. Models of phase noise source and the corresponding effects in OFDM systems are first introduced. There are various methods proposed to suppress phase noise in OFDM systems. Here, we discuss a pilot-aided-decision-directed (PADD) approach for CPE estimation in OFDM systems. Conventional phase noise correction methods targeting at single phase noise, however, cannot be directly applied to uplink OFDMA transmissions because simultaneous transmitted user signals give rise to multiple phase noise. Extending from the PADD approach, two algorithms based on least-square and maximum likelihood criteria for estimation of Wiener phase noise in uplink OFDMA communications are discussed and compared.

Distributions

Due to random deployment of the network nodes, the distances between nodes in the wireless ad hoc networks are random. Based on the developed distributions of the distance between nodes, the optimum transmission range to the k-th nearest neighbor, the most probable distance between two randomly selected nodes, the node degree and the network connectivity of the organized wireless ad hoc networks both in the ideal and shadow fading environments are characterized and evaluated. In addition, we also mathematically proof that the distribution of the node degree in the shadow fading environment is binomial. We apply the derived degree distribution to study the generalized k-connectivity problem of the wireless ad hoc network in the shadow fading environments.

(10)

Separation distance between nodes is an important index in characterizing the optimum transmission range, the most probable Euclidean distance between two random selected nodes, the node degree and the network connectivity of wireless ad hoc networks. However, because nodes are randomly deployed, the separation distances between nodes in the wireless ad hoc networks are also random. Thus, in this paper, we present methodologies to analyze three distance-related probability distributions: the distribution of the distance to the k-th nearest neighbor, the distribution of the distance between two random selected nodes and the joint distribution of the distances between nodes and a common reference node.

An optimal cluster-based ad hoc network architecture that requires the minimum number of cluster maintenance overheads not only reduces the waste of the precious bandwidth but also saves the consumption of the limited battery power. Mathematical analyses show that the cluster maintenance overheads can be minimized by minimizing the number of generated clusters and the variance of the number of cluster members. By using the Modified Quine-McCluskey (MQM) algorithm, the number of generated clusters and the variance of the number of cluster members of the generated cluster-based network architecture are minimized. Thus, the number of overheads required to maintain the cluster architecture is minimized and the precious bandwidth and the limited battery power are saved.

Reducing the waste of the limited battery power in exchanging cluster maintenance messages is one of the important issues in designing clustering algorithm for the wireless ad hoc networks. Analyses show that this can be achieved by reducing the number of generated clusters and the variance of the number of cluster members. By

(11)

assigning critical node (the only neighbor of boundary node) the highest weight (or priority) to be selected as a clusterhead, we show that the number of cluster maintenance overheads is reduced by the proposed Distributed Clustering Algorithm with Critical Node First (DCA/CNF) based approaches. As a consequence, the limited battery power is conserved and the organized network architecture is power efficient.

(12)

研究方法

OFDM transmission technique has been adopted in several wireless communication standards for its capability of combating channel multipath fading with relatively low complexity while providing high spectral efficiency in comparison to single carrier transmission. An OFDMA system divides the available subcarriers into groups, called subchannels, and assigns one or multiple subchannels to multiple users for simultaneous transmission. Signals from different users are overlapping in frequency domain but occupying different subcarriers, the orthogonality among subcarriers prevents multiple access interference (MAI) among users.

On the other hand, OFDM is tremendously more sensitive to carrier frequency offset and phase noise than single carrier systems [1] because the orthogonalities among OFDM subcarriers will be destroyed so that common phase error (CPE) and inter-carrier interference (ICI) will appear. OFDMA inherits from OFDM the weakness of being more sensitive to both of them than single carrier multiple access systems. Furthermore, because of the multiple phase noise of multiuser, phase noise will be more detrimental to uplink OFDMA systems if not carefully compensated [2].

Various methods to suppress phase noise in OFDM systems have been proposed in the literature [3]-[5]. However, they are specifically suitable for dealing with single phase noise. To mitigate multiple phase noise in OFDMA uplink, unavoidably, the adopted subcarrier assignment scheme needs to be taken into account since it affects the amount of MAI in the system. Two major subcarrier assignment schemes: subband-based and interleaved [6] are examined. The former divides the whole bandwidth into small continuous subbands, each user is assigned to one or several subbands. In the latter, subcarriers assigned to different users are interleaved over the whole bandwidth. An example of both schemes is illustrated in Fig. 1.

(13)

Figure. 1. Illustration of subband-based and interleaved subcarrier assignment schemes [16]

Distributions

Wireless ad hoc network has been recognized as one of the possible solutions to realize the dream of pervasive computing [1]-[3] especially when nodes are within the

dead zone, an area where the exiting fixed infrastructures are unavailable, since nodes

in the wireless ad hoc network can self-organize and operate without the help of the existing infrastructures. By using the multihop forwarding scheme, nodes in the wireless ad hoc networks exchange messages with other nodes that are not directly connected. Possible examples of the wireless ad hoc networks are tactical military applications, disaster recovery operations, exhibitions or conferences. However, due to the random deployment of the wireless ad hoc networks, the deployed network topologies are also random. As a result, some criterions are commonly used to characterize the random organized network. In this part, we specifically focus on the following three criterions: the optimum transmission range to organize a wireless ad hoc network and the node degree and the connectivity of the organized network. Since the power of the nodes in the wireless ad hoc networks are mainly provided by the batteries, the optimum transmission range (or the critical transmission range) provides us how to power efficiently assign the transmission range either homogeneously or non-homogeneously so that the organized wireless ad hoc network is connected [4]-[7]. The degree of a node is defined as the number of neighbors that are directly connected with [8][9] and is widely used as an index of the connectivity of the organized wireless ad hoc networks [10]. The network connectivity is one of the most

(14)

important criterions used to characterize the organized wireless ad hoc networks [4]-[7][11]-[13]. This is mainly because for the multihop forwarding scheme in the wireless ad hoc network to be applicable there must exists at least one path between any two nodes so that the messages can be hop-by-hop forwarded to the intended destination nodes. When we look into the three criterions, we find that they are highly related to the distances between the nodes. For example, if the distances between node pairs in the deployed wireless ad hoc networks are short, smaller transmission power is enough for each node to reach its neighbors and, thus, the battery power is conserved. Furthermore, if the transmission range is fixed, shorter distances between nodes result in the higher node degree and the better connectivity of the deployed wireless ad hoc networks. However, due to nodes in the wireless ad hoc networks are in nature randomly and independently distributed into the service area, the distance between any node pair is also random. Thus, it is necessary to study the stochastic property of the distances between nodes. Only few related researches are found in the literatures. In [14], by using two different distributions, uniform and Gaussian, to deploy nodes into the service area, Miller analyzed the distributions of the distance between two nodes in the wireless ad hoc networks and found that similar distance distributions are obtained by using different models to distribute nodes. Thus, he concluded that using a simple model to distribute nodes would be enough for the analysis and simulation of the wireless ad hoc networks. To obtain the joint distribution, Miller presented an alternative approach to find the marginal cdf of the distance between node and a randomly selected reference node (RN) [15]. Then, by employing the independence property, the joint cdf of the distances between nodes and a RN was obtained.

Since nodes in wireless ad hoc networks may be randomly and independently spread over the entire service area, the resulting network topologies are diverse and, thus, the separation distance between any selected node pair can be regarded as a random variable. Many characteristics of the wireless ad hoc networks are related to the separation distances between node pairs. One of the most important characteristics for the wireless ad hoc network to be applicable is the connectivity of the organized network. The most common approach to achieve the network connectivity is to maximize the transmission range so that nodes are connected. However, when the power consumption is considered, the transmission range should be optimized to the separation distance to its nearest neighbor. Most of the connectivity related researches [1]-[6] are mainly based on the necessary condition that network is k-connected if the

(15)

minimum node degree of a wireless ad hoc network is k [1]. When the wireless ad hoc networks are operated in the ideal environment, the node degree can be easily obtained based on the pathloss model, i. e. the number of nodes within the predefined separation distances. However, in the shadow fading environment, given the separation distances between nodes and a common reference node (CRN), the node degree will dynamically change due to the random fluctuation of the signal strength. Thus, it is necessary to find the joint distance distribution between nodes and a CRN. In this part, we assume that nodes are uniformly and independently deployed within a square service area and the location of each random deployed node u is expressed as a vector

(x y_u, _u)

=

u in R2. Based on the definition in [8], the distance function between nodes u and v is defined as _{( , )} ₍₍ ₎2 ₍ _{) )}2 1/ 2

v u v u

r u v = x −x + y −y such that (i)r( , )u v ≥0, (ii)r( , )u v =0

if and only if u=v, (iii)r( , )u v =r( , )v u and (iv)r( , )u v ≤r( , )u w +r( , )w v for any nodes u,

v and w. In this case, the distance function is also known as the Euclidean distance

between nodes u and v and the square service area is known as the 2-dimensional

Euclidean space.

The first distance distribution we derived is based on the concept that if the Euclidean distance from a reference node to its k-th nearest neighbor is less than the transmission range of the reference node, the minimum degree of the node is k. The disadvantage of this distribution is that the prior knowledge of the order of the nearest neighbor of a reference node is required. To this end, we derive the distribution of the Euclidean distance between two random selected nodes without knowing the prior knowledge. Since the obtained results do not poss the independence property, they cannot be applied directly to obtain the joint distribution of the Euclidean distances between nodes and a common reference node. Therefore, we further derive the marginal cdf and pdf of the Euclidean distance between node and a common reference node. Since the obtained marginal cdf and pdf possess the independence property, they can be easily generalized to obtain the joint cdf and pdf. Only few related researches are found in the literatures. The distribution of the k-th nearest neighbor is also known as Nearest Neighbor Distribution (NND) in [9][13]. In [14], by using two different distributions, uniform and Gaussian, to distribute the nodes, Miller analyzed the distributions of the Euclidean distance between two nodes in the wireless ad hoc networks and noted that the models used to distribute nodes generate very similar cdfs. Thus, he concluded that using a simple model to distribute nodes would be enough for the analysis and simulation of wireless ad hoc networks. To obtain the joint distribution, Miller presented an alternative approach to find the marginal cdf of the Euclidean distance between two nodes [15]. Then, by employing the independence property, the joint cdf of the Euclidean distances between node pairs that have a common reference node was obtained. In the following analyses, we assume the

(16)

number of nodes in the network is N and ignore the boundary effects.

When wireless nodes are in an area that is not covered by any existing infrastructure, one of the possible solutions to achieve the ubiquitous computing is to enable wireless nodes to operate in the ad hoc mode [1] and selforganize themselves into a cluster-based network architecture. One of the general approaches to build up a cluster-based network architecture is to design an algorithm to organize wireless nodes into set of clusters. Within each cluster, a node is elected as a clusterhead (CH) to take responsible for the resource assignments and cluster maintenances. Many related algorithms have been proposed. The minimum connected dominating set (MCDS) approach [2] tries to obtain an optimum configuration to be the virtual backbone of the wireless ad hoc networks. However, it is shown to be an NPhard [3] problem. The most feasible alternative is to find an approximated heuristic algorithm to obtain a sub minimum connected dominating set. The general idea among the related literatures is to select CHs based on some attributes of the networks. For example, the node degree, the link delay, the transmission power, the mobility, . . . , etc.. A detail survey of the clustering algorithms can be found in [4].

In viewing the previous works, we find that the minimization of the waste of the precious bandwidth and the limited battery power in exchanging the cluster maintenance overheads has not been well studied. Thus, based on the technique to select the optimum set of prime implicants in the Quine-McCluskey (QM) algorithm [5], we propose a Modified QM (MQM) clustering algorithm to organize the wireless ad hoc network into a cluster-based network architecture that requires the minimum number of cluster maintenance overheads.

Wireless ad hoc network is a self-organizing network that can be rapidly deployed and operated without the help of the existing infrastructure. Possible examples of the

(17)

wireless ad hoc networks can be found in the tactical military applications, disaster recovery operations, exhibitions and conferences. Since there is no existing fixed infrastructure in the wireless ad hoc network, organizing the randomly deployed nodes into a virtual backbone turns out to be an important design issue. One of the general approaches is to organize nodes into groups of clusters. Within each cluster, a node is elected as the local controller of that cluster and is called clusterhead (CH). Major advantages of this approach include frequency spatial reuse, smaller interference and the increase of system capacity.

Many related algorithms [1]-[10] have been proposed in the literatures. The minimum connected dominating set (MCDS) scheme [1] organizes the wireless ad hoc network into an optimum configuration. However, the problem to find the MCDS in a connected graph is shown to be NP-hard [2] and the problem to find the optimal CH set is an NP-complete problem [3]. The general feasible alternative is to design an approximated heuristic algorithm to obtain a sub-optimal MCDS. The Degree-based clustering algorithms [4] are proposed to select CHs based on the degree of the nodes. The ID-based clustering algorithms [5][6] organize the cluster simply based on the node ID. Other approaches that are based on different node attributes can be found in [7]-[9]. Due to the security concerns of the transmitted messages or the limitations of the geography of the service area, some singular nodes must/may be deployed within the service area. For example, some nodes in the networks have only one neighbor and are called boundary nodes. The only neighbors of boundary nodes play an important role in providing connections from boundary nodes to the other nodes. In view of the previous algorithms, we find that the impacts of the boundary nodes on the design of clustering algorithm have not been well studied in the literatures. This part addresses how to organize wireless ad hoc networks with boundary nodes into a power efficient cluster-based network architecture. The power efficiency of a cluster-based network architecture in this part is related to the number of overheads that are required to maintain the organized cluster-based network architecture.

(18)

結果和討論

We can find the performance of these two CPE estimations by simulation. Consider an OFDMA system with 64 subcarriers in the 5 GHz frequency band. The signal bandwidth is 20 MHz. There are 4 sub-channels in the system, each contains 13 subcarriers. Each active user uses one sub-channel and the configuration and frequency domain structure of each subchannel are identical. We denote N the _p

number of pilot subcarriers in a sub-channel and it varies from 1 to 4 in our experiments.

The channel response of each user is generated according the IEEE 802.11a channel model with root-mean-square delay spread equals to 50 ns. The channel coefficients are modeled as independent and complex-valued Gaussian random variables with zero-mean and an exponential power delay profile

{

2

}

{ }

( ) exp , 0,1, ,10.

k

h l

l

l l

E = ? = L

The constant

l

is chosen such that the signal power of each user is normalized to

unity. The phase noise is generated by the Lorentzian model with b equals to 1 kHz. Two typical subcarrier assignment schemes: sub-band based subcarrier assignment and interleaved subcarrier assignment as illustrated in Fig. 1 are used. Each simulation point is conducted using 3 10× 5 frames, each frame consists of 16 OFDM symbols.

Fig. 1 shows the symbol error rate (SER) performance of the two proposed CPE estimators in comparison with both no-phase-noise and no-phase-noise-correction cases with QPSK. Since the number of pilot subcarriers affects the spectrum efficiency and the capacity of an OFDMA system, N is set to 1 in the simulation _p

generating these two figures. Fig. 1(a) refers to sub-band based subcarrier assignment while Fig. 1(b) corresponds to interleaved subcarrier assignment.

First of all, the maximum likelihood (ML) approaches always have more improvement than least square (LS) ones, which is not surprising because the statistics of ICI term is taken into consideration. We can observe that when the number of active users increases, interleaved subcarrier assignment suffers more from

(19)

the multiple-access interference because other active user’s signals are at nearer subcarriers.

Fig. 2 illustrates how the performance of the proposed schemes changes with phase noise levels. The number of pilot symbols N is set to 1. The aim of the proposed _p

schemes is to correct medium to small phase noise, i.e., for phase noise variance

b

T_s

less than10- 4. It shows in Fig. 7 that when phase noise variance is greater than10- 5, the OFDMA system suffers remarkable performance degradation. However, the proposed CPE estimation schemes provide significant performance improvement over no-phase-noise-correction case.

When phase noise variance is less than 10-5 for an OFDMA system employing QPSK, we can see the error floor of the proposed schemes. For this phase noise variance range, it is not necessary to take the CPE correction to correct multiple phase noise.

(20)

(b) Interleaved

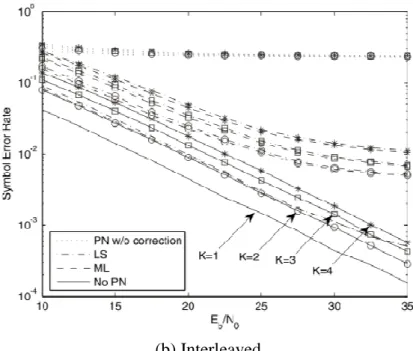

Figure 1. Symbol error rate v.s. SNR with QPSK, K=1 to 4 [16]

(21)

(b) Interleaved

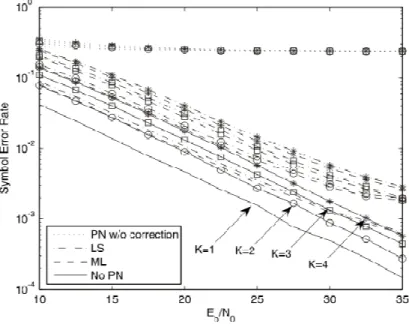

Figure 2. Symbol error rate v.s. phase noise variance with QPSK, K=1 to 4 [16]

Distributions

Table 1 The Optimum Transmission Range for a 1-connected Wireless Ad Hoc Network

p=0.95 p=0.99

N=100 N=200 N=100 N=200

1

op

r _{155.33m 114.75m 171.22m 125.55m}

Based on equation, the optimum transmission ranges to construct a 1-connected network 1

op

r in a 1000m×1000m square-shaped service area with the probability 0.95

p= and p=0.99, N=100 and N=200 are shown in TABLE 1. The probability

of organizing a k-connected wireless ad hoc network in the ideal environment obtained in equation is shown in Figure 1. This figure shows that the required transmission range R for N nodes in the ideal environment to organize a k-connected wireless ad hoc network is inverse proportional to N and proportional to k. For example, from TABLE 1 and Figure 1, the transmission ranges 171.22m and 125.55m are required for a wireless ad hoc network with 100 and 200 nodes to be 1-connected with the probability 0.99. The probability of the wireless ad hoc network organized by

N nodes in the shadow fading environment is k-connected as derived in equation is

(22)

corresponds to a wireless ad hoc network organized by 100 nodes in the ideal environment is 3-connected with the probability greater than 0.9999 as shown in Figure 1. With the same transmission range, Figure 2 shows that as the channel variation is concerned, fewer nodes are required to achieve the same network connectivity and the number of nodes to achieve the required network connectivity is inverse proportional to the channel variation.

0 0.2 0.4 0.6 0.8 1 0 30 60 90 120 150 180 210 240 270 300 transmisson range p ro b . o f k -c o n n e c te d N=100,k=1 N=100,k=2 N=100,k=3 N=200,k=1 N=200,k=2 N=200,k=3

Figure 1 The probability of k-connected in the ideal environment.

0 0.2 0.4 0.6 0.8 1 0 10 20 30 40 50 60 70 80 number of nodes p ro b . o f k c o n n ec te d _rho=2,k=1 rho=2,k=2 rho=2,k=3 rho=4,k=1 rho=4,k=2 rho=4,k=3

(23)

Part III On The Distance Distributions of The Wireless Ad Hoc Networks 0 0.2 0.4 0.6 0.8 1 0 30 60 90 120 150 180 210 240 270 300 transmission range cd f o f th e d is ta n ce t o t h k -t h n ea re st n ei g h b o r N=100,k=1 N=100,k=2 N=100,k=3 N=200,k=1 N=200,k=2 N=200,k=3

Figure 1 The cdf of the distance to the k-th nearest neighbor.

The distribution of the distance to the k-th nearest neighbor

In Figure 1, we show the cdf of the separation distance obtained in equation to the 1st, 2nd and 3rd nearest neighbor for a wireless ad hoc network with 100 and 200 nodes deployed over a 1000m×1000m square-shaped service area. This figure shows that the distance to the k-th nearest neighbor is inverse proportional to the number of nodes in the service area. Furthermore, this figure also shows that almost surely that the first nearest neighbor is within the Euclidean distance 120m and 82m for the number of nodes are 100 and 200 respectively.

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 separation distance pdf cdf

Figure 2 The cdf and pdf of the Euclidean distance between two random selected nodes.

(24)

The pdf and cdf in equations with different separation distance are shown in Figure 2. By differentiating equation, the most probable normalized separation distance between two random selected nodes is 0.478. This can also be found from Figure 2 that the 0.478 separation distance corresponds to the maximum probability density. Besides, from the cdf curve in Figure 2, we find that if the normalized transmission range is higher than 0.94, the probability for two random selected nodes are connected is more than 0.95. 0.00 0.20 0.40 0.60 0.80 1.00 jo in t c d f 0 .3 ₀.6 ₀.9 ₁.2 ₁.5 0 .0 0 .3 0 .6 0 .9 1 .2 1 .5

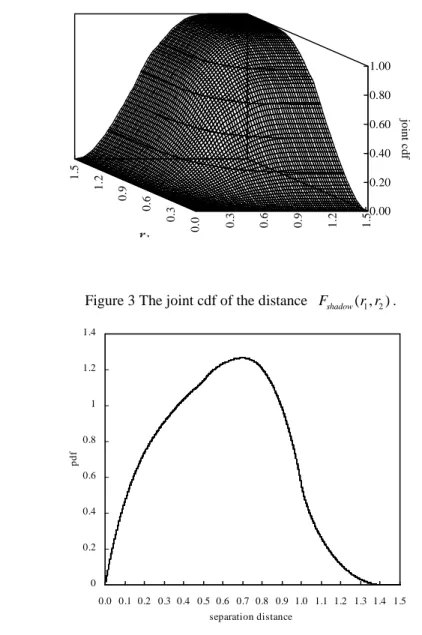

Figure 3 The joint cdf of the distance F_shadow( , )r r . ₁ ₂

0 0.2 0.4 0.6 0.8 1 1.2 1.4 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 separation distance p d f

Figure 4 The pdf of the distance between node and a CRN.

The distribution of the distance between node and a CRN

Based on equations, the conditional cdf of the separation distance in equation is obtained. By integrating equation, we can obtain the marginal cdf of the separation distance. Numerical integration of equation has been conducted for the joint cdf of the separation distances r1 and r2. The resulting joint cdf curve is shown in Figure 3.

r2

(25)

Following the same procedures, the marginal pdf of the separation distance in equation is shown in Figure 4. In this figure, the most probable normalized separation distance between node and a CRN is about 0.7.

We verify the performance of the proposed MQM algorithm by conducting extensive simulations. In our simulations, we assume the size of the service area is 2000m×2000m, the number of nodes N is 300 and the transmission range for each node is 300m. We run the simulation 10,000 times and average the collected data. In each simulation, we first randomly deploy the non-boundary nodes into a connected sub-network. Then, for each boundary node, a node in the connected subnetwork is randomly selected to be its only neighbor (i. e., the critical node). For the performance comparisons, the MQM and the Degree-based [6][7] clustering algorithms are used to cluster each of the generated network topology. As stated before, our objective is to design a clustering algorithm that can organize a cluster-based network architecture in which the required number of cluster maintenance overheads is minimized. In derived equation, the number of cluster maintenance overheads mainly depends on the number of generated clusters and the variance of the number of cluster members. The simulation results for the number of generated clusters and the variance of the number of cluster members are shown in Fig. 1 and Fig. 2 respectively. Since the original QM algorithm is designed to obtain the minimum set of PIs, the proposed MQM algorithm generates the minimum number of clusters as shown in Fig. 1. Furthermore, due to unchecked node is selected as a CH only if it is the critical node with the highest logical degree among its one-hop neighbors or it is the node with the highest logical degree among its two-hop neighbors, the number of clusters that are generated by the boundary node and the difference of the number of cluster members between clusters are minimized. Therefore, as shown in Fig. 2, the variance of the number of cluster members is minimized. Consequently, the number of cluster maintenance overheads as shown in Fig. 3 is minimized and the generated cluster-based network architecture is optimal.

(26)

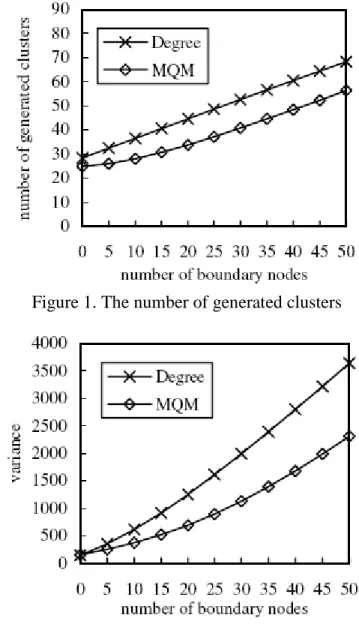

Figure 1. The number of generated clusters

Figure 2. The variance of the number of cluster members

(27)

(a) ID-based 0 0.1 0.2 0.3 0.4 0.5 0.6 0 5 10 15 20 25 30 35 40 45 50 number of members D is tr ib u ti o n (b) Degree-based 0 0.1 0.2 0.3 0.4 0.5 0.6 0 5 10 15 20 25 30 35 40 45 50 num ber of m em bers

D is tr ib u ti o n

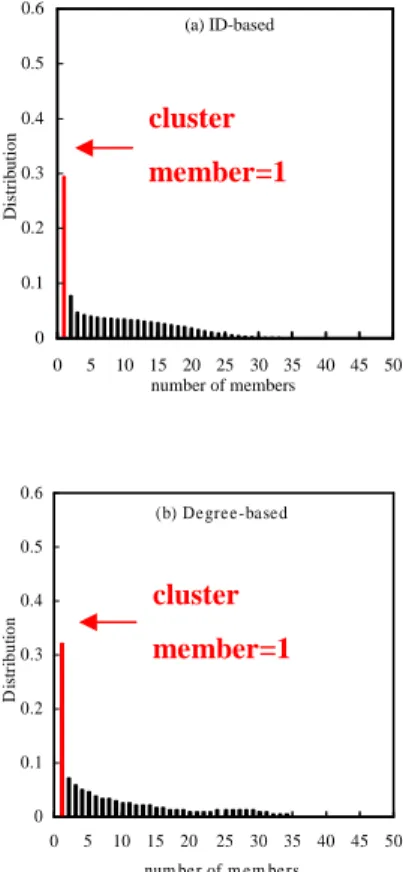

Figure 1 Distributions of the number of cluster members for clusters generated by the (a) ID-based and (b) Degree-based clustering algorithms.

(a) ID-based 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0 5 10 15 20 25 30 35 40 45 50 orphan node degree

D is tr ib u ti o n cluster member=1 cluster member=1 degree=1

(28)

(b) Degree-based 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0 5 10 15 20 25 30 35 40 45 50 orphan node degree

D is tr ib u ti o n

Figure 2 Degree distributions of the orphan nodes generated by the (a) ID-based and (b) Degree-based clustering algorithms. (a) DCA/CNF-ID 0 0.1 0.2 0.3 0.4 0.5 0.6 0 5 10 15 20 25 30 35 40 45 50 number of members D is tr ib u ti o n (b) DCA/CNF-Degree 0 0.1 0.2 0.3 0.4 0.5 0.6 0 5 10 15 20 25 30 35 40 45 50 number of members D is tr ib u ti o n

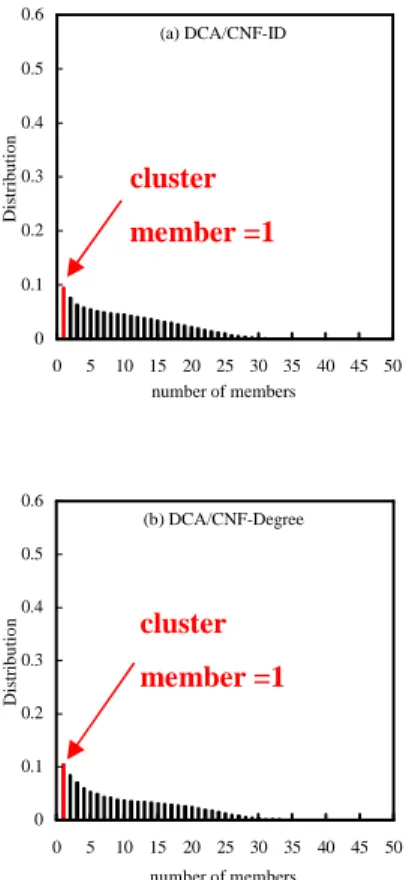

Figure 3 Distributions of the number of cluster members for the (a) DCA/CNF-ID and (b) DCA/CNF-Degree clustering algorithms.

We evaluate the performance of the DCA/CNF-ID and DCA/CNF-Degree approaches by conducting 10,000 simulations. We compare the simulation results with the ID-based and Degree-based algorithms. The service area is a 2000m×2000m square area. In each simulation, a (300,10)-connected wireless ad hoc network topology is randomly generated. Then, the ID-based, Degree-based, DCA/CNF-ID and DCA/CNF-Degree algorithms are used to organize the randomly generated

cluster member =1

(29)

network topology into a cluster-based network architecture. Figure 3 shows the distributions of the number of the cluster members for the DCA/CNF-ID and DCA/CNF-Degree approaches respectively. Comparing with the results as shown in Figure 1, we can easily find that the number of orphan clusters generated by the proposed DCA/CNF-ID and DCA/CNF-Degree approaches is greatly reduced.

(a) DCA/CNF-ID 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0 5 10 15 20 25 30 35 40 orphan node degree

D is tr ibut ion (b) DCA/CNF-Degree 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0 5 10 15 20 25 30 35 40 orphan node degree

D is tr ib u ti o n

Figure 4 Degree distributions of orphan node generated by the (a) DCA/CNF-ID and (b) DCA/CNF-Degree clustering algorithms.

In Figure 5, we show the distributions of the degree of the orphan node generated by the DCA/CNF-ID and DCA/CNF-Degree approaches respectively. Comparing with the results as shown in Figure 2, no orphan nodes are boundary nodes!! In addition, we can also find that, with higher probability, the degree of the orphan nodes generated by the DCA/CNF-ID and DCA/CNF-Degree approaches is higher than that generated by the ID-based and Degree-based clustering algorithms. This is a good news since a higher degree of an orphan node implies that more chances for the orphan node to change into non orphan node either by joining a cluster organized by its one-hop neighbor or inviting its one-hop neighbors to join the cluster that it organizes when the cluster architecture is re-organized.

(30)

0 10 20 30 40 50 60 70 80 90 100 0 5 10 15 20 25 30 35 40 45 50 number of boundary node

n u m b er o f o rp h an c lu st er ID Degree DCA/CNF-ID DCA/CNF-Degree

Figure 5 The number of generated orphan clusters.

20 35 50 65 80 95 110 125 140 0 5 10 15 20 25 30 35 40 45 50 number of boundary node

n u m . o f g en er at ed c lu st er ID_Degree DCA/CNF-ID DCA/CNF-Degree

Figure 6 The number of generated clusters.

The number of generated orphan clusters and the number of generated clusters are shown in Figure 5 and Figure 6 respectively. As stated in proposition , the number of generated orphan clusters in Figure 5 is reduced by assigning critical node the highest weight in the proposed approaches. In Figure 6, it is obviously that the number of generated clusters by the DCA/CNF-ID and DCA/CNF-Degree is reduced due to the reduction of the number of generated orphan clusters as stated in proposition.

0 200 400 600 800 1000 0 5 10 15 20 25 30 35 40 45 50 number of boundary node

v ar ia n ce ID Degree DCA/CNF-ID DCA/CNF-Degree

Figure 7 The variance of the number of cluster members.

(31)

before, due to the generated clusters are dominated by orphan clusters, the variance of the numbers of cluster members of the ID-based and Degree-based cluster algorithms are very high. On the contrary, due to the reduction of the number of generated orphan clusters, the proposed approaches reduce the variance of the number of cluster members. This figure also shows the Degree-based clustering algorithm is with the highest variance of the number of cluster members. This is because that CHs located in the dense area will have a larger number of cluster members than that located in the sparse area. 4000 6000 8000 10000 12000 14000 16000 0 5 10 15 20 25 30 35 40 45 50 number of boundary node

m ai n te n an ce o v er h ea d ID Degree DCA/CNF-ID DCA/CNF-Degree

Figure 8 The number of cluster maintenance overheads.

Figure shows the number of cluster maintenance overhead. Since the variance of the cluster members of the Degree-based clustering algorithm is much higher than the other three clustering algorithms as shown in Figure 7, according to equation and Figure 6, it has the maximum number of cluster maintenance overheads. By reducing the number of generated clusters and the variance of the cluster members, the number of cluster maintenance overheads for the proposed DCA/CNF based approaches is reduced. As a consequence, the limited battery power is conserved. Finally, from Figure to Figure , we also observe that there is only little difference between results obtained by DCA/CNF-ID and DCA/CNF-Degree approaches. Based on this observation, we suggest that if the degree information of the neighboring nodes is not available or the node degree changes very frequently due to the mobility of the nodes or the dynamics of the channel quality, the DCA/CNF-ID approach is a good approach to organize the wireless ad hoc networks. However, if the degree information for neighboring nodes is available and the disadvantage of the biased CH election criterion to the lowest ID node is concerned, the DCA/CNF-Degree approach is a better approach to organize the wireless ad hoc networks.

(32)

成果與自評

In this part, several phase noise models and the corresponding effects in OFDM and OFDMA systems are introduced. Among them, for the oscillator phase noise, we discussed the estimation of Wiener phase noise and stationary phase noise. Finally two multiuser phase noise estimation algorithms to mitigate the effects of multiple phase noise in uplink OFDMA systems are proposed. The LS approach provides acceptable performance with low complexity while the ML approach considers the second order statistics of the ICI to enhance the performance. The proposed schemes aim to compensate for CPE, the major effect of phase noise for medium to low phase noise levels where phase noise correction is applicable. Moreover, these two multiuser phase noise correction schemes are stable within a wide range of phase noise levels and applicable to any subcarrier assignment scheme, which shows its potential in practical applications.

Distributions

To achieve pervasive computing in the absence of the existing infrastructure, nodes in the service area organize themselves into a wireless ad hoc network. Due to the random locations of the nodes, the distances between nodes are random. In this part, two distance distributions are presented and used as the foundations to characterize the organized wireless ad hoc networks. Given the prior knowledge of the order of the nearest neighbors, the nearest neighbor probability distribution in the theorem provides us how to use the optimum transmitting range to connect to the k-th nearest neighbor or, equivalently, how to power-efficiently deploy a k-connected wireless ad hoc network. Based on the marginal and the joint distribution of the distances between nodes and a RN in the theorem, we analytically show that the exact node degree of the wireless ad hoc network in the shadow fading environment is a binomial distribution. With the exact distribution of node degree, we further obtain the probability of the minimum node degree of the wireless ad hoc network that is the necessary condition of the network connectivity. Our results also show that the connectivity of the

(33)

organized wireless ad hoc network in the shadow fading environment is improved due to the random fluctuation of signal strength.

This part investigates the probability distributions of the random separation distances between node pairs in the wireless ad hoc networks. By using the concept of the Euclidean distance in the 2-dimensional Euclidean space, the first probability distribution, the distribution of the Euclidean distance to the k-th nearest neighbor, is obtained. Using the technique of function of random variables, we obtain the probability distribution of the Euclidean distance between two random selected wireless nodes. Then, through the computation of the union area on the node coverage area and a unit square, we derived the marginal cdf and pdf of a wireless node pair. Since the Euclidean distances between wireless node pairs with the common reference wireless node are mutually independent, we can easily extend the marginal cdf and pdf to obtain the joint cdf and pdf of the Euclidean distances between wireless node pairs in the wireless ad hoc network with N wireless nodes that are randomly and uniformly distributed over a unit square.

To reduce the waste of precious bandwidth and the limited battery power in exchanging the cluster maintenance overheads, we propose a distributed Modified Quine-McCluskey (MQM) algorithm to organize the wireless ad hoc network into an optimal cluster-based network architecture that requires the minimum number of cluster maintenance overheads. Simulation results show that by minimizing the number of generated clusters and the variance of cluster members, the organized cluster-based network architecture requires the minimum number of cluster maintenance overheads. Thus, the optimal cluster-based network architecture is organized.

(34)

Through analyses, we find that reduction of the number of cluster maintenance overheads for a (N,B)-connected cluster-based wireless ad hoc network can be achieved by reducing the number of generated cluster and the variance of the number of the cluster members. By analyzing the cluster architectures generated by the ID-based and Degree-based clustering algorithms, we find that the number of generated cluster and the variance of the number cluster members can be reduced by reducing the number of orphan clusters generated by boundary nodes. Simulation results show that by assigning critical nodes the highest weights (or priorities) to be selected as CHs, the number of generated clusters and the variance of the number of cluster members for the cluster-based network architecture generated by the proposed DCA/CNF based approaches are reduced. As a consequence, the number of cluster maintenance overheads is reduced and the organized network architecture is power efficient.

(35)

參考資料

[1] T. Pollet, M. Van Bladel, and M. Moeneclaey, “BER sensitivity of OFDM systems to carrier frequency offset and wiener phase noise,” IEEE Trans.

Commun., vol. 43, pp. 191–193, Feb./March/April 1995.

[2] H. Steendam, M. Moeneclaey, and H. Sari, “The effect of carrier phase jitter on the performance of orthogonal frequency-division mutiple-access systems,” IEEE

Trans. on Comm., vol. 46, no. 4, pp. 456–459, Apr 1998.

[3] V. Abhayawardhana and I. Wassell, "Common phase error correction for OFDM in wireless communication," in Proc. IEEE Global Telecommun. Conf

(Globecom'02), vol. 1, Taipei, ROC, Nov. 2002, pp. 17-21.

[4] S.Wu and Y. Bar-Ness, “A phase noise suppression algorithm for OFDM based WLANs,” IEEE Commun. Lett., vol. 6, pp. 535–537, Dec. 2002.

[5] Y.-C. Liao and K.-C. Chen, “Estimation of wiener phase noise by the

autocorrelation of the ici weighting function in ofdm systems,” in Proc. Personal,

Indoor and Mobile Radio Communications (PIMRC 2005), Berlin, Gremany, Sep

2005.

[6] Z. Cao, U. Tureli, and Y.-D. Yao, “Deterministic multiuser carrierfrequency offset estimation for interleaved ofdma uplink,” IEEE Trans. on Comm., vol. 52, no. 9, pp. 1585–1594, Sep 2004.

[7] Yi-Hsueh Lin, “Phase Synchronization of Adaptive OFDM system,” Master thesis, Dept. of Communication Engineering Institute, National Taiwan University,

(36)

[8] Elena Costa, Silvano Pupolin, “M-QAM-OFDM system performance in the presence of a nonlinear amplifier and phase noise”, IEEE Trans. Comm., vol. 50, No.3, pp. 462-472, March 2002

[9] L. Piazzo and P. Mandarini, "Analysis of phase noise effects in ofdm modems,"

IEEE Trans. on Comm., vol. 50, no. 10, pp. 1696-1705, Oct 2002.

[10] R. Van Nee and R. Prasad, OFDM for Multimedia Wireless Communications. Boston, MA: Artech House, 2000.

[11] P. Robertson and S. Kaiser, “Analysis of the effects of phase noise in orthogonal frequency division multiplexing (OFDM) systems,” in Proc. ICC’95, pp.

1652–1657.

[12] B. Stantchev and G. Fettweis, “Time-variant distortion in OFDM,” IEEE

Commun. Letters, vol. 4, no. 9, pp. 312-314, Sep 2000.

[13] Z. Jianhua, H. Rohling, and Z. Ping, “Analysis of ici cancellation scheme in OFDM systems with phase noise,” IEEE Trans. on Broadcasting, vol. 50, no. 2, pp. 97-106, Jun 2004.

[14] Yi-Ching Liao, “Carrier Synchronization of OFDM Systems over Dispersive Multipath Fading Channels,” Doctor thesis, Dept. of Communication Engineering Institute, National Taiwan University, Taipei, Taiwan, Oct. 2005

[15] S. He and M. Torkelson, “Effective SNR estimation in OFDM system simulation,” in Proc. IEEE Global Telecommun. Conf. (Globecom'98), vol. 2, Nov. 1998, pp. 945-950.

[16] Y.-C. Liao and K.-C. Chen, “Multiuser Common Phase Error Estimation for Uplink OFDMA Communications,” in IEEE Wireless Communications and

Networking Conference (WCNC 2007), Mar. 2007.

[17] Air Interface for Fixed Broadband Wireless Access Systems-Amendment 2:

Medium Access Control Modifications and Additional Physical Layer Specifications for 2-11 GHz, IEEE Std. 802.16a, 2003.

(37)

[18] P. H. Moose, “A technique for orthogonal frequency division multiplexing frequency offset correction,” IEEE Trans. Commun., vol. 42, pp. 2908–2914, Oct. 1994.

[19] H. Sari, G. Karam, and I. Jeanclaude, “Channel equalization and carrier synchronization in OFDM systems,” in Proc. 1993 Tirrenia Int. Workshop on

Digital Communications 1993.

[20] M. A. Visser and Y. Bar-Ness, “OFDM frequency offset correction using an adaptive decorrelator,” in Proc. PIMRC’98, pp. 816–820.

[21] M. A. Visser, P. Zong, and Y. Bar-Ness, “A novel method for blind frequency offset correction in OFDM systems,” in Proc. CISS’32 1998, pp. 483–488, Mar. 1998.

[22] M. S. El-Tanany, Y. Wu, and L. Hazy, “Analytical modeling and simulation of phase noise interference in OFDM-based digital television terrestrial broadcasting systems,” IEEE Trans. Broadcast., vol. 47, pp. 20–31, Mar. 2001.

[23] R. A. Casas, S. L. Biracree, and A. E. Youtz, “Time domain phase noise

correction for OFDM signals,” IEEE Trans. Broadcast., vol. 48, pp. 230–236, Sep. 2002.

[24] S.Wu and Y. Bar-Ness, “A new phase noise mitigation method in OFDM systems with simultaneous CPE and ICI correction,” in Proc. MCSS’03.

[25] D. Petrovic, W. Rave, and G. Fettweis, “Phase noise suppression in OFDM including intercarrier interference,” in Proc. International OFDM Workshop, pp. 219–224.

[26] Songping Wu, Pan Liu, and Yeheskel Bar-Ness, “Phase Noise Estimation and Mitigation for OFDM Systems,” IEEE Trans. on Wireless Comm., vol. 5, no. 12, Dec. 2006.

[27] K. Nikitopoulos and A. Polydoros, "Compensation schemes for phase noise and residual frequency offset in OFDM systems," in Proc. IEEE Global Telecommun.

(38)

[28] T. Onizawa, M. Mizoguchi, T. Sakata, and M. Morikura, "A new simple adaptive phase tracking scheme employing phase noise estimation for OFDM signals," in Proc. IEEE VTC'02 Spring, vol. 3, Birmingham, AL, May 2002, pp. 1252-1256.

[29] S. He and M. Torkelson, “Effective SNR estimation in OFDM system simulation,” in Proc. IEEE Global Telecommun. Conf. (Globecom’98), vol. 2, Nov. 1998, pp. 945–950.

Distributions

[1] Mark Weiser, “The computer for the 21st century.” Scientific American 265(3), 1991.

[2] J. Z. Sun, “Mobile ad hoc networking: An essential technology for pervasive computing,” Proc. of International Conferences on Info-tech & Info-net (ICII), vol.3, p.p. 316-321, 2001.

[3] M. Frodigh, P. Johansson and P. Larsson, “Wireless ad hoc networking: the art of networking without a network,” Ericsson Review, No.4, 2000, pp. 248-263.

[4] Y. C. Cheng and T. G. Robertazzi, “Critical connectivity phenomena in multihop radio networks,” IEEE Trans. on Communications, vol. 37, no. 7, pp. 770-777, 1989.

[5] P. Gupta and P. R. Kumar, “Critical power for asymptotic connectivity in wireless networks,” Stochastic Analysis, Control, Optimization and Applications: A

Volume in Honor of W. H. Fleming, W. M. McEneany, G. Yin, and Q. Zhang (Eds.), Boston, MA: Birkhauser, 1998, pp. 547–566.

[6] C. Bettstetter, “On the connectivity of wireless multihop networks with homogeneous and inhomogeneous range assignment,” VTC'02.

(39)

[7] P. J. Wan and C. W. Yi, “Asymptotic critical transmission radius and critical neighbor number for k-connectivity in wireless ad hoc networks,” ACM MobiHoc'04.

[8] R. Hekmat and P. Van Mieghem, “Degree distribution and hopcount in wireless ad-hoc networks,” IEEE ICON'03.

[9] C. Bettstetter, “On the minimum node degree and connectivity of a wireless multihop network,” ACM MobiHoc’02.

[10] M. D. Penrose, “On k-connectivity for a geometric random graph,” Wiley Random Structures and Algorithms, vol. 15, no. 2, 1999, pp. 145-164.

[11] R. Hekmat and P. Van Mieghem, "Study of connectivity in wireless ad-hoc networks with an improved radio model," WiOpt'04.

[12] J. Ni and S. Chandler, “Connectivity properties of a random radio network,” IEE Communications, Vol. 141, pp.289-296, Aug. 1994.

[13] C. Bettstetter and C. Hartmann, “Connectivity of wireless multihop networks in a shadow fading environment,” ACM MSWiM’03, 2003.

[14] L. E. Miller, “Distribution of link distance in a wireless network,” Journal of Research of National Institute of Standards and Technology, vol. 106, pp. 401-412, March/April, 2001.

[15] L. E. Miller, “Joint distribution of link distances,” 2003 Conference on

Information Sciences and Systems, The Johns Hopkins University, March 12–14, 2003.

[16] C. C. Tseng, H. T. Chen and K. C. Chen, “On the distance distributions of the wireless ad hoc networks,” IEEE VTC 2006 Spring.

[17] D. B. West, Introduction to Graph Theory, Prentice Hall, 2001.

[18] T. Rappaport, Wireless Communications, Principles and Practice. Upper Saddle River Prentice-Hall PTR, 2002.

(40)

[19] B. Krishnamachari, S.B. Wicker, and R. Bejar, “Phase Transition Phenomena in Wireless Ad hoc Networks,” IEEE GLOBECOM'01.

[1] Y. C. Cheng and T. G. Robertazzi, “Critical connectivity phenomena in multihop radio networks,” IEEE Trans. on Communications, vol. 37, no. 7, pp. 770-777, 1989.

[2] T. K. Philips, S. S. Panwar, and A. N. Tantawi, “Connectivity properties of a packet radio network model,” IEEE Trans. on Information Theory, vol. 35, no. 5, pp. 1044-1047, 1989.

[3] P. Piret, “On the connectivity of radio network,” IEEE Trans. on Information Theory, vol.37, no. 5, pp. 1490-1492, 1991.

[4] P. Santi and D. M. Blough, “An evaluation of connectivity in mobile wireless ad hoc networks,” IEEE Proc. of the International Conference on Dependable System and Networks (DSN’02), 2002.

[5] P. Gupta and P. R. Kumar, “Critical power for asymptotic connectivity in wireless networks,” in Stochastic Analysis, Control, Optimization and Applications: A Volume in Honor of W. H. Fleming, W.M. McEneany, G. Yin, and Q. Zhang, Eds. Boston, MA: Birkhauser, 1998, pp. 547–566.

[6] P. Panchapakesan and D. Manjunath, “On the transmission range in dense ad hoc radio networks,” in Proc. SPCOMM 2001, Bangalore, India, July 2001, Paper 01-38.

[7] M. D. Penrose, “On k-connectivity for a geometric random graph,” Wiley Random Structures and Algorithms, vol. 15, no. 2, 1999, pp. 145-164.

[8] S. K. Berberian, Fundamentals of Real Analysis, Springer, 1999.

[9] H. R. Thompson, “Distribution of distance to nth neighbor in a population of randomly distributed individuals,” Ecology, vol. 37, no. 2, 1956.

(41)

[10] C. Bettstetter and C. Hartmann, “Connectivity of Wireless Multihop Networks in a Shadow Fading Environment,” ACM MSWiM’03, 2003.

[11] L. E. Miller, “Distribution of link distance in a wireless network,” Journal of Research of National Institute of Standards and Technology, vol. 106, pp. 401-412, March/April, 2001.

[12] L. E. Miller, “Joint distribution of link distances,” 2003 Conference on

Information Sciences and Systems, The Johns Hopkins University, March 12–14, 2003.

[1] M. Frodigh, P. Johansson and P. Larsson, “Wireless ad hoc networking: the art of networking without a network,” Ericsson Review, no. 4, pp. 248-263, 2000.

[2] B. Das and V. Bhargavan, “Routing in ad-hoc networks using minimum connected dominating sets,” in Proc. IEEE International Conference on Communications 1997, vol. 1, pp. 376-380.

[3] M. R. Garey and D. S. Johnson, Computers and Intractability: A Guide to The Theory of NP-Completeness. San Francisco: Freeman, 1978.

[4] J. Y. Yu and H. J. P. Chong, “A survey of clustering schemes for mobile ad hoc networks,” IEEE Commun. Surveys and Tutorials, vol. 7, no. 1, pp. 32-48, first quarter 2005.

[5] E. J. McCluskey and H. Schorr, “Minimization of Boolean functions,” Bell Syst. Tech. J., vol. 35, no. 5, pp. 1417-1444, Nov. 1956.

[6] R. Sivakumar, P. Sinha, and V. Bharghavan, “CEDAR: a core-extraction

distributed ad hoc routing algorithm,” IEEE J. Sel. Areas Commun., vol. 17, no 8, pp. 1-12, Aug. 1999.

(42)

[7] M. Gerla and J. T. C. Tsai, “Multicluster, mobile, multimedia radio network,” ACM/Baltzer J. Wireless Networks, vol. 1, no. 3, pp. 255-265, 1995.

[1] Das, B. and, Bhargavan, V., “Routing in ad-hoc networks using minimum connected dominating sets”, IEEE International Conference on Communications (ICC), Vol. 1, pp.376-380, 1997.

[2] Greay, M. R. and Johnson, D. S., Computers and Intractability: A guide to the theory of NP-Completeness, Freeman, San Francisco, 1978.

[3] Li, C. S., “Clustering in packet radio networks”, IEEE International Conference on Communications (ICC), pp. 283-287, 1985.

[4] Lian, J., Agnew, Gordon B., Nail, S., “A Variable Degree Based Clustering Algorithm for Networks”, Proceedings of The 12th International Conference on Computer Communications and Networks, 2003, (ICCCN 2003), pp. 465-470.

[5] Lin, C. H., and Gerla, M., “Adaptive clustering for mobile wireless networks”, IEEE Journal on Selected Area of Communications, Vol. 15, No. 7, pp.

1265-1275, 1997.

[6] Jiang, M. L., Li, J. Y. and Tay, Y. C., “Cluster based routing protocol (CBRP) functional specification”, IETF Internet-Draft, 1998.

http://www3.ietf.org/proceedings/98dec/slides/manet-cbrp-98dec/.

[7] Shah, M. J. and Flikkema, P. G., “Power-based leader selection in ad-hoc wireless networks”, IEEE International Performance, Computing and Communications Conference (IPCCC), pp.134-139, 1999.

(43)

[8] Basu, P., Khan, N. and Little, Thomas D. C., “A mobility based metric for clustering in mobile ad hoc networks”, IEEE International Conference on Distributed Computing Systems Workshop, pp. 413-418, 2001.

[9] Chatterjee, M., Das, S. K. and Turgut, D., “WCA: A Weighted Clustering

Algorithm for Mobile Ad Hoc Networks”, Journal of Cluster Computing (Special Issue on Mobile Ad hoc Networks), Vol. 5, No. 2, pp. 193-204, April 2002.

[10] Tseng, C. C. and Chen, K. C., “Power efficient topology control in wireless ad hoc networks”, IEEE Wireless Communications and Networking Conference (WCNC), Vol. 1, pp. 610-615, 2004.

(44)

出席國際學術會議心得報告

計畫編號 NSC 95-2219-E-002-024- 計畫名稱民生網路之前瞻研究-子計畫五:多標準共存之可調無線介接與正交分頻 (1/2) 出國人員姓名服務機關及職稱陳光禎台大電信所教授會議時間地點 2006.09.11 – 2006.09.14 芬蘭-赫爾辛基會議名稱 The 17 th

Annual IEEE-International Symposium on Personal Indoor and Mobile Radio (PIMRC 2006)

發表論文題目 Fair Adaptive Radio Resource Allocation of Mobile OFDMA 一、參加會議經過

本人此次榮幸參加於芬蘭赫爾辛基舉行之 The 17th Annual IEEE-International Symposium

on Personal Indoor and Mobile Radio (PIMRC 2006) 。PIMRC 自 1990 年起迄今每年舉辦一次，

今年為第 17 屆。此次 PIMRC 的議題為「電信的多樣性」(Diversity in Telecommunications)，是由芬蘭的三所大學所主辦。會期自九月十一日至九月十四日，為期共四天。此會收錄超過

900 篇的論文，本人也發表了 1 篇論文，題目為 Fair Adaptive Radio Resource Allocation of Mobile OFDMA。此會另有口頭報告及海報展示，是相當成功且大型的國際研討會。

有 7 個 panel sessions:

1. Impregnating Wireless Communication into People’s Life 2. Ultra (UWB)

3. Mobile IP and Mobile TV: Trends and Strategies 4. Issues in Dynamic Spectrum Management 5. Trends and Challenges

6. Cooperative Techniques for Future Wireless Communication Systems 7. Applications of Wireless Sensor Networks

(45)

2. Flexible Spectrum Usage 3. Future Wireless Technologies

有 9 個 technical sessions(A-I):

A. Business, Services and Applications

B. 3G and WLAM Evolution

C. Ad-hoc and Sensor Networks

D. Network Management

E. Cellular Network Techniques

F. Transceiver Techniques

G. MIMO Systems and Techniques

H. Modulation and Coding

I. Physical Layer and Channel Modelling

二、與會心得

參與本次會議，主要是在於發表我們的研究心得，題目是「Fair Adaptive Radio

Resource Allocation of Mobile OFDMA」，此篇論文被安排在 Track E: Cellular Network

Techniques 的 Wireless Networks I 場次最後一篇，會議是由 VTT Electronics 的 Marcos Katz 主持。除了發表我們的研究成果，有機會和出席成員討論、吸取他們的意見，綜合

如下：

1. 由會議的名稱與議程內容來看，本會議著重在一些最熱門的無限通訊技術之探

討，如 Cognitive radio network, Ad hoc network, UWB, MIMO-OFDM，且涵蓋電信多項領域，切合會議主題:電信的多樣性。而來自世界各地學術界、產業界無線通訊領域的專家學者，互相交流討論意見，對於通訊領域專業知識的提昇，以及未來研究獲益良多。

2.在這次會議中，來自台灣的論文約有四五篇，分別來自台大（兩篇）、清大與成大

民生網路之前瞻研究－子計劃五:多標準共存之可調無線介接與正交分頻(1/2)

行政院國家科學委員會專題研究計畫 期中進度報告

民生網路之前瞻研究--子計劃五:多標準共存之可調無線介

接與正交分頻(1/2)

期中進度報告(完整版)

中 華 民 國 96 年 05 月 31 日

行政院國家科學委員會補助專題研究計畫

行政院國家科學委員會補助專題研究計畫

行政院國家科學委員會補助專題研究計畫

行政院國家科學委員會補助專題研究計畫

□

□

□

□ 成 果 報 告

成 果 報 告

成 果 報 告

成 果 報 告

■

■

■

■期中進度報告

期中進度報告

期中進度報告

期中進度報告

民生網路之前瞻研究 -- 子計畫五:

多標準共存之可調無線介接與正交分頻（1/2）

計畫類別：□ 個別型計畫

整合型計畫

計畫編號：NSC 95-2219-E-002-024

執行期間： 95 年 08 月 01 日 至 96 年 07 月 31 日

計畫主持人：陳光禎 教授

共同主持人：許大山 教授

計畫參與人員：倪慶昇 廖宜慶 朱峰森 孔令宏 連紹宇 梁育嘉

杜勝元 余仲鎧 彭宇正 沈瑞欽 曾志成

成果報告類型(依經費核定清單規定繳交)：□精簡報告

完整報告

本成果報告包括以下應繳交之附件：

□赴國外出差或研習心得報告一份

□赴大陸地區出差或研習心得報告一份

出席國際學術會議心得報告及發表之論文各一份

□國際合作研究計畫國外研究報告書一份

處理方式：除產學合作研究計畫、提升產業技術及人才培育研究計畫、

列管計畫及下列情形者外，得立即公開查詢

□涉及專利或其他智慧財產權，□一年□二年後可公開查詢

執行單位：台大電信所

目 錄

中文摘要

英文摘要

前言

研究目的

研究方法

結果和討論

{

}

{ }

l

l

b

成果與自評

參考資料

出席國際學術會議心得報告

出席國際學術會議心得報告

出席國際學術會議心得報告

出席國際學術會議心得報告

行政院國家科學委員會專題研究計畫期中進度報告

中華民國 96 年 05 月 31 日

□ 成果報告

成果報告

成果報告

成果報告

執行期間： 95 年 08 月 01 日至 96 年 07 月 31 日

計畫主持人：陳光禎教授

共同主持人：許大山教授

計畫參與人員：倪慶昇廖宜慶朱峰森孔令宏連紹宇梁育嘉

杜勝元余仲鎧彭宇正沈瑞欽曾志成

目錄
