Fabrication and Characterization of Benzocyclobutene Optical Waveguides by UV Pulsed-Laser Illumination

Fabrication and Characterization of Benzocyclobutene

Optical Waveguides by UV Pulsed-Laser Illumination

Liang-Yin Chen, Student Member, IEEE, Wan-Shao Tsai, Student Member, IEEE, Wen-Hao Hsu,

Kuan-Yu Chen, and Way-Seen Wang, Member, IEEE

Abstract—Buried-type benzocyclobutene (BCB) optical waveg-uides fabricated by UV pulsed-laser illumination are proposed and comprehensively characterized in this paper. The fabrica-tion process is greatly simplified as compared to convenfabrica-tional dry-etched ridge-type BCB waveguides. The measured propa-gation loss at 1548 nm is as low as 0.6 dB/cm due to the buried waveguide structure. And the produced refractive index change is dependent upon the number of laser shots such that single-mode waveguides with different mode sizes can be tailored for efficient coupling. Furthermore, rigorous analyses of surface damage threshold, rms roughness, and chemical characteristics under different illumination conditions are presented to illustrate the design considerations and the chemical mechanism of the UV-in-duced BCB waveguides.

Index Terms—Benzocyclobutene (BCB), excimer lasers, optical polymers, optical waveguides.

I. INTRODUCTION

P

attractive for integrated optic fields, such as optical com-munication and optical interconnection due to their versatility in terms of material properties, simple fabrication process, and low cost [1]–[4]. Among various polymer materials, benzocyclobutene (BCB) has been widely used in multilayer interconnection, flat panel display, and microelectronic pack-aging, etc [5]–[8]. Due to its great material properties, including excellent planarization, low dielectric constant, low moisture absorption, low optical loss, high chemical resistance, and high thermal stability (high glass transition temperature) [9], [10], BCB has also been used for optical waveguides in recent years [11]–[13]. The major conventional fabrication methods for BCB waveguides include etching by reactive ion etching (RIE) and patterning photo-sensitive type BCB [5]. However, the etching method by RIE is more cumbersome and forms waveguides in a ridged structure, which, in general, causes higher loss due to the sidewall roughness, especially at shorter wavelengths [14]. As for the photo-sensitive BCB, a photo initiator must be added Manuscript received July 14, 2006; revised November 28, 2006. This work was supported by National Science Council, Taipei, Taiwan, R.O.C., under Con-tract NSC 95-2221-E-002-326-MY3.

L.-Y. Chen, W.-H. Hsu, and K.-Y. Chen are with the Graduate Insti-tute of Electro-Optical Engineering, National Taiwan University, Taipei, Taiwan 106, R.O.C. (e-mail: f91943031@ntu.edu.tw; hsusimon@msn.com; b89901020@ntu.edu.tw).

W.-S. Tsai is with the Graduate Institute of Electronics Engineering, National Taiwan University, Taipei, Taiwan 106, R.O.C. (e-mail: f91943030@ntu.edu. tw).

W.-S. Wang is with the Department of Electrical Engineering, National Taiwan University, Taipei, Taiwan 106, R.O.C. (e-mail: wswang@cc.ee.ntu. edu.tw).

Digital Object Identifier 10.1109/JQE.2006.890400

to the resin, and thus the preservation is much more difficult. Recently, several methods for the fabrication of waveguides without RIE process were proposed. In particular, the fabri-cation of buried-channel waveguides by direct illumination of deep-ultraviolet light through a quartz-chromium mask on polymethyl methacrylate (PMMA) has been reported [15]. The technique requires no further etching and development process and uses only a single polymer layer. For BCB, due to its strong absorption at wavelength shorter than 300 nm [14], we replaced the light source by a krypton fluorine (KrF) excimer laser of wavelength 248 nm [16]. Experimental results showed that buried-type BCB channel waveguides on silicon substrate can be successfully fabricated such that the sidewall roughness can be minimized. Moreover, BCB on silicon substrate is com-patible with the standard processing techniques of integrated circuits [17].

In this work, more results of the proposed UV-illumination method for buried-type BCB channel waveguides are reported. The uniform refractive index changes, verified by the inverse Wentzel–Kramers–Brillouin (IWKB) method [18], are varying

from 1 10 to 4 10 and dependent on the number of

laser shots, such that single-mode waveguides with different mode sizes can be tailored for efficient coupling to semicon-ductor laser diodes [19]. Furthermore, chemical properties of surface damage threshold, root-mean-square (rms) roughness, changes of chemical functional groups, and changes of atom percentages are characterized by scanning electron microscopy (SEM), atomic force microscopy (AFM), Fourier transform infrared (FTIR) spectroscopy, and X-ray photoelectron spec-troscopy (XPS) to analyze the chemical mechanism behind the UV-illumination and find the process parameters suitable for the fabrication of the waveguides.

In the next section, the process for the fabrication of buried-type BCB waveguides and the experimental setup for UV illu-mination are described. Then in Section III, results of UV-in-duced index changes, surface damage caused by pulsed-laser, and adjustable single-mode optical waveguides are presented. Moreover, chemical characteristics behind the UV-illuminated BCB and the mechanism of UV-illuminated index change are further addressed.

II. EXPERIMENTALPROCESS

The procedure for the fabrication of BCB waveguides on a sil-icon substrate is illustrated in Fig. 1. After cleaning the silsil-icon wafer, a SiO layer of thickness 7.7 m is grown on the silicon substrate as a lower cladding layer by plasma enhanced chem-ical vapor deposition. A BCB layer of 1.7 m is then spin-coated on top of the SiO layer. After soft curing in the oven, the wafer 0018-9197/$25.00 © 2007 IEEE

304 IEEE JOURNAL OF QUANTUM ELECTRONICS, VOL. 43, NO. 3, MARCH 2007

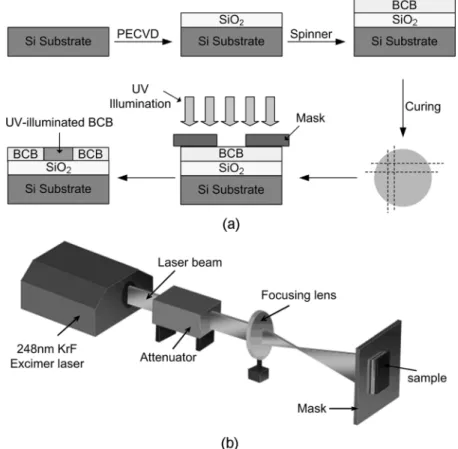

Fig. 1. Fabrication process of the buried-type BCB channel waveguides by UV illumination. (a) Process steps. (b) Experimental setup.

is put in a nitrogen flowing furnace at 250 C for 1 h. Under this condition, 98%–100% of BCB can be thermally cured [20] and the original liquid BCB monomer is now converted into polymer in a solid-state thin film. Finally, the wafer is cut into suitable sizes for UV illumination and index measurement.

The UV source used is a KrF excimer laser of wavelength 248 nm with a pulsewidth of 10 ns. The energy density of incident UV pulses before being expanded is controlled at 100 mJ/cm , and the repetition rate is set at 5 Hz. A schematic diagram of the UV-illumination setup is shown in Fig. 1(b). An attenuator is used to control the output power. A fused silica focusing lens with a focusing length of 15 cm is used to expand the laser beam size. For the ease of alignment, the sample holder is placed at a distance of three times the focal length behind the focusing lens, so that the laser beam size can be expanded large enough to cover the whole sample without the need of beam scanning. The optical path and sample stage position are then adjusted with a thermal paper to verify the uniformity of the laser beam. For an efficient illumination, contact printing is adopted through a quartz-chromium mask. The laser pulses are then allowed to pass through the mask to change the index of the illuminated BCB areas.

III. EXPERIMENTALRESULTS ANDDISCUSSION A. UV-Induced Refractive Index Changes

In the refractive index measurement, a prism coupler (Met-ricon 2010) is used. All samples are measured before UV-il-lumination to get original indexes as references. Two sets of measured samples are used to verify the repeatability of the

method. For each sample, three independent measurements are made and the averages are found. Based on Metricon 2010 op-eration guide and several measurements of standard samples, of which the index values are already known, an index accuracy of 0.001 can be verified. Results show that the errors (dif-ference between measured values and averages) are all smaller than 0.0003, which shows good accuracy in our measurement. Fig. 2 shows the averages with error margins of refractive index changes induced by different numbers of laser shots. When less than 100 laser shots are illuminated, the index changes increase rapidly with the number of laser shots and then slow down grad-ually. When the number of laser shots is greater than 300, index changes tend to be constant. Moreover, the index changes are weakly dependent on wavelength and almost independent of po-larization. From our experience, the measured refractive index change can be suitably fitted to an equation as given by

(1)

where is the number of laser shots and , , and are

fitting parameters as listed in Table I.

In order to verify the index distribution of BCB films, prism measurements followed by the IWKB method implantation are adopted, which is a general method for index profiling of an optical waveguide. For this measurement, another thicker BCB film is prepared, in which waveguides supporting multimodes are required. In the index measurement, a film thickness of 6.7 m and 11 modal effective indices are obtained

Fig. 2. Measured index changes versus number of laser shots for TE and TM polarization at (a) 632.8 nm and (b) 1548 nm.

TABLE I FITTINGPARAMETERS

by the prism coupler. The adopted IWKB method is given in [18], which is used to retrieve the shape of the index profile from the measured modal effective indices. The approximation is for index profile of decreasing monotonically from the sur-face. When an index profile of step distribution is performed, the approximation overshoots near the turning point. A test of the step-index distribution of an entire un-illuminated BCB film on a silica layer is done first as shown in Fig. 3(a). Based on the analysis in [18], the overshoots near the turning point represent a step-index distribution and the film thickness agrees with the value measured by the prism coupler. After an illumination of 100 laser shots, the profile is shown in Fig. 3(b), in which the induced index change of entire BCB film is 4 10 and re-veals a step-profile distribution. The verified step-index profile caused by UV-illumination indicates that the UV illumination on BCB is promising for making deep grating on the film. B. Surface Damage and Propagation Loss of BCB Film

As laser beam traces appear on BCB films when over 500 laser shots are illuminated, laser-caused surface damage on il-luminated samples is of interest to be investigated by SEM and

Fig. 3. Index profiles of 6.7-m BCB films illuminated by (a) 0 shot and (b) 100 shots.

Fig. 4. SEM photos of BCB films illuminated by (a) 200 shots and (b) 1000 shots.

AFM. Results show that the surfaces of BCB films with less than 100 laser shots are almost the same as that without any laser shot. As a BCB film is illuminated with more than 100 laser shots, surface damage emerges due to the accumulation of high energy within a short time on the polymer material. Fig. 4(a) is the photo at higher magnification, and we can see that the pat-terns of waveguides are slightly puffed up after 200 laser shots are illuminated. For more numbers of laser shots, e.g., 1000 laser shots, damages are clearer such that the raised structure can be easily observed at lower magnification shown in Fig. 4(b).

306 IEEE JOURNAL OF QUANTUM ELECTRONICS, VOL. 43, NO. 3, MARCH 2007

Fig. 5. Three-dimensional AFM images of BCB films illuminated by (a) 0 shot, (b) 30 shots, (c) 100 shots, and (d) 1000 shots.

To further investigate the UV-illuminated BCB surface, rms roughness values of BCB films are inspected by AFM. In order to improve the accuracy of the measurement, twelve samples are prepared. For each number of laser shots (i.e., 0, 30, 100, and 1000), three samples are measured. And the measurement is performed twice for each sample. The three-dimensional images scanned by contact-mode in an area of 5 5 m are shown in Fig. 5. The rms roughness of the un-illuminated sample is 0.512 nm. For samples with 30 and 100 laser shots, the rms roughness values are 0.703 and 0.892 nm, respectively. The percentage of standard deviations are 4.32%, 5.36%, and 5.33% corresponding to the measured rms roughness values 0.512, 0.703, and 0.892 nm, respectively. Experimental results show that the rms roughness values of samples with below 100 laser shots are less than 0.9 nm, which are small enough for practical application. When 1000 laser shots are illuminated on the sample, the rms roughness abruptly increases to more than 2.300 nm with a deviation of 6.07%. This reveals the more the laser shots are illuminated, the more serious the surface damage is. According to the examination results of SEM and AFM, less than 100 laser shots are chosen to prevent material surface from being seriously damaged for all fabrications of optical waveguides.

The propagation loss is measured by transmission method [21]. This method avoids sample cutting and moving, so in-evitable experimental inaccuracies can be reduced. In the mea-surement, planar waveguides and two sets of channel waveg-uides are both used. For each set, four samples with 30, 50, 70, and 100 laser shots are measured. For each sample, more than two waveguides are measured. The measured propagation loss of planar waveguide is 0.41 dB/cm with an error margin of 0.15 dB/cm, which represents the difference between the

TABLE V

RELATIONBETWEENDEGREE OFCURE ANDINDEX OFBCB FILM

Fig. 6. Measurement setup for optical waveguides.

TABLE II

CUT-OFFCONDITIONS OF THEBURIED-TYPESINGLE-MODECHANNEL

WAVEGUIDES

maximum and minimum loss. The measured propagation losses of channel waveguides at 1548 nm appear to be the same with different numbers of laser shots due to the small difference of damage caused by the laser shots. The average loss is estimated to be 0.6 dB/cm with an error margin of 0.2 dB/cm, which is just a little higher than that of planar waveguides.

The propagation loss is smaller than that of ridge-type BCB waveguides at wavelengths of 1300 [5] and 1548 nm [12], and even far smaller than that of ridge-type epoxy/BCB waveguides (2 dB/cm) [8]. That indicates the propagation losses of the pro-posed buried-type BCB channel waveguides are smaller. C. Adjustable Single-Mode Optical Waveguides

To find the cut-off conditions of single-mode channel waveg-uides at 1548 nm, a series of wavegwaveg-uides with different mask widths and laser shots are prepared. The measurement setup of optical fields is shown in Fig. 6. The results are listed in Table II. As can be seen, a waveguide of width 8 m supporting only single-mode can be fabricated with as few as 10 laser shots. However, for waveguides of narrower widths, such as 6 and 4

TABLE III

POWERINTENSITYCONTOURS ANDFWHMS OFSINGLE-MODECHANNELWAVEGUIDESWITHDIFFERENTWIDTHS

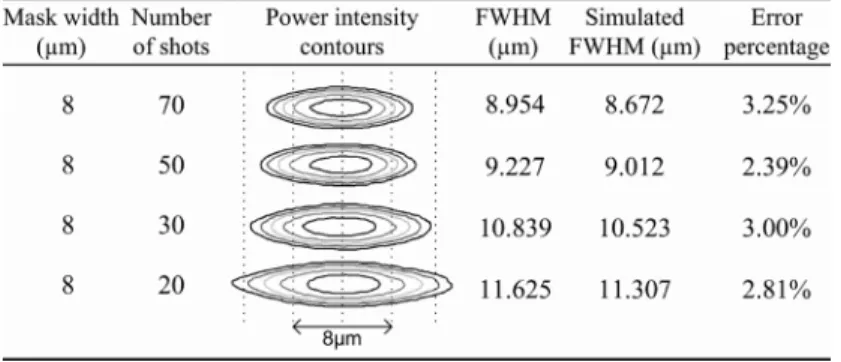

TABLE IV

POWERINTENSITYCONTOURS ANDFWHMS OFSINGLE-MODECHANNELWAVEGUIDESINDUCED BYILLUMINATINGDIFFERENTNUMBERS OFLASERSHOTS

m, the minimum numbers of laser shots are increased to be 30 and 70, respectively. As for the waveguide of width 2 m, 200 laser shots are needed to support single-mode but the surface damage is too serious to be useful. Moreover, by the proposed UV-illumination method, different mode sizes can be easily obtained without further lithography and etching process. Based on the step-index profile, the simulated full-width at half-maximum (FWHM) of mode profiles are calculated for comparison. Table III shows measured modal power inten-sities, FWHMs, and simulated FWHMs of waveguides with different mask widths but illuminated with the same number of laser shots. We can see that the widths of optical power intensities are widened gradually from 4 to 8 m, yet with a uniform height of about 1.7 m. This shows the stability of the proposed method and that the UV pulses have been uniformly expanded for illumination. In addition, the measured FWHMs are close to the calculated ones. The maximum error is 3.25%, which shows good reproducibility of the fabrication method. Similarly, Table IV shows measured modal power intensities, FWHMs, and simulated FWHMs of waveguides with the same width of 8 m but fabricated with different numbers of laser shots. It can be seen that the optical confinement becomes better with increasing number of laser shots. Thus, waveguide mode sizes with different aspect ratios can be easily adjusted by the proposed UV-illumination method for higher coupling efficiency in optical interconnection [19].

Moreover, by the performance of directional couplers, the ex-tent of lateral diffusion of is estimated to be 0.3 m, which is small enough for practical application. The details of the per-formance of the directional coupler will be reported in the near future.

Fig. 7. IR absorption spectra under different curing conditions. (a) 210 C for 40 min. (b) 250 C for 1 h. (c) 280 C for 2 h.

D. Chemical Characterizations of BCB Film

In order to investigate the effect of the number of laser shots on index change, which related to the chemical mech-anism behind the proposed UV-illumination, FTIR and XPS are examined to analyze the BCB films. In accordance to [20] and [22], the thermal curing process of BCB proceeds with a ring opening and then is followed by a Diels–Alder reaction. And the degree of cure in polymer is a function of temperature and time. Experimental results obtained under three different curing conditions (210 C for 40 min, 250 C for 1 h, and 280 C for 2 h) are shown in Fig. 7 and Table V. It can be seen in Fig. 7, with an increasing of temperature and curing time, the peaks at 1475 and 980-970 cm disappear but the peak at 1500 cm becomes noticeable. The three

308 IEEE JOURNAL OF QUANTUM ELECTRONICS, VOL. 43, NO. 3, MARCH 2007

Fig. 8. IR absorption spectra of BCB films illuminated by different numbers of laser shots. (a) Whole spectra. (b) Local enlarged spectra for O–H bonds signal. (c) Local enlarged spectra for C=O bonds signal.

peaks represent the reacting BCB group, trimethylene oxide, and tetahydronaphthalene, respectively [22]. The first two functional groups exist in BCB monomers and the last one exists in BCB polymers only. Due to the higher degree of the thermal curing process, more major functional groups of BCB monomer such as reacting BCB group and trimethylene oxide are reduced, and, on the contrary, the peak of tetahy-dronaphthalene become more noticeable. Table V shows that indices of BCB films decrease with an increasing degree of cure, which is opposite to that found in UV-illumination. This indicates the proposed UV-illumination is not an additional curing process. After polymerization at 250 C for 1 h, the infrared absorption spectrum of an un-illuminated BCB film measured by FTIR is shown in Fig. 8(a). The information of functional groups can be referenced in [23], such as C–H bond

in benzene (3050–2840 cm ), Si– bond (1253 cm ),

Si–O–Si bond (1090–1020 cm ), and Si- groups

( or 3) (860–760 cm ). A series of samples with dif-ferent numbers of laser shots (i.e., 0, 10, 30, 50, 100, 200, 300, 500, 700, 800, and 1000) are measured by FTIR. In particular, the spectra of samples with 0, 100, 300, 700, and 1000 laser shots are shown in Fig. 8. We can see that the intensities of the two wavenumber regions become higher when the number of laser shots increases. The first region around 3300 cm (3650–3100 cm ) reveals the signals of various O–H bonds,

TABLE VI

ATOMPERCENTAGES OFSAMPLESWITHDIFFERENTNUMBERS OFLASERSHOTS

and the second one (1870–1550 cm ) stands for various types of C O bonds. Compared to the absorption spectrum of an un-illuminated BCB film, the two specific wavenumber regions can be enlarged as shown in Fig. 8(b) and (c). Clearly, the inten-sities of samples with less than 100 laser shots increase slightly, but grow faster with less than 300 laser shots. For 300 to 1000 laser shots, the increase of intensities becomes slower and tends to be saturated. The variation of the IR absorption spectrum in-tensity with the number of laser shots corresponds to the similar variation of the induced index changes as mentioned before. Moreover, un-illuminated BCB films and samples with 30, 100, and 1000 laser shots are measured by XPS. Major atoms such as C(1s), O(1s), and Si(2p) in BCB material are analyzed. The atomic percentages of samples with different laser shots are

listed in Table VI. As compared to the percentages of carbon and silicon atoms, the percentages of oxygen atom increase gradually from 3.25%, 3.67%, 6.40%, to 7.62% corresponding to 0, 30, 100, and 1000 laser shots, respectively, which also supports the results of added C O bonds and H–O bonds in the FTIR measurement.

As the UV pulsed-laser is illuminated on the BCB film, oxygen atoms get into BCB material and link up with carbon and hydrogen atoms to form C O and H–O bonds. With an increasing number of laser shots, the UV-assisted chemical reaction proceeds rapidly at the beginning and slows down gradually over 200 laser shots. When more than 300 laser shots are used, the reaction becomes saturated due to a less number of free carbon and hydrogen atoms in the BCB polymer. With this chemical mechanism, the index change dependent on the number of laser shots can be understood.

IV. CONCLUSION

In this paper, buried-type single-mode BCB optical waveg-uides fabricated by the UV pulsed-laser illumination method are proposed and comprehensively characterized. The fabrication method can not only simplify the fabrication process as re-quiring no further lithography and dry etching process, but also form buried-type channel waveguides to reduce propagation loss caused by sidewall roughness in conventional ridge-type channel waveguides. The measured propagation loss, 0.6 dB/cm at 1548 nm, is indeed lower than that of ridge-type BCB waveguides. The proposed method also provides a uniform step-like refractive index profile. Due to the flexibility, single-mode waveguides with different aspect ratios can be optimized for coupling into laser diodes to improve the coupling efficiency. Furthermore, the chemical mechanism behind the UV-illumination is carefully studied. Surface damage and rms roughness are inspected to locate the surface damage threshold of less than 100 laser shots. The chemical mechanism is further qualitatively analyzed to find that the appearances of O–H bonds and C O bonds after UV-il-lumination induce the index change, and the changing tendency of functional groups is along with the saturation phenomenon of index change with respect to number of laser shots. In the meanwhile, oxygen atom percentage of BCB polymer is also found from 3.25% to 7.62% corresponding to 0 shot and 1000 shots by XPS, which supports the results of FTIR. As compared to conventional methods for the fabrication of BCB waveguides, the proposed UV pulsed-laser illumination method is simpler, more flexible, and more suitable for fabricating waveguides of lower propagation loss. Details of the application of the proposed method for the fabrication of BCB optical devices will be of great interest in the future.
