Ultra-High-Density InGaN Quantum Dots Grown by Metalorganic Chemical Vapor Deposition

View the table of contents for this issue, or go to the journal homepage for more 2004 Jpn. J. Appl. Phys. 43 L264

(http://iopscience.iop.org/1347-4065/43/2B/L264)

Ultra-High-Density InGaN Quantum Dots Grown by Metalorganic Chemical Vapor Deposition

Ru-Chin TU, Chun-Ju TUN1, Chang-Cheng CHUO, Bing-Chi LEE2, Ching-En TSAI, Te-Chung WANG, Jim CHI, Chien-Ping LEE2 and Gou-Chung CHI1

Opto-Electronics and System Laboratories, Industrial Technology Research Institute, Hsinchu, Taiwan 310, Republic of China

1_{Institute of Optical Science, National Central University, Chung-Li 32054, Taiwan, Republic of China}

2_{Department of Electronic Engineering, National Chiao Tung University, Hsinchu, Taiwan 30050, Republic of China}

(Received August 28, 2003; accepted September 30, 2003; published February 6, 2004)

This study examined how the duration of SiNx treatment on an underlying GaN layer affects the optical property, surface

morphology and density of following InGaN quantum dots (QDs). InGaN QDs with extremely high density of near 3  1011_cm 2_{exhibited strong photoluminescence (PL) emission at room temperature (RT). Increasing the duration of the SiN}

x

treatment of the underlying GaN layer, the RT-PL peak of the following InGaN nano-islands and QDs was found to be red-shifted from the violet to the greenish region, and the spectrum was broadened. Additionally, the average height of InGaN nano-islands and QDs increased with the duration of SiNxtreatment, explaining the redshift of the RT-PL peak.

[DOI: 10.1143/JJAP.43.L264]

KEYWORDS: InGaN, quantum dot, density, SiNx, photoluminescence, atomic force microscopy

GaN and related materials are currently the subjects of intense research due to their applications in laser diodes (LDs) and light-emitting diodes (LEDs) that operate between the ultraviolet and the visible regions.1) InGaN/GaN quantum wells (QWs) structures have successfully been used as the active layers in LEDs and LDs.1)However, the threshold current density is high for LDs with InGaN QWs structures. Having quantum dots (QDs) instead of QWs as the active layer is expected to improve the performance of LDs. LDs with QDs structures in the active layer have been theoretically predicted to have superior characteristics, including lower threshold currents and narrow spectra.2) Moreover, because of the localization of carriers trapped at dislocations, QDs structures have been expected to increase the efficiency of the luminescence of LDs.3) _{To ensure} suitability for QDs laser applications, QDs layers with high spatial density and of uniform size must be grown.4)Several approaches have been investigated for fabricating InGaN QDs, including the Stranski-Krastanow growth mode5,6)and growth using anti-surfactant.7,8) The deposition of silicon anti-surfactant or a SiNxnano-mask alters the morphology of the AlGaN films from that of step flow to that of a three-dimensional island, facilitating the formation of GaN7)_QDs and InGaN QDs8)_{on the AlGaN.}

This study investigates the optical property, the surface morphology and the density of InGaN QDs following different durations of SiNx treatment on the underlying GaN layer before the InGaN layers were deposited. InGaN QDs with a very high density of near 3  1011_cm 2 _and strong photoluminescence (PL) intensity were obtained. Adjusting the duration of the SiNx treatment of the under-lying GaN layer was found to shift the room temperature (RT)-PL peak from the violet to the greenish region and to broaden the spectrum. The relationship between the average height and the PL-peak wavelength of InGaN nano-islands and QDs is also addressed.

Eight InGaN samples that had undergone different durations of SiNx treatment of the underlying GaN layer before the InGaN layer was deposited, were grown on c-face sapphire substrates by metalorganic vapor phase epitaxy (MOVPE).9–11) _{A 300
A-thick low-temperature GaN}

nucle-ation layer was first grown at 550_{C. Then, the reactor} temperature was increased to 1000_{C to grow a 2 mm-thick} underlying Si-doped GaN underlying layer, providing a step-flow grown surface as confirmed by atomic force microsco-py (AFM). Then, a rough SiNxlayer with varying thickness (or different durations of SiNxtreatment) was grown on the n-type GaN underlying layer. During the treatment of the SiNxlayer, the flow rates of NH3and the diluted Si2H6were 5 slm and 50 sccm, respectively. The temperature was then ramped down to 800_{C to grow the In}

xGa1 xN layers. As soon as the InGaN layers deposition was complete, the growth temperature was reduced to room temperature. During the growth of the InGaN layers, the vapor phase ratio TMIn/(TMIn+TEGa) was fixed at 0.35. Additional eight InGaN layers capped with a 10 nm un-doped GaN layer, were grown to investigate the optical property of the InGaN layers. The detailed growth conditions of InGaN samples that had undergone various durations of SiNx treatment of the GaN were examined, as listed in Table I. The optical characteristics of these eight epitaxial samples were evaluated using RT-PL with a low 5 mW HeCd laser operated at 325 nm. The surface morphology of all samples grown was characterized by AFM. Scans were performed over a surface area of 500 nm, using a Digital Instruments Nanoscope with a sharpened Si3N4 tip.

Figures 1(a)–1(f) show AFM images of the surface morphology of the samples QW-A, QD-B, QD-C, QD-D, QD-E and QD-G, respectively. Figure 1(a) shows a surface with a step-like pattern, but a slightly rough 20 monolayers (MLs) InGaN layer that had not undergone any SiNx treatment of the GaN surface. In contrast, Figs. 1(b)–1(f) show that the morphology of the surfaces changes from that of network-like nano-islands to sharp QDs as the duration of the SiNx treatment increases. Therefore, three-dimensional growth was observed on the samples that had undergone SiNx treatment (or to which Si was applied as an anti-surfactant) and the formation of InGaN QDs could be controlled by just increasing the duration of the SiNx treatment. Notably, as the duration of the SiNx treatment increased from 390 to 420 s, the average height and the dot density of InGaN QDs were estimated to increase approx-imately from 3.6 to 4.1 nm and from 2:1  1011_cm 2 _to 2:9  1011_cm 2_{, respectively.}

_{E-mail address: RuChinTU@itri.org.tw}

Japanese Journal of Applied Physics Vol. 43, No. 2B, 2004, pp.L 264–L 266

#2004 The Japan Society of Applied Physics

InGaN QDs, capped with a 10 nm GaN layer grown at the same temperature as the InGaN QDs, were grown to investigate the optical properties of InGaN QDs. Figure 2 shows the corresponding normalized RT PL spectra from the samples QW-A, QD-B, QD-C, QD-D, QD-E and QD-G. The inset in Fig. 2 presents the approximate RT-PL-peak wavelength of the InGaN QDs samples as the duration of SiNx treatment increases. The RT-PL-peak wavelength of the InGaN QDs samples is red-shifted as the duration of SiNx treatment increases. As listed in Table I, the average heights of the InGaN nano-islands and QDs were approx-imately estimated from the increase in AFM from 0.8 nm to 4.1 nm as the duration of the SiNxtreatment increased from 240 to 420 s. The redshift as the duration of the SiNx treatment increased could be attributed to the increasing height of the QDs (or nano-islands) due to quantum effects. For comparison, the RT-PL emission of the InGaN QW-A sample with an estimated thickness of 5 nm (20 MLs), based on growth rate, was much weaker than those of the nano-islands and QDs, indicating that the efficiency of lumines-cence was increased by the additional carrier confinement in the nano-islands and QDs samples.

Next, the dependence of the InGaN QDs’ properties on the amount of InGaN deposited was examined. Figures 3(a)– 3(c) show AFM images of the surface morphology of the InGaN QDs samples QD-F, QD-G and QD-H, respectively.

Table I. Detailed growth conditions of InGaN samples investigated in this study. Sample SiNx InGaN QDs PL Peak Wavelength QDs

QDs Density No. Treatment Time Deposition (with 10 nm GaN Cap) Height

QW-A 0 s 20 MLs NA NA NA QD-B 240 s 20 MLs 435 nm 0.8 nm NA QD-C 320 s 20 MLs 445 nm 1.8 nm NA QD-D 360 s 20 MLs 465 nm 2.7 nm NA QD-E 390 s 20 MLs 480 nm 3.7 nm 2:1  1011_cm 2 QD-F 420 s 10 MLs 458 nm NA NA QD-G 420 s 20 MLs 495 nm 4.1 nm 2:9  1011_cm 2 QD-H 420 s 30 MLs 510 nm 6.0 nm 1:9  1011_cm 2 (b) (a) QD-B QW-A (c) QD-C QD-D (e) QD-E (f) QD-G 0 500nm (d)

Fig. 1. 500 nm  500 nm AFM images of InGaN layers with (a) 0 s, (b) 240 s, (c) 320 s, (d) 360 s, (e) 390 s, and (f) 420 s of SiNxtreatment on the

underlying GaN layers.

350 400 450 500 550 600 650 700 Measured at RT QW-A GaN Band-edge D E G C QD-B YL QW-A+Cap (X235) QD-B+Cap (X1) QD-C+Cap (X2) QD-D+Cap (X2) QD-E+Cap (X2) QD-G+Cap (X10)

Normalized Intensity (a.u.)

Wavelength (nm)

SiNx treatment duration (sec)

Peak Wavelength (nm)

Fig. 2. Normalized RT PL spectra from the samples QW-A, B, QD-C, QD-D, QD-E and QD-G. The inset plots the approximate RT-PL-peak wavelength with increasing duration of SiNxtreatment.

The corresponding amounts of InGaN deposited in the samples QD-F, QD-G and QD-H, are 10, 20 and 30 MLs, respectively, at a fixed gas flow rate, growth temperature and SiNx treatment duration of 420 s. At 10 MLs, only network-like nano-islands, but no dots were formed. InGaN QDs were formed when 20 MLs of InGaN were deposited, and the QDs density was then 2:9  1011cm 2. At 30 MLs, the InGaN QDs density decreased to 1:9  1011cm 2. The decline in the density of QDs with the increase in the amount of InGaN deposited from 20 to 30 MLs could be attributed to the merging of two or three small QDs into one bigger single one. Figure 4 presents the corresponding RT PL of the InGaN QDs samples QD-F, QD-G and QD-H. As shown in Table I, the average height of the InGaN nano-islands and QDs was estimated approximately from the increase in AFM from 4.1 to 6.0 nm as the amount of InGaN QDs increased from 20 to 30 MLs. The inset in Fig. 4 also presents the approximate RT-PL-peak wavelength as the amount of InGaN deposited increased. Therefore, the red-shift that occurred as the amount of InGaN deposited increased, could be attributed to heightened nano-islands and QDs, due to quantum effects.

In conclusion, this study has investigated the optical properties, surface morphology, and density of InGaN QDs

that had undergone different durations of SiNxtreatment of the underlying GaN layer, before the InGaN layers were deposited. InGaN QDs with very high densities of near 3  1011_cm 2 _{and high RT PL intensity were obtained.} Increasing the duration of the SiNx treatment of the GaN layer red-shifted the RT-PL peak of the InGaN nano-islands and QDs from the violet to the greenish region, and broadened the spectrum. Additionally, the average height of the InGaN nano-islands and QDs increased with the duration of the SiNxtreatment, explaining the red-shift of the RT-PL peak.

1) S. Nakamura and G. Fasol: The Blue Laser Diode (Springer, Heidelberg, 1997).

2) C. Adelmann, J. Simon, G. Feuillet, N. T. Pelekanos and G. Fishman: Appl. Phys. Lett. 76 (2000) 1570.

3) B. Damilano, N. Grandjean, S. Dalmasso and J. Masies: Appl. Phys. Lett. 75 (1999) 3751.

4) D. Bimberg, M. Grundmann and N. N. Ledentsov: Quantum Dot Heterostructures (Wiley, England, 1999).

5) K. Tachibana, T. Someya and Y. Arakawa: Appl. Phys. Lett. 74 (1999) 383.

6) B. Daudin, F. Widmann, G. Feuillet, Y. Samson, M. Arlery and J.-L. Rouvie`re: Phys. Rev. B 56 (1997) R7069.

7) S. Tanaka, S. Iwai and Y. Aoyagi: Appl. Phys. Lett. 69 (1996) 4096. 8) H. Hirayama, S. Tanaka, P. Ramvall and Y. Aoyagi: Appl. Phys. Lett.

72(1998) 1736.

9) R.-C. Tu, C.-J. Tun, J. K. Sheu, W.-H. Kuo, T.-C. Wang, C.-E. Tsai, J.-T. Hsu, J. Chi and G.-C. Chi: IEEE Electron. Device Lett. 24 (2003) 206.

10) R.-C. Tu, C.-J. Tun, S.-M. Pan, C.-C. Chuo, J. K. Sheu, C.-E. Tsai, T.-C. Wang and G.-T.-C. Chi: IEEE Photon. Technol. Lett. 15 (2003) 1342. 11) R.-C. Tu, C.-J. Tun, S.-M. Pan, H.-P. Liu, C.-E. Tsai, J. K. Sheu, C.-C. Chuo, T.-C. Wang, G.-C. Chi and I.-G. Chen: IEEE Photon. Technol. Lett. 15 (2003) 1050. QD-G (a) QD-F (b) (c) QD-H 0 500nm

Fig. 3. 500 nm  500 nm AFM images of InGaN layers for the deposition of (a) 10 MLs, (b) 20 MLs, and (c) 30 MLs.

350 400 450 500 550 600 650 700

Room-temperature PL Intensity (a.u.)

Wavelength (nm)

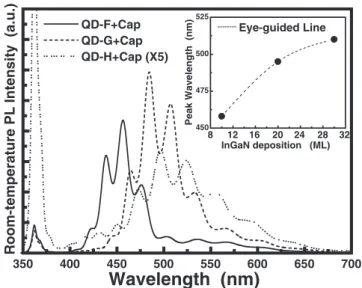

Fig. 4. RT PL spectra of the InGaN QDs samples F, G and H. The inset plots the approximate RT-PL-peak wavelength as the amount of InGaN deposited is increased.
