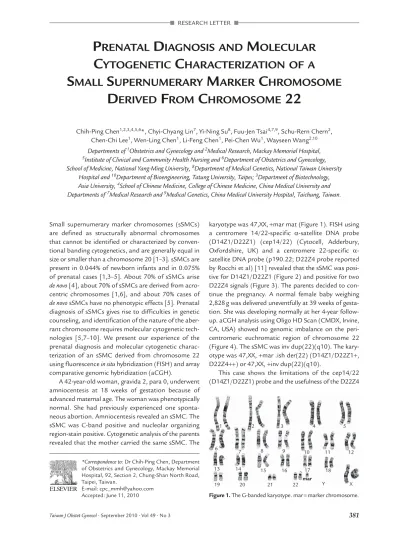

Taiwan J Obstet Gynecol • September 2010 • Vol 49 • No 3 381 ■ RESEARCH LETTER ■
Small supernumerary marker chromosomes (sSMCs) are defined as structurally abnormal chromosomes that cannot be identified or characterized by conven-tional banding cytogenetics, and are generally equal in size or smaller than a chromosome 20 [1–3]. sSMCs are present in 0.044% of newborn infants and in 0.075% of prenatal cases [1,3–5]. About 70% of sSMCs arise
de novo [4], about 70% of sSMCs are derived from
acro-centric chromosomes [1,6], and about 70% cases of
de novo sSMCs have no phenotypic effects [5]. Prenatal
diagnosis of sSMCs gives rise to difficulties in genetic counseling, and identification of the nature of the aber-rant chromosome requires molecular cytogenetic tech-nologies [5,7–10]. We present our experience of the prenatal diagnosis and molecular cytogenetic charac-terization of an sSMC derived from chromosome 22 using fluorescence in situ hybridization (FISH) and array comparative genomic hybridization (aCGH).
A 42-year-old woman, gravida 2, para 0, underwent amniocentesis at 18 weeks of gestation because of advanced maternal age. The woman was phenotypically normal. She had previously experienced one sponta-neous abortion. Amniocentesis revealed an sSMC. The sSMC was C-band positive and nucleolar organizing region-stain positive. Cytogenetic analysis of the parents revealed that the mother carried the same sSMC. The

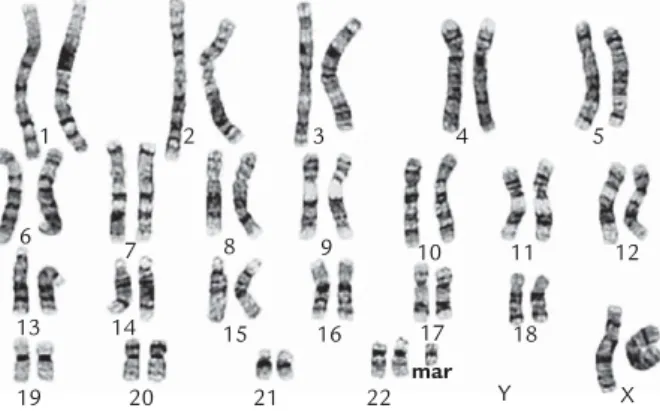

karyotype was 47,XX,+mar mat (Figure 1). FISH using a centromere 14/22-specific α-satellite DNA probe (D14Z1/D22Z1) (cep14/22) (Cytocell, Adderbury, Oxfordshire, UK) and a centromere 22-specific α-satellite DNA probe (p190.22; D22Z4 probe reported by Rocchi et al) [11] revealed that the sSMC was posi-tive for D14Z1/D22Z1 (Figure 2) and posiposi-tive for two D22Z4 signals (Figure 3). The parents decided to con-tinue the pregnancy. A normal female baby weighing 2,828 g was delivered uneventfully at 39 weeks of gesta-tion. She was developing normally at her 4-year follow-up. aCGH analysis using Oligo HD Scan (CMDX, Irvine, CA, USA) showed no genomic imbalance on the peri-centromeric euchromatic region of chromosome 22 (Figure 4). The sSMC was inv dup(22)(q10). The kary-otype was 47,XX, +mar .ish der(22) (D14Z1/D22Z1+, D22Z4++) or 47,XX, +inv dup(22)(q10).
This case shows the limitations of the cep14/22 (D14Z1/D22Z1) probe and the usefulness of the D22Z4
P
RENATAL
D
IAGNOSIS AND
M
OLECULAR
C
YTOGENETIC
C
HARACTERIZATION OF A
S
MALL
S
UPERNUMERARY
M
ARKER
C
HROMOSOME
D
ERIVED
F
ROM
C
HROMOSOME
22
Chih-Ping Chen1,2,3,4,5,6*, Chyi-Chyang Lin7, Yi-Ning Su8, Fuu-Jen Tsai4,7,9, Schu-Rern Chern2, Chen-Chi Lee1, Wen-Ling Chen1, Li-Feng Chen1, Pei-Chen Wu1, Wayseen Wang2,10
Departments of 1Obstetrics and Gynecology and 2Medical Research, Mackay Memorial Hospital, 5Institute of Clinical and Community Health Nursing and 6Department of Obstetrics and Gynecology,
School of Medicine, National Yang-Ming University, 8Department of Medical Genetics, National Taiwan University
Hospital and 10Department of Bioengineering, Tatung University, Taipei; 3Department of Biotechnology, Asia University, 4School of Chinese Medicine, College of Chinese Medicine, China Medical University and
Departments of7Medical Research and 9Medical Genetics, China Medical University Hospital, Taichung, Taiwan.
*Correspondence to: Dr Chih-Ping Chen, Department
of Obstetrics and Gynecology, Mackay Memorial Hospital, 92, Section 2, Chung-Shan North Road, Taipei, Taiwan. E-mail: [email protected] Accepted: June 11, 2010 1 6 13 14 15 19 20 21 22 mar Y X 16 17 18 7 8 9 10 11 12 2 3 4 5
(p190.22) probe and aCGH in the identification of an sSMC derived from chromosome 22. The cep14/22 probe, along with cep13/21 and cep15, can be used for the rapid identification of an acrocentric chromosome-derived sSMC with positive C-banding and nucleolar organizing region-staining. However, cep14/22 recog-nizes the centromeres of both chromosomes 14 and 22. In contrast, the alphoid p190.22 (D22Z4) probe
specifically recognizes the centromere of chromosome 22 under high stringency hybridization conditions [11], and is therefore useful for differentiating between chromosomes 22 and 14 when the sSMC is hybridized with cep14/22 (D14Z1/D22Z1). Other chromosome 22 centromere-specific probes include p22/1:2.1 (D22Z2) [12] and D22Z3 [13,14]. aCGH has the ability to detect DNA dosage imbalances, including deletions
Taiwan J Obstet Gynecol • September 2010 • Vol 49 • No 3 382 C.P. Chen, et al 22 mar 14 14 22
Figure 3.Fluorescence in situ hybridization using an α-satellite probe D22Z4 showing positive hybridization signals on two chromosomes 22 and the marker chromosome (mar). The marker chromosome contains two positive signals for D22Z4. Genes q11.21 q11.23 q12.1 q12.2 q12.3 q13.1 q13.2 q13.31 22q13 deletion syndrome (pH)H HHH HH H H H H H H H H I H H H H Exons CNVs 180Kv1_CMDX Agilent105KV6 BacHDscanV2 DecipherSyndromes Segmental Dups 0 −2.5 −2.0 −1.5 −1.0 −5 0 0.5 1.0 1.5 2.0 2.5 5 Mb 10 Mb 15 Mb 20 Mb 25 Mb 30 Mb 35 Mb 40 Mb 45 Mb
Figure 4.Oligonucleotide-based array comparative genomic hybridization using Oligo HD Scan showing no genomic imbalance in the pericentromeric euchromatic region of chromosome 22.
14
14
22
22
mar

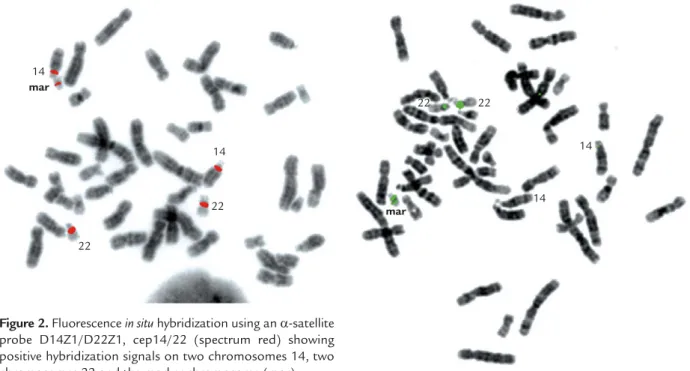

Figure 2.Fluorescence in situ hybridization using an α-satellite probe D14Z1/D22Z1, cep14/22 (spectrum red) showing positive hybridization signals on two chromosomes 14, two chromosomes 22 and the marker chromosome (mar).
and duplications, in the pericentromeric euchromatic regions and is useful for characterizing the genomic imbalance in the sSMC. Multiplex ligation-dependent probe amplification (MLPA) is commercially available for rapid aneuploidy diagnosis. The SALSA MLPA P181 and P182 centromere kits contain one probe for the short arm and one probe for the long arm of chromo-somes other than acrocentric chromochromo-somes, and two probes for the long arm of chromosomes 13, 14, 15, 21 and 22. Each probe is located close to the centromere of a specific chromosome. The designated regions of chromosome 22 are CECR5 and CECR1 at 22q11.1 for the P181 centromere kit, and the designated regions of chromosome 22 are CECR1 at 22q11.1 and SLC25A18 at 22q11.21 for the P182 centromere kit [15]. A high-definition MLPA (MLPA-HD) 22q11 kit has recently been developed to detect copy-number changes at 37 loci encompassing a 3-Mb region on 22q11, including the critical region for DiGeorge syndrome/velocardio-facial syndrome (DGS/VCFS), cat eye syndrome (CES) and commonly deleted distal regions [16].
About 9% of SMCs are derived from chromosome 22 [17]. The 22q11 region is susceptible to chromo-somal rearrangements leading to DGS/VCFS, CES and t(11;22)der(22) syndrome, all three of which have breakpoint regions harboring a similar low-copy repeat (LCR) known as LCR22 [18,19]. Homologous recom-bination events between LCR22s during meiosis have been implicated in DGS/VCFS and CES, and the sites of chromosome breakage on 11q23 and 22q11 in der(22) syndrome occur in the unstable AT-rich palin-dromic sequences leading to nonhomologous recom-bination mechanisms [19–22]. At least 61 patients with an sSMC(22) derived from inv dup(22)(q10)-(q11.21) or min(22)(pter-:p11.2 q11.1:-q11.21:) have been documented to date, with no clinical findings [23]. However, at least 106 patients with an sSMC(22) derived from inv dup(22) or inv dup(22)(q11.21)-(q11.23) have been documented with CES or clinical abnormalities [23]. CES (OMIM 115470) is usually associated with an sSMC(22) presenting as inv dup(22)(q11) and has a highly variable phenotype, including coloboma of the iris, anal atresia with fistula, down-slanting palpe-bral fissures, preauricular tags and/or pits, mild hyper-telorism, cardiac defects, renal malformation, normal or near-normal mental development in 44% of patients, mild or moderate mental retardation in 48% of patients and severe mental retardation in 7% of patients [24–26]. Prenatal diagnosis of sSMC(22) has remained a diag-nostic challenge and should alert clinicians to the pos-sibility of CES with the involvement of trisomy or tetrasomy of the CES chromosome region candidate genes, such as CECR1-CECR9 at 22q11 [19,26–30].
Acknowledgments
We would like to thank Professor Mariano Rocchi, University of Bari, Bari, Italy and Dr Charles Lee, Harvard Medical School, Boston, USA for providing us with the D22Z4 probe. This work was supported by research grants BH92-GC03-1 from Bureau of Health Promo-tion, Department of Health, NHRI EX92-9207SI from National Health Research Institute, NSC-96-2314-B-195-008-MY3 and NSC-97-2314-B-195-006-MY3 from the National Science Council, and MMH-E-99004 from Mackay Memorial Hospital, Taipei, Taiwan.
References
1. Liehr T, Claussen U, Starke H. Small supernumerary marker chromosomes (sSMC) in humans. Cytogenet Genome Res 2004;107:55–67.
2. Liehr T, Mrasek K, Weise A, et al. Small supernumerary marker chromosomes – progress towards a genotype-phenotype correlation. Cytogenet Genome Res 2006;112:23–34. 3. Liehr T. Characterization of prenatally assessed de novo small
supernumerary marker chromosomes by molecular cytoge-netics. Methods Mol Biol 2008;444:27–38.
4. Liehr T, Weise A. Frequency of small supernumerary marker chromosomes in prenatal, newborn, developmentally re-tarded and infertility diagnostics. Int J Mol Med 2007;19: 719–31.
5. Liehr T, Ewers E, Kosyakova N, et al. Handling small super-numerary marker chromosomes in prenatal diagnostics.
Expert Rev Mol Diagn 2009;9:317–24.
6. Viersbach R, Engels H, Gamerdinger U, Hansmann M. Delin-eation of supernumerary marker chromosomes in 38 patients.
Am J Med Genet 1998;76:351–8.
7. Chen CP, Chern SR, Chang TY, et al. Prenatal diagnosis of mosaic ring chromosome 22 associated with cardiovascu-lar abnormalities and intrauterine growth restriction. Prenat
Diagn 2003;23:40–3.
8. Chen CP, Lin CC, Su YN, et al. Prenatal diagnosis and molecular cytogenetic characterization of a small supernu-merary marker chromosome derived from chromosome 18 and associated with a reciprocal translocation involving chromosomes 17 and 18. Taiwan J Obstet Gynecol 2010, in press.
9. Lin CC, Hsieh YY, Wang CH, et al. Prenatal detection and characterization of a small supernumerary marker chromo-some (sSMC) derived from chromochromo-some 22 with appar-ently normal phenotype. Prenat Diagn 2006;26:898–902. 10. Chien SC, Chen CP, Lin CC, Huang LC, Hsieh CT, Tsai FJ.
Prenatal diagnosis of mos45,X/46,X, +mar in a fetus with normal male external genitalia and a literature review.
Taiwan J Obstet Gynecol 2009;48:292–5.
11. Rocchi M, Archidiacono N, Antonacci R, et al. Cloning and comparative mapping of recently evolved human chromo-some 22-specific alpha satellite DNA. Somat Cell Mol Genet 1994;20:443–8.
Taiwan J Obstet Gynecol • September 2010 • Vol 49 • No 3 383
12. McDermid HE, Duncan AM, Higgins MJ, et al. Isolation and characterization of an alpha-satellite repeated sequence from human chromosome 22. Chromosoma 1986;94:228–34. 13. Metzdorf R, Göttert E, Blin N. A novel centromeric repetitive DNA from human chromosome 22. Chromosoma 1988;97: 154–8.
14. Scherthan H, Lutz S, Metzdorf R, Blin N. Interspecies rela-tionship of a repetitive chromosome-specific DNA. Hereditas 1989;111:183–8.
15. MRC-Holland B.V. Available at http://www.mrc-holland. com. [Date accessed: May 10, 2010]
16. Jalali GR, Vorstman JAS, Errami A, et al. Detailed analysis of 22q11.2 with a high density MLPA probe set. Hum Mutat 2008;29:433–40.
17. Crolla JA, Youings SA, Ennis S, Jacobs PA. Supernumerary marker chromosomes in man: parental origin, mosaicism and maternal age revisited. Eur J Hum Genet 2005;13: 154–60.
18. Edelmann L, Pandita RK, Morrow BE. Low-copy repeats mediate the common 3-Mb deletion in patients with velo-cardio-facial syndrome. Am J Hum Genet 1999a;64:1076–86. 19. McDermid HE, Morrow BE. Genomic disorders on 22q11.
Am J Hum Genet 2002;70:1077–88.
20. Edelmann L, Pandita RK, Spiteri E, et al. A common molec-ular basis for rearrangement disorders on chromosome 22q11. Hum Mol Genet 1999b;8:1157–67.
21. Edelmann L, Spiteri E, McCain N, et al. A common break-point on 11q23 in carriers of the constitutional t(11;22) translocation. Am J Hum Genet 1999c;65:1608–16. 22. Edelmann L, Spiteri E, Koren K, et al. AT-rich palindromes
mediate the constitutional t(11;22) translocation. Am J
Hum Genet 2001;68:1–13.
23. Liehr T. Small supernumerary marker chromosome data-base. sSMC derived from chromosome 22. Available at: http://www.med.uni-jena.de/fish/sSMC/00START.htm [Date accessed: 25 May 2010].
24. Hastings RJ, Nisbet DL, Waters K, Spencer T, Chitty LS. Prenatal detection of extra structurally abnormal chromo-somes (ESACs): new cases and a review of the literature.
Prenat Diagn 1999;19:436–45.
25. Rosias PPR, Sijstermans JMJ, Theunissen PMVM, et al. Phenotypic variability of the cat eye syndrome. Case report and review of the literature. Genet Couns 2001;12:273–82. 26. Bartsch O, Rasi S, Hoffmann K, Blin N. FISH of
supernu-merary marker chromosomes (SMCs) identifies six diag-nostically relevant intervals on chromosome 22q and a novel type of bisatellite SMC(22). Eur J Hum Genet 2005;13: 592–8.
27. Mears AJ, el-Shanti H, Murray JC, McDermid HE, Patil SR. Minute supernumerary ring chromosome 22 associated with cat eye syndrome: further delineation of the critical region. Am J Hum Genet 1995;57:667–73.
28. Footz TK, Brinkman-Mills P, Banting GS, et al. Analysis of the cat eye syndrome critical region in humans and the region of conserved synteny in mice: A search for the candi-date genes at or near the human chromosome 22 pericen-tromere. Genome Res 2001;11:1053–70.
29. Denavit TM, Malan V, Grillon C, et al. A new case of a severe clinical phenotype of the cat-eye syndrome. Genet Couns 2004;15:443–8.
30. Bélien V, Gérard-Blanluet M, Serero S, et al. Partial trisomy of chromosome 22 resulting from a supernumerary marker chromosome 22 in a child with features of cat eye syn-drome. Am J Med Genet 2008;146A:1871–4.
