scheme. The impacts of gate dielectric, O2/Ar ratio during the sputtering of the IGZO, and annealing ambient on the device performance were investigated. It is found that the turn-ON
voltage of the device is closely related to the gate dielectric material. For the devices with Al2O3 as the gate dielectric, decent performance in terms of highON/OFFcurrent ratio (>108), extremely steep subthreshold swing (62 mV/decade), and good mobility (19.8 cm2/V·s) is obtained. The influences of O2/Ar flow ratio are distinct for the devices with Al2O3 gate oxide. Significant improvement in the stability of the devices to the environment is achieved with the anneal done in a low-pressure N2 ambient.
Index Terms— Film profile engineering (FPE), InGaZnO
(IGZO), metal oxide, thin-film transistors (TFTs).
I. INTRODUCTION
M
ETAL–OXIDE–SEMICONDUCTORS are appealing to the manufacturing of large-area electronics because of their fascinating characteristics. In the active-matrix liquid-crystal displays (AMLCDs) application, oxide semi-conductors could substitute for amorphous silicon as the channel material of switching thin-film transistors (TFTs) because of the higher carrier mobility [1]. Furthermore, the oxide-based TFTs with superior electrical characteristics are suitable for high-end AMLCD products that demand higher resolution and faster frame rate [2]. Some oxide semiconductors, such as InGaZnO (IGZO), are amorphous, which benefits from the good uniform electrical perfor-mance. This feature is advantageous to large-area display applications [3] and makes the oxide semiconductor appealingManuscript received March 28, 2014; revised July 13, 2014 and September 17, 2014; accepted September 17, 2014. Date of publication October 8, 2014; date of current version December 9, 2014. This work was supported in part by the Ministry of Science and Technology (MOST), National Science Council of Taiwan, under Contract NSC-102-2221-E-009-097-MY3, in part by the NCTU-UCB I-RiCE Program under Contract MOST-103-2911-I-009-302, and in part by the Ministry of Education, Taiwan, within the ATU Program.
B.-S. Shie, R.-J. Lyu, and T.-Y. Huang are with the Department of Electronics Engineering, Institute of Electronics, National Chiao Tung University, Hsinchu 300, Taiwan (e-mail: [email protected]; [email protected]; [email protected]).
H.-C. Lin is with the Department of Electronics Engineering, Institute of Electronics, National Chiao Tung University, Hsinchu 300, Taiwan, and also with National Nano Device Laboratories, Hsinchu 300, Taiwan (e-mail: [email protected]).
Color versions of one or more of the figures in this paper are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/TPS.2014.2359992
channel material of driving TFTs in the active-matrix organic light-emitting diode display application [4]. Last but not least, oxide semiconductors can be prepared at low process tempera-tures, suitable for manufacturing of high-performance flexible display [5]. Apart from display applications, for the past few years, oxide semiconductors have also been explored in vari-ous fields, such as back-end-of-line (BEOL) transistors [6], [7] integrated in the Cu-interconnects process. The feasibility is enabled because of the low fabrication temperatures and wide bandgap (>3 eV) of the oxide semiconductors [8]. The latter allows the BEOL transistors to be operated at a high voltage (∼100 V). Considering the high carrier mobility, metal-oxide TFTs have also been proposed to act as select transistors in 3-D flash memories [9]. These examples evidence the potential of oxide-based TFTs for applications to many emerging fields. Recently, we developed a film-profile-engineering (FPE) scheme [10], [11] for fabrication of high-performance metal-oxide TFTs. Principles of the FPE methods are to deposit the major thin films, e.g., gate dielectric, channel, and source/drain (S/D) metal contacts, in a device with desirable profiles. Feasibility of the FPE concept has been demonstrated by the fabricated ZnO TFTs in our previous work with the aid of a suspended bridge built directly on the wafer surface to shadow the deposition species of selected tools with appropriate process conditions. Nevertheless, the ZnO channel studied in the previous work is polycrystalline in nature, which would give rise to the concern about performance uniformity. In this paper, we adopt an amorphous IGZO (a-IGZO) as channel material in the FPE device fabrication and investigate the influences of gate dielectric and various process parameters on the device performance.
II. EXPERIMENTALDETAILS
To clearly understand the effects of process conditions on the device characteristics, the fabrication method we adopted is a simple one-mask process rather than the complicated four-mask one reported in [11]. The process flow for fabricating IGZO TFTs is shown in Fig. 1. The starting substrates were n+ heavily doped Si wafers, which also served as the bottom gate. First, 400-nm-thick oxide and 100-nm-thick poly-Si layers were deposited in sequence through low-pressure chemical vapor deposition (Step I). The two layers served as sacrificial and hard mask (HM), respectively. Next, the S/D regions [Fig. 2(a)] were defined by photolithography with an I-line
0093-3813 © 2014 IEEE. Personal use is permitted, but republication/redistribution requires IEEE permission. See http://www.ieee.org/publications_standards/publications/rights/index.html for more information.
Fig. 1. Process sequence of the FPE IGZO TFT.
Fig. 2. (a) Top-view layout and (b) cross-sectional view of the FPE device [along the line AB in (a)]. Channel L and W are defined by the patterned poly-Si HM.
stepper and then the poly-Si HM was anisotropically etched with a reactive high-density plasma etcher (Step II). After stripping OFFthe photoresist, sacrificial oxide was selectively etched with an HF containing solution (Step III). The sus-pended poly-Si bridge was formed over the Si substrate as the underlying oxide is cleared off. It represents the pivotal structure for realization of the FPE scheme utilized in the following deposition of gate dielectric, channel, and metal contact layers. In this paper, two kinds of gate dielectric were studied (Step IV). One is SiO2 with nominal thickness of
60 nm deposited by plasma-enhanced chemical vapor depo-sition (PECVD) under a pressure of 500 mTorr at 300 °C. The other is 15-nm-thick Al2O3 deposited by atomic layer
deposition (ALD) at 250 °C. Next, an a-IGZO channel layer with the nominal thickness of 60 nm was deposited by radio-frequency sputtering at an input power of 100 W under a working pressure of 5 mTorr at room temperature (Step V). The gas mixture ratio of O2/Ar was varied from 0% to 2% to
investigate the impact of O2 flow on the electrical properties
of the fabricated devices. Finally, a 100-nm-thick Al was deposited by thermal evaporation as the S/D metal contact pads
Fig. 3. Cross-sectional TEM images of the fabricated IGZO TFTs with (a) PE-SiO2 and (b) ALD-Al2O3 gate oxide. (c) and (d) Enlarged views taken at the channel center in (a) and (b), respectively.
at room temperature (Step VI). Note that the Al metal layer was neatly formed only on S/D regions and self-aligned to the poly-Si bridge due to the long mean free path (MFP) (>1 m) under a low operation pressure (∼105Torr). All devices were
fabricated without any passivation layer in order to study the effects of annealing ambient. The annealing was done at 300 °C in vacuum or N2 (0.2 torr) for 30 min. The top and
cross-sectional images of the fabricated devices are shown in Fig. 2(a) and (b), respectively. The channel length (L) and width (W) were defined by the patterned poly-Si HM and W/L were 1/0.4 µm. The electrical characterization was carried out by HP 4156C parameter analyzer at room temperature. The device cross section was characterized by transmission electron microscopy (TEM).
III. RESULTS ANDDISCUSSION
The cross-sectional TEM images of fabricated devices with PE-SiO2 and ALD-Al2O3 gate insulator were shown
in Fig. 3(a) and (b), respectively. As can be seen in the figures, in addition to the discrete Al S/D contacts and highly concave IGZO channel, the profile of SiO2 is concave while
that of ALD-Al2O3 is conformal. The enlarged views of the
devices taken at the channel center for the two devices are shown in Fig. 3(c) and (d), respectively. The measured SiO2
thickness is ∼17 nm at the channel center, much thinner than the nominal value (60 nm). The difference in profile originates from the natures of the deposition methods (PECVD and ALD). During the deposition of PE-SiO2, the species of
SiO2were shadowed by the suspended poly-Si bridge because
the MFP is not short enough (∼10−6 m) at the working pressure of 500 mTorr, leading to the concave profile. In the ALD-Al2O3case, the deposition is dependent on self-limiting
surface reactions [12] so that the conformity of film profile is good. Another interesting observation is that, despite the same
Fig. 4. Transfer curves of the IGZO TFTs with SiO2and Al2O3gate oxide measured at VDS= 0.1 and 3 V.
deposition condition, the central IGZO channel is∼5.5 nm for the device with SiO2 gate oxide, much thinner than that for
the device with Al2O3 gate oxide (8.6 nm). Details about the
root causes for the difference are unknown at this stage, but we speculate that the adsorption and migration mobility of the deposition species are significantly affected by the surface properties of the gate dielectric.
Transfer characteristics of the devices with SiO2and Al2O3
gate oxide are shown in Fig. 4. Channel length (L)/width (W) is 0.4/1 µm. The O2/Ar flow ratio was 2% during IGZO
sputtering and all fabricated devices were annealed at 300 °C in vacuum for 30 min. As can be seen in the figures, the gate dielectric plays an important role in affecting the turn-ON behavior. Evidently, the device is normally ON
[threshold voltage (Vth) = −1.3 V] with SiO2gate oxide, and
becomes normallyOFF(Vth= 1.14 V) as Al2O3is employed
instead. Vth is defined as VGS at IDS = (W/L) × 10−8 A.
This indicates the existence of negative fixed charges at the IGZO/Al2O3 interface. Overall, the characteristics are decent.
Steep SS of 81 and 62 mV/decade and high ON/OFF current ratio of 8.9× 109and 2.9× 108are achieved for device with SiO2and Al2O3gate insulator, respectively. The drain-induced
barrier lowering is negligible. The outstanding subthreshold performance is mainly ascribed to the formation of the ultra-thin channel [13]. Note that, for TFTs, SS can be approximated with the following form [14]:
SS= ln 10 × kT q × 1+q(Nit + Nt) Cox (1) where Cox is gate-oxide capacitance per unit area, k is
Botzmann constant, T is absolute temperature, q is elementary charge, Nit is interface state density, and Nt is effective
trap density contained in the channel. Thinning down of the channel tends to reduce the amount of Nt and thus SS is
improved accordingly [13], [14]. As compared with the device with a uniform channel thickness, the concave channel profile would help to spread out the current paths conducting from the channel to the metal pads and accordingly reduce the parasitic resistance. Moreover, the thin gate dielectric is also helpful in improving SS as Coxis increased. This explains why the device
with Al2O3in Fig. 4 shows steeper SS.
In the OFF-state region, the leakage current of the device with SiO2 dielectric is lower than that of the device with

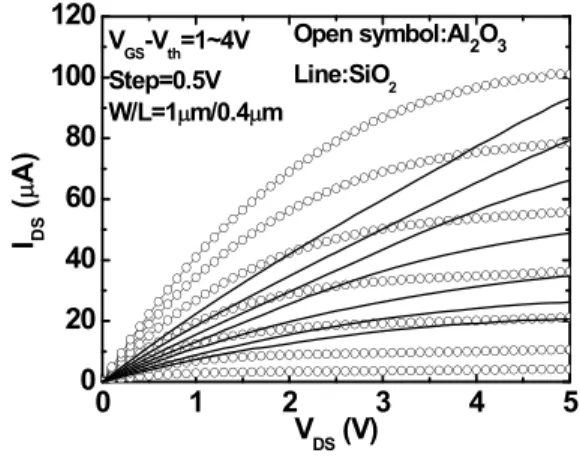

Fig. 5. Output characteristics of the IGZO TFTs with SiO2and Al2O3gate oxide, measured at VGS− Vth= 1 ∼ 4V.
Al2O3 dielectric, especially at VDS = 3 V due to the
thicker thickness. Nonetheless, it should be noted that the measurable leakage currents of the devices are in large part caused by the significant overlap areas between bottom gate and S/D metal pads. As the refined structure with a discrete bottom gate is implemented [11], the gate-to-S/D overlap area and accordingly the leakage current can be dramatically reduced. In addition, high field-effect mobility (µFE) values of
17.5 and 19.8 cm2/ V · s are extracted from devices with SiO2
and Al2O3gate oxide, respectively. The output characteristics
of the fabricated devices are shown in Fig. 5. The device with Al2O3 gate insulator shows better performance due to
the thinner equivalent oxide thickness and thicker channel [Fig. 3(d)]. Superior electrical characteristics are the evidence of the advantages of the FPE approach. The IGZO/SiO2TFT
does not show saturation behavior in Fig. 5, which is likely due to the rather high S/D series resistance.
The effects of O2/Ar flow ratio on the electrical properties
of the fabricated devices are also addressed. Fig. 6(a) and (b) shows the transfer characteristics of the devices measured at
VDS = 3 V with SiO2 and Al2O3 gate oxide, respectively.
As can be seen in Fig. 6(a), as the O2 flow rate increases, Vthis slightly increased while theONcurrent is degraded. The
observed trends are ascribed to the reduction in oxygen vacan-cies in the IGZO channel, which could lead to a decrease in the carrier concentration [15]. To confirm this postulation, we perform Hall measurements on blanket IGZO films deposited with various O2/Ar flow ratios. The results shown in Fig. 7
demonstrate the above inference that the increase in O2 flow
indeed reduces the carrier concentration in the deposited film. In Fig. 6(b), an anomalously high current (>10−8 A) is induced in the OFF-state in the samples with O2/Ar ratio of
0.8% and 0%. Note that, the OFF-state leakage is identified to be flowing from the source to drain and shows weak dependence on the gate bias, implying that the flow path of the leakage for the two samples is through the back surface of the channel, as shown in Fig. 8. The different outcomes in this regard between Fig. 6(a) and (b) are in large part due to the thicker channel of the Al2O3split, as shown in Fig. 3(d).
As the oxygen flow is reduced during the sputtering, the concentration of oxygen vacancies and thus the concentration of carriers in the channel increases. The conductivity of the

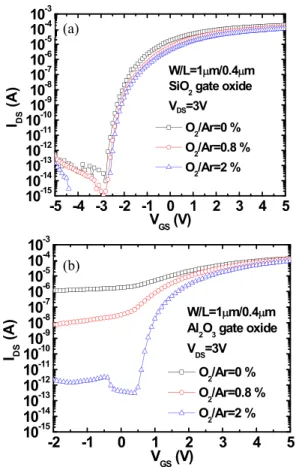

Fig. 6. Transfer curves of the IGZO TFTs with (a) SiO2and (b) Al2O3gate oxide measured at VDS= 3 V with different O2/Ar gas mixture ratio during IGZO sputtering.
Fig. 7. Carrier concentration obtained by Hall measurements as a function of O2/Ar ratio.
Fig. 8. Leakage path between source and drain is formed at the back surface of the channel as the carrier concentration of the channel is high.
channel increases accordingly. For the Al2O3 split, owing to
the rather thick channel, the portion of the channel away from the back surface side would not be easily modulated by the
Fig. 9. Transfer curves of the IGZO TFTs with Al2O3gate oxide annealed in vacuum and N2ambient measured at VDS= 0.1 and 3 V.
Fig. 10. Transfer curves of the IGZO TFT with Al2O3gate oxide measured at VDS= 3 V as a function of storage time after annealing in (a) vacuum and (b) N2ambient.
bottom gate bias. As a result, the high OFF-state leakage is resulted.
Next, we study the effects of annealing ambient. The test samples are with IGZO channel deposited with O2/Ar flow
ratio of 2% and Al2O3gate insulator. Fig. 9 shows the transfer
characteristics of the two splits of devices. As can be seen, the characteristics of the N2-annealed device are essentially the
same as that of vacuum-annealed one except a positive shift in Vth. Nevertheless, we found that the stability of the device
exposing to the atmosphere could be drastically improved by the low-pressure N2 annealing. The transfer curves for the
of nitrogen for inactive oxygen [17]. As a result, the shift in device characteristics remains small even after three months of storage, as shown in Fig. 10(b).
IV. CONCLUSION
The effects of gate-oxide material and process conditions on the characteristics of FPE IGZO TFTs were investigated. Devices with SiO2 gate oxide are normally ON and become normally OFF as Al2O3 gate insulator is used instead. Steep SS of 81 and 62 mV/decade, high ON/OFF current ratio of 8.9× 109 and 2.9 × 108, and superior field-effect mobility
of 17.5 and 19.8 cm2/(V·s) are obtained for devices with
SiO2 and Al2O3 gate insulator, respectively. The O2 flow
during the sputtering deposition of IGZO is found to have a major impact on the device characteristics, especially for the devices with Al2O3gate oxide. Enhancement in environmental
stability is also shown as the fabricated devices were annealed in a low-pressure N2 ambient.
