Translating Common English and Chinese Verb-Noun Pairs in
Technical Documents with Collocational and Bilingual Information
Yi-Hsuan Chuang†
Chao-Lin Liu§ Jing-Shin Chang↑
†§ National Chengchi University, Taiwan; ↑National Chi Nan University, Taiwan {†g9804, §chaolin}@cs.nccu.edu.tw, ↑jshin@csie.ncnu.edu.tw Abstract. We studied a special case for the translation of English verbs in verb-object pairs. Researchers have studied the effects of the linguistic information about the verbs being translated, and many have reported how considering the objects of the verbs will facilitate the quality of translations. In this study, we took an extreme venue – assuming the availa-bility of the Chinese translations of the English objects. We explored the issue with thou-sands of samples that we extracted from 2011 NTCIR PatentMT workshop. The results indicated that, when the English verbs and objects were known, the information about the object’s Chinese translation could still improve the quality of the verb’s translations but not quite significantly.
Keywords: Machine Translation, Feature Comparison
1 Introduction
Researchers have studied extensively the problems related to verbs (e.g., Dorr et al., 2002; La-pata and Brew, 2004) and phrases-based translations (e.g., Chuang et al., 2005; Koehn et al., 2003). Some techniques were developed for text of special domains (Seneff et al., 2006). The techniques are applicable in many real-world problems, including computer-assisted language learning (Chang et al., 2008) and cross-language information retrieval (Chen et al., 2000).
We work on the processing of patent documents (Lu et al., 2010; Yokoama and Okuyama, 2009), and present an experience in translating common verbs and their direct object based on bilingual contextual information. In this study, we took an extreme assumption of the availabili-ty of the Chinese translations of the English objects to examine whether the extra information will improve the quality of verbs’ translation. The proposed methods are special in that we are crossing the boundary between translation models and language models, by considering infor-mation of the target language in the translation task. The purpose of conducting such experi-ments was to investigate how the availability of such bilingual and collocational information might contribute to the translation quality. It is understood and expected by many that the Chi-nese translations of English objects might not be available for all cases and that such informa-tion should be applied with many other features to achieve high translainforma-tion quality.
The experiments were conducted with the training data available to the participants of the 2011 NTCIR Patent MT task. The corpus contains one million pairs of Chinese and English pairs. We explored four different methods to determine the verb’s Chinese translation. These methods utilized the bilingual and contextual information about the English verb in different ways. Effects of these methods were compared based on experimental evaluation which con-ducted with 35 thousands of verb-object pairs extracted from the NTCIR corpus. (Since objects are nouns, we will refer to verb-object pairs as verb-noun pairs or VN pairs to simplify the wording.)
We provide a broad outline of our work in Section 2, present our methods for aligning the bi-lingual VN-pairs in Section 3, explain how we build lexicons with extra information to serve the needs of VN-pair alignment in Section 4, delineate the design of our experiments in Section 5, and discuss the experimental results in Section 6.
2 The Big Picture
Our work consisted of two major stages. We extracted the VN pairs from the original corpus. Then, we applied our translation methods to translate English words to Chinese and vice versa,
and compared the translation quality achieved by using different combinations of contextual and bilingual information.

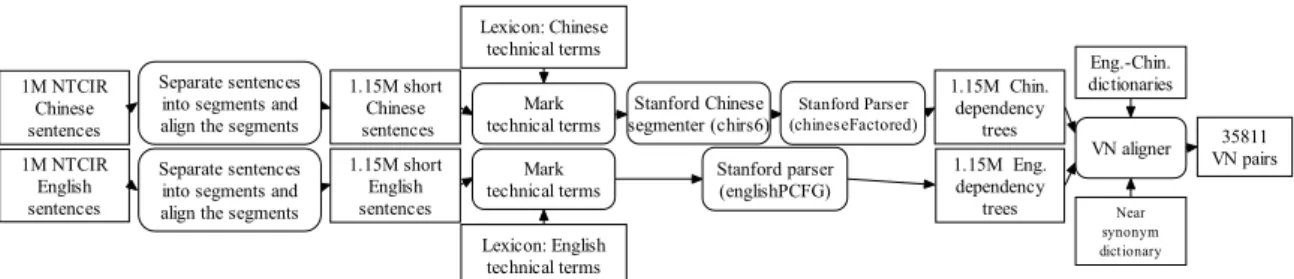

Figure 1 shows how the VN pairs were extracted from the 1 million parallel sentences, which we obtained from the NTCIR 9 PatentMT task in 20111. The process started from the left of the figure. Most of the original sentences were very long. A sentence has 34 words on average, and the longest sentence has 141 words. Since our goal was to extract VN pairs from the corpus, not doing a full-scale research in machine translation, we choose to segment the sentences into shorter parts at commas and periods. Normally, VN pairs will not cross the punctuations, and, even if some VN pairs did, we afforded to neglect them because we had 1 million pairs of long sentences.
We then re-aligned the short English and Chinese segments with a sentence aligner (Tien et al., 2009) that we implemented based on the concept of Champollion (Ma, 2006). We treated the original long sentence pairs as aligned paragraphs, and ran our aligner on the sentences. Like the Champollion, we computed probabilistic scores for the sentence pairs, so we could choose those pairs with higher scores to achieve higher confidence on the aligned pairs. More specifi-cally, we kept only the leading 33% of the short sentence pairs, and obtained 1148632 short sen-tence pairs.
We employed the Stanford Chinese segmenter2 to segment the Chinese text. This segmenter allows us to mark the technical terms so that the segmenter will treat the words belonging to technical terms as a unit, preventing them from being segmented again. In addition, currently, our technical terms are nouns, so they are annotated accordingly. When there were more than one possible ways to mark the technical terms in a string, we preferred the longer choices. Eng-lish texts were tokenized by the Stanford parser3. Technical phrases and compound words in English were also marked and would not be treated as individual words either. The special terms came from the glossary that will be explained in Section 4.1.
Based on these short sentence pairs, we aligned VN pairs with the method to be explained in Section 3. This process employed an English-Chinese glossary for technical terms, which we will discuss in Section 4.1, and a bilingual dictionary enhanced with Chinese near synonyms, which we will discuss in Section 4.2. In the end, we accepted 35811 VN pairs for experiments at the second stage.
During the second stage of our work, we split the VN pairs into training and test data. Useful statistics were collected from the training data, and were applied to select Chinese translations for the English words in question.
3 VN Pair Alignment
We employed the Stanford parsers (SPs, henceforth) for English and Chinese to compute the dependency trees for the parallel texts. We extracted the dobj relations from the trees and align the VN pairs. 1http://ntcir.nii.ac.jp/PatentMT/ 2http://nlp.stanford.edu/software/segmenter.shtml, version 1.5 3http://nlp.stanford.edu/software/lex-parser.shtml, version 1.6.5 35811 VN pairs 1M NTCIR English sentences 1M NTCIR Chinese sentences 1.15M short Chinese sentences 1.15M short English sentences 1.15M Chin. dependency trees 1.15M Eng. dependency trees Separate sentences
into segments and align the segments Separate sentences into segments and align the segments
Lexicon: English technical terms Lexicon: Chinese technical terms Stanford parser (englishPCFG) Near synonym dictionary Eng.-Chin. dictionaries VN aligner Stanford Parser (chineseFactored) Stanford Chinese segmenter (chirs6) Mark technical terms Mark technical terms
3.1 Dependency Trees
Based on the general rec-ommendations on the Stan-ford site3, we parsed English with the
en-glishPCFG.ser.gz grammar, and parsed Chinese with the chineseFactored.ser.gz grammar. Figure 2 shows the dependency tree for a simple English sentence “we clean the top sur-face of the object”. SPs can provide the part of speeches (POSes) of words and recognize
the relationships between the words. POSes are shown below the words, and the relationships are attached to the links between the words. The dobj link between “clean” and “surface”
indicates that “surface” is a direct object of “clean”, and we could rely on such dobj links to
identify VN pairs in the corpus.
3.2 VN Pair Alignment
We found 375041 dobj links in the 1.15M English sentences and 465866 dobj links in the Chinese part. However, not all of the words participating in a dobj link were real words. Hence, we looked up the words in our bilingual lexicon, which we will explain in Section 4.2. If the lexicon did not contain the words, we would not use the words in the corresponding dobj links as VN pairs. After this step, we had 254091 and 249591 VN pairs in English and Chinese, re-spectively.
We then tried to align the remaining English and Chinese VN pairs, noting that only those VN pairs that originated from the same pair of long sentence pairs can be aligned.
The alignment method can be quite simple. Let (EV, EN) and (CV, CN) denote an English and a Chinese VN pair, respectively, where EV, EN, CV, and CN denote an English verb, an English noun, a Chinese verb, and a Chinese noun. We just had to check whether CV is a possi-ble translation of EV and whether CN is a possipossi-ble translation of EN. If both answers are posi-tive, then we aligned the VN pairs.
However, even when an English verb can carry only one sense, there can be multiple ways to translate it into Chinese, and there is no telling whether a dictionary will include all of the poss-ible translations to contain the Chinese translations that were used in the Patent MT corpus. For instance, (improve, quality) can be translated to (改善(gai3 shan4), 品質(pin3 zhi2)) or (改進(gai3 jin4), 品質). If an English-Chinese dictionary only lists “改善” as the translation for “improve” and does not include “改進” as a possible translation, than we could not use that dictionary to align (improve, quality) and (改進, 品質). We need a way to tell that “改進” and “改善” are similar.
Therefore, we expanded the set of possible Chinese translations in a given dictionary with near synonyms, and employed the expanded dictionary to enhance the accuracy of VN pair alignment. The process of constructing such expanded dictionary is provided in Section 4.2.
After completing the VN pair alignment, we obtained 35811 aligned VN pairs, cf. Figure 1.
4 Lexicon Constructions
We explain (1) how we built the glossary of technical terms and (2) how we constructed a bilin-gual dictionary that contains information about near synonyms in this section.
4.1
Creating a Glossary of Technical Terms
As explained in Section 2, we built a glossary of technical terms so that we can separate tech-nical terms from normal text, thereby achieving higher quality of parsing.
we PRP clean VB the DT top JJ surface NN of IN the DT object NN nsub det amod dobj
prep pobj det
We downloaded 138 different kinds of domain technical term pairs from Taiwan National Academy for Educational Research4. The files were stored in excel format, and the total file size is 177MB.
The format of English-Chinese technical term pairs is not always in one-to-one relationship; some English technical terms have more than one translation in Chinese. We converted such pairs into multiple to-one pairs, and acquired 804068 English-Chinese technical term one-to-one pairs.
To validate the reliability of the glossary, we conducted a small experiment; that is, to seg-ment patent sentences with the glossary. The results showed that the coverage of these “technic-al term” pairs was too broad, and “technic-almost “technic-all of words were considered as technic“technic-al terms.
We alleviated this problem with E-HowNet5 (Chen et al., 2005) and WordNet6. Treating the words listed in E-HowNet and WordNet as ordinary words, we used them to identify normal words in our technical term pairs. If the original pairs contained any normal Chinese or English words, then the pairs would be removed.
As a result, we removed 14% of the original pairs, and kept 690640 technical term pairs.
4.2
The English-Chinese Dictionary and Near Synonyms
As announced in Section 3.2, we built a bilingual dictionary and enhanced it with information about near synonyms to improve the recall rates of the VN pair alignment.
A good English-Chinese dictionary is the basis for the task of VN pair alignment. We col-lected and combined the Chinese translations of English words in the Concise Oxford English Dictionary and the Dr.eye online dictionary7, and acquired 99805 pairs of English words and their translations.
As we explained in Section 3.2, the Chinese translations listed in the dictionaries might not be complete, so we enhanced the merged dictionary with information about near synonyms. We employed two sources of relevant information to obtain near synonyms in this study.
The Web-based service of Word-Focused Extensive Reading System8 (Cheng, 2004) is maintained by the Institute of Linguistics of the Academia Sinica in Taiwan. The service allows us to submit queries for the near synonyms of Chinese words for free, so we collected the near synonyms from the web site.
Given an entry in our bilingual dictionary, we queried the near synonyms for each of the Chinese translations of an English word, and added the results to the Chinese translations of the English word.
E-HowNet is another source that we could compute and obtain near synonyms. E-HowNet is a lexicon for Chinese. The lexicon contains two levels of detailed semantic information for words: TopLevelDefinition and BottomLevelExpansion. The semantic definitions provided in these two entries come from the E-HowNet Ontology9, and can be used to compute similarity scores between word senses.
We determine whether two Chinese words are near synonyms with the following procedure. Given a Chinese word, CW, we looked up the E-HowNet for its senses. Let Si(CW) be one of CW’s senses. We combined the semantic definitions listed in the TopLevelDefinition and Bot-tomLevelExpansion of Si(CW), which might include multiple words. Denote this set by Ui(CW), and let CWWij be a word in Ui(CW). We looked up the E-HowNet for the senses of CWWij. Let Sk(CWWij) denote one of the senses of the CWWij, and Vijk(CWWij) denote the combined se-mantic definitions listed in the TopLevelDefinition and BottomLevelExpansion of Sk(CWWij). Finally, we computed the union of Ui(CW) and Vijk(CWWij) as a sense vector of CW. Note that 4http://terms.nict.gov.tw/ 5http://ckip.iis.sinica.edu.tw/taxonomy/taxonomy-edoc.htm 6http://wordnet.princeton.edu/ 7http://www.dreye.com/index_en.html 8http://elearning.ling.sinica.edu.tw/c_help.html 9http://ckip.iis.sinica.edu.tw/taxonomy/taxonomy-edoc.htm
due to lexical ambiguity, a Chinese word might have multiple such vectors. Two Chinese words were considered as near synonyms if the cosine value of any of their sense vectors exceeded 0.7. Given an entry in our bilingual dictionary, we compute the near synonyms of the Chinese translations of each English word. This was carried out by comparing the sense vectors of a Chinese translation with 88074 Chinese words in E-HowNet. The qualified words were added to the Chinese translations of the English word in our dictionary.
The purpose of adding information about near synonyms into our bilingual dictionary was to increase the recall rates of VN-pair alignment. More complex methods for identifying synonyms, e.g. (Bundanitsky and Hirst, 2006; Chang and Chiou, 2010) will be instrumental for the study.
5 Design of the Experiments
We have conducted experiments to translate from English to Chinese and from Chinese to Eng-lish. In addition, we have tried to find the best translations of verbs, and tried to find the best translations of objects of the verbs given their contexts. Nevertheless, we present only the expe-riments of translating English verbs to Chinese verbs in this paper.
5.1
Statistics about the Aligned VN pairs
We calculated the frequencies of the verbs in the 35811 aligned VN pairs, and ranked the verbs based on the observed frequencies. Table 1 shows the 20 most frequent English verbs and their frequencies. We identified the 100 most frequent English verbs and the corresponding aligned VN pairs in our experiments. In total, there were 30376 such aligned VN pairs. The most fre-quent English verb appeared 4530 times, as shown in Table 1. The 100th most frequent English verb is “lack”, and it appeared 47 times.
Some of the English verbs are relatively easier to translate than others. We can calculate the frequencies of the Chinese translations of verbs to verify the differences. For instance, “add” was translated in five different ways: “增加”(zeng1 jia1) 48 times, “添加”(tian1 jia1) 44 times, “加入”(jia1 ru4) 43 times, “加上”(jia1 shang4) 2 times , and “增添”(zeng1 tian1) 1 time. The distribution, (48, 44, 43, 2, 1), is not very skewed, and the frequencies of the most frequent translation and the second most frequent translation are close. Therefore, we would not achieve very good results, if we should choose to use the most frequent translation for all occurrences of “add”.
Based on this observation, we defined the challenging index of a word as the ratios of the frequency of their most frequent translation against the frequency of their second most frequent translation. The challenging index of “add” mentioned in the previous paragraph is 1.09.
This challenging index is not a scientifically-proven index for difficulty for translation, but could serve as a heuristic. The larger the index; the easier to achieve good translation by using the most frequent translation to translate. Table 2 lists 22 verbs that had the smallest challenging indexes.
5.2
Translation Decisions
Given the aligned VN pairs, we could compute conditional probabilities, and apply the
condi-Table 2: 22 most “challenging” English verbs and their indexes
Verb make exhibit add represent retain leave enhance reduce lack improve achieve
1.00 1.09 1.09 1.21 1.21 1.22 1.25 1.26 1.27 1.33 1.39
Verb employ reach create give replace take apply adjust obtain carry explain
1.41 1.43 1.50 1.54 1.69 1.69 1.69 1.72 1.76 1.82 2.00
Table 1: 20 most frequent English verbs in the aligned VN pairs
Verb have provide use include comprise contain form receive reduce perform
Freq. 4530 3345 1993 1954 1588 1080 914 863 774 616
Verb increase produce maintain determine represent show obtain achieve improve allow
tional probabilities to determine the Chinese trans-lation of English words.
Table 3 lists four possible ways to choose a Chinese translation for an English verb in a VN pair. Equation (1) is the most simplistic. Let EV denote a specific English verb, and CVi be one of EV’s translations observed in the training data. Given the English verb, the equation chooses the
CVi that maximizes the conditional probability. Namely, it prefers the most frequent Chinese translation of EV in the training data.
We could obtain the conditional probability Pr | by dividing the frequency of ob-serving the VN pair (EV, CVi) in the training data by the frequency of observing EV in any VN pairs. Using the data for “add” that we mentioned in Section 5.1 for example, we observed 135 occurrences of “add”. Therefore, Pr(“增加” | “add”) = 48/135=0.356 and Pr(“加上” | “add”) = 2/135=0.015.
Let EN be a specific English noun, Equation (2) considers the object of the verb when choos-ing the verb’s translation. Let C(•) denote the frequency of a given event. The conditional probability in Equation (2) is defined below.
) , ( ) , , ( EN EV C CV EN EV C i (5)
The remaining equations, (3) and (4), take an extreme assumption. We assumed the availa-bility of the Chinese translation of the English object at the time of translation, and used this special information in different ways. Equation (3) considers the words EV, EN, and CN. In a strong contrast, Equation (4) considers only EV and CN to determine the translation of the Eng-lish verb. The conditional probabilities in Equations (3) and (4) were calculated using Equation (6) and (7), respectively. ) , , ( ) , , , ( CN EN EV C CN CV EN EV C i (6) ) , ( ) , , ( CN EV C CV CN EV C i (7) We considered the exploration of using the information about the Chinese translation of the English noun is interesting. Would the information about CN provide more information, given we had information about EV and EN? How would we achieve when we had information about only EV and CN but not EN?
In all of the experiments, we used 80% of the available aligned VN pairs as the training data, and the remaining 20% as test data. The training data were randomly sampled from the available data.
As a consequence, it was possible for us to encounter the zero probability problems. Take Equation (6) for example. If, for a test case, we needed C(EV, EN, CN) in (6), but we happened not to have observed any instances of (EV, EN, CN) in the aligned VN pairs in the training data, then we would not be able to compute (6) for the test case. When such cases occurred, we chose to allow our system to admit that it was not able to recommend a translation, rather than resort-ing to the smoothresort-ing technologies.
6 Experimental Results
Using the formula in Table 3 would allow our systems to recommend only one Chinese transla-tion. In fact, we relax this unnecessary constraint by allowing our systems to consider that larg-est k conditional probabilities and to recommend k translations.
Although we have been presenting this paper with the 1 million parallel sentences in NTCIR PatentMT data as the example, we have run our experiments with the English-Chinese bilingual
Table 3: Translation decisions ) | Pr( max arg CV CVi EV i (1) ) , | Pr( max arg CV CVi EV EN i (2) ) , , | Pr( max arg CV CVi EV EN CN i (3) ) , | Pr( max arg CV CVi EV CN i (4)
version of Scientific American. Moreover, we ran experiments that aimed at finding the best Chinese translations of English objects. The formulas were defined analogously with those listed in Table 3.
6.1
Basic Results for the Top 100 Verbs
in Patent Documents
When we conducted experiments for the top 100 verbs (cf. Section 5.1), we had 24300 instances of aligned VN pairs for training and 6076 instances of aligned VN pairs for test.
We measured four rates as the indication of the performance of using a particular formula in Table 3. The rejection rate is the percentage of not being to respond to the test cases. This is due to our choosing not to smooth the probability distributions as we explained in Section 5.2.
It is not surprising that the rejection rates
in-creased as we considered more information in the formulas. The rejections rates were 0, 0.201, 0.262, and 0.218 when we applied Equations (1) through (4) in the experiments. As expected, we encountered the highest rejection rate when using (3). Note that using (4) resulted in a higher rejection rate than using (2). This was because that there were no less than one possible Chinese translations for any English verbs. Hence, the distributions for Pr(CVi | EV CN) would be more sparse than Pr(CVi | EV EN) on average.
Table 4 shows the rates of the correct answers were included in the recommended k transla-tions. We did not consider the cases that our systems could not answer in computing the statis-tics in Table 4. Hence, the data show the average inclusion rates when our systems could answer. As one may have expected, when we increased k, the inclusion rates also increased.
It may be surprising that the inclusion rates for Equations (2) through (4) seem to have satu-rated when we increase k from 3 to 5. This was because our systems could not actually recom-mend 5 possible translations, when they were allowed. Although we had hundreds or thousands of aligned VN pairs for an English verb, cf. Table 1. Including more conditioning information in Equations (2) through (4) still reduced the amount of VN pairs qualified for training and testing, thereby limiting the actual numbers of recommended translations. Table 5 shows the average number of actual recommendations in the tests.
The main advantage of using Equations (2) through (4) is that they were more precise, when they could answer. Table 6 shows the average ranks of the correct translation in the recom-mended translations. The average ranks improve as we considered more information from Equa-tion (1) to (2) and to (3). Using (2) achieved almost the same average rank with using (4), but using (4) led to slightly better performance.
6.2
Improving Results for the Top 100 Verbs in Patent Documents
Results reported in the previous subsection indicated that Equation (4) is robust in that it could offer candidate answers all the time. Methods that employed more information could choose translations more precisely, but were less likely to respond to test cases. Hence, a natural ques-tion is whether we could combine these methods to achieve better performance. To answer this question, we conducted all of the combinations of the basic methods listed in Table 3.
In Tables 7 and 8, we use the notation EqX+EqY to indicate that we used EqX to find as many candidate translations as possible, before we reached a total of k recommendations. If ap-plying EqX could not offer sufficient candidate translations, we applied EqY to recommend more candidate translations until we acquired k recommendations.
Table 4: Inclusion rates for top 100 verbs inclusion k=1 k=3 k=5
Eq1 0.768 0.953 0.975 Eq2 0.786 0.913 0.918 Eq3 0.795 0.911 0.916 Eq4 0.791 0.910 0.916 Table 5: Average number of recommendations
recommend k=1 k=3 k=5
Eq1 1.000 2.919 4.614
Eq2 1.000 1.923 2.225
Eq3 1.000 1.847 2.107
Eq4 1.000 1.920 2.244
Table 6: Average ranks of the answers
ranking k=1 k=3 k=5
Eq1 1.000 1.241 1.310 Eq2 1.000 1.166 1.185 Eq3 1.000 1.151 1.168 Eq4 1.000 1.153 1.173
Using Eq1 is sufficiently robust in that the conditional probabilities would not be zero, unless the training data did not contain any instances that included the English verb. Hence, in our experiments, the rejection rates for “Eq2+Eq1”, “Eq3+Eq1”, and “Eq4+Eq1” became zero. In other words, our systems re-sponded to all test cases when we used these combined methods by allowing all methods to recommend up to k candidates.
We compare the performance of these combined methods with the best performing methods in Tables 7 and 8. We copy the inclu-sion rates of Eq1 from Table 4 to Table 7 to facilitate the comparison, because Eq1 was the
best performer, on average, in Table 4. The combined methods improved the inclusion rates, although the improvement was marginal.
Moreover, we copy the average ranks for Eq1 and Eq3 from Table 6 to Table 8. Using Eq1 and using Eq3 led to the worst and the best average ranks in Table 6, respectively. Again, using the combined methods, we improve the average ranks marginally over the results of using Eq1.
Statistics in Table 7 suggest that using machine-assisted approach to translating verbs in common VN pairs in the PatentMT data is feasible. Providing the top five candidates to a hu-man translator to choice will allow the translator to find the recorded answer s nearly 98% of the time.
It is interesting to find that using Equation (2) and Equation (4) did not lead to significantly different results in Tables (4) through (8). The results suggest that using either the English nouns or the Chinese nouns as a condition contributed similarly to the translation quality of the English verbs. More specifically, the translation of the English verb may be conditionally inde-pendent of the information about the noun’s Chinese translation given the English verb and the English noun. This does not imply that the translation of the English verb is unconditionally independent of the information of the English noun’s translation. That Eq4 performed better than Eq1 in Table 6 offered a reasonable support.
6.3
Results for the Most Challenging 22 Verbs in Patent Documents
We repeated the experiments that we con-ducted for the top 100 verbs for the most chal-lenging 22 verbs (cf. Section 5.1). Tables 9 through 13 correspond to Tables 4 through 8, respectively. The most noticeable difference between Table 9 and Table 4 is the reduction of the inclusion rates achieved by Eq1 when k=1. Although the inclusion rates reduced no-ticeably when we used Eq2, Eq3, and Eq4 as well, the drop in the inclusion rate for Eq1 (when k=1) was the most significant.
Although we did not define the challenging index of verbs based on their numbers of poss-ible translations, comparing the corresponding numbers in Table 10 and Table 5 suggest that the challenging verbs also have more possible translations in the NTCIR data.
Corresponding numbers in Table 11 and
Table 9: Inclusion rates for 22 challenging verbs inclusion k=1 k=3 k=5
Eq1 0.449 0.865 0.923 Eq2 0.561 0.818 0.820 Eq3 0.564 0.827 0.829 Eq4 0.550 0.827 0.829 Table 10: Average number of recommendations
recommend k=1 k=3 k=5
Eq1 1.000 2.977 4.756
Eq2 1.000 2.090 2.364
Eq3 1.000 2.022 2.230
Eq4 1.000 2.106 2.411
Table 11: Average ranks of the answers
ranking k=1 k=3 k=5
Eq1 1.000 1.607 1.773 Eq2 1.000 1.365 1.373 Eq3 1.000 1.374 1.383 Eq4 1.000 1.394 1.400 Table 8: Average ranks of the correct answers
(combined methods) ranking k=1 k=3 k=5 Eq1 1.000 1.241 1.310 Eq3 1.000 1.151 1.168 Eq2+Eq1 1.000 1.240 1.301 Eq3+Eq1 1.000 1.234 1.294 Eq4+Eq1 1.000 1.233 1.296 Table 7: Inclusion rates (combined methods)
inclusion k=1 k=3 k=5
Eq1 0.768 0.953 0.975
Eq2+Eq1 0.772 0.960 0.979 Eq3+Eq1 0.778 0.960 0.979 Eq4+Eq1 0.776 0.959 0.978
Table 6 supports the claim that translating the 22 challenging words is relatively more difficult. The average ranks of the answers became worse in Table 11.
Data in Tables 12 and 13 repeat the trends that we observed in Tables 7 and 8. Using the combined methods allowed us to answer all test cases, and improved both the inclusion rates and the average ranks of the answers.
If we built a computer-assisted translation system for these 22 verbs, the performance would not be as good as if we built a system for the top 100 verbs. When the system suggested the leading 3 translations (k=3), the inclusion rates dropped to around 0.90 in Table 12 from 0.96 in Table 7.
Again, using either the English nouns or the Chinese nouns, along with the English verbs, in the conditions of the methods listed in Table 3 did not make significant differences, as sug-gested by the results in Tables 9 through 13.
6.4
More Experimental Results
We repeated the experiments that we conducted for the top 100 verbs for the top 100 nouns in the PatentMT data. For experiments with the nouns, we had only 3952 test instances. The goals were to find the best Chinese translation of the English objects, given its contextual and bilin-gual information. More specifically, in addition to the English verbs and the English nouns, we were interested in whether providing the Chinese translations of the English verbs would help us improve the translation quality of the English objects.
Due to the page limits, we could not show all of the tables as we did in Section 6.1. The sta-tistics showed analogous trends that we reported in Section 6.1. Namely, the availability of the Chinese translation of the English verbs did not help, when we already considered the English verbs and objects in the translation decisions.
Scientific American is a magazine for general public. The writing style is more close to ordi-nary lives. We ran a limited scale of experiment with available text from Scientific American. We had about 1500 training instances and 377 test instances for 25 verbs. The results indicated that using the Chinese translations of the English objects influenced the translation quality of the English verbs. However, the observed differences were not significant. A side observation was that it was relatively harder to find good translation of English verbs in Scientific American than in the PatentMT data. When providing five recommendations, only about 88% of the time the recommendations of our system can include the correct translation. In contrast, we had achieved inclusion rates well above 90% in Tables 7 and 12.
7 Concluding Remarks
We designed a procedure to extract and align VN pairs in a bilingual corpus of patent docu-ments. The corpus contains 1 million pairs of English and Chinese sentences, and we aligned 35811 VN pairs. We employed the VN pairs to investigate whether the availability of the Chi-nese translations for nouns in English VN pairs would improve the translation quality of the English verbs. Experimental results suggest that the Chinese translation of the English noun is marginally helpful when both the English verbs and English nouns are already available. Choos-ing the best Chinese translation of the English verb based on the constraint of its English object or based on the information about the object’s Chinese translation achieved similarly in the ex-periments.
Table 12: Inclusion rates (combined methods) inclusion k=1 k=3 k=5
Eq1 0.449 0.865 0.923
Eq2+Eq1 0.512 0.896 0.940 Eq3+Eq1 0.503 0.894 0.940 Eq4+Eq1 0.508 0.900 0.942 Table 13: Average ranks of the correct answers
(combined methods) ranking k=1 k=3 k=5 Eq1 1.000 1.607 1.773 Eq3 1.000 1.374 1.383 Eq2+Eq1 1.000 1.537 1.662 Eq3+Eq1 1.000 1.546 1.677 Eq4+Eq1 1.000 1.547 1.664
Additional and analogous experiments were conducted with the PatentMT data. In these new experiments, we aimed at the translations of the nouns in the English VN pairs, given different combinations of the bilingual and contextual information. Again, we observed that, after putting the English verb and English noun in the conditions in the attachment decision formulas (ana-logous to but slightly different with those in Table 3), the Chinese translations of the English verbs did not offer extra help. In addition, using (1) the English verb and the English noun or (2) the Chinese verb and the English noun achieved similar experimental results.
Acknowledgments
The work was supported in part by the funding from the National Science Council in Taiwan under the contracts NSC-99-2221-E-004-007 and NSC-100-2221-E-004-014. The authors are obliged to the anonymous reviewers for their valuable comments because we could not respond satisfactorily to all comments due to the page limits on this paper.
References
Bundanitsky, A. and G. Hirst. 2006. Evaluating WordNet-based measures of lexical semantic relatedness.
Computational Linguistics, 32(1):14–47.
Carpuat, M., P. Fung and G. Ngai. 2006. Aligning word senses using bilingual corpora. ACM Trans. on
Asian Language Information Processing, 5(2):89–120.
Chang, J.-S. and S.-J. Chiou. 2010. An EM algorithm for context-based searching and disambiguation with application to synonym term alignment. Proc. of the 23rd Pacific Asia Conf. on Language,
In-formation and Computation, 2:630–637.
Chang, Y. C., J. S. Chang, H. J. Chen and H. C. Liou. 2008. An automatic collocation writing assistant for Taiwanese EFL learners: A case of corpus-based NLP technology. Computer Assisted Language
Learning, 21(3):283–299.
Cheng, C. C. 2004. Word-focused extensive reading with guidance. Selected Papers from the 13th
Inter-national Symposium and Book Fair on English Teaching, 24-32.
http://elearning.ling.sinica.edu.tw/WordFocused%20Extensive%20Reading%20with%20Guidance.pdf Chuang, T. C., J.-Y. Jian, Y.-C. Chang and J. S. Chang. 2005. Collocational translation memory extraction based on statistical and linguistic information. Int’l J. of Computational Linguistics and Chinese
Lan-guage Processing, 10(3):329–346.
Chen, A., H. Jiang and F. Gey. 2000. Combining multiple sources for short query translation in Chinese-English cross-language information retrieval. Proc. of the 5th Int’l Workshop on Information Retrieval
with Asian Languages, 17–23.
Chen, K.-J., S.-L. Huang, Y.-Y. Shih and Y.-J. Chen. 2005. Extended-HowNet: A representational frame-work for concepts. Proc. of the 2005 IJCNLP Workshop on Ontologies and Lexical Resources, 1–6. Dorr, B. J., G.-A. Levow and D. Lin. 2002. Construction of a Chinese-English verb lexicon for machine
translation and embedded multilingual applications. Machine Translation, 17:99–137.
Koehn, P., F. J. Och and D. Marcu. 2003. Statistical phrase-based translation. Proc. of the 2003 Conf. of
the North American Chapter of the Association for Computational Linguistics on Human Language Technology, 48-54.
Lapata, M. and C. Brew. 2004. Verb class disambiguation using informative priors. Computational
Lin-guistics, 30(1):45–73.
Lu, B., B. K. Tsou, T. Jiang, O. Y. Kwong and J. Zhu. 2010. Mining large-scale parallel corpora from mul-tilingual patents: An English-Chinese example and its application to SMT. Proc. of the 1st
CIPS-SIGHAN Joint Conf. on Chinese Language Processing.
Ma, X. 2006. Champollion: A robust parallel text sentence aligner. Proc. of the 5th Int’l Conf. of the
Lan-guage Resources and Evaluation, 489–492.
Seneff, S., C. Wang and J. Lee. 2006. Combining linguistic and statistical methods for bi-directional Eng-lish Chinese translation in the flight domain. Proc. of the 7th Conf. of the Association for Machine
Translation in the Americas, 213–222.
Tien, K.-W., Y.-H. Tseng and C.-L. Liu. 2009. Sentence alignment of English and Chinese patent docu-ments, Proc. of the 21st Conf. on Computational Linguistics and Speech Processing, 85–99.
Yokoama, S. and M. Okuyama. 2009. Translation disambiguation of patent sentences using case frames.
