單一量子點之磁光與糾纏態特性

計畫編號 : NSC 99－2628－E－009－092 執行期間 : 99 年 08 月 01 日至 101 年 7 月 31 日 主持人 : 林聖迪 摘要 在此為期兩年的計畫中，我們進行光激發 自組式量子點的發光特性之相關研究。第一部 分為單一量子點發光頻譜與磁場的響應，第二 部分為單一量子點與共振腔的光子-激子交互 作用。基於磁場響應實驗上觀察到 negative trion  X 的異常 diamagnetic shift，以及其不同於傳統 反磁性的順磁性行為，因此我們發展了一套 Hartree- approximation 的計算方法來模擬量子 點內不同 exciton complexes 的發光行為，模 擬結果顯示出與實驗結果相當一致，並且成功 的定性解釋了這種異常行為，我們發現載子間 的庫倫交互作用對磁場的響應跟量子點尺寸大 小有相當大的關係，且此種異常行為即為載子 間庫倫作用所主導。量子點與共振腔交互作用 的部分，透過製作高品質因子的微柱形共振 腔，我們觀察到量子點的發光特性的確受到共 振效應的影響，不僅發光強度明顯變強，其偏 振態也受到改變，目前正在進行數據整理與理 論分析。 Abstract

In this two-year project, we have studied the photoluminescence (PL) characteristics of self-assembled quantum dots (QDs). The first part

is about the magnetic response and PL of single QD. Based on previously observed anomalous diamagnetic shift of negative trions and its unusual paramagnetic behavior, we develop a theoretical method using Hatree approximation to calculate the emission properties of various exciton complexes. The simulation results are consistent with the experimental ones so we can successfully explain the anomalous behavior. We find that the coulomb interaction between carriers and its response to applied magnetic field is highly related to the size of the QDs. The unusual response is dominated by the coulomb interaction between carriers. In the part of cavity-QD interaction, we have successfully fabricated a high-quality -pillar with embedded single QD. The enhanced emission of QD is clearly observed and, more interestingly, the polarization of emitted light is also tuned by the resonant condition. The detailed data analysis and theoretical work are undertaking.

Methods and results

Part I. Magnetic response of PL from QDs

The InAs QDs were grown on GaAs (100) substrate using the Stranski-Krastanow mode by a

Varian Gen II molecular beam epitaxy system. The InAs QDs were grown without substrate rotations, yielding a gradient in area dot density ranging from 108to 1010cm-2. To isolate individual QDs, a 100-nm-thick aluminum metal mask was fabricated on the sample surface with arrays of 0.3-μm apertures using electron-beam lithography. Single QD spectroscopies were carried out at 5-8 K in a specially designed μ-PL setup, where the sample was mounted in a low-temperature stage and inserted in the bore of 6-T superconducting magnet for magneto-PL measurement. A He-Ne laser beam was focused onto the aperture through a microscope objective (N. A. = 0.5). The PL signals were collected by the same objective, analyzed by a 0.75-m grating monochromator, and detected by a liquid-nitrogen-cooled CCD camera, which yield a resolution limited spectral linewidth of about 60 μeV. Several apertures containing only one QD have been investigated and all of which showed similar spectral features, which in general consist of four emission lines associated with the recombination of neutral excitons (X ), biexcitons ( XX ), positive and negative trions ( X and

X).

Magneto-PL measurements have been performed on a total of seven QDs with X

energy distributed over the range of 1349-1385 meV. Representative spectra selected from one particular dot (QD1) are shown in Fig. 1. When a magnetic field B was applied along the QD growth direction (Faraday geometry), each line splits into a doublet through the Zeeman effect. As

shown in Fig. 1(b), the average energy of each Zeeman doublet increases with the increasing B, known as the diamagnetic shift.

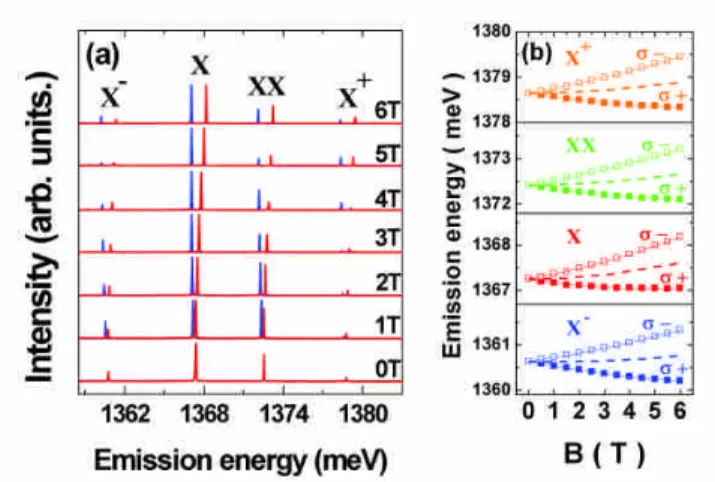

Fig. 1: (a) The magneto-PL spectra for QD1 under a magnetic field B = 0-6 T. (b) The corresponding peak energies of different excitonic species as a function of B for QD1, where σ- and σ+ in each form a Zeeman doublet. Dash line is the average energy of σ- and σ+.

In Fig. 2, the measured diamagnetic shifts for the four excitonic emission lines are plotted as a function of _B2_{. For X , X} _{and XX , the}

measured diamagnetic shifts show a quadratic dependence  _E _B2 _{, with a clear trend of}

 

 _{XX X}

X  

 . This trend holds for all investigated dots and is a consequence of different magnetic responses of inter-particle Coulomb energies. In very strong contrast, the diamagnetic shift for the X does not follow the quadratic dependence. If we still use a quadratic dependence to fit the anomalous diamagnetic shift, the diamagnetic coefficient _X was found to be the

smallest one among the four excitonic species, as depicted in Fig. 3.

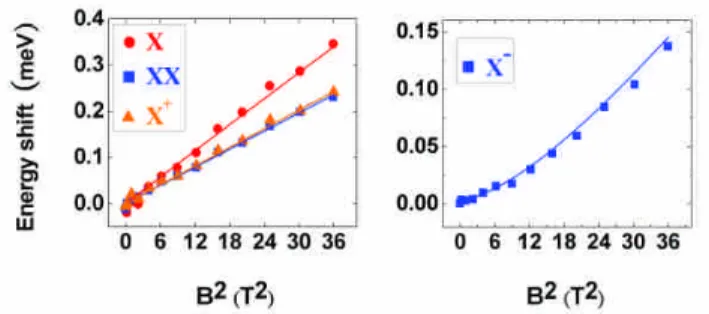

Fig. 2: Emission energy of exciton complexes shift with B2 for QD1. The simulated QD is of 11.6 nm in diameter and 1.1 nm in height. Points are the measured data and lines are the simulated result.

Fig. 3: The diamagnetic coefficient of the exciton complexes for the two typical QDs (QD1 and QD2). The simulated parameters are diameter of 11.6 nm and height of 1.1 nm (QD1); diameter of 11 nm and height of 1.4 nm (QD2).

The reduced optical diamagnetic coefficient of X could be caused either by relatively localized particle wave functions of the initial X

state or extended electron wave function in the final 1e state. In the latter, the electron wave function is free of inter-particle interactions and determined solely by the confining potential of QD. By contrast, a particle in a few-particle X

complex is subjected to additional inter-particle (e-e and e-h) interactions. The extents of the particle wave functions of the X and 1e states could become substantially different if the inter-particle interactions are comparable to or even stronger than the confining strength of QD. The hole wave functions are much more localized

than those of electrons in such small QDs. The imbalanced e-h and e-e interactions yield a net Coulomb attraction to electrons in X and thus make the extent of the electron wave function of the X state smaller than that of 1e state. To confirm such a scenario for the explanation of the observed anomalous diamagnetic behavior, we perform the numerical simulation for the wave functions of interacting particles in X complexes, implemented by using the finite element method within the Hartree approximation.

In the Hartree approximation, the Schrodinger equation of a particle in an interacting X complex confined in QD is written as



H_sp(r_i)V_H(r_i)





_n(r_i)



_ni



_n(r_i) (1) where

r



_i denotes the position coordinate of the i-th particle,

H

_sp

( )

r



_i stands for the Hamiltonian of the (non-interaction) electron or hole,  the_ni eigenenergy, _n(r_i)the particle wave function of the eigenstate

n

, and V_H

( )

r



_i is the Hartree potential, a sum of the electrostatic potentials induced by other charged particles besides the considered particle itself.

In the calculation, cone-shaped QDs of various sizes sitting on a 0.4-nm-thick wetting layer are considered. For an N-particle X complex, the N-coupled equations for each particle according to Equation (1) are self-consistently solved by using iterative approach. The total

energy of the N-particle X complex is then determined by the sum of single particle energies



i

but subtracted by the doubly counted inter-particle interaction energy. The simulated results of diamagnetic coefficients for four different exciton complexes are plotted in Fig. 4. The diamagnetic coefficients are obtained by taking the second derivative of magneto-energy spectra with respect to B using three-point numerical differentiation.

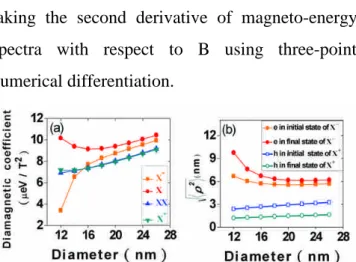

Fig. 4: The simulation for QDs with various diameters, the diamagnetic coefficients (a), and the mean radiuses of electron and hole wavefunctions in their initial and final states (b).

WefirstdiscusstheQD’ssizeeffecton the diamagnetic shifts. The calculated diamagnetic coefficients for the four exciton complexes in QDs with a diameter ranging from 12 to 26 nm are shown in Fig. 4(a). For large-sized QDs (D>16nm), the diamagnetic coefficients of the four exciton complexes show similar increasing trends with the QD size. Because the diamagnetic coefficient is proportionalto theareaofcarrier’swavefunction, which will reflects the dot diameter for large-size QDs. However, for smaller QD sizes (D<16nm), the calculated values of  increases with the_X

decreasing dot size, while those of  and_XX _X

remain nearly unchanged. The most striking feature is that the calculated _X drops rapidly

with the decreasing dot size. It is worth to mention that our self-consistent calculations reproduce the experimental finding of _X _XX _Xvery well,

in consist with pervious calculations based on configuration-interaction methods.

For the emission of negative trion X, the initial state consists of two electrons and one hole, leaving one electron in its final state after recombination. The X diamagnetic shift thus reflects the diamagnetic responses of both the initial and final states. To understand the anomalous behavior for the X, it is necessary to take a closer look at the lateral extent 2

e  e



of the electron wave functions before and after photon emission. Fig. 4(b) shows the calculated wave function extents e i, and e f, for the

initial-state and the final-state electrons of X, respectively. One can see that the _{e f,} is always more or less larger than _{e i,} . This can be realized from the presence of hole in its initial state, which contracts the electron wave function by the Coulomb attraction. When the sizes of QDs are larger than about 16nm, the differences between

,

e i

 and _{e f,} are small, i.e., the presence of hole doesn’t change the electron wave function significantly. However, as the QD sizes reduces,

,

e f

 increases rapidly, with a rate even faster than

,

e i

that the electron gradually loses confinement as the dot size reduces, which pushes the electron level toward the wetting-layer continuum, resulting in a very extended electron wave function penetrating into the barrier material. In such a case of weak confinement regimes, the very extended initial-state electron becomes sensitive to the long-range Coulomb attractive potential produced by the hole, by which _{e i,} will be contracted and become apparently smaller than

,

e f

 . As a result, the final-state diamagnetic shift increases, so that the overall diamagnetic shift in

X is reduced. This explains why the X

diamagnetic shift decreases rapidly for small-sized QDs shown in Fig. 4(a).

Likewise, for the emission of positive trion

X, the initial state consists of one electron and two holes, leaving one hole in its final state after recombination. As shown in Fig. 4(b), unlike X, the lateral extents of hole wave functions

2

h  h

 in the initial and final states are almost identical for all QD sizes. Due to the larger effective mass of holes, their wave functions are well confined even in such small QDs. In this case, the Coulomb attractive potential produced by the weakly confined electron becomes less important, so that the size dependence of _X behaves as

usual.

Now one may ask the question why the X

diamagnetic shift exhibits a non-quadratic B dependence. In general, a quadratic diamagnetic shift holds only in the weak-field limit, i.e., when

the magnetic length _M  /eB is large compared to the lateral extents of carrier’s wave functions  2 _{. We noted that 15 nm}

M 



at B3 T , which becomes comparable with

, 10 nm

e f 

 for the final-state electron in a QD with a base diameter of 12 nm. In this regime, the diamagnetic shift would deviate from the typical

B2 dependence. To illustrate this behavior, we consider the diamagnetic shift in the carrier’s single-particle energy and expand it in powers of B as, SP_{( )B B}2 _B4

  

  

    , where the quadratic and quartic coefficients are

2 2 _{/ 8} e m       and _e4 6 _/128m 2        , in

which eorh denotes electron or hole, and

m_ represents the effective mass of the electron or hole. Because |  varies as/ | _{~  , the}4

contribution from the _B4 _{term becomes}

increasingly important as   . By taking into~ M

account the difference between _{e i,} and _{e f,} , a simple algebraic analysis for the X diamagnetic shift E_X( )B gives the following expression:

2 4 ( ) X X X E  B B B     (2) where X(2 e i_, h i_, )e f_, and , , , (2 ) X e i h i e f     . Because of   andh e h e

m  , them _{h i,} and _{h i,} for the hole only have minor influences on the overall diamagnetism. Accordingly, we obtain

2 2 2 , , , , 2 (2 ) / 8 X e i e f e e i e f me      and

2 6 , 6 , 4 , , (2 )/128 2 ei ef ei ef e X  e  m  .

Equation (2) makes clear how the difference in

,

e i

 and e f, can lead to anomalous diamagnetic

behaviors for the emission energy of X. We first consider a normal case of _{e i,} _{e f,} _e, we have

e X X    and    X X   , as long as eM

  . That is, the X diamagnetic shift behaves as the usual quadratic dependence with a coefficient similar to that of X , which is just the case for large-size QDs shown in Fig. 5(a). A very interesting case occurs when 2e i,  , i.e.,e f,

,

e i

 of the initial-state electrons were contracted to ~70.7% of its final state extension e f, by the

hole. In this special case, the condition

, ,

2 e i e f cancels out the B2 term, leading to a

dominant quartic dependence on B. As the difference between _{e i,} and _{e f,} becomes even lager ( 2e i,  ), the magnetic response ofe f, X goes into a new regime where the quadratic coefficient _X is negative, i.e. the energy shift is paramagnetic. This anomalous behavior can be

best seen from the calculated results shown in Fig. 5(a), where we keep e f_, 10 nm but varying e i,

from 7.6 to 6.6 nm. The magnetic response of X

emissions transited gradually from the usual quadratic diamagnetic shift to quartic dependences, and finally into an overall negative energy shift, resembling paramagnetic behaviors. In Fig. 5(b), we selected four typical QDs that could represent the behaviors in different regimes, in qualitative

agreement with our calculations.

Fig. 5: The theoretical (left) and experimental (right) anomalous diamagnetic shifts in small QDs.

The magnetic responses of negative trions

X in single self-assembled InAs/GaAs quantum dots have been investigated. Unlike the conventional quadratic diamagnetic shift for neutral excitons, the X diamagnetic shifts in most of the investigated dots were found to be considerably small and non-quadratic. In particular, we also observed a reversal in sign of the conventional diamagnetic shift. Theoretical analysis indicates that such anomalous behaviors for X arise from an apparent change in the electron wave function extent after photon emission due to the strong Coulomb attraction induced by the hole in its initial state. This effect can be very pronounced in small quantum dots, where the electron wave function becomes weakly confined and extended much into the barrier region. When the electrons gradually lose confinement, the magnetic response of X will transit gradually from the usual quadratic

diamagnetic shift to a quartic dependence, and finally into a special paramagnetic regime with an overall negative energy shift.

Part II. Cavity-QD interaction

For defining the interaction strength between cavity mode (CM) and exciton (X), temperature-varying technique was implemented on the sample since the quantum dot exciton changes more drastically with temperature than the cavity mode. For the micropillar of quality factor 6,300, the exciton was brought to resonant with cavity mode at 35.2K as Fig. 6 indicates. The energy crossing between CM and X could be observed more clearly while the peak energy was depicted as a function of temperature as shown in Fig. 7. So the pillar under investigation can be inferred to be in weak coupling regime. The PL linewidth depicted in Fig. 8 also evidences that exciton state does not couple strongly to cavity mode since the linewidth of X remains unchanged no matter detuned near or away from CM.

Fig. 6 Temperature-dependent PL spectrum

Fig. 7 PL peak energy as a function of temperature

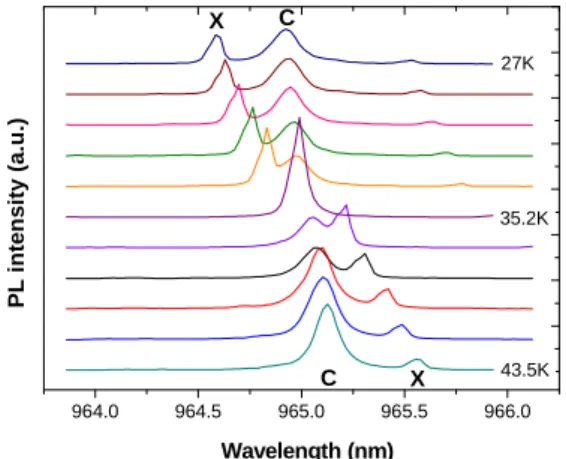

Fig. 8 PL linewidth as a function of detuning energy between CM and X

To systematically investigate the spin polarization of quantum dot exciton coupled to cavity mode, we first examine the impact of cavity on the linear polarization of exciton emission. At 10K, the exciton emission (black solid-square in Fig. 9) is polarized at 37.7° which is oriented 52° with respect to the cavity mode (red open-square in Fig. 9) as Fig. 9 presents. According to Purcell equation, the Purcell effect can be modulated as the energy detuning between X and CM is varied. Through varying temperature, the energy detuning between X and CM can be changed and thus the Purcell enhancement can be changed as well.

964.0 964.5 965.0 965.5 966.0 C X P L in te n s it y (a .u .) Wavelength (nm) X C 27K 35.2K 43.5K 5 10 15 20 25 30 35 40 45 1284.5 1285.0 1285.5 1286.0 X X C E n e rg y (m e V ) Temperature (K) C -1.0 -0.8 -0.6 -0.4 -0.2 0.0 0.2 0.4 0.6 60 80 100 120 140 160 180 200 220 240 C X L in e w id th (  e V ) Detuning (meV)

Fig. 9 Polarization plane of exciton and cavity mode at 10K for pillar A.

Fig. 10 Polarization angle and degree of linear polarization as a function of detuning energy for pillar A

As shown in the lower part of Fig. 10, the polarization degree decreases with negative energy detuning and increases with positive energy detuning. The linear polarization degree here is defined by min max min max I I I I  

since the dipole emission

does not polarize along x or y axis. To one’s knowledge from Purcell effect, only the polarization degree will be modified by Purcell

effect as long as X is orthogonal or parallel to CM. This modification of polarization degree is due to preferential enhancement of QD spontaneous emission rate which is caused by the difference in the quality factor between two polarized cavity modes. Though as shown in the upper part of Fig. 10 the polarization angle changes unexpectedly from 40° to 0° as energy detuning goes to zero, thatis, X is detuned near CM, and relaxes to its original angle as X is detuned away from CM. As mentioned before, cavity mode modulates the emission from quantum dot as the emission dipole of X and CM is mutually orthogonal or parallel. The emission dipole of X shown in Fig. 9 is however neither parallel nor orthogonal to CM. The included angle of emission dipole between X and CM is expected to be a major factor that induces the change of polarization degree accompanying with the rotation of polarization plane.

This argument is supported and evidenced by a series of measurement implemented on pillars which appear various orientations of emission dipole between X and CM. Among pillars under investigation, pillar B has the condition that the emission dipole of X and CM is initially parallel to each other as Fig. 11 indicates. As a result, the polarization angle did not change with energy detuning but the polarization degree has a substantial increase which goes from 0.2 to 0.4 as X is detuned away from CM, which is shown in Fig. 11. The change in the polarization degree indicates that the quantum dot exciton is free of

0 30 60 90 120 150 180 210 240 270 300 330 10K 0 30 60 90 120 150 180 210 240 270 300 330 Cavity PCl= 0.14 @ -14.3o PX_l= 0.21 @ 37.7o -Exciton 0 ₊ -30 -20 -10 0 10 20 30 40 -1.0 -0.8 -0.6 -0.4 -0.2 0.0 0.2 0.4 0.6 0.08 0.10 0.12 0.14 0.16 0.18 0.20 0.22 0.24 0.26 Exciton P o la ri z a ti o n a n g le ( o) _Cavity Pl

the control of cavity mode and becomes primitive. For pillar C, as shown in Fig. 12, exciton orienting an acute angle with respect to cavity mode, the polarization plane of exciton emission thus rotates toward that of cavity mode as exciton is detuned near CM. However, the polarization degree of exciton remains unchanged as changing energy detuning and exhibits almost same quantity with that of cavity mode. The above-mentioned pillars lead to the possibility that the polarization properties of a quantum dot, which has been testified to be a single photon source, can be controlled to desired emission polarization and emit light more efficiently by interacting with cavity mode. 0 30 60 90 120 150 180 210 240 270 300 330 0 30 60 90 120 150 180 210 240 270 300 330 cavity 14K exciton -80 -40 0 40 80 0.2 0.3 0.4 0.5 0.6 0.20 0.25 0.30 0.35 0.40 P o la ri z a ti o n a n g le ( o) Pl

Detuning Energy (meV) Detune away

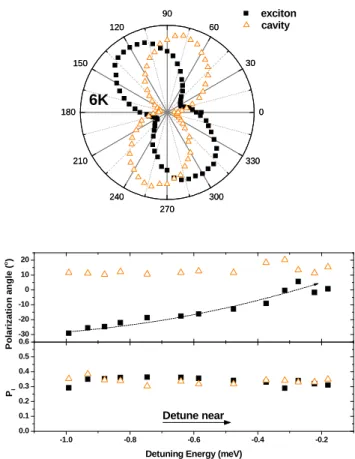

Fig. 11 The emission dipole of X and CM and the polarization angle and polarization degree as a function of energy detuning for pillar B.

0 30 60 90 120 150 180 210 240 270 300 330 0 30 60 90 120 150 180 210 240 270 300 330 exciton cavity 6K -30 -20 -10 0 10 20 -1.0 -0.8 -0.6 -0.4 -0.2 0.0 0.1 0.2 0.3 0.4 0.5 0.6 P o la ri z a ti o n a n g le ( o) Pl

Detuning Energy (meV)

Detune near

Fig. 12 The emission dipole of X and CM and the polarization angle and polarization degree as a function of energy detuning for pillar C.

In conclusion, at current stage we have not yet perform the investigation on the spin polarization state of a quantum dot while concerning the radiative lifetime modulated by a cavity mode. Nevertheless, there is still an interesting finding that Purcell effect results in a rotation of polarization plane and simultaneously a change in the polarization degree. The polarization plane of exciton seems to be clamped at the orientation of cavity mode as approaching zero detuning. This gives hint that we can precisely control the polarization orientation and degree of quantum dot exciton once the polarization pattern of cavity mode is decided.

Publications Journal papers

1. “Lateral two-dimensional p-i-n diode in a completely undoped GaAs/AlGaAs quantum well”,V. T. Dai*, S. D. Lin, S. W. Lin, J. Y. Wu, L. C. Li, C. P. Lee, accepted by Jpn. J. Appl. Phys. (Oct. 2012).

2. “Superconductivity in an aluminum film grown by molecular beam epitaxy”, C.-T. Liang*, M.-R. Yeh, S. D. Lin, S. W. Lin, and J. Y. Wu, T. L. Lin, K. Y Chen, Chinese J. Phys. 50, 638 (Aug. 2012).

3. “Imbalanced initialpopulationsbetween dark and bright states in semiconductor quantum dots”, S. D. Lin*, Y. J. Fu, C. Cheng, Opt. Express 20, 19850 (Aug. 2012).

4. “Observation of long-lived excitons in InAs quantum dots under thermal redistribution temperature”,C. Cheng, S. D. Lin*, C. H. Pan, C. H. Lin, Y. J. Fu, Phys. Lett. A 376, 1495 (Mar. 2012).

5. “Selecting detection wavelength of resonant cavity-enhanced photodetector by guided-moderesonancereflector”,K.W.Lai, Y. S. Lee, Y. J. Fu, S. D. Lin*, Opt. Express 20, 3572 (Feb. 2012).

6. “Effect of the electromagnetic environment on the dynamics of charge and phase particles in one-dimensional arrays of small Josephson junctions”,I.L.Ho,W.Kuo,S. D. Lin, C. P.

Lee, C. T. Liang, C. S. Wu*, C. D. Chen, Euro. Phys. Lett. 96, 47004 (Nov. 2011).

7. “Stress tuning of strong and weak couplings between quantum dots and cavity modes in microdisk microcavities”,H.Lin,C.H.Lin,W. C. Lai, Y. S. Lee, S. D. Lin, W. H. Chang*, Phys. Rev. B 84, 201301(R) (Nov. 2011). 8. “Anomalous optical magnetic shift of

self-assembled GaSb/GaAsquantum dots”,T. C. Lin*, S. D. Lin, L. C. Li, Y. W. Suen, C. P. Lee, J. Appl. Phys. 110, 013522 (July 2011). 9. “Anticorrelation between the splitting and

polarization of the exciton fine structure in single self-assembled InAs/GaAs quantum dots”,C. H. Lin, W. T. Yu, H. Y. Chou, S. J. Cheng, S. D. Lin, W. H. Chang*, Phys. Rev. B 83, 075317 (Feb. 2011).

10. “A delta-doped quantum well system with additionalmodulation doping”,D.S.Luo,L. H. Lin, Y. C. Su, Y. T. Wang, Z. F. Peng, S. T. Lo, K. Y. Chen, Y. H. Chang, J. Y. Wu, Y. Lin,

S. D. Lin, J. C. Chen, C. F. Huang, C.-T.

Liang*, Nanoscale Res. Lett. 6, 139 (Feb. 2011).

11. “Magnetotransport in an aluminum thin film on a GaAs substrate grown by molecular beam epitaxy”,S. T. Lo, C. Chuang, S. D. Lin*, K. Y. Chen, C.-T. Liang*, S. W. Lin, J. Y. Wu, M. R. Yeh, Nanoscale Res. Lett. 6, 102 (Feb. 2011). 12. “On the direct insulator-quantum Hall

transition in two-dimensional electron systems in the vicinity of nanoscaled scatterers”,C.-T. Liang*, L.-H. Lin, K. Y. Chen, S. T. Lo, Y. T. Wang, D. S. Lou, G.-H. Kim, Y. H. Chang, Y. Ochiai, N. Aoki, J. C. Chen, Y. Lin, C. F. Huang, S. D. Lin, D. A. Ritchie, Nanoscale Res. Lett. 6, 131 (Feb. 2011).

13. “Electron delocalization of tensily-strained GaAs quantum dots in GaSb matrix”, T. C. Lin*, Y. H. Wu, L. C. Li, Y. T. Sung, S. D. Lin, L. Chang, Y. W. Suen, C. P. Lee, J. Appl. Phys. 108, 123503 (Dec. 2010).

14. “2~3 μm mid infrared light sources using InGaAs/GaAsSb "W" type quantum wells on InP substrates”,C.H.Pan*, S. D. Lin, C. P. Lee, J. Appl. Phys. 108, 103105 (Nov. 2010). 15. “Strong coupling of different cavity modes in

photonic molecules formed by two adjacent microdisk microcavities”, H. Lin, J. H. Chen, S. S. Chao, M. C. Lo, S. D. Lin, W. H. Chang*, Opt. Express 18, 23948 (Nov. 2010).

16. “Wide spectral range confocal microscope based on endlessly single-mode fiber”, R. Hubbard, Yu. B. Ovchinnikov, J. Hayes, D. J. Richardson, Y. J. Fu, S. D. Lin, P. See, A.G. Sinclair*, Opt. Express 18, 18811 (Aug. 2010).

Conference report

1. “Cavity-modulated emission polarization of exciton in quantum-dot-embedded micro-pillar structure”,Y.S.Lee,S. D. Lin,

International Conference on Spintronics, Sydney, Australia (July, 2012).

2. “Wavelength sensitive PIN photodetector using guided mode resonance”,K.W.Lai, S.

Devices and Materials (SSDM), Nagoya, Japan (Sept. 2011).

3. “Low-temperature Hump of Time-resolved Photoluminescence in InAs quantum dots”, C. Cheng, S. D. Lin, C. H. Pan, C. H. Lin, IEEE 2011 International Nano-Electronics Conference, Tao-Yuan, Taiwan (Jun. 2011). 4. “Room temperature 2.38 μm laser using

InGaAs/GaAsSb W-type quantum wells on InP substrate”,C.H.Pan,C.H.Chang,S. D. Lin, C. P. Lee, Optics and Photonics Japan

(OPJ 2010), Tokyo, Japan (Nov. 2010). 5. “Magneto-optical studies of GaAs quantum

dots in GaSb”, T. C. Lin, S. D. Lin, and C P. Lee, 16th International Conference in Molecular Beam Epitaxy 2010, Berlin, German (Aug. 2010).
