網路編碼上行協同多點傳輸系統之功率控制策略
Power Control Strategies for Network Coded Uplink
CoMP Systems
研 究 生：蕭永宗
網路編碼上行協同多點傳輸系統之功率控制策略
Power Control Strategies for Network Coded
Uplink CoMP Systems
研 究 生：蕭永宗 Student：Yong-Zong Xiao
指導教授：伍紹勳 Advisor：Sau-Hsuan Wu
國 立 交 通 大 學
電信工程研究所
碩 士 論 文
A ThesisSubmitted to Institute of Computer and Information Science College of Electrical Engineering and Computer Science
National Chiao Tung University in partial Fulfillment of the Requirements
for the Degree of Master
in
Computer and Information Science
May 2011
網路編碼上行協同多點傳輸系統之功率控制策略
學生：蕭永宗
指導教授：伍紹勳 教授
國立交通大學電信工程研究所碩士班
摘
要
下一代通訊系統中要求更高的資料傳輸速率及更可靠的通訊，由於嚴重的路經衰減及干擾， 位於蜂巢式網路邊界的用戶很難達到上述的要求。近來，Wang 和 Giannakis 提出 Complex Field Network Coding 來增加多用戶通訊的吞吐量，然而，他們的方法不能為用戶提供差異化服務。 其中，差異化服務是指保證基地台內的用戶能穩定的通訊。這些因素促使我們設計上行系統中 繼器的功率分配來幫助用戶達到最小的誤碼率，我們更進一步引入最佳化方法來解決這個問題， 模擬結果顯示，我們的方法可在蜂巢網路中提供差異化服務，除此之外，這個方法可以達到無 干擾下單一使用者的效能。
Power Control Strategies for Network Coded Uplink CoMP Systems
Student：
Yong-Zong XiaoAdvisors：Dr.
Sau-Hsuan WuInstitute of
Communication EngineeringNational Chiao Tung University
ABSTRACT
Higher data rates and more reliable communications are required in next generation
communication systems. But the subscribers on the cellular boundary are difficult to attain these requirements due to the severe path loss and interference. Recently, the complex field network coding (CNFC) method has been proposed by Wang and Giannakis for multiuser communications to enhance the throughput. However, their method can't provide users with differentiated services. The differentiated services should guarantee that the subscribers have reliable communications in their correspond cellular networks. These considerations motivate us to design a power allocation precoder for a relay node employed in a uplink network to help subscribers, so as to minimize their BERs. We further introduce an optimization method to address this problem. Simulations show that our method can provide the differentiated service in the cellular network. In addition to providing users with differentiated service, our scheme always achieves the single user's bound that is based on a no-interference assumption.
誌
謝
感謝指導教授伍紹勳老師在就學期間的指導，由於老師對研究的嚴
謹及嚴格的要求，讓學生在研究及學習上有所成長。
同時也感謝實驗室學長曾俊凱、邱麟凱、邱新栗、黃汀華、林科諺、
黃愈翔、賴沛霓，同學陳人維、邱榮東、蔣明虔、鄭仲傑、郭俊義、
殷裕雄、柯俊先、江長庭、林巧桐、江培立們的幫忙與支持，對於我
在研究及生活上給予極大的幫助。
感謝女友陳心瀅的體諒與支持，讓我能順利完成研究工作。
最後，也最重要的，感謝家人的包容與扶持。若無家人作為後盾，研
究難以完成。
Contents
Abstract-Chinese i Abstract-English ii Appreciation iii Contents iv List of Figures v 1 Introduction 12 System Model and Error Analysis 5
2.0.1 System Model . . . 5 2.0.2 Error Analysis . . . 7 3 Optimization 16 4 Simulation Result 24 5 Conclusions 30 Bibliography 31
List of Figures

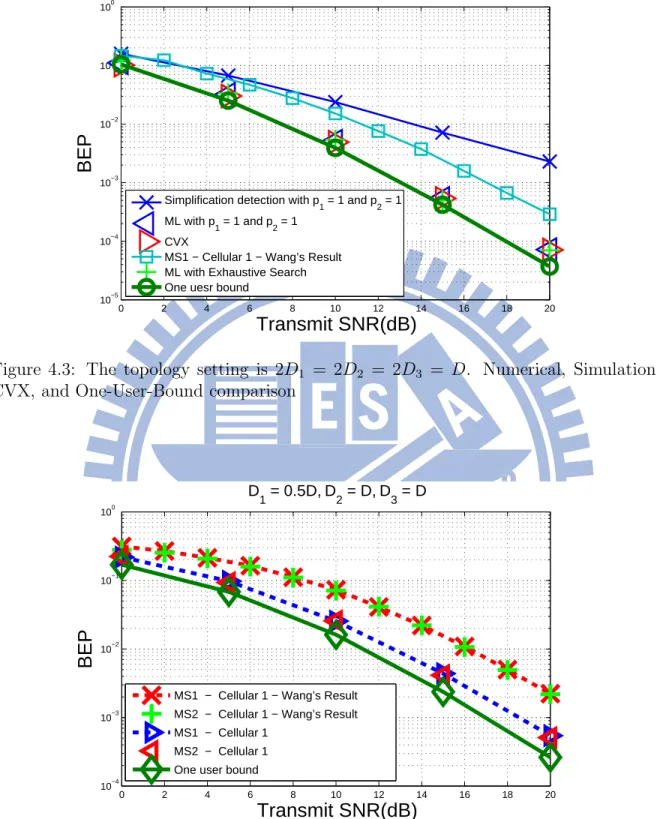

2.1 The system model has two cellular. Each cellular has one source, one relay, and one destination. . . 6 4.1 The simulation topology in two cellular case. . . 26 4.2 The simulation topology in single user environment. . . 26 4.3 The topology setting is 2D1 = 2D2 = 2D3 = D. Numerical, Simulation,
CVX, and One-User-Bound comparison . . . 27 4.4 The topology setting is 2D1 = D2 = D3 = D (Symmetric Case). The

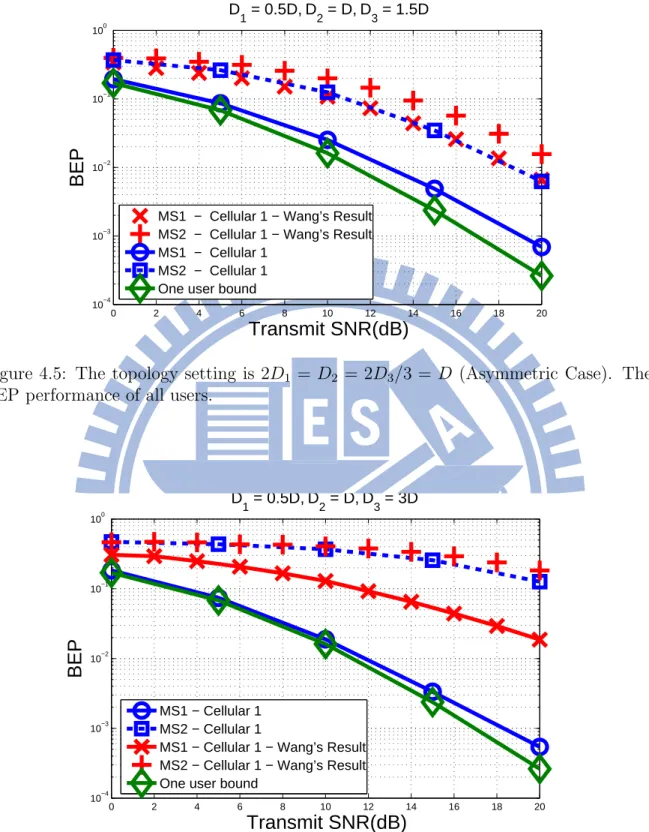

BEP performance of all users. . . 27 4.5 The topology setting is 2D1 = D2 = 2D3/3 = D (Asymmetric Case).
The BEP performance of all users. . . 28 4.6 The topology setting is 2D1 = D2 = D3/3 = D (Asymmetric Case). The

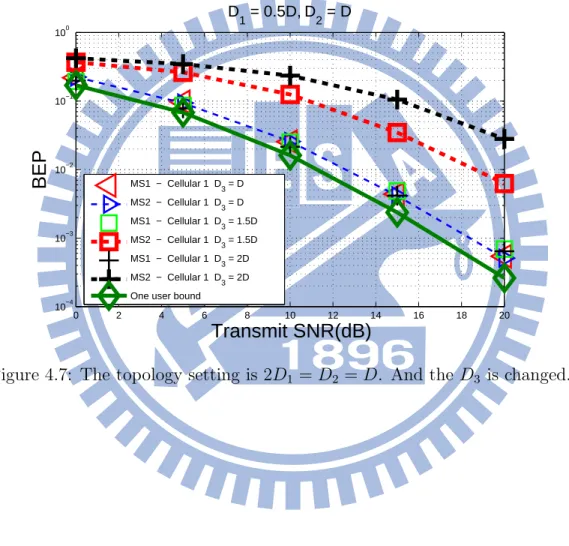

BEP performance of all users. . . 28 4.7 The topology setting is 2D1 = D2 = D. And the D3 is changed. . . 29
Abstract
Higher data rates and more reliable communications are required in next generation communication systems. But the subscribers on the cellular boundary are difficult to attain these requirements due to the severe path loss and interference. Recently, the com-plex field network coding (CNFC) method has been proposed by Wang and Giannakis for multiuser communications to enhance the throughput. However, their method can’t provide users with differentiated services. The differentiated services should guarantee that the subscribers have reliable communications in their correspond cellular networks. These considerations motivate us to design a power allocation precoder for a relay node employed in a uplink network to help subscribers, so as to minimize their BERs. We further introduce an optimization method to address this problem. Simulations show that our method can provide the differentiated service in the cellular network. In addi-tion to providing users with differentiated service, our scheme always achieves the single user’s bound that is based on a no-interference assumption.
Chapter 1
Introduction
In view of the demands of the 3GPP LTE-Advanced [1] and WiMax systems for high data rates and reliable communications, we in this work apply a relay-based coop-erative scheme in a multi-cell uplink network. Employing relays in the system can have many benefits such as enhancing transmission coverage, exploiting the spatial diversity and other benefits. On the other hand, it also can efficiently improve the destination’s received SINRs. In other words, relaying techniques are very useful for wireless com-munications, especially when the subscribers are located on the cellular boundary. But in this specific environment, there isn’t just an intra-cell interference but also inter-cell interference [2]. And the subscribers on the cell boundary usually need to consume more power for communication with their own base station than ones within the cell do. Therefore, the boundary issue about how to control the users’ power for improving their transmit SINRs becomes a very important topic.
On the other hand, the topologies of the 4G communication systems are more com-plicated than other conventional communication systems. If simply applying traditional relaying schemes into the 4G systems, the transmission efficiency will decrease with the number of subscribers, because a relay node equipped with a single antenna can serve only one subscriber each transmission round from the viewpoint of the degree of
free-dom. But recently, there are a few publications that use the network coding to address this problem [3–6]. Generally, the ideal of network coding was proposed for the noiseless wireless networks to enhance capacity [7]. The publication [8] used the max-flow min-cut theory to derive the network capacity based on linear network coding. In [9], the author proposed a practical network coding and further implemented it. Simulations in [9] show that the scheme with this coding method can almost achieve the proposed theoretical optimal performance. Besides, more and more publications extend the network coding method to applications of wireless cooperative communications, such as XOR network coding [3], nonlinear network coding [4], analog network coding [5], and complex field network coding [6]. Due to the broadcasting nature of wireless networks, network coding becomes more and more useful in the field of cooperative communications.
Not only can the relaying mechanism and network coding scheme improve throughput but also there exists another popular technique that can improve the spectrum efficiency in 4G communication systems called network MIMO [10–14]. This scheme collects some resources from base stations to exploit the MIMO-like potential. In the uplink Network MIMO system, there usually exists a specific center node, via backhauls collecting all the signal packets received by the coordinated BSs or other useful data for performing a multi-user detection. In fact, the scheme can be viewed as a virtual MIMO system, like V-BLAST. However, the idea of virtual MIMO for the uplink Network MIMO will become more and more impractical with the amount of the data that need to be ex-changed between the center and the BSs, especially when the users require higher data rates. Therefore, for reality, our CoMP systems only coordinates users’ transmissions but doesn’t exchange any information among the BSs.
Besides, Wang and Giannakis’ publication [6] combines the complex field network coding methods and precoder mechanism. The complex field network coding method can provide higher degree of freedom than other network coding methods. In their scenario, the relay node has users-to-relay and relay-to-destination CSIs to design the precoder by
itself. This precoding method perform well and is easy to use when the channel qualities between each user and the destination are equal. But when the channel qualities are not equal anymore, the user’s BER performances will become poor, and it’s hard to exploit the diversity in finite SNR. In fact, their method can’t provide the user’s differentiated services. The differentiated services can guarantee the reliable communications for the subscribers on the cellular boundary.
In our work, we concentrate on the scenario of the uplink relaying CoMP systems having users on the cell boundary. We first derive the system BER conditioned on all the channel states. Later, we also derive the subscriber’s BER at the corresponding BS which is a marginal case of the system error probability. The above two results can be bounded as a sum of exponential functions. And it’s a function of the precoder. However, the function is too complicated to average the channel effect. We apply the optimization technique to solve this complicated problem. The problem can be modeled as minimizing the BER function of the channel state and being subject to the total power constraint at relay node. We have known that the BER function is a sum of exponential functions and the power constraint is a posynomial function. The optimization problem can be dealt with using the geometric programming (GP) [15–17]. However,the GP requires posynomial function in the exponents. But the result in this work is difficult to attain the requirement. To move on, we use another more powerful optimization method which is called signomial programming (SP) [18]. SP is an extension version of GP. However, SP is also not a convex optimization problem and there doesn’t ex-ist powerful tools to solve it so far. Fortunately, we apply a technique which is called condensed programming to transform the SP problem into a GP one. The condensed programming is based on the arithmetic-geometric inequality. After the manipulations, our problem can be addressed by the solver CVX [19]. Simulations show that the CVX and exhaustive search have almost the same BER performance. And the subscriber’s BER at the corresponding BS isn’t influenced by the inter-cell interference in any
topol-ogy. For comparison, we introduce a single user’s BER bound calculated based on the assumption that the subscriber doesn’t suffers interference from other sources any more. The subscriber at the corresponding BS in our scheme almost achieves the single user’s BER bound. Both on symmetric and asymmetric channel scenarios, our method can provide the differentiated service in the cellular network.
Chapter 2
System Model and Error Analysis
2.0.1
System Model

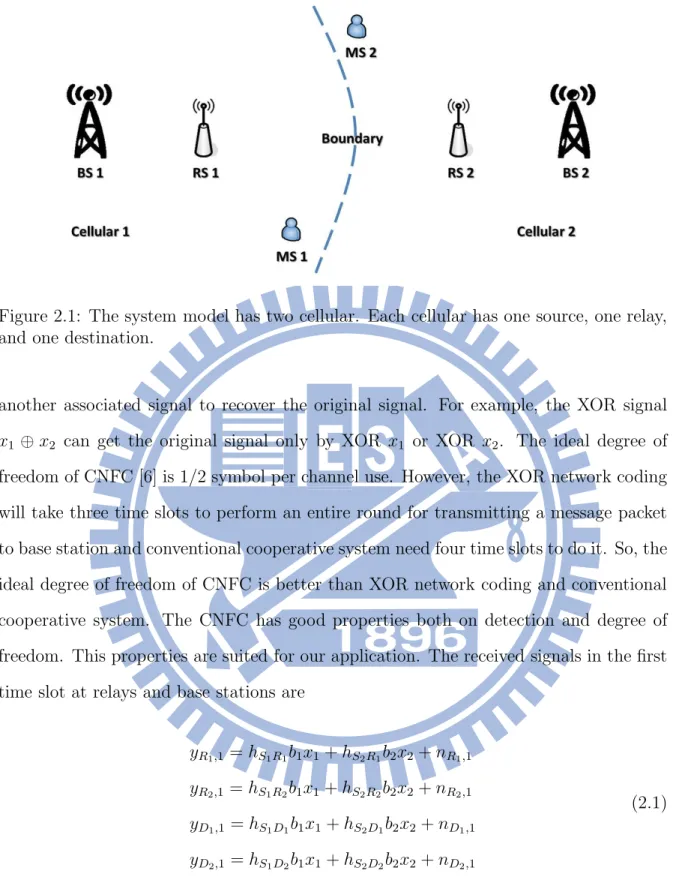

The system model is showed on Figure 2.1. The wireless relay network consists of two subscribers, two relays, and two base stations. All the nodes are equipped with single antenna, and transmit packets in a half-duplex mode. Besides, the two subscribers belong to different cells and their signals would interfere with each other. They would like to transmit their signals to their own base stations, and can be assisted by the relay nodes, respectively. We apply the complex field network coding (CNFC) scheme in our system. And the precoders at the relay nodes are developed to ensure that the subscribers can get differentiated services. Due to the differentiated services, the performance of the subscribers in the cell are better than the other subscribers. In the first time slot, S1 and S2 broadcast their signal b1x1 and b2x2 to the relays and the base
stations simultaneously and the coefficient b1 and b2 [20] are assumed to be known at
all nodes. And the known coefficients b1 and b2 are drawn from the complex field which
can make sure b1x1+ b2x2 6= b1x2+ b2x1 when x1 6= x2. The inequality property ensures
that the relays and base stations can detect both x1 and x2 only by the received signal
that transmitted from the subscribers. This can’t be done by the other network coding methods like the XOR network coding and physical layer network coding, that need
Figure 2.1: The system model has two cellular. Each cellular has one source, one relay, and one destination.
another associated signal to recover the original signal. For example, the XOR signal x1 ⊕ x2 can get the original signal only by XOR x1 or XOR x2. The ideal degree of
freedom of CNFC [6] is 1/2 symbol per channel use. However, the XOR network coding will take three time slots to perform an entire round for transmitting a message packet to base station and conventional cooperative system need four time slots to do it. So, the ideal degree of freedom of CNFC is better than XOR network coding and conventional cooperative system. The CNFC has good properties both on detection and degree of freedom. This properties are suited for our application. The received signals in the first time slot at relays and base stations are
yR1,1 = hS1R1b1x1+ hS2R1b2x2+ nR1,1 yR2,1 = hS1R2b1x1+ hS2R2b2x2+ nR2,1 yD1,1 = hS1D1b1x1+ hS2D1b2x2+ nD1,1 yD2,1 = hS1D2b1x1+ hS2D2b2x2+ nD2,1
(2.1)
where hij ∼ CN 0, σij2, i, j ∈ S1, S2, R1, R2, D1, D2 denote the channel coefficient,
rep-resents the received signal at node ij in the time slot k. The relays use the maximum
likelihood (ML) detection after receiving the combining signal. The ML detection at relay nodes are
(ˆx1, ˆx2)R1 = argx min 1,x2∈S(M) kyR1,1− hS1R1b1x1− hS2R1b2x2k 2 (ˆx1, ˆx2)R2 = argx min 1,x2∈S(M)ky R2,1− hS1R2b1x1− hS2R2b2x2k 2 (2.2)
where S (M) is the possible constellation points set and M is the constellation size. In the second time slot, the relays transmit the detection signals ˆx1, ˆx2 to the base stations
without checking the correctness. The received signals in the second time slot at base stations are yD1,2 = hR1D1(b1p1xˆ1+ b2p2xˆ2) + nD1,2 yD2,2 = hR2D2(b1p1xˆ1+ b2p2xˆ2) + nD2,2 (2.3) where hRiDi ∼ CN 0, σ 2
RiDi, i ∈ 1, 2 represent the channel coefficient, and nD1,2, nD2,2 ∼ CN (0, σ2
n) denote the noise term. The p1 and p2 are power allocation factor at relay
node which will affect the system performance. Designing the power allocation factor is the main problem in our work. However, the system doesn’t change the sources power because each source wants transmit their signal to the their base station. If the system set one subscriber’s power as zero, the corresponding base station will get poor performance.
2.0.2
Error Analysis
The error propagation will influence the detection result at base station because the relay doesn’t check the correctness before transmission. So, the error probability at base station is conditional on the event which the relay detects the subscribers signal correct or not. There are four possible constellation points in the relay node. The four possible
constellation points are dR1 = hS1Rb1x1+ hS2Rb2x2 dR2 = hS1Rb1x1− hS2Rb2x2 dR3 = −hS1Rb1x1 + hS2Rb2x2 dR4 = −hS1Rb1x1 − hS2Rb2x2 (2.4)
where the second line in (2.4) means the constellation point which the subscriber 1 transmits x1 and the subscriber 2 transmits −x2. The probability of the four cases can
be calculated by the union bound. For example, if the subscriber 1 and subscriber 2 transmit x1 and x2 respectively and the relay detects as x1 and −x2, the probability can
be expressed as P(x1,x2),(x1,−x2)= Q |dR1−dR2|/2 σn/√2 = Q | √ 2hS2Rb2x2| σn ≤ 12exp | hS2Rb2x2| 2 σ2 n (2.5)
where |dR1 − dR2| means the Euclidean distance between the two constellation point dR1 and dR2. The last equation in (2.5) uses the Chernoff bound which is Q (x) ≤
1 2exp −x2 2
. Similarly, the other three cases are
P(x1,x2),(−x1,x2) ≤ 1 2exp −|hS1Rb1x1| 2 σ2 n P(x1,x2),(−x1,−x2) ≤ 1 2exp −|hS1Rb1x1+hS2Rb2x2| 2 σ2 n P(x1,x2),(x1,x2) ≈ 3 − P(x1,x2),(x1,−x2)− P(x1,x2),(−x1,x2)− P(x1,x2),(−x1,−x2) (2.6)
and the last equation uses the property of the total probability equals to one. This isn’t a tight bound in low SNR region. But it can present the diversity performance in high SNR region. The union bound only associate with the relative position. So, the other cases can be express as the same method. There are some advantages of the CNFC scheme such as the relay doesn’t need the CRC because it doesn’t check the correctness
before transmission. This can reduce the complexity of the relay node and the relay can process the signal more quickly.
Originally, the base stations use the ML detector to detect the signals which come from the subscriber nodes and relay node. The ML detector at base stations can be expressed as (ˆx1, ˆx2)D1 = arg(x max 1,x2)∈S(M) ( P (˜x1,˜x2)∈S(M) P(x1,x2),(˜x1,˜x2)× exp−|yD1,1−hS1D1b1x1−hS2D1b2x2|2+|yD1,2−hR1D1p11b1x˜1−hR1D1p12b2˜x2|2 2σ2 n o (ˆx1, ˆx2)D2 = arg(x max 1,x2)∈S(M) ( P (˜x1,˜x2)∈S(M) P(x1,x2),(˜x1,˜x2)× exp−|yD2,1−hS1D2b1x1−hS2D2b2x2|2+|yD2,2−hR2D2p21b1x˜1−hR2D2p22b2˜x2|2 2σ2 n o (2.7) where (x1, x2) is a candidate of the transmitting symbol, (˜x1, ˜x2) is a candidate of the
detection symbol in the relay node, and S (M) is the possible constellation set, where M is the constellation size. The ML detector has four terms (MPSK has M2 terms) in its
equation because the relay give four possible reverse signals to the destination. Based on the detection scheme, the destination must knows all the channel state information which includes sources to relay, sources to destination, and relay to destination. And the detection scheme consider all the possible constellation points which comes from sources and relay.
For convenience, we define the function f as
f = P (˜x1,˜x2)∈S(M) P(x1,x2),(˜x1,˜x2)× exp−|yD1,1−hS1D1b1x1−hS2D1b2x2|2+|yD1,2−hR1D1p11b1x˜1−hR1D1p12b2x˜2|2 2σ2 n (2.8)
There are four terms in (2.8). Each term multiply with a probability which represents the constellation point (x1, x2) decoding as (˜x1, ˜x2). In high region, the probability
P(x1,x2),(x1,x2) almost equal to one and the other three probabilities almost equal to zero when comparing with P(x1,x2),(x1,x2). The P(x1,x2),(x1,x2)means that the two sources trans-mit (x1, x2) and relay decode as the same constellation point. So, the (2.8) can be
approximate as f = P (˜x1,˜x2)∈S(M) P(x1,x2),(˜x1,˜x2)× exp−|yD1,1−hS1D1b1x1−hS2D1b2x2|2+|yD1,2−hR1D1p11b1x˜1−hR1D1p12b2x˜2|2 2σ2 n ≈ P(x1,x2),(x1,x2)× exp −|yD1,1−hS1D1b1x1−hS2D1b2x2|2+|yD1,2−hR1D1p11b1x1−hR1D1p12b2x2|2 2σ2 n ≈ exp−|yD1,1−hS1D1b1x1−hS2D1b2x2|2+|yD1,2−hR1D1p11b1x1−hR1D1p12b2x2|2 2σ2 n (2.9) After approximation, there is only one term in the likelihood function. And the detection rule is also changed. The detection rule in destination 1 can be
(ˆx1, ˆx2)D1 = arg(x min 1,x2)∈S(M){|y D1,1− hS1D1b1x1− hS2D1b2x2| 2 +|yD1,2− hR1D1p11b1x1− hR1D1p12b2x2| 2} (2.10)
and the detection rule in destination 2 is (ˆx1, ˆx2)D2 = arg(x min 1,x2)∈S(M){|y D2,1− hS1D2b1x1− hS2D2b2x2| 2 +|yD2,2− hR2D2p21b1x1− hR2D2p22b2x2| 2} (2.11)
We can find that the detection rule is only correlated with the constellation distance. For analysis, we define the function
¯ f (yD1,1, yD1,2, x1, x2) = |yD1,1−hS1D1b1x1−hS2D1b2x2| 2 +|yD1,2−hR1D1p11b1x1−hR1D1p12b2x2| 2 (2.12) where yD1,1 and yD1,2 are the receiving signals in the first and second time slot at
desti-nation 1. Thus, the bit error probability (BEP) at destidesti-nation 1 is Pe = 1 4 X (x1,x2)∈S(M) P(x1,x2) (2.13)
where P(x1,x2) is the error probability when the sources transmit (x1, x2) and
1
4 means
each signal transmits with equal probability in the source nodes. The P(x1,x2) can be expressed as P(x1,x2) = P (ˆx1,ˆx2)∈S(M) P(x1,x2),(ˆx1,ˆx2)× Pr¯ f (hS1D1b1x1+ hS2D1b2x2+ nD1,1, hR1D1b1p1xˆ1+ hR1D1b2p2xˆ2+ nD1,2, x1, x2) ≥ min (˜x1,˜x2)6=(x1,x2) ¯ f (hS1D1b1x1+ hS2D1b2x2+ nD1,1, hR1D1b1p1xˆ1+ hR1D1b2p2xˆ2+ nD1,2, ˜x1, ˜x2) (2.14) Originally, the term before the inequality in (2.14) should be the smallest one when there is no error occurring in the destination 1. Because the detection rule will choose the constellation point which closed to the candidate (x1, x2) in this case. So, the error event
describes that the distance between transmitted constellation point and the candidate (x1, x2) isn’t the smallest one.
The minimum function can be expanded as
So, the (2.14) can be rewrote as P(x1,x2) ≤ P (ˆx1,ˆx2)∈S(M) P(x1,x2),(ˆx1,ˆx2)× P (˜x1,˜x2)6=(x1,x2) Pr¯ f (hS1D1b1x1 + hS2D1b2x2+ nD1,1, hR1D1b1p1xˆ1+ hR1D1b2p2xˆ2+ nD1,2, x1, x2) ≥ ¯f (hS1D1b1x1+ hS2D1b2x2+ nD1,1, hR1D1b1p1xˆ1+ hR1D1b2p2xˆ2 + nD1,2, ˜x1, ˜x2) (2.16) Now, we are going to analysis the probability function in (2.16).
Pr¯ f (hS1D1b1x1+ hS2D1b2x2+ nD1,1, hR1D1b1p1xˆ1+ hR1D1b2p2xˆ2 + nD1,2, x1, x2) ≥ ¯f (hS1D1b1x1+ hS2D1b2x2+ nD1,1, hRDb1p1xˆ1 + hR1D1b2p2xˆ2+ nD1,2, ˜x1, ˜x2) = Pr {|nD1,1| 2+ |h R1D1b1p1(ˆx1− x1) + hR1D1b2p2(ˆx2− x2) + nD1,2| 2 ≥ |hS1D1b1(x1− ˜x1) + hS2D1b2(x2 − ˜x2) + nD1,1| 2 +|hR1D1b1p1(ˆx1− ˜x1) + hR1D1b2p2(ˆx2 − ˜x2) + nD1,2| 2} = Pr−2((hS1D1b1(x1 − ˜x1) + hS2D1b2(x2− ˜x2)) ∗n D1,1)R −2((hR1D1b1p1(x1− ˜x1) + hR1D1b2p2(x2− ˜x2)) ∗n D1,2)R ≥ |hS1D1b1(x1− ˜x1) + hS2D1b2(x2− ˜x2)| 2 −|hR1D1b1p1(ˆx1− x1) + hR1D1b2p2(ˆx2− x2)| 2 +|hR1D1b1p1(ˆx1− ˜x1) + hR1D1b2p2(ˆx2− ˜x2)| 2 (2.17) Let hS1D1b1(x1 − ˜x1) = c1, hS2D1b2(x2− ˜x2) = c2, hR1D1b1p1(x1− ˜x1) = c3, hR1D1b2p2(x2− ˜x2) = c4, hR1D1b1p1(ˆx1− x1) = c5, and hR1D1b2p2(ˆx2 − x2) = c6. The above equation can be
rewrote as Pr−2((c1+ c2)∗nD1,1)R− 2((c3+ c4) ∗n D1,2)R ≥ |c1 + c2|2− |c5+ c6|2+ |c3+ c5+ c4+ c6|2 = Pr −((c1+c2)∗nD1,1)R−((c3+c4) ∗n D1,2)R √ |c1+c2|2+|c3+c4|2 ≥ |c1+c2|2−|c5+c6|2+|c3+c5+c4+c6|2 2√|c1+c2|2+|c3+c4|2 (2.18)
Let Ω = −((c1+c2) ∗n D1,1)R−((c3+c4) ∗n D1,2)R √ |c1+c2|2+|c3+c4|2
. The mean and variance of Ω are
E [Ω] = 0 (2.19) V ar [Ω] = 1 |c1+c2|2+|c3+c4|2V ar− (c1+ c2) ∗ R(nD1,1)R− (c1 + c2) ∗ i(nD1,1)i − (c3+ c4)∗R(nD1,2)R− (c3+ c4) ∗ i(nD1,2)i = 1 |c1+c2|2+|c3+c4|2 h |(c1+ c2)∗R| 2 + |(c1+ c2)∗i| 2 σn2 2 +|(c3+ c4)∗R| 2 + |(c3 + c4)∗i| 2σ2 n 2 i = σn2 2 (2.20)
Therefore, the distribution of Ω is N0,σ2n
2
. So, the (2.18) can be rewrote as
Pr Ω ≥ |c1+c2|2−|c5+c6|2+|c3+c5+c4+c6|2 2√|c1+c2|2+|c3+c4|2 = Pr √ 2Ω σn ≥ |c1+c2|2−|c5+c6|2+|c3+c5+c4+c6|2 √ 2σn √ |c1+c2|2+|c3+c4|2 = Q |c1+c2|2−|c5+c6|2+|c3+c5+c4+c6|2 √ 2σn √ |c1+c2|2+|c3+c4|2 ≤ 1 2 exp −(|c1+c2| 2 −|c5+c6|2+|c3+c5+c4+c6|2) 2 4σ2 n(|c1+c2|2+|c3+c4|2) (2.21)
where the last inequality use the Chernoff bound which is Q (x) ≤ 1 2exp −x2 2 . Based on above derivation, we use it in the (2.16). The result can be expressed as
P(x1,x2)≤ P (ˆx1,ˆx2)∈S(M) P(x1,x2),(ˆx1,ˆx2)× P (˜x1,˜x2)6=(x1,x2) 1 2exp −(|c1+c2| 2 −|c5+c6|2+|c3+c5+c4+c6|2) 2 4σ2 n(|c1+c2|2+|c3+c4|2) # (2.22) where c1 = hS1D1b1(x1− ˜x1), c2 = hS2D1b2(x2− ˜x2), c3 = hR1D1b1p1(x1− ˜x1), c4 = hR1D1b2p2(x2− ˜x2), c5 = hR1D1b1p1(ˆx1− x1), and c6 = hR1D1b2p2(ˆx2− x2). The result is for destination 1. The destination 2 can use the similar way to get the BER function. So far, we have derive the system BER for the destination 1 and destination 2.
However, we want to provide the differentiated service to the users in corresponding BSs. Based on (2.12), the BEP of user 1 at BS1 is
Pe1 = 1 4 X (x1,x2)∈S(M) ¯ P(x1,x2) (2.23)
where ¯P(x1,x2) is the error probability of user 1 when the sources transmit (x1, x2). The ¯ P(x1,x2) can be expressed as ¯ P(x1,x2) = P (ˆx1,ˆx2)∈S(M) P(x1,x2),(ˆx1,ˆx2)× Pr min ¯ x2∈S2(M ) ¯ f (hS1D1b1x1+ hS2D1b2x2+ nD1,1, hR1D1b1p1xˆ1+ hR1D1b2p2xˆ2+ nD1,2, x1, ¯x2) ≥ min ˜ x16=x1,˜x2∈S2(M ) ¯ f (hS1D1b1x1+ hS2D1b2x2+ nD1,1, hR1D1b1p1xˆ1+ hR1D1b2p2xˆ2+ nD1,2, ˜x1, ˜x2) (2.24) where S2(M) is the possible constellation set of user 2. The minimum function in (2.24)
can be expanded as
Pr {min (a, b) ≥ min (c, d)} ≤ Pr (a ≥ c) + Pr (a ≥ d) (2.25) Hence, the (2.24) can be rewrote as
¯ P(x1,x2) ≤ P (ˆx1,ˆx2)∈S(M) P(x1,x2),(ˆx1,ˆx2)× P ˜ x16=x1,˜x2∈S2(M ) Pr¯ f (hS1D1b1x1+ hS2D1b2x2+ nD1,1, hR1D1b1p1xˆ1+ hR1D1b2p2xˆ2+ nD1,2, x1, x2) ≥ ¯f (hS1D1b1x1+ hS2D1b2x2+ nD1,1, hR1D1b1p1xˆ1+ hR1D1b2p2xˆ2+ nD1,2, ˜x1, ˜x2) (2.26) We can find that the (2.26) is a reduced form of (2.16). Based on the derivation of
system error probability, the result can be expressed as ¯ P(x1,x2) ≤ P (ˆx1,ˆx2)∈S(M) P(x1,x2),(ˆx1,ˆx2)× P ˜ x16=x1,˜x2∈S2(M ) 1 2exp −(|c1+c2| 2 −|c5+c6|2+|c3+c5+c4+c6|2) 2 4σ2 n(|c1+c2|2+|c3+c4|2) # (2.27) where c1 = hS1D1b1(x1− ˜x1), c2 = hS2D1b2(x2− ˜x2), c3 = hR1D1b1p1(x1− ˜x1), c4 = hR1D1b2p2(x2− ˜x2), c5 = hR1D1b1p1(ˆx1− x1), and c6 = hR1D1b2p2(ˆx2− x2). Both re-sults in this section are a sum of exponential functions. However, the rere-sults are too complicated to average the channel effect. In Chapter 3, we apply the optimization technique to solve this complicated problem.
Chapter 3
Optimization
The result in chapter 2 is a sum of exponential functions. And it’s too complicated to average the channel effect. In this chapter, we apply the optimization technique to solve this complicated problem. The optimization of exponential functions can be dealt with by using GP. However,the GP requires a form of posynomial functions in the exponent. But our result is difficult to attain the requirement. To do so, we use another more powerful optimization method which is called SP. SP is an extension version of the GP and it’s a nonlinear optimization method. In this section, we introduce the standard form and properties of GP at first. Second, the form of SP and transformation skills are presented.
The standard form of GP is minimizing a posynomial subject to posynomial up-per bound inequality constraints and monomial equality constraints. The form can be expressed as minimize f0(x) subject to fi(x) ≤ 1, i = 1, . . . , m hl(x) = 1, l = 1, . . . M variables x (3.1)
where hl, l = 1, . . . M are monomials hl(x) = dx a(1)k 1 x a(2)k 2 . . . x a(n)k n (3.2)
where the multiplicative constant d ≥ 0 and the exponential constants a(j) ∈ ℜ, j =
1, . . . , n and xi ≥ 0, i = 1, . . . , n. And fi, i = 1, . . . , m, are posynomials
fi(x) = K X k=1 dikx a(1)k 1 x a(2)k 2 . . . x a(n)k n (3.3)
which is a sum of monomials.
Note that the domain of monomials is strictly positive quadrant of ℜn, where the
objective functions and constraint functions are writing in terms of monomials, The domain of monomials implies that the optimal variables cannot be zero. GP in standard form isn’t a convex optimization problem, because posynomials aren’t convex functions. It can be used a logarithmic change of all variables and becomes a convex optimization problem. The details doesn’t introduce in this work.
In our work, the objective function isn’t a posynomial function. We can’t directly use the GP for the problem. In the problem, the objective function and constraint functions are polynomials division. Polynomial is a form of posynomial with negative multiplicative coefficients. It can be divided to two parts which are monomials terms with positive multiplicative coefficients and negative multiplicative coefficients. Each parts are posynomial function and can applied the SP to optimize. The form of SP is
minimize f01(x) − f02(x)
subject to fi1(x) − fi2(x) ≤ 1, i = 1, . . . , m
(3.4)
where fi1(x) , i = 1, . . . , m are separated from those monomial terms with positive
mul-tiplicative coefficients and it’s a posynomial function. We need to convert the signomial objective function into the form by GP. In Table 3.1, we can see that the major difference
Table 3.1: GP and SP comparison
Geometric Programming Signomial Programming
dik ℜ+ ℜ
a(j) ℜ ℜ
xj ℜ++ ℜ++
between GP and SP lies in the multiplicative coefficients and other parameters are al-most the same. Let t be an auxiliary variable and transfer the objective to minimization of t.
minimize t
subject to f01(x) − f02(x) ≤ t
fi1(x) − fi2(x) ≤ 1, i = 1, . . . , m
(3.5)
This problem can be solved by the algorithm that has been proposed by Avriel and Williams. Consider the kth constraint of above signomial:
fi1(x) − fi2(x) ≤ 1 (3.6)
This can be rewrote as
fi1(x)
1 + fi2(x) ≤ 1
(3.7) and the original objective function can be transformed as a constraint :
f01(x)
t + f02(x) ≤ 1
The problem becomes minimize t subject to f01(x) t+f02(x) ≤ 1 fi1(x) 1+fi2(x) ≤ 1, i = 1, . . . , m (3.9) However, the fi1(x) 1+fi2(x) and f01(x)
t+f02(x) aren’t posynomial functions (A posynomial divided by a posynomial isn’t a posynomial function). But we can use a technique which is called condensed programs to condense the posynomial function where in the denominator as a monomial function. As a result, the posynomial function divided by a monomial function is a posynomial function. And we can use the function which has been condensed to do the GP.
Before describing the condensed programs, we first introduce the arithmetic-geometric inequality. The condensed program is based on this inequality. The inequality describe that the weighted arithmetic mean of positive numbers f1, f2, . . . , fn is greater than or
equal to the geometric mean. And it can be wrote as follows
n X i=1 fi ≥ n Y i=1 fi ωi ωi (3.10) where n X i=1 ωi = 1 (3.11) ωi ≥ 0, i = 1, 2, . . . , n (3.12)
Equality holds if and only if
f1 ω1 = f2 ω2 = · · · = fn ωn (3.13) Based on the above inequality, we introduce the condensed programs. For an any
posyn-omial function fi(x) = K X k=1 dikx a(1)k 1 x a(2)k 2 . . . x a(n)k n = K X k=1 uik(x) (3.14)
the definition of condensed posynomial, formed at a point ˜x :
fi(x, ˜x) = K Y k=1 dikx a(1)k 1 x a(2)k 2 . . . x a(n)k n ωik(˜x) ωik(˜x) = K Y k=1 uik(x) ωik(˜x) ωik(˜x) (3.15)
For a given ˜x > 0 we will choose the set of weights which is based on the arithmetic-geometric inequality :
ωik(˜x) =
uik(˜x)
fi(˜x)
(3.16) There is an important property of the above result which the fi(x, ˜x) is a monomial
function. The condensed posynomial must rule by the arithmetic-geometric inequality :
fi(x, ˜x) ≤ fi(x) (3.17)
for any positive x and ˜x.
Back to the original problem in (3.9). We can apply the condensed programs to the denominator of the constraints. And it can be translated as :
t + f02(x) ≥ f0(x, ˜x1)
1 + fi2(x) ≥ fi(x, ˜x2)
(3.18)
And the optimization problem will be :
minimize t subject to f01(x) f0(x,˜x1) ≤ 1 fi1(x) fi(x,˜x2) ≤ 1, i = 1, . . . , m (3.19)
• (3.19) is a standard form of GP because all constraints are posynomial function. • At any point, ˜x1 and ˜x2 satisfy the constraints of (3.19) will satisfy the constraints
of (3.9). This can be observed by the inequality (3.17), i.e.:
f01(x) t+f02(x) ≤ f01(x) f0(x,˜x1) ≤ 1 fi1(x) 1+fi2(x) ≤ fi1(x) f1(x,˜x2) ≤ 1 (3.20)
• Inequality (3.20) implies that the feasible set of (3.19) is fully constrained in (3.9). So, the optimal solution to (3.19) will be a feasible solution to (3.9).
Based on the above introducing of SP, we want to apply it to our problem. In the chapter 2, we get a BER function which is formed by exponential terms. The general form is like : f (p1, p2) = X i ciexp −wi(p1, p2) − xi(p1, p2) ui(p1, p2) − vi(p1, p2) (3.21) where the ui(p1, p2), vi(p1, p2), wi(p1, p2), and xi(p1, p2) are posynomial functions. And
the exponential term, −wi(p1,p2)−xi(p1,p2)
ui(p1,p2)−vi(p1,p2) , is negative number because we derive it from the Chernoff bound. This can’t use the SP directly. In the optimization problem, we use a auxiliary variable to substitute the negative term where in the exponential function. And the negative term becomes a constraint which is upper bounded by the auxiliary variable. This constraint is violate the definition of GP(The constraints are posynomial functions in GP. This implies all the constraints must great than zero.). For this problem, we change the function f (p1, p2) as ¯f (p1, p2) :
¯ f (p1, p2) = ek× f (p1, p2) = X i ciexp −wi(p1, p2) − xi(p1, p2) ui(p1, p2) − vi(p1, p2) + k (3.22)
it must follow the rule : k > max i wi(p1, p2) − xi(p1, p2) ui(p1, p2) − vi(p1, p2) (3.23)
Now, the original problem is
minimize f (p1, p2) subject to p2 1+ p22 ≤ 2 (3.24) and we transform it as minimize f (p¯ 1, p2) subject to p2 1+ p22 ≤ 2 (3.25) where p2
1+ p22 ≤ 2 is the total power constraint in the relay node. Introducing auxiliary
variables ti, we transform the above problem to the following equivalent problem :
minimize P i ciexp (ti) subject to p2 1+ p22 ≤ 2 −wi(p1,p2)−xi(p1,p2) ui(p1,p2)−vi(p1,p2) + k ≤ ti, i = 1, . . . , K (3.26)
The second constraint can be rewrite as xi(p1, p2) + kui(p1, p2) + tivi(p1, p2)
tiui(p1, p2) + kvi(p1, p2) + wi(p1, p2)
= xi(p1, p2) + kui(p1, p2) + tivi(p1, p2) Qi(p1, p2) ≤ 1
(3.27) Let Qi(p1, p2, ˜p1, ˜p2) denote the monomial function which obtained by condensing the
posynomial function Qi(p1, p2) at the point ˜p1, ˜p2. The posynomial function will great
than or equal to the monomial function.
and the weights of condensed program uses the method that is introduced in (3.16). We substitute the Qi(p1, p2, ˜p1, ˜p2) for Qi(p1, p2) in (3.26). The optimization becomes
minimize P i ciexp (ti) subject to p2 1+ p22 ≤ 2 xi(p1,p2)+kui(p1,p2)+tivi(p1,p2) Qi(p1,p2,˜p1,˜p2) ≤ 1, i = 1, . . . , K (3.29)
The (3.29) is a standard form of GP. And the tool CVX can solve this kind of problems.
Algorithm 1 The Application of SP on Power Allocation Precoder for a Relay Node 1). Initialize n = 0 2). Set k > max i wi(p1,p2)−xi(p1,p2) ui(p1,p2)−vi(p1,p2)
3). Random peak p1(0) and p2(0) in the constraint p21(0) + p22(0) ≤ 2
4). Calculate the weights of condensed program in (3.28) 5). Set Cvx optimum (0) = 10 6). Set m = 0 while m ≤ 99.9% do Cvx begin gp minimize P i ciexp (ti) subject to p2 1+ p22 ≤ 2 xi(p1,p2)+kui(p1,p2)+tivi(p1,p2) Qi(p1,p2,˜p1,˜p2) ≤ 1, i = 1, . . . , K (3.30) Cvx end m = Cvx optimum (n) /Cvx optimum (n − 1)
Update the weights of condensed program in (3.28) using p1(n) and p2(n)
Set n=n+1 end while
The algorithm 1 described the optimization method in our scheme and the perfor-mance will present in the next section.
Chapter 4
Simulation Result
We in this section show the simulations which compare the BERs of the relay-based CoMP systems with the proposed precoder in the different topologies shown in Fig.4.1 and Fig.4.2. Fig.4.1 demonstrates the simulation environment for our multi-cell commu-nications, and Fig.4.2 represents the case that the MS1 doesn’t suffers interference from other MSs any more. The D1, D2, and D3 are the distances of BS1-to-RS, BS1-to-MS1,
and BS1-to-MS2, respectively. And MS2 isn’t belonging to the cellular 1. In our simula-tions, the average channel power is assumed to be inversely proportional to the cubic of the distance between transmitter and receiver. In Fig.4.3, we set D1 = D2 = D3 = D/2
where D is defined as a standard distance that is a distance from the cellular boundary to its BS. The average SNR caused by the path loss of the distance D is assumed as γ = Px/σn2 where Px denotes the received power when the MS signals from a cell
bound-ary has been transmitted to the destination, i.e.,the BS. Following this assumption, the other average SNRs can be given by (D/Di)3γ for i = 1, 2, 3. Both ”ML with Exhaustive
Search” and ”CVX” (Chapter 3) methods are used to find a pair (p1, p2) that can
min-imize the function (2.22). The curve ”ML with Exhaustive Search” and ”CVX” show almost the same BEP performance. But the ”CVX” is a precise and efficient method to find a solution for the power allocation. Compared with Wang and Giannakis’ CNFC
method, both ”ML with Exhaustive Search” and ”CVX have 3dB gain in BER perfor-mance. The curve Simplification detection with ”p1 = 1 and p2 = 1” shows that the
BEPs of the MS1 of the cells without designing the power allocation precoders for the RS. In this situation, the MS can’t exploit full diversity at the corresponding BS. The last curve ”One user bound” represents a performance metric based on the MS1 doesn’t suffer any interference. And our scheme can almost achieve this performance bound.
In Fig.4.4, the network topology is set as 2D1 = D2 = D3 = D. The topology would
happen when the MSs in Figure 4.1 are located on the cellular boundary. In this situa-tion, applying our method the MS1 and MS2 can achieve the same performance as they do by Wang and Giannakis’ precoder. As the same result in Fig.4.3, our performance in BER is 3dB better than Wang and Giannakis’ CNFC method. In Fig.4.5, the network topology is set as 2D1 = D2 = 2D3/3 = D. The topology is called as asymmetric
topology because the two MSs have different distance to the base station. Besides, the differentiated services are clearly showed on this figure. For example, the MS1 in cellular 1 has better performance than the MS2 in cellular 1. The power allocation precoders at RS1 actually can provide the advantage for the MS1. And compared with Wang and Giannakis’ CNFC method, we have 6dB gain in BER performance. In Fig.4.6, the network topology is 2D1 = D2 = D3/3 = D. The differentiated services are also show
up in this figure. The performance of the MS in the corresponding BS is also reliable and closed to the one user bound when the topology becomes more asymmetric than in Fig.4.5. Wang and Giannakis’ CNFC method can’t exploit diversity in this topology and the performance gap between their scheme and our method is about 10dB. In the last simulation Fig.4.7, the performance of the MS1 on the cell boundary almost remains the same even though the location of MS2 has been changed.

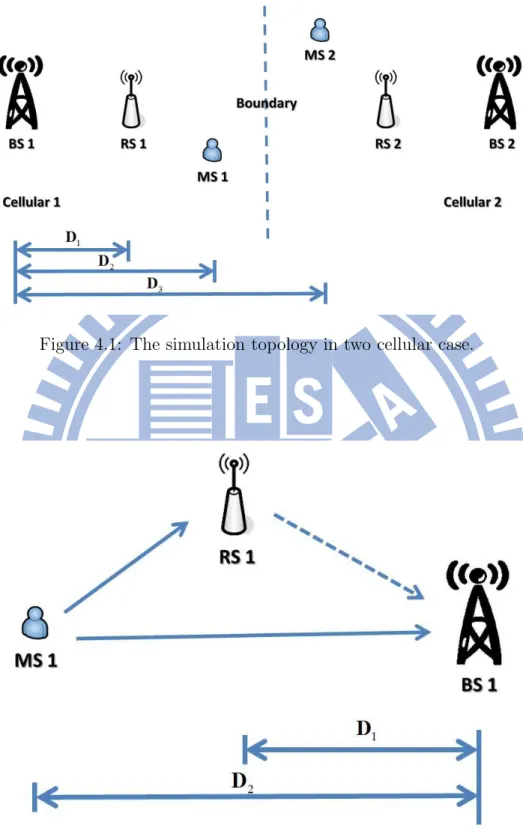

Figure 4.1: The simulation topology in two cellular case.
0 2 4 6 8 10 12 14 16 18 20 10−5 10−4 10−3 10−2 10−1 100
Transmit SNR(dB)
BEP
Simplification detection with p
1 = 1 and p2 = 1
ML with p
1 = 1 and p2 = 1
CVX
MS1 − Cellular 1 − Wang’s Result ML with Exhaustive Search One uesr bound
Figure 4.3: The topology setting is 2D1 = 2D2 = 2D3 = D. Numerical, Simulation,
CVX, and One-User-Bound comparison
0 2 4 6 8 10 12 14 16 18 20 10−4 10−3 10−2 10−1 100
Transmit SNR(dB)
BEP
D 1 = 0.5D, D2 = D, D3 = DMS1 − Cellular 1 − Wang’s Result MS2 − Cellular 1 − Wang’s Result MS1 − Cellular 1
MS2 − Cellular 1 One user bound
Figure 4.4: The topology setting is 2D1 = D2 = D3 = D (Symmetric Case). The BEP
0 2 4 6 8 10 12 14 16 18 20 10−4 10−3 10−2 10−1 100
Transmit SNR(dB)
BEP
D 1 = 0.5D, D2 = D, D3 = 1.5DMS1 − Cellular 1 − Wang’s Result MS2 − Cellular 1 − Wang’s Result MS1 − Cellular 1
MS2 − Cellular 1 One user bound
Figure 4.5: The topology setting is 2D1 = D2 = 2D3/3 = D (Asymmetric Case). The
BEP performance of all users.
0 2 4 6 8 10 12 14 16 18 20 10−4 10−3 10−2 10−1 100
Transmit SNR(dB)
BEP
D 1 = 0.5D, D2 = D, D3 = 3D MS1 − Cellular 1 MS2 − Cellular 1MS1 − Cellular 1 − Wang’s Result MS2 − Cellular 1 − Wang’s Result One user bound
Figure 4.6: The topology setting is 2D1 = D2 = D3/3 = D (Asymmetric Case). The
0 2 4 6 8 10 12 14 16 18 20 10−4 10−3 10−2 10−1 100
Transmit SNR(dB)
BEP
D 1 = 0.5D, D2 = D MS1 − Cellular 1 D 3 = D MS2 − Cellular 1 D 3 = D MS1 − Cellular 1 D3 = 1.5D MS2 − Cellular 1 D3 = 1.5D MS1 − Cellular 1 D 3 = 2D MS2 − Cellular 1 D 3 = 2DOne user bound
Chapter 5
Conclusions
We have introduced a power allocation method for the relay node to provide differen-tiated services in multi-cell communications. The differendifferen-tiated services are possible in multi-cell communications and subscriber’s diversity gain at corresponding BS is guar-anteed. Besides, the SP provides an efficiency search for the power allocation method. However, we only considered the simple scenario that consists of two adjacent cells whcih have two individual subscribers both using the BPSK modulation. In the future, the power allocation method would be extended to high order modulation and more complex topologies.
Bibliography
[1] 3GPP LTE-Advanced, “http://www.3gpp.org/lte-advanced,” .
[2] A. B. Carleial, “Interference channels,” in IEEE Trans. Inform. Theory, Jan. 1978, vol. 24, pp. 60 – 70.
[3] Yingda Chen, S. Kishore, and Jing Li, “Wireless diversity through network cod-ing,” in Wireless Communications and Networking Conference, 2006. WCNC 2006. IEEE, 2006, vol. 3, pp. 1681 – 1686.
[4] Ming Xiao and M. Skoglund, “M-user cooperative wireless communications based on nonbinary network codes,” in Networking and Information Theory, 2009. ITW 2009. IEEE Information Theory Workshop on, 2009, pp. 316 – 320.
[5] Sachin Katti, Shyamnath Gollakota, and Dina Katabi, “Embracing wireless inter-ference: Analog network coding,” in in ACM SIGCOMM. 2007, pp. 397 – 408, MIT.
[6] Tairan Wang and Georgios B. Giannakis, “Complex field network coding for mul-tiuser cooperative communications,” in IEEE JOURNAL ON SELECTED AREAS IN COMMUNICATIONS, 2008, vol. 26.
[7] R. Ahlswede, Ning Cai, S.-Y.R. Li, and R.W. Yeung, “Network information flow,” Information Theory, IEEE Transactions on, vol. 46, no. 4, pp. 1204 – 1216, July 2000.
[8] R. Koetter and M. Medard, “An algebraic approach to network coding,” Network-ing, IEEE/ACM Transactions on, vol. 11, no. 5, pp. 782 – 795, 2003.
[9] Philip Chou Yunnan, Philip A. Chou, Yunnan Wu, and Kamal Jain, “Practical network coding,” 2003.
[10] S. Khattak P. Marsch and G. Fettweis, “A framework for determining realistic capacity bounds for distributed antenna systems,” in Proceedings of the IEEE Information Theory Workshop, Oct. 2006.
[11] A. Sklavos Y. Liu E. Costa H. Haas T. Weber, I. Maniatis and E. Schulzl, “Joint transmission and detection integrated network (joint), a generic proposal for beyond 3g systems,” in Proc. 9th International Conference on Telecommunications, 2002, pp. 479–483.
[12] A. Zoch C. Jandura, P. Marsch and G. Fettweis, “A testbed for cooperative multi cell algorithms,” in Proceedings of the Tridentcom, 2008.
[13] A. Lozano S. Venkatesan and R. Valenzuela, “Network mimo: Overcoming inter-cell interference in indoor wireless systems,” in Signals, Systems and Computers, Nov. 2007, pp. 83 – 87.
[14] O. Somekh A. Sanderovich and S. Shamai, “Uplink macro diversity with limited backhaul capacity,” in Proc. IEEE ISIT, June 2007, pp. 11 – 15, 24 – 29.
[15] L. Vandenberghe S. Boyd, S.-J. Kim and A. Hassibi, “A tutorial on geometric programming,” 2007.
[16] Mung Chiang, “Geometric programming for communication systems,” 2005, avail-able at http://www.princeton.edu/ chiangm/gp.pdf.
[17] E. L. Peterson R. J. Dun and C. Zene, “Geometric programming: Theory and applications,” Wiley, 1967.
[18] R.DEMBO M.AVRIEL and U.PASSY, “Solution of generalized geometric pro-grams,” in INTERNATIONAL JOURNAL FOR NUMERICAL METHODS IN ENGINEERING, 1975, vol. 9, pp. 149 – 168.
[19] Michael Grant and Stephen Boyd, “Cvx: Matlab software for disciplined convex programming,” available at http://cvxr.com/cvx/.
[20] Yan Xin, Student Member, Zhengdao Wang, and Georgios B. Giannakis, “Space-time diversity systems based on linear constellation precoding,” IEEE Trans. Wire-less Commun, vol. 2, pp. 294–309, 2003.
