Yi-Chen Chen
1,†, Chia-Lung Li
1,†, Yu-Yuan Hsiao
2, Yulander Duh
1and Hanna S. Yuan
1,3,*1Institute of Molecular Biology, Academia Sinica, Taipei 11529, Taiwan, ROC,2Department of Biological Science and
Technology, National Chiao Tung University, Hsinchu 30068, Taiwan, ROC and3Graduate Institute of Biochemistry
and Molecular Biology, College of Medicine, National Taiwan University, Taipei 10048, Taiwan, ROC
Received April 23, 2014; Revised July 29, 2014; Accepted July 29, 2014
ABSTRACT
TatD is an evolutionarily conserved protein with thou-sands of homologues in all kingdoms of life. It has been suggested that TatD participates in DNA frag-mentation during apoptosis in eukaryotic cells. How-ever, the cellular functions and biochemical proper-ties of TatD in bacterial and non-apoptotic
eukary-otic cells remain elusive. Here we show that
Es-cherichia coliTatD is a Mg2+-dependent 3–5
exonu-clease that prefers to digest single-stranded DNA and RNA. TatD-knockout cells are less resistant to the DNA damaging agent hydrogen peroxide, and TatD can remove damaged deaminated nucleotides from a DNA chain, suggesting that it may play a role in
the H2O2-induced DNA repair. The crystal structure
of the apo-form TatD and TatD bound to a single-stranded three-nucleotide DNA was determined by X-ray diffraction methods at a resolution of 2.0 and
2.9 ˚A, respectively. TatD has a TIM-barrel fold and
the single-stranded DNA is bound at the loop region on the top of the barrel. Mutational studies further identify important conserved metal ion-binding and catalytic residues in the TatD active site for DNA hy-drolysis. We thus conclude that TatD is a new class of
TIM-barrel 3–5 exonuclease that not only degrades
chromosomal DNA during apoptosis but also pro-cesses single-stranded DNA during DNA repair.
INTRODUCTION
TatD is a conserved protein widely expressed in different species, including bacteria, fungi, plants and animals. More than 8000 genes encoding TatD-related proteins have been sequenced, mostly bearing a single conserved TatD domain
of∼250 amino acids (see TatD–DNase subfamily in Pfam
database,http://pfam.sanger.ac.uk//family/PF01026). TatD from different species share a high sequence identity, such
as Escherichia coli TatD shares a sequence identity of 26, 37 and 32% to Saccharomyces cerevisiae, Caenorhabditis el-egans and human TatD, respectively, suggesting that TatD may have a conserved structure and function (Figure 1). Nevertheless, little is known regarding either the cellular functions or biochemical properties of TatD in prokaryotic or eukaryotic cells.
TatD was encoded by a Tat operon that encodes Tat pro-teins, including TatA, TatB, TatC and TatD, for protein transport via the Tat (Twin-Arginine Translocation) path-way in E. coli (1). TatA, TatB and TatC are membrane-bound proteins and they form a receptor essential for bind-ing and transportbind-ing folded proteins bearbind-ing twin arginine signal peptides from the cytoplasm to periplasm (2). How-ever, TatD is a cytoplasmic protein with Mg2+-dependent
DNase activity, and the expression of TatD and two TatD homologues, YcfH and YjjV, are not essential for protein export in the Tat pathway in E. coli (3–5). The link between the DNase activity of TatD to protein export seems remote, implying that TatD likely carries an unknown and unrelated cellular function other than protein export in bacteria.
Subsequently, a search of nucleases involved in DNA fragmentation in C. elegans identified TatD
homo-logue CRN-2 as one of the apoptotic nucleases (6).
Knockdown of CRN-2 delayed DNA degradation of apoptotic cells and increased TUNEL-positive (terminal
deoxynucleotidyltransferase-mediated dUTP-nick end
labeling) nuclei during development, suggesting that CRN-2 is involved in DNA fragmentation in C. elegans. CRN-2 degrades chromosomal DNA and contributes to cell killing in an independent pathway different from
that of CPS-6/CRN-1/CRN-4/CRN-5 (7–9). Follow-up
studies further showed that TatD bears 3–5 exonuclease activity and participates in DNA fragmentation during apoptosis in S. cerevisiae (10) and Trypanosoma brucei (11). Knockout of TatD increases the TUNEL-positive cells and cell survival whereas overexpression of TatD facilitates cell death in both species, confirming the role of TatD for DNA degradation during apoptosis.
*To whom correspondence should be addressed. Tel: +886 2 27884151; Fax: +886 2 27826085; Email: [email protected] †The authors wish it to be known that, in their opinion, the first two authors should be regarded as Joint First Authors.
C
The Author(s) 2014. Published by Oxford University Press on behalf of Nucleic Acids Research.
This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted reuse, distribution, and reproduction in any medium, provided the original work is properly cited.

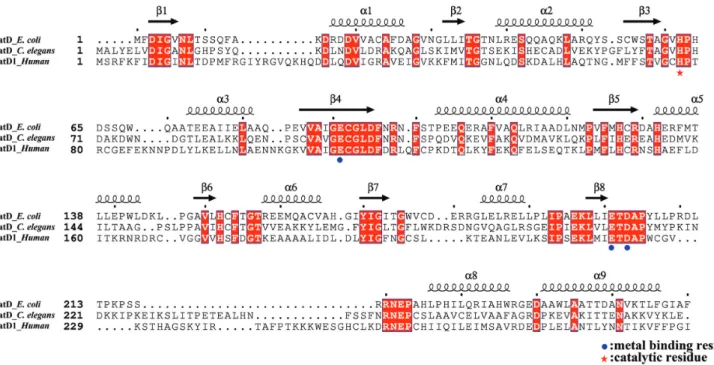

Figure 1. Sequence alignment of TatD. The E. coli TatD shares a high sequence identity with C. elegans TatD (37%) and human TatD1 (32%). The
conserved residues are shaded in red. The secondary structures derived from the crystal structure of TatD (this study, PDB entry: 4P5U) are displayed above the sequences. The conserved metal-ion binding and catalytic residues are marked by blue dots and a red star, respectively.
A number of crystal structures of TatD from various species have been deposited in the protein data bank with-out related published articles, including human TatD1 and TatD3 (PDB entry code: 2XIO and 2YIH), S. cerevisiae TatD (PDB entry code: 3E2V) and E. coli TatD, YcfH and YjjV (PDB entry code: 1XWY, 1YIX and 1ZZM). These TatD structures all share a similar TIM-barrel fold with eight/␣ motifs folded into a barrel-shaped structure. The TIM-barrel fold is one of the most common folds of metab-olizing enzymes and can be found in oxireductases, trans-ferases, hydrolases, lyases and isomerases (12). Among the TIM-barrel enzymes, only one nuclease that targets DNA, Endo IV in the AP (apurinic/apyrimidinic) endonuclease family, has been reported (13). Endo IV cleaves DNA at the 5-side of abasic sites in the base excision DNA repair path-way in a Zn2+-dependent manner. The crystal structure of Endo IV bound to DNA reveals that DNA is bound at the C-terminal edge of the barrel with three zinc ions bound in the endonuclease active site.
Since TatD is an evolutionarily conserved protein, it should have an important cellular role. However, our un-derstanding of this protein is largely hampered due to lack of knowledge of its biological functions and structure-to-function relationship. Here we provide lines of evidence showing that TatD is a 3–5 exonuclease that processes single-stranded DNA in DNA repair. The crystal structures of TatD and TatD–DNA complex further reveal how TatD binds and processes DNA from the 3end. This study thus reveals, for the first time, the structure and function of TatD in DNA repair at the molecular level.
MATERIALS AND METHODS TatD expression and purification
The gene encoding E. coli TatD was amplified by Poly-merase Chain Reaction (PCR) using E. coli genomic DNA from K12 strains. The PCR products were di-gested with NdeI and XhoI and inserted in the expres-sion vector pET22b (Novagen) to generate the C-terminal His-tagged recombinant protein. The pET22b-TatD plas-mid was transformed into E. coli BL21-CodonPlus-RIPL (Stratagene) competent cells cultured in Luria-Bertani (LB)
medium supplemented with 100 g of ampicillin/ml at
37◦C. Cells were grown to an OD600 of 0.5–0.6 and
in-duced by 1 mM isopropyl-beta-D-thiogalactopyranoside (IPTG) at 18◦C for 20 h. The harvested cell pellet was re-suspended in the Ni-buffer A (NA) buffer (20 mM 3-(N-morpholino)propanesulfonic acid (MOPS), 300 mM NaCl, pH 7.7) and disrupted by microfluidizer. The crude cell extract was applied to a Ni-NTA column (GE Health-care) that was washed by NA buffer, and the bound pro-teins were eluted by an imidazole gradient using a NB buffer (20 mM MOPS, 300 mM NaCl, 500 mM imida-zole, pH 7.7) mixing with NA buffer (gradient length: 200 ml). Eluted proteins were dialyzed against QA buffer
(20 mM MOPS, 1 mM -mercaptoethanol, pH 7.2)
be-fore being passed through HiTrap Q-Sepharose anion ex-change column (GE Healthcare). The recombinant TatD was then eluted with a high salt gradient containing a
mixture of QA and QB buffer (20 mM MOPS, 1 mM
-mercaptoethanol, 1 M NaCl, pH 7.2) (gradient length: 100 ml). The purified TatD was concentrated to 3–9 mg/ml in 10 mM MOPS and 250 mM NaCl (pH 7.2). TatD point mutants were generated using the QuikChange
site-(MALDI-TOF) mass spectrometry (Bruker AutoFlex III
smartbeam TOF/TOF200).
To determine the cellular location of TatD, the harvested E. coli cell pellet with overexpressed TatD was resuspended in Tris–sucrose hypertonic buffer (200 mM Tris–HCl, pH 8.0, 0.5 M sucrose and 0.5 mM Ethylenediaminetetraacetic acid (EDTA)) to a final concentration of 5–20 mg cells/ml. Lysozyme was added to the cell solution to a final concen-tration of 60g/ml to remove the cell wall. After incuba-tion with lysozyme for 10 min, MgSO4was added to a final
concentration of 20 mM to stabilize the spheroplast which was then centrifuged at 8000g for 20 min. The supernatant was collected as the periplasmic fraction. The pellet con-tained spheroplast that was further resuspended and lysed by sonication and the supernatant was collected as the cy-tosol fraction.
Nuclease activity assay
DNA and RNA oligonucleotides used for nuclease activ-ity assays were labeled at the 5 end with [␥-32P]ATP by
T4 polynucleotide kinase and purified on a Microspin G-25 column (GE Healthcare) to remove the non-incorporated nucleotides. The 5-end 32P-labeled 20-nucleotide single-s
tranded DNA or RNA (5-CAAACTCTCTCTCTCTCAA
C-3or 5-CAAACUCUCUCUCUCUCAAC-3) or the do
uble-stranded DNA in a reaction buffer of 3 mM MOPS an d 75 mM NaCl (pH 7.2) was incubated with the recombina nt TatD in the presence or absence of metal ions in a final volume of 10l at 37◦C for 1 or 2 h. The reactions were st opped by adding 20 mM protease K for 30 min to digest Ta tD. Reaction samples were then resolved on 20% denatur ing polyacrylamide gels and visualized by autoradiograph y (Fujifilm, FLA-5000).
Cell survival studies
Wild-type E. coli K-12 and TatD-knockout (TatD) strain used in the survival studies were from the Keio collection (14). To measure the chronic sensitivity to 1 mM H2O2,
3 mM methyl methanesulfonate (MMS) and 120 nM mit-omycin (MMC), serial dilutions of cells were spotted on plates containing indicated concentrations of the DNA damaging agents and incubated overnight at 37◦C. To mea-sure the sensitivity against UV-C, serial dilutions of cells were spotted on plates and exposed to UV-C (254 nm) in 20 J/m2 for 10 s by Hoefer UVC 500-Ultraviolet Crosslinker
(Hoefer Inc). After UV-C irradiation, cells were incubated overnight at 37◦C. To measure the acute sensitivity to hydro-gen peroxide (H2O2), cells were exposed to 0, 10, 20, 40 and
80 mM H2O2for 20 min. After removing H2O2, cells were
diluted 100-fold into 10 ml LB medium and further grown on a rotary shaker (200 rpm) at 37◦C for the measurement of A600(OD) at 60 min intervals.
crystal was grown in the crystallization drop made by mix-ing of 1l protein sample (6–9 mg/ml TatD, 10 mM MOPS and 250 mM NaCl) and 1l reservoir solution (0.2 M am-monium citrate dibasic and 20% (w/v) polyethylene glycol 3350). TatD crystals appeared in 3 days with a size of∼0.2 × 0.05 × 0.01 mm3.
For the co-crystallization of TatD with DNA, TatD was mixed with the single-stranded DNA 5-GCTTAGCT-3at a molar ratio of 1:1.2. TatD–DNA co-crystals were grown
by mixing 1l TatD–DNA mixture (7–8 mg/ml TatD, 10
mM MOPS and 250 mM NaCl) and 1l reservoir solution
(4% Tacsmate at pH4 and 12% (w/v) polyethylene glycol 3350). TatD–DNA complex crystals appeared in 3–7 days with a size of∼0.08 × 0.08 × 0.01 mm3.
Single-wavelength X-ray diffraction data of TatD were collected using synchrotron radiations at the BL13B1 beamline at NSRRC, Taiwan. Data integration and scal-ing were performed usscal-ing HKL2000. The reflection phases were determined by molecular replacement using the crystal structure of the zinc-bound E. coli TatD (PDB ID: 1XWY) as the search model by the PHENIX program. The struc-ture model was further built and refined by Wincoot and PHENIX, respectively. Structural coordinates and diffrac-tion structure factors have been deposited in the RCSB Pro-tein Data Bank with the PDB ID codes of 4P5U for the apo-form TatD and 4PE8 for the DNA-bound TatD. The diffraction and refinement statistics are listed in Table1. RESULTS
E. coli TatD is a Mg2+-dependent 3–5exonuclease specific
for single-stranded DNA and RNA
To characterize the biochemical properties and examine the structural basis of TatD in DNA degradation, the full-length E. coli TatD with a C-terminal His-tag was expressed and purified by chromatographic methods using a Ni-NTA affinity column followed by a Q-Sepharose anion exchange column. The recombinant TatD had a high homogeneity as revealed by the sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) (Supplementary Figure S1B). The gel filtration profile showed that TatD formed a stable
monomer with a molecular weight of∼30 kDa at pH 7.2
(Figure2A). Mass spectroscopy indicated that the purified TatD was a full-length protein with a molecular weight of 30 016 Da (compared with the calculated molecular weight of 30 039 Da).
To characterize the nuclease activity, the recombi-nant TatD was incubated with the 5-end 32P-labeled
20-nucleotide single-stranded DNA in the presence of differ-ent divaldiffer-ent metal ions. The DNA digestion assay showed
that TatD cleaved DNA in the presence of Mg2+ (2 mM)
and Mn2+(2 mM) but was without detectable nuclease
ac-tivity in the presence of Ca2+(1 mM) or Zn2+(100M) or
no ion (Figure2B). This result confirmed the earlier finding showing that yeast TatD is a Mg2+-dependent DNase (10).

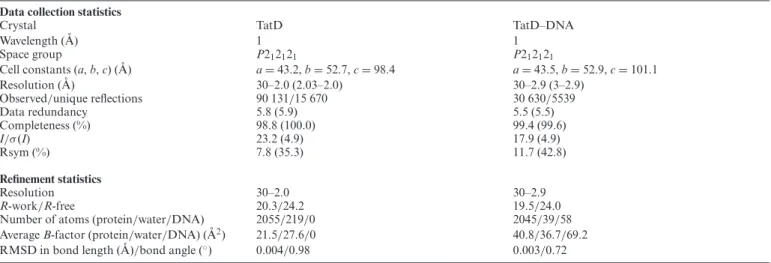

Table 1. X-ray data collection and refinement statistics for the crystal structures of TatD and TatD–DNA complex Data collection statistics
Crystal TatD TatD–DNA
Wavelength ( ˚A) 1 1
Space group P212121 P212121
Cell constants (a, b, c) ( ˚A) a= 43.2, b = 52.7, c = 98.4 a= 43.5, b = 52.9, c = 101.1
Resolution ( ˚A) 30–2.0 (2.03–2.0) 30–2.9 (3–2.9)
Observed/unique reflections 90 131/15 670 30 630/5539
Data redundancy 5.8 (5.9) 5.5 (5.5) Completeness (%) 98.8 (100.0) 99.4 (99.6) I/σ(I) 23.2 (4.9) 17.9 (4.9) Rsym (%) 7.8 (35.3) 11.7 (42.8) Refinement statistics Resolution 30–2.0 30–2.9 R-work/R-free 20.3/24.2 19.5/24.0
Number of atoms (protein/water/DNA) 2055/219/0 2045/39/58 Average B-factor (protein/water/DNA) ( ˚A2) 21.5/27.6/0 40.8/36.7/69.2
RMSD in bond length ( ˚A)/bond angle (◦) 0.004/0.98 0.003/0.72 Values in parentheses refer to the highest resolution shell.
we prepared a 5-32P-labeled and a 3-32P-labeled
single-stranded DNA for TatD digestion. TatD produced a ladder pattern of cleaved products following digestion of 5-32
P-labeled DNA but only a single band of 3-32P-NMP without
any middle band in digestion of 3-32P-labeled DNA,
sug-gesting that TatD is a 3–5exonuclease (Figure2C). More-over, we estimated that the final cleaved products by TatD had a size of about three nucleotides as they were more than one nucleotide as shown in Figure2C and less than six nu-cleotides as shown in Figure5B. To further confirm the 3– 5 exonuclease activity, we found that TatD could not di-gest the 3-biotin-bound DNA in the presence of strepta-vidin, which blocked the access of TatD from the 3 end (Figure2D). These results thus show that TatD is a 3–5 exonuclease without any endonuclease activity in digesting single-stranded DNA.
To determine the substrate preference of TatD, we incu-bated TatD with 5-32P-labeled single-stranded and
stranded DNA, as well as single-stranded and double-stranded RNA. TatD almost completely digested the single-stranded DNA and RNA whereas it was unable to digest the
double-stranded DNA and RNA (Figure2E). This result
suggests that TatD prefers to cleave single-stranded over double-stranded nucleic acids. We also found that TatD di-gested the 3overhang of more than three nucleotides of a duplex DNA to generate a final product of a duplex with a 2-nucleotide 3 overhang (Figure2F). The short overhang generated by TatD was correlated to the short final prod-ucts of ∼3 nucleotides generated by TatD in the digestion of single-stranded DNA (see Figure3C). In summary, these results suggest that TatD is a 3–5exonuclease that can trim not only the 3end of a single-stranded DNA but also the 3overhang of a duplex DNA.
TatD is a DNA repair exonuclease
To characterize the cellular function of TatD, we first iso-lated different fractions of cell extracts and found that TatD was located in the cytoplasm in E. coli (Figure3A). This re-sult is consistent with the earlier finding showing that TatD is not a periplasmic protein as are other Tat proteins in E.
coli (3). Based on the biochemical properties of TatD, a 3–5 exonuclease specific for single-stranded DNA located in cy-toplasm, it is likely that TatD may process DNA in DNA repair pathways. To test this hypothesis, we treated wild-type E. coli K-12 strain and TatD-knockout cells with
differ-ent DNA damaging agdiffer-ents, including H2O2, MMS, MMC
and UV light. The wild-type K-12 strain resisted all DNA damaging agents when present at a chronic dose whereas the TatD-knockout strain was sensitive to the chronic dose of H2O2 (Figure3B). The sensitivity of the TatD deficient
strain to H2O2was further confirmed by treatment of cells
with an acute dose of H2O2at various concentrations from
10 to 80 mM for 20 min. After H2O2 treatment (40 and
80 mM), the TatD-knockout strain (TatD) grew slower or could not grow as compared to those of wild-type K12 strain (Figure3C). These results support that TatD may be involved in the H2O2-induced DNA damage repair.
Hydrogen peroxide may induce various DNA lesions, including oxidation and deamination of bases and sugar modifications (15,16). To further characterize the role of TatD in DNA repair pathways, a single-stranded DNA containing a deaminated or oxidized base or an abasic site at the 3-terminal end of the single-stranded DNA 5
-GAGTCCTATAX-3were incubated with TatD. We found
that TatD digested more efficiently the DNA with a deami-nated base (uracil and hypoxanthine) but less efficiently the DNA with a 3-terminal oxidized base (oxoguanine, 8-oxoG) and an abasic site that were more resistance to TatD digestion (Figure3D). This result suggests that TatD can function as an exonuclease in the excision step for deami-nated bases in the H2O2-induced DNA repair.
Crystal structure of TatD and TatD–DNA complex
To provide structural insights into TatD, we crystallized the apo-form TatD by the hanging-drop vapor diffusion method and determined the crystal structure at a resolu-tion of 2.0 ˚A by molecular replacement using the zinc-bound E. coli TatD (PDB ID: 1XWY) as the search model (Figure4A). The X-ray diffraction and structural statistics are listed in Table1. TatD has a TIM-barrel fold, forming
Figure 2. E. coli TatD is a Mg2+-dependent 3–5exonuclease specific for single-stranded DNA and RNA. (A) The gel filtration (Superdex 200 16/60 PG) profile of the full-length TatD shows that the enzyme was eluted as a monomeric protein. (B) TatD (0–0.5M) was incubated with 5end32P-labeled 20-nucleotide ssDNA (40 nM) for 1 h at 37◦C. TatD cleaved DNA most efficiently in the presence of Mg2+or Mn2+whereas TatD had no nuclease activity
with the presence of Ca2+or Zn2+. The final cleaved products were small DNA of less than six nucleotides. (C) TatD (0–0.5M) produced a ladder pattern
of digested products in digesting 5end32P-labeled ssDNA (40 nM) whereas it produced a single band of 3-32P-NMP in digesting 3-32P-labeled DNA.
(D) TatD could not digest the 3-biotin-bound DNA in the presence of streptavidin, which blocked access of TatD from the 3end. (E) TatD preferred to digest single-stranded DNA/RNA over double-stranded DNA/RNA. (F) TatD (1 M) digested the 3overhang of a duplex DNA (40 nM) to generate a final product of a duplex with a 2-nucleotide 3overhang. The number of nucleotides in the 3overhang are marked at the right of the gel.
a barrel made of eight -strands surrounding by nine ␣-helices. The electrostatic surface potential of TatD revealed an acidic pocket on the top loop region of the barrel with a patch of basic surface next to the pocket (Figure4B). This acidic pocket is likely the metal-ion binding site and the ba-sic surface on the side with several baba-sic residues, including R98, R129 and R219, is likely involved in DNA binding.
To understand how TatD binds and cleaves DNA, we fur-ther co-crystallized TatD with a single-stranded DNA (5
-GCTTAGCT-3). TatD–DNA complex was crystallized by
the hanging-drop vapor diffusion method and the co-crystal diffracted X-ray to a resolution of 2.9 ˚A. The structure of the complex was determined by molecular replacement and the structural statistics are listed in Table1. The simulated annealing omit Fourier map (2Fo− Fc) of the bound DNA
revealed weak electron density for the three nucleotides (5-G-p-C-p-T-3) (Figure4C, top panel). We modeled the DNA with the two phosphates positioned at the two peak

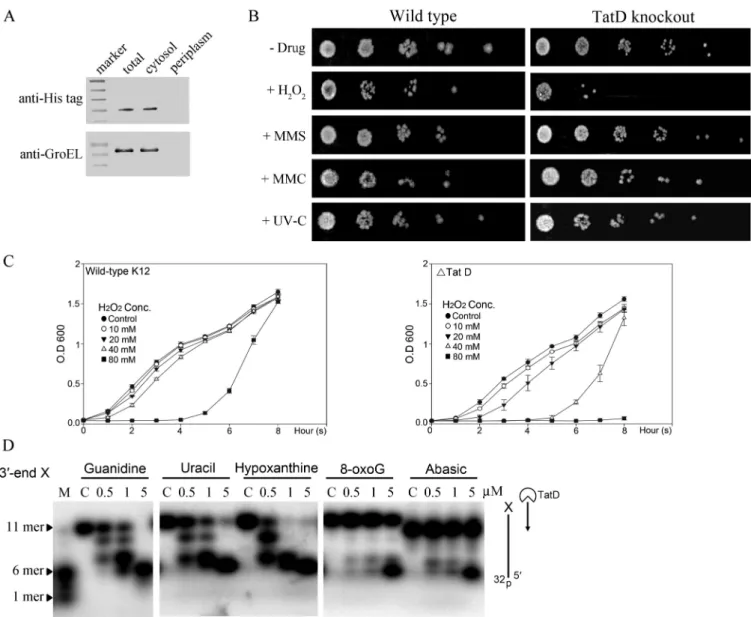

Figure 3. TatD is a DNA repair exonuclease in E. coli. (A) The E. coli (BL21-CodonPlus-RIPL) cell extracts isolated from different compartments reveal
that the overexpressed His-tagged TatD is located in cytoplasm. (B) Wild-type E. coli K-12 strains were resistant to chronic doses of various DNA damaging agents, including hydrogen peroxide (1 mM H2O2), methyl methanesulfonate (3 mM MMS), mitomycin C (120 nM MMC) and UV-C light (20 J/m2for 10
s). The TatD-knockout strain was sensitive to H2O2but not MMS, MMC and UV-C radiation. (C) Growth curves of wild-type and TatD knockout cells
(TatD) after acute exposure to H2O2(10–80 mM) for 20 min. (D) The single-stranded DNA containing a deaminated, oxidized base or an abasic site at the
3-terminal end (5-GAGTCCTATAX-3) were incubated with TatD in the DNA digestion experiment. TatD digested efficiently the single-stranded DNA with a 3-terminal deaminated base (uracil, hypoxanthine), however, the single-stranded DNA with a 3-terminal oxidized base, 8-oxoguanine (8-oxoG) or an abasic site were more resistant to TatD.
heights in the difference Fourier map (Supplementary Fig-ure S1A). The 8-nucleotide single-stranded DNA was likely digested by TatD and resulted a 3-nucleotide DNA. Alter-natively, it is possible that the 5end of the DNA was dis-ordered and only the three nucleotides at the 3 end were observed. The DNA was refined with an occupancy of 0.7 and an averaged B-factor of 69.2 ˚A2and was bound at the loop region on the top of the TIM-barrel in a way similar to that of Endo IV (13).
Superimposition of the apo-form and DNA-bound TatD gave an average RMSD of 0.394 ˚A for 259 C␣ atoms, sug-gesting that DNA binding did not induce any major con-formational change. However, a close look at the protein– DNA interface showed that the loop with R98 and F100
moved toward DNA in the TatD–DNA complex structure, and as a result, the two residues, R98 and F100 were dis-ordered and refined with an occupancy of 0.79 and 0.85, respectively (Supplementary Figure S2A). Moreover, the residue H64 near the scissile phosphate had two alterna-tive conformations and was refined with an occupancy of 0.53 (apo-form conformation) and 0.47 (flip-out conforma-tion), respectively. The side-chain of H64 and R98 rotate their conformations and directly interact with the DNA backbone (Supplementary Figure S2C). However, no metal ion was identified in the TatD–DNA complex structure and DNA is bound loosely between two TatD molecules in the crystal (see Supplementary Figure S2B), indicating that the 5-G-p-C-p-T-3was bound in an inactive conformation. It

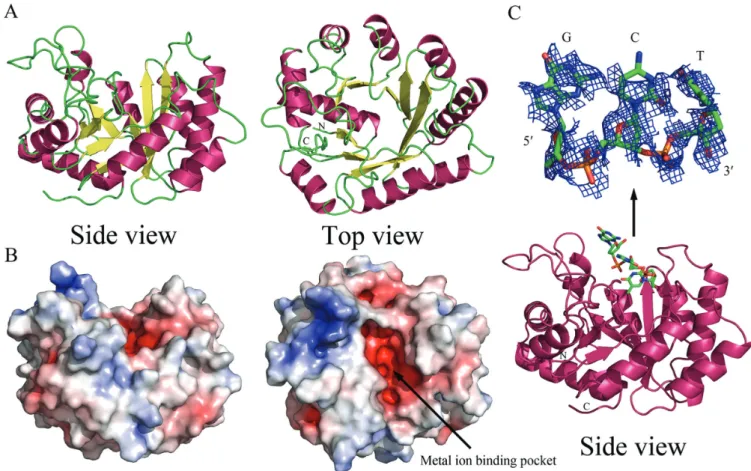

Figure 4. Crystal structures of the apo-form and DNA-bound TatD. (A) The ribbon model (side and top view) of the crystal structure of the apo-form
TatD with a TIM-barrel fold. (B) The electrostatic surface potential of TatD reveals an acidic metal-ion-binding pocket on the top of the TIM-barrel with a basic DNA-binding surface on the left side. (C) The crystal structure of TatD bound with a tri-nucleotide (5-G-p-C-p-T-3) DNA reveals that DNA is bound on the top loop region of the TIM-barrel. The magnification of the omit map (2Fo− Fc, 0.3σ) of the tri-nucleotide is shown on the panel above.
The Fourier and difference Fourier maps are displayed in the supplementary Figure S1A. The two highest peaks in the difference map were assigned as the two phosphate groups in the tri-nucleotide 5-G-p-C-p-T-3.
is likely that the crystal structure of TatD–DNA complex reported here represents the conformation of TatD bound with a cleaved DNA product.
A structural homology search by DALI revealed that our apo-form TatD structure bears a high structural resem-blance to the TatD structures in the protein data bank, in-cluding Zn-bound E. coli TatD (PDB entry: 1XWY, an av-erage RMSD of 0.72 ˚A for 256 C␣ atoms), human TatD1 (2XIO, 1.30 ˚A for 241 C␣ atoms), human TatD3 (2YIH, 1.51 ˚A for 237 C␣ atoms) and yeast TatD (3E2V, 1.54 ˚A for 245 C␣ atoms). TatD also shares a high structural re-semblance to the metal-dependent hydrolases with a TIM-barrel fold (12), such as phosphotriesterase homology pro-tein (1BF6, 2.55 ˚A for 220 C␣ atoms), urease (1EJV, 2.99
˚
A for 200 C␣ atoms) and adenine deaminase (2ICS, 2.59 ˚A for 202 C␣ atoms). The TIM-barrel endonuclease, Endo IV, shares a low sequence identity (7.3%) with TatD, however, the structure of Endo IV (2NQH) also closely resemble that of TatD with an RMSD of 3.91 ˚A for 164 C␣ atoms. These results suggest that TatD can be classified as one of the TIM-barrel enzymes in the subfamily of metal-dependent hydrolases.
Active site of TatD
To reveal the catalytic mechanism, we further superimposed and compared the active site residues of TatD with its ho-mologues (Figure5A). Interestingly, the superimposition revealed two sub-groups of TatD, Group I with a single metal ion and Group II with two metal ions coordinated in the active site. The Group I TatD from E. coli (1XWY, Zn2+), Pseudomonas putida (3RCM, Zn2+) and S.
cere-visiae (3E2V, Mg2+) have five conserved metal ion-binding
residues, E91, H127, H152, E201 and D203 (see Figure5A). Since Mg2+ activates the exonuclease activity of TatD, the
Mg2+ ion in the yeast TatD (3E2V) may represent the sin-gle metal ion-binding state of TatD without a bound sub-strate. However, upon substrate binding, it is likely that two or three metal ions are bound in the active site, since the superimposition revealed three different putative metal ion-binding sites in TatD (see Figure5A).
Superimposition of our TatD with the Group II subfam-ily of TatD with two transition metal ions, S. aureus TatD (2GZX, 2Ni2+) and human TatD3 (2YIH, 2Zn2+), further
revealed two conserved metal-binding histidine residues that are absent in the Group I TatD (Figure5B). These two histidines (H12 and H14 in 2YIH) together with other his-tidine residues in the active site form hishis-tidine clusters for
Figure 5. The conserved metal ion-binding and catalytic residues in the active site of TatD. (A) The superimposition of the active site of the metal-free
TatD (this study, 4P5U) with one-metal ion TatD from E. coli (1XWY, Zn2+), Pseudomonas putida (3RCM, Zn2+) and S.cerevisiae (3E2V, Mg2+) reveals five conserved metal ion-binding residues, E91, H127, H152, E201 and D203. CIT represents the citric acid molecule bound in the crystal structure of P.
putida TatD. (B) The superimposition of the active site of the metal-free TatD (this study) with two-metal ion TatD from S. aureus (2GZX, 2 Ni2+) and H. sapiens (2YIH, 2 Zn2+) reveals that the two metal-ion binding histidines, H12 and H14, are absent in E. coli TatD. (C) The exonuclease activity assays
for the wild-type and single-point mutated TatD reveal that H64A, H127A and H152A retained their nuclease activity, H62A had a significant reduced exonuclease activity, and E91A, E201A and D203A lost their exonuclease activity in digestion of a 20-nucleotide single-stranded DNA. (D) The putative active site in TatD–DNA complex reveals a number of conserved histidine and acidic residues. The metal A shown here is the Zn2+site in P. putida TatD
whereas the metal B is the Mg2+site of yeast TatD, and the metal C is the Zn2+site in E. coli TatD. The side chain of H64 residue has two alternative
conformations. (E) The active site of Endo IV shares little resemblance to that of TatD with three bound zinc ions (blue sphere). The star marks the scissile phosphate in the double-stranded DNA bound on Endo IV.
binding of two transition metal ions, Zn2+ or Ni2+. Since the E. coli TatD does not bear these two histidine residues, very likely it belongs to the Group I TatD that are activated by Mg2+but not by Zn2+. Therefore, based on the structure
comparison of the active site of TatD, E. coli TatD resem-bles more closely to the group I TatD and likely binds two or three Mg2+ions in the active site for DNA hydrolysis.
To further identify the catalytic residues in TatD for DNA hydrolysis, we mutated the conserved residues located in the active site and constructed seven single-point mutants, in-cluding H62A, H64A, E91A, H127A, H152A, E201A and D203A. We found that most of the histidine mutants, in-cluding H64A, H127A and H152A, retained their nucle-ase activity, except that H62A had a significantly reduced exonuclease activity, in comparison to the wild-type TatD (Figure5C, top panel). In contrast, mutation of the acidic
residues, including E91A, E201A and D203A, produced in-active mutants with little residual exonuclease activity (Fig-ure5C, bottom panel). This result suggests that the three acidic residues, E91, E201 and D203, are involved in bind-ing of two to three magnesium ions in the active site (see Fig-ure5D). In summary, we suggest that the conserved acidic residues E91, E201 and D203 are responsible for binding of metal ions, and H62 for playing a critical catalytic role in the active site of E. coli TatD in DNA hydrolysis.
DISCUSSION
How a TIM-barrel protein functions as an exonuclease The TIM-barrel fold, first seen in triosephosphate iso-merase, is the most common enzyme fold of known pro-tein structures (17). TIM-barrel folds have been identified in
different substrates, such as phosphotriesterase homology protein hydrolyzes organophosphate triesters, urease hy-drolyzes urea and adenine deaminase hyhy-drolyzes adenine. TatD represents the first example of a TIM-barrel exonucle-ase that hydrolyzes the phosphodiester bond at the 3end of a nucleic acid chain.
How does a TIM-barrel exonuclease hydrolyze DNA? A superposition of TatD–DNA and Endo IV–DNA reveals that the TatD-bound nucleotides fit at the similar location as those bound on the Endo IV (Supplementary Figure S3). The 3-end phosphate of the TatD-bound DNA is located near the scissile phosphate of the Endo IV-bound DNA with a distance of 5.2 ˚A. However, Endo IV binds a long du-plex DNA that extends from the left to the right on the top of the TIM-barrel. On the other hand, the single-stranded DNA should be extended only to one side on the top of the TIM-barrel TatD. This is indeed consistent with the surface potential of TatD which is basic only on the left top region (see Figure4B). Thus, the single-stranded DNA is bound on one side on the top of the TIM-barrel and therefore the 3end of DNA inserts into the active site of TatD for hy-drolysis (see the DNA-binding model in the Supplementary Figure S2D).
Although the overall TIM-barrel fold of TatD is similar to that of Endo IV, the active sites of the two enzymes share little resemblance (Figure 5D and E). Endo IV has three zinc ions in the active site with the Glu261 functioning as the general base to deprotonate a zinc-bridging water molecule for the nucleophilic attack on the scissile phosphate (18). The three zinc ions in Endo IV do not match at the same locations as the metal ions bound in the active site of TatD homologues (see Supplementary Figure S3C). TatD might bind two or three magnesium ions and hydrolyze DNA via a two-metal ion or three-metal ion catalytic pathway (19). Alternatively, the metal ions may move as seen in RNase H (20) or be transiently bound during hydrolysis as ob-served in the DNA polymerases (21,22). Without the accu-rate number and location of the metal ions and the DNA substrate bound in the active conformation, it is challeng-ing to predict how the DNA is cleaved by TatD. Moreover, the recombinant TatD had a low enzyme activity in our as-says (Figures2and3), suggesting that other unknown co-factors are probably involved in DNA hydrolysis. Further studies are required to determine the hydrolysis mechanism catalyzed by TatD.
TatD in DNA repair
Escherichia coli has a number of 3–5 exonucleases that play a role in DNA repair, including ExoI (23,24), Ex-oIII (25), ExoVII (23), ExoIX (26), ExoX (24), PNPase (15,27) and RNase T (28). These exonucleases have dif-ferent substrate specificities and are involved in difdif-ferent DNA repair pathways. ExoI, ExoVII and ExoX are spe-cific for single-stranded DNA in mismatch and DNA re-combination repair pathways (23,29,30). ExoIII bearing not only 3–5 exonuclease, but also 3-phosphomonoesterase
UV-induced and other DNA repair pathways (28).
Here we show that TatD is specific for trimming single-stranded DNA and the 3overhang of a duplex DNA. This result is consistent with the earlier finding showing that TatD limits RecA loading onto single-stranded DNA sub-strates and TatD functions in a common pathway with Ex-oVII, ExoIX and ExoX in negatively regulating the RecA-dependent homologous recombination by degrading RecA substrates (31). We show here that TatD is involved in H2O2
-induced DNA repair that include double-strand break re-pair. Taken together these lines of evidence, we suggest that TatD digests single-stranded DNA and is involved in the regulation of double-strand break repair. Hydro-gen peroxide may induce various DNA lesions, not only double-strand breaks, but also oxidation and deamination of bases and sugar modifications (15,16). We show here that the TatD-knockout E. coli is sensitive to H2O2, and TatD
can remove the deaminated nucleotide from a DNA chain. Therefore, in addition to double-strand break repair, our biochemical and in vivo data suggest that TatD may also process the 3ends of DNA in the nucleotide excision re-pair.
In conclusion, based on in vivo and biochemical evidence, we identified TatD as a member of a new group of DNA re-pair exonucleases. TatD has a TIM-barrel fold and it trims DNA from 3-to-5ends in the hydrogen peroxide-induced DNA repair, including double-strand break repair and nu-cleotide excision repair in E. coli. Our results suggest that TatD not only digests chromosomal DNA during apopto-sis but also processes damaged DNA during DNA repair. This finding opens a new direction for the study of the TatD homologues in various species from bacteria to human. ACCESSION NUMBERS
PDB entry codes: 4P5U, 4PE8. SUPPLEMENTARY DATA
Supplementary Dataare available at NAR Online. ACKNOWLEDGMENTS
Portions of this research were carried out at the National Synchrotron Radiation Research Center, a national user fa-cility supported by the National Science Council of Taiwan. The Synchrotron Radiation Protein Crystallography Facil-ity is supported by the National Core FacilFacil-ity Program for Biotechnology.
FUNDING
Academia Sinica and the National Science Council, Tai-wan, ROC. Funding for open access charge: Academia Sinica, Taiwan.
REFERENCES
1. Sargent, F., Bogsch, G.E., Stanley, R.N., Wexler, M., Robinson, C., Berks, C.B., and Palmer, T. Sargent, F., Bogsch, G.E., Stanley, R.N., Wexler, M., Robinson, C., Berks, C.B., and Palmer, T. (1998) Overlapping functions of components of a bacterial Sec-independent protein export pathway. EMBO J., 17, 364–3650.
2. M ¨uller, M. and Kl ¨osgen, R.B.M ¨uller, M. and Kl ¨osgen, R.B. (2005) The Tat pathway in bacteria and chloroplasts. Mol. Membr. Biol., 22, 113–121.
3. Wexler, M., Sargent, F., Jack, R.L., Stanley, N.R., Bogsch, E.G., Robinson, C., Berks, B.C., and Palmer, T.Wexler, M., Sargent, F., Jack, R.L., Stanley, N.R., Bogsch, E.G., Robinson, C., Berks, B.C., and Palmer, T. (2000) TatD is a cytoplasmic protein with DNase activity. No requirement for TatD family proteins in sec-independent protein export. J. Biol. Chem., 275, 16717–16722.
4. Lindenstrauss, U., Matos, C.F., Graubner, W., Robinson, C., and Bruser, T.Lindenstrauss, U., Matos, C.F., Graubner, W., Robinson, C., and Bruser, T. (2010) Malfolded recombinant Tat substrates are Tat-independently degraded in Escherichia coli. FEBS Lett., 584, 3644–3648.
5. Matos, C.F.R.O., Di Cola, A., and Robinson, C.Matos, C.F.R.O., Di Cola, A., and Robinson, C. (2009) TatD is a central component of a Tat transloconinitiated quality control system for exported FeS proteins in Escherichia coli. EMBO Rep., 10, 474–479.
6. Parrish, J.Z. and Xue, D.Parrish, J.Z. and Xue, D. (2003) Functional genomic analysis of apoptotic DNA degradation in C. elegans. Mol.
Cell, 11, 987–996.
7. Hsiao, Y.Y., Nakagawa, A., Shi, Z., Mitani, S., Xue, D., and Yuan, H.S.Hsiao, Y.Y., Nakagawa, A., Shi, Z., Mitani, S., Xue, D., and Yuan, H.S. (2009) Crystal structure of CRN-4: implications for domain function in apoptotic DNA degradation. Mol. Cell. Biol., 29, 448–457.
8. Lin, J.L.J., Nakagawa, A., Lin, C.L., Hsiao, Y.-Y., Yang, W.-Z., Wang, Y.-T., Doudeva, L.G., Skeen-Gaar, R.R., Xui, D., and Yuan, H.S.Lin, J.L.J., Nakagawa, A., Lin, C.L., Hsiao, Y.-Y., Yang, W.-Z., Wang, Y.-T., Doudeva, L.G., Skeen-Gaar, R.R., Xui, D., and Yuan, H.S. (2012) Structural insights into apoptotic DNA degradation by CED-3 Protease Suppressor-6 (CPS-6) from Caenorhabditis elegans.
J. Biol. Chem., 287, 7110–7120.
9. Yang, C.-C., Wang, Y.-T., Hsiao, Y.-Y., Doudeva, L.G., Kuo, P.-H., Chow, S.Y., and Yuan, H.S.Yang, C.-C., Wang, Y.-T., Hsiao, Y.-Y., Doudeva, L.G., Kuo, P.-H., Chow, S.Y., and Yuan, H.S. (2010) Structural and biochemical characterization of CRN-5 and Rrp46: an exosome component participating in apoptotic DNA degradation.
RNA, 16, 1748–1759.
10. Qiu, J., Yoon, J.-H., and Shen, B. Qiu, J., Yoon, J.-H., and Shen, B. (2005) Search for apoptotic nucleases in yeast. Role of Tat-D nuclease in apoptotic DNA degradation. J. Biol. Chem., 280, 15370–15379. 11. Gannavaram, S. and Debrabant, A.Gannavaram, S. and Debrabant,
A. (2012) Involvement of TatD nuclease during programmed cell death in the protozoan parasite Trypanosoma brucei. Mol. Microbiol.,
83, 926–935.
12. Nagano, N., Orengo, C.A., and Thornton, J.M.Nagano, N., Orengo, C.A., and Thornton, J.M. (2002) One fold with many functions. J.
Mol. Biol., 321, 741–765.
13. Hosfield, D.J., Guan, Y., Haas, B.J., Cunningham, R.P., and Tainer, J.A.Hosfield, D.J., Guan, Y., Haas, B.J., Cunningham, R.P., and Tainer, J.A. (1999) Structure of the DNA repair enzyme endonuclease IV and its DNA complex: double-nucleotide flipping at abasic sites and three-metal-ion catalysis. Cell, 98, 397–408.
14. Baba, T., Ara, T., Hasegawa, M., Takai, Y., Okumura, Y., Baba, M., Datsenko, K.A., Tomita, M., Wanner, B.L., and Mori,
H.2006.0008Baba, T., Ara, T., Hasegawa, M., Takai, Y., Okumura, Y., Baba, M., Datsenko, K.A., Tomita, M., Wanner, B.L., and Mori, H. (2006) Construction of Escherichia coli K-12 in-frame, single-gene knockout mutants: the Keio collection. Mol. Syst. Biol., 2,.
15. Rath, D., Mangoli, S.H., Pagedar, A.R., and Jawali, N.Rath, D., Mangoli, S.H., Pagedar, A.R., and Jawali, N. (2012) Involvement of
pnp in survival of UV radiation in Escherichia coli K-12.
Microbiology, 158, 1196–1205.
16. Akagawa, M. and Suyama, K.Akagawa, M. and Suyama, K. (2002) Oxidative deamination by hydrogen peroxide in the presence of metals. Free Radic. Res., 36, 13–21.
17. Wierenga, R.K.Wierenga, R.K. (2001) The TIM-barrel fold: a versatile framework for eficient enzymes. FEBS Lett., 492, 193–198. 18. Garcin, E.D., Hosfield, D.J., Desai, S.A., Haas, B.J., Bj ¨oras, M.,
Cunningham, R.P., and Tainer1, J.A.Garcin, E.D., Hosfield, D.J., Desai, S.A., Haas, B.J., Bj ¨oras, M., Cunningham, R.P., and Tainer1, J.A. (2008) DNA apurinic-apyrimidinic site binding and excision by endonuclease IV. Nat. Struct. Mol. Biol., 15, 515–522.
19. Yang, W.Yang, W. (2011) Nucleases: diversity of structure, function and mechanism. Q. Rev. Biophys., 44, 1–93.
20. Nowotny, M. and Yang, W.Nowotny, M. and Yang, W. (2006) Stepwise analyses of metal ions in RNase H catalysis from substrate destabilization to product release. EMBO J., 3, 1924–1933. 21. Nakamura, T., Zhao, Y., Yamagata, Y., Hua, Y. J., and Yang,
W.Nakamura, T., Zhao, Y., Yamagata, Y., Hua, Y. J., and Yang, W. (2012) Watching DNA polymerase make a phosphodiester bond.
Nature, 487, 196–201.
22. Freudenthal, B. D., Beard, W. A., Shock, D. D., and Wilson, S. H.Freudenthal, B. D., Beard, W. A., Shock, D. D., and Wilson, S. H. (2013) Observing a DNA polymerase choose right from wrong. Cell,
154, 157–168.
23. Thoms, B., Borchers, I., and Wackernagel, W.Thoms, B., Borchers, I., and Wackernagel, W. (2008) Effects of single-strand DNases ExoI, RecJ, ExoVII, and SbcCD on homologous recombination of recBCD+ strains of Escherichia coli and roles of SbcB15 and XonA2 ExoI mutant enzymes. J. Bacteriol., 190, 179–192.
24. Burdett, V., Baitinger, C., Viswanathan, M., Lovett, S.T., and Modrich, P.Burdett, V., Baitinger, C., Viswanathan, M., Lovett, S.T., and Modrich, P. (2001) In vivo requirement for RecJ, ExoVII, ExoI, and ExoX in methyl-directed mismatch repair. Proc. Natl. Acad. Sci.
U.S.A., 98, 6765–6770.
25. Mol, C.D., Kuo, C.F., Thayer, M.M., Cunningham, R.P., and Tainer, J.A.Mol, C.D., Kuo, C.F., Thayer, M.M., Cunningham, R.P., and Tainer, J.A. (1995) Structure and function of the multifunctional DNA-repair enzyme exonuclease III. Nature, 374, 381–386. 26. Shafritz, K.M., Sandigursky, M., and Franklin, W.A.Shafritz, K.M.,
Sandigursky, M., and Franklin, W.A. (1998) Exonuclease IX of
Escherichia coli. Nucleic Acids Res., 26, 2593–2597.
27. Cardenas, P.P., Carrasco, B., Sanchez, H., Deikus, G., Bechhofer, D.H., and Alonso, J.C.Cardenas, P.P., Carrasco, B., Sanchez, H., Deikus, G., Bechhofer, D.H., and Alonso, J.C. (2009) Bacillus subtilis polynucleotide phosphorylase 3-to-5DNase activity is involved in DNA repair. Nucleic Acids Res., 37, 4157–4169.
28. Hsiao, Y.-Y., Fang, W.-H., Lee, C.-C., Chen, Y.-P., and Yuan, H.S.Hsiao, Y.-Y., Fang, W.-H., Lee, C.-C., Chen, Y.-P., and Yuan, H.S. (2014) Structural insights into DNA repair by RNase T-an exonuclease processing 3end of structured DNA in repair pathways.
PLoS Biol., 12, e1001803.
29. Viswanathan, M., Burdett, V., Baitinger, C., Modrich, P., and Lovett, S.T.Viswanathan, M., Burdett, V., Baitinger, C., Modrich, P., and Lovett, S.T. (2001) Redundant exonuclease involvement in
Escherichia coli methyl-directed mismatch repair. J. Biol. Chem., 276,
31053–31058.
30. Cheng, F., Hou, J., Chen, Y.Y., Zhou, Y., Zhang, H.T., Bi, L.J., and Zhang, X.E.Cheng, F., Hou, J., Chen, Y.Y., Zhou, Y., Zhang, H.T., Bi, L.J., and Zhang, X.E. (2010) Functional interaction between MutL and 3-5exonuclease X in Escherichia coli. Arch. Biochem.
Biophys., 502, 39–43.
31. Centore, R.C., Lestini, R., and Sandler, S.J.Centore, R.C., Lestini, R., and Sandler, S.J. (2008) XthA (Exonuclease III) regulates loading of RecA onto DNA substrates in log phase Escherichia coli cells. Mol.
