DB[10]SQL_DDL

Objectives

Data types supported by SQL standard.

Purpose of integrity enhancement feature of SQL.

How to define integrity constraints using SQL.

How to use the integrity enhancement feature in

Objectives

Purpose of views.

How to create and delete views using SQL.

How the DBMS performs operations on views.

Under what conditions views are updatable.

Advantages and disadvantages of views.

How the ISO transaction model works.

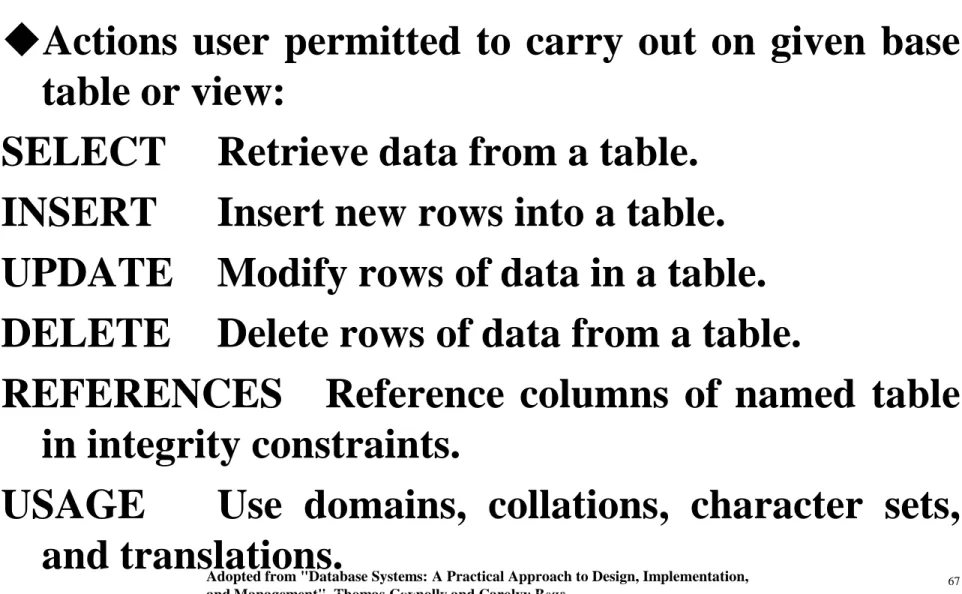

How to use the GRANT and REVOKE

Integrity Enhancement Feature

Consider five types of integrity constraints:

– required data

– domain constraints

– entity integrity

– referential integrity

– general constraints.

Integrity Enhancement Feature

Required Data

position

VARCHAR(10) NOT NULL

Domain Constraints

(a) CHECK

sex

CHAR

NOT NULL

CHECK (sex IN (‘M’, ‘F’))

Integrity Enhancement Feature

(b) CREATE DOMAIN

CREATE DOMAIN DomainName [AS] dataType

[DEFAULT defaultOption]

[CHECK (searchCondition)]

For example:

CREATE DOMAIN SexType AS CHAR

CHECK (VALUE IN (‘M’, ‘F’));

sex

SexType

NOT NULL

Integrity Enhancement Feature

searchCondition can involve a table lookup:

CREATE DOMAIN BranchNo AS CHAR(4)

CHECK (VALUE IN (SELECT branchNo

FROM Branch));

Domains can be removed using DROP DOMAIN:

DROP DOMAIN DomainName

[RESTRICT | CASCADE]

IEF - Entity Integrity

Primary key of a table must contain a unique,

non-null value for each row.

ISO standard supports FOREIGN KEY clause in

CREATE and ALTER TABLE statements:

PRIMARY KEY(staffNo)

PRIMARY KEY(clientNo, propertyNo)

Can only have one PRIMARY KEY clause per

table. Can still ensure uniqueness for alternate

keys using UNIQUE:

IEF - Referential Integrity

FK is column or set of columns that links each row

in child table containing foreign FK to row of

parent table containing matching PK.

Referential integrity means that, if FK contains a

value, that value must refer to existing row in

parent table.

ISO standard supports definition of FKs with

FOREIGN KEY clause in CREATE and ALTER

TABLE:

IEF - Referential Integrity

Any INSERT/UPDATE attempting to create FK

value in child table without matching CK value in

parent is rejected.

Action taken attempting to update/delete a CK

value in parent table with matching rows in child

is dependent on referential action specified using

ON UPDATE and ON DELETE subclauses:

– CASCADE

- SET NULL

IEF - Referential Integrity

CASCADE:

Delete row from parent and delete

matching rows in child, and so on in cascading

manner.

SET NULL: Delete row from parent and set FK

column(s) in child to NULL. Only valid if FK

columns are NOT NULL.

SET DEFAULT: Delete row from parent and set

each component of FK in child to specified default.

Only valid if DEFAULT specified for FK columns.

NO ACTION: Reject delete from parent. Default.

IEF - Referential Integrity

FOREIGN KEY (staffNo) REFERENCES Staff

ON DELETE SET NULL

FOREIGN KEY (ownerNo) REFERENCES Owner

ON UPDATE CASCADE

IEF - General Constraints

Could use CHECK/UNIQUE in CREATE and

ALTER TABLE.

Similar to the CHECK clause, also have:

CREATE ASSERTION AssertionName

CHECK (searchCondition)

IEF - General Constraints

CREATE ASSERTION StaffNotHandlingTooMuch

CHECK (NOT EXISTS (SELECT staffNo

FROM PropertyForRent

GROUP BY staffNo

Data Definition

SQL DDL allows database objects such as schemas,

domains, tables, views, and indexes to be created

and destroyed.

Main SQL DDL statements are:

CREATE SCHEMA

DROP SCHEMA

CREATE/ALTER DOMAIN

DROP DOMAIN

CREATE/ALTER TABLE

DROP TABLE

CREATE VIEW

DROP VIEW

Many DBMSs also provide:

Data Definition

Relations and other database objects exist in an

environment.

Each environment contains one or more catalogs,

and each catalog consists of set of schemas.

Schema is named collection of related database

objects.

Objects in a schema can be tables, views, domains,

assertions, collations, translations, and character

sets. All have same owner.

CREATE SCHEMA

CREATE SCHEMA [Name |

AUTHORIZATION CreatorId ]

DROP SCHEMA Name [RESTRICT | CASCADE ]

With RESTRICT (default), schema must be

empty or operation fails.

With CASCADE, operation cascades to drop

all objects associated with schema in order

defined above. If any of these operations fail,

DROP SCHEMA fails.

CREATE TABLE

CREATE TABLE TableName

{(colName dataType [NOT NULL] [UNIQUE]

[DEFAULT defaultOption]

[CHECK searchCondition] [,...]}

[PRIMARY KEY (listOfColumns),]

{[UNIQUE (listOfColumns),] […,]}

{[FOREIGN KEY (listOfFKColumns)

REFERENCES ParentTableName [(listOfCKColumns)],

[ON UPDATE referentialAction]

[ON DELETE referentialAction ]] [,…]}

{[CHECK (searchCondition)] [,…] })

CREATE TABLE

Creates a table with one or more columns of the

specified dataType.

With NOT NULL, system rejects any attempt to

insert a null in the column.

Can specify a DEFAULT value for the column.

Primary keys should always be specified as NOT

NULL.

FOREIGN KEY clause specifies FK along with

Example 6.1 - CREATE TABLE

CREATE DOMAIN OwnerNumber AS VARCHAR(5)

CHECK

(VALUE

IN

(SELECT

ownerNo

FROM

PrivateOwner));

CREATE DOMAIN StaffNumber AS VARCHAR(5)

CHECK (VALUE IN (SELECT staffNo FROM Staff));

CREATE DOMAIN PNumber AS VARCHAR(5);

CREATE DOMAIN PRooms AS SMALLINT;

CHECK(VALUE BETWEEN 1 AND 15);

CREATE DOMAIN PRent AS DECIMAL(6,2)

Example 6.1 - CREATE TABLE

CREATE TABLE PropertyForRent (

propertyNo PNumber NOT NULL, ….

rooms PRooms NOT NULL DEFAULT 4,

rent PRent NOT NULL, DEFAULT 600,

ownerNo OwnerNumber NOT NULL,

staffNo StaffNumber

Constraint StaffNotHandlingTooMuch ….

branchNo BranchNumber NOT NULL,

PRIMARY KEY (propertyNo),

FOREIGN KEY (staffNo) REFERENCES Staff

ALTER TABLE

Add a new column to a table.

Drop a column from a table.

Add a new table constraint.

Drop a table constraint.

Set a default for a column.

Drop a default for a column.

Example 6.2(a) - ALTER TABLE

Change Staff table by removing default of

‘Assistant’ for position column and setting

default for sex column to female (‘F’).

ALTER TABLE Staff

ALTER position DROP DEFAULT;

ALTER TABLE Staff

Example 6.2(b) - ALTER TABLE

Remove constraint from PropertyForRent that

staff are not allowed to handle more than 100

properties at a time. Add new column to Client

table.

ALTER TABLE PropertyForRent

DROP CONSTRAINT StaffNotHandlingTooMuch;

ALTER TABLE Client

DROP TABLE

DROP TABLE TableName [RESTRICT | CASCADE]

e.g.

DROP TABLE PropertyForRent;

Removes named table and all rows within it.

With RESTRICT, if any other objects depend for

their existence on continued existence of this table,

SQL does not allow request.

With CASCADE, SQL drops all dependent objects

Views

View

Dynamic result of one or more relational

operations operating on base relations to

produce another relation.

Virtual relation that does not necessarily actually

exist in the database but is produced upon request,

at time of request.

Views

Contents of a view are defined as a query on one

or more base relations.

With view resolution, any operations on view are

automatically translated into operations on

relations from which it is derived.

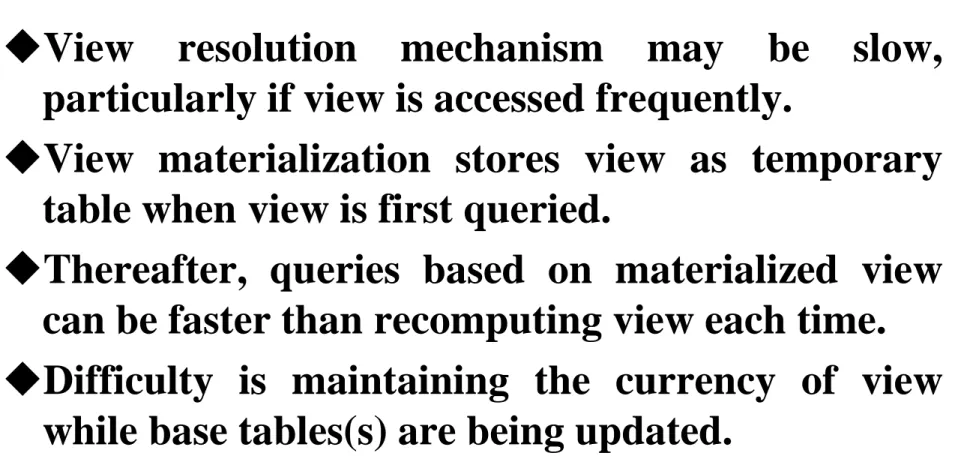

With view materialization, the view is stored as a

temporary table, which is maintained as the

underlying base tables are updated.

SQL - CREATE VIEW

CREATE VIEW ViewName [ (newColumnName [,...]) ]

AS subselect

[WITH [CASCADED | LOCAL] CHECK OPTION]

Can assign a name to each column in view.

If list of column names is specified, it must have

same number of items as number of columns

produced by subselect.

If omitted, each column takes name of

SQL - CREATE VIEW

List must be specified if there is any ambiguity in

a column name.

The subselect is known as the defining query.

WITH CHECK OPTION ensures that if a row

fails to satisfy WHERE clause of defining query, it

is not added to underlying base table.

Need SELECT privilege on all tables referenced in

subselect and USAGE privilege on any domains

used in referenced columns.

Example 6.3 - Create Horizontal View

Create view so that manager at branch B003

can only see details for staff who work in his or

her office.

CREATE VIEW Manager3Staff

AS

SELECT *

FROM Staff

Example 6.4 - Create Vertical View

Create view of staff details at branch B003

excluding salaries.

CREATE VIEW Staff3

AS SELECT staffNo, fName, lName, position, sex

FROM Staff

Example 6.5 - Grouped and Joined Views

Create view of staff who manage properties for

rent, including branch number they work at, staff

number, and number of properties they manage.

CREATE VIEW StaffPropCnt (branchNo, staffNo, cnt)

AS SELECT s.branchNo, s.staffNo, COUNT(*)

FROM Staff s, PropertyForRent p

WHERE s.staffNo = p.staffNo

SQL - DROP VIEW

DROP VIEW ViewName [RESTRICT | CASCADE]

Causes definition of view to be deleted from

database.

For example:

SQL - DROP VIEW

With CASCADE, all related dependent objects

are deleted; i.e. any views defined on view being

dropped.

With RESTRICT (default), if any other objects

depend for their existence on continued existence

of view being dropped, command is rejected.

View Resolution

Count number of properties managed by each

member at branch B003.

SELECT staffNo, cnt

FROM StaffPropCnt

WHERE branchNo = ‘B003’

ORDER BY staffNo;

View Resolution

(a) View column names in SELECT list are

translated into their corresponding column

names in the defining query:

SELECT s.staffNo As staffNo, COUNT(*) As cnt

(b) View names in FROM are replaced with

corresponding FROM lists of defining query:

FROM Staff s, PropertyForRent p

View Resolution

(c)

WHERE from user query is combined with

WHERE of defining query using AND:

WHERE s.staffNo = p.staffNo AND branchNo = ‘B003’

(d)

GROUP BY and HAVING clauses copied from

defining query:

GROUP BY s.branchNo, s.staffNo

(e)

ORDER BY copied from query with view column

name translated into defining query column name

View Resolution

(f) Final merged query is now executed to produce

the result:

SELECT s.staffNo AS staffNo, COUNT(*) AS cnt

FROM Staff s, PropertyForRent p

WHERE s.staffNo = p.staffNo AND

branchNo = ‘B003’

GROUP BY s.branchNo, s.staffNo

ORDER BY s.staffNo;

Restrictions on Views

SQL imposes several restrictions on creation and

use of views.

(a) If column in view is based on an aggregate

function:

– Column may appear only in SELECT and

ORDER BY clauses of queries that access view.

– Column may not be used in WHERE nor be an

argument to an aggregate function in any query

based on view.

Restrictions on Views

For example, following query would fail:

SELECT COUNT(cnt)

FROM StaffPropCnt;

Similarly, following query would also fail:

SELECT *

FROM StaffPropCnt

WHERE cnt > 2;

Restrictions on Views

(b) Grouped view may never be joined with a base

table or a view.

 For example, StaffPropCnt view is a grouped

view, so any attempt to join this view with

another table or view fails.

View Updatability

All updates to base table reflected in all views that

encompass base table.

Similarly, may expect that if view is updated then

View Updatability

However, consider again view StaffPropCnt.

If we tried to insert record showing that at

branch B003, SG5 manages 2 properties:

INSERT INTO StaffPropCnt

VALUES (‘B003’, ‘SG5’, 2);

Have to insert 2 records into PropertyForRent

showing

which

properties

SG5

manages.

However, do not know which properties they are;

i.e. do not know primary keys!

View Updatability

If change definition of view and replace count with

actual property numbers:

CREATE VIEW StaffPropList (branchNo,

staffNo, propertyNo)

AS SELECT s.branchNo, s.staffNo, p.propertyNo

FROM Staff s, PropertyForRent p

View Updatability

Now try to insert the record:

INSERT INTO StaffPropList

VALUES (‘B003’, ‘SG5’, ‘PG19’);

Still problem, because in PropertyForRent all

columns except postcode/staffNo are not allowed

nulls.

However, have no way of giving remaining

View Updatability

ISO specifies that a view is updatable if and only

if:

- DISTINCT is not specified.

- Every element in SELECT list of defining query is a

column name and no column appears more than once.

- FROM clause specifies only one table, excluding any

views based on a join, union, intersection or difference.

- No nested SELECT referencing outer table.

- No GROUP BY or HAVING clause.

- Also, every row added through view must not violate

integrity constraints of base table.

Updatable View

For view to be updatable, DBMS must be able to

trace any row or column back to its row or

column in the source table.

WITH CHECK OPTION

Rows exist in a view because they satisfy WHERE

condition of defining query.

If a row changes and no longer satisfies condition,

it disappears from the view.

New rows appear within view when insert/update

on view cause them to satisfy WHERE condition.

Rows that enter or leave a view are called

migrating rows.

WITH CHECK OPTION

LOCAL/CASCADED apply to view hierarchies.

With LOCAL, any row insert/update on view and

any view directly or indirectly defined on this view

must not cause row to disappear from view unless

row also disappears from derived view/table.

With CASCADED (default), any row insert/

update on this view and on any view directly or

indirectly defined on this view must not cause row

to disappear from the view.

Example 6.6 - WITH CHECK OPTION

CREATE VIEW Manager3Staff

AS

SELECT *

FROM Staff

WHERE branchNo = ‘B003’

WITH CHECK OPTION;

Cannot update branch number of row B003 to

B002 as this would cause row to migrate from

view.

Also cannot insert a row into view with a branch

Example 6.6 - WITH CHECK OPTION

Now consider the following:

CREATE VIEW LowSalary

AS SELECT * FROM Staff WHERE salary > 9000;

CREATE VIEW HighSalary

AS SELECT * FROM LowSalary

WHERE salary > 10000

WITH LOCAL CHECK OPTION;

CREATE VIEW Manager3Staff

AS SELECT * FROM HighSalary

WHERE branchNo = ‘B003’;

Example 6.6 - WITH CHECK OPTION

UPDATE Manager3Staff

SET salary = 9500

WHERE staffNo = ‘SG37’;

This update would fail: although update would

cause row to disappear from HighSalary, row

would not disappear from LowSalary.

However, if update tried to set salary to 8000,

update would succeed as row would no longer be

part of LowSalary.

Example 6.6 - WITH CHECK OPTION

If HighSalary had specified WITH CASCADED

CHECK OPTION, setting salary to 9500 or 8000

would be rejected because row would disappear

from HighSalary.

To prevent anomalies like this, each view should

be created using WITH CASCADED CHECK

OPTION.

Advantages of Views

Data independence

Currency

Improved security

Reduced complexity

Convenience

Customization

Data integrity

Disadvantages of Views

Update restriction

Structure restriction

Performance

View Materialization

View resolution mechanism may be slow,

particularly if view is accessed frequently.

View materialization stores view as temporary

table when view is first queried.

Thereafter, queries based on materialized view

can be faster than recomputing view each time.

Difficulty is maintaining the currency of view

View Maintenance

View maintenance aims to apply only those

changes necessary to keep view current.

Consider following view:

CREATE VIEW StaffPropRent(staffNo)

AS SELECT DISTINCT staffNo

FROM PropertyForRent

WHERE branchNo = ‘B003’ AND

rent > 400;

View Materialization

If insert row into PropertyForRent with rent



400

then view would be unchanged.

If insert row for property PG24 at branch B003 with

staffNo = SG19 and rent = 550, then row would

appear in materialized view.

If insert row for property PG54 at branch B003 with

staffNo = SG37 and rent = 450, then no new row

would need to be added to materialized view.

If delete property PG24, row should be deleted from

materialized view.

Transactions

SQL defines transaction model based on

COMMIT and ROLLBACK.

Transaction is logical unit of work with one or

more SQL statements guaranteed to be atomic

with respect to recovery.

An SQL transaction automatically begins with a

transaction-initiating

SQL

statement

(e.g.,

SELECT, INSERT).

Changes made by transaction are not visible to

other concurrently executing transactions until

transaction completes.

Transactions

Transaction can complete in one of four ways:

-

COMMIT ends transaction successfully, making

changes permanent.

- ROLLBACK aborts transaction, backing out

any changes made by transaction.

- For programmatic SQL, successful program

termination ends final transaction successfully,

even if COMMIT has not been executed.

- For programmatic SQL, abnormal program end

aborts transaction.

Transactions

New transaction starts with next

transaction-initiating statement.

SQL transactions cannot be nested.

SET TRANSACTION configures transaction:

SET TRANSACTION

[READ ONLY | READ WRITE] |

[ISOLATION LEVEL READ UNCOMMITTED |

READ

COMMITTED|REPEATABLE

READ

Immediate and Deferred Integrity Constraints

Do not always want constraints to be checked

immediately, but instead at transaction commit.

Constraint may be defined as INITIALLY

IMMEDIATE

or

INITIALLY

DEFERRED,

indicating mode the constraint assumes at start of

each transaction.

In former case, also possible to specify whether

mode can be changed subsequently using qualifier

[NOT] DEFERRABLE.

Immediate and Deferred Integrity Constraints

SET CONSTRAINTS statement used to set mode

for specified constraints for current transaction:

SET CONSTRAINTS

{ALL | constraintName [, . . . ]}

{DEFERRED ¦ IMMEDIATE}

Access Control - Authorization Identifiers and

Ownership

Authorization identifier is normal SQL identifier

used to establish identity of a user. Usually has an

associated password.

Used to determine which objects user may

reference and what operations may be performed

on those objects.

Each object created in SQL has an owner, as

defined in AUTHORIZATION clause of schema

to which object belongs.

Privileges

Actions user permitted to carry out on given base

table or view:

SELECT

Retrieve data from a table.

INSERT

Insert new rows into a table.

UPDATE Modify rows of data in a table.

DELETE Delete rows of data from a table.

REFERENCES Reference columns of named table

in integrity constraints.

Privileges

Can restrict INSERT/UPDATE/REFERENCES to

named columns.

Owner of table must grant other users the

necessary privileges using GRANT statement.

To create view, user must have SELECT privilege

on

all

tables

that

make

up

view

and

REFERENCES privilege on the named columns.

GRANT

GRANT {PrivilegeList | ALL PRIVILEGES}

ON

ObjectName

TO

{AuthorizationIdList | PUBLIC}

[WITH GRANT OPTION]

PrivilegeList consists of one or more of above

privileges separated by commas.

GRANT

PUBLIC allows access to be granted to all present

and future authorized users.

ObjectName can be a base table, view, domain,

character set, collation or translation.

WITH GRANT OPTION allows privileges to be

Example 6.7/8 - GRANT

Give Manager full privileges to Staff table.

GRANT ALL PRIVILEGES

ON Staff

TO Manager WITH GRANT OPTION;

Give users Personnel and Director SELECT and

UPDATE on column salary of Staff.

GRANT SELECT, UPDATE (salary)

ON Staff

Example 6.9 - GRANT Specific Privileges to

PUBLIC

Give all users SELECT on Branch table.

GRANT SELECT

ON Branch

TO PUBLIC;

REVOKE

 REVOKE takes away privileges granted with GRANT.

REVOKE [GRANT OPTION FOR]

{PrivilegeList | ALL PRIVILEGES}

ON ObjectName

FROM {AuthorizationIdList | PUBLIC}

[RESTRICT | CASCADE]

 ALL PRIVILEGES refers to all privileges granted to a

REVOKE

GRANT OPTION FOR allows privileges passed on

via WITH GRANT OPTION of GRANT to be

revoked separately from the privileges themselves.

REVOKE fails if it results in an abandoned object,

such as a view, unless the CASCADE keyword has

been specified.

Privileges granted to this user by other users are

Example 6.10/11 - REVOKE Specific Privileges

Revoke privilege SELECT on Branch table from

all users.

REVOKE SELECT

ON Branch

FROM PUBLIC;

Revoke all privileges given to Director on Staff

table.

REVOKE ALL PRIVILEGES

ON Staff
