Asia Vital Components Co., Ltd., Taipei 242, Taiwan, ROC
c
Institute of Chemistry, Academia Sinica, Nankang, Taipei 115, Taiwan, ROC
d
Department of Chemistry, National Taiwan University, Taipei 10617, Taiwan, ROC Received 14 July 2003; accepted 2 October 2003

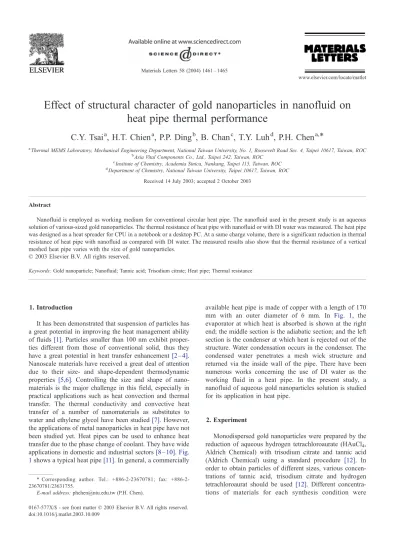

Abstract
Nanofluid is employed as working medium for conventional circular heat pipe. The nanofluid used in the present study is an aqueous solution of various-sized gold nanoparticles. The thermal resistance of heat pipe with nanofluid or with DI water was measured. The heat pipe was designed as a heat spreader for CPU in a notebook or a desktop PC. At a same charge volume, there is a significant reduction in thermal resistance of heat pipe with nanofluid as compared with DI water. The measured results also show that the thermal resistance of a vertical meshed heat pipe varies with the size of gold nanoparticles.
D 2003 Elsevier B.V. All rights reserved.
Keywords: Gold nanoparticle; Nanofluid; Tannic acid; Trisodium citrate; Heat pipe; Thermal resistance
1. Introduction
It has been demonstrated that suspension of particles has a great potential in improving the heat management ability of fluids[1]. Particles smaller than 100 nm exhibit proper-ties different from those of conventional solid, thus they have a great potential in heat transfer enhancement [2 – 4]. Nanoscale materials have received a great deal of attention due to their size- and shape-dependent thermodynamic properties [5,6]. Controlling the size and shape of nano-materials is the major challenge in this field, especially in practical applications such as heat convection and thermal transfer. The thermal conductivity and convective heat transfer of a number of nanomaterials as substitutes to water and ethylene glycol have been studied[7]. However, the applications of metal nanoparticles in heat pipe have not been studied yet. Heat pipes can be used to enhance heat transfer due to the phase change of coolant. They have wide applications in domestic and industrial sectors[8 – 10].Fig. 1shows a typical heat pipe[11]. In general, a commercially
available heat pipe is made of copper with a length of 170 mm with an outer diameter of 6 mm. In Fig. 1, the evaporator at which heat is absorbed is shown at the right end; the middle section is the adiabatic section; and the left section is the condenser at which heat is rejected out of the structure. Water condensation occurs in the condenser. The condensed water penetrates a mesh wick structure and returned via the inside wall of the pipe. There have been numerous works concerning the use of DI water as the working fluid in a heat pipe. In the present study, a nanofluid of aqueous gold nanoparticles solution is studied for its application in heat pipe.
2. Experiment
Monodispersed gold nanoparticles were prepared by the reduction of aqueous hydrogen tetrachloroaurate (HAuCl4,
Aldrich Chemical) with trisodium citrate and tannic acid (Aldrich Chemical) using a standard procedure [12]. In order to obtain particles of different sizes, various concen-trations of tannic acid, trisodium citrate and hydrogen tetrachloroaurat should be used [12]. Different concentra-tions of materials for each synthesis condition were
0167-577X/$ - see front matterD 2003 Elsevier B.V. All rights reserved. doi:10.1016/j.matlet.2003.10.009
* Corresponding author. Tel.: 23670781; fax: +886-2-23670781/23631755.
obtained by changing the quantities of initially prepared solutions of 1% (w/v) HAuCl4 solution, 1% (w/v)
triso-dium citrate solution, 1% (w/v) tannic acid solution and 2.5 mM potassium carbonate solution. The quantities used for synthesis at each condition are listed in Table 1. Note that both tannic acid solution and potassium carbonate have the same quantity for every synthesis condition. Besides, the difference in concentration of potassium carbonate does not change the size of gold nanoparticles
[12]. The final solution is prepared by adding water up to a total volume of 150 ml. As the tetrachloroaurate acid solution was heated to 60 jC, the reducing agent solution (a mixture of trisodium citrate, tannic acid and potassium carbonate) were rapidly added with stirring. After an initial color change, the solution was heated to boiling for 5 – 10 min. The UV-vis absorption of the nanoparticle solutions was measured with a Hitachi U3310 UV-vis spectrometer. High-resolution transmission electronic micrograph (HR-TEM, Hitachi H-7000) was used to determine the size of gold nanoparticles.
The diameter and length of copper tube were 6 and 170 mm, respectively. A 200 mesh screen was distributed on the inner tube. The system shown inFig. 2is used for thermal performance measurement of heat pipe. The local tempera-ture on the heat pipe was measured by nine isolated type-T thermocouples. Three thermocouples were attached to the evaporator, and three were evenly attached to the condenser section. The length of evaporator section and condenser section is 30 and 50 mm, respectively. All thermocouples were calibrated against a quartz thermometer. The uncer-tainty in temperature measurements was F 0.1 jC.
Two heater bars (maximum 90 W) were used as heat source in the measurements. Thus, the heating load ( Q) and the temperature difference (dT = Tevaporator Tcondenser) were
measured, and the thermal resistance (R) was calculated by the equation, R = dT/Q. For the present study, the heat pipe was vertically fixed during measurement. In addition to dT, we have also calculated the temperature differences, dTe=
Tevaporator Tadiabaticand dTc= Tadiabatic Tcondenser. The
ther-mal resistance from the evaporator section to the adiabatic section, Revap, and the thermal resistance from the adiabatic
section to the condenser section, Rcond, are caculated by
dTe/Q and dTc/Q, respectively.
3. Results and discussion
Typical TEM photographs of the gold nanoparticles that were prepared in different conditions (inTable 1) are shown inFig. 3. The size differences and shape changes of the gold nanoparticles can be observed from Fig. 3A – E. The TEM photographs show that gold nanoparticles prepared by conditions C, D and E are smaller than those prepared by conditions A and B. As listed inTable 1, the concentration of trisodium citrate used in conditions C, D, E was 15 times higher than in conditions A and B. This indicates that an increase in the trisodium citrate concentration causes a size reduction of gold nanoparticles. However, gold nanopar-ticles prepared in much higher concentration of trisodium citrate do cluster together but not precipitate. Comparing
Fig. 3A and B, the gold nanoparticles were generally
spherical in Fig. 3A, whereas, with increasing quantities of HAuCl4and tannic acid, larger particles can be observed
inFig. 3B.
The size distribution of the nanoparticles was shown in
Fig. 4A – E. The range of nanoparticle size is 2 – 35 nm and the peak is 24 nm for particles prepared by condition A. While the range is 15 – 75 nm, the peak becomes 40 nm for particles prepared by condition B, with higher HAuCl4and
tannic acid concentrations in the final solution. The average diameter of nanoparticles, as determined fromFig. 4A and B, are 21.3 and 43.7 nm, respectively.
Fig. 1. A schematic view of main heat transfer regions of the heat pipe.
Fig. 2. A schematic view of the system for measuring the thermal performance of heat pipe with nanofluid.
Table 1
Volumes of materials used in different synthesis conditions
Condition Na3citrate (ml) Tannic acid (ml) HAuCl4(ml)
A 0.2 2.5 3
B 0.2 5 6
C 3 0.1 1
E 3 2.5 6
With condition D, the particle size ranges from 4 to 11 nm. On the other hand, the particle size becomes larger and ranges from 10 to 20 nm with a higher HAuCl4
concentra-tion in condiconcentra-tion E as shown inFig. 4C and E. However, by increasing the quantity of tannic acid and HAuCl4
simulta-neously in condition D, the range of particle size changes from 2 to 16 nm. The average diameter of nanoparticles, as determined fromFig. 4C,D and E, are 8, 9.3 and 15.6 nm, respectively. By increasing HAuCl4concentration alone, the
average particle size increases from 8 nm for condition C to 15.6 nm for condition E. In addition, the aggregation of nanoparticles becomes more serious at higher HAuCl4
concentration.
Similar to the case with lower trisodium citrate concen-tration, the size of gold nanoparticles increases with an increase in both concentrations of tannic acid and HAuCl4
as illustrated in Fig. 4C and D. However, the average particle size reduces from 15.6 nm for condition E to 9.3 nm for condition D if both concentrations of tannic acid and HAuCl4 increase simultaneously. It indicates that higher
tannic acid concentration can prevent the formation of larger gold nanoparticle.
A local absorption peak value in the UV-vis spectra of gold nanoparticle solution prepared by condition A is 528 nm, while the peak value for conditions B, C, D and E is 530.5, 568.5, 647 and 721.5 nm, respectively. According to
Fig. 3. TEM photographs of gold nanoparticles prepared by different conditions with a magnification of 100 000.Table 1shows the quantities of each material used in the final aqueous solution for each condition.
Mie’s theory, the surface plasmon absorption and the plasmon bandwith are size-dependent with the metallic particles in the solution. Therefore, this peak value repre-sents the size at which the gold nanoparticle most populates in the solution. In addition, the bandwidth decreases with increasing the particle size for particles smaller than 20 nm
[13]. Contrarily, for particles larger than 20 nm, the band-width of the surface plasmon band increases with the particle size[14,15]. The local peak in the UV-vis spectra shifts towards longer wavelength as the particle size increases. As observed in Fig. 3A – E, it is believed that the smaller particles have eventually linked in the solution, although a solution of higher trisodium citrate concentration was used to form the smaller particles. Consequently, the surface plasmon absorption in the UV-vis spectra for con-ditions C, D, E not only has larger peak value but also has broader band as compared with that for conditions A and B. It is due to the reason that the aggregation of particles results in a higher value in the plasmon absorption maximum and a broader band of plasmon absorption by the change in particle dispersion effect. This phenomenon can be con-firmed by the experiments of Storhoff et al.[16]. The DNA-modified gold nanoparticles were linked together through
oligonucleotide hybridization in their work. A higher peak value and a broader band could be observed in their UV-vis spectra after the particles were linked together in the solution.
Fig. 6 shows the effect of nanoparticle size on the
thermal performance of the meshed heat pipe. A 200 mesh wire screen is used in the tested heat pipe. Note that the data for experiments with nanoparticles prepared by condition B was not showed in the results because the nanoparticles of this solution underwent irreversible precipitated 6 days later. The thermal resistance of heat pipe containing nanoparticle solution (the so-called nanofluid) prepared by conditions A, C, D and E is 0.17, 0.2, 0.206 and 0.215 jC/W, respectively. Using nanofluid prepared by condition A, the thermal
Fig. 4. Statistical size distribution of the gold nanoparticles obtained from TEM photographs for different conditions.
Table 2
Measured values of Revapand Rcondin different synthesis conditions
Working Fluid Revap(jC/W) Rcond(jC/W)
DI water 0.126 0.144
E 0.085 0.13
D 0.08 0.126
C 0.066 0.134
A 0.055 0.115
Fig. 5. The surface plasmon absorption of gold nanoparticles. The UV-vis absorption spectra of gold nanoparticles in aqueous solutions prepared by different conditions.
Fig. 6. Measured values of thermal resistance of heat pipe with nanofluid prepared by different conditions.
from the evaporator section to the adiabatic section. The value of Revapin conditions E, D, C and A is 0.085, 0.08,
0.066 and 0.055 jC/W, respectively. As compared with the value of Revap using DI water, the percentage in reduction
ranges from 33% to 56%. This reducing percentage in Revap
is larger than that in Rcond. Only 7% to 20% reduction can
be observed in Rcond if nanofluid is used in the test heat
pipe.
The reason for reducing the thermal resistance of heat pipe can be explained as follows. A major thermal resistance of heat pipe is caused by the formation of vapor bubble at the liquid – solid interface. A larger bubble nucleation size creates a higher thermal resistance that prevents the transfer of heat from the solid surface to the liquid [17]. The suspended nanoparticles tends to bombard the vapor bubble during the bubble formation. Therefore, it is expected that the nucleation size of vapor bubble is much smaller for fluid with suspended nanoparticles than that without them.
A reduction in Rcondcan also be observed by replacing
DI water with nanofluid in the test heat pipe. This arises from the fact that the suspended nanoparticles in a fluid flow can increase both the thermal conductivity of fluid and convective heat transfer from fluid flow to the wall[4,18]. To explain the effect of suspended particle size in nano-fluid on the thermal resistance of heat pipe, the UV-vis spectra is better than the statistical particle size distribution obtained from TEM photos because the particle cluster will move together in the fluid. The peak value in surface plasmon absorption increases from the solution by condition A to the solution by condition E as shown in Fig. 5A – E. Double peaks in the UV-vis spectra for the solution prepared by condition E indicates that both monodispersed and aggregated particles exist simultaneously in the solution. The particle size after considering the particle cluster is smallest for nanofluid prepared by condition A, but largest for nanofluid prepared by condition E. It is in agreement with the measured results on the thermal resistance of heat pipe as shown inFig. 6. However, the average particle sizes prepared for conditions C to E are smaller than that for condition A by the statistical particle distribution obtained
reduction of HAuCl4 with of tetrachloroaurate, trisodium
citrate and tannic acid. In the present study, the size of gold nanoparticle was adjusted by changing the amounts tetra-chloroaurate, trisodium citrate and tannic acid. Some of the gold particle solution could be used in the application of heat pipes. The circular heat pipe has a length of 170 mm and an outer diameter of 6 mm. The thermal resistance of circular heat pipe ranges from 0.17 to 0.215 jC/W with different nanoparticle solutions. Furthermore, the thermal resistance of the heat pipes with nanoparticle solution is lower than that with DI water. As a result, the higher thermal performances of the new coolant have proved its potential as a substitute for conventional DI water in vertical circular meshed heat pipe.
References
[1] S.U.S. Choi, in: D.A. Singiner, H.P. Wang (Eds.), Development and Applications of Non-Newtonian Flows, vol. 66, ASME, New York, 1995, p. 99, FED-VOL. 231/MD.
[2] W. Wang, X. Xu, U.S. Choi, J. Thermophys. Heat Transf. 13 (4) (1999).
[3] Y. Xuan, W. Roetzel, Int. J. Heat Mass Transfer 43 (2000) 3701. [4] B.X. Wang, H. Li, X.F. Peng, J. Therm. Sci. 11 (3) (2002) 214. [5] Y. Wang, N. Herron, J. Phys. Chem. 95 (1991) 525.
[6] A. Henglein, Top. Curr. Chem. 143 (1998) 113.
[7] Y. Xuan, W. Roetzel, Int. J. Heat Mass Tranfer 43 (2000) 3701. [8] F.F. Jebrail, M.J. Andrews, Int. J. Energy Res. 21 (1998) 101. [9] N. Ghaddar, Y. Nasr, Int. J. Energy Res. 22 (1998) 625.
[10] J. Schmalhofer, A. Faghri, Int. J. Heat Mass Tranfer 36 (1993) 201. [11] G.P. Peterson, An Introduction to Heat Pipes-Modeling, Testing, and
Applications, Wiley, New York, 1994.
[12] M.A. Hayat (Ed.), Colloidal Gold: Principles, Methods and Applica-tions, vols. 1 and 2, Academic Press, San Diego, CA, 1989. [13] U. Kreibig, U. Genzel, Surf. Sci. 156 (1985) 678.
[14] S. Link, A.M. El-Sayed, J. Phys. Chem., B 103 (1990) 8410. [15] U. Kreibig, M. Vollmer, Optical Properties of Metal Clusters, Springer,
Berlin, 1995.
[16] J.J. Storhoff, R. Elghanian, R.C. Mucic, C.A. Mirkin, R.L. Letsinger, J. Am. Chem. Soc. 120 (1998) 1959.
[17] J.G. Collier, J.R. Thome, Convective Boiling and Condensation, Clar-endon Press, Oxford, 1996.
