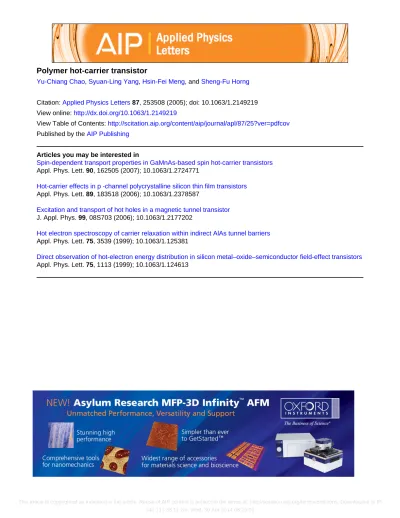

Polymer hot-carrier transistor
Yu-Chiang Chao, Syuan-Ling Yang, Hsin-Fei Meng, and Sheng-Fu Horng
Citation: Applied Physics Letters 87, 253508 (2005); doi: 10.1063/1.2149219
View online: http://dx.doi.org/10.1063/1.2149219
View Table of Contents: http://scitation.aip.org/content/aip/journal/apl/87/25?ver=pdfcov Published by the AIP Publishing
Articles you may be interested in
Spin-dependent transport properties in GaMnAs-based spin hot-carrier transistors Appl. Phys. Lett. 90, 162505 (2007); 10.1063/1.2724771
Hot-carrier effects in p -channel polycrystalline silicon thin film transistors Appl. Phys. Lett. 89, 183518 (2006); 10.1063/1.2378587
Excitation and transport of hot holes in a magnetic tunnel transistor J. Appl. Phys. 99, 08S703 (2006); 10.1063/1.2177202
Hot electron spectroscopy of carrier relaxation within indirect AlAs tunnel barriers Appl. Phys. Lett. 75, 3539 (1999); 10.1063/1.125381
Direct observation of hot-electron energy distribution in silicon metal–oxide–semiconductor field-effect transistors Appl. Phys. Lett. 75, 1113 (1999); 10.1063/1.124613
This article is copyrighted as indicated in the article. Reuse of AIP content is subject to the terms at: http://scitation.aip.org/termsconditions. Downloaded to IP: 140.113.38.11 On: Wed, 30 Apr 2014 08:25:05
Polymer hot-carrier transistor
Yu-Chiang Chao, Syuan-Ling Yang, and Hsin-Fei Menga兲
Institute of Physics, National Chiao Tung University, Hsinchu 300, Taiwan, Republic of China
Sheng-Fu Horng
Department of Electric Engineering, National Tsing Hua University, Hsinchu 300, Taiwan, Republic of China
共Received 30 September 2005; accepted 26 October 2005; published online 15 December 2005兲 Metal-base hot-carrier transistor with conjugated polymer emitter and collector is demonstrated. The device is fabricated by multiple spin coating with the metal base sandwiched between two polymers. A thin insulating layer of LiF is inserted between the emitter and base to enhance the hot carrier kinetic energy and reduce mutual dissolution. Using poly共9-vinylcarbazole兲 as the emitter, Al as the base, and poly共3-hexylthiophene兲 as the collector, common-emitter current gain of 25 is obtained with operation voltage as low as 5 V. © 2005 American Institute of Physics.
关DOI:10.1063/1.2149219兴
Polymer-based organic transistors provide a promising future for large-area and low-cost applications in display technology, sensors, and radio frequency identification cards from the perspectives of their easy solution process as well as the potential integration with organic optoelectronics.1–4 Polymer field-effect transistors共FETs兲 are mostly horizontal devices in which source and drain electrodes lie in the same plane of the substrate. The highest polymer hole mobility of about 0.1 cm2/ V s is reported for poly共3-hexylthiophene兲 共P3HT兲 FET1,5
a few years ago. Beyond this value little progress has been made. Due to the limited mobility, such horizontal devices are not candidates for high current and high frequency application unless the channel length is made submicron. Consequently, how to shrink the channel length in polymer FET has been a demanding issue. Though the well developed technology of submicron lithography can be directly applied to reduce the polymer FET channel length, this strategy is in opposition to the advantages of low-cost and large-area solution process unique to conjugated polymers.
Polymer FET with vertical channel has been proposed to achieve submicron channel length. For vertical polymer FET the channel length is defined by the thickness of the layer. However, in order to realize a vertical FET channel one usu-ally needs to employ an unreliable mechanical method like embossing.6Aside from FET, the bipolar junction transistor 共BJT兲 is a successful vertical device with high current and high frequency for inorganic semiconductors. BJT consists of two back-to-back pn junctions formed by heavily doped base共B兲, emitter 共E兲 and collector 共C兲. In principle this de-vice structure can be applied to conjugated polymer using multiply spin coating. The thickness and therefore the effec-tive channel length can be reduced down to 10 nm. However, the major problem is that the base layer needs to have low resistance in order to maintain a uniform voltage throughout the active area and reduce the emitter-to-collector transient time. Even for heavily doped conducting polymer, the resis-tivity is too large to serve as the base material. Despite of its
vertical nature, polymer BJT is therefore quite unlikely to succeed.
In this letter we present a vertical polymer hot-carrier transistor with metal base, which combines the advantage of short effective channel length, low base resistivity, and easy large-area solution process. Glass substrate is used for easy integration with organic light-emitting diodes. Similar to BJT, in hot-carrier transistor the carriers are injected from the emitter into the base. Because of the large energy barrier at the emitter-base junction, they become hot carriers in the metal. Assuming the metal is thinner than the mean free path of the carrier, most of the injected carriers will be collected by the collector. The ratio is called the transport factor ␣, which plays the same role as the transport factor in BJT. Large current amplification results from␣close to one. Cur-rent gainis defined as␣/ 1 −␣. In fact, for silicon BJT, the replacement of semiconductor base by metal was proposed in the early 1960s.7However, since silicon is a nearly perfect crystal, the backscattering of carrier at the base-collector junction is severe as the interface varies abruptly. The current gain is therefore usually poor. A similar idea of using C60
as the emitter but still utilizing silicon as the collector is recently reported.8,9But such device turns out to be a perme-able base transistor instead of the hot-carrier one. Because of the disorder of polymer and that the interface does not vary so abruptly, we expect the backscattering in our case will not be as severe as in silicon hot-carrier transistor and higheris expected. Indeed we found that high current gain with low operation voltage can be realized in polymer hot-carrier tran-sistor. Interestingly, in addition to the base for hot-carrier transistor, metal sandwiched between organic semiconduc-tors has been shown to exhibit current memory effect,10and transistor-like device can be made based on such an effect.11 The multilayer structure of the polymer metal-base transistor is indium tin oxide共ITO兲 glass/P3HT/Al/LiF/ PVK/ Au. P3HT is used as the collector because of the small Schottky barrier with Al and high mobility. PVK is poly共9-vinylcarbazole兲, which is used as emitter because of the large Schottky barrier with Al. Figure 1 shows the energy band profile of hot-carrier transistor in the active mode, i.e., the base-emitter共BE兲 junction is forward biased while the base-collector共BC兲 junction reverse biased. The hot carrier in our
a兲Author to whom correspondence should be addressed; electronic mail:
APPLIED PHYSICS LETTERS 87, 253508共2005兲
0003-6951/2005/87共25兲/253508/3/$22.50 87, 253508-1 © 2005 American Institute of Physics This article is copyrighted as indicated in the article. Reuse of AIP content is subject to the terms at: http://scitation.aip.org/termsconditions. Downloaded to IP:
device is hole. In order to illustrate the picture of hole, the negative of all the energy levels is shown. The work function of Au and Al are 5.1 and 4.3 eV, respectively. The lowest unoccupied molecular orbital共LUMO兲 and highest occupied molecular orbital共HOMO兲 for PVK are 2.3 and 6.1 eV be-low the vacuum level, and those for P3HT are 3 and 5.1 eV, respectively. Note that LUMOs of the polymers are irrel-evant to the device operation and not shown. The resultant energy barrier between base and emitter is as large as 1.8 eV, which enables the holes to be far above the Fermi level共i.e., hot carrier兲 when passing through the thin metal base. The hot holes are expected to have such a high kinetic energy that they are easily injected into the collector since the collector-base barrier is less than that of emitter-collector-base by 1 eV. In addition to the energy level requirements, the base layer thickness must be less than the mean free path for the hot hole in the base in order to reduce the probability of hole capture by the base through inelastic scattering.12The mean free path of Al is about 100 Å.13 The unwanted electron current is negligible because the electron injection barrier from Al to PVK is 2 eV, and 1.7 eV from ITO to P3HT. Under active mode bias, holes are injected into the HOMO of PVK from the Au electrode, followed by tunneling through the LiF layer and passing ballistically across the base high above the Fermi level. Because P3HT is not crys-talline, the quantum mechanical reflection at the base-collector interface which has plagued the inorganic hot-carrier transistor will not happen here. The LiF layer between emitter and base is intended to provide two advantages. First, the voltage drop across LiF lowers the Al Fermi level rela-tive to HOMO of PVK and further increases the energy dif-ference between PVK and P3HT. Hence the holes have higher kinetic energy in base with LiF. Second, the LiF layer serves as a protection layer which prevents the P3HT from possible dissolution when spin coating PVK. Indeed, the in-sertion of LiF layer enhances the device stability and repro-ducibility. The I-V curve of EB and BC junctions shown in Fig. 2 demonstrate good diode characteristic with rectifica-tion ratio of about 103and 105, respectively.
The device is fabricated on patterned ITO glass substrate cleaned by de-ionized water, acetone and 2-propanol con-secutively in ultrasonic bath. Fourteen hundred angstroms of P3HT is spun cast from chloroform solution共1.2 wt%兲 onto the substrate, followed by a thin aluminum film of 90 Å evaporated as the base at 0.2 Å / s through a shadow mask. To wire out the base, a 1000 Å Al strip is deposited with
another shadow mask. LiF layer of 28 Å is deposited on the thin Al film, followed by 3300 Å of PVK spun cast from toluene solution共7 wt%兲 to form the emitter. Gold is depos-ited as the emitter contact. The devices are packaged in a glovebox and all electrical measurements are performed in ambient condition. The polymers are purchased from Ald-rich. All metal layers are deposited in a chamber having a base pressure of 1.0⫻10−6 mbar. The device active area,
de-fined by crossover between the Au and ITO electrode, is 4 mm2. The thickness of each polymer layer is measured by Kosaka ET4000 surface profiler. Current-voltage curves are measured by a HP 4157 semiconductor parameter analyzer.
Figure 3 shows the characteristics of hot-carrier metal base transistor in the common-emitter configuration. The emitter Au electrode is commonly grounded and the ITO electrode is negatively biased at VCwith respect to Au. The collector current IC does increase with the base current IB. The common-emitter current gainis 25 when VCis −5 V.  is the average of five current gains at different IB. Each current gain is given by 关IC− IC共IB= 0兲兴/IB. However, for fixed IB,兩IC兩 increases with 兩VC兩 without saturation. This is probably due to the image-force barrier lowering at the BC junction andincreases with兩VC兩.14,15In Fig. 4, the voltage drop across the EB and BC junctions are plotted as functions of VC at fixed IB= −0.2A. The BC voltage drop VBC= VB − VC increases with 兩VC兩 while the EB voltage drop VEB = VE− VB is nearly a constant after 兩VC兩 exceeds 2 V. This behavior implies that further increase of兩VC兩 mostly falls on FIG. 1. The energy band profile of metal-base hot-carrier transistor in the
active mode. The negatives of the actual energy are shown in order to
illustrate the picture of holes better. The energies are indicated in eV. FIG. 2. The I-V curves of emitter-base and base-collector diodes.
FIG. 3. The characteristics of the polymer hot-carrier metal-base transistor in common-emitter configuration.
253508-2 Chao et al. Appl. Phys. Lett. 87, 253508共2005兲
This article is copyrighted as indicated in the article. Reuse of AIP content is subject to the terms at: http://scitation.aip.org/termsconditions. Downloaded to IP: 140.113.38.11 On: Wed, 30 Apr 2014 08:25:05
the reverse biased BC junction as expected. Common-base measurement shows consistent results. When VCis −5 V and the base electrode is open, the ICleakage current is 1.9A as shown in Fig. 3. Since the reverse current for BC junction is of the order nA as shown in Fig. 2, the leakage current is believed to result from some unexpected path caused by re-sidual mutual dissolution of PVK and P3HT outside the ac-tive area. ICleakage can be in principle reduced to a few nA if process control is improved. Au migration into PVK layer during the evaporation may reduce the effective resistance of PVK layer, and consequently the device has a small turn-on voltage despite the large hole injection barrier at Au/ PVK junction. Finally, from the atomic force microscope image of the base metal, the Al roughness is less than two nanometers and no pinholes can be seen. It shows that our metal-base hot-carrier transistor is not in fact a permeable base one.9,16 The device reported in this letter is therefore the first organic hot-carrier transistor.
In summary, a solution-processed vertical polymer hot-carrier transistor is demonstrated to have current gain of 25. This device has high current output and low operation volt-age. The active area can be made arbitrarily large and no lithography is needed. The use of LiF tunneling barrier not only improves the hot carrier kinetic energy and current gain but also serves as a protecting layer to prevent mutual disso-lution between the polymers.
This work is supported by the National Science Council of the Republic of China and the Excellence Project of the ROC Ministry of Education.
1H. Sirringhaus, N. Tessler, and R. H. Friend, Science 280, 1741共1998兲. 2D. Voss, Nature共London兲 407, 442 共2000兲.
3K. L. Tzeng, H. F. Meng, M. F. Tzeng, Y. S. Chen, C. H. Liu, S. F. Horng,
Y. Z. Yang, S. M. Chang, C. S. Hsu, and C. C. Chi, Appl. Phys. Lett. 84, 619共2004兲.
4Z. L. Li, S. C. Yang, H. F. Meng, Y. S. Chen, Y. Z. Yang, C. H. Liu, S. F.
Horng, C. S. Hsu, L. C. Chen, J. P. Hu, and R. H. Lee, Appl. Phys. Lett. 84, 3558共2004兲.
5A. Dodabalapur, Z. Bao, A. Makhija, J. G. Laquindanum, V. R. Raju, Y.
Feng, H. E. Katz, and J. Rogers, Appl. Phys. Lett. 73, 142共1998兲.
6N. Stutzmann, R. H. Friend, and H. Friend, Science 299, 1881共2003兲. 7D. V. Geppert, Proc. IRE 50, 1527共1962兲.
8M. S. Meruvia, A. R. V. Benvenho, I. A. Hömmelgen, A. A. Pasa, and W.
Schwarzacher, Appl. Phys. Lett. 84, 3978共2004兲.
9M. S. Meruvia, I. A. Hümmelgen, M. L. Sartorelli, A. A. Pasa, and W.
Schwarzacher, Appl. Phys. Lett. 86, 263504共2005兲.
10L. P. Ma, J. Liu, S. M. Pyo, and Y. Yang, Appl. Phys. Lett. 80, 362共2002兲. 11L. P. Ma and Y. Yang, Appl. Phys. Lett. 85, 5084共2004兲.
12K. N. Kwok, Complete Guide to Semiconductor Devices, 2nd ed.共Wiley,
New York, 2002兲.
13S. M. Sze, C. R. Crowell, G. P. Carey, and E. E. LaBate, J. Appl. Phys.
37, 2690共1966兲.
14C. R. Crowell and S. M. Sze, Solid-State Electron. 8, 979共1965兲. 15C. R. Crowell and S. M. Sze, J. Appl. Phys. 37, 2683共1966兲. 16D. D. Rathman, IEEE Trans. Electron Devices 37, 2090共1990兲.
FIG. 4. The voltage drop across the emitter-base and base-collector junctions.
253508-3 Chao et al. Appl. Phys. Lett. 87, 253508共2005兲
