OncoTargets and Therapy
Dovepress
O r i g i n a l r e s e a r c hopen access to scientific and medical research Open access Full Text article
Functional divergence and convergence between
the transcript network and gene network in lung
adenocarcinoma
Min-Kung hsu1 chia-lin Pan2 Feng-chi chen1–3
1Department of Biological science
and Technology, national chiao-Tung University, hsinchu, 2institute of
Population health sciences, national health research institutes, Zhunan,
3school of Dentistry, china Medical
University, Taichung, Taiwan
Introduction: Alternative RNA splicing is a critical regulatory mechanism during
tumorigenesis. However, previous oncological studies mainly focused on the splicing of individual genes. Whether and how transcript isoforms are coordinated to affect cellular functions remain underexplored. Also of great interest is how the splicing regulome cooperates with the transcription regulome to facilitate tumorigenesis. The answers to these questions are of fundamental importance to cancer biology.
Results: Here, we report a comparative study between the transcript-based network (TN) and
the gene-based network (GN) derived from the transcriptomes of paired tumor–normal tissues from 77 lung adenocarcinoma patients. We demonstrate that the two networks differ signifi-cantly from each other in terms of patient clustering and the number and functions of network modules. Interestingly, the majority (89.5%) of multi-transcript genes have their transcript isoforms distributed in at least two TN modules, suggesting regulatory and functional diver-gences between transcript isoforms. Furthermore, TN and GN modules share only ~50%–60% of their biological functions. TN thus appears to constitute a regulatory layer separate from GN. Nevertheless, our results indicate that functional convergence and divergence both occur between TN and GN, implying complex interactions between the two regulatory layers. Finally, we report that the expression profiles of module members in both TN and GN shift dramatically yet concordantly during tumorigenesis. The mechanisms underlying this coordinated shifting remain unclear yet are worth further explorations.
Conclusion: We show that in lung adenocarcinoma, transcript isoforms per se are coordinately
regulated to conduct biological functions not conveyed by the network of genes. However, the two networks may interact closely with each other by sharing the same or related biological functions. Unraveling the effects and mechanisms of such interactions will significantly advance our understanding of this deadly disease.
Keywords: lung adenocarcinoma, transcriptome analysis, gene network, module, alternative
splicing, transcriptional regulation
Introduction
The human genome contains tens of thousands of genes. The large number of genes suggests sophisticated gene–gene interactions and high levels of regulatory coordination. Indeed, the dynamics of the human gene network has been suggested
to reflect cellular processes and disease status.1,2 In a gene network, individual genes
frequently form densely connected “modules”, which have been reported to signify
functional associations and regulatory relatedness.1,3,4 Gene networks can convey rich
information regarding abnormalities as well as normal cellular functions. Accordingly,
network analysis has been widely applied in oncological studies.5–7
correspondence: Feng-chi chen institute of Population health sciences, national health research institutes, 35 Keyen road, Zhunan, Miaoli county 350, Taiwan
email fcchen@nhri.org.tw
Journal name: OncoTargets and Therapy Article Designation: Original Research Year: 2016
Volume: 9
Running head verso: Hsu et al
Running head recto: Transcript network and gene network in lung adenocarcinoma DOI: http://dx.doi.org/10.2147/OTT.S94897
OncoTargets and Therapy downloaded from https://www.dovepress.com/ by 188.72.96.202 on 27-Sep-2018
For personal use only.
Number of times this article has been viewed
This article was published in the following Dove Press journal: OncoTargets and Therapy
Dovepress
hsu et al
The vast majority of network studies have been focused on the gene level. However, 90% of human genes are known to be alternatively spliced, generating multiple
transcript/protein isoforms of similar or distinct functions.8
At least 5% of human genes can produce protein isoforms
that conduct different biological functions.9,10 Furthermore,
individual transcript isoforms have been proposed to constitute a critical layer in the human regulome separate
from the transcriptional regulations of complete genes.11
Gene-centered network analyses lack such transcript-level resolution, and thus may miss clues important for molecular pathogenesis.
Alternative splicing is strictly regulated both spatially and temporally. Dysregulation of alternative splicing is closely
related to a variety of human diseases.12–14 Importantly, the
abnormalities in alternative splicing have been suggested to
contribute significantly to tumorigenesis.7,14 While this issue
has attracted increasing attention, the effects and mechanisms of splicing dysregulation in tumorigenesis remain largely
unclear.15 Furthermore, most of the previous studies on
alternative splicing have been directed to a limited number
of cancer-related genes16,17 or the functional implications of
individual transcript isoforms.15 Transcriptome-scale
net-work analyses have remained scarce. Given the functional divergences between transcript isoforms, transcript-based and gene-based networks (designated as “TN” and “GN”, respectively) are expected to differ considerably from each other in function, regulation, and biological significance in tumorigenesis. By comparing the networks at these two molecular levels (gene and transcript) in tumor and normal tissues, we may be able to not only delineate the splicing reg-ulome but also explore the regulatory associations between splicing and transcription during tumorigenesis.
Here, we report a comparative study between GN and TN in paired tumor–normal tissues derived from 77 lung adenocarcinoma patients. We show that TN exhibits differ-ent topological and functional properties from GN. Inter-estingly, a considerable proportion of transcript isoforms of the same genes are inferred to serve distinct molecular functions potentially important for the tumorigenesis of lung adenocarcinoma. Importantly, the two networks show both convergence and divergence in biological functions, indicating complex interactions between the two regula-tory layers. Furthermore, we demonstrate that in both of the networks, the expression profiles of module members shift dramatically yet concordantly during tumorigenesis. Our results suggest that the network of transcript isoforms
constitutes an important regulatory layer that is separate from yet functionally intertwined with the gene network in lung adenocarcinoma.
Methods
Data source and processing
The RNA-sequencing (RNA-seq) dataset (GSE40419) of lung adenocarcinoma was downloaded from the Gene
Expression Omnibus database.18 The dataset contained
RNA-seq data derived from paired normal and tumor tissues from 77 Korean patients.
The raw data retrieved from Gene Expression Omnibus (in Sequence Read Archive format) were converted to the FASTQ format by using fastq-dump. The RNA-seq reads were then mapped to the human reference genome (GRCh37;
Ensemble Version 75) by using STAR19 with default
para-meters. The expression levels (in Fragments Per Kilobase of transcript per Million mapped reads [FPKM]) of genes
and transcripts were generated separately by Cufflinks.20
To ensure data quality, two types of genes and the corre-sponding transcripts were excluded:
1) The genes that had more than one FPKM value (12 genes).
2) The genes that did not include all of the annotated tran-script isoforms (ie, some of the annotated trantran-scripts were just “absent”, rather than being assigned a zero FPKM value) according to Cufflinks results (776 genes). In addition, we required that the FPKM values be 1 in all of the 77 normal or tumor tissues. Finally, 70,131 tran-script isoforms of 10,510 genes were retained for subsequent analyses.
network construction
The gene-based and transcript-based networks were con-structed by using Weighted Gene Correlation Network
Analysis (WGCNA).21 According to the WGCNA manual,
the FPKM values were log-transformed by log2(FPKM +1).
The transformed FPKM values were then input to WGCNA for calculation of the Pearson’s coefficients of correlation for all gene/transcript pairs. The network connectivity was weighted based on these coefficients. The FPKM values of normal and tumor tissues of the same molecular level (gene or transcript) were input together to WGCNA so that the modules could be compared between the two tissue types.
The “β” parameter of WGCNA, which was used to determine
adjacency, was set to be 6 according to data distribution (Figure S1).
OncoTargets and Therapy downloaded from https://www.dovepress.com/ by 188.72.96.202 on 27-Sep-2018
Dovepress Transcript network and gene network in lung adenocarcinoma
The Gene Ontology (GO) annotation system was selected for functional analysis by WGCNA. The GO term of an individual transcript isoform was considered as the same as that of the corresponding gene. The statistical significance of GO term enrichment was Bonferroni-corrected.
estimation of transcript module entropy
The transcript module entropy (Ei) was used to quantify the
dispersion of transcript isoforms of gene i in the TN modules.
Ei was defined as:
Ei n f
j ij
= −1
∑
=1
2 (1)
where fij indicated the proportion of transcript isoform of
gene i that belonged to TN module j, and n indicated the total number of TN modules assigned to the transcript isoforms of gene i.
The theoretical maximum of Ei (Max(Ei)) was
esti-mated by: Max E f m m m m m i m j ij m j ( )= − = − = − × = − = =
∑
∑
1 1 1 1 1 1 1 2 1 2 2 (2)where m was the number of transcript isoforms of gene i as annotated by the Ensemble Database (Version 75). Note that single-transcript genes were excluded from this analysis.
correlations between module members
and known cancer-related genes
The expressions of the genes involved in three cancer-related pathways annotated by Kyoto Encyclopedia of Genes and Genomes (KEGG) were singled out, including the “cancer pathway”, “non-small-cell lung cancer (NSCLC) pathway”, and “small-cell lung cancer (SCLC) pathway”. The eigen-gene for the eigen-genes in each pathway was derived using the principal component analysis module of the R package. An eigengene was defined as the first principal component of the
expression profiles of the analyzed genes.22 The correlations
between module members and each of the three eigengenes were evaluated to determine whether the identified mod-ules were functionally related to tumorigenesis. The cutoff
P-value for statistical significance was Bonferroni-adjusted
to 0.002 and 0.0007 for GN and TN modules, respectively, to
account for multiple testing (0.05/# modules; 0.05/27=0.002
for GN; 0.05/68=0.0007 for TN).
Results
Functional divergences and convergences
between the gene network and transcript
network in lung adenocarcinoma
We used WGCNA21 to construct GNs and TNs of lung
adeno-carcinoma (described in the “Methods” section). The expres-sion levels of individual transcript isoforms were calculated by using Cufflinks, which assigned RNA-seq reads to transcript
isoforms according to a likelihood model.20 The expression
levels (in FPKM) of tumor and normal tissues were together submitted to WGCNA but separately for genes and transcripts so that the modules could be compared between the two tis-sue types and between the two molecular levels. WGCNA identifies modules according to hierarchical clustering of the genes/transcripts and a dissimilarity measure-based cutoff
value.21 This approach has been widely applied and proved to
be powerful in detecting functionally related genes.23–27
Intuitively, transcript isoforms are merely “subsets” of the corresponding genes. Transcript-based analyses thus should yield results fairly similar to those derived from gene-based analyses. Interestingly, this proposition was not supported by our results. We first examined whether the expression profiles of genes and transcripts could concordantly reflect the genetic relationships among the 77 patients. Our results indicated that the gene-based and transcript-based tree topologies differed considerably from each other (Figure 1). To quantify the difference between gene-based and transcript-based patient clustering, we used
FastTree28 to compare the topologies of the two patient trees.
Figure 1A shows that for normal tissues, only ten out of the 74 splits (colored circles and star) were shared between the gene-based and the transcript-based tree. Similarly, for tumor tissues, only eleven of the 74 splits were shared between the two trees (Figure 1B). However, a large split covering 71 of the patients (the star in Figure 1A) was shared between gene-based and transcript-gene-based trees in normal tissues, which was not observed in tumor tissues. The dissimilarities appeared to imply dissociation of transcript-centric regulations from gene-level regulations, possibly due to the functional/
regulatory divergences between isoforms.29,30 Furthermore,
the gene–transcript divergence seemed to be larger in tumor tissues than in normal tissues.
Next, we compared the modules derived from GN and those derived from TN. We reasoned that if the expression
OncoTargets and Therapy downloaded from https://www.dovepress.com/ by 188.72.96.202 on 27-Sep-2018
Dovepress hsu et al *HQHEDVHGVDPSOHFOXVWHULQJLQQRUPDOWLVVXH 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 7UDQVFULSWEDVHGVDPSOHFOXVWHULQJLQQRUPDOWLVVXH 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 *HQHEDVHGVDPSOHFOXVWHULQJLQWXPRUWLVVXH 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 7UDQVFULSWEDVHGVDPSOHFOXVWHULQJLQWXPRUWLVVXH 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
$
%

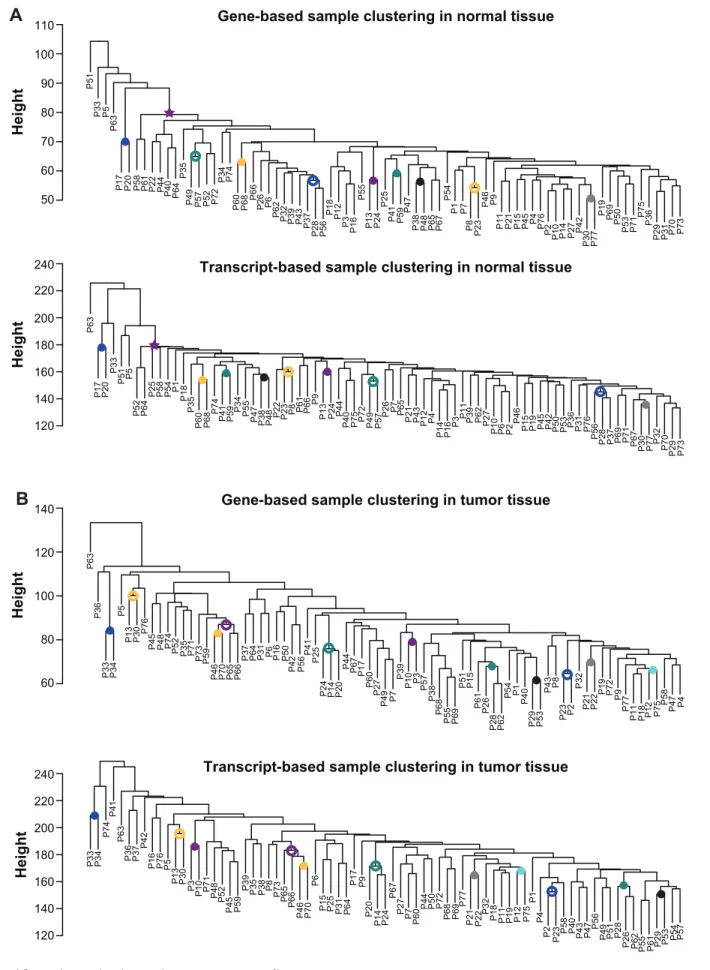

+HLJKW +HLJKW +HLJKW +HLJKWFigure 1 Patient clustering based on gene/transcript expression profiles.
Notes: The clustering of normal (A) and tumor (B) tissue samples according to the expression profiles of genes (the upper panel in [A] and [B]) and transcript isoforms (the lower panel in (A) and (B)). The filled circles, open circles, and the star indicate splits shared between the gene-based and the transcript-based trees.
OncoTargets and Therapy downloaded from https://www.dovepress.com/ by 188.72.96.202 on 27-Sep-2018
Dovepress Transcript network and gene network in lung adenocarcinoma
profiles of transcript isoforms closely resembled those of the corresponding genes, the number of TN modules should be close to that of GN modules. Otherwise, TN modules should outnumber GN modules. Our results indicated that GN and TN contained 27 and 68 modules, respectively. This disparity in module number indicated that first, the expression profiles of individual transcript isoforms diverged considerably from those of the corresponding genes. Second, transcript isoform-specific regulations were fairly common in the transcriptome of lung adenocarcinoma. Third, transcript isoforms might convey significant functional versatility not achievable by single-transcript genes alone.
To investigate whether TN and GN modules serve dif-ferent biological functions, we conducted GO analyses for these modules. Thirteen of the GN modules and 18 of the TN modules were found to be enriched for 108 and 137
GO terms, respectively (Tables S1 and S2). The majority of
these modules corresponded to multiple GO terms. These multifunctional modules were related to such important functions as cell cycle, immune response, and regulation
of cell migration (Tables S1 and S2). Interestingly, only 68
GO terms were shared between GN and TN modules. These 68 GO terms accounted for 63.0% and 49.6% of the GO terms enriched for GN and TN modules, respectively. This observation indicated that GN and TN modules function-ally overlapped with each other by sharing half or more of the GO terms. However, the divergences between the two
module groups were substantial, accounting for ~40%–50%
of the GO terms. This interpretation, nevertheless, should be taken with caution because different GO terms may be in fact functionally related. For example, TN module #42 was enriched for the GO terms “chemokine activity” and “cytokine activity”, which were absent from the GO terms enriched for GN modules. But such GO terms as “immune response” and “regulation of immune system process” were found to be enriched for the “black” GN module. This obser-vation implied potential functional convergences between GN and TN modules despite apparent divergences.
Meanwhile, a closer inspection revealed that transcript isoforms from different genes could be convened to conduct functions not conducted by the corresponding genes. For instance, TN module #16 was enriched for the GO terms “cell motility” and “cell migration”. This TN module contained 951 transcripts, which corresponded to 674 genes distributed
in 27 GN modules of fairly diversified functions (Table S3).
Overall, our results suggested complex regulatory relation-ships between GN and TN, where functional divergences and convergences were intertwined.
Transcript isoforms of the same genes
are usually distributed in different
network modules
The observations that (1) TN modules outnumbered GN module and (2) TN and GN modules functionally diverged from each other suggested that transcript isoforms of the same genes might have been clustered into different TN modules. Indeed, our results indicated that 89.5% (7,418/8,284) of the analyzed multiple-transcript genes had their transcript isoforms distributed in at least two modules. To quantify the level of isoform distribution, we calculated the “transcript
module entropy” (Ei) for each analyzed gene. Ei represented
the entropy of isoform distribution in TN modules for a given
gene (described in the “Methods” section). A larger Ei value
indicated a wider module distribution of transcript isoforms
of a gene. Of note, theoretically Ei should increase with the
number of transcript isoforms of a gene. For comparison, we
calculated the theoretical maxima of Ei for genes with
differ-ent numbers of isoforms. An Ei value equal to the theoretical
maximum indicated that all of the transcript isoforms of the interested gene were assigned to different TN modules. And
an Ei value of zero indicated that all of the transcript isoforms
of the interested gene belonged to the same TN module. It was expected that most, if not all, of the transcript isoforms of a gene belonged to the same module. The
Ei values should thus be close to zero in the majority of
cases. However, Figure 2 shows that, in general, the average
Ei value increased with the number of transcript isoforms for
both coding (blue bars) and noncoding genes (red bars), with
the Ei values of coding genes slightly higher than those of the
corresponding noncoding genes in most of the cases. Inter-estingly, for coding genes, the ratio of observed-to-maximal
Ei value fell between 0.7 and 0.8 regardless of the number of
transcript isoforms. For noncoding genes, the ratio seemed to be increasing with the number of transcript isoforms. Notably, however, the numbers of noncoding genes in this analysis were fairly small (inset table in Figure 2). The results for noncoding genes, especially for those with larger isoform numbers (5), should be taken with caution.
Of note, in the above analysis, we excluded the “gray module”, which included the transcript isoforms not assigned to any other modules. This specific module was a mixture of either biological “noises” or transcript isoforms with unique expression profiles. The exclusion of the grey module could have affected the results because it would have been counted
as a de facto module in the calculation of Ei values. To
evalu-ate the influence of the grey module, we put this module back
for the calculation of the Ei values. Figure S2 shows that
OncoTargets and Therapy downloaded from https://www.dovepress.com/ by 188.72.96.202 on 27-Sep-2018
Dovepress
hsu et al
when the grey module was included, the average Ei values
appeared to reach the maximum at isoform number =6 for
both coding and noncoding genes. Furthermore, for coding
genes, the ratio of observed-to-maximal Ei value decreased
with the number of isoforms, whereas for noncoding genes,
this ratio peaked at isoform number =6. These observations
suggested that coding genes with more transcript isoforms tended to have a larger fraction of the isoforms assigned to the grey module. But this was not true for noncoding genes. Again, the numbers of analyzed noncoding genes were relatively small, and the results thereof must be taken with caution.
Overall, the above observations implied that the expres-sion profiles (and likely functions) of transcript isoforms of the same genes, at least those in the TN modules, diverged substantially from each other. And this between-isoform divergence was slightly larger in coding genes than in noncoding genes. Interestingly, the functional versatility
of a gene (as measured by Ei) appeared to increase with
the number of transcript isoforms if the grey module was excluded. This observation implied that regulatory flexibility of a gene could be amplified by an increase in the number of transcript isoforms.
The module members in both of the
gene- and transcript-based networks
are significantly correlated with known
cancer genes in expression profile
To clarify whether the GN and TN modules were associated with patient features (sex, age at diagnosis, smoking history, and cancer stage), we measured the correlation between the network modules and each of the features. We also evaluated the correlations between the module members and the “eigen-genes” derived from the known cancer genes as annotated in the KEGG Pathway Database (described in the “Methods”
WUDQVFULSW (L 3URSRUWLRQRIWKHRUHWLFDOPD[LPDO (L &RGLQJJHQH 1RQFRGLQJJHQH 7KHRUHWLFDOPD[LPDO(L 1XPEHURIFRGLQJJHQHV 1XPEHURIQRQFRGLQJJHQHV
Figure 2 Transcript module entropy (Ei, bars and the left axis) and the proportion of Ei relative to the theoretical maximal value (lines and the right axis) for coding (blue)
and noncoding genes (red).
Notes: The X-axis indicates the number of transcript isoforms per gene. The dashed line indicates Ei=0.5. note that the grey module is excluded for the calculation of Ei in
this figure. Also, note that the red bar is missing and the red line is broken at X=9 because none of the analyzed noncoding genes includes nine transcript isoforms.
OncoTargets and Therapy downloaded from https://www.dovepress.com/ by 188.72.96.202 on 27-Sep-2018
Dovepress Transcript network and gene network in lung adenocarcinoma
section). The eigengene of a gene group is the eigenvector of
the expression profile matrix of the member genes.21 Note that
the cutoff P-value for statistical significance was Bonferroni-adjusted to P0.002 and P0.0007 for GN and TN modules, respectively, to account for multiple testing (described in
the “Methods” section). Our result showed that for normal tissues, the GN modules were correlated with none of the patient features or cancer-related gene groups (Figure 3A). In comparison, for tumor tissues, the “brown” and “salmon” modules were positively correlated, but the grey module was
0RGXOHíWUDLWUHODWLRQVKLSV í í /LJKW\HOORZ %URZQ 0DJHQWD 'DUNUHG 'DUNWXUTXRLVH 3LQN *UH\ 6DOPRQ 7XUTXRLVH &\DQ 5R\DOEOXH *UHHQ\HOORZ 0LGQLJKWEOXH <HOORZ 'DUNJUH\ 2UDQJH *UHHQ %OXH /LJKWJUHHQ 'DUNJUHHQ 'DUNRUDQJH 5HG 3XUSOH 7DQ %ODFN /LJKWF\DQ *UH\ í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í í
$
$JHDWGLDJQRVLV 6PRNLQJVWDWXV 6WDJH 6H[ SDWKZD\&DQFHU SDWKZD\16&/& SDWKZD\6&/&
Figure 3 (Continued)
OncoTargets and Therapy downloaded from https://www.dovepress.com/ by 188.72.96.202 on 27-Sep-2018
Dovepress hsu et al −1 −0.5 0 0.5 1 Green Blue Darkred Midnightblue Pink Darkgreen Royalblue Lightyellow Magenta Turquoise Darkturquoise Grey60 Darkorange Brown Salmon Lightcyan Tan Purple Orange Cyan Black Red Greenyellow Lightgreen Darkgrey Yellow Grey −0.26 (0.02) −0.071 (0.5) −0.0062 (1) −0.063 (0.6) −0.085 (0.5) −0.068 (0.6) −0.1 (0.4) 0.012 (0.9) 0.008 (0.9) −0.027 (0.8) −0.19 (0.1) −0.15 (0.2) 0.14 (0.2) 0.13 (0.3) −0.0017 (1) 0.2 (0.08) 0.12 (0.3) 0.28 (0.01) 0.16 (0.2) 0.16 (0.2) 0.22 (0.06) 0.27 (0.02) 0.2 (0.08) −0.026 (0.8) 0.07 (0.5) −0.051 (0.7) −0.015 (0.9) Age at
diagnosis Smokingstatus Stage Sex pathwayCancer pathwayNSCLC pathwaySCLC
−0.0092 (0.9) 0.24 (0.04) 0.23 (0.04) 0.14 (0.2) 0.1 (0.4) 0.24 (0.03) 0.21 (0.06) 0.022 (0.8) 0.09 (0.4) −0.017 (0.9) −0.11 (0.3) −0.24 (0.03) −0.05 (0.7) −0.32 (0.004) −0.32 (0.005) −0.057 (0.6) 0.028 (0.8) 0.049 (0.7) −0.06 (0.6) −0.072 (0.5) 0.03 (0.8) 0.1 (0.4) −0.24 (0.04) 0.00067 (1) 0.16 (0.2) −0.23 (0.04) 0.34 (0.003) 0.15 (0.2) 0.21 (0.06) 0.059 (0.6) 0.092 (0.4) 0.12 (0.3) 0.2 (0.08) 0.15 (0.2) −0.022 (0.8) 0.039 (0.7) −0.036 (0.8) −0.12 (0.3) −0.15 (0.2) −0.17 (0.1) −0.21 (0.06) −0.2 (0.09) 0.029 (0.8) 0.1 (0.4) 0.027 (0.8) 0.0047 (1) −0.025 (0.8) 0.072 (0.5) 0.036 (0.8) −0.11 (0.3) 0.23 (0.05) 0.06 (0.6) −0.15 (0.2) 0.17 (0.1) 0.044 (0.7) −0.22 (0.05) −0.22 (0.05) −0.15 (0.2) −0.099 (0.4) −0.24 (0.04) −0.28 (0.01) −0.0024 (1) −0.075 (0.5) 0.023 (0.8) 0.034 (0.8) 0.2 (0.08) 0.2 (0.08) 0.43 (9e−05) 0.36 (0.001) 0.096 (0.4) −0.0097 (0.9) 0.019 (0.9) 0.25 (0.03) 0.13 (0.3) 0.059 (0.6) 0.02 (0.9) 0.24 (0.03) 0.14 (0.2) −0.11 (0.3) 0.25 (0.03) −0.37 (9e−04) 0.021 (0.9) 0.36 (0.001) 0.21 (0.07) 0.15 (0.2) 0.32 (0.004) 0.47 (2e−05) 0.38 (8e−04) 0.17 (0.1) 0.28 (0.01) 0.11 (0.3) −0.071 (0.5) −0.35 (0.002) 0.0063 (1) −0.28 (0.01) −0.23 (0.04) 0.0048 (1) −0.0032 (1) 0.28 (0.01) 0.11 (0.3) 0.13 (0.3) 0.2 (0.08) 0.36 (0.001) −0.29 (0.009) 0.16 (0.2) −0.22 (0.06) −0.52 (1e−06) 0.36 (0.001) 0.035 (0.8) 0.026 (0.8) 0.056 (0.6) −0.03 (0.8) −0.063 (0.6) 0.0052 (1) 0.043 (0.7) 0.027 (0.8) −0.025 (0.8) −0.1 (0.4) −0.21 (0.07) −0.22 (0.05) 0.041 (0.7) −0.13 (0.3) −0.2 (0.08) 0.23 (0.04) 0.26 (0.02) 0.17 (0.1) −0.021 (0.9) 0.048 (0.7) 0.13 (0.2) 0.21 (0.07) −0.12 (0.3) 0.011 (0.9) 0.033 (0.8) −0.075 (0.5) 0.11 (0.3) −0.1 (0.4) 0.086 (0.5) 0.29 (0.01) 0.13 (0.3) 0.22 (0.05) 0.27 (0.02) 0.28 (0.02) 0.35 (0.002) 0.43 (1e−04) 0.29 (0.01) 0.076 (0.5) −0.19 (0.09) 0.091 (0.4) 0.024 (0.8) 0.072 (0.5) −0.016 (0.9) 0.097 (0.4) 0.45 (4e−05) 0.18 (0.1) 0.26 (0.02) 0.21 (0.07) 0.4 (3e−04) −0.12 (0.3) −0.16 (0.2) −0.27 (0.02) −0.54 (4e−07) 0.25 (0.03)
B

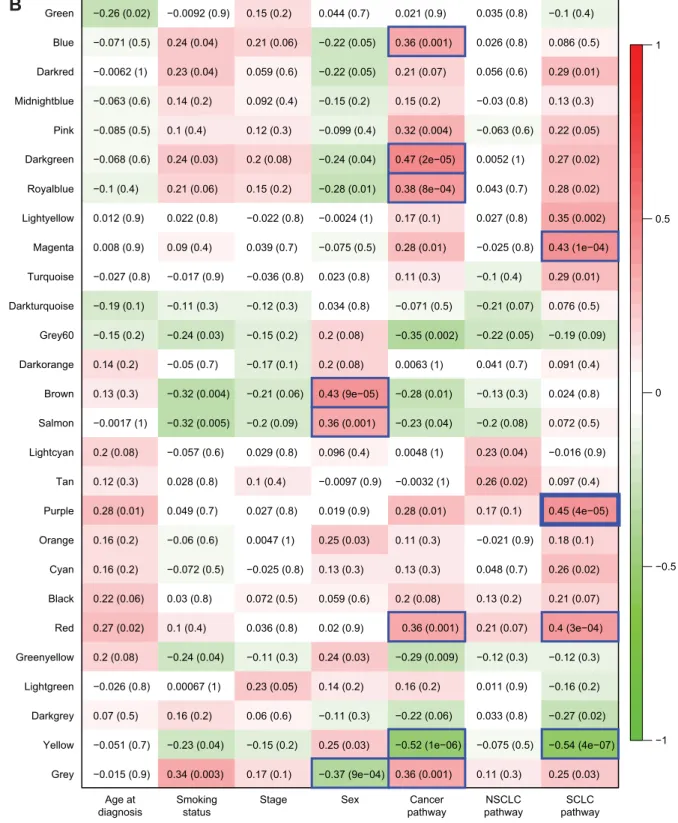

Figure 3 The correlations between network modules and patient features/cancer pathways.
Notes: The correlations between patient features/cancer-related pathways and the eigengenes of gn modules for (A) normal tissues and (B) tumor tissues. The red and green colors indicate positive and negative correlation, respectively. The non-parenthesized number in a cell indicates the Pearson’s coefficient of correlation, followed by the P-value in the parenthesis. The blue color-framed cells indicate statistically significant correlations. Note that the cutoff P-value for statistical significance was Bonferroni-corrected to 0.002.
Abbreviations: gn, gene-based network; nsclc, non-small-cell lung cancer; sclc, small-cell lung cancer. negatively correlated with sex (Figure 3B). Note that male
and female, respectively, was assigned the value of “1” and “2” for the calculation of coefficient of correlation. The cor-relations with the KEGG cancer pathway genes were positive
for the “blue”, “darkgreen”, “royalblue”, “red”, and “grey” modules but negative for the “yellow” module. Meanwhile, the correlations with SCLC-related genes were positive for the “magenta”, “purple”, and “red” modules but negative for
OncoTargets and Therapy downloaded from https://www.dovepress.com/ by 188.72.96.202 on 27-Sep-2018
Dovepress Transcript network and gene network in lung adenocarcinoma
the “yellow” module (Figure 3B). These observations sug-gested that the GN modules could indeed encompass genes that were important for the tumorigenesis of lung cancer.
For TN modules, on the other hand, in normal tissues, none of the modules were significantly correlated with any patient feature or cancer-related gene groups except for module
#37, which was positively correlated with age (Figure S3).
In tumor tissues, the TN modules were correlated with none of the patient features except for sex, which was correlated with TN modules #21, #29, and #10. Interestingly, the correlations between TN module members and KEGG cancer pathway genes were significantly negative for modules #32, 28, 26, 20, and 54 but significantly positive for modules #37, 43, 56, 36, 67, 58, 39, 41, 42, and 40. Meanwhile, TN modules #26, 20, and 54 were negatively correlated with SCLC-related genes
in tumor tissues (Figure S3). These observations implied that
a considerable proportion (15/68) of the TN modules in tumor tissues was involved in the tumorigenesis of lung cancer and cancer cell development in general.
We then tried to investigate whether the expressions of the network modules were associated with the tumor/normal status. To this end, we calculated the correlations between
the module eigengene (eigentranscript) and the member genes (transcripts) of the interested module in view of expression profile separately for tumor and normal tissues. For comparison, we also calculated the correlations between a selected patient feature (smoking history) and the expres-sions of the module members. Figure 4 shows that in three example TN modules (A: #16, B: #24, and C: #14) in tumor tissues (but not in normal tissues), the correlations with module eigentranscript (X-axis) either split into two clusters (Figure 4A and B) or moved toward one extreme (Figure 4C), which were not observed along the Y-axis (correlations with smoking history). Similar trends were also observed for the
GN modules (Figure S4). These observations suggested
that during the tumorigenesis of lung adenocarcinoma, the expression profiles of the module member genes/transcripts tended to “move” toward both extremes in view of similarity to those of the eigengenes/eigentranscripts. Such movements implied higher-level regulations that coordinated the changes in expression profiles of the module members in both GN and TN. Interestingly, in Figure 4, only module #16 of the three modules was found to be enriched for biological
func-tions that were important for tumorigenesis (Table S2).
í &RU í 3 Hí &RU í3 Hí í í í í &RU 3 í &RU í 3 Hí &RU í 3 Hí í í í í í í í í &RU í 3 &RUUHODWLRQZLWKPRGXOHHLJHQJHQH &RUUHODWLRQZLWKPRGXOHHLJHQJHQH &RUUHODWLRQZLWKPRGXOHHLJHQJHQH &RUUHODWLRQZLWK VPRNLQJVWDWXV &RUUHODWLRQZLWK VPRNLQJVWDWXV &RUUHODWLRQZLWK VPRNLQJVWDWXV
$
%
&

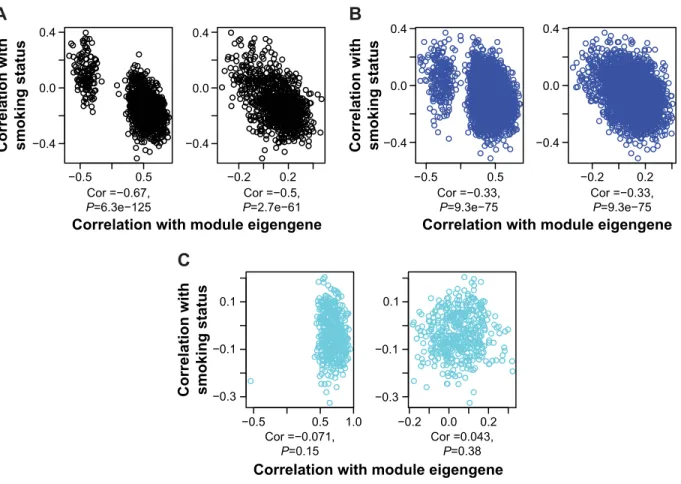

Figure 4 The correlations (cor) between module member transcript isoforms and the eigentranscript (X-axis) against the correlations between the same isoforms and smoking status (Y-axis) for tumor (left column) and normal tissue (right column).
Note: Three different modules ([A]: number 16, [B]: number 24, and [C]: number 14) are shown in this figure.
OncoTargets and Therapy downloaded from https://www.dovepress.com/ by 188.72.96.202 on 27-Sep-2018
Dovepress
hsu et al
Discussion
Alternative splicing has been credited as a major regulatory
mechanism in tumorigenesis.14 For instance, Hong et al
suggested that fine-grained regulations (eg, allele-specific splicing) could yield sub-genic level variations that were
linked to the pathogenesis of lung cancer.31 Meanwhile,
isoform-level expressions have been shown to correlate well
with the prognosis and subtyping of glioblastoma.32
Altera-tions in splicing patterns in cancer driver genes have also been
reported to occur repeatedly in a variety of cancer types.33
Nevertheless, none of these studies addressed how different splicing events are coordinated on a transcriptome-wide scale, or how splicing regulations interact with transcriptional regulations during cancer progression. Meanwhile, network-based cancer studies are abundant. These network studies were based on gene–gene, protein–protein, or regulatory
interactions.33–37 Each type of biological network conveys
biological insights from a different perspective. Studies on isoform-based networks have remained rare, thus representing an important missing piece in the cancer regulome atlas.
In this study, we report the first comparative analysis between TN and GN in lung adenocarcinoma. We demon-strate that TN differs substantially from GN in view of deci-phering the genetic relationships among patients (Figure 1), module distribution of transcript isoforms (Figure 2), and
the biological functions of network modules (Tables S1
and S2). These differences suggest that TN and GN
consti-tute two separate layers in the cancer regulome. However, it is worth noting that, as we pointed out in the “Results” section, the two regulatory layers could conduct the same or related functions. Two possible reasons may explain this functional convergence. First, the transcript isoforms of the same genes may conduct virtually the same biological functions. In this case, alternative splicing would convey no functional versatility to the genes of interest. The second possibility is that TN and GN work synergistically to imple-ment biological functions. In this latter case, there should be higher levels of regulations to direct such synergies. These regulatory mechanisms, though currently unclear, are worth further explorations.
One unexpected observation is that the majority (89.5%) of the analyzed genes had their transcript isoforms clustered into different TN modules. Intuitively, most of the same-gene transcript isoforms should conduct similar functions, which should be reflected in the similarity in expression profiles. This proposition is nevertheless unsupported in most of the cases in our analysis. To be sure, similarity in expression profile does not equal to similarity in functionality. Yet our
results show that, for instance, an isoform of Gene A shares similar expression profiles with an isoform of Gene B but not with other isoforms of Gene A. This observation points to a possibility of cross-gene coordination of transcript isoforms. We concede that such “similarities” in expression profile could have occurred simply by chance, which might partly explain why many of the TN modules are not significantly enriched for any GO terms. Nevertheless, the GO terms
enriched for TN modules but not for GN modules (Tables S1
and S2) indicate that at least part of the inferred
transcript-level coordination might be true. Our result is actually con-sistent with the recent finding that subfunctionalization of
splicing isoforms is widespread in vertebrate genomes.38
The entropy (Ei) analysis also suggests prevalent
func-tional divergence between transcript isoforms in the
tran-scriptome of lung adenocarcinoma. In general, Ei increases
with the number of isoforms for both coding and noncoding genes when the grey module is excluded (Figure 2). However, the inclusion of the grey module in the analysis results in a
peak of Ei value at isoform number =6 for both gene groups,
and a decreasing observed-to-maximal Ei ratio toward high
isoform numbers in coding genes (Figure S2). These
observa-tions suggest that a considerable proportion of the isoforms of high-isoform number coding genes are assigned to the grey module. The grey module contains member transcripts of unclassifiable expression profiles. We cannot exclude the possibility that the grey module contains functionally relevant transcript isoforms. Nevertheless, if we conservatively con-sider all of the grey module members as noises and exclude them from our analysis, the transcript module entropy still increases toward high isoform numbers. These observations imply that as the number of isoforms increases, biological “noises” and functional versatility both increase. And the marginal increase in functional versatility might decrease as the number of isoforms rises.
One example of isoforms distributing in different TN modules was observed for the well-known oncogene Myc
(ENSG00000136997).39 Myc has five isoforms
accord-ing to ENSEMBL (Version 75) annotations. Two of the isoforms (ENST00000377970 and ENST00000524013) have their coding sequences at least 75% longer than the other three (ENST00000259523, ENST00000517291, and ENST00000520751). The two long isoforms differ from each other by only two amino acids. Interestingly, these two isoforms belong to the same TN module (#43), whereas the three short ones belong to the grey module. Furthermore, the two long isoforms are the dominant forms of Myc. Together, the two account for a median of
OncoTargets and Therapy downloaded from https://www.dovepress.com/ by 188.72.96.202 on 27-Sep-2018
Dovepress Transcript network and gene network in lung adenocarcinoma
97.7% and 98.1% of Myc gene expression in tumor and normal tissue, respectively. These observations imply that TN modules can indeed cluster together functionally similar isoforms, and set aside potentially nonfunctional isoforms into the grey module. Another example is SPP1 (ENSG00000118785), which has been reported to promote
metastasis.40–42 SPP1 contains ten isoforms, including four
coding isoforms (ENST00000237623, ENST00000395080, ENST00000360804, and ENST00000508233) and six non-coding isoforms (ENST00000509659, ENST00000509334, ENST00000513981, ENST00000508002, ENST0-0000504310, and ENST00000505146). Interestingly, the four coding isoforms were clustered to TN module #42, whereas the other six noncoding isoforms belonged to the grey module. This observation suggests that TN modules could help differentiate isoforms of different functional-ities. Meanwhile, for FUCA2 (ENSG00000001036), a gene implicated in Helicobacter pylori-caused gastric cancer, the grouping pattern was different. FUCA2 contains three coding isoforms (ENST00000002165, ENST00000438118, and ENST00000451668) and one noncoding isoform (ENST00000367585). The noncoding isoform belonged to the grey module. However, the three coding isoforms were clustered to two TN modules: #24 (ENST00000438118 and ENST00000451668) and #37 (ENST00000002165). ENST00000002165 has a longer coding region and a dominant expression level, accounting for a median of 87.1% and 88.0% of the gene expression in normal and tumor tissue, respectively. Interestingly, although the two short coding isoforms were as lowly expressed as the noncoding isoform (collectively accounting for 8.3% and 6.2% of gene expression in normal and tumor tissue, respectively), they were clustered to a non-grey module (#24). This observation again supports that TN modules can appropriately group functionally divergent isoforms of the same genes.
We also report an interesting observation that in the tum-origenesis of lung adenocarcinoma, the expression profiles of module member genes (transcripts) tend to either converge to or deviate from those of the eigengenes (eigentranscripts)
(Figures 4 and S4). This observation suggested that the
module eigengenes (eigentranscripts) could well signify the tumor status, and might serve as “virtual biomarkers” to differentiate tumor from normal tissues. Furthermore, the synchronous alterations in expression profiles of the module member genes (transcripts) imply high-level regulatory coordination, which dictates both gene transcription and alternative splicing during tumorigenesis.
Although a number of GN and TN modules are signifi-cantly correlated with cancer pathways, we are not certain whether GN or TN modules can better differentiate tumor from normal tissues. To this end, we calculated the “expres-sion value” of the eigengene/eigentranscript for each GN/TN module. This “expression value” is a weighted linear sum-mation of expression levels of the module components. Our results indicated that the expression values of three TN modules (#4, #47, and #48) differed significantly between
normal and tumor tissues (Figure S5). By contrast, none of
the GN modules yielded an expression value applicable to the tumor–normal differentiation. This observation suggested that certain TN modules could better reflect the regulatory alterations during tumorigenesis than GN modules. This proposition, however, should be taken with caution because the larger sizes of TN modules than GN modules might be accountable for this difference.
Analyzing network modules can help identify potential gene–gene interactions. For instance, both MDM2 and MEK
belonged to the yellow GN module (Figure S6). It has been
reported that chemical blockade of these two genes could
synergistically induce apoptosis in acute myeloid leukemia.43
This synergy may not be readily inferred from current cancer
pathway information as shown in Figure S6 but is somehow
implied in the modularity of GN. Another exemplar
interac-tion occurs between HIF-α and β-catenin, both clustered to
the “royalblue” module. These two genes do not appear to
share the same cancer pathway (Figure S6). However, a recent
study indicated that miR-622-mediated downregulation of
HIF-1α correlated with decreased β-catenin expression,44
suggesting a regulatory relationship between these two genes. These examples show that network analysis can compensate for the insufficiency of current pathway information, poten-tially leading to novel biological discoveries.
In conclusion, we demonstrate that transcript isoforms per se constitute a separate and important regulatory layer in the tumorigenesis of lung adenocarcinoma. This regulatory layer appears to interact closely with transcriptional regulations to affect cellular functions.
Acknowledgments
This work was supported by the National Health Research Institutes (PH-103-PP06 and PH-104-PP06) and the Ministry of Science and Technology (MOST-103-2311-B-400-003), Taiwan. The computational facilities were partly sup-ported by the Taiwan Bioinformatics Institute Core Facility (MOST-103-2319-B-400-001), with the assistance of the National Center for High-speed Computing of Taiwan.
OncoTargets and Therapy downloaded from https://www.dovepress.com/ by 188.72.96.202 on 27-Sep-2018
Dovepress
hsu et al
The authors wish to thank Ms Chieh-Hua Lin for technical assistance, and Dr Ben-Yang Liao and Dr Yu-Chieh Liao for constructive comments. This research was presented as a poster at the GIW/InCoB Conference 2015 in Tokyo.
Disclosure
The authors report no conflicts of interest in this work.
References
1. Karlebach G, Shamir R. Modelling and analysis of gene regulatory networks. Nature Reviews. Molecular Cell Biology. 2008;9(10): 770–780.
2. del Sol A, Balling R, Hood L, Galas D. Diseases as network perturba-tions. Current Opinion in Biotechnology. 2010;21(4):566–571. 3. Hartwell LH, Hopfield JJ, Leibler S, Murray AW. From molecular to
modular cell biology. Nature. 1999;402(6761 Suppl):C47–C52. 4. Carlson MR, Zhang B, Fang Z, Mischel PS, Horvath S, Nelson SF. Gene
connectivity, function, and sequence conservation: predictions from mod-ular yeast co-expression networks. BMC Genomics. 2006;7:40. 5. Wang J, Zuo Y, Man YG, et al. Pathway and network approaches for
identification of cancer signature markers from omics data. Journal of
Cancer. 2015;6(1):54–65.
6. Pal S, Gupta R, Davuluri RV. Alternative transcription and alterna-tive splicing in cancer. Pharmacology & Therapeutics. 2012;136(3): 283–294.
7. Oltean S, Bates DO. Hallmarks of alternative splicing in cancer.
Oncogene. 2014;33(46):5311–5318.
8. Wang ET, Sandberg R, Luo S, et al. Alternative isoform regulation in human tissue transcriptomes. Nature. 2008;456(7221):470–476. 9. Lopez AJ. Alternative splicing of pre-mRNA: developmental
consequences and mechanisms of regulation. Annual Review of Genetics. 1998;32:279–305.
10. Lee Y, Rio DC. Mechanisms and regulation of alternative pre-mRNA splicing. Annual Review of Biochemistry. 2015;84:291–323. 11. Blencowe BJ. An exon-centric perspective. Biochemistry and Cell
Biology = Biochimie et Biologie Cellulaire. 2012;90(5):603–612. 12. Biamonti G, Catillo M, Pignataro D, Montecucco A, Ghigna C. The
alternative splicing side of cancer. Seminars in Cell & Developmental
Biology. 2014;32:30–36.
13. Venables JP. Aberrant and alternative splicing in cancer. Cancer
Research. 2004;64(21):7647–7654.
14. Ladomery M. Aberrant alternative splicing is another hallmark of cancer. International Journal of Cell Biology. 2013;2013:463786. 15. Tsai YS, Dominguez D, Gomez SM, Wang Z. Transcriptome-wide
identification and study of cancer-specific splicing events across mul-tiple tumors. Oncotarget. 2015;6(9):6825–6839.
16. Liu J, Lee W, Jiang Z, et al. Genome and transcriptome sequencing of lung cancers reveal diverse mutational and splicing events. Genome
Research. 2012;22(12):2315–2327.
17. Eswaran J, Horvath A, Godbole S, et al. RNA sequencing of cancer reveals novel splicing alterations. Scientific Reports. 2013;3:1689. 18. Seo JS, Ju YS, Lee WC, et al. The transcriptional landscape and
muta-tional profile of lung adenocarcinoma. Genome Research. 2012;22(11): 2109–2119.
19. Dobin A, Davis CA, Schlesinger F, et al. STAR: ultrafast universal RNA-seq aligner. Bioinformatics. 2013;29(1):15–21.
20. Trapnell C, Williams BA, Pertea G, et al. Transcript assembly and quantification by RNA-Seq reveals unannotated transcripts and isoform switching during cell differentiation. Nature Biotechnology. 2010; 28(5):511–515.
21. Langfelder P, Horvath S. WGCNA: an R package for weighted correlation network analysis. BMC Bioinformatics. 2008;9:559.
22. Langfelder P, Horvath S. Eigengene networks for studying the rela-tionships between co-expression modules. BMC Systems Biology. 2007;1:54.
23. Liu R, Guo CX, Zhou HH. Network-based approach to identify prog-nostic biomarkers for estrogen receptor-positive breast cancer treatment with tamoxifen. Cancer Biology & Therapy. 2015;16(2):317–324. 24. Deng SP, Zhu L, Huang DS. Mining the bladder cancer-associated genes
by an integrated strategy for the construction and analysis of differential co-expression networks. BMC Genomics. 2015;16 Suppl 3:S4. 25. Udyavar AR, Hoeksema MD, Clark JE, et al. Co-expression network
analysis identifies Spleen Tyrosine Kinase (SYK) as a candidate oncogenic driver in a subset of small-cell lung cancer. BMC Systems
Biology. 2013;7 Suppl 5:S1.
26. Clarke C, Madden SF, Doolan P, et al. Correlating transcriptional networks to breast cancer survival: a large-scale coexpression analysis.
Carcinogenesis. 2013;34(10):2300–2308.
27. Yang Y, Han L, Yuan Y, Li J, Hei N, Liang H. Gene co-expression network analysis reveals common system-level properties of prognostic genes across cancer types. Nature Communications. 2014;5:3231. 28. Price MN, Dehal PS, Arkin AP. FastTree: computing large minimum
evolution trees with profiles instead of a distance matrix. Molecular
Biology and Evolution. 2009;26(7):1641–1650.
29. Li HD, Menon R, Omenn GS, Guan Y. The emerging era of genomic data integration for analyzing splice isoform function. Trends in
Genetics: TIG. 2014;30(8):340–347.
30. Eksi R, Li HD, Menon R, et al. Systematically differentiating functions for alternatively spliced isoforms through integrating RNA-seq data.
PLoS Computational Biology. 2013;9(11):e1003314.
31. Hong S, Chen X, Jin L, Xiong M. Canonical correlation analysis for RNA-seq co-expression networks. Nucleic Acids Research. 2013; 41(8):e95.
32. Pal S, Bi Y, Macyszyn L, Showe LC, O’Rourke DM, Davuluri RV. Isoform-level gene signature improves prognostic stratification and accurately classifies glioblastoma subtypes. Nucleic Acids Research. 2014;42(8):e64.
33. Sebestyen E, Zawisza M, Eyras E. Detection of recurrent alternative splicing switches in tumor samples reveals novel signatures of cancer.
Nucleic Acids Research. 2015;43(3):1345–1356.
34. Chen C, Hu Y, Li L. NRP1 is targeted by miR-130a and miR-130b, and is associated with multidrug resistance in epithelial ovarian cancer based on integrated gene network analysis. Molecular Medicine Reports. 2016;13(1):188–196.
35. Zhu J, Wang S, Zhang W, et al. Screening key microRNAs for castration-resistant prostate cancer based on miRNA/mRNA functional synergistic network. Oncotarget. 2015;6(41):43819–43830. 36. Azevedo H, Moreira-Filho CA. Topological robustness analysis of
protein interaction networks reveals key targets for overcoming che-motherapy resistance in glioma. Scientific Reports. 2015;5:16830. 37. Gustafsson M, Gawel DR, Alfredsson L, et al. A validated gene
regulatory network and GWAS identifies early regulators of T cell-associated diseases. Science Translational Medicine. 2015;7(313): 313ra178.
38. Lambert MJ, Cochran WO, Wilde BM, Olsen KG, Cooper CD. Evi-dence for widespread subfunctionalization of splice forms in vertebrate genomes. Genome Research. 2015;25(5):624–632.
39. Kress TR, Sabo A, Amati B. MYC: connecting selective transcriptional control to global RNA production. Nature Reviews. Cancer. 2015; 15(10): 593–607.
40. Chuang CY, Chang H, Lin P, et al. Up-regulation of osteopontin expression by aryl hydrocarbon receptor via both ligand-dependent and ligand-independent pathways in lung cancer. Gene. 2012;492(1): 262–269.
41. Boldrini L, Donati V, Dell’Omodarme M, et al. Prognostic significance of osteopontin expression in early-stage non-small-cell lung cancer.
British Journal of Cancer. 2005;93(4):453–457.
OncoTargets and Therapy downloaded from https://www.dovepress.com/ by 188.72.96.202 on 27-Sep-2018
OncoTargets and Therapy
Publish your work in this journal
Submit your manuscript here: http://www.dovepress.com/oncotargets-and-therapy-journal OncoTargets and Therapy is an international, peer-reviewed, open access journal focusing on the pathological basis of all cancers, potential targets for therapy and treatment protocols employed to improve the management of cancer patients. The journal also focuses on the impact of management programs and new therapeutic agents and protocols on
patient perspectives such as quality of life, adherence and satisfaction. The manuscript management system is completely online and includes a very quick and fair peer-review system, which is all easy to use. Visit http://www.dovepress.com/testimonials.php to read real quotes from published authors.
Dovepress
Dovepress
Transcript network and gene network in lung adenocarcinoma 42. Donati V, Boldrini L, Dell’Omodarme M, et al. Osteopontinexpres-sion and prognostic significance in non-small cell lung cancer. Clinical
Cancer Research: An Official Journal of the American Association for Cancer Research. 2005;11(18):6459–6465.
43. Zhang W, Konopleva M, Burks JK, et al. Blockade of mitogen-activated protein kinase/extracellular signal-regulated kinase kinase and murine double minute synergistically induces apoptosis in acute myeloid leu-kemia via BH3-only proteins Puma and Bim. Cancer Research. 2010; 70(6):2424–2434.
44. Cheng CW, Chen PM, Hsieh YH, et al. Foxo3a-mediated overexpres-sion of microRNA-622 suppresses tumor metastasis by repressing hypoxia-inducible factor-1alpha in erk-responsive of lung cancer.
Oncotarget. Epub 2015.
OncoTargets and Therapy downloaded from https://www.dovepress.com/ by 188.72.96.202 on 27-Sep-2018
