Ab Initio Chemical Kinetics for the OH + HNCN Reaction
† Shucheng Xu*,‡and M. C. Lin‡,§Department of Chemistry, Emory UniVersity, Atlanta, Georgia 30322, and Institute of Molecular Science, Department of Applied Chemistry, National Chiao Tung UniVersity, Hsichu, Taiwan 300
ReceiVed: December 29, 2006; In Final Form: May 17, 2007
The kinetics and mechanism of the reaction of the cyanomidyl radical (HNCN) with the hydroxyl radical (OH) have been investigated by ab initio calculations with rate constants prediction. The single and triplet potential energy surfaces of this reaction have been calculated by single-point calculations at the CCSD(T)/ 6-311+G(3df,2p) level based on geometries optimized at the B3LYP/6-311+G(3df,2p) and CCSD/6-311++ G(d,p) levels. The rate constants for various product channels in the temperature range of 300-3000 K are predicted by variational transition-state and Rice-Ramsperger-Kassel-Marcus (RRKM) theories. The predicted total rate constants can be represented by the expressions ktotal) 2.66 × 10+2× T-4.50exp(-239/T) in which T ) 300-1000 K and 1.38× 10-20× T2.78exp(1578/T) cm3molecule-1s-1where T ) 1000-3000 K. The branching ratios of primary channels are predicted: k1for forming singlet HON(H)CN accounts for 0.32-0.28, and k4for forming singlet HONCNH accounts for 0.68-0.17 in the temperature range of 300-800 K. k2+ k7for producing H2O + NCN accounts for 0.55-0.99 in the high-temperature range of 800-3000 K. The branching ratios of k3for producing HCN + HNO, k6for producing H2N + NCO, k8for forming 3HN(OH)CN, k
9for producing CNOH +3NH, and k5+ k10for producing NH2+ NCO are negligible. The rate constants for key individual product channels are provided in a table for different temperature and pressure conditions.
Introduction
The cyanomidyl radical (HNCN) is a reactive transient species that plays an important role in a variety of chemical environ-ments, including prompt NO formation in hydrocarbon combus-tion, interstellar chemistry, and primordial reactions leading to the synthesis of amino acids from simple inorganic compounds. Experimentally, the HNCN radical was first identified spectro-scopically by Herzberg and Warsop in 1963.1More recently, Wu et al.2probed the B2A′
r X2A′′transition with laser-induced fluorescence, Yamamoto and Saito3 reported the microwave spectrum of HNCN, and Clifford et al.4studied the photoelectron spectrum of the HNCN-ion. In 2001, the photodissociation spectroscopy and dynamics of the HNCN radical were inves-tigated by Bise et al.5
Theoretically, ab initio calculations of the molecular geometry and vibrational frequencies of the HNCN ground state were first made by Tao et al. in 1994,6and then more recently by Puzzarini et al. in 2005.7In this laboratory, we first proposed HNCN to be the key stable intermediate of the new prompt NO formation reaction by CH+N2along a spin-allowed doublet electronic state path:8
where cycl-HC-NdN* includes two cyclic isomers and “/” denotes internal excitation. Under high-pressure combustion conditions, the collisional stabilization of the excited HNCN
by the second step given above may provide a high concentra-tion of HNCN radicals.
The reaction of HNCN with OH should therefore play an important role in the oxidation of HNCN, producing prompt NO precursors such as NCN, HNO, and HCN. In the literature, there have been no reports on the kinetics and mechanism for the reaction of OH with HNCN experimentally or theoretically. In this work, the singlet and triplet potential energy surfaces (PESs) of the OH + HNCN reaction have been calculated at the CCSD(T)/6-311+G(3df,2p) level of theory. In addition, the rate constants and branching ratios for the primary reaction channels in the temperature range of 300-3000 K have been predicted for combustion modeling applications.
Computational Methods
The optimized geometries of the reactants, transition states, intermediate complexes, and products for the reaction of OH + HNCN have been calculated at the B3LYP/6-311+G(3df,2p) level. In addition, the optimized geometries of primary channels for singlet PESs and triplet PESs for this reaction have been calculated at the higher CCSD/6-311++G(d,p) level in addition to B3LYP/6-311+G(3df,2p). The energies for the singlet and triplet PESs are improved by single-point calculations at the CCSD(T)/6-311+G(3df,2p) level of theory based on the opti-mized geometries at the B3LYP/6-311+G(3df,2p) and CCSD/ 6-311++G(d,p) levels, which have been performed successfully for the reaction of OH + CH2O.9
The rate constants for the key product channels were computed with variational transition-state theory (TST) and Rice-Ramsperger-Kassel-Marcus (RRKM) theory using the VariFlex code.10 All quantum chemistry calculations were carried out by the Gaussian 0311package using a PC cluster †Part of the special issue “M. C. Lin Festschrift”.
* Corresponding author. E-mail: sxu@emory.edu.
‡Emory University.
§National Chiao Tung University.
CH + N2f cycl-HC-NdN* f HNCN* f H + NCN f HNCN (+M)
6730 J. Phys. Chem. A 2007, 111, 6730-6740
10.1021/jp069038+ CCC: $37.00 © 2007 American Chemical Society Published on Web 06/01/2007
and the computers at the Cherry L. Emerson Center for Scientific Computation at Emory University.
Results and Discussion
1. PESs and the Reaction Mechanism. The optimized geometries for the species involved in the reaction of OH with HNCN at the B3LYP/6-311+G(3df,2p) and CCSD/6-311++ G(d,p) (data in parenthesis) levels are shown in Figure 1. The parameters of optimized geometries using both the B3LYP and CCSD methods are close to each other except for the distance of HO-HNCN in t-TS1. The energies for all the species obtained by the CCSD(T)/6-311+G(3df,2p)//B3LYP/6-311+ G(3df,2p), and CCSD(T)/6-311+G(3df,2p)//CCSD/6-311++ G(d,p) methods are listed in Table 1. On average, the relative energies for the species using the CCSD geometries were found to be about 0.4 kcal/mol higher than those using the B3LYP geometries. The reaction of OH with HNCN can occur on both singlet and triplet PESs. For the singlet PES, it was found to be very complicated because of the existence of the resonance structures: HN-CtN S HNdCdN, which give rise to 3 association complexes with 14 isomerization channels and 15 dissociation processes, producing 19 products. For the triplet PES, it was found that there was one hydrogen abstraction channel and two addition channels. We discuss the PESs and reaction mechanism in the following four sections (1a, 1b, 1c, and 1d). In order to simplify the discussion of the singlet and triplet PESs, we only mention the energies using the B3LYP geometries in these sections because the energies using the CCSD geometries are close to those using the B3LYP geom-etries, as listed in Table 1 and shown in parentheses in Figure 2a-c.
1a. Formation and Isomerization of Singlet Intermediates. As shown in Scheme 1 and Figure 2a, the reaction of OH with HNCN first forms primary intermediates trans-HON(H)CN (denoted as t-HON(H)CN; dihedral angle HONC ) 118.8°) with a binding energy of 46.9 kcal/mol, cis-HON(H)CN (denoted as c-HON(H)CN; dihedral angle HONC ) -56.3°) with a binding energy of 44.2 kcal/mol when the OH attacks the N atom next to H, and also forms HONCNH with a binding energy of 41.4 kcal/mol when the OH associates with the terminal N atom.
As shown in Scheme 1, t-HON(H)CN and c-HON(H)CN are two conformers of HON(H)CN and can transform to each other by an internal rotation about the O-N bond via TS19(dihedral angle HONC ) -132.3°) with a barrier of 6.9 kcal/mol. HON-(H)CN can also isomerize to HONCNH via TS20with a barrier of 68.2 kcal/mol. Furthermore, HON(H)CN and HONCNH can isomerize to nine other intermediates. For example, t-HON(H)-CN can transform to ON(H2)CN via TS3with a barrier of 56.7 kcal/mol or to t-ONC(H)NH via TS4with a barrier of 71.1 kcal/ mol. HONCNH can isomerize to t-NC(NH)OH via TS9with a barrier of 39.9 kcal/mol or to ON(H)CNH via TS13with a barrier of 59.8 kcal/mol. Similarly, t-ONC(H)NH can transform to c-ONC(H)NH via TS8 with a barrier of 25.1 kcal/mol or to ONCNH2via TS6with a barrier of 73.6 kcal/mol, and t-NC-(NH)OH can transform to c-NCt-NC-(NH)OH via TS11with a barrier of 5.2 kcal/mol or t-HOCNNH via TS10with a barrier of 50.0 kcal/mol. In addition, NC(NH)OH can transform to c-HOCNNH through TS12with a barrier of 53.4 kcal/mol, and ON(H)CNH can transform to t-ONC(H)NH TS17with a barrier of 36.1 kcal/mol or to c-ONC(H)NH through TS14with a barrier of 33.0 kcal/mol. These isomerization reactions can also occur reversely, as one would expect.
1b. Primary Singlet Product Channels. As shown in Figure 2a, the OH + HNCN reaction may generate the following
primary products with predicted enthalpy changes: H2O + 1NCN (a˜1∆
g), -4.8 kcal/mol; HCN + HNO, -28.3 kcal/mol; HNC + HNO, -14.6 kcal/mol; and H2N + NCO, -11.6 kcal/ mol. The 1NCN product is formed by H
2O elimination from the primary intermediates, t-HON(H)CN and c-HON(H)CN, by overcoming the barriers of 49.4 kcal/mol at TS1 and 49.3 kcal/mol at TS2. The1NCN (a˜1∆g) product is the first excited state of NCN, which is predicted to be higher than the ground state X˜3Σ
g-by 30.1 kcal/mol at both the CCSD(T)//B3LYP and CCSD levels; the value is close to the previously predicted 30.7 kcal/mol calculated using the ROHF-CCSD(T)/pVTZ method by Martin et al.,12and 28.8 kcal/mol calculated using the CBS-QCI/APNO method by Clifford et al.4These values are clearly higher than the reported experimental result of 23.2 ( 0.2 kcal/ mol.13,14As the CCSD(T) is a single-reference method, we also performed a large-scale multireference calculation for the (a˜1∆
g -X˜3Σ
g-) energy difference using the CASPT2(8,8)/6-311+ G(3df,2p) method based on the geometries optimized at the CASSCF(8,8)/6-311+G(3df,2p) level. Here we selected eight active electrons of 3σµ21πµ41πg2and eight active orbitals for both states (1σg21σµ22σg23σg22σµ24σg23σµ21πµ41πg2). The predicted value is 29.4 kcal/mol, which is very close to the ones obtained by the single-reference methods cited above, but is noticeably higher than the 23.2 kcal/mol experimental result.
In addition, the products HCN + HNO may be produced by the dissociation of intermediates t-HON(H)CN, ON(H2)CN, and t-ONC(H)NH via TS21with a barrier of 87.2 kcal/mol, TS18with a barrier of 23.0 kcal/mol, and TS7with a barrier of 75.4 kcal/ mol, respectively. Furthermore, the products HNC + HNO may be produced by the dissociation of ON(H)CNH via TS15with a barrier of 19.2 kcal/mol. Similarly, the H2N + NCO products may be formed by the dissociation of t-NC(NH)OH via TS16 with a barrier of 47.6 kcal/mol.
The predicted heats of reaction for the formation of H2O + 3NCN (-34.9 kcal/mol at both the CCSD(T)//B3LYP and CCSD(T)//CCSD levels), HCN + HNO (-28.3 kcal/mol at both the CCSD(T)//B3LYP and CCSD(T)//CCSD levels), and HNC + HNO (-14.6 kcal/mol at the CCSD(T)//B3LYP and -13.8 kcal/mol at the CCSD(T)//CCSD level) from OH + HNCN listed in Table 1 are in reasonable agreement with the available experimental values at 0 K (-30.7 ( 4.0 kcal/mol, -25.8 ( 2.4 kcal/mol, and -12.4 ( 1.9 kcal/mol, respectively), based on∆fH0(OH) ) 8.87 ( 0.07 kcal/mol,15∆fH0(HNCN) ) 72.3 ( 0.7 kcal/mol,5 ∆
fH0(H2O) ) -57.10 ( 0.01 kcal/mol,15 and ∆
fH0(3NCN) ) 107.6 ( 3.2 kcal/mol derived from ∆fH298(3NCN) ) 107.7 ( 3.2 kcal/mol,4 ∆fH0(HCN) ) 30.9 ( 0.7 kcal/mol,5∆fH0(HCN) ) 44.3 ( 0.9 kcal/mol,5and∆
fH0(HNO) ) 24.5 kcal/mol.16For3NCN, Bise et al. obtained an experimental value of∆fH0(3NCN) ) 111.4 ( 0.7 kcal/mol.13This value would give rise to the exper-imental heat of reaction for H2O +3NCN formation, -26.8 ( 1.5 kcal/mol, which is 8.1 kcal/mol higher than the predicted result.
1c. Secondary Singlet Product Channels. As shown in Figure 2b, the OH + HNCN reaction may produce the following minor products with predicted enthalpy changes: H2+ ONCN, -9.4 kcal/mol; NO + t-HNCH, 1.3 kcal/mol; HNN + HOC, 25.7 kcal/mol; HNC + HON, 27.6 kcal/mol; CN + c-HNOH, 43.7 kcal/mol; CN + t-HNOH, 48.9 kcal/mol; and H2N + CNO, 51.0 kcal/mol. The H2 + ONCN products may be formed by the dissociation of the intermediate ON(H2)CN by over-coming the barrier of 46.3 kcal/mol at TS5. The products NO + t-HNCH may be produced by the direct barrierless
Figure 1. Optimized geometries of the reaction OH + HNCN computed at the B3LYP/6-311+G(3df,2p) and CCSD/6-311++G(d,p) (data in
parenthesis) levels.
dissociation of t-ONC(H)NH and c-ONC(H)NH with dissoc-iation energies of 44.4 and 41.4 kcal/mol, respectively. Similarly, the production of other radical product pairs takes place
by barrierless dissociation processes with the predicted endothermicities: HNN + HOC from t-HOCNNH and c-HOCNNH, 53.3 and 50.3 kcal/mol, respectively; HNC + HON

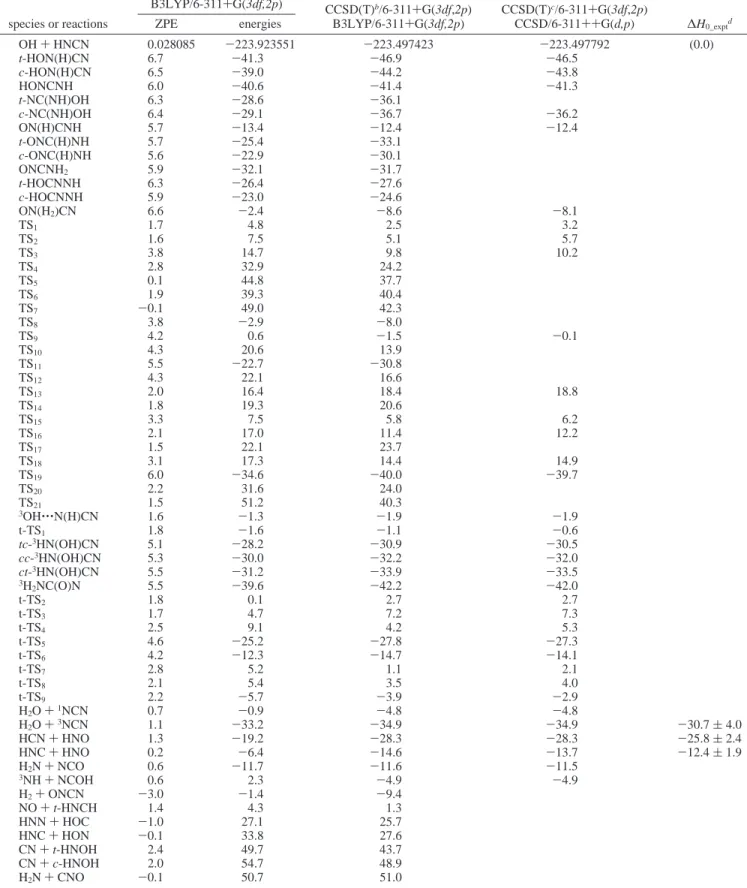

TABLE 1: Total and Relative Energiesaof Reactants, Transition States, and Products of the Reaction OH + HNCN
