開口薄壁梁結構之非線性挫屈及挫屈後之行為研究(II)

1

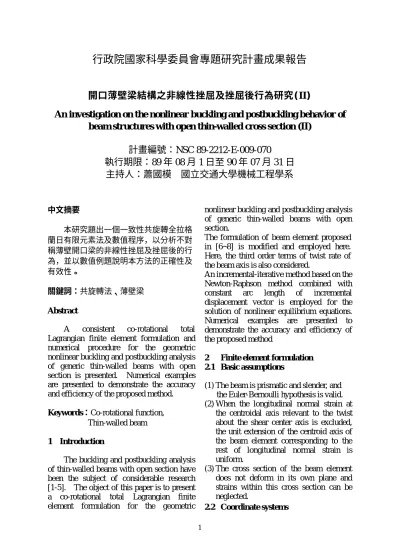

行政院國家科學委員會專題研究計畫成果報告

開口薄壁梁結構之非線性挫屈及挫屈後行為研究(II)

An investigation on the nonlinear buckling and postbuckling behavior of

beam str uctures with open thin-walled cr oss section (II)

計畫編號：NSC 89-2212-E-009-070

執行期限：89 年 08 月 1 日至 90 年 07 月 31 日

主持人：蕭國模 國立交通大學機械工程學系

A consistent co-rotational total Lagrangian finite element formulation and numerical procedure for the geometric nonlinear buckling and postbuckling analysis of generic thin-walled beams with open section is presented. Numerical examples are presented to demonstrate the accuracy and efficiency of the proposed method.

Keywor ds：Co-rotational function,

Thin-walled beam

1 Intr oduction

The buckling and postbuckling analysis of thin-walled beams with open section have been the subject of considerable research [1-5]. The object of this paper is to present a co-rotational total Lagrangian finite element formulation for the geometric

nonlinear buckling and postbuckling analysis of generic thin-walled beams with open section.

The formulation of beam element proposed in [6~8] is modified and employed here. Here, the third order terms of twist rate of the beam axis is also considered.

An incremental-iterative method based on the Newton-Raphson method combined with constant arc length of incremental displacement vector is employed for the solution of nonlinear equilibrium equations. Numerical examples are presented to demonstrate the accuracy and efficiency of the proposed method

2 Finite element for mulation 2.1 Basic assumptions

(1) The beam is prismatic and slender, and the Euler-Bernoulli hypothesis is valid. (2) When the longitudinal normal strain at

the centroidal axis relevant to the twist about the shear center axis is excluded, the unit extension of the centroid axis of the beam element corresponding to the rest of longitudinal normal strain is uniform.

(3) The cross section of the beam element does not deform in its own plane and strains within this cross section can be neglected.

2

In this paper, a co-rotational total Lagrangian formulation is adopted. In order to describe the system, we define four sets of right handed rectangular Cartesian coordinate systems:

(1) A fixed global set of coordinates, X_iG

(i = 1, 2, 3) (see Fig. 1).

(2) Element cross section coordinates, x_iS

(i = 1, 2, 3) (see Fig. 1).

(3) Element coordinates; x_i (i = 1, 2, 3)

(see Fig. 1).

(4) Load base coordinates, X (i = 1, 2, _iP

3). x u 1 P v w s x x x3 2 ₂ 1 ( ,0,0) P xp XG2 3 XG XG1 P Q x x S 2 S 3 zp yp z y C

Fig. 1. Coordinate systems.

2.3 Kinematics of beam element

Let Q (Fig. 1) be an arbitrary point in

the beam element, and P be the point

corresponding to Q on the shear center axis.

The position vector of point Q in the

undeformed and deformed configurations may be expressed as 3 2 1 0 e ( )e ( )e r =x + y−y_p + z−z_p (1) and S p S p S x p z z y y x w x v x x 3 2 1 , 1 3 2 1 ) ( ) ( ) ( ) ( ) ( e e e e e e r − + − + + + + = ω θ (2) where y_p and z_p, and y and z are the x₂S

and x₃Scoordinates of point P and Q referred

to the element cross section coordinates, respectively, x x_c( ) , v x( ) ,and w x( ) are the x₁, x₂ and x₃ coordinates of point P,

respectively, in the deformed configuration,

ω ω= ( , )y z is the Saint Venant warping

function for a prismatic beam of the same cross section, and e_i and e_iS (i = 1, 2, 3)

denote the unit vectors associated with the

x_i and x_iS axes, respectively. Note that

e_i and e_iS are coincident in the undeformed state.

The relation between the vectors e_i and

e_iS (i = 1, 2, 3) in the element coordinate

system may be obtained as [6]

e_iS =Re_i (3) Here, the lateral deflections of the shear center axis, v x( ) and w x( ) , and the rotation about the shear center axis, θ₁( )x ,

are assumed to be the Hermitian polynomials of x.

2.4 Element nodal force vector

The element nodal force corresponding to the implicit nodal parameters is obtained from the virtual work principle in the current element coordinates.

2.5 Element tangent stiffness matr ices

The element tangent stiffness matrix corresponding to the explicit nodal parameters (referred to as explicit tangent stiffness matrix) may be obtained by differentiating the element nodal force vector with respect to explicit nodal parameters.

3

2.6 Load stiffness matr ix

Here, the conservative moments generated by conservative force or forces (with fixed directions) are considered, and the ways for generating conservative moment and the corresponding load stiffness matrix proposed in [7] are employed and not repeated here.

2.7 Equilibr ium equations

The nonlinear equilibrium equations may be expressed by

Ψ= −F λP =0 (4)

where Ψ is the unbalanced force between the internal nodal force F and the external nodal force λP , where λ is the loading parameter, and P is a reference loading.

2.8 Cr iter ion of the buckling state

Here, the zero value of the tangent stiffness matrix determinant is used as the criterion of the buckling state. The tangent stiffness matrix of the structure is assembled from the element stiffness matrix and load stiffness matrix.

3 Numer ical studies

An incremental-iterative method based on the Newton-Raphson method combined with constant arc length of incremental displacement vector [6] is employed for the solution of nonlinear equilibrium equations. The bisection method of the arc length is proposed in [8] is used here to find the buckling load. In order to initiate the secondary path, at the bifurcation point a perturbation displacement proportional to the first buckling mode is added [9].

The example considered here is a cantilever beam of monosymmetric angle section with a vertical force P applied at the

apex of the centerline of the end cross section as shown in Fig. 2. The clamped end of the beam is warping free.

P ,W

,V

,U L

End cross section

Loading point B xS 2 S x₃ t t b a XG₃ X₁G 2 XG

Fig. 2. Cantilever beam subjected to end force.

The geometry and material (Aluminum) properties are as follows: L=4175. in ,

b=1in , t=0 032. in , Young's modulus

E =104 ksi , the shear modulus

G=3 750. ×103ksi , the specific weight

γ =169lb ft/ 3. The self-weight of the beam is 0.2613 lb. Three angle cross sections

having included angles of α =455. o, 71o, and 91o are considered.

The present results are obtained using 40 elements. The load-deflection curves of of the present study together with the experimental results given in [1] are shown in Fig. 3. The initial deflections caused by the self-weight are excluded in Fig. 3. Discrepancies between the present solutions and the experimental results may be attributed to initial imperfections, and/or distortion of the root section, and/or yielding at the root of the beam due to excessive torsional twisting, which occur in experiments.

4

Fig. 3. Load-tip displacements for cantilever beam subjected to end force .

4 Conclusions

This paper has proposed a consistent co-rotational total Lagrangian finite element formulation and numerical procedure for the

geometric nonlinear buckling and

postbuckling analysis of generic thin-walled beams with open section. The third order term of twist rate in the element nodal forces is also considered. An incremental-iterative method based on the Newton-Raphson method combined with constant arc length of incremental displacement vector is employed for the solution of nonlinear equilibrium equations. The zero value of the tangent stiffness matrix determinant of the structure is used as the criterion of the buckling state. From the numerical examples studied, it is found that the agreement between the prebuckling displacements and buckling loads of the present study and those given in the literature is very good.

5 Refer ences

[1] Engel and J.N. Goodier, Measurements of torsional stiffness changes and instability due to tension, compression and bending, J. Appl. Mech. ASME (1953) 553-560

[2] S.P. Timoshenko and J.M. Gere, Theory of Elastic Stability, 2nd ed. McGraw-Hill, N.Y., (1963).

[3] D.O. Brush and B.O. Almroth, Buckling of Bars, Plates and shells, McGraw-Hill,

N.Y., (1975).

[4] H. Ziegler, Principles of Structural Stability, Birkhauser Verlag Basel.,

(1977).

[5] B.A. Izzuddin and D.L. Smith,

Large-displacement analysis of elastoplastic thin-walled frames, part I: formulation and implementation and part II: verification and application, J.

Struct. Engrg. ASCE 122 (1996) 905-925.

[6] K.M. Hsiao, Corotational total Lagrangian formulation for three-dimensional beam element, AIAA

Journal 30 (1992) 797-804.

[7] K.M. Hsiao, R.T. Yang and W.Y. Lin, A consistent finite element formulation for linear buckling analysis of spatial beams, Comput. Methods Appl. Mech.

Engrg. 156 (1998) 259-276.

[8] K.M. Hsiao and W.Y. Lin, A

co-rotational finite element formulation for buckling and postbuckling analysis of spatial beams, Comput. Methods

Appl. Mech. Engrg. (accepted) (1999). [9] T. Matsui and O. Matsuoka, A new finite

element scheme for instability analysis of thin shells, Internat. J. Numer. Meths.

Engrg. 10 (1976) 145-170. P Present = a (lb ) (in) VB 45.5° 71° 91° 0.18 0.36 0.00 0.0 1.0 2.0 [1]
