Nanotechnology 24 (2013) 195701 (7pp) doi:10.1088/0957-4484/24/19/195701

Super-high density Si quantum dot thin

film utilizing a gradient Si-rich oxide

multilayer structure

Kuang-Yang Kuo, Pin-Ruei Huang and Po-Tsung Lee

Department of Photonics and Institute of Electro-Optical Engineering, National Chiao Tung University, 1001 Ta-Hsueh Road, Hsinchu 30010, Taiwan

E-mail:[email protected]

Received 16 January 2013, in final form 22 March 2013 Published 12 April 2013

Online atstacks.iop.org/Nano/24/195701

Abstract

A gradient Si-rich oxide multilayer (GSRO-ML) deposition structure is proposed to achieve super-high density Si quantum dot (QD) thin film formation while preserving QD size controllability for better photovoltaic properties. Our results indicate that the Si QD thin film using a GSRO-ML structure can efficiently increase the QD density and control the QD size. Its optical properties clearly promise the capability of effective bandgap engineering even though these QDs are closely formed. The Si QD thin film using a GSRO-ML structure obviously reveals better electro-optical properties than those using a [silicon

dioxide/silicon-rich oxide] multilayer ([SiO2/SRO]-ML) structure owing to the better optical absorption and carrier transport properties. Therefore, we successfully demonstrate that our proposed GSRO-ML structure has great potential for application in solar cells integrating Si QD thin films.

(Some figures may appear in colour only in the online journal)

1. Introduction

Recently, nano-crystalline silicon quantum dot (QD) thin films have been extensively studied due to their unique properties [1, 2] and applied to various optoelectronic devices such as solar cells (SCs) [3], light-emitting devices (LEDs) [4], and photodetectors [5]. Those optoelectronic devices integrating Si QD thin films reveal the feasibility and great potential. For example, Green et al first proposed integrating Si QD thin films with Si-based SCs for third generation SCs with high efficiency and low cost in 2006 [6]. The effective bandgap of Si QDs can be modified to be even greater than that of amorphous Si material (∼1.7 eV) by tuning the QD size [7]. Hong et al also developed Si QD thin films for SC applications and studied the doping- and size-dependent photovoltaic (PV) properties [8]. However, the results reported by Green et al for the all-Si QD thin film SCs in 2010 indicate that the contributions of photo-generated carriers from QDs are apparently limited because of the naturally high resistance properties of the Si-based dielectric

matrix materials [9,10]. Therefore, in order to obtain better PV properties, Si QD thin films require not only uniform QD size and heavily-doped concentration [8] but also smaller QD separation [11–13], that is, higher QD density. So far, Si QD thin films have commonly been deposited by a silicon-rich oxide single-layer (SRO-SL) or a [silicon dioxide/silicon-rich oxide] multilayer ([SiO2/SRO]-ML) structure. The SRO-SL structure is an easy and quick deposition process for Si QD thin films, however, it is hard to control the QD size, uniformity well, and efficiently reduce the QD separation [14,

15]. Although the [SiO2/SRO]-ML structure promises QD size control and separation reduction, a minimum thickness of 2 nm for the SiO2barrier layers is required to prevent the excess Si atoms in SRO layers from over-diffusing [16], which will still degrade the carrier transport efficiency [11–13]. Hence, a significantly smaller QD separation or other more suitable matrix materials [17] are indispensable for the development of SCs integrating Si QDs. In this study, we propose a new gradient Si-rich oxide multilayer (GSRO-ML) deposition structure for Si QD thin films with QD size control

c

Nanotechnology 24 (2013) 195701 K-Y Kuo et al

Figure 1. Variation of the Si and SiO2sputtering powers during deposition for sample GSRO-ML.

and separation minimization by co-sputtering deposition and high-temperature annealing methods. The nano-structural, crystalline, optical, and electro-optical properties, and the carrier transport mechanism of the Si QD thin films utilizing the GSRO-ML deposition structure are investigated and discussed.

2. Experiments

The n-type GSRO-ML thin films were deposited on p-type Si(100) wafers of 1–10 cm in resistivity and fused quartz at room temperature by a radio-frequency (RF) magnetron co-sputtering deposition method. Before deposition, the Si wafers and the fused quartz were cleaned by standard RCA and ultrasonic processes individually. Si material with a phosphorus doping concentration of ∼1 × 1018 cm−3 and

pure SiO2 material were used as the sputtering targets. The sputtering power of Si (PSi) for each GSRO period was increased from 30 to 110 W at a rate of 1 W s−1 and held at 110 W for 1 nm thickness, then decreased from 110 to 30 W also at a rate of 1 W s−1 while that of SiO2 (PSiO2)

was fixed at 20 W, as shown in figure1. Figure2(a) shows the GSRO-ML thin film structure with 20 periods before and after annealing. Each GSRO period is composed of a highly SRO layer sandwiched between gradient SRO layers for a total thickness of 4 nm during deposition, and a super-high QD density is expected to be formed after annealing at 1100◦C for 1 h. For comparison, a [SiO2/SRO]-ML thin film with 20 periods was also fabricated, and the film structure before and after annealing is shown in figure2(b). The SiO2thin-layers with 2 nm thickness and highly SRO thin-layers with 5 nm thickness was periodically deposited. The highly SRO thin-layers were co-sputtered by 110 W of PSi and 10 W of PSiO2. After deposition, a high-temperature annealing process

was also performed at 1100◦C for 1 h. For electro-optical properties measurements, the annealed samples were etched by a reactive ion etching (RIE) process with CHF3 and O2 gases to remove the top SiO2layers formed during annealing. After the RIE process, the Al electrodes were deposited on the top and bottom sample surfaces with 100 nm thickness by thermal evaporator, and a square electrode array with an area of 0.8 × 0.8 mm2_{and side-to-side separation of 1 mm} was used as the top electrode distribution for photo-response measurements. The Raman and photoluminescence (PL) spectra were measured using a 488 nm diode-pumped solid-state laser (Horiba LabRam HR). The cross-sectional high-resolution transmission electron microscope (TEM) images were observed by a JEOL JEM-2010F transmission electron microscope. The samples for TEM images were prepared by the conventional method, including the cutting,

Figure 2. Illustrations of film structures for samples (a) GSRO-ML and (b) [SiO2/SRO]-ML before and after annealing.

Figure 3. Raman spectra of samples GSRO-ML and [SiO2/SRO]-ML.

grinding, polishing, dimpling, and ion milling processes and thinned down to electron transparency using a precision ion polishing system (Gatan 691). The absorption spectra were obtained by a UV–VIS–NIR spectrophotometer (Hitachi U-4100). The current–voltage (I–V) curves were measured using an Agilent E5270B precision measurement mainframe and a halogen lamp with a light power density of ∼1 mW cm−2was used for photo-response measurements.

3. Results and discussions

Raman spectrum measurement is a useful, reliable, and widely-used technique for examining the nano-crystalline properties of Si materials [18, 19]. Figure 3 shows the Raman spectra of samples GSRO-ML and [SiO2/SRO]-ML, in which the observed peaks near 520 cm−1 represent the nano-crystalline Si formation. In general, the signal can be decomposed into three components, including the peaks located at ∼480, 500–510, and 510–520 cm−1, which originate from the transverse optical (TO) modes of Si–Si vibrations in the amorphous- (a-Si), intermediate- (i-Si), and nano-crystalline Si (nc-Si) phases [18]. The curve-fitting results from Raman spectra are listed in table1. The similar FWHM values of the nc-Si phase for both samples indicate the close average sizes of nc-Si [19]. However, sample GSRO-ML shows not only significantly larger nc-Si intensity but also a higher Si crystal volume fraction (fc-Si) than those of

sample [SiO2/SRO]-ML. This means using a GSRO-ML structure can lead to a larger amount of nc-Si with better crystal quality. Hence, compared with the commonly-used [SiO2/SRO]-ML structure, our proposed GSRO-ML structure can greatly enhance the nc-Si formation while maintaining the controllability of nc-Si size for the Si QD thin films.

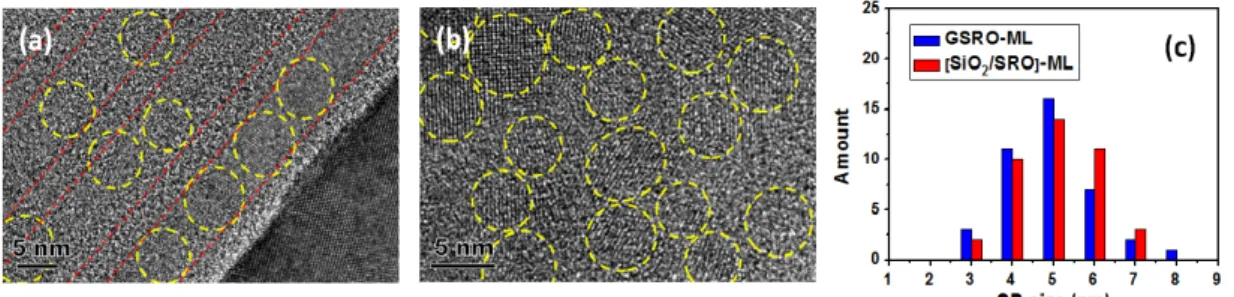

Figures 4(a) and (b) show the high-resolution TEM images of samples [SiO2/SRO]-ML and GSRO-ML. Most of the Si QDs in sample [SiO2/SRO]-ML are formed in SRO layers and separated by SiO2 barrier layers. For sample GSRO-ML, a large number of Si QDs with closer separation is clearly observed, which indicates that a super-high density of Si QDs can be formed by using a GSRO-ML structure. Figure 4(c) shows the corresponding QD size distributions from estimating 40 QDs in samples [SiO2/SRO]-ML and GSRO-ML. Both samples reveal similar QD size distributions, mainly from 4 to 6 nm, and close average QD sizes of ∼5.2 and ∼4.9 nm. However, the calculated QD density of ∼3 × 1012 cm−2 for sample GSRO-ML is significantly higher than that of ∼9×1011cm−2 for sample [SiO2/SRO]-ML, which is close to the QD density calculated from the reports by Conibeer et al and Zacharias et al[6,16]. Therefore, the Si QD thin film using a GSRO-ML structure shows excellent capabilities not only the QD size control but also the super-high QD density formation, and such results are very helpful for SC applications integrating Si QDs.

The effective bandgap and light emission properties of the Si QD thin films have been widely investigated by PL spectrum [20–22]. The main PL emissions are from the quantum confinement(PLQC) effect accompanying lower and higher energy emissions because of the carrier recombination via the interface defect states(PLD-interface) between Si QDs and the SiO2 matrix and the defect states in the SiO2 matrix (PLD-SiO2) respectively [20–22]. Figure 5 shows the

PL spectra and the fitting curves of samples GSRO-ML and [SiO2/SRO]-ML, and the curve-fitting results are given in table 2. Broad PL emission properties are observed in both samples, and they can be nicely decomposed into three components, contributed by PLQC, PLD-interface, and PLD-SiO2. The effective bandgap obtained from the peak

position of PLQC in sample GSRO-ML is a little larger than that in sample [SiO2/SRO]-ML, mainly owing to the slightly smaller average QD size [16], but not the closer QD separation, which will lead to an energy red shift [13]. In

Nanotechnology 24 (2013) 195701 K-Y Kuo et al Table 1. Curve-fitting results from Raman spectra for the Si crystalline properties of samples GSRO-ML and [SiO2/SRO]-ML.

Sample

TO mode of nc-Si phase

Si crystal volume fraction (fc-Si) (%)

Peak position

(cm−1₎ FWHM_(cm−1₎ Integrated intensity per_{nanometer in thickness (au)}

GSRO-ML 514.0 9.8 1.4 × 102 73.0

[SiO2/SRO]-ML 516.3 9.7 1.2 × 101 68.4

Table 2. Curve-fitting results from PL spectra of samples GSRO-ML and [SiO2/SRO]-ML.

Sample

Defect states in SiO2matrix

(D-SiO2) Quantum confinement effect (QC) Interface defect states (D-interface) Peak position

Integrated

intensity (au) Peak position

Integrated

intensity (au) Peak position

Integrated intensity (au) GSRO-ML 2.15 eV (577 nm) 8.0 × 104 1.76 eV (705 nm) 4.6 × 104 1.52 eV (816 nm) 1.5 × 103 [SiO2/SRO]-ML 2.05 eV (604 nm) 1.4 × 104 1.68 eV (740 nm) 3.7 × 105 1.46 eV (848 nm) 6.0 × 104

Figure 5. PL spectra and the fitting curves of samples GSRO-ML and [SiO2/SRO]-ML.

addition, sample GSRO-ML, with higher QD density, exhibits a considerably lower PLQC intensity than that of sample [SiO2/SRO]-ML. This indicates that more photo-generated carriers can transport through QDs rather than recombine inside QDs during PL spectrum measurement since the QD separation is significantly reduced. The increased PLD-SiO2

in sample GSRO-ML is a reasonable result because the all Si-rich oxide matrix is used and more Si excess atoms will be left behind inside the SiO2matrix after Si QDs formation [22]. Since a suitable number of defect states inside the SiO2matrix can improve the carrier transport efficiency for the Si QD thin films [11,12], the Si QD thin film using a GSRO-ML structure is more advantageous for SC applications. Therefore, the PL measurement results of the Si QD thin film using the proposed GSRO-ML structure with super-high QD density and good QD size control reveal better properties and the capability of effective bandgap engineering even though the Si QDs are closely formed.

To further confirm the cause of the reduced PLQC emission in sample GSRO-ML, figure 6 shows the I–V curves of samples GSRO-ML and [SiO2/SRO]-ML with and without a 488 nm laser illumination, which is used

Figure 6. I–V curves of samples GSRO-ML and [SiO2/SRO]-ML with and without 488 nm laser illumination.

for PL spectrum measurements. A much more obvious ISC enhancement is observed in sample GSRO-ML than that in sample [SiO2/SRO]-ML in the light I–V curves. This verifies that the reduced PLQCemission in sample GSRO-ML is mainly caused by the better carrier transport properties resulting from the closer QD separation than that in sample [SiO2/SRO]-ML.

In order to understand the optical absorption properties of samples GSRO-ML and [SiO2/SRO]-ML, the absorption spectra are measured and shown in figure7. The absorption coefficient of sample GSRO-ML is clearly larger than that of sample [SiO2/SRO]-ML owing to the higher QD density. The inset of figure 7 shows the Tauc plot for the indirect allowed transition. The optical bandgap (E_g,opt) can be evaluated by linearly extrapolating the interception at the energy axis (αhν = 0) from the plot of (αhν)1/2 as a function of incident photon energy (hν), where α is the optical absorption coefficient [23]. The obtained Eg,opt of samples GSRO-ML and [SiO2/SRO]-ML are 1.96 and 1.83 eV, and the corresponding α values are 3.4 × 103 and 3.1 × 102 cm−1. The slightly larger Eg,opt of sample GSRO-ML than that of sample [SiO2/SRO]-ML matches with 4

Figure 7. Absorption spectra of samples GSRO-ML and

[SiO2/SRO]-ML. Inset shows the corresponding Tauc plots for the indirect allowed transition.

the obtained results of effective bandgap from PLQCemission, which is contributed from the small difference in average QD size. Furthermore, theα value of sample GSRO-ML is significantly improved to be over 10 times larger than that of sample [SiO2/SRO]-ML and close to that of amorphous Si material [24]. This means the Si QD thin films using a GSRO-ML structure can contribute better photo-responsive properties and greatly reduce the required film thickness for SC applications. Therefore, our proposed GSRO-ML structure makes the Si QD thin film more practical and feasible for commercial SCs development.

Figure 8 shows an illustration of the device structure for I–V measurements and the dark and light I–V curves of samples GSRO-ML and [SiO2/SRO]-ML. Both samples reveal rectification behavior as a diode. However, the better I–V characteristics, including a lower turn-on voltage and a higher forward current, are obtained in sample GSRO-ML. The inset of figure 8(b) shows the corresponding light I–V curves under a halogen lamp illumination with ∼1 mW cm−2 power density. The VOC and ISC for sample GSRO-ML are 302 mV and 5.5 × 10−4 mA, significantly larger than 110 mV and 2.6×10−5mA for sample [SiO2/SRO]-ML. The

electro-optical properties of the Si QD thin film are efficiently enhanced by using the GSRO-ML structure.

To investigate the carrier transport mechanism, the dark forward I–V curves of samples [SiO2/SRO]-ML and GSRO-ML are plotted on a log–log and shown in figure 9. For sample [SiO2/SRO]-ML, the combination of the direct and phonon-assisted tunneling mechanisms is fitted with the experimental result, which is consistent with the conclusion from Osinniy et al [25]. For sample GSRO-ML, instead of the direct and phonon-assisted tunneling mechanisms, the two-diode mode is more appropriate to describe its forward current [26]. The current increases linearly with the bias in the low bias region (region I, V < 0.3 V), exponentially with the bias in the intermediate bias region (region II, V = 0.3–1.5 V), and deviates from exponential behavior in the higher bias region (region III, V> 1.5 V). The clearly distinct conductive regions indicate a corresponding change in the dominant carrier transport mechanism. The two-diode mode had also been observed from the heavily P-doped Si QD thin films integrated with B-doped Si wafer and discussed by Park et al [26]. The linear relationship between log I and log V in region I indicates the presence of a parallel current path due to a shunt resistor (Rsh) in parallel to the junction. In region II, a feature of the current exponentially increasing with the applied voltage is dominated by the space-charge-limited current (SCLC) mechanism. In region III, the cause of the I–V characteristics deviating from the ideal behavior is still uncertain, but possibly due to the trapping states distribution. From figure 8(b), the improved PV properties observed in sample GSRO-ML represent that the SCLC mechanism is a more suitable carrier transport mechanism for SC applications integrating Si QDs owing to the largely enhanced tunneling probability or the mini-band formation resulting from the quite close distribution of Si QDs in sample GSRO-ML [11–13]. Besides, since the Si QD thin film utilizing the heavily-doped [SiO2/SRO]-ML structure can possess a better carrier transport property than the normally-doped one [8], we believe it is most feasible to achieve even better PV properties by using a heavily-doped GSRO-ML structure.

Figure 8. (a) Illustration of the device structure for I–V measurements and (b) the dark I–V curves of samples GSRO-ML and [SiO2/SRO]-ML. Inset shows the corresponding light I–V curves under halogen lamp illumination.

Nanotechnology 24 (2013) 195701 K-Y Kuo et al

Figure 9. Dark forward I–V curves on a log–log scale for samples (a) [SiO2/SRO]-ML and (b) GSRO-ML.

Figure 10. Temperature-dependent dark I–V curves of samples (a) [SiO2/SRO]-ML and (b) GSRO-ML. Inset of (b) shows the magnified curves in region II.

The temperature-dependent dark I–V curves of samples [SiO2/SRO]-ML and GSRO-ML are also examined and shown as figure 10 for further confirmation of the carrier transport mechanism. Two kinds of transport mechanism in sample [SiO2/SRO]-ML are gradually discriminated by increasing temperature, as shown in figure 10(a). Such temperature-dependent I–V characteristics result from the direct and phonon-assisted tunneling mechanisms [25, 27]. For sample GSRO-ML, the slopes of the temperature-dependent I–V curves are equal in region II, as shown as the inset of figure10(b). This indicates that the carrier transport mechanism is dominated by the SCLC mechanism [26]. The temperature-dependent ideality factors are 13–14, which are larger than 2 due to the trapping defect states or the current crowding effect usually observed in the Si nano-structured thin films [28, 29]. Therefore, from the temperature-dependent I–V measurements, we confirm the different carrier transport mechanisms between samples [SiO2/SRO]-ML and GSRO-ML. The super-high density Si QD thin film achieved using the proposed GSRO-ML structure can truly improve the carrier transport efficiency through the SCLC mechanism.

4. Conclusion

In summary, we propose a novel deposition structure to realize Si QD thin films with enhanced PV properties. By using a GSRO-ML thin film structure, a super-high density Si QD thin film with good QD size control is demonstrated. Compared

with a [SiO2/SRO]-ML structure, sample GSRO-ML has improved carrier transport efficiency and a larger optical absorption coefficient resulting from the formation of QDs with significantly higher density. The over 10 times better optical absorption means the required film thickness for SC application can be greatly reduced. As a result, considerable enhancements on electro-optical properties, including the rectification, ISC, and VOC, are obtained. The carrier transport mechanism is also investigated. Instead of the combination of the direct and phonon-assisted tunneling mechanisms as observed in sample [SiO2/SRO]-ML, the two-diode mode is found in sample GSRO-ML even though only a generally-doped concentration is used. Therefore, high efficiency Si-based solar cells integrating Si QDs can most definitely be expected using this GSRO-ML structure.

Acknowledgments

This work is supported by Taiwan’s National Science Council (NSC) under contract number NSC-101-3113-P-009-004. The authors are grateful for assistance from Center for Nano Science and Technology (CNST) of National Chiao Tung University and National Nano Device Laboratories (NDL) in Taiwan.
