Spectroscopy and Femtosecond Dynamics of Excited-State Proton Transfer Induced Charge

Transfer Reaction

Cheng-Chih Hsieh, Yi-Ming Cheng, Chia-Jung Hsu, Kew-Yu Chen, and Pi-Tai Chou*

Department of Chemistry, National Taiwan UniVersity, Taipei, 106, Taiwan, Republic of China ReceiVed: May 13, 2008; ReVised Manuscript ReceiVed: June 25, 2008

Fluorescence spectroscopy and femtosecond relaxation dynamics of 2-{[2-(2-hydroxyphenyl)benzo[d]oxazol-6-yl]methylene}malononitrile (diCN-HBO) and 2-{[2-(2-hydroxyphenyl)benzo[d]thiazol-6-2-{[2-(2-hydroxyphenyl)benzo[d]oxazol-6-yl]methylene}malononitrile (diCN-HBT) are studied to probe the excited-state proton transfer (ESPT) coupled charge transfer (ESCT) reaction. Unlike most of the ESPT/ESCT systems previously designed, in which ESCT takes place prior to ESPT, both diCN-HBO and diCN-HBT undergo ESPT, concomitantly accompanied with the charge transfer process, such that the ESPT reaction dynamics are directly coupled with solvent polarization effects. The long-range solvent polarization interactions result in a solvent-induced barrier that affects the overall proton transfer reaction rate. In cyclohexane, the rate constant of ESPT of diCN-HBO is measured to be 1.1 ps (9.1× 1011_s-1_{), which is apparently} slower than that of 150 fs for the parent molecule 2-(2′-hydroxyphenyl)benzoxazole (HBO). Upon increasing solvent polarity to, for example, CH3CN, the rate of ESPT is increased to 300 fs (3.3× 1012s-1). The results are rationalized by the stabilization of proton transfer tautomer, which possesses a large degree of charge transfer character via an increase of the solvent polarity, such that the corresponding solvent-induced barrier is reduced. We thus demonstrate a prototypical system in which the photon-induced nuclear motion (proton transfer) is directly coupled with solvent polarization and the corresponding mechanism is reminiscent of that applied in an electron transfer process.

Introduction

Because of its fundamental importance in chemical reactions, the excited-state proton transfer (ESPT) reaction has attracted

intensive interest.1,2_{Among various experimental approaches,}

one important issue of current interest is the ESPT coupled excited-state charge transfer (ESCT) reaction. A conceptually designed ESCT/ESPT system (PC) is depicted in Scheme 1, in which D and A denote the electron donor and acceptor, respectively. In most cases, D and A are separated by a chromophore (represented by a benzenelike structure), and their relative positions are suited for the charge transfer reaction via,

for example, π electron delocalization in the excited state.

Symbol H denotes a hydroxyl (or amino) hydrogen, which forms an intramolecular hydrogen bond (dashed line) with A in most

designed systems.3-7

On one hand, electronically exciting PC to PC* (* denotes the electronically excited state) may cause charge transfer, forming a charge transfer species CT*. On the other hand, the hydrogen-bonded H atom may act as a strong photoacid, such that proton transfer takes place, resulting in a proton transfer tautomer denoted by PT* (see Scheme 1). Thus, depending on the reaction time domain, studies of ESCT vs ESPT can be classified into two categories: (A) For the case that the rate of ESCT is faster than that of ESPT, following PC* f CT* charge transfer, the CT* f CPT* proton transfer reaction then takes place. (B) For the case that ESPT takes place prior to ESCT, the overall reaction may be described as a PC* f PT* proton transfer, followed by a PT* f CPT* charge transfer process. As for case A, because of a large charge separation between D and A, the initially prepared CT* should be subject to a great change of the dipole moment vs that of the ground state PC. Moreover, if CT* possesses a large difference in dipole moment

from that of the final proton transfer tautomer, CPT*, the equilibrium polarizations between CT* and CPT* should be far separated. Similarly, a large difference in dipole moment is also expected between PT* and CPT* in case B. Because the dipolar changes in solute are coupled to solvent polarization effects, the relative energetics between CT* and CPT* in case A or between PT* and CPT* in case B are expected to be a function of solvent polarization coordinate. Thus, the long-range solvent polarization interactions may result in a solvent-induced barrier channeling into the overall reaction.

On the above basis, research regarding solvent polarity

influencing ESPT has made vast progress.3-7_{Many intriguing}

ESCT/ESPT systems have been designed and intensively investigated during the past few years. Representative examples

include N,N-dialkylamino-3-hydroxyflavones4,5 _{and 2-(2}′

-hy-droxy-4′-dietheylaminophenyl)benzothiazole,6_{etc. (see Scheme}

2), in which the N,N-dialkyl group is commonly exploited as an electron donor, while the carbonyl oxygen or the nitrogen group serves as an electron acceptor. Studies so far have shown that most designed systems can be ascribed to case A. Using

2-hydroxy-4-(di-p-tolyl-amino)benzaldehyde7_{as an example, the}

early reaction dynamics can be described by an ultrafast ESCT (<150 fs) prior to ESPT (see Scheme 3). Such an ESCT process is essentially adiabatic, that is, an optical electron transfer process, and can be rationalized by a strong coupling between

donor and acceptor moieties through theπ electron conjugation

such that the electronic coupling matrix is much larger than that of the Marcus type of the weak coupling electron transfer

process.8_{For this case, following ultrafast ESCT, it is always}

found that ESPT takes place and its rate is complicated by the competitive solvation relaxation process, that is, the CT* f CTeq* process (subscript eq denotes the solvent equilibrated state). After reaching the solvent equilibration, because of the difference in equilibrium polarization between CTeq* and

* To whom correspondence should be addressed. Tel: +886-2-33663894. Fax: +886-2-23695208. E-mail: [email protected].

10.1021/jp804216u CCC: $40.75 2008 American Chemical Society

Published on Web 08/19/2008

Downloaded by NATIONAL TAIWAN UNIV on July 27, 2009

(2)

CPTeq*, the CTeq* f CPTeq* proton transfer reaction is associated with a solvent-induced barrier (see Scheme 3).

The above experimental progress has drawn fundamental importance because solvent polarity plays a key role and channels into the proton transfer dynamics, the mechanism of which has been intensively developed theoretically during the

past decade.9 _{Unfortunately, for most experimental model}

systems applied up to this stage, the ESPT/ESCT dynamics are ascribed to case A and are complicated by the competitive solvent relaxation vs ESPT, such that the study of early ESCT/ ESPT reaction dynamics is limited by the rate of solvent relaxation. Thus, it is of great fundamental interest to seek an ideal system to probe the ESPT/ESCT coupling reaction. To our viewpoint, an ideal case in point stems from case B, for which a molecule is designed such that it undergoes ESPT prior to the ESCT reaction. To achieve this goal, 2-{[2-(2-hydrox-yphenyl)benzo[d]oxazol-6-yl]methylene}malononitrile

(diCN-HBO)10 _and

2-{[2-(2-hydroxyphenyl)benzo[d]thiazol-6-yl]methylene}malononitrile (diCN-HBT) (see Scheme 4) were synthesized. As elaborated in the following sections, we then demonstrate that diCN-HBO and diCN-HBT undergo ESPT concomitantly associated with charge transfer. The results and discussion render a prototype to probe the nuclear motion (proton transfer) directly coupled with electron transfer. Experimental Section

Synthesis. Syntheses of diCN-HBO were performed

accord-ing to the literature.10 1_{H NMR (400 MHz, CDCl3, in ppm):}

11.10 (s, 1H), 8.38 (s, 1H), 8.08 (d, J ) 8.0 Hz, 1H), 7.81-7.88 (m, 3H), 7.54 (t, J ) 7.8 Hz, 1H), 7.17 (d, J ) 8.4 Hz, 1H), 7.08 (t, J ) 7.6 Hz, 1H).13_{C NMR (125 MHz, CDCl3, in ppm):} 166.64, 159.48, 158.80, 149.27, 145.40, 135.18, 129.55, 127.90, 127.66, 120.09, 119.99, 117.81, 113.64, 112.69, 111.82, 109.44, 82.24.

SCHEME 1: Generalized ESCT/ESPT System and Its Possible Reaction Patternsa

a_{See the text for the notation of each species.}

SCHEME 2: Molecular Structures of Some Representative ESCT/ESPT Compounds

(3)

The synthesis of diCN-HBT (6) was performed according to

a synthetic route depicted in Scheme 5.1_{H and}13_{C spectra were}

obtained on a Bruker AMX-400 spectrometer. Mass spectra were carried out on a VG70-250S spectrometer.

2-(6-Methylbenzo[d]thiazol-2-yl)phenol (1).

2-Amino-5-methylbenzenethiol11_{(3.0 g, 21.5 mmol) and}

2-hydroxyben-zaldehyde (2.6 g, 21.5 mmol) were added to 80 mL of acetic acid. After the mixture was stirred for 10 min at room temperature, lead(IV) acetate (9.5 g, 21.5 mmol) was added to the mixture. The reaction mixture was stirred for 30 min and gently boiled for an additional 30 min. After it was cooled, the mixture was poured into the cold water and was neutralized

with aqueous NaOH solution. The precipitate was filtered and

dissolved in excess CHCl3and dried with anhydrous MgSO4.

After the solvent was removed, the crude product was purified by silica gel column chromatography with eluent ethyl acetate/

n-hexane (1/10) to afford 1 (2.8 g, 54%). 1_{H NMR (CDCl3,} ppm): 12.52 (s, 1H), 7.89 (d, J ) 8.3 Hz, 1H), 7.67-7.70 (m, 2H), 7.40 (t, J ) 8.6 Hz, 1H), 7.33 (d, J ) 8.3 Hz, 1H), 7.12 (d, J ) 8.3, Hz, 1H), 6.98 (t, J ) 7.5 Hz, 1H), 2.52 (s, 3H).

MS (EI, 70 eV): m/z (relative intensity) 241 (M+, 42), 231 (100).

HRMS calcd for C14H11ONS, 241.0561; found, 241.0558. 2-{6-(Bromomethyl)benzo[d]thiazol-2-yl}phenyl Acetate (3). In 100 mL of acetic anhydride, 2-(6-methylbenzo[d]thiazol-2-yl)phenol (2.0 g, 8.3 mmol) was dissolved and was heated to

120 °C with stirring for 12 h. After the solvent was distilled

off under reduced pressure, 2-(6-methylbenzo[d]thiazol-2-yl)phenyl acetate (2) and N-bromosuccinimide (1.4 g, 7.8 mmol) were dissolved in 60 mL of CCl4, and 14 mg (1 mol %) of

2,2′-azobisisobutyronitrile (AIBN) was added. The mixture was

slowly heated to 80°C with stirring for 2 h. After it was cooled,

the mixture was poured into cold water, extracted with CHCl3, and dried with anhydrous MgSO4. After the solvent was removed, the crude product was purified by silica gel column chromatography with eluent ethyl acetate/n-hexane (1/10) to

afford (3) (1.9 g, 63%).1_{H NMR (CDCl3, ppm): 8.32 (dd, J )}

7.8, 1.3 Hz, 1H), 8.06 (d, J ) 8.5 Hz, 1H), 7.91 (s, 1H), 7.51-7.55 (m, 2H), 7.43 (t, J ) 7.8 Hz, 1H), 7.28 (d, J ) 7.8 Hz, 1H), 4.66 (s, 2H), 2.48 (s, 3H). MS (EI, 70 eV): m/z (relative

intensity) 361 (M+, 20), 319 (100). HRMS calcd for

C16H12O2NBrS, 360.9772; found, 360.9765.

2-(2-Hydroxyphenyl)benzo[d]thiazole-6-carbaldehyde (5). Hexamethylenetetramine (HMTA) (1.2 g, 8.6 mmol) was added to a solution of 2-{6-(bromomethyl)benzo[d]thiazol-2-yl}phenyl acetate (1.5 g, 4.1 mmol) in 60 mL of CHCl3. The mixture was refluxed for 12 h. After the mixture was cooled, the residual precipitate was filtered and dried. Next, to 15 mL of glacial acetic acid and 15 mL of water was added dried salt, and the mixture was refluxed for 2 h. After it was cooled, the mixture was neutralized with aqueous NaOH solution and was extracted with CHCl3. The organic layer was dried with anhydrous MgSO4 and evaporated. The mixture of 4 and 5 was dissolved in a suspension of 0.3 g of KOH in 50 mL of CH2Cl2. The mixture was gently boiled for 6 h. After it was cooled, the solution was poured into water and neutralized with aqueous HCl solution.

The mixture was extracted with CH2Cl2 and dried with

anhydrous MgSO4. After the solvent was removed, the crude product was purified by silica gel column chromatography with eluent ethylacetate/n-hexane (1/4) to afford 5 (0.50 g, 47%).

1_{H NMR (CDCl3, ppm): 12.26 (s, 1H), 10.11 (s, 1H), 8.44 (s,} 1H), 8.11 (d, J ) 8.4 Hz, 1H), 8.03 (d, J ) 8.4 Hz, 1H), 7.73 (d, J ) 8.2 Hz, 1H), 7.44 (t, J ) 7.3 Hz, 1H), 7.12 (d, J ) 8.2 Hz, 1H), 7.06 (t, J ) 7.4 Hz, 1H).13_{C NMR (100 MHz, CDCl3,} ppm): 190.72, 173.52, 158.19, 155.77, 133.79, 133.53, 133.20, 128.73, 127.84, 123.95, 122.51, 119.81, 118.16. 116.34. MS

(EI, 70 eV): m/z (relative intensity) 255 (M+, 100). HRMS calcd

for C14H9O2NS, 255.0354; found, 255.0356.

diCN-HBT (6). 2-(2-Hydroxyphenyl)benzo[d]thiazole-6-car-baldehyde (0.15 g, 0.59 mmol) was resolved in a mixture of 20 mL of THF and 20 mL of MeOH. Then, malononitrile (0.19 g, 2.88 mmol) and two drops of piperidine were added to the

mixture and stirred for 2 h at 45 °C. After the solvent was

removed under vacuum, the mixture was extracted with CHCl3 and washed with water. The organic layer was dried with

anhydrous MgSO4and evaporated. The product was purified

by silica gel column chromatography with eluent ethyl acetate/ SCHEME 3: Relaxation Processes for Case (A) ESCT/

ESPT Systems Demonstrated by para-N,N-Dialkylaminosalicylaldehyde7

SCHEME 4: Proposed ESPT Reaction for HBO (HBT) and ESPT/ESCT Coupled Reaction for diCN-HBO (diCN-HBT)

(4)

n-hexane (1/4) to afford 6 (0.13 g, 73%). 1_{H NMR (CDCl3,} ppm): 12.13 (s, 1H), 8.54 (s, 1H), 8.12 (d, J ) 8.6 Hz, 1H), 8.05 (d, J ) 8.6 Hz, 1H), 7.92 (s, 1H), 7.77 (d, J ) 7.4 Hz, 1H), 7.48 (t, J ) 8.1 Hz, 1H), 7.12 (d, J ) 8.3 Hz, 1H), 7.03 (t, J ) 7.4 Hz, 1H).13_{C NMR (100 MHz, CDCl3, ppm): 158.75,} 158.32, 155.54, 148.59, 134.13, 133.89, 129.18, 128.90, 128.10, 124.57, 122.73, 119.89, 118.02. 116.20, 113.82, 112.81, 82.41.

MS (EI, 70 eV): m/z (relative intensity) 303 (M+, 100). HRMS

calcd for C17H9N3OS, 303.0466; found, 303.0469.

The solvents used in the spectroscopic and dynamic measure-ments were of spectragrade quality (Merck Inc.) and were used right after received. Benzene and acetonitrile showed traces of fluorescence impurities and were fractionally distilled prior to use.

Measurements. Steady-state absorption and emission spectra were recorded by a Hitachi (U-3310) spectrophotometer and an Edinburgh (FS920) fluorimeter, respectively. Nanosecond-pico-second lifetime studies were performed with an Edinburgh OB 900-L time-correlated single photon counting system coupled with a femtosecond Ti-Sapphire oscillator (82 MHz, Spectra Physics). The fundamental pulse was used to produce second harmonics (375-425 nm) as an excitation source. For measuring the extremely weak tautomer (i.e., keto) emission of diCN-HBO (or diCN-HBT) in CH3CN, the laser (355 nm, third harmonic of Nd:YAG) induced fluorescence was collected at a right angle with respect to the excitation beam, focused to a monochromator (Acton, SP2300i), and then detected by a highly sensitive intensified charge-coupled detector (ICCD, Princeton Instrument, PI-MAX camera). The laser scattering was rejected by a combination of color and holographic filters.

The fluorescence upconversion measurements were performed

with a previously reported femtosecond optically gated system.6

The upconverted signal was then separated by an F/4.9 (f ) 380 mm) monochromator and detected via a photon counting PMT (R1527P, Hamamatsu). The cross-correlation between SH and the fundamental had a full width at half-maximum (fwhm)

of∼150 fs, which was chosen as a response function of the

system.

Results

Design Strategy. As depicted in Scheme 4, for both diCN-HBO and diCN-HBT, the lone pair electrons of the benzo nitrogen atom (N1, see Scheme 4) are intrinsically involved in theπ electron resonance to establish the aromaticity, such that

its electron-donating strength, as compared with those of alkyl and aryl amines, is negligibly weak. Thus, upon Franck-Condon excitation of diCN-HBO (or diCN-HBT), the degree of charge transfer should be negligible. On the other hand, similar to their

parent molecules such as 2-(2′-hydroxyphenyl)benzoxazole

(HBO)12_{and 2-(2}′_{-hydroxyphenyl)benzothiazole (HBT),}13_ESPT

is expected to take place from the hydroxyl proton to the N1 nitrogen, resulting in a proton transfer tautomer, that is, a keto form (see Scheme 4). Once forming the proton transfer tautomer, the N1 nitrogen atom becomes the secondary alkyl amino nitrogen and thus should act as a good electron donor. Moreover, because its para-position is strategically designed by anchoring a strong electron-withdrawing group, that is, malononitrile, charge transfer is thus anticipated for both diCN-HBO and diCN-HBT. Such a charge transfer process occurs through the

delocalization of π conjugation and is considered to be an

adiabatic type of reaction. In other words, electron transfer should proceed simultaneously every moment ESPT takes place. One may thus view the overall reaction as a photon-induced proton transfer (a nuclear motion) coupled with a large charge separation due to the simultaneous electron transfer process, rendering an ideal system to study the role of solvent polarity in the proton transfer reaction. It is noted that Park and

co-workers10 _{have reported the synthesis and steady-state}

lumi-nescence properties for diCN-HBO, whereas the ESPT/ESCT coupled reaction dynamics have not yet been explored.

Steady State Approach. Figure 1 depicts steady state absorption and emission spectra of diCN-HBO in various

solvents. In cyclohexane, the S0fS1(ππ*) transition of

diCN-HBO exhibits a maximum absorbance at 376 nm with an

extinction coefficient of∼2 × 104_M-1_cm-1_{. The fluorescence}

spectrum of diCN-HBO in cyclohexane shows a weak normal SCHEME 5: Synthetic Scheme of diCN-HBT

(5)

Stokes shifted band (the F1 band) maximized at 435 nm and

large Stokes shifted band (the F2band) maximized at∼550 nm.

These steady-state results are essentially in agreement with a

previous report.10_{Upon monitoring throughout the two emission}

bands, the identical excitation spectra eliminate the possible existence of diCN-HBO isomer(s) as well as any unwanted emission originating from trace impurity. It is thus reasonable to assign the 435 nm band as the fluorescence from the enol (N*) emission, while the 550 nm band is ascribed to the keto (T*) emission resulting from the proton transfer reaction. The

total quantum yieldΦ, that is, the yield of normal plus tautomer

emission, is determined to be 0.13 (Table 1). Upon varying the solvents, while the absorption spectral feature reveals only slight solvent dependence, a remarkable solvent polarity-dependent emission property is observed. As shown in Figure 1, despite negligible spectral changes on the enol emission, the peak wavelength of proton transfer tautomer emission (i.e., the keto emission) of diCN-HBO shows drastic bathochromic shift upon increasing the solvent polarity, being shifted from 590 nm in benzene to as long as 750 nm in CH3CN. In parallel, the quantum yield of the integrated dual emission decreases from

0.03 in benzene to 6× 10-4in CH3CN. In fact, a conventional

fluorimeter could barely resolve the keto emission in CH3CN. Alternatively, a laser-induced fluorescence technique coupled with a red-sensitive intensified charge-coupled detector (see the Experimental Section) had to be applied to resolve this rather weak keto emission in CH3CN (see the inset of Figure 1). The steady-state dual emission indirectly implies the existence of a non-negligible barrier associated with the ESPT process in diCN-HBO.

Similar solvent polarity-dependent emission properties are observed in HBT, for which the keto emission of diCN-HBT undergoes a significant red shift from 575 nm in

cyclohexane to∼730 nm in CH3CN, while the enol emission

is nearly solvent-independent, being maximized at 450 nm. Nevertheless, subtle differences in the steady-state emission can be seen between diCN-HBT and diCN-HBO. The ratio of emission intensity for enol vs keto species is significantly reduced in diCN-HBT. For example, in cyclohexane, which is considered to be the least perturbing solvent, enol emission of diCN-HBT could not be resolved with the steady-state approach, while appreciable enol emission was resolved in the case of diCN-HBO. In fact, except in CH3CN, the enol vs keto emission

ratio for diCN-HBT is rather small in all polar, aprotic solvents, the result of which is in sharp contrast to that of diCN-HBO (cf. Figures 1 and 2). On one hand, the sulfur atom in diCN-HBT is considered to be a stronger electron-donating group than that of the oxygen atom in diCN-HBT. Thus, through S f N(1) [cf. O f N(1) in diCN-HBO] partial charge delocalization, the N(1) nitrogen in diCN-HBT is expected to be more basic than that in diCN-HBO, rendering a stronger intramolecular hydrogen bond in diCN-HBT and hence a faster rate of ESPT. On the other hand, it may indicate that solvent polarity plays a minor role in view of ESPT/ESCT coupled reaction for diCN-HBT due to its lesser charge transfer property in the proton transfer tautomer form. As a result, the dynamics of ESPT in diCN-HBT are expected to be similar to its parent molecule diCN-HBT. It has been well-established that ESPT for HBT is essentially barrierless and that its rate constant is 160 ( 20 fs, which is

nearly independent of the solvent polarity.13b_{Further resolution}

of this issue relies on the results elaborated in the following sections.

The solvent polarity-dependent keto emission can be ex-pressed quantitatively according to the theory derived from dielectric polarization, specifying that the spectral shifts of the fluorescence upon increasing the solvent polarity depend on the

difference in permanent dipole moments between ground (bµg)

and excited (bµe)state. The changes of dipole moment in

magnitude between ground and excited states, that is,∆µ ) |µbe

- µb_g|, can be estimated by the Lippert-Mataga equation and

expressed as:

ν_a- ν_f) 2

hc(µe- µg) 2

a₀-3∆f + const. (1)

where a0denotes the cavity radius in which the solute resides,

estimated to be 6.9 Å via the Hartree-Fock theories with

6-31G(d′,p′) basis,νja- νjfis the Stokes shift of the absorption

and emission peak maximum, and∆f is the orientation

polar-izability defined as:

∆f ) f(ε) - f(n2) ) ε - 1 2ε + 1- n

2_{- 1}

2n2+ 1 (2)

The plot of the Stokes shiftνja- νjfas a function of∆f is

sufficiently linear for both diCN-HBO and diCN-HBT (see

Figure 3). Accordingly,∆µ ) |µbe- µbg| was deduced to be 21

and 16 D for diCN-HBO and diCN-HBT, respectively, ascer-taining the electron transfer origin of the proton transfer (keto) emission band for both compounds. Moreover, the results also imply a smaller degree of charge transfer for the keto form in diCN-HBT. Accordingly, as compared to diCN-HBO, the corresponding ESPT in diCN-HBT being subject to less solvent polarity perturbation is justified.

Relaxation Dynamics. The above steady-state solvent polar-ity-dependent keto emission is in sharp contrast to most ESPT/

ESCT systems studied so far.4-7 _{For those systems reported,}

the proton transfer tautomer emission peak wavelength com-monly does not reveal solvent polarity dependence. Instead, it is the normal emission that shows great solvent polarity dependence, being red-shifted upon an increase in the solvent polarity. For previously designed ESPT/ESCT coupled systems, this can be rationalized by the occurrence of optical electron transfer in the excited normal species, creating gigantic dipolar changes. Thus, charge transfer occurs simultaneously upon Franck-Condon excitation. Once charge transfer species are formed, solvent relaxation promptly takes place, and its rate is either competitive or even prior to the ESPT process (see Scheme 3), complicating the early relaxation dynamics. In

Figure 1. Static absorption and fluorescence spectra of diCN-HBO at

298 K in (A) cyclohexane, (B) benzene, (C) chloroform, (D) dichlo-romethane, and (E) acetonitrile; the inserted small graph was generated using ICCD as a detector.

(6)

comparison to those molecules previously designed, diCN-HBO and diCN-HBT seem to be ideal systems with which to probe the ESPT/ESCT coupling reaction, possibly free from interfer-ence of solvent relaxation.

To investigate detailed ESPT dynamics, femtosecond time-resolved fluorescence of diCN-HBO and diCN-HBT was monitored at both enol and keto emission bands in five different solvents. The excitation wavelength was tuned to the 0-0 onset

of the S0fS1absorption at∼400 nm to minimize the vibronic

relaxation process, and the excitation power was <20 mW to avoid any possible photodecomposition processes. The time-dependent sum frequency signal and the best theoretical fitting

of diCN-HBO are depicted in Figures 4-7. Detailed fitting parameters for the relaxation decay rates are listed in Table 1. The relaxation dynamics clearly show that the fluorescence temporal behavior varies drastically with changes of the monitored fluorescence wavelength. In cyclohexane, the up-converted fluorescence signal at the very blue side of, for example, 420 nm, ascribed to the steady-state enol emission, consists of a system response limited (<150 fs) rise component, a fast but clearly resolvable decay of 1.10 ( 0.15 ps. As shown in Figure 4, no long population decay component can be resolved in this region. Note that monitoring at further blue regions was not performed due to the interference of the solvent Raman scattering. The 1.1 ps decay component eventually disappears when the emission wavelength is monitored at the keto emission of, for example, 570 nm. Instead, a finite rise

TABLE 1: Photophysical Properties of diCN-HBO and diCN-HBT in Various Solventsa

emission (nm) relaxation dynamics (ps)b

diCN-HBO cyclohexane N: 435 420 nm (τ ) 1.10) T: 550 530 nm [τ1) 0.06 (-0.48), τ2) 0.23 (0.22), τ3) 1061 (0.30)] (0.13) 570 nm [τ1) 1.22 (-0.41), τ2) 1061 (0.59)] 620 nm [τ1) 1.20 (-0.43), τ2) 1061 (0.57)] benzene N: 433 450 nm (τ ) 1.00) T: 590 570 nm [τ1) 1.16 (-0.12), τ2) 1.50 (0.69), τ3) 566 (0.19)] (0.033) 630 nm [τ1) 1.00 (-0.53), τ2) 1.60 (0.20), τ3) 566 (0.27)] 690 nm [τ1) 0.80 (-0.16), τ2) 1.60 (-0.29), τ3) 566 (0.55)] dichloromethane N: 440 450 nm [τ1) 0.60 (0.93), τ2) 6.00 (0.07)] T: 648 610 nm [τ1) 0.54 (-0.43), τ2) 0.90 (0.39), τ3) 18.2 (0.18)] (0.0018) 670 nm [τ1) 0.43 (-0.40), τ2) 1.30 (0.33), τ3) 19.4 (0.27) ] 710 nm [τ1) 0.67 (-0.48), τ2) 1.40 (0.26), τ3) 19.0 (0.26)] acetonitrile N: 443 460 nm (τ ) 0.31) T: 750 700 nm [τ1) 0.53 (0.61), τ2) 3.2 (0.39)] (0.0006) 730 nm [τ1) 0.70 (0.25), τ2) 2.9 (0.75)] 760 nm [τ1) 0.80 (0.08), τ2) 2.8 (0.92)] diCN-HBT cyclohexane N: - 480 nm (τ ) 0.05) T: 575 580 nm [τ1) 0.07 (-0.10), τ2) 995 (0.90)] (0.05) dichloromethane N: 453 480 nm (τ ) 0.06) T: 666 580 nm [τ1) 0.06 (-0.40), τ2) 1.00 (0.56), τ3) 85 (0.04)] (0.0042) 630 nm [τ1) 0.15 (-0.36), τ2) 1.20 (0.38), τ3) 85 (0.26)] 680 nm [τ1) 0.12 (-0.31), τ2) 1.20 (0.35), τ3) 85 (0.34)] acetonitrile N: 452 480 nm (τ ) 0.13) T: 730 680 nm [τ1) 0.05 (-0.31), τ2) 0.59 (0.54), τ3) 6.5 (0.15)] (0.0006) 720 nm [τ1) 0.08 (-0.23), τ2) 0.72 (0.58), τ3) 7.6 (0.19)] 760 nm [τ1) 0.11 (-0.11), τ2) 0.87 (0.62), τ3) 8.5 (0.27)]

a_{The experimental error for the fitted time constant and quantum yield is less than} _∼20%. b_{Data in the parentheses are the fitted}

pre-exponential factors.

Figure 2. Static absorption and fluorescence spectra of diCN-HBT at

298 K in (A) cyclohexane, (B) benzene, (C) chloroform, (D) dichlo-romethane, and (E) acetonitrile; the inserted small graph was generated using ICCD as a detector.

Figure 3. Lippert plot of Stokes shift of keto emission vs orientation

polarizability (∆f) of (A) diCN-HBO and (B) diCN-HBT (∆f: cyclo-hexane, -0.0014; benzene, 0.0030; chloroform, 0.1482; dichlo-romethane, 0.2183; and acetonitrile, 0.3060).

(7)

component of 1.2 ( 0.16 ps was resolved, followed by a long population decay component that remained nearly constant within the monitoring time range. The long population decay was further resolved to be 1.1 ns by time-correlated single photon counting technique. The risetime (1.2 ps) of the keto tautomer emission, within experimental error, correlates very well with the fast decay (1.1 ps) of the enol emission, suggesting a precursor-successor type of relationship between enol and keto tautomer species via ESPT reaction. Its rate constant was determined to be 1.10 ( 0.15 ps.

Figures 5-7 depict the time-resolved traces of diCN-HBO in other polar, aprotic solvents. For all cases, upon monitoring at the enol emission, its relaxation dynamics is always composed of an ultrafast rise, together with a fast decay component. The decay rate constant was resolved to be 1.00 ( 0.13 ps in

benzene, 0.60 ( 0.05 ps in CH2Cl2, and 0.31 ( 0.03 ps in CH3CN, respectively, values that reveal a tendency that increas-ing the solvent polarity renders an increase of the rate of ESPT. In polar solvents, the keto emission shows significantly different relaxation dynamics as compared to that in cyclohexane. As shown in Figures 5-7 and Table 1, the dynamics of relaxation apparently require three exponential terms to achieve good convoluted fits: (i) a resolvable rise component with a time constant of 0.5-1.2 ps, which, within experimental error, correlates well with the fast decay component monitored at enol emission; (ii) a solvent-dependent, fast decay component of,

for example,∼1.6 ps in benzene, ∼1.3 ps in CH2Cl2, and∼0.7

ps in CH3CN upon monitoring at the blue side of the keto emission. Upon increasing the monitored wavelength in the region of the keto emission, this fast decay component gradually becomes the rise component, especially toward the red edge of the keto emission. Note that the 0.3 ps rise component is irresolvable in CH3CN due to the very similar time constant,

as compared with the ∼0.7 ps decay component; and (iii) a

much slower population decay component that was resolved to be few hundred ps to ns, depending on solvent polarity. As the solvent polarity increases, the corresponding population decay time of the keto emission decreases (see Table 1).

As for diCN-HBT, upon monitoring at enol emission of, for example, 480 nm in cyclohexane, the decay time (<150 fs) was beyond the system response of 150 fs, while the temporal resolution at, for example, 580 nm, ascribed to the keto emission, consists of a response limited (<150 fs) rise component and a

much longer population decay component of∼1.0 ns resolved

by single photon counting technique (Figure 8). Similar to its

parent ESPT molecule HBT,13b_{the results conclude an ultrafast}

and perhaps barrierless ESPT for diCN-HBT in nonpolar

Figure 4. Time-resolved sum frequency signal of fluorescence and

gate pulse (780 nm) for diCN-HBO in cyclohexane. The solid lines express the best exponential fitting curves.

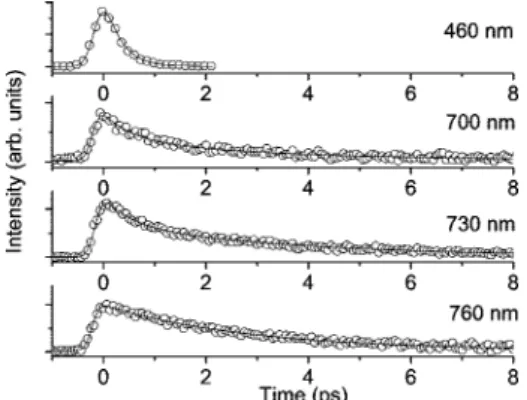

gate pulse (780 nm) for diCN-HBO in benzene. The solid lines express the best exponential fitting curves.

gate pulse (780 nm) for diCN-HBO in dichloromethane. The solid lines express the best exponential fitting curves.

gate pulse (780 nm) for diCN-HBO in acetonitrile. The solid lines express the best exponential fitting curves.

gate pulse (800 nm) for diCN-HBT in cyclohexane. The solid lines express the best exponential fitting curves.

(8)

solvents. In polar, protic solvents, the early relaxation dynamics of diCN-HBT are also different from that of diCN-HBO. Typical

relaxation dynamics of diCN-HBT in CH2Cl2and CH3CN are

depicted in Figures 9 and 10, respectively. Detailed fitting parameters of early time relaxation dynamics as well as population decay rates in various solvents are listed in Table 1. In contrast to the finite, resolvable decay dynamics of the diCN-HBO enol emission, the upconverted enol emission signal for diCN-HBT could only be fitted by a system-response limited decay time (<150 fs) in all solvents (C6H12, CH2Cl2, and CH3CN) studied. As for the keto emission band, it turned out that the experimental results were composed of three distinct components: (i) a system response limited rise component (<150 fs); (ii) upon monitoring at the blue side of the keto emission, a fast but resolvable decay component, which was fitted to be 0.6-1.2 ps, depending on the solvent (see Table 1). Such a decay component gradually disappeared and became a rise component at the red tail of the emission; and (iii) a much slower population decay component that was resolved to be 995, 85,

and∼8 ps in C6H12, CH2Cl2, and CH3CN, respectively.

In brief, the relaxation dynamics for both diCN-HBO and diCN-HBT can be generally described by three types of rate constants: (i) rate of ESPT, which dominates the decay of the enol emission; (ii) rate of solvent relaxation in the keto form; and (iii) population decay rate of the keto form. Furthermore, in the same solvent, the rate of ESPT in diCN-HBT seems to be always faster than that in diCN-HBO. For both diCN-HBO and diCN-HBT, upon increasing solvent polarity, the rate of ESPT increases and the population decay time of the proton transfer keto form decreases. It is also noted that the decrease of population decay time correlates well with respect to the

reduction of the keto emission yield observed in the steady-state approach.

Discussion

In light of the steady state and dynamics results above, the overall reaction dynamics can be well-described by case B, incorporating ESPT coupled with ESCT process (see Scheme 1). An essential requirement to rationalize the above relaxation processes of diCN-HBO (diCN-HBT) lies in the fact that PC* has similar dipolar properties with respect to PC, while its proton transfer tautomer, denoted by PT* (see Schemes 1, 4, and 6), should concomitantly associate with charge transfer (see Scheme), forming a proton/charge transfer species denoted by CPT*. CPT* possesses a large degree of charge transfer character and is expected to have a dipolar vector quite different from that of PC*. Accordingly, the overall PC* f CPT* reaction dynamics for diCN-HBO (or diCN-HBT) can be described by a two-dimensional model incorporating proton transfer reaction co-ordinate and solvent polarization coco-ordinate. In Scheme 6, only the two lowest energy proton transfer diabatic surfaces are shown for the reactant (PC*) and product (CPT*) and labeled according to the dominant diabatic states; PCeq* and CPTeq* denote the equilibrium solvent configurations of PC* and CPT*. Note that a parabolic potential energy surface as a function of solvent polarity is adopted in Scheme 6. This is justified based on the model that solvent polarity effect is considered to be a harmonic type of interaction. The curvature of potential surface for CPT*, possessing a larger dipole moment, is much steeper than that of PC*. Accordingly, the minimum (equilibrium) energy for CPT* is solvent-dependent and should be decreased as the solvent polarity is increased, whereas that of PC* is assumed to be negligible and is thus not depicted in Scheme 6. In polar solvents, because of the drastic changes of the dipole moment upon executing the PC* f CPT* reaction, the reaction

gate pulse (800 nm) for diCN-HBT in dichloromethane. The solid lines express the best exponential fitting curves.

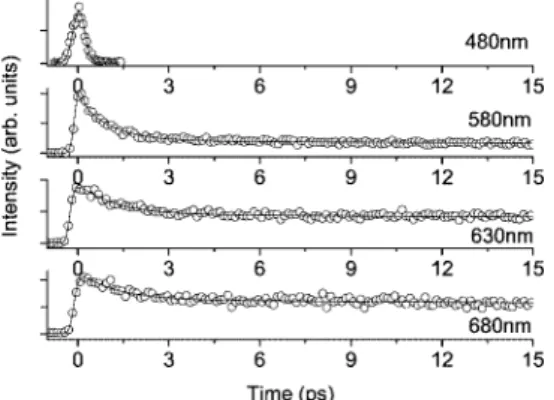

gate pulse (800 nm) for diCN-HBT in acetonitrile. The solid lines express the best exponential fitting curves.

SCHEME 6: Proposed ESPT/ESCT Reaction/Relaxation Dynamics Using diCN-HBO as a Modela

a_{Note that this assumption of a parabolic potential as a function of}

solvent polarity is a simplistic model and is valid only if any specific solute/solvent interaction is neglected.

(9)

dynamics are expected to be incorporated with solvent reorga-nization; consequently, a solvent polarity-induced barrier is expected, which should channel into the reaction. This regime of ESPT coupled ESCT process may be treated as the reactions of electronically adiabatic proton transfer and electronically

nonadiabatic electron transfer.14_{For both HBO and}

diCN-HBT, such a charge transfer process takes place from theπ*

electron delocalization and should proceed simultaneously at every moment that ESPT takes place. The overall reaction pattern is thus analogous to Marcus theory for the photoinduced electron transfer, and the corresponding rate may be expressed

as14b kpt) C₀₀2 p

π E_sRTexp

[

- ∆G + RT

]

) C₀₀2 p

π EsRT exp

[

-(∆GRXN+ Es) 2 RT(4Es)

]

(3)

where C002 represents the proton coupling’s quantum average

over the vibrational modes associated with the proton motion,

Es is the solvent reorganization free energy, and ∆G+ and

∆GRXNdenote the solvent-induced barrier and the reaction free

energy, respectively. Unlike the electron transfer reaction,

∆GRXNmay not be accessible due to the perhaps nonexistent

proton transfer species in the ground state. Because the current femto system could not perform temperature-dependent fluo-rescence upconversion measurement, a quantitative deduction of a solvent-induced barrier is also not feasible. Nevertheless, as for a qualitative approach, the trend of the increase in the overall reaction rate in diCN-HBO upon an increase in the solvent polarity (vide supra) can be rationalized by the decrease of the solvent-induced barrier upon the increase in the solvent polarity, that is, a model within the normal Marcus electron

transfer region.15_{Furthermore, comparing that in diCN-HBO,}

the faster rate of ESPT in diCN-HBT can tentatively be explained by the lesser changes of dipole moment (vide supra) and hence the reduction of the solvent-induced barrier.

Upon forming CPT*, the unfavorable polarization configu-ration is subsequently subjected to a rapid solvent relaxation/ reorientation, that is, component ii with a time scale of 0.6-1.6 ps depending on the type of solvents, to reach an energetically more favorable solvated configuration. After reaching the equilibrium state CPTeq*, population decay takes place (com-ponent iii). Note that the rate of ESPT/ESCT for diCN-HBO (diCN-HBT) in CH3CN is faster than that in, for example, CH2Cl2, while the associated keto emission is much weaker. For the charge transfer emission, this result is not uncommon, especially in strong polar solvents like CH3CN, where the

ultrafast radiationless transition is generally observed.16_Dramatic

polarity effects for the nonradiative charge transfer state (electron

separated form) f S0(neutral form) back electron transfer have

been reported in several electron transfer systems.17_{As the}

zero-order gap between PC* and CPT* increases with increases in the solvent polarity, the radiative decay rate of CPT* in this study decreases accordingly due to the reduction in PC*/CPT* interaction and, hence, a larger fraction of the forbidden transition. In addition, the smaller energy gap of the CPT* emission in higher polar solvent normally associates with faster

radiationless deactivation, an operation of the energy gap law.18

These combinations explain the extremely weak keto emission for both diCN-HBO and diCN-HBT in CH3CN.

Another intriguing issue lies in the finite ESPT rate of 1.1 ( 0.15 ps for diCN-HBO measured in cyclohexane. The results are in sharp contrast to the 150 fs of ESPT for the parent

compound HBO.12c_{On one hand, assuming that the dynamics}

of ESIPT in diCN-HBO are free from solvent perturbation in cyclohexane, it may imply that the charge transfer property in diCN-HBO leads to different distribution of the charge density from that of HBO such that the driving force (photoacidity and basicity and so forth) for ESPT is appreciably reduced in diCN-HBO. However, if this were the case, a similar small tunneling

term C002 (see eq 1), and hence a slower overall reaction rate,

would be expected in polar solvents, which is opposite to the results shown in Table 1. Alternatively, the relatively slow proton transfer rate in cyclohexane indicates that solvent induced polarization may still play a role in the ESPT/ESCT coupled reaction in cyclohexane. In nonpolar solvents, although the parabolic potential energy surface along the solvent coordinate is shallow due to the much less solvent polarization stabilization, the far separated equilibrium polarization between normal and tautomer, as in the case of diCN-HBO, may still introduce appreciable barrier, that is, high intersection point (see Scheme 6). It is also worthy to note that a dynamic polarization model in nonpolar solvents has recently been proposed by Hamaguchi

and co-workers.19_{Because of the large dipolar change between}

PC* and CPT* in the case of diCN-HBO, the induced dipole/ dipole interaction is considered to be non-negligible, inducing an appreciable barrier in the ESPT/ESCT coupled reaction. Conclusion

In summary, we report on the excitation behavior of the proton-coupled charge transfer reaction for diCN-HBO and diCN-HBT. The results demonstrate an example of excited-state intramolecular proton transfer simultaneously coupled with electron transfer process. Accordingly, dual emission was observed, and the proton transfer emission peak wavelength was drastically dependent on the solvent polarity. The solvent long-range polarization interactions may induce a barrier that channels into the proton transfer reaction. The overall reaction dynamics can be described by a mechanism incorporating both solvent polarization and proton transfer reaction coordinates. As the solvent polarity increases, its induced barrier reduces, and the overall rate of ESPT decreases, the results of which can be qualitatively rationalized under the basis of electron transfer theory coupled with the proton tunnelling effect. The results and discussion presented in this study open up an experimental prototype to probe nuclear motion (proton transfer) coupled with the solvent polarity effect.

Acknowledgment. We thank the National Science Council (Grant no. 99-1989-2004) for the financial support.

References and Notes

(1) (a) Elsaesser, T. H.; Bakker, H. J. Ultrafast Hydrogen Bonding

Dynamics and Proton Transfer Processes in the Condensed Phase; Kluwer

Academic Publishers: Boston, 2002. (b) Waluk, J. Conformational Analysis

of Molecules in Excited States; Waluk, J., Ed.; Wiley-VCH: New York,

2000. (c) Mu¨ller, A.; Ratajczak H.; Junge, W.; Diemann, E. Studies in

Physical and Theoretical Chemistry: Electron and Proton Transfer in Chemistry and Biology; Elsevier: Amsterdam and New York, 1992; Vol.

78.

(2) (a) Waluk, J. Acc. Chem. Res. 2003, 36, 832. (b) Tanner, C.; Manca, C.; Leutwyler, S. Science 2003, 302, 1736. (c) Tolbert, L. M.; Solntsev, K. M. Acc. Chem. Res. 2003, 35, 19. (d) Scheiner, S. J. Phys. Chem. A

2000, 104, 5898. (e) Paterson, M. J.; Robb, M. A.; Blancafort, L.; DeBellis,

A. D. J. Am. Chem. Soc. 2004, 126, 2912. (f) Lochbrunner, S.; Wurzer, A. J.; Riedle, E. J. Phys. Chem. A 2003, 107, 10580. (g) de Vivie-Riedle, R.; De Waele, V.; Kurtz, L.; Riedle, E. J. Phys. Chem. A 2003, 107, 10591. (h) Cheng, C.-C.; Chang, C.-P.; Yu, W.-S.; Hung, F.-T.; Liu, Y.-I.; Wu, G.-R.; Chou, P.-T. J. Phys. Chem. A 2003, 107, 1459. (i) Lukeman, M.; Wan, P. J. Am. Chem. Soc. 2003, 125, 1164. (j) Yu, W.-S.; Cheng, C.-C.; Cheng, Y.-M.; Wu, P.-C.; Song, Y.-H.; Chi, Y.; Chou, P.-T. J. Am. Chem.

(10)

Soc. 2003, 125, 10800. (k) Rodembusch, F. S.; Leusin, F. P.; Campo, L. F.;

Stefani, V. J. Lumin. 2007, 126, 728.

(3) (a) Gormin, D.; Kasha, M. Chem. Phys. Lett. 1988, 153, 574. (b) Heldt, J.; Gormin, D.; Kasha, M. Chem. Phys. 1989, 136, 321.

(4) (a) Shynkar, V. V.; Me´ly, Y.; Duportail, G.; Pı´emont, E.; Klym-chenko, A. S.; DemKlym-chenko, A. P. J. Phys. Chem. A 2003, 107, 9522. (b) Chou, P.-T.; Pu, S.-C.; Cheng, Y.-M.; Yu, W.-S.; Yu, Y.-C.; Hung, F.-T.; Hu, W.-P. J. Phys. Chem. A 2005, 109, 3777. (c) Parsapour, F.; Kelley, D. F. J. Phys. Chem. 1996, 100, 2791. (d) Chou, P.-T.; Martinez, M. L.; Clements, J. H. J. Phys. Chem. 1993, 97, 2618. (e) Roshal, A. D.; Organero, J. A.; Douhal, A. Chem. Phys. Lett. 2003, 379, 53. (f) Ameer-Beg, S.; Ormson, S. M.; Poteau, X.; Brown, R. G.; Foggi, P.; Bussotti, L.; Neuwahl, F. V. R. J. Phys. Chem. A 2004, 108, 6938.

(5) (a) Chou, P.-T.; Martinez, M. L.; Clements, J. H. Chem. Phys. Lett.

1993, 204, 395. (b) Swinney, T. C.; Kelley, D. F. J. Chem. Phys. 1993, 99,

211. (c) Parsapour, F.; Kelley, D. F. J. Phys. Chem. 1996, 100, 2791. (d) Ormson, S. M.; Brown, R. G.; Vollmer, F.; Rettig, W. J. Photochem.

Photobiol. 1994, 81, 65. (e) Chou, P.-T.; Huang, C.-H.; Pu, S.-C.; Cheng,

Y.-M.; Liu, Y.-H.; Wang, Y.; Chen, C.-T. J. Phys. Chem. A 2004, 108, 6452. (f) Cheng, Y.-M.; Pu, S.-C.; Yu, Y.-C.; Chou, P.-T.; Huang, C.-H.; Chen, C.-T.; Li, T.-H.; Hu, W.-P. J. Phys. Chem. A 2005, 109, 11696.

(6) Cheng, Y.-M.; Pu, S.-C.; Hsu, C.-J.; Lai, C.-H.; Chou, P.-T.

ChemPhysChem 2006, 7, 1372.

(7) Chou, P.-T.; Yu, W.-S.; Cheng, Y.-M.; Pu, S.-C.; Yu, Y.-C.; Lin, Y.-C.; Huang, C.-H.; Chen, C.-T. J. Phys. Chem. A 2004, 108, 6487.

(8) (a) Napper, A. M.; Head, N. J.; Oliver, A. M.; Shephard, M. J.; Paddon-Row, M. N.; Read, I.; Waldeck, D. H. J. Am. Chem. Soc. 2002,

124, 10171. (b) Shephard, M. J.; Paddon-Row, M. N.; Jordan, K. D. Chem. Phys. 1993, 176, 289. (c) Paddon-Row, M. N.; Shephard, M. J. J. Am. Chem. Soc. 1997, 119, 5355. (d) Lai, C.-H.; Li, E. Y.; Chen, K.-Y.; Chow, T. J.;

Chou, P. T. J. Chem. Theory Comput. 2006, 2, 1078.

(9) (a) Kiefer, P. M.; Hynes, J. T. J. Phys. Chem. A 2002, 106, 1834. (b) Kiefer, P. M.; Hynes, J. T. J. Phys. Chem. A 2002, 107, 9022.

(10) Seo, J.; Kim, S.; Park, S. Y. J. Am. Chem. Soc. 2004, 126, 11154. (11) Chedekel, M. R.; Sharp, D. E.; Jeffery, G. A. Synth. Commun. 1980, 167.

(12) (a) Arthen-Engeland, T.; Bultmann, T.; Ernsting, N. P.; Rodriguez, M. A.; Thiel, W. Chem. Phys. 1992, 163, 43. (b) Abou-Zied, O. K.; Jimenez, R.; Thompson, E. H. Z.; Millar, D. P.; Romesberg, F. E. J. Phys. Chem. A

2002, 106, 3665. (c) Wang, H.; Zhang, H.; Abou-Zied, O. K.; Yu, C.;

Romesberg, F. E.; Glasbeek, M. Chem. Phys. Lett. 2003, 367, 599. (13) (a) Becker, R. S.; Lenoble, C.; Zein, A. J. Phys. Chem. 1987, 91, 3509. (b) Frey, W.; Laermer, F.; Elsaesser, T. J. Phys. Chem. 1991, 95, 10391.

(14) (a) Soudackov, A. V.; Hammes-Schiffer, S. J. Chem. Phys. 1999,

111, 4672. (b) Soudackov, A. V.; Hammes-Schiffer, S. J. Chem. Phys. 2000, 113, 2385. (c) Hammes-Schiffer, S. Acc. Chem. Res. 2001, 34, 273.

(15) (a) Marcus, R. A. J. Chem. Phys. 1965, 43, 379. (b) Marcus, R. A.

Annu. ReV. Phys. Chem. 1964, 15, 155. (c) Marcus, R. A. J. Chem. Phys.

1965, 43, 679. (d) Marcus, R. A. ReV. Mod. Phys. 1993, 65, 599.

(16) Chou, P. T.; Chang, C. P.; Clements, J. H.; Kuo, M. S. J. Fluoresc.

1995, 5, 369.

(17) (a) Hopfield, J. J. Protein Structure: Molecular and Electronic

ReactiVity; Springer: New York, 1987. (b) Joran, A. D.; Leland, B. A.;

Felker, P. M.; Zewail, A. H.; Hopfield, J. J.; Dervan, P. B. Nature 1987,

327, 508.

(18) Siebrand, W. J. Chem. Phys. 1967, 47, 2411.
