DOI 10.1007/s11276-006-7818-1
HISNs: Distributed gateways for application-level integration
of heterogeneous wireless networks
∗
Phone Lin· Huan-Ming Chang · Yuguang Fang · Shin-Ming Cheng
Published online: 9 June 2006 C
Springer Science+ Business Media, LLC 2006
Abstract Integration of different kinds of wireless networks to provide people seamless and continuous network access services is a major issue in the B3G network. In this paper, we propose and implement a novel Heterogeneous network ∗This paper is an extension of the work that won the championship of the Mobile Hero contest sponsored by Industrial Development Bureau of Ministry of Economic Affairs, Taiwan, R.O.C., and was awarded USD 30,000. The work of Lin, Chang and Cheng was supported in part by the National Science Council (NSC), R.O.C, under the contract number NSC94-2213-E-002-083 and
NSC94-2213-E-002-090, and NSC 94-2627-E-002-001, Ministry of Economic Affairs (MOEA), R.O.C., under contract number 93-EC-17-A-05-S1-0017, the Computer and Communications Researches Labs/Industrial Technology Research Institute
(CCL/ITRL), Chunghwa Telecom Labs, Telcordia Applied Research Center, Taiwan Network Information Center (TWNIC), and Microsoft Corporation, Taiwan. The work of Fang was supported in part by the US National Science Foundation Faculty Early Career Development Award under grant ANI-0093241 and US National Science Foundation under grant DBI-0529012.
P. Lin
P. Lin, Department of Computer Science & Information Engineering and Graduate Institute of Networking and Multimedia, National Taiwan University, Taipei 106, R.O.C. e-mail: [email protected]
H.-M. Chang
Department of Computer Science & Information Engineering, National Taiwan University, R.O.C.
e-mail: [email protected] Y. Fang ( )
Department of Electrical & Computer Engineering, University of Florida, USA
e-mail: [email protected] S.-M. Cheng
Department of Computer Science & Information Engineering, National Taiwan University, R.O.C.
e-mail: [email protected]
Integration Support Node design (HISN) and a distributed HISN network architecture for the integration of heteroge-neous networks, under which the Session Mobility, Personal Mobility, and Terminal Mobility for mobile users can be maintained through the Session Management mechanism. Thus, the HISN node can serve as an agent for the user to access Internet services independent of underlying commu-nication infrastructure. Our design is transparent to the bearer networks and the deployment of the HISN network does not need to involve the operators of the heterogeneous wireless networks.
Keywords Heterogeneous networks . Heterogeneous network integration support node (HISN) . Personal mobility . Service mobility . Session mobility.
1. Introduction
In recent years, technologies for wireless networks such as the terrestrial cellular systems, wireless local area networks (WLANs), and wireless personal area networks (WPANs) have been evolved quickly. The huge evolution, together with the advances in computing capability of mobile devices, en-able us to use various kinds of devices to access Internet services. Integration of different kinds of wireless networks (also known as heterogeneous networks) to provide us seam-less and continuous network access services becomes a major issue in the B3G or 4G networks.
Several studies [4,13,14] have been conducted to address the issues for the integration of heterogeneous networks. First, protocol and message format conversion for differ-ent network protocols and device capabilities should be de-signed. Second, while users roam among different networks, the network should maintain the continuity for the active
sessions, which is known as the “Session Mobility”. Third, “Personal Mobility” to users residing in different kinds of networks should meet two requirements:
Requirement 1. Reachability, that is, the user data can be routed to the mobile device the user currently uses. Requirement 2. Personalization, i.e., a personalized
oper-ating environment (e.g., storage space or preference setups for users’ applications) can be provided by the networks.
Fourth, the existing network protocols should not be noti-fied with the new infrastructures introduced to integrate the heterogeneous networks. Moreover, due to the exposure of communication media and information exchanges, security issue should be considered. Besides the above issues, the so called “Terminal Mobility” should also be addressed, which is defined as that within the coverage area of a network, the network is able to track the locations of users’ terminals, and seamlessly provide transmission services for the users. For the Terminal Mobility management, protocols exist for most of current wireless networks. Examples are GPRS Mobility Management [9], Mobile IP [6], or Session Initiation Proto-col [7]. To provide the terminal mobility in the heterogeneous networks, we may reuse the existing terminal mobility mech-anisms run in the different wireless networks.
The previous studies [4,13–15] have developed platforms for the integration of heterogeneous wireless networks. The Mobile People Architecture (MPA) project [14,15] aimed to achieve the Reachability requirement of Personal Mobility, which is a logical extension of the current networking model and targets to place the users, rather than the devices, at the endpoints of a communication session. A new layer, called personal layer, is introduced on top of the application layer. This layer focuses on personal-level routing, which allows messages to be routed to users’ current network and device with content conversion. The MPA uses the globally unique Personal Online ID to identify a user, and utilizes the personal proxy located at the user’s home network for location track-ing. The personal proxy will receive communication services on behalf of the user and forward it to the user. This can hide the user’s real location, achieving location privacy. The per-sonal proxy provides the necessary communication services such as email, telephones, and ICQ messages, and being in-dependent of networks makes the personal proxy easy to extend. Through the introduction of person-routing in MPA, the MPA lacks, however, the personal operating environment, which is also an important part of personal mobility.
The ICEBERG project [12,13] at U.C. Berkeley integrates the cellular telephony networks with Internet to provide the Reachability requirement of Personal Mobility. The same as MPA, the ICEBERG treats a user as a communication end-point regardless of the device he/she uses. It is based on Nina clustering computing platform [21], which takes care
of call setup and control, location tracking, and mapping user names in heterogeneous networks into ICEBERG nam-ing. The ICEBERG network is an overlay network of iPOPs on top of the Internet. However, the use of ICEBERG ac-cess point (which are bridges between various networks and ICEBERG) needs modification of existing network compo-nents, such as switches or bases stations in Public Switched Telephone Network (PSTN), which is a difficult task for prac-tical deployment. Besides, the ICEBERG emphasizes more on reachability rather than personal operating environment.
The IPMoA [4] is a mobile-agent-based personal mobility framework that utilizes mobile agents to support two require-ments of personal mobility. There are three kinds of agents, including Personal Application Assistant (PAA), Personal File Assistant (PFA), and Personal Communication Assis-tant (PCA). The PAA invokes applications and routes pro-gram data for users. The PFA provides the access to user’s personal files and maintains the synchronization for the files in the different IPMoAs. The PCA handles the call establish-ment and content conversion. When the user is located on a visiting network of IPMoA, the PAA invokes the remote methods to remotely execute applications in home network. In these previous works, the Session Mobility issue was not addressed. Most works adopted a centralized node ar-chitecture to provide Personal Mobility for mobile users, in which The centralized node may become a bottleneck. Be-sides, most of them do not follow the standard to come out with the security functionality, which significantly decreases the integrity with Internet.
Besides the above previous studies, the 3GPP work-ing group proposes the Virtual Home Environment concept (VHE) [2] to provide seamless personal mobility services, including personalized services and personal operating en-vironment, on the Universal Mobile Telecommunications System (UMTS) for end users. However, the VHE approach limits only on UMTS networks and devices, which may not be applicable to other kinds of heterogeneous networks.
The Wireless Application Protocol (WAP) forum proposes the WAP gateway [25] to connect the mobile cellular network with the Internet, which adopts the proxy approach. The WAP gateway targets on the translation between the WAP and the HTTP protocols, which does not maintain the personal or session mobility for the users.
In this paper, we propose the design of a Heterogeneous network Integration Support Node (HISN) for the integra-tion of heterogeneous wireless networks. Then, we study a distributed HISN network architecture under which seam-less integration of heterogeneous networks is made possible. Under this architecture, the HISN network maintains the Ses-sion Mobility, Personal Mobility, and Terminal Mobility for mobile users through the Session Management mechanism while an HISN serves as an intelligent agent for mobile users in Internet. Through the HISN network, the mobile users

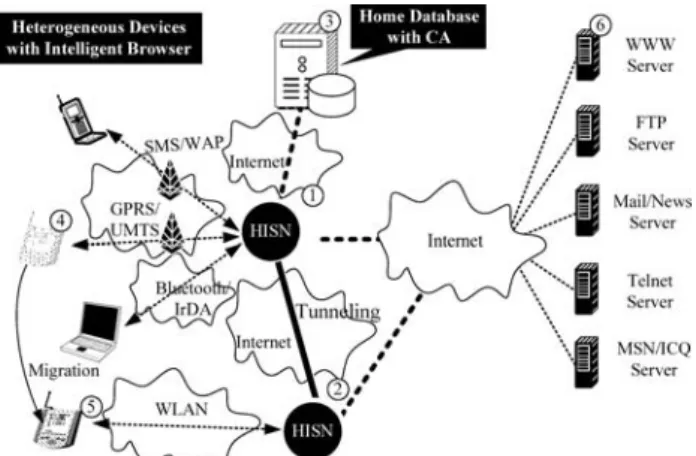

Fig. 1 The distributed HISN network architecture
can use different kinds of mobile devices to access Internet service. To address the security over HISN network, we de-ploy a standard security protocol “PKI” [5] for the secure communication between two HISNs.
The rest of this paper is organized as follows. Section 2 illustrates the distributed HISN network architecture. Section 3 describes the implementation of the HISN. Section 4 details the procedures for the Session Manage-ment mechanism in this network. Section 5 evaluates the performance of the HISN network. We conculde this paper in Section 6.
2. The HISN network architecture
This section discusses the HISN network architecture. As shown in Fig. 1, there are three kinds of nodes in the HISN network: HISN nodes (Figs. 1 (1) and (2)), Home Database with Certification Authority (Fig. 1 (3)), and Intel-ligent Browsers (IBs; Figs. 1 (4) and (5)). The HISN node is a gateway for users, through which users may use differ-ent kinds of devices through differdiffer-ent kinds of networks to access Internet application servers (Fig. 1 (6)).
In the HISN network, the user may connect to the HISN node through two kinds of connection media: the public-domain media (e.g., GPRS or UMTS) and the private-public-domain media (e.g., WLAN, IrDA, and Bluetooth). For an HISN node, there may be more than one public-domain media or private-domain media connected. The user may roam be-tween the service areas of different HISNs. To make the user gain seamless service between an old node and a new HISN node, the Session Management mechanism is deployed (to be elaborated later) in the HISN node. The functionalities of each node in the HISN network are described as follows. HISN Node: See Figs. 1 (1) and (2). The HISN node is the
primary serving node in the HISN network. In a HISN node, we implement the Session Management mech-anism to support personal mobility, session mobility,
UserID Passw ord Serv ingHIS N
User A abcd IP of HISN B
User B 1234
--User C wxyz IP of HISN X
Fig. 2 Examples of entries in home database
and terminal mobility for mobile users. The security mechanism is accommodated in the HISN architec-ture to guarantee the secure access to the HISN net-work. In an HISN node, the connection-media inter-faces for heterogeneous networks (e.g., IrDA, WLAN, Bluetooth, and GPRS) are provided to allow users to use different mobile devices to access the HISN. We implement a content format translation function to en-capsulate the content obtained from Internet with the format that can be displayed on the mobile terminal. The protocols (e.g., Telnet, FTP, and E-Mail) of the In-ternet applications are implemented in an HISN. The details for the implementation of an HISN node will be elaborated in Section 3.
Home Database with Certificate Authority: See Fig. 1 (3). This database maintains the service information for the users. When a user subscribes to the HISN net-work, a permanent entry is created for the user. The entry consists of three fields: UserID (to store the ID1 of the user), Password (to store the password for autho-rization of the user), and ServingHISN (to store the IP address of the HISN where the user currently resides at). Figure 2 shows examples of the entries in the Home Database.
Following the PKI2 infrastructure [5], the Certificate Authority in the Home Database node is responsible for authenticating and publishing certificates to the mobile devices and the HISN nodes involved. With the certificates, the mobile devices and HISNs can be verified for their validity, and the communication in-formation (between a mobile device and an HISN or between two HISNs) can be encrypted/decrypted by the public and private secure key.
Intelligent Browser (IB): See Figs. 1 (4) and (5). An IB is a software component installed in the user’s device to communicate with an HISN node. We implement an intelligent user interface on IBs.
Due to the page limitation, this paper omits the details of the implementation for the Home Database with CA and the 1The UserID is a unique ID in the HISN network for the mobile user to identify himself/herself.
2PKI is a system of public key encryption using digital certificates from Certificate Authorities and other registration authorities that verify and authenticate the validity of each party involved in an electronic transaction.
IB. We focus on the implementation of an HISN node and the Session Management mechanism.
3. The implementation of an HISN node
Figure 3 illustrates the software architecture of an HISN, which consists of five components: Connection Media Adapter, Content Format Adapter, Management Part, Per-sonal Operating Environment, and Internet Service Module. The details of these components are given below:
Connection Media Adapter: See Fig. 3 (1). This compo-nent is responsible for sending/receiving the user data to/from mobile devices transparently through hetero-geneous networks. In a heterohetero-geneous network, this component acts as a terminal, and an HISN can be addressed by the ID (e.g., IP address or phone num-ber) used in the heterogeneous network. Thus, the de-ployment of an HISN need not involve the operators of individual networks. Currently, an HISN can con-nect to five kinds of networks: Infrared [24], Blue-tooth [23], Ethernet, WLAN [16], and GPRS [9]. The data are delivered to these different network interfaces directly through the comm port or TCP connection. Following our design, an HISN node can be easily ex-tended to connect to other kinds of networks as time evolves. HISN Management Part Connection Media Adapter Content Format Adapter XML WML xHTML SMS SMIL 1 2 SMS, MMS GPRS WLAN Bluetooth Irfrared
Personal Operating Environment Mobility Manager
Internet Service Module Web Browser Email FTP Telnet MSN File Manager 5 Ethernet Security Manager 4 Internet Service Heterogen eou s Network s 3
Translator Visitor UserDatabase
Fig. 3 The software architecture of an HISN
Content Format Adapter: See Fig. 3 (2). This component handles the content format translation. According to the mobile device a user currently uses, this compo-nent dynamically encapsulates the content (received from the Internet or a mobile device) into the format that can be interpreted by and shown on the mobile device. We implement the Translator to convert the content into different formats, where the eXtensible Stylesheet Language (XSL) [17] is used to express the translation rule. Currently, five content formats are supported by an HISN: the eXtensible Markup Language (XML) [1], the Wireless Markup Lan-guage (WML) [25], the Extensible Hypertext Markup Language (xHTML) [8], the Short Message Service (SMS) [18], and the Synchronized Multimedia Inte-gration Language (SMIL) [10]. Figure 4 demonstrates how the Translator translates an XML message to a WML message. The content between thexsl:template match=“/APList” and /xsl:template tags (Figs. 4 (b.1) and (b.5)) describes the translation rule for the block of data between the APList and /APList tags (Figs. 4 (a.1) and (a.3)). The content between the
xsl:for-each select=“Data” and /xsl:for-each tags
(Figs. 4 (b.3.1) and (b.3.5)) describes the translation rule between theData and /Data tags (Fig. 4 (a.2)). According to the script defined in Figs. 4 (b.3.2)– (b.3.4), the content between twoData tags is removed and encapsulated into a WML message format (c.2), and the (b.2) and (b.4) blocks are added to the head, (c.2), and the end, (c.3), respectively.
Management Part: See Fig. 3 (3). This part consists of two managers: the Security Manager and the Mobility Manager. The Mobility Manager (Fig. 3 (3.1)) routes the messages and data between a mobile device and an Internet Service Module (to be elaborated later; Fig. 3 (5)). When the mobile user roams among different HISNs, he/she may activate different applications on the different HISNs. Suppose that the user currently resides in HISN A and activates an application. The Mobility Manager in HISN A stores the application information, the IP address of HISN A, in the Visitor

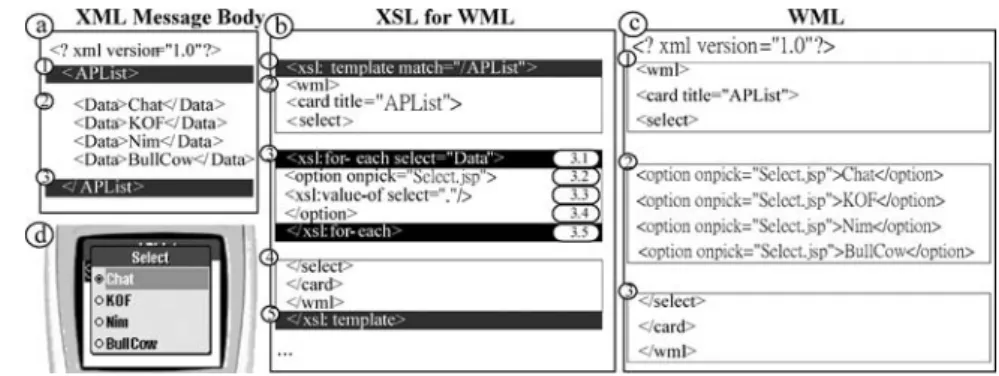

Fig. 4 An example for the translation from the contents in XML format into that in WML format
User Database in the Personal Operating Environment (to be elaborated later; Fig. 3 (4)). The Mobility Man-ager also stores the user-related information (includ-ing the address of the mobile device, e.g., IP address or MSISDN, and the IP address of HISN A) in the Visitor User Database. This information is referenced for rout-ing. The Mobility Manager accommodates the Session Management mechanism to correctly route the user data. The details of the Session Management mech-anism is described in the next section. The Security Manager (Fig. 3 (3.2)) is responsible for authentication of communication entities, authorization of the legal usage of resource, and security of the user data. The implementation of the Security Manager follows the Public Key Infrastructure (PKI) standard, X.509 [5]. Personal Operating Environment: See Fig. 3 (4). This
component maintains the user-related information. There is a Visitor User Database in the Personal Op-erating Environment, which maintains the mobile user information. When a mobile user accesses an HISN node, a UserProfile context is created in the Visitor User Database for the user. As shown in Table 1, a UserProfile context consists of five fields: UserID,
CurrentHISN, DeviceProfile, NetworkProfile, and UserState.
The UserID stores the User ID. The CurrentHISN field stores the IP address of the HISN which the user currently accesses. The DeviceProfile field stores the related-information (i.e., device type; e.g., PDA or notebook) of the mobile device the user currently uses. The NetworkProfile field keeps the related-information (i.e., the network type and the MSISDN or IP ad-dress of the mobile device) for the network (the user currently accesses). The UserState maintains the sta-tus for the HISN network access of the user, which consists of five states: IDLE, LOGIN, RESUMING, ACTIVE, or STANDBY. A corresponding state
ma-chine (to be elaborated later) is run for the transitions of the five states.
When a mobile user activates a session through an HISN node to the Internet, a Session context is created to maintain the status of the session, which is contained in the user’s UserProfile context. Each UserProfile context may contain zero or more Session contexts. As shown in Table 1, a Session context consists of seven fields: SessionID, LocatedHISN, ApplicationName,
SessionState, TunnelID, SecretKey, and BufferedData. The SessionID field stores the ID of the session, which is
used as the reference key for searching the Session context. The LocatedHISN field stores the IP address of the HISN where the user creates the session. The
ApplicationName field stores the types (e.g., Telnet
or Email) of the application for the session. The
SessionState field maintains the status of a session:
ACTIVE, SUSPEND, and MIGRATE. We main-tains a state machine for the transitions of the three states, which will be described later. The TunnelID stores the ID of the tunnel serving the session. The
SecretKey field stores a symmetric ciphering key
to encrypt/decrypt the transmitted user data. The
BufferedData stores the file pointer to the file used to
buffer the user data of a session.
Internet Service Module: See Fig. 3 (5). This part imple-ments the classes of the agents for users to access Internet applications, e.g., FTP and Telnet. Currently, we implement six kinds of agents, Web Browser, FTP,MSN,Email,Telnet, andFile Manager. Our implementation can be easily extended to accom-modate more application agents. TheWeb Browser agent runs the HTTP protocol to retrieve the web information in the Internet. The FTP client agent provides functions for downloading/uploading files from/to an Internet host. TheMSN,Email, and

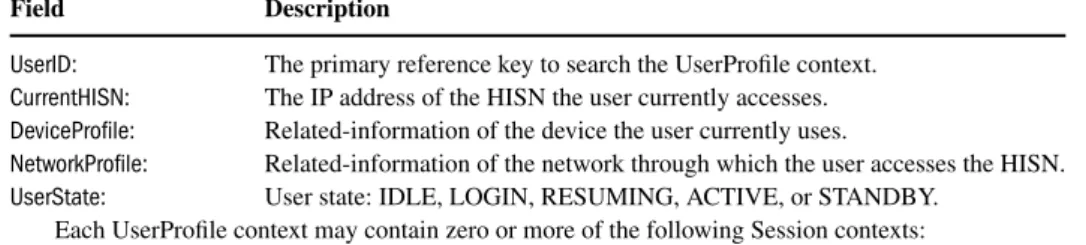

Table 1 HISN UserProfile and
session contexts Field Description
UserID: The primary reference key to search the UserProfile context.
CurrentHISN: The IP address of the HISN the user currently accesses.
DeviceProfile: Related-information of the device the user currently uses.
NetworkProfile: Related-information of the network through which the user accesses the HISN.
UserState: User state: IDLE, LOGIN, RESUMING, ACTIVE, or STANDBY. Each UserProfile context may contain zero or more of the following Session contexts:
SessionID: The identity of the application session.
LocatedHISN: The IP address of the HISN where the session is created.
ApplicationName: The application type of the session.
SessionState: Session state: ACTIVE, SUSPEND, or MIGRATE.
TunnelID: The identity of the tunnel through which the user data is delivered.
SecretKey: The ciphering key of the secured tunnel.
Telnetagents serve as the clients for the instant mes-saging, telnet, and Email applications, respectively. TheFile Manageragent is a client software imple-menting functions to access the Internet remote user file storage, where the Network File System (NFS), Server Message Block (SMB), and Common Internet FileSystem (CIFS) protocols are implemented.
4. The session management mechanism
This section describes the Session Management mechanism in the HISN network, which consists of seven procedures: the Login procedure, the Application Activation procedure, the Application Termination procedure, the Logout procedure, the Suspend procedure, the Resume procedure, and the Tun-neling procedure. Before the user gains the service of a HISN node, the Login procedure is executed between the mobile device and an HISN node. After the execution of the Lo-gin procedure, the user can activate the Internet application through the HISN node by executing the Application Acti-vation procedure. The user can turn off the running Internet applications through the Application Termination procedure. The Logout procedure is exercised when the user quits the service of the HISN node. During the execution of an appli-cation, the mobile user may move out of the service area of an HISN and move into the service area of another HISN node. At this moment, the Suspend procedure is exercised between the old HISN node and the mobile device, and the Resume procedure is executed between the new HISN node and the mobile device to continue the application session. Then, the Tunneling procedure is run between the old HISN node and the new HISN node for the packet forwarding from the old HISN node to the new HISN node. The details of the seven procedures are given in the following few subsections. 4.1. State machines for session management
The Session Management maintains a finite state machine Su
for the user behavior and a finite state machine Ssfor session
status. The state diagrams for Suand Ssare shown in Figs. 5
and 6, respectively.
The Su is maintained in the UserState field of the
User-Profile context, and characterized by one of the five dif-ferent states: IDLE, LOGIN, RESUMING, ACTIVE, and STANDBY. At the IDLE state, the UserProfile context holds invalid information for user’s location, device, and network. The user is unreachable in this case. The Login procedure and authentication are executed at the LOGIN state while the UserProfile context is not valid. At the RESUMING state, the Resume procedure is performed, where the Session con-texts can be updated or resumed. At this time, the UserProfile context is valid but the Session contexts (if any) are invalid. At
IDLE LOGIN ACTIVE RESUMING STANDBY (a.1) (a.2)
(a.3) (a.6) (a.5)
(a.4) (a.8)
(a.7)
Fig. 5 State diagram for state machine Sufor user behavior
ACTIVE
MIGRATE SUSPEND
(b.3) (b.4)
(b.1) (b.2)
Fig. 6 State diagram for state machine Ssfor session status
the ACTIVE state, the user may perform the Application Ac-tivation and/or Termination procedures. The corresponding Session contexts will be created or terminated. In this state, the user is reachable by the HISN network and the UserPro-file and Session contexts are valid. At the STANDBY state, the Suspend procedure is performed, where the messages and user data are buffered.
The Ssis maintained in the SessionState field of the
Ses-sionProfile context, and characterized by one of the three different states: ACTIVE, SUSPEND, and MIGRATE. At the ACTIVE state, the session is activated through the Appli-cation Activation procedure. The appliAppli-cation can deliver the user data at this state. At the SUSPEND state, the activated session is suspended and the HISN node will buffer mes-sages and maintain the application session for the user. At the MIGRATE state, the user performs the Resume proce-dure among different HISN nodes, the TunnelID and SecretKey fields are updated and the messages or user data are delivered through the tunnel between two different HISN nodes.
The state transitions in the Su and Ss state machines are
described in the following subsections. 4.2. The login procedure
Suppose that a user previously accessed the HISN node Ho
through the access network No, and then he/she logins into

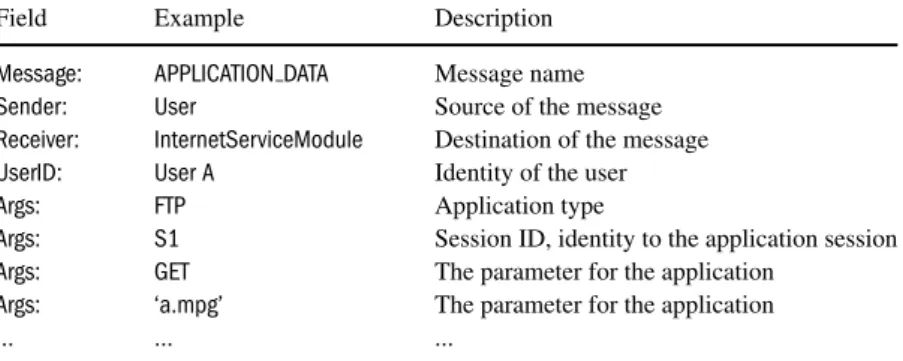

Table 2 An example message encapsulated with the inner message format
Field Example Description
Message: APPLICATION DATA Message name
Sender: User Source of the message
Receiver: InternetServiceModule Destination of the message
UserID: User A Identity of the user
Args: FTP Application type
Args: S1 Session ID, identity to the application session
Args: GET The parameter for the application
Args: ‘a.mpg’ The parameter for the application
... ... ...
Fig. 7 The message flow for the Login procedure
illustrates the message flow for the Login procedure with details given below. All the messages to be proceed is en-capsulated with the inner message format. Table 2 shows the details of the format, which consists of four major fields:
Message, Sender, Receiver, and UserID. The Message field
spec-ifies the command in the message. The Sender field specspec-ifies which component (e.g., Mobility Manager or Internet Service Module) issues the message, and the Receiver field identifies which component will receive the message. The UserID field stores the ID of the user. Besides the four major fields, an inner message may contain variable number of arguments stored in the Args field.
Step I1. The mobile device establishes a connection to the Hn node, which can be done by layer one and layer
two of Hn’s access network. Here, we use the
Blue-tooth access network [23] as an example to illustrate the establishment of the connection (For other kinds of access networks, the establishment procedures are similar). The mobile device activates the Bluetooth
Discovery service to check whether any Bluetooth connection is available. The mobile device uses the serial port profile broadcasted by Hn to establish the
connection. After that, the data can be exchanged be-tween the mobile device and the HISN node. The IB sends a Login Request(UserID, Password) message to Hn. Note that the transmission between user’s device
and the HISN node can be secured through the in-herent security mechanism in the bearer network, for example, the Wired Equivalent Privacy (WEP) proto-col in the IEEE 802.11 network, the secure link layer in the Bluetooth network, and A3, A8, and A5 algo-rithms in the GPRS network. To reduce the imple-mentation complexity, our design utilize these security mechanisms.
Step I2. Upon receipt of the Login Request message, the Content Format Adapter encapsulates Login Request with the inner message format. The Mobility Man-ager in Hn sends an Authentication Request message
to the Home Database, which contains the user’s ID, password, and the IP address of Hn. Note that in our
design, we implement the PKI protocol between an HISN node and the Home Database. The password is encrypted following the PKI protocol for secure transmission.
Step I3. After receiving the Authentication Request, the Home Database authenticates the user by comparing the UserID and the Password. If the authentication suc-ceeds, the Home Database updates the ServingHISN field as the IP address of Hn. Then the Home Database
replies the HISN with an Authentication Response mes-sage, which contains the authentication result and the IP address of Ho. Note that if the user previously did
not login any HISN node, the returned ServingHISN field is left empty.
Steps I4 and I5. The Mobility Manager in Hn invokes
the createUserProfileContext(UserID) function to create a UserProfile context for the user in the Visitor User Database. The default value of
UserState is IDLE. The IP address of Hn is filled
obtained from the Connection Media Adapter is stored in the NetworkProfile field. Then, the Mobility Manager changes Su from IDLE to LOGIN (Transition a.1 in
Fig. 5). The Visitor User Database returns asuccess value to the Mobility Manager.
Step I6. The Mobility Manager in Hn sends IB a Up-date Device Info Request message to request the
con-figuration information of the mobile device.
Step I7. The IB responds the Update Device Info Resonse message to the Mobility Manager of Hnto update the
information about the type of the mobile device (e.g., PDA). The detection of the capability of the mobile device (e.g., CPU speed, memory size, or screen size) is done through the invocation of the standard API provided by the OS of a mobile device [22].
Steps I8 and I9. The Mobility Manager invokes the updateDeviceInfo()function to store the infor-mation for the mobile device type to the DeviceProfile field of user’s UserProfile context in the Visitor User Database. The Visitor User Database returns the suc-cessvalue to the Mobility Manager.
Steps I10 and I11. The Hn and the IB exchange the Up-date Network Info Request and UpUp-date Network Info Response message pair to update the information about
the access network, e.g., GPRS or WLAN.
Steps I12 and I13. The Mobility Manager of Hn invokes
theupdateNetworkInfo()function to update the
NetworkProfile field in the UserProfile context for the
user in the Visitor User Database. Then the Visitor User Database returns a successvalue to the Mobility Manager.
Step I14. The Hn triggers the Resume procedure to resume
the sessions that were created in the Honode. The
de-tails of the Resume procedure will be elaborated later. Step I15. The HISN Hn sends a Login Response message to
the IB to indicate the result of the Login procedure. After successful login, the user may access the Internet applications through the Hnnode.
4.3. Application activation procedure
This section describes the Application Activation procedure for a user to create a session. We use the FTP application as an example. For other applications, the message exchanges are similar, which are not presented in this paper. Suppose that a user activates an FTP on the HISN Ho. Figure 8 illustrates
the message flow for the Application Activation procedure with details given below.
Step A1. The IB sends an Activate Application
Request(App-licationName: FTP) message to Ho.
Steps A2 and A3. Upon receipt of the Activate Application
Request message, the Internet Service Module activates
Fig. 8 The message flow for the application activation procedure
the FTP application and an FTP client by creating an object of the FTP client to serve the user. A ses-sion ID (e.g., S1) is generated for the sesses-sion. The Mobility Manager invokes the createSession-Context()function to create a corresponding Ses-sion context in the Visitor User Database, where the
SessionID, LocatedHISN, and ApplicationName fields are
filled with S1, the IP address of Ho, and FTP,
respec-tively. The state for the session is set to ACTIVE. The
TunnelID and SecretKey fields are left as blanks. A file is
opened to buffer the data for the session, whose name is filled into the BufferedData field. Then, the Visitor User Database returns a successvalue to the Mo-bility Manager of Hn.
Step A4. An Activate Application Response message is sent to the IB, where the session ID, S1, is carried in this message.
After Step A4, the agent in the Internet Service Module is ready to serve for the mobile device. In the following steps (i.e., Steps A5–A8), we show how the IB of the mobile device instructs the agent to access the FTP service.
Step A5. Before downloading/uploading files from/to the remote FTP server, the user commands the FTP client to connect to the remote FTP server by sending an
Application Data (SessionID: S1, cmd) message to Ho,
where the session ID and the commands are carried in this message.
Steps A6 and A7. Upon receipt of the Application Data mes-sage, the agent (i.e., the FTP client) follows the stan-dard FTP protocol [20] to create a connection between the Hoand the FTP server in the Internet. Then, the IB
Step A8. The Ho sends the Application Data (SessionID: S1)
message to the IB, which contains the execution results for the user.
4.4. Suspend and resume procedures
By performing the Suspend and Resume procedures, the user can move out of the service area of an HISN and enter the ser-vice area of another HISN without loss of an ongoing session. The range of the service area of an HISN is determined by the connection medium through which the user accesses the HISN (i.e., the service area of the HISN is equal to the radio coverage of the connection medium by which the user accesses the HISN). For example, if the user uses the Blue-tooth to access the HISN, the service area of the HISN is equal to the radio coverage of the Bluetooth.
Assume that the user currently uses the device Doto
con-nect to the HISN Hothrough the Network No, and later he/she
uses the device Dn to connect to the HISN Hn through the
Network Nn. Seven possible scenarios can be considered for
the user movement:
Case I: Inter-device movement. Do= Dn, No= Nn, and
Ho= Hn. For example, the user may change the
mobile device for better mobility (e.g., from a desktop to a PDA).
Case II: Inter-connection medium movement. Do = Dn,
No= Nn, and Ho = Hn. As mentioned
previ-ously, there are two kinds of connection media: the public-domain media and the private-domain media. The user may choose the private-domain media instead of the public-domain media for the economical concern, security reasons, connection availability, and the capabilities of connection media.
Case III: Inter-HISN movement. Do= Dn, No = Nn, and
Ho= Hn. The user may roam from one HISN to
another due to the limited range of the HISN’s service area or other considerations as mentioned in Case II.
Case IV: Inter-device and connection medium movement. Do= Dn, No= Nn, and Ho= Hn. In this case,
the user changes the mobile device and the type of the access network for the same HISN. Case V: Inter-device and HISN movement. Do = Dn,
No= Nn, and Ho= Hn. The user uses different
mobile devices among different HISNs, but does not change the access network to the HISN. Case VI: Inter-connection medium and HISN movement.
Do= Dn, No= Nn, and Ho= Hn. The user
uses the same device to access different HISNs through different access networks.
Fig. 9 The message flow for the suspend and resume procedures
Case VII: Inter-device, connection medium, and HISN movement. Do = Dn, No= Nn, and Ho = Hn.
When a user roams to a new HISN Hn, he/she
uses different device and different type of network to access Hn.
The Suspend procedure is executed between the old HISN Hoand the mobile device before the user moves out of the
service area of Ho. The HISN network suspends the activated
sessions and buffer the data for the sessions. When the user logins into the new HISN node Hn, the Resume procedure is
executed to continue the suspended application.
In this subsection, we illustrate the Suspend and Resume procedures by considering Case VII where Do= Dn, No =
Nn, and Ho= Hn. For other cases, the message flows for the
two procedures can be easily modified. As shown in Fig. 9 (a), suppose that the user suspends the application with the session ID, S1, at the old HISN Ho, where the user uses the
mobile device, Do. Then the user logins into the new HISN
Hnby using a new mobile device, Dn.
Suspend Procedure:
Step S1. The IB sends a Suspend Session Request(UserID) message to Ho, where the user ID is carried in this
message.
Step S2. Upon receipt of Suspend Session Request, the Mo-bility Manager of Ho changes the state of Ss from
ACTIVE to SUSPEND (Transition b.1 in Fig. 6), and starts to buffer the data for the S1 session into the file whose name is specified in the BufferedData field of the Session context. The state of Su is changed from
ACTIVE to STANDBY (Transition a.5 in Fig. 5). Then, Horesponds a Suspend Session Response message to Do,
HISN Context Request message (to be elaborated later; see
Step R2) from other HISN node before the Ts timer
expires. When the Ts timer expires, the Suspend
proce-dure is exited.
After entering the service area of Hn, the user executes the
Login procedure by using the new mobile device Dn. During
the execution of the Login procedure, the Hndetermines the
previous HISN (i.e., Ho) by querying the Home Database (see
Step I2.2). Then the Resume procedure is executed among Dn, Hn, and Ho. Figure 9 (b) illustrates the message flow for
the Resume procedure with details given below. Resume Procedure:
Step R1. The Mobility Manager of Hn sends a HISN Context Request(UserID) message with the user’s ID
to the Mobility Manager of Ho to request the Session
contexts of the user(if any). Note that the IP address of the HISN Hois obtained in Step I2.2 in the Login procedure.
Then, the Mobility Manager changes the state of Su from
LOGIN to RESUMING (Transition a.1 in Fig. 5). Step R2. Upon receipt of HISN Context Request, the Mobility
Manager of Ho retrieves the Session context of the user
by querying the Visitor User Database where the user’s ID is used as the reference key. The Mobility Manager of Hosends the
HISN Context Response message to the Mobility Manager
of Hn, which contains the Session contexts for the user
(i.e., Session context for S1).
Step R3. After receiving the HISN Context Response mes-sage, Hnstores the received Session context into the user’s
UserProfile context in the Visitor User Database. Then the Mobility Manager checks the LocateHISN fields in the Ses-sion context to see whether any other HISN maintains suspended sessions for the user. If so, the Hnexecutes the
Tunneling procedure to establish the tunnels between Hn
and the previous HISNs. Details of the Tunneling proce-dure will be given in the next subsection.
Step R4. After Step R3, the tunnel between Hnand Hohas
been established. If the Hohas buffered data (for the
ses-sions that are created in Ho) to be delivered to Dn, Ho
sends one or more Update Application Data (SessionID: S1) messages carrying the data to Dn through the tunnel.
Step R5. After receiving the buffered data, Dn sends a Update Application Data Ack message to Ho through Hn
for acknowledgment. The Mobility Managers of Hn and
Ho change the states of their Ss state machines from
SUSPEND to MIGRATE (Transition b.3 in Fig. 6), indi-cating that the data can be exchanged through the tunnel. Note that if there are more than one session to be resumed, Steps R4 and R5 are executed repeatedly until all the sessions in the HISN Hoare resumed.
Steps R6 and R7. The Ho sends Hn a Resume Session Complete message, which indicates that all the
ses-sions on Ho are resumed. Then Hn returns a Re-sume Session Complete Ack message. The Mobility
Man-ager of Hochanges the state machine Sufrom STANDBY
to ACTIVE (Transition a.6 in Fig. 5) for the user. If there are other HISNs having activated sessions for the user, Hnwill take the same actions in Step R3 to create one
tunnel, dedicated for the user, for one HISN, and Steps R4-R7 are executed repeatedly to resume the activated sessions on Hn for the user.
Steps R8 and R9. The Hn and IB Dn exchange the Resume Session Success and Resume Session Success Ack messages pair. The Mobility Manager of Hnchanges
the state of Su from RESUMING to ACTIVE
(Transi-tion a.4 in Fig. 5). For the data of the applica(Transi-tions that are created in Ho, they are delivered among Dn, Hn, Ho, and
the application servers.
4.5. Tunneling procedure
When a mobile user activates applications on different HISNs, tunnels will be established between the HISNs for routing data messages for the user. For each HISN-HISN pair, one or more tunnels may exist. In our implementation, we utilize the PKI protocol [5] and a secret key to secure the tunnel. Figure 10 illustrates the message flow for the creation of a tunnel.

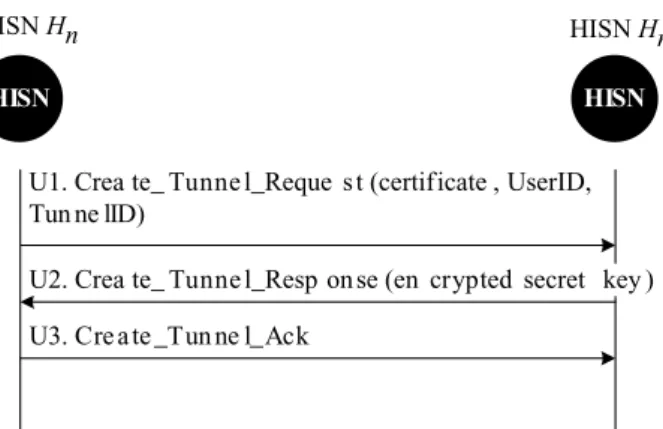

Tunneling procedure:
Step U1. The Hn sends a Create Tunnel Request(certificate, UserID, TunnelID) message to Ho. The message carries the
certificate of the Hn, the user’s ID, and a randomly
gen-erated tunnel ID.
Step U2. Upon receipt of Create Tunnel Request, Ho
con-firms the identity and validity of Hn by checking the
certificate of Hn. If the certificate is valid, Ho generates
U1. Crea te_ Tunne l_Reque s t (certificate , UserID, Tun ne lID)
U2. Crea te_ Tunne l_Resp on se (en crypted secret key ) U3. Cre a te _Tun ne l_Ack
HISN Hn HISN Hn
HISN HISN
a secret key to secure the tunnel. The secret key is transmitted as the user data, which is encrypted by the public key of Hn in the certificate. Then, Hosends a Cre-ate Tunnel Response(encrypted secret key) message to Hn.
Step U3. Upon receipt of Create Tunnel Response message, Hn decrypts the data by using its own private key, and
obtains the secret key. Then Hnsends a Create Tunnel Ack
message to Hofor acknowledgment. Both Hnand Hofill
the tunnel’s ID and the secret key information into the
TunnelID and SecretKey fields of the Session contexts for the
user, respectively. The Mobility Manager of Ho updates
the CurrentHISN field in the user’s UserProfile context as the IP address of Hn. Then Hn initiates a connection to
Ho. At this moment, the tunnel has been established.
4.6. Application termination procedure
The IB executes the Application Termination procedure to tear down the activated sessions. Consider that a user has acti-vated a session, S1, on Ho. During the session, the user roams
to Hn, and then tear down the S1 session at Ho. Figure 11
illustrates the message flow for the Application Termination procedure with details given below.
Step T1.1. The IB sends a Terminate Application Request
(SessionID: S1) message to Hn.
Steps T2 and T3. The Mobility Manager of Hn gets the
related information for the S1 session from the Vis-itor User Database by invoking the getSession-Info(SessionID: S1)function.
Step T4. The Mobility Manager of Hn checks the Locat-edHISN field in the Session context of S1 to obtain the
IP address of the HISN where the S1 session is lo-cated. Then the Mobility Manager of Hn sends a
Termi-Fig. 11 The message flow for the Application Termination procedure
nate Application Request(UserID, SessionID: S1) message to
the Mobility Manager of Ho.
Steps T5 and T6. Upon receipt of the request, the Internet Service Module of Ho terminates the S1 session. After successful termination of the application session, the Mo-bility Manager of Ho deletes the corresponding Session
context from the Visitor User Database by invoking the deleteSessionContext(S1)function. The Visitor User Database returns asuccessvalue to the Mobility Manager.
Step T7. The Mobility Manager of Ho responds a Termi-nate Application Response(Session ID: S1) message to the
Mobility Manager of Hn.
Steps T8 and T9. The Mobility Manager of Hn deletes the
corresponding Session context for S1 from the Visi-tor User Database by invoking the deleteSession-Context(S1) function. The Visitor User Database returns a success value to the Mobility Manager of Hn.
Step T10. The Hn returns a Terminate Application Response Session ID: S1) message to the IB.
4.7. Logout procedure
The Logout procedure is executed to stop services in the HISN network. A user may activate different sessions on different HISNs. Before Logout, these sessions should be terminated. Without loss of generality, we assume that the user currently resides in Hn and has activated sessions on
HISN Hn and HISN Ho. Figure 12 illustrates the message
flow for the Logout procedure with details described in the following.
Step O1. The IB sends a Logout Request message to Hn.
Steps O2 and O3. The Mobility Manager of Hninvokes the
getHISNList(UserID) function to find the HISNs (that run the sessions for the user) by checking the
Locat-edHISN field in the Session contexts of the user. The Visitor
User Database returns the list containing the IP addresses of the HISNs.
Step O4. The Mobility Manager of Hnexecutes the
Appli-cation Termination procedure to terminate the user’s acti-vated sessions in Hn.
Step O5. The Mobility Manager of Hnexecutes the
Appli-cation Termination procedure to terminate the user’s acti-vated sessions in Ho.
Steps O6 and O7. The Mobility Manager of Hnand Home
Database exchange the Logout Request(UserID) and
Lo-gout Response message pair to set the ServingHISN field
of the user in the Home Database to be blank.
Step O8. A Logout Response message is sent to the IB to indicate the result of the Logout procedure.
5. Performance evaluation
As shown in Fig. 9, when the user changes the connecting HISN node (from Hoto Hn), the Suspend procedure is
exe-cuted to save and buffer the user data on the old HISN node Ho so that the data for the session is not lost, and the
ses-sion can be continued on the new HISN node Hn. For the
roaming users, extra system resource (e.g., memory) of Ho
is consumed. To efficiently utilize the resource, we use the timer Tsto control the time when Hoshould drop the related
information for the roaming users. Obviously, if Ts is set
smaller, the resource can be utilized more efficiently, how-ever, this may cause more frequent session drops. Note that in the HISN network, we are concerned about the resource consumption issue more seriously due to that the distributed HISN network follows a non-continuing architecture, and the user may spend long time to roam among different HISNs or mobile devices. The resource of reservation on Ho may
last for too long, which may cause the heavy penalty to the HISNs. This section studies how to properly set up the timer Ts so that we may balance the resource reservation penalty
and the session dropping probability.
Suppose that during a running session, the mobile user roams Nr times. As shown in Fig. 9, at the i th roaming
instant, let th,i denote the period between the time when
the Suspend procedure is completed and the time when the Login procedure is executed, tl,ibe the total time required to
finish the Login procedure, and tr,i be the total time required
to finish the Resume procedure. Assume that ts is the value
of the timer Ts. In the Internet application server, a timer Ta
starts when it receives the completion of the user packet. The application server expects to receive the next user packet be-fore the Tatimer expires. If Taexpires, the server will quit the
application. Let tabe the value of the timer Ta. The roaming
is successfully executed when the following condition holds: th,i + tl,i ≤ tsand th,i+ tl,i+ tr,i ≤ ta (1)
Otherwise, the roaming fails when one of the following two situations occurs:
th,i+ tl,i > ts or th,i+ tl,i+ tr,i > ta (2)
For a session, we define a cost function for resource con-sumption as follows: Cr = Nr i=1 Cr,i (3)
where Cr,i is the resource reservation penalty induced by
the i th roaming. Cr,i can be characterized by the following
equation: Cr,i = ⎧ ⎨ ⎩ th,i + tl,i, if roaming successes β × ts, if roaming fails (4)
whereβ is a penalty factor for an unsuccessful roaming. The rationale behind (4) is as follows. If the roaming is success-fully performed, Ho will reserve resource for the roaming
session for th,i+ tl,i. If the roaming fails, Ho will reserve
resource for the roaming session for ts. In this case, we time
tsbyβ as the cost for the roaming session.
We adopt the event-driven based simulation technique, which is similar to that used in [3], and the details are not presented here. Suppose that the th,i, tl,i, and tr,iare
exponen-tially distributed with meansμ1
h,
1
μl, and
1
μr, respectively. We
assume that the residence time for the service area of an HISN are Gamma distributed with meanη1
a and varianceva=
1
η2
aα,
whereα is the shape parameter. The Gamma distribution is selected because it can be shaped to represent many distri-butions [11]. In our study, we run simulation experiments to measure two performance indicators: the resource reserva-tion cost Crfor a session and the session dropping probability
Pdwhich is defined as the probability that a session cannot
be completed due to the unsuccessful roaming. We simulate 1,000,000 sessions in an experiment to ensure the stability of the simulation results. We investigate the effects of the Ts
timer setup on the Pd and Cr performance for two kinds of
Internet application sessions: FTP and Telnet. In this study, we set 1
μh = 50 seconds, 1 μl = 1 second, 1 μr = 1 second, 1
ηa = 900 seconds, and α = 4. For other
pa-rameter setup, we observe the similar phenomena.
Effects of TsSetup for FTP Sessions: The FTP applica-tion is designed for file transfer, which bears long trans-mission time for data. In our study, we assume that the service times for the FTP applications are exponentially distributed with mean μ1
F. Based on the measured data
in [19], we set μ1
F = 429 seconds. In most application
Fig. 13 Effects of Tssetup for FTP sessions (μ1h = 50 secs; 1 μl = 1 sec; 1 μr = 1 sec; 1 ηa = 900 secs; α = 4; 1 μF = 429 secs; ta = 1800 secs)
application is ta = 1800 seconds, which is adopted in this
study. Figure 13 plots Pd and Cras functions of tsfor the
FTP session.
Figure 13 (a) shows that as ts increases, Pd significantly
decreases. This phenomenon reflects the fact that as the timer Ts is longer, the session has better chance to be
completed. When ts> 80 seconds, Pdis down below 5%,
which satisfies the QoS requirement.
In Fig. 13 (b), we observe that asβ ≤ 1.4 (i.e., low penalty), the Crcost increases as tsincreases. On the other
hand, whenβ > 1.4 (i.e., high penalty), as ts increases. the Cr cost significantly increases, and then slightly
de-creases. The disjunctive point occurs at ts= 120 seconds.
When tsis small (i.e., ts ≤ 120 seconds in this figure), Pd
is larger, it is more likely that roaming fails. In this situa-tion, from (4), the Cr,i cost is dominated by theβ penalty
factor. On the other hand, a larger ts causes smaller Pd
values (i.e., ts> 120 seconds in this figure). The
roam-ing has better chance to be successfully completed, and from (4), the Cr,icost is dominated by th,i+ tl,i. Thus, we
observe the above phenomenon.
Based on the two phenomena in Fig. 13, for the FTP application, whenβ ≤ 1.4, we may set ts= 80 seconds. Since Pdis below 5% as ts ≥ 80 seconds, and Crincreases
as tsincreases, to satisfy the QoS requirement and to lower
the Cr network cost, ts = 80 seconds is the best choice.
Whenβ > 1.4, we set tsas large as possible to minimize both Pd and Cr.
Effects of TsSetup for Telnet Sessions: Telnet is an inter-active application. The communication between the user and the application server has strict delay requirement. As the Tatimer is set smaller, the application server has more
chance to quit the application due to no response. With smaller Ta setup, we may more strictly bound the delay
for the communication between the user and the
applica-Fig. 14 Effects of Ts setup for telnet sessions (μ1h = 50 secs;μ1l = 1
sec; 1 μr = 1 sec; 1 ηa = 900 secs; α = 4; 1 μT = 700 secs; ta= 120 secs)
tion server, and it is clearer to observe the performance of the HISN network for the Telnet application. In this study, we set ta = 120 seconds (typically, in most programs, the
length of the Ta timer for the Telnet application server
is ta = 600 seconds). Suppose that the service times for
the Telnet applications are exponentially distributed with mean μ1
T. We set
1
μT = 700 seconds, which is the same
as the measured data in [19]. Figure 14 examines the ef-fects of the timer Ts setup on Pd and Cr for the Telnet
application.
In Fig. 14 (a), we observe that when ts ≤ ta (i.e., ts ≤
120 seconds in this figure), the dropping probability Pd
significantly decreases as tsincreases. When ts> ta(i.e.,
ts> 120 seconds), the Pdvalues are almost the same for
the different ts setups and are less than 5%. From (1), we
know that the roaming is successfully executed, when the following condition holds.
th,i + tl,i ≤ ts and th,i+ tl,i ≤ ta− tr,i
By considering the above condition, when ts≤ ta− tr,i,
the probability for successful roaming can be Pr[th,i +
tl,i ≤ ts]. This implies that the Pdvalue is only affected by
the tssetup, which reflects what we observe in Fig. 14 (a)
when ts ≤ 120 seconds (i.e., ts ≤ ta). On the other hand,
when ts> ta, the probability for successful roaming is
Pr[th,i+ tr,i ≤ ta− tr,i], which implies that the Pd value
is only affected by the ta setup. In our study, ta is set
as a fixed value 120 seconds. Thus, in Fig. 14 (a), when ts> 120 seconds, we observe that the Pd values are the
same for different tssetups.
As shown in Fig. 14 (b), as ts increases, the Cr cost
increases. With variousβ setups (from 1 to 2), we observe the same phenomena. To conclude, Pd is below 5% as
satisfy the QoS requirement and to lower the Cr network
cost, we may select ts= 120 seconds.
6. Conclusion
In this paper, we first examine the important issues for the in-tegration of heterogeneous wireless networks in B3G. Then we design and implement a Heterogeneous network Sup-port Node (HISN) network platform that accommodates the required functionalities for such an integration: proto-col conversion, session mobility, personal mobility, and ter-minal mobility. Our design is transparent to the bearer net-works, which may reduce the deployment cost for the HISN platform. Our design focuses on the application-level in-tegration in the sense that all HISN nodes form the edge access points bridging end users to the Internet, which is consistent with the design philosophy of wireless mesh networks.
Acknowledgments The authors would like to express their sincere appreciation to the anonymous reviewers whose comments have signif-icantly improved the quality of this paper.
References
1. World Wide Web Consortium (W3C). Extensible Markup Language (XML) 1.1. Technical Report (Feb. 2004).
2. 3GPP. Virtual Home Environment (VHE)/Open Service Access (OSA); Stage 2. Technical Report Technical Specification 3G TS 23.127 version 6.0.0 (2003-01) (2003).
3. P. Lin, Y.-B. Lin and I. Chlamtac, “Modeling frame synchronization for UMTS high-speed downlink packet access,” IEEE Transactions
on Vehicular Technology 52(1) (Jan. 2003) 132–134.
4. B. Thai, R. Wan, A. Seneviratne and T. Rakotoarivelo, “Integrated personal mobility architecture: a complete personal mobility so-lution,” ACM Mobile Networks and Applications 8(1) (Feb. 2003) 27–36.
5. R. Housley, W. Polk, W. Ford and D. Solo, “Internet X.509 public key infrastructure certificate and certificate revocation list (CRL) profile,” Technical Report RFC 3280, Internet Engineering Task Force (April 2002).
6. C.E. Perkins, IP Mobility Support for IPv4. “Technical report RFC 3344,” Internet Engineering Task Force (Aug. 2002).
7. J. Rosenberg, H. Schulzrinne, G. Camarillo, A. Johnston, J. Peter-son, R. Sparks, M. Handley and E. Schooler, “SIP: session initi-ation protocol. technical report RFC 3261,” Internet Engineering Task Force (June 2002).
8. World Wide Web Consortium (W3C). “Extensible hyperText markup language (xHTML) version 1.0.” Technical Report (Aug. 2002).
9. 3GPP. 3rd Generation Partnership Project; Technical Specification Group Services and Systems Aspects; General Packet Radio Ser-vice (GPRS); SerSer-vice Description; Stage 2. Technical Report Tech-nical Specification 3G TS 23.060 version 4.1.0 (2001-06) (2001). 10. World Wide Web Consortium (W3C). “Synchronized multimedia
integration language (SMIL 2.0),” Technical Report (Aug. 2001).
11. A.-M. Law and W.-D. Kelton, “Simulation modeling and analysis,” McGraw-Hill, 3rd Edition (2000).
12. B. Raman, R.H. Katz and A.D. Jose, “Universal inbox: providing extensible personal mobility and service mobility in an integrated communication network,” Proceedings of Workshop Mobile
Com-puting Systems and Applications (WMSCA’00) (Aug. 2000).
13. H.J. Wang, B. Raman, C.-N. Chuah, R. Biswas, R. Gummadi, H. Barbara, X. Hong, E. Kiciman, Z. Mao, J.S. Shih, L. Subramanian, B.Y. Zhao, A.D. Joseph and R.H. Katz, “ICEBERG: an internet-core network architecture for integrated communication,” IEEE
Personal Communications 7(4) (Aug. 2000) 10–19.
14. P. Maniatis, M. Roussopoulos, E. Swierk, K. Lai, G. Appenzeller, X. Zhao and M. Baker, “The mobile people architecture,” ACM
Mobile Computing and Communications Review 3(3) (July 1999)
36–42.
15. M. Roussopoulos, P. Maniatis and E. Swierk, “Person-level routing in the mobile people architecture,” Proceedings of the USENIX
Symposium on Internet Technologies and Systems (Oct. 1999).
16. Wireless WAN Medium Access Control (MAC) and Physical Layer (PHY) Specification: Higher Speed Physical Layer (PHY) Exten-sion in the 2.4 GHz Band. Technical Report, IEEE (1999). 17. World Wide Web Consortium (W3C) . XSL Transformations
(XSLT) Version 1.0. Technical Report (Nov. 1999).
18. ETSI SMG. User of Data Terminal Equipment-Data Circuit Ter-minating; Equipment (DTE-DCE) Interface for Short Message Ser-vice (SMS) and Cell Broadcast SerSer-vice (CBS) (GSM 07.05 version 5.3.0). Technical Report Recommendation GSM 07.05, ETSI/TC (1997).
19. J. Crowcroft and I. Wakeman, “Traffic analysis of some UK-US academic network data” Proceedings of INET’91 (June 1991). 20. J. Postel and J. Reynolds, “FILE TRANSFER PROTOCOL (FTP),”
Technical Report RFC 959, Internet Engineering Task Force (Oct. 1985).
21. The Ninja Project. http://ninja.cs.berkeley.edu/.
22. http://msdn.microsoft.com/library/default.asp?url=/library/en-us/wcesdkr/html/ wcesdk win32 getsysteminfo.asp. 23. http://www.bluetooth.com/.
24. http://www.irda.org/. 25. http://www.wapforum.org/.
Phone Lin (M’02-SM’06) received his BSC-SIE degree and Ph.D. degree from National Chiao Tung University, Taiwan, R.O.C. in 1996 and 2001, respectively. From August 2001 to July 2004, he was an Assistant Pro-fessor in Department of Computer Science and Information Engineering (CSIE), Na-tional Taiwan University, R.O.C. Since Au-gust 2004, he has been an Associate Profes-sor in Department of CSIE and Graduate In-stitute of Networking and Multimedia, National Taiwan University, R.O.C. His current research interests include personal communica-tions services, wireless Internet, and performance modeling. Dr. Lin is an Associate Editor for IEEE Transactions on Vehicular Tech-nology, a Guest Editor for IEEE Wireless Communications special issue on Mobility and Resource Management, and a Guest Editor for ACM/Springer MONET special issue on Wireless Broad Access. He is also an Associate Editorial Member for the WCMC Journal. P. Lin’s email and website addresses are [email protected] and http://www.csie.ntu.edu.tw/∼plin, respectively.
Huan-Ming Chang received the BSCSIE de-gree and Master CSIE dede-gree from National Taiwan University, R.O.C. in 2003 and 2005, respectively. His current research interest in-cludes wireless Internet. H.-M. Chang’s email address is [email protected].
Yuguang Fang received a Ph.D. degree in Systems and Control Engineering from Case Western Reserve University in January 1994, and a Ph.D. degree in Electrical Engineering from Boston University in May 1997. From June 1997 to July 1998, he was a Visiting As-sistant Professor in Department of Electrical Engineering at the University of Texas at Dal-las. From July 1998 to May 2000, he was an Assistant Professor in the Department of Elec-trical and Computer Engineering at New Jersey Institute of Technology. In May 2000, he joined the Department of Electrical and Computer Engineering at University of Florida where he got the early promo-tion to Associate Professor with tenure in August 2003 and to Full Professor in August 2005. He has published over 180 papers in
ref-ereed professional journals and conferences. He received the National Science Foundation Faculty Early Career Award in 2001 and the Of-fice of Naval Research Young Investigator Award in 2002. He is cur-rently serving as an Editor for many journals including IEEE Trans-actions on Communications, IEEE TransTrans-actions on Wireless Com-munications, IEEE Transactions on Mobile Computing, and ACM Wireless Networks. He is also actively participating in conference or-ganization such as the Program Vice-Chair for IEEE INFOCOM’2005, Program Co-Chair for the Global Internet and Next Generation Net-works Symposium in IEEE Globecom’2004 and the Program Vice Chair for 2000 IEEE Wireless Communications and Networking Conference (WCNC’2000).
Shin-Ming Cheng received the BSCSIE de-gree in 2000 from National Taiwan University, Taiwan, R.O.C., where he is currently working toward the Ph.D. degree in the Department of Computer Science and Information Engineer-ing, National Taiwan University. His current research interests include mobile computing, personal communications services, and wire-less Internet. S.-M. Cheng’s email and website addresses are [email protected] and http://www.pcs.csie.ntu.edu.tw/∼shimi, respectively.
