Using knowledge-based systems for research on parallelizing compilers

Using knowledge-based systems

for research on parallelizing

compilers

Chao-Tung Yang

1,∗,†

, Shian-Shyong Tseng

2

, Yun-Woei Fann

2

,

Ting-Ku Tsai

2

, Ming-Huei Hsieh

2

and Cheng-Tien Wu

2

1_{Ground System Section, National Space Program Office, 8F, No. 9 Prosperity 1st Road,}

Science-Based Industrial Park, Hsinchu, Taiwan 300, ROC

2_{Department of Computer & Information Science, National Chiao Tung University, Hsinchu,}

Taiwan 300, ROC

SUMMARY

The main function of parallelizing compilers is to analyze sequential programs, in particular the loop structure, to detect hidden parallelism and automatically restructure sequential programs into parallel subtasks that are executed on a multiprocessor. This article describes the design and implementation of an efficient parallelizing compiler to parallelize loops and achieve high speedup rates on multiprocessor systems. It is well known that the execution efficiency of a loop can be enhanced if the loop is executed in parallel or partially parallel, such as in a DOALL or DOACROSS loop. This article also reviews a practical parallel loop detector (PPD) that is implemented in our PFPC on finding the parallelism in loops. The PPD can extract the potential DOALL and DOACROSS loops in a program by verifying array subscripts. In addition, a new model by using knowledge-based approach is proposed to exploit more loop parallelisms in this paper. The knowledge-based approach integrates existing loop transformations and loop scheduling algorithms to make good use of their ability to extract loop parallelisms. Two rule-based systems, called the KPLT and IPLS, are then developed using repertory grid analysis and attribute-ordering tables respectively, to construct the knowledge bases. These systems can choose an appropriate transform and loop schedule, and then apply the resulting methods to perform loop parallelization and obtain a high speedup rate. For example, the IPLS system can choose an appropriate loop schedule for running on multiprocessor systems. Finally, a runtime technique based on the inspector/executor scheme is proposed in this article for finding available parallelism on loops. Our inspector can determine the wavefronts of a loop with any complex indirected array-indexing pattern by building a DEF-USE table. The inspector is fully parallel without any synchronization. Experimental results show that the new method can resolve any complex data dependence patterns where no previous research can. One of the ultimate goals is to construct a high-performance and portable FORTRAN parallelizing compiler on shared-memory

∗_{Correspondence to: Chao-Tung Yang, Ground System Section, National Space Program Office, 8F, No. 9 Prosperity 1st Road,} Science-Based Industrial Park, Hsinchu, Taiwan 300, ROC.

†_{E-mail: [email protected]}

Contract/grant sponsor: The National Council of the Republic of China; contract/grant number: NSC86-2213-E009-081 and NSC87-2213-E009-023

multiprocessors. We believe that our research may provide more insight into the development of a high-performance parallelizing compiler. Copyright2001 John Wiley & Sons, Ltd.

KEY WORDS: parallelizing compiler; knowledge-based system; loop parallelization; multithreaded OS; program restructuring

1. INTRODUCTION

The last decade has seen the coming of age of parallel computing. Many different classes of multiprocessor systems have been designed and implemented in industry and academia, for example IBM RP3, Cray T3D, NEC SX-3, CONVEX C4, CONVEX SPP, and IBM SP2. To achieve high speedup of such systems, it requires decomposition of tasks into several sub-tasks that can be executed on different processors in parallel. Unfortunately, it possesses several difficulties for users to write explicitly parallel programs. First, they had to rewrite their existing sequential programs into parallel programs. Second, most of the resulting explicitly parallel programs were not portable. Third, writing efficient parallel programs often required optimizations that need intimate knowledge of the machine’s architecture and the program’s access patterns, e.g. data distribution, prefecting, or blocking.

To address these difficulties, parallelizing compilers were developed to transform sequential programs into parallel ones [1–3]. Parallelizing compilers can be broken into two components: a component that identifies parallelism in a program, and a component that exploits this parallelism. The component that identifies parallelism attempts to determine what parts of a program can be run in parallel. The component that exploits parallelism determines which of these parallel parts should be run in parallel, as well as how to generate efficient codes for them. Therefore, design of an efficient parallelizing compiler is an important part of achieving maximum parallelism on multiprocessors. However, the generation processes of parallel object codes by parallelizing compilers are very difficult and complicated. Most investigations of parallelizing compilers still focus on source-to-source transformation, for example Parafrase-2 and Polaris developed at UIUC [2,4], ParaScope developed at Rice University [5], and SUIF developed at Stanford University [6].

In addition to the advance in computer architecture, some operating systems also support parallelism. Multithreading support seems to be the most obvious approach for helping programmers to take the advantage of parallelism by operating system. For example, Mach, OSF/1, Solaris, and Microsoft Windows NT are operating systems that support multithreading. These operating systems usually have packages for handling multithreads [7], e.g. the C Threads package in Mach and P Threads package in OSF/1. Although a multithreading operating system for a multiprocessor system can be powerful, it still needs good parallelizing compilers to help programmers exploit parallelism and gain performance benefit. So, we wanted to design and implement a portable parallelizing compiler for multithreading operating systems. Our compiler can generate parallel object codes for running on multiprocessor systems rather than being just a source-to-source restructurer [8,9].

This paper describes the design and implementation of an efficient parallelizing compiler to parallelize loops and achieve high acceleration rates on multiprocessor systems. In this paper we introduce how to design and implement a portable FORTRAN parallelizing compiler (PFPC) on a shared-memory multiprocessor machine running multithreading operating system OSF/1. Our compiler is highly modularized so that porting to other platforms will be very easy. Furthermore,

the compiler can partition parallel loops into multithreaded codes based on several DOALL loop-partitioning algorithms.

Then, this paper reports on the practical parallelism detector (PPD) that is implemented in PFPC at NCTU to concentrate on finding available the parallelism on loops [10]. The PPD is used on extracting the potential DOALL and DOACROSS loops in a program. Moreover, if DOACROSS loops are available, an optimization of synchronization statements was made.

In a shared-memory multiprocessor system, scheduling decisions can be made either statically at compile-time or dynamically at runtime. Static scheduling is usually applied to uniformly distributed iterations on processors. However, it has the drawback of load imbalance when the loop style is not uniformly distributed or the loop bounds cannot be known at compile-time. In contrast, dynamic scheduling is more suitable for load balancing; however, runtime overhead must be taken into consideration. Traditionally, the parallelizing compiler dispatches the loop by using only one scheduling algorithm, either static or dynamic.

To exploit more parallelism, a new model by using knowledge-based techniques is proposed in this paper [11]. The knowledge-based approach integrates existing loop transformations and loop scheduling algorithms to make good use of their ability to extract loop parallelisms. Two rule-based systems, called the KPLT (Knowledge-based Parallel Loop Transformation) and IPLS (Intelligent Parallel Loop Scheduling), are then developed using repertory grid analysis and attribute-ordering tables, respectively, to construct the knowledge bases. For instance, IPLS can choose an appropriate algorithm and then apply the resulting algorithm to assigning parallel loops on multiprocessor systems to achieve high speedup rates [12].

Finally, a runtime technique based on an inspector/executor scheme is proposed in this paper for finding available parallelism on loops. Our inspector can determine the wavefronts of a loop with any complex indirected array indexing pattern by building a DEF-USE table [13]. The inspector is fully parallel without any synchronization. Experimental results show that the speedup delivered by our compiler is high. Furthermore, for system maintenance and extensibility, our approach is obviously superior to others. As an ultimate goal, a high-performance and portable FORTRAN parallelizing compiler on shared-memory multiprocessors will be constructed.

2. THE MODEL OF PORTABLE FORTRAN PARALLELIZING COMPILER

2.1. An overview

Multithreading support may be the most obvious approach to help programmers take the advantage of parallelism by operating systems. Therefore, we propose a new model of parallelizing compiler for exploiting the potential power of multiprocessors and gaining performance benefit on multithreaded operating systems OSF/1 [7]. The portable FORTRAN parallelizing compiler (PFPC) intended to produce parallel object codes rather than just acting as a source-to-source restructurer is shown in Figure1[8,9].

First, a practical parallelism detector (PPD) is used to test the data dependences of array references and then restructure a sequential FORTRAN source program into a parallel form at compile-time [10], i.e. if a loop can be parallelized or partially parallelized, then PPD marks that loop with a DOALL loop or DOACROSS loop by comments. If the access patterns of some arrays cannot be

3!iqiVW _„B„s8 _„s${sj _s„sjj‚j$R8 *‚‚{B„ w__*D 3!iqiVWT BT] ]Bt%‚„‚„ wP1{D 7$tj‚TBT Zj$}j‚ qY„‚sIR q„stRjsB„ wR18D pW= ] ]B8}$j‚„ w{{D e-‚{ZsAj‚ ]BI‚R _ qY„‚sIR iZt$8‚ N$A„s„$‚R <‚sI‚„ 3$j‚R ] et%$„Bt8‚t 3!iqiVW et%$„Bt8‚t €Tq‚R €_N7 €_Nq _{_s„sjj‚j$9s$Bt}iZt$8‚

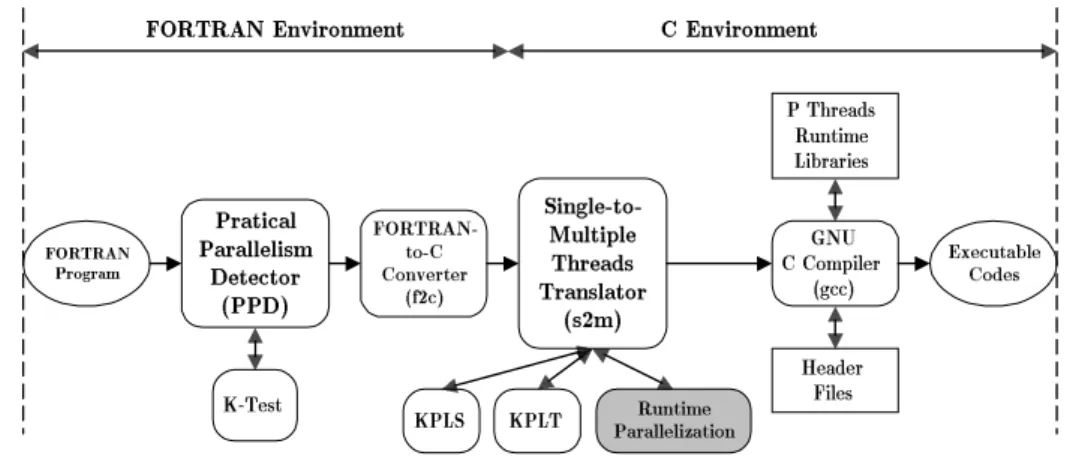

Figure 1. The PFPC model running on OSF/1.

determined at compile-time or have a non-constant dependence vector, then PPD marks those loops with a DOCONSIDER loop by comments. The flow of loop parallelization is shown in Figure 2. The PPD (practical parallelism detector) will analyze the loop’s array access patterns to find the data dependences of array references. As we know, if the information of data dependence is not available until the program is running, i.e. defy the static analysis, then PPD will mark it as a DOCONSIDER loop. If there is no dependence between statements in a loop, or these dependences are loop-independent dependences, different iterations can be executed in parallel on separate processors as DOALL loops. If dependence is occurring across different iterations, i.e. is a loop-carried dependence, it is called a DOACROSS loop. The iterations are executed either sequentially, or partially in parallel by means of enforced synchronization instructions within the bodies of the concurrent loops, and incur some runtime overhead. Otherwise, if the loop dependency patterns are too complex to analyze by current algorithms, for example, with non-linear array index expressions or with non-constant dependence distance, then we can also mark it as a DOCONSIDER loop.

Second, because OSF/1 has no FORTRAN compiler and because multithreading only supports C programming, a FORTRAN-to-C (f2c) converter is used to convert the FORTRAN program output by PPD into its C equivalent. Third, the single-to-multiple threads translator (s2m) takes the program obtained from f2c as input, and then generates the output in which the parallel loops (DOALL or DOACROSS) are translated into sub-tasks by replacing them with multithreaded codes. For runtime parallelization, the s2m will generate the inspector and executor codes for DOCONDISER loops at compile-time.

Finally, the resulting multithreaded program is then compiled and linked with the P Threads or C Threads runtime libraries by using the native C compiler, e.g. GNU C compiler. Then, the generated parallel object codes can be scheduled and executed in parallel on the multiprocessors to achieve high performance. Based upon this model, we implemented a FORTRAN parallelizing compiler to

Figure 2. The flow of loop parallelization.

help programmers take advantage of multithreaded parallelism on an AcerAltos 10000 multiprocessor system, running OSF/1.

2.2. PPD: a practical parallel loop detector

PPD (in Figure 3) takes the traditional FORTRAN 77 source program as input and yields the corresponding prompted parallel code. The framework of PPD is divided into two phases, analysis

phase and codegen phase. In analysis phase, a single-subscript testing algorithm, the I test, is used for

checking if the linear equation formed by the array subscript has an appropriate integer solution. Instead of linearizing the subscript of an array, we check it subscript-by-subscript since there is no certainty that either of them overrides the other in precision. The effect of the analysis phase is the determination of the execution modes of all loops. The execution mode of a loop may be one of the following three types: DOALL, DOACROSS, and DOSEQ, where the former two point out that a loop can be executed in a fully or partial parallel manner, respectively, and the last one is the normal sequential style. In the

Data dependence analysis Loop structure Linear system DDG Codegen DDG Loop structure Source code Parallel code

Figure 3. An overview of the analysis and codegen phases.

718 €‚„t‚j 8BIZj‚ 8BIZj‚]BtP$ *!VNN jBB} }s„$$Bt$t „BZ$t‚R *!]!W7y*ei jBB} }s„$$Bt$t „BZ$t‚R qY„‚sIT{BI‚ ‚t‚„s$t „BZ$t‚R *!V]i!77 jBB} }s„$$Bt$t „BZ$t‚R

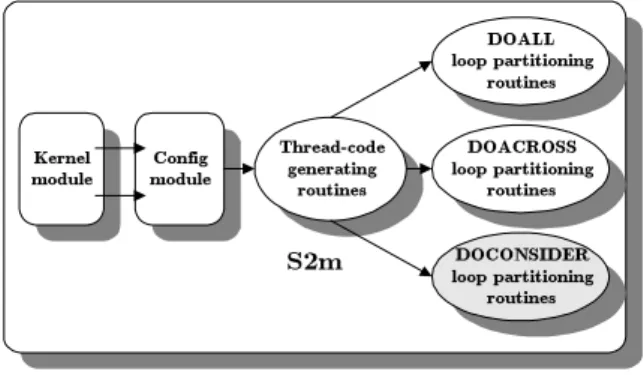

Figure 4. The structure of s2m.

codegen phase, the outcome of the analysis phase is used to produce the prompted parallel codes. The optimizations for synchronized statements of DOACROSS loops are also taken.

2.3. S2m: a single-to-multiple threads translator

The component, single-to-multiple threads translator (s2m), takes the program obtained from f2c as input, and then generates the output in which the parallel loops (DOALL or DOACROSS) are translated into sub-tasks by replacing them with multithreaded codes. The structure of the single-to-multiple threads translator (s2m) [8] consists of five modules as shown in Figure4. The kernel module is written so as to be portable; it calls functions in the thread-code generating module and calls functions in the DOALL loop-partition module. The thread-code generating module contains several functions that are used to generate different thread specific codes: P Threads or C Threads. The DOALL loop-partition and DOACROSS loop-partition modules contain routines that partition DOALL and DOACROSS loops, respectively. In this paper, we improve the power of s2m to partition and generate corresponding multithreaded codes for a DOACROSS loop. The config module is very small

main()

{

Variables declaration area ... /* /$DOALL$/???: */ for (i= .... ){ ... /* L???: */ } /* /$END DOALL$/ ???: */ ... }

Figure 5. The DOALL loop of input program to s2m.

and contains several arrays of functions. When the s2m kernel calls a function in thread-code generating DOALL loop-partition modules or DOACROSS loop-partition modules, there must be an entry in the config module pointing to that called function so that the s2m kernel can access the function through the config module. If users want to add their own thread-code generating routines, DOALL loop-partition routines, or DOACROSS loop-partition routines, they can append their own functions to these three modules and then append entries pointing to those functions in the config module. Therefore, a new version of s2m can be produced by simply compiling the config module and user functions directly, which can be ported to other platforms easily.

We will now explain how the s2m converts specific types of conventional sequential programs, i.e. DOALL loops, into their parallel equivalents with the P Thread runtime library codes embedded in them. The general form of a DOALL loop program for s2m is shown in Figure5. In this figure, there is one for-loop enclosed in “/* /$DOALL$/ L???: */” and “/* /$END DOALL$/ L???: */” comments; these two comments are used to indicate that the for-loop enclosed by them is a DOALL loop. The???here stands for the loop label used in the original FORTRAN program.

The output of the main program has the form shown in Figure 6 produced by s2m. There are six rectangles in this figure; each corresponds to a session that performs a specific job. The first session, thread-related definition, outputs thread-related definitions. Some variables for using the thread package are defined in this section. Theloopvariable is an array ofloop args, which is used to pass the begin iteration, end iteration, and the iteration step for each pthread created later on. The

ThCountvariable records the number of threads; this number is decreased by one when a thread is going to be terminated.

The second session is devoted to variables declaration. This session is originally in the main function of the input program (see Figure5); s2m removes the variable declaration from the main function to make them visible to the entire program. This eases the parameter passing problem when a thread forks since all the necessary variables are global! Note that when this approach is applied to functions other than the main function, the variables may need to be renamed to avoid conflicts.

Thread related definition Variables declaration area main()

{

Mutex & condition variable initialization ... Iterations calculation Fork threads Synchronization ... }

Figure 6. Main program of the general output produced by s2m.

The third session is mutex and condition variables initialization. This session initializes a mutex object and a condition variable with default attributes since we need these two variables when performing synchronization. The P Threads codes for this session are shown below.

pthread_mutex_init(&CountLock, pthread_mutexattr_default); pthread_cond_init(&ThCond, pthread_condattr_default);

The fourth, fifth, and sixth sessions are for DOALL loops only. The iterations calculation session, also called the loop partitioning session, partitions the DOALL loop according to the user-assigned loop-partitioning algorithms. The default loop partitioning algorithm is CSS/4, which divides the iterations into four chunks of equal size, but this can be changed with a command line option when s2m is invoked. At the end of this session, the variableThCountwill have the number of threads that need to be created later on. Start iteration, end iteration, and the iteration step for the ith thread is stored inloop[i].begin,loop[i].end, andloop[i].step, respectively. This pre-calculation of tasks for each thread eliminates the need for synchronization of loop indices in several loop scheduling algorithms. This makes our approach faster. The fifth session is just to fork threads. The default number of threads to be created is four; however, this number can be changed with a command line option when s2m is invoked. Usually, this session contains a for-loop that performs threads creation. The sixth session uses previously initialized mutex objects and condition variables for synchronization purposes. It waits for the thread count (ThCountvariable) to reach zero (the threads created for a particular parallel loop have all been finished) and then continues execution. The thread count is initially the number of threads created, and is decreased by one before each thread is terminated. This synchronization is necessary for ensuring the correctness of program execution. The P Threads codes for this session may look like this:

pthread_mutex_lock(&CountLock); while(ThCount != 0)

void DOALL??(loop) struct loop args *loop;

{

int i;

for (i=loop->begin; i<=loop->end; i++){ ...

}

Decrease the thread count by 1

}

Figure 7. The DOALL function definition for an output thread produced by s2m.

pthread_cond_wait(&ThCond, &CountLock); pthread_mutex_unlock(&CountLock)

Figure7is the function definition of a DOALL loop for a thread. This function definition is mainly the corresponding for-loop with minor change. First, the loop is executed fromloop->begin to

loop->end; these two variables are calculated in the iteration calculation session. Second, the thread count (ThCountvariable) is decreased by one before the thread is terminated. We use mutex objects to ensure mutex exclusion, and then decrease the thread count by one. The P Threads codes for this session are shown as follows:

pthread_mutex_lock(&CountLock); ThCount--;

pthread_mutex_unlock(&CountLock); pthread_cond_signal(&ThCond);

3. MAIN RESULTS

3.1. Using knowledge-based techniques on loop parallelization

It is well known that knowledge system is a system that depends on a vast base of knowledge to perform difficult tasks. The knowledge is saved in a knowledge base separately from the inference component. This makes it convenient to append new knowledge or update existing knowledge easily. The rule-based approach is one of the commonly used forms in many knowledge-rule-based systems. The primary difficulty in building a knowledge base is how to acquire the desired knowledge. To ease acquisition of knowledge, one primary technique among them is Repertory Grid Analysis (RGA). RGA is easy to use, but it suffers from the problem of missing embedded meanings. For example, when a doctor says that the features of catching a cold are headache, cough and sneezing, he may have those features. However, in RGA, a person is not considered to catch a cold except that he gets all of the features. To overcome the problem, the concept of the Attribute Ordering Table (AOT) is employed to elicit

K n o w l e d g e base including facts and rules

Algorithm libraries Inference c o m p o n e n t by using C L I P S D a t a d e p e n d e n c e Tests L o o p scheduling L o o p transformation Input data Output data

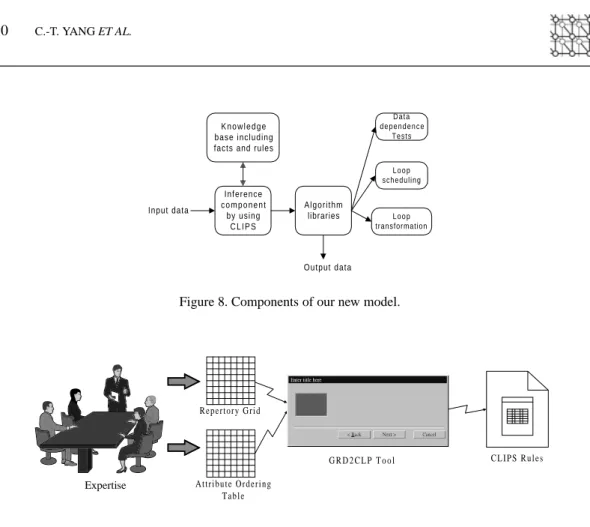

Figure 8. Components of our new model.

Æïõæó õêõíæ éæóæ Äâïäæí ½ Ãâäì Ïæùõ ¿ Repertory Grid Attribute Ordering T a b l e G R D 2 C L P T o o l C L I P S R u l e s Expertise

Figure 9. The process of generating a knowledge base.

embedded meanings by recording the importance of each. A knowledge-based system is composed of two parts: the development environment and the runtime environment. The former is used to build the knowledge base, while the latter is used to solve the problem. In this paper, the development environment is not discussed here. The runtime environment contains three components, which are briefly described as follows (see Figure8):

1. Knowledge base. This component contains knowledge required for solving the problem of determining an appropriate test, scheduling, or transformation to be applied. The knowledge can be organized in many different schemes, and can be encoded into many different forms. Therefore, there exist many choices of building the knowledge base. In our implementation, the knowledge base is constructed as a rule base, i.e. the knowledge is expressed in the form of production rules. These rules can be coded by hand or generated by a translator. In our system, the latter method is used. A translator, GRD2CLP, translates the repertory grid and attribute ordering table to CLIPS’s production rules. This approach has great flexibility as we can add new scheduling algorithms to the repertory grid and attribute ordering table, and then use GRD2CLP to convert the tables into CLIPS rules. The process of generating a knowledge base is shown in Figure9.

Table I. The repertory grid and the attribute ordering table.

S1 S2 S3 S4

A1 1, 5, 6/D X/X 3/D 2, 4/D A2 YES/D X/X YES/D X/X

A3 X/X NO/2 NO/D X/X

2. Inference engine. The inference engine is the interpreter of the knowledge stored in the knowledge base. It examines the contents of the knowledge base and the data including the system characteristics and the loop attributes provided by machine architecture and programmers to derive a conclusion, an appropriate parallel loop-scheduling algorithm. The inference engine attempts to find connections between the input attributes stated in the algorithm library (3) and the selected loop-scheduling algorithm according to RGA and AOT. An example of applying RGA/AOT is shown in TableI. ‘X’ means that the attribute has no relation with the scheduling algorithm. ‘D’ means that the attribute dominates the scheduling algorithm, i.e. if the attribute is not equal to the entry value, it is impossible for the scheduling algorithm to be implied. For those entries that are not labeled ‘X’ or ‘D’, integer numbers are used to represent the relative degree of importance for the attribute, which does not dominate the object but is of some degree of importance relative to other attributes, a larger number indicating the attribute being of greater importance to the object. According to the table, four rules can be generated. As we observe, [A1, S1] = 1, 5, 6, [A2, S1] = YES, [A3, S1] = X; hence the resulting rule will be generated.

RULE: If (A1 is in 1, 5, 6) and (A2 = YES) Then Choose S1

3. Algorithm library. The library collects several representative transformations and schedules, either proposed by others or designed by ourselves. The question is about how these transformations and schedules are chosen in the development environment, so here we assume that it has been built. For example, we have included eight scheduling algorithms in the library for loop scheduling, that are static scheduling, SS, CSS, GSS, Factoring, TSS, AFS (MAFS, DAFS), and LDS. This is another advantage of using knowledge-based system; we can easily modify the rules and add any new scheduling strategy.

3.2. IPLS: an intelligent parallel loop scheduling

In PFPC, we propose a system as shown in Figure 10, called intelligent parallel loop scheduling (IPLS), by using knowledge-based techniques to select an appropriate loop-scheduling algorithm. The approach will make good use of the advantages of the algorithms for loop parallelism. By the resulting algorithms for assigning a parallel loop on multiprocessor systems, it is believed that the applications can save execution time and achieve high speedup. The runtime environment of IPLS contains two more components, which are briefly described as follows:

1. Profile information. After the program applying the selected loop scheduling algorithm is executed, some information about number of iterations, maximal time of iteration, minimal

3URILOH ,QIRUPDWLRQ 5HILQLQJ 6\VWHP ,QIHUHQFH (QJLQH .QRZOHGJH %DVH /RRS DQG 6\VWHP

3DUDPHWHUV 3UHSURFHVVLQJ 6FKHGXOLQJ6HOHFWHG

,3/6

Figure 10. The system architecture of IPLS.

time of iteration, total time of program, number of synchronization, number of remote memory accesses, and the workload distribution of each processor will be recorded and saved in a profile file. The profile file will be referred to modify the attributes by a refining system.

2. Refining system. When a program is embedded with some parallel loop scheduling algorithm, we can refine some attributes, such as the values of factors in the loop-scheduling algorithm by using the profile information derived from the record of the executing process of the program. Refining the procedure in order to get ideal values will modify the factors, hence making the parallelism of program higher and improving the performance.

TablesIIandIIIshow the relationships between 17 attributes and parallel loop scheduling algorithms in UMA and NUMA models, respectively. Also, Table II is further categorized into DOALL and DOACROSS loops. The features mentioned above are the attributes upon which we constructed our attribute grid. ‘Machine model’ is classified into UMA and NUMA. ‘Memory access ratio’ means the speed ratio of cache, memory, and network. ‘CPU number’ denotes the system size, which can be classified into three levels: small, medium, or large. ‘Loop style’ includes four kinds of loop: U(uniform), I(increasing), D(decreasing), and R(random). ‘Program size’ shows the appropriate scale that algorithms fit. ‘Data locality’ determines if loop data behavior has affinity or not. ‘Loop boundary’ determines if it must be known at compile time. ‘Loop level’ determines if a nested loop is profitable to algorithms. ‘Loop carried dependence’ is classified into DOALL and DOACROSS. ‘Ease’ indicates whether the implementation of the algorithm is easy. ‘Factor’ means the variables, which can dynamically influence the performance due to loop information and system states. The overheads of synchronization, communication, and thread management are roughly classified into four levels: none, light, normal, or heavy. ‘Start time’ determines whether or not all the processor starting times need to be equal.

In many parallel loop-scheduling algorithms, there are some attributes, such as factors, which influence the performance of the executing program. For example, the adaptive hybrid scheduling algorithm has two factor,β and γ , instructing the fetching processor whether or not to fetch more

Table II. The attributive table for UMA models. UMA model

DOALL

DOACROSS

Static SS CSS GSS TSS Factoring AHS SSS Enhanced CSS

UMA/NUMA UMA UMA UMA UMA UMA UMA UMA/NUMA UMA/NUMA UMA

No. of processors X X X X X X X X X

Memory access rate 1:10:200 1:10:200 1:10:100 1:10:200 1:10:200 1:10:200 1:10:200 1:10:200 1:10:200

Loop style U, D, I X U, R U, I, R X X X X U

Program size X X Large X X Large X X Large

Loop type 1–10 X 1–2, 5–7, 9–10 2–3, 7–8 1, 3–4, 7, 11 3–4, 7–8 X 1–3, 5–11 1, 6–7

Data locality X No No No No No Yes Yes X

Loop boundary Yes X No X X X Yes Yes X

LCD DOALL DOALL DOALL/(0,1) DOALL DOALL DOALL DOALL DOALL Doacross (>1)

Ease X X X No X No No No No

Factor — — k — NS,NF x = 2 β, γ α, k K

Thread overhead l, n h l, n h n n n, h n, h l, n

Comm. overhead X l l l l, n l l, n 1, n l

Sync. overhead X 1 2, 3, 4 2 3, 4 3, 4 4, 5 4, 5 3, 4, 5

Start time Yes X Yes X X X Yes X Yes

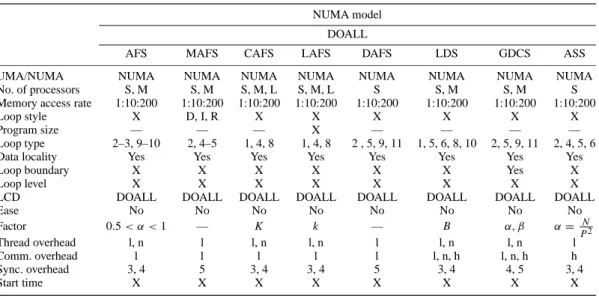

Table III. The attributive table for NUMA models. NUMA model

DOALL

AFS MAFS CAFS LAFS DAFS LDS GDCS ASS

UMA/NUMA NUMA NUMA NUMA NUMA NUMA NUMA NUMA NUMA

No. of processors S, M S, M S, M, L S, M, L S S, M S, M S

Memory access rate 1:10:200 1:10:200 1:10:200 1:10:200 1:10:200 1:10:200 1:10:200 1:10:200

Loop style X D, I, R X X X X X X

Program size — — — X — — — —

Loop type 2–3, 9–10 2, 4–5 1, 4, 8 1, 4, 8 2 , 5, 9, 11 1, 5, 6, 8, 10 2, 5, 9, 11 2, 4, 5, 6

Data locality Yes Yes Yes Yes Yes Yes Yes Yes

Loop boundary X X X X X X Yes X

Loop level X X X X X X X X

LCD DOALL DOALL DOALL DOALL DOALL DOALL DOALL DOALL

Ease No No No No No No No No Factor 0.5 < α < 1 — K k — B α, β α =_PN₂ Thread overhead l, n l l, n l, n l l, n l, n l Comm. overhead l l l l l l, n, h l, n, h h Sync. overhead 3, 4 5 3, 4 3, 4 5 3, 4 4, 5 3, 4 Start time X X X X X X X X

iterations the work queue in the dynamic level after executing the iterations coming from the static level. These two factors,β and γ , should be adjusted by the programmers according to the properties of parallel computers. However, deciding how to select the values ofβ and γ appropriately on different systems is difficult. If we can refine the values of the factors in the loop-scheduling algorithm by using the profile information derived from the record of the executing process of the program, it is obvious that the new factors cyclically modified by the refining procedure will make the parallelism of the program more clear and the performance better. Note also that this method has feedback-learning ability and is intelligent. In the paper, a refining system based upon the profile information consisting of the following seven items will be included into our model:

• number of iterations; • maximal time of iteration; • minimal time of iteration; • total time of program; • number of synchronizations; • number of remote memory access; • workload distribution of each processor.

How to refine attributes and not to modify rules in the knowledge base is a problem, which is solved in our refining system by storing attribute data into a file called Attri file and using the data type of the structure (record) as a condition test of the antecedent of the If statement in the rules. When a loop is executed and profile information is generated, the refining system will input profile information to modify the attributes in Attri file; therefore, the rules in the knowledge base do not need to be changed and the inference engine does not need to be recompiled.

There are several situations for which the refining system is suggested. First, when IPLS is constructed completely, maybe the attributes in the knowledge base are so crude that an optimal loop-scheduling algorithm to transform a sequential program into an efficient multithread program cannot be selected. Second, when IPLS is ported on a new environment, some attributes about system states, such as memory access rate, need to be changed to influence the selection of scheduling method. In addition, perhaps an appropriate loop-scheduling algorithm is selected by the inference engine, but bad values of factors in the algorithm, such as chunk size in CSS, will result in a larger execution time. The factors must be refined to reduce the considerable wasted execution time if the executable code is to be executed repeatedly. It seems that the overhead from refining the attributes can be neglected because of its advantage. After all, to increase the accuracy is to increase efficiency. The flow chart of the refining system is shown in Figure11. The programmer can determine whether to use the refining system before deriving an ideal loop-scheduling algorithm for the program or not. When using the refining system, the programmer can also decide the number of loop-scheduling algorithms selected by the inference engine.

3.3. Run-time parallelization

The method of parallelizing our general inspector is to partition the entire range of iterations into consecutive segments, after which each segment is assigned to a different thread. Each thread produces a valid parallel schedule for iterations in its segment and ignores any dependence with other iterations outside its segment. After all segments have finished, we have a schedule for each segment. Every

5XQ  DSSOLFDWRQV DSSO\LQJ GLIIHUHQW DOJRULWKPV 3URGXFH SURILOH 0RGLI\ WKH DWWULEXWHV LQ NQRZOHGJH EDVH <HV 1R 6FKHGXOLQJ PHWKRG VHOHFWHG $QDO\]H SURILOH LQIRUPDWLRQ 5HILQH WKH 6\VWHP" ,QIHUHQFH (QJLQH VHOHFWV  DGHTXDWH VFKHGXOLQJ PHWKRGV LQ OLEUDU\

Figure 11. Flow chart of refining system.

such schedule, called a sub-schedule, is a mapping from the iterations in the corresponding segment to the wavefronts of that segment. The overall schedule is formed by concatenating the sub-schedules according to the order of the segments in the entire range of iterations. The number of segments can be set appropriately, and intuitively we will set the number of processors to this number. However, if the number of segments is larger, then it will increase the total number of wavefronts (i.e. depth) in the overall schedule. A larger number of wavefronts implies that there are fewer iterations in each wavefront, and then it will decrease the speedup of the runtime parallelization.

The executor performs the overall schedule extracted by the general parallel inspector. As a rule of thumb, the executor performs the sub-schedule of each segment in order, i.e. visits the first wavefront from first to last in a segment, then similarly for the next segment’s first wavefront, and continues until the last wavefront of the last segment has been visited. Every wavefront is sequentially executed, and, ideally, all iterations in the same wavefront are executed concurrently. In practice, iterations in the same wavefront are partitioned into equal-sized chunks and every chunk is enclosed in one thread. The number of threads is automatically adapted according to the number of iterations in each wavefront by

Table IV. Theauto-adaptedmapping function.

Number of iterations 1 2 ∼8 ∼16 ∼32 ∼64 ∼128 ∼

Number of threads 1 2 3 4 5 6 8 12

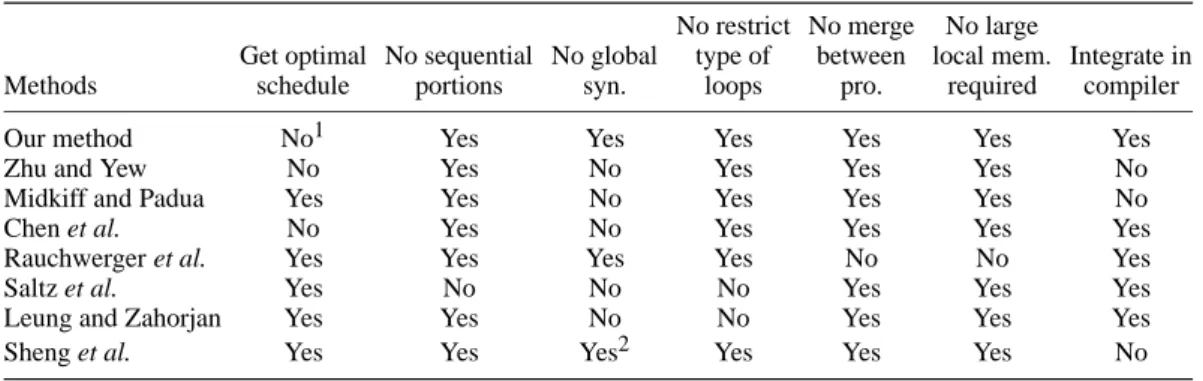

Table V. Comparison of the characteristics of several methods. The superscripts have the following meanings: 1. Our parallel inspector perhaps cannot get an optimal schedule. 2. Thebit-vectoratomic operation must be applied to avoid the use of global synchronization. Since most of parallel machines do not provide this operation,

the performance of this runtime method is degraded.

No restrict No merge No large

Get optimal No sequential No global type of between local mem. Integrate in Methods schedule portions syn. loops pro. required compiler

Our method No1 Yes Yes Yes Yes Yes Yes

Zhu and Yew No Yes No Yes Yes Yes No

Midkiff and Padua Yes Yes No Yes Yes Yes No

Chen et al. No Yes No Yes Yes Yes Yes

Rauchwerger et al. Yes Yes Yes Yes No No Yes

Saltz et al. Yes No No No Yes Yes Yes

Leung and Zahorjan Yes Yes No No Yes Yes Yes

Sheng et al. Yes Yes Yes2 Yes Yes Yes No

calling functionauto-adapted, and then the threads scheduled by the OSF/1 operating system can be executed in parallel manner.

Now, we will explain why the auto-adaptedfunction is used in the executor phase. In the inspector phase, the number of iterations in each wavefront will vary according to the distribution of data dependence in a loop. Therefore not all wavefronts will have great quantities of iterations to obtain good parallelism. In practice, if the executor engages large numbers of threads for a wavefront which has fewer iterations, then it will incur additional runtime overheads or even let the iterations execute in a sequential manner (when number of threads> number of iterations in wavefront). Conversely, if the executor engages fewer threads for a wavefront which has more iterations, then we cannot obtain the deserved parallelism.

For the sake of efficiency, we propose a strategy to solve the above problems, to get a tailored number of threads for each wavefront; threads are dynamically engaged to a wavefront according to the number of iterations in it. The auto-adaptedfunction is a mapping function that maps the number of iterations in a wavefront to number of threads. For example, theauto-adaptedfunction for our system (four processors) is shown in TableIV. It should be noted that this mapping function would be modified according to the system environment.

We will now compare the methods described in this paper with several other techniques that have been proposed to analyze and schedule DO loops at runtime. Most of this work has concentrated on developing inspectors. A high level comparison of the various methods is given in Table V. Since the process of the inspector used to find the wavefronts can be parallelized fully without any synchronization, our executor can execute the loop iterations concurrently.

4. EXPERIMENTAL RESULTS

4.1. Performance of PPD

To evaluate the performance of PPD for PFPC, experiments were performed using both practical and contrived data. The practical data included two numerical packages, LINPACK and EISPACK, while the contrived data included several examples that appeared in other papers. Another program parallelization restructurer, Parafrase-2, was also applied to the same testing data, and the results compared with those from our design. LINPACK and EISPACK are two well-known numerical packages. LINPACK is a collection of FORTRAN subroutines that analyze and solve various systems of simultaneous linear algebraic equations, while EISPACK is a collection of subroutines for evaluating the eigenvalues of matrices. Because of their systemization and representatives, the packages have been widely adopted as benchmark programs [1]. There is total of 256 DO loops distributed across the 52 subroutines in LINPACK. PPD was able to exploit 51 DOALL loops and 0 DOACROSS loops, as was Parafrase-2. In the experiments using LINPACK, we have examined all the DOALL loops detecting by PPD and Parefrase-2 carefully. PPD was able to exploit the same 51 DOALL loops as Parafrase-2 was. Because there is no DO loop that can be translated into DOACROSS loop by using our algorithm in the experiments of LINPACK, we show the other experiments for demonstrating the DOACROSS loops detected by using PPD.

There are a total of 657 DO loops distributed across the 77 subroutines in EISPACK. PPD was able to exploit 185 DOALL loops and 7 DOACROSS loops, while Parafrase-2 was able to exploit only the 185 DOALL loops. If there is a constant dependence distance in the loop, PPD will record the information for generating the synchronization statements, and translate that loop into a DOACROSS loop during the codegen phase. In our version, Parafrase-2 cannot detect the DOACROSS loops, so PPD was able to exploit 7 DOACROSS loops in the experiments using EISPACK, while Parafrase-2 was not. Comparative results are shown in Table VI. PPD translated the loops into DOALL or DOACROSS loops conservatively, so it is not possible that PPD mistakenly marks non-DOALL loops as DOALL or non-DOACROSS loops as DOACROSS.

The practical data, as shown in Figure 12(a), is a program segment that computes the transitive closure of an adjacency matrix. Only loop Kcould be transformed into a DOALL loop by PPD, as shown in Figure12(b), while loopsJandK are both transformed into DOALL loops by Parafrase-2, as shown in Figure12(c), but parallelizing loopJseems wrong. We expose the mistake as follows. Suppose that the iteration vector of the accessesA(I, K)is(J, I, K), and the one of the accessA(J,

K)is(J0, I0, K0). If loopJis a DOALL loop, then we cannot ensure the execution order between, say

(J, I, K) = (2, 3, 4) and (J0_{, I}0_{, K}0_{) = (3, 2, 4), with the result that the anti-dependence at memory}

Table VI. The comparative result using EISPACK.

LINPACK Parafrase-2 PPD PPD LINPACK Parafrase-2 PPD PPD subroutines no. of no. of no. of subroutines no. of no. of no. of

list DOALL DOALL DOACR list DOALL DOALL DOACR

bakvec.f 2 2 1 balanc.f 5 5 0 balbak.f 1 1 0 bandr.f 8 8 0 bandv.f 3 3 0 bisect.f 1 1 0 bqr.f 5 5 0 cbabk2.f 1 1 0 cbal.f 5 5 0 cdiv.f 0 0 0 cg.f 0 0 0 ch.f 2 2 0 cinvit.f 5 5 0 combak.f 1 1 0 comhes.f 2 2 0 comlr2.f 12 12 0 comlr.f 4 4 0 comqr2.f 9 9 0 comqr.f 2 2 0 cortb.f 2 2 0 corth.f 2 2 0 csroot.f 0 0 0 elmbak.f 1 1 0 elmhes.f 2 2 0 eltran.f 4 4 0 epslon.f 0 0 0 figi2.f 1 1 0 figi.f 0 0 0 foo.f 1 1 0 hqr2.f 6 6 0 hqr.f 2 2 0 htrib3.f 3 3 0 htribk.f 3 3 0 htrid3.f 0 0 0 htridi.f 3 3 0 imtql1.f 0 0 1 imtql2.f 0 0 1 imtqlv.f 1 1 0 intvit.f 6 6 0 minfit.f 10 10 0 ortbak.f 2 2 0 orthes.f 2 2 0 ortran.f 4 4 0 otqlrat.f 2 2 1 pythag.f 0 0 0 qzhes.f 5 5 0 qzit.f 0 0 0 qzval.f 0 0 0 qzvec.f 2 2 0 ratqr.f 3 3 0 rebak.f 0 0 0 rebakb.f 0 0 0 reduc2.f 0 0 0 reduc.f 0 0 0 rg.f 0 0 0 rgg.f 0 0 0 rs.f 0 0 0 rsb.f 0 0 0 rsg.f 0 0 0 rsgab.f 0 0 0 rsgba.f 0 0 0 rsm.f 0 0 0 rsp.f 2 2 0 rst.f 2 2 0 rt.f 0 0 0 svd.f 14 14 0 tinvit.f 5 5 0 tql1.f 1 1 1 tql2.f 1 1 1 tqlrat.f 2 2 1 trbak1.f 1 1 0 trbak3.f 0 0 0 tred1.f 5 5 0 tred2.f 9 9 0 tred3.f 1 1 0 tridib.f 1 1 0 tsturm.f 6 6 0

DO 10 J=1, 1000 DO 20 I=1, 1000

IF (A(J, I) .EQ. .TRUE.) THEN DO 30 K=1, 1000

IF (A(I, K) .EQ. .TRUE.) THEN A(J, K)= .TRUE. END IF 30 CONTINUE END IF 20 CONTINUE 10 CONTINUE (a) DO 10 J=1, 1000 CDOALL 10 J=1, 1000 DO 20 I=1, 1000 DO 20 I=1, 1000

IF (A(J, I) .EQ. .TRUE.) THEN IF (A(J,I) .EQ. .TRUE.) THEN

C DOALL 30 K=1, 1000 CDOALL 30 K=1, 1000

DO 30 K=1, 1000 IF (A(I,K) .EQ. .TRUE.) THEN

IF (A(I, K) .EQ. .TRUE.) THEN A(J,K)= .TRUE.

A(J, K)= .TRUE. END IF

END IF 30 CONTINUE 30 CONTINUE END IF C ENDALL 30 20 CONTINUE END IF 10 CONTINUE 20 CONTINUE 10 CONTINUE (b) (c)

Figure 12. The transitive closure program.

4.2. Performance of IPLS

To demonstrate the performances of IPLS, there are two experimentations, on the UMA and NUMA systems, the first one concerning each execution time and speedup of 11 applications, and the other being a combined program, including 10 applications. Under the implementation on the UMA system, which is a 2-processor machine, the execution time and the corresponding speedup are shown in TableVII.

GSS performs poorly for Adjoint Convolution because the workload of iterations is decreasing, and TSS is the most efficient algorithm for Adjoint Convolution. CSS/2 is suitable for applications like Gaussian–Jordan elimination with random unbalanced workload, LU Decomposition with decreasing unbalanced workload, and SOR with uniform balanced workload, respectively. The factoring scheduling algorithm is suitable for Gaussian elimination with random balanced workload. SSS is suitable for applications like Reverse Adjoint Convolution with increasing unbalanced workload, All Pairs Shortest Paths with random balanced workload, and Transitive Closure with random unbalanced workload, respectively. AHS is suitable for Jacobi Iteration with random unbalanced workload. We find that none of the six scheduling algorithms on the UMA system is suitable for all applications.

Table VII. The execution time (ms)/speedup of 11 applications applying different scheduling algorithms.

Applications SERIAL CSS/2 GSS TSS Factoring SSS AHS IPLS

Adj Con 20104/1 15042/1.337 15055/1.335 10398/1.933 13974/1.439 12359/1.627 12352/1.628 as TSS Gauss Eli 365359/1 256945/1.422 197157/1.853 202922/1.8 195016/1.873 208055/1.756 196852/1.856 as Factoring Gauss Jor 7765/1 4245/1.829 5587/1.39 5599/1.387 5266/1.475 4333/1.792 4391/1.768 as CSS/2 Jacobi Iter 14047/1 10109/1.39 12836/1.094 12656/1.11 13125/1.07 9802/1.433 9758/1.44 as AHS LU 40995/1 28094/1.459 33521/1.223 34356/1.193 33071/1.24 28505/1.438 28432/1.442 as CSS/2 Matrix Mul 23453/1 12281/1.91 12095/1.939 12229/1.918 12214/1.92 12187/1.924 12203/1.922 as CSS/2 Radj Con 27235/1 21274/1.28 14719/1.85 15587/1.747 15255/1.785 14336/1.9 15477/1.76 as SSS SOR 109062/1 76891/1.418 82594/1.32 83943/1.299 86742/1.257 77376/1.41 77680/1.404 as CSS/2 Spath 63063/1 57032/1.106 58867/1.071 43146/1.462 61547/1.025 38126/1.654 38797/1.625 as SSS Tran Clos 479188/1 298312/1.606 308844/1.552 325430/1.472 310469/1.543 295922/1.619 296078/1.618 as SSS If Then 17125/1 9682/1.769 9693/1.767 8595/1.992 8667/1.976 8656/1.978 8620/1.987 as AHS

Table VIII. The execution time (ms)/speedup of the combined program for different scheduling algorithms.

Applications Serial CSS/2 GSS TSS Factoring SSS AHS IPLS

All 1167396/1 789907/1.477 750968/1.554 754511/1.547 755346/1.545 709657/1.645 700640/1.666 693687/1.683

Alternatively, IPLS can choose an appropriate scheduling algorithm and get good performance for most applications except for Matrix Multiplication and the If Then application. In the case of Matrix Multiplication, IPLS does not apply the optimal approach, GSS, but chooses CSS/2, because the workload of iterations in this program is uniform, whereas the number of processors, two, is so small that CSS cannot exploit the ability fully. In the case of the If Then application, IPLS does not apply the optimal approach, TSS, but chooses AHS, because AHS is suitable for a random workload of iterations in the program. The reason for not selecting an optimal approach is like the case for Matrix Multiplication. Although the selection of scheduling algorithms is not absolutely accurate, we can solve the problem by refining the attributes causing the error. A refining system in IPLS will be used afterwards. Traditionally, once a scheduling algorithm is used, it will be used through the entire program, but in IPLS it can always choose an appropriate scheduling algorithm according to the behaviors of the loops among one program. As the second experiment, IPLS chooses different scheduling algorithms for each loop in the combined program integrated from the above 11 applications. For example, according to the loop behaviors, IPLS selects TSS for the Adjoint Convolution part of the combined program and factoring for the Gauss Elimination part, instead of only one scheduling method. TableVIIIshows the experimental execution time and the corresponding speedup for the combined program.

4.3. Performance of PFPC on Windows NT

Finally, we demonstrate the performance of PFPC, ten examples are used for DOALL loop parallelization of s2m. Figures13–15show the speedups of adjoint convolution, Gaussian elimination, matrix multiplication, reverse adjoint convolution, transitive closure, SOR, Jacobi iteration, Gaussian– Jordan elimination, LU decomposition, and all pairs shortest paths by using different program size

+d,

+e,

+g,

+f,

Dgmrlqw Frqyroxwlrq 3 315 317 319 31;4 415 417 419 41;5 Q@83 Q@433 Q@483 Orrs Vl}h Vs hh gxs Vhuldo Sdudooho Pdwul{ Pxowlsolfdwlrq 3 315 317 319 31;4 415 417 419 41;5 Q@483 Q@633 Q@933 Orrs Vl}h Vs hhg xs Vhuldo Sdudooho Uhyhuvh Dgmrlqw Frqyroxwlrq 3 315 317 319 31;4 415 417 419 41;5 Q@83 Q@433 Q@483 Orrs Vl}h Vs hh gxs Vhuldo Sdudooho Jdxvvldq Holplqdwlrq 3 315 317 319 31;4 415 417 419 41;5 Q@483 Q@633 Q@933 Orrs Vl}h Vs hhg xs Vhuldo Sdudooho

Figure 13. Part I: partial results of DOALL examples.

loops. In the experiments, CSS is used to partition every example and obtain their corresponding performances. Obviously, speedup of parallel version is always higher than for the serial version. So, the s2m translator used in Windows NT can perform high speedup on multiprocessor systems. In particular, for the loop with uniform workload, such as matrix multiplication shown in Figure13(c), it can achieve higher speedup, since the CSS is suitable for the uniform workload loop.

We examine the characteristics of adjoint convolution and reverse adjoint convolution. In Figure 16(a), because adjoint convolution is with decreasing workload, we distribute 1/3 of all workload to the first thread and 2/3 of workload to the second thread. As a result of balanced workload the speedup is increased. Moreover, in Figure 16(b), because reverse adjoint convolution is with increasing workload, we distribute 2/3 of all workload to the first thread and 1/3 of workload to the second thread, and as a result of balanced workload, the speedup is increased. Furthermore, for a loop of increasing workload, GSS can distribute workload more evenly, so its speedup is raised again.

In order to compare the performances of different loop partition algorithms, we examine five representative applications. Figure17shows the speedup when applications were run with different loop-partitioning algorithms and arguments. For adjoint convolution and reverse adjoint convolution, Factoring obtains the highest performance. For matrix multiplication and transitive closure, CSS/2 obtains the highest performance. For Gaussian elimination, TSS obtains the highest speedup.

+h,

+i,

+j,

+k,

Wudqvlwlyh Forvxuh 3 315 317 319 31;4 415 417 419 41;5 Q@633 Q@833 Q@933 Orrs Vl}h Vsh hgxs Vhuldo Sdudooho VRU 3 315 317 319 31;4 415 417 419 41;5 Q@483 Q@633 Q@933 Orrs Vl}h Vsh hgxs Vhuldo Sdudooho Mdfrel Lwhudwlrq 3 315 317 319 31;4 415 417 419 41;5 Q@633 Q@833 Q@933 Orrs Vl}h Vsh hg xs Vhuldo Sdudooho Jdxvv0Mrugdq Holplqdwlrq 3 315 317 319 31;4 415 417 419 41;5 Q@483 Q@633 Q@933 Orrs Vl}h Vshh gx s Vhuldo Sdudooho

Figure 14. Part II: partial results of DOALL examples.

+l,

+m,

OX Ghfrpsrvlwlrq 3 315 317 319 31;4 415 417 419 41;5 Q@633 Q@833 Q@933 Orrs Vl}h Vshh gx s Vhuldo Sdudooho

Doo Sdluv Vkruwhvw Sdwkv

3 315 317 319 31;4 415 417 419 41;5 Q@633 Q@833 Q@933 Orrs Vl}h Vs hh gx s Vhuldo Sdudooho

+d, +e, Dgmrlqw Frqyroxwlrq 3 315 317 319 31;4 415 417 419 41; 5 Q@483 Q@573 Q@633 Orrs Vl}h Vsh hgxs Vhuldo FVV25 Dgmxvwphqw Uhyhuvh Dgmrlqw Frqyroxwlrq 3 315 317 319 31; 4 415 417 419 41; 5 Q@483 Q@573 Q@633 Orrs Vl}h Vshhgxs Vhuldo FVV25 Dgmxvwphqw JVV

Figure 16. Results of adjusted adjoint and reverse adjoint convolution.

Dojrulwkpv zlwk gliihuhqw orrs sduwlwlrq

3 315 317 319 31; 4 415 417 419 41; 5

DgmFrqy UhyDgm Jdxvvldq Pdwul{ WudqFro

Dssolfdwlrqv Vsh hgxs FVV24 FVV25 FVV27 JVV WVV Idfwrulqj

Figure 17. Result of different loop-partitioning algorithms.

We compared the performance of applications that run in various operating systems, such as OSF/1 and Windows NT, because the machine architectures are different, such as the number of CPUs. In OSF/1, the machine has four CPUs. In Windows NT, our target machine has two CPUs. Speedup is compared between OSF/1 and Windows NT, and speedup obtained in OSF/1 must be divided by 2 before comparison. We still use five representative applications. The program size of adjoint convolution and reverse adjoint convolution is 150× 150. The program sizes of Gaussian elimination, matrix multiplication, and transitive closure are 750× 750, 600 × 600, and 1000 × 1000, respectively. The speedup of applications which run in the two operating systems is shown in Figure18.

Frpsdulvrq zlwk ydulrxv RV 3 315 317 319 31; 4 415 417 419 41; 5

DgmFrqy UhyDgm Jdxvvldq Pdwul{ WudqFro Dssolfdwlrqv Vs hhg xs Zlqgrzv QW+5 fsx, RVI24+5 fsx,

Figure 18. Comparison of speedup between OSF/1 and Windows NT.

+d,

+e,

H{dpsoh 4 3 315 317 319 31;4 415 417 419 41;5 Q@5833 Q@6833 Q@8333 Orrs Vl}h Vshh gxs Vhuldo Sdudooho H{dpsoh 5 3 315 317 319 31;4 415 417 419 41;5 Q@5333 Q@5833 Q@6333 Orrs Vl}h Vsh hgxs Vhuldo Sdudooho

Figure 19. Results of DOACROSS examples.

Figure 19(a) shows the speedup of loop with distance 4. By using DOACROSS scheduling, the parallel version can achieve higher performance than the serial version. Figure19(b) shows the speedup of a loop with anti-dependence and distance 2. Because synchronization and scheduling overhead is large, the speedup is not as good as we expected, but the parallel version is still better than the serial version.

In Figure20, four examples with different types of loops are given to show the performance obtained by using the CSS scheduling method and the experimental environment described previously. In

+d,

+e,

+f,

+g,

Xqlirup zrunordg 3 315 317 319 31; 4 415 417 419 41; 5 Q@6333 Q@8333 Q@43333 Orrs Vl}h Vs hh gx s Vhuldo Vhtxhqwldo Lqvs1 Sdudooho Lqvs1 Lqfuhdvlqj zrunordg 3 315 317 319 31; 4 415 417 419 41;5 Q@5333 Q@5833 Q@6333 Orrs Vl}h Vshh gx s Vhuldo Vhtxhqwldo Lqvs1 Sdudooho Lqvs1 Udqgrp zrunordg 3 315 317 319 31;4 415 417 419 41;5 Q@5333 Q@8333 Q@43333 Orrs Vl}h Vs hh gx s Vhuldo Vhtxhqwldo Lqvs1 Sdudooho Lqvs1 Qrq0frqvwdqw ghshqghqfh glvwdqfh dqg lqfuhdvlqj zrunordg 3 315 317 319 31; 4 415 417 419 41;5 Q@4833 Q@5833 Q@8333 Orrs Vl}h Vshh gx s Vhuldo Vhtxhqwldo Lqvs1 Sdudooho Lqvs1

Figure 20. Results of runtime parallelization.

Figure20(a), every iteration of the outer loop has a constant workload. Figure20(b) has an increase workload and Figure20(c) a random workload. Both of them were originally obtained from the Perfect Club identified by other researchers as being parallel but not made parallel by current compilers [2,14]. Figure20(d) shows a synthetic loop with non-constant dependence distance and an increase workload. In runtime, the parallel version is obviously better than the serial version. Although the speedup of a program with a parallel inspector is better than with a sequential inspector, the experimental results are not satisfactory. The results can be improved by using various scheduling strategies or adding the number of CPUs.

4.4. Related work

The Parafrase-2 compiler, a famous parallelizing compiler developed by Illinois University, aims at developing a source-to-source multilingual restructuring compiler and provides a reliable, portable, easy to extend, and powerful research tool for exploring program transformation about a parallelizing compiler. Normally, the parallelizing compiler consists of two principal components, the front-end

and the back-end. The front-end of a parallelizing compiler consists of the scalar analysis and data

dependence analysis, which detect dependence relations between procedures or statements and extract

the parallelizable code segments for the back-end to generate parallel executable codes. The task of the back-end is to generate parallel machine codes for some multiprocessor systems from its intermediate representation by using the analysis results gathered in the front-end [15,16]. This compiler supports preprocessors and postprocessors for C and FORTRAN languages together with an intermediate representation. The preprocessor is used to transform each input source code to the intermediate representation together with its corresponding set of data structures, and the postprocessor is used to recreate the source program. The Parafrase-2 compiler is executed by a pass list file consisting of several passes, each of which operates on the data structures and transforms the input into some suitable form for subsequent execution. The Parafrase-2 compiler coded by C language has a convenient user interface, provides a means for user interaction at several levels during the transformation processes, and also has high portability.

A new parallelizing compiler, called Polaris, is developed at the Center for Supercomputing Research and Development (CSRD) at the University of Illinois [2]. Polaris includes a powerful basic infrastructure for manipulating FORTRAN programs and a number of improved analysis and transformation passes, notable subroutine inline expansion, symbolic analysis, induction and reduction variable recognition, data dependence analysis, array privatization, and runtime analysis. The most important techniques implemented in Polaris resulted from a study of the effectiveness of commercial Fortran parallelizers. They compiled the Perfect Benchmarks, a collection of conventional Fortran programs representing the typical workload of high-performance computers, for the Alliant FX/80, an eight-processor multiprocessor popular in the late 1980s. For each program, they measured the quality of the parallelization by computing the speedup of the ratio of a program’s sequential execution time to the execution time of the automatically parallelized version. Their study showed that extending the four most important analysis and transformation techniques traditionally used for vectorization leads to significant increases in speedup. However, it is important to note that Polaris’ innovation is in improved recognition of parallelism, which is a necessary step for porting programs to any parallel machine available today.

Because independently developing an entire infrastructure is prohibitively expensive, compiler researchers would benefit greatly from sharing investments in infrastructure development. Toward that end, they are making the SUIF (Stanford University Intermediate Format) compiler system available to others. They have developed SUIF as a platform for their research on compiler techniques for high-performance machines. It is powerful, modular, flexible, clearly documented, and complete enough to compile large benchmark programs. Their group has successfully used SUIF to perform research on topics including scalar optimizations, array data dependence analysis, loop transformations for both locality and parallelism, software prefetching, and instruction scheduling. Ongoing research projects using SUIF include global data and computation decomposition for both shared and distributed address space machines, communication optimizations for distributed address space machines, array privatization, interprocedural parallelization, and efficient pointer analysis. The SUIF toolkit contains a variety of compiler passes. Fortran and ANSI C front-ends are available to translate source programs into SUIF. The system includes a parallelizer that can automatically find parallel loops and generate parallelized code. A SUIF-to-C translator allows us to compile the parallelized code on any platform to which our parallel runtime library has been ported. The system provides many features to support parallelization: data dependence analysis, reduction recognition, a set of symbolic analyses to improve

the detection of parallelism, and unimodular transformations to increase parallelism and locality. Scalar optimizations such as partial redundancy elimination and register allocation are also included.

In our PPD, the ZIV/I test is used for checking if the linear equation formed by array subscript has an appropriate integer solution. Besides, we also proposed two ad hoc techniques that look for the trivial contradiction on direction vectors to improve the drawbacks of traditional subscript-by-subscript testing mechanisms. PPD could detect the DOALL loops and DOACROSS loops which include synchronization directives. In Parafrase-2, only GCD Test and Banerjee Test are employed on the builddep pass. The accuracy of GCD and Banerjee tests is less than that using the I test. Besides, Parafrase could not detect the DOACROSS loops in a source program.

Traditionally, the parallelizing compiler dispatches the loop by using only one scheduling algorithm, either static or dynamic. However, programs have different kinds of loops, including uniform workload, increasing workload, decreasing workload, and random workload loops, and every scheduling algorithm can achieve good performance on a different loop style. To reduce the overhead and enhance load balancing, the knowledge-based approach is a feasible solution for parallel loop scheduling. An approach that integrates existing static and dynamic scheduling algorithms and makes good use of their advantages is proposed in the paper. We can use this approach to choose an appropriate scheduling algorithm based on some features that include the loop style, loops bound, system status, data locality, and synchronization overhead, and then apply the resulting algorithm to schedule the DOALL loop on processors. In this paper, we concentrate on the fundamental phase, parallel loop scheduling, in parallelizing compilers running on multiprocessor systems. A new model exploiting loop parallelization using knowledge-based techniques is proposed. The knowledge-based approach integrates existing loop schedules to make good use of their abilities in extracting more parallelism. Experimental results show that the high speedup obtained by using IPLS on multiprocessors is obvious. Furthermore, for system maintenance and extensibility, our approach is obviously superior to others. In addition, a runtime technique based on the inspector–executor scheme is proposed to find available parallelism on loops. Our inspector can determine the wavefronts by building a DEF-USE table for each loop of a program. The process of the inspector for finding the wavefronts can be parallelized fully without any synchronization. Our executor can execute the loop iterations concurrently. Additionally, our compiler is highly modularized so that porting to other platforms is very easy, and it can partition parallel loops into multithreaded codes based on several loop-partitioning algorithms. The experimental results clearly show that the compiler achieves good speedup on the Windows NT OS.

5. CONCLUSIONS

This paper describes the design and implementation of an efficient and parallelizing compiler to parallelize loops and achieve high speedup rates on multiprocessor systems. We first introduce how to design a portable FORTRAN parallelizing compiler (PFPC) on a multiprocessor system by a multithreading operating system OSF/1. The main contribution of this paper is described as follows. A model of a FORTRAN parallelizing compiler on multithreading OSF/1 has been proposed. This paper has also reviewed the practical parallel loop detector (PPD) that was implemented in PFPC on finding the parallelism in loops. Furthermore, if DOACROSS loops are available, optimization of synchronization statements is achieved. Experimental results have shown that PPD was more reliable and accurate than previous approaches. In addition, a new model by using knowledge-based

techniques was proposed to exploit more loop parallelisms in this paper. A new model exploiting loop parallelization using knowledge-based techniques is proposed. The knowledge-based approach integrates existing loop schedules to make good use of their abilities in extracting more parallelism. Experimental results show that the high speedup obtained by using IPLS on multiprocessors is obvious. Furthermore, for system maintenance and extensibility, our approach is obviously superior to others. In addition, a runtime technique based on the inspector–executor scheme is proposed to find available parallelism on loops. Our inspector can determine the wavefronts by building a DEF-USE table for each loop of a program. The process of the inspector for finding the wavefronts can be parallelized fully without any synchronization. One of the ultimate goals is to construct a high-performance and portable FORTRAN parallelizing compiler on shared-memory multiprocessor systems.

ACKNOWLEDGEMENT

This work was supported in part by the National Science Council of the Republic of China under grant nos. NSC86-2213-E009-081 and NSC87-2213-E009-023.

REFERENCES

1. Zima HP, Chapman B. Supercompilers for Parallel and Vector Computers. Addison-Wesley Publishing and ACM Press: New York, 1990.

2. Blume W, Eigenmann R, Hoeflinger J, Padua D, Petersen P, Rauchwerger L, Tu P. Automatic detection of parallelism: A grand challenge for high-performance computing. IEEE Parallel & Distributed Technology 1994; 2(3):37–47.

3. Wolfe M. High-Performance Compilers for Parallel Computing. Addison-Wesley Publishing: New York, 1995; 137–162. 4. Yang CT, Tseng SS, Chen CS. The anatomy of parafrase-2. Proceedings of the National Science Council Republic of China

(Part A) 1994; 18(5):450–462.

5. Cooper KD et al. The ParaScope parallel programming environment. Proceedings of the IEEE 1993; 81(2):244–263. 6. Wilson RP et al. SUIF: An infrastructure for research on parallelizing and optimizing compilers. ACM SIGPLAN Notices

1994; 29(12):31–37.

7. Boykin J, Kirschen D, Langerman A, LoVerso S. Programming under Mach. Addison-Wesley Publishing: New York, 1993. 8. Yang CT, Tseng SS, Hsiao MC. A model of parallelizing compiler on multithreading operating systems. International

Journal of Modelling and Simulation 1998; 18(1):9–15.

9. Yang CT, Tseng SS, Hsiao MC, Kao SH. A portable parallelizing compiler with loop partitioning. Proceedings of the

National Science Council Republic of China (Part A), Barcelona, Spain, 1999; 23(6):751–765.

10. Yang CT, Wu CT, Tseng S. PPD: A practical parallel loop detector for parallelizing compilers on multiprocessor systems.

IEICE Transactions on Information and Systems 1996; E79-D(11):1545–1560.

11. Yang CT, Tseng SS, Chuang CD, Shih WC. Using knowledge-based techniques on loop parallelization for parallelizing compilers. Parallel Computing 1997; 23(3):291–309.

12. Fann YW, Yang CT, Tsai CJ, Tseng SS. IPLS: An intelligent parallel loop scheduling for multiprocessor systems.

Proceedings of the ICPADS’98, Tainan, Taiwan, 1998; 751–782.

13. Yang CT, Tseng SS, Hsieh MH, Kao SH. An efficient run-time parallelization for do loops. Journal of Information Science

and Engineering—Special Issue on Compiler Techniques for High-Performance Computing 1998; 14(1):237–253.

14. Rauchwerger L, Amato NM, Pauda D. Run-time methods for parallelizing partially parallel loops. Proceedings of the 1995

International Conference on Supercomputing, Barcelona, Spain, 1995.

15. Polychronopoulos CD. Parallel Programming and Compilers. Kluwer Academic Publishers, 1988.

16. Polychronopoulos CD. Parafrase-2: An environment for paralleling, partitioning, synchronizing, and scheduling programs on multiprocessors. International Journal of High Speed Computing 1989; 1(1):45–72.
