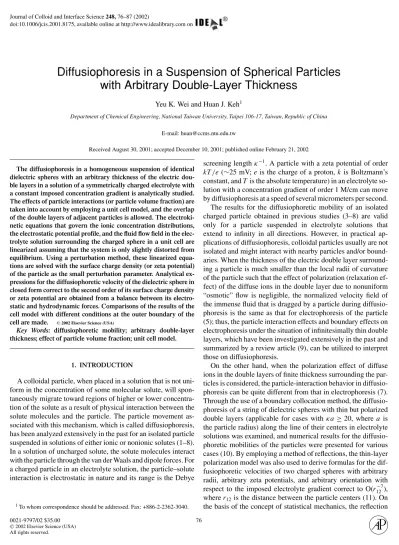

doi:10.1006/jcis.2001.8175, available online at http://www.idealibrary.com on
Diffusiophoresis in a Suspension of Spherical Particles
with Arbitrary Double-Layer Thickness
Yeu K. Wei and Huan J. Keh1
Department of Chemical Engineering, National Taiwan University, Taipei 106-17, Taiwan, Republic of China
E-mail: huan@ccms.ntu.edu.tw
Received August 30, 2001; accepted December 10, 2001; published online February 21, 2002
The diffusiophoresis in a homogeneous suspension of identical dielectric spheres with an arbitrary thickness of the electric dou-ble layers in a solution of a symmetrically charged electrolyte with a constant imposed concentration gradient is analytically studied. The effects of particle interactions (or particle volume fraction) are taken into account by employing a unit cell model, and the overlap of the double layers of adjacent particles is allowed. The electroki-netic equations that govern the ionic concentration distributions, the electrostatic potential profile, and the fluid flow field in the elec-trolyte solution surrounding the charged sphere in a unit cell are linearized assuming that the system is only slightly distorted from equilibrium. Using a perturbation method, these linearized equa-tions are solved with the surface charge density (or zeta potential) of the particle as the small perturbation parameter. Analytical ex-pressions for the diffusiophoretic velocity of the dielectric sphere in closed form correct to the second order of its surface charge density or zeta potential are obtained from a balance between its electro-static and hydrodynamic forces. Comparisons of the results of the cell model with different conditions at the outer boundary of the cell are made. C2002 Elsevier Science (USA)
Key Words: diffusiophoretic mobility; arbitrary double-layer thickness; effect of particle volume fraction; unit cell model.
1. INTRODUCTION
A colloidal particle, when placed in a solution that is not uni-form in the concentration of some molecular solute, will spon-taneously migrate toward regions of higher or lower concentra-tion of the solute as a result of physical interacconcentra-tion between the solute molecules and the particle. The particle movement as-sociated with this mechanism, which is called diffusiophoresis, has been analyzed extensively in the past for an isolated particle suspended in solutions of either ionic or nonionic solutes (1–8). In a solution of uncharged solute, the solute molecules interact with the particle through the van der Waals and dipole forces. For a charged particle in an electrolyte solution, the particle–solute interaction is electrostatic in nature and its range is the Debye
1To whom correspondence should be addressed. Fax: +886-2-2362-3040.
screening lengthκ−1. A particle with a zeta potential of order kT/e (∼25 mV; e is the charge of a proton, k is Boltzmann’s constant, and T is the absolute temperature) in an electrolyte so-lution with a concentration gradient of order 1 M/cm can move by diffusiophoresis at a speed of several micrometers per second. The results for the diffusiophoretic mobility of an isolated charged particle obtained in previous studies (3–8) are valid only for a particle suspended in electrolyte solutions that extend to infinity in all directions. However, in practical ap-plications of diffusiophoresis, colloidal particles usually are not isolated and might interact with nearby particles and/or bound-aries. When the thickness of the electric double layer surround-ing a particle is much smaller than the local radii of curvature of the particle such that the effect of polarization (relaxation ef-fect) of the diffuse ions in the double layer due to nonuniform “osmotic” flow is negligible, the normalized velocity field of the immense fluid that is dragged by a particle during diffusio-phoresis is the same as that for electrodiffusio-phoresis of the particle (5); thus, the particle interaction effects and boundary effects on electrophoresis under the situation of infinitesimally thin double layers, which have been investigated extensively in the past and summarized by a review article (9), can be utilized to interpret those on diffusiophoresis.
On the other hand, when the polarization effect of diffuse ions in the double layers of finite thickness surrounding the par-ticles is considered, the particle-interaction behavior in diffusio-phoresis can be quite different from that in electrodiffusio-phoresis (7). Through the use of a boundary collocation method, the diffusio-phoresis of a string of dielectric spheres with thin but polarized double layers (applicable for cases with κa ≥ 20, where a is the particle radius) along the line of their centers in electrolyte solutions was examined, and numerical results for the diffusio-phoretic mobilities of the particles were presented for various cases (10). By employing a method of reflections, the thin-layer polarization model was also used to derive formulas for the dif-fusiophoretic velocities of two charged spheres with arbitrary radii, arbitrary zeta potentials, and arbitrary orientation with respect to the imposed electrolyte gradient correct to O(r12−7), where r12 is the distance between the particle centers (11). On the basis of the concept of statistical mechanics, the reflection 76
0021-9797/02 $35.00
C
2002 Elsevier Science (USA) All rights reserved.
result of interaction effects between pairs of spheres with thin but polarized double layers was utilized to evaluate the average diffusiophoretic mobilities of particles in a dilute suspension subjected to a constant electrolyte gradient to the first order of the volume fraction of particles. Recently, using a unit cell model (12–17), the present authors derived analytical expressions for the diffusiophoretic mobility in a homogeneous suspension of identical dielectric spheres with thin but polarized double layers as functions of the volume fraction of particles (18). However, the effects of particle volume fraction (or particle interactions) on the diffusiophoretic mobility for a suspension of particles with relatively thick double layers have not been investigated yet.
In this work, the unit cell model is used to obtain analyti-cal expressions for the diffusiophoretic mobility in a suspension of identical charged spheres in a solution of a symmetrically charged electrolyte with a uniform prescribed concentration gra-dient. No assumption is made about the thickness of the electric double layers relative to the radius of the particles, and the over-lap of adjacent double layers is allowed. In the next section, we present the fundamental electrokinetic equations and bound-ary conditions that govern the electrolyte ion distributions, the electrostatic potential profile, and the fluid flow field for the system of a dielectric sphere in a unit cell. These basic equa-tions are linearized assuming that the ion concentraequa-tions, the electric potential, and the fluid pressure have only a slight devi-ation from equilibrium due to the applicdevi-ation of the electrolyte gradient. In Section 3, the problem of diffusiophoresis of the charged sphere in the cell containing the electrolyte solution is solved. Using the Debye–H¨uckel approximation, we first obtain the solution of the equilibrium electric potential distribution. The linearized electrokinetic equations are then transformed into a set of differential equations by a perturbation method with the surface charge density of the particle as the small perturbation parameter. The perturbed ion concentraion (or electrochemical potential energy), electric potential, fluid velocity, and dynamic pressure profiles are determined by solving this set of differen-tial equations subject to the appropriate boundary conditions. Analytical expressions for the diffusiophoretic velocity of the charged sphere result from satisfying the requirement that the net force acting on the particle vanishes. Finally, closed-form expressions in a limiting case and typical numerical results of the diffusiophoretic mobility for a suspension of charged spheres are presented in Section 4. Comparisons of the previous results for diffusiophoretic particles surrounded by thin double layers (18) with our calculations are made.
2. BASIC ELECTROKINETIC EQUATIONS
We consider the diffusiophoretic motion of a statistically ho-mogeneous distribution of identical charged spherical particles in a bounded solution of a symmetrically charged binary elec-trolyte at the steady state. The applied elecelec-trolyte concentration gradient∇n∞is a constant equal to|∇n∞|ez and the
diffusio-phoretic velocity of the dielectric particles is U ez, where ez is
FIG. 1. Geometrical sketch for the diffusiophoresis of a spherical particle at the center of a spherical cell.
a unit vector (in the positive z direction). As shown in Fig. 1, we employ a unit cell model in which each particle of radius a is surrounded by a concentric spherical shell of suspending solution having an outer radius of b such that the particle/cell volume ratio is equal to the particle volume fractionϕ through-out the entire suspension; viz.,ϕ = (a/b)3. The cell as a whole is electrically neutral. The origin 0 of the spherical coordinate system (r, θ, φ) is taken at the center of the particle and the axisθ = 0 points toward the positive z direction. Obviously, the problem for each cell is axially symmetric about the z axis. The differential equations describing diffusiophoresis in elec-trolyte solutions are the same as those for electrophoresis. The difference is in the boundary conditions prescribed at the outer (virtual) surface of the cell.
Conservation of both ionic species requires that
∇ · J±= 0, [1]
where J±(r, θ) are the number flux distributions and the sub-scripts+ and − refer to the cation and anion, respectively. If the solution is dilute, the fluxes can be given by
J±= n±u− D± ∇n±±Z en± kT ∇ψ , [2]
where Z is the valence of the symmetric electrolyte which is pos-itive, n±(r, θ) and D±are respectively the concentration (num-ber density) distributions and diffusion coefficients of the ionic species, u(r, θ) is the fluid velocity field relative to the parti-cle, andψ(r, θ) is the electrostatic potential distribution. The
first term on the right-hand side of Eq. [2] is the convection of the ionic species by the fluid, and the second term denotes the diffusion and electrically induced migration of the species.
We assume that the Reynolds number of the fluid motion is very small, so the inertial effect on the fluid momentum bal-ance can be neglected. The fluid flow is governed by the Stokes equations modified with the electrostatic effect,
η∇2u= ∇ p + Ze(n+− n−)∇ψ, [3]
∇ · u = 0, [4]
whereη is the viscosity of the fluid and p(r, θ) is the dynamic pressure distribution.
The local potentialψ and the space charge density are related by Poisson’s equation,
∇2ψ = −4π
ε Z e(n+− n−). [5] In this equation,ε = 4πε0εr, whereεris the relative permittivity of the electrolyte solution andε0is the permittivity of a vacuum. In Eqs. [2], [3], and [5], the properties D±,η, and ε are assumed to be constant.
The boundary conditions at the surface of the dielectric par-ticle are
r= a: u= 0, [6a]
er· J±= 0, [6b]
er· ∇ψ = −4π
ε σ, [6c]
where er is the unit normal outward from the particle surface andσ is the uniform surface charge density of the particle. In Eq. [6a], we have assumed that the “shear plane” coincides with the particle surface. Equations [6b] and [6c] state that no ions can penetrate into the particle and the Gauss condition holds at the surface of the particle, respectively.
Because the bulk concentration of the electrolyte, n∞, is not uniform, it is required that the total fluxes of cations and anions are balanced in order to have no current arising from the diffusive fluxes of the electrolyte ions in an electrically neutral solution, and an electric field E∞= −∇ψ∞ occurs spontaneously due to the difference in ionic mobilities. At the virtual surface of the cell, the local ionic concentration gradient and electric field are compatible with the gradient∇n∞and induced field E∞, respectively. Thus, the boundary conditions there are
r= b: ∂n± ∂r = ∂n∞ ∂r , [7a] ∂ψ ∂r = ∂ψ∞ ∂r , [7b] ur = −U cos θ, [7c] τrθ = η r ∂ ∂r uθ r +1 r ∂ur ∂θ = 0
(for the Happel model), [7d] (∇ × u)φ = 1 r ∂ ∂r(r uθ)− 1 r ∂ur ∂θ = 0
(for the Kuwabara model), [7e] where U is the diffusiophoretic velocity of the particle to be determined, and ur and uθ are the r and θ components, re-spectively, of u. The overlap of the adjacent double layers is allowed in Eqs. [7a] and [7b]. The Happel cell model (12) as-sumes that the radial velocity and the shear stress of the fluid on the outer boundary of the cell are zero, while the Kuwabara cell model (13) assumes that the radial velocity and the vorticity of the fluid are zero there. Note that the Happel model has an advantage over the Kuwabara model in that the former does not require an exchange of mechanical energy between the cell and the environment (19). Because the reference frame is taken to travel with the particle, the radial velocity given by Eq. [7c] is generated by the particle velocity in the opposite direction. The condition given by Eq. [7c] implies that there is no net flow of fluid between adjacent cells; it is valid because the suspension of the particles is bounded by impermeable walls.
To calculate the diffusiophoretic velocity of the particle in a cell, we shall assume that the prescribed electrolyte gradient is not high, and hence that the electric double layer surrounding the particle is only slightly distorted from equilibrium by the appli-cation of the gradient. Therefore, the concentration distribution of each ionic species, the electric potential distribution, and the dynamic pressure distribution have small deviations from equi-librium, and one can write
p = p(eq)+ δp, [8a]
n± = n(eq)± + δn±, [8b]
ψ → ψ(eq)+ δψ, [8c]
where p(eq)(r ), n(eq)
± (r ), andψ(eq)(r ) are the equilibrium
distri-butions of dynamic pressure, ionic concentrations, and electric potential, respectively, andδp(r, θ), δn±(r, θ), and δψ(r, θ) are the small perturbations to the equilibrium state (in which no bulk concentration gradient or electric field is imposed). The equilib-rium concentrations of the ions are related to the equilibequilib-rium potential by the Boltzmann distribution,
n(eq)± = n∞(0) exp ∓ Z eψ(eq) kT . [9]
The use of the bulk concentration n∞(0) at the particle center in the above relation is valid when the solution is only slightly nonuniform in the imposed electrolyte concentration on the length scale of the particle radius (α = a|∇n∞|/n∞(0) 1).
Substituting Eq. [8] into Eqs. [1], [3], and [5], canceling their equilibrium components, using Eq. [9], and neglecting the
products of the small quantities u,δn±, andδψ, one obtains ∇2δµ ±= ±Z e kT ∇ψ(eq)· ∇δµ±− kT D±∇ψ (eq)· u , [10] η∇2u= ∇δp − ε 4π ∇2ψ(eq)∇δψ + ∇2δψ∇ψ(eq), [11] ∇2δψ = 4π Zen∞(0) εkT exp Z eψ(eq) kT (δµ−+ Zeδψ) − exp − Z eψ(eq) kT (δµ+− Zeδψ) . [12]
Hereδµ±(r, θ) is defined as a linear combination of δn± and δψ based on the concept of the electrochemical potential energy (7, 20),
δµ±= kTδn±
n(eq)± ± Zeδψ. [13]
The boundary conditions for δµ± and δψ resulting from Eqs. [6] and [7] and their equilibrium state are
r= a: ∂δµ± ∂r = 0, [14a] ∂δψ ∂r = 0; [14b] r = b: ∂δµ± ∂r = kT (1 ∓ β) α a cosθ, [15a] ∂δψ ∂r = − kT Z eβ α a cosθ, [15b] where β = D+− D− D++ D−. [16]
Expression [15b] for the induced electric field is derived from the requirement that the ionic fluxes J+and J−defined by Eq. [2] are equal in the bulk solution (1, 3). The fluid velocity u is a small perturbed quantity, and the boundary conditions for u have been given by Eqs. [6a], [7c], and [7d] or [7e].
The boundary conditions of the ionic concentrations and the electric potential at the virtual surface r = b may be taken as the distributions giving rise to the imposed gradient∇n∞in the cell when the particle does not exist. In this case, Eqs. [15a] and [15b] are replaced by r = b: δµ± = kT (1 ∓ β)αr a cosθ, [17a] δψ = −kT Z eβα r acosθ. [17b]
3. SOLUTION FOR THE DIFFUSIOPHORETIC VELOCITY
Before solving for the problem of diffusiophoresis of a charged sphere in a unit cell filled with the solution of a symmet-ric electrolyte with a constant bulk concentration gradient∇n∞, we need to determine the equilibrium electrostatic potential first. The equilibrium potentialψ(eq)satisfies the Poisson–Boltzmann equation, resulting from the substitution of the Boltzmann distri-bution (Eq. [9]) into Poisson’s equation (Eq. [5]), the boundary condition [6c], and the requirement of no electric current pass-ing through the virtual surface r = b at equilibrium. It is easy to show that
ψ(eq)(r )= ψ
eq1σ + O( ¯σ¯ 3), [18] where ¯σ = 4π Zeσ/εκkT , which is the nondimensional surface charge density of the particle,
ψeq1(r )= kT Z e κa A a r
(κb+1)eκ(a+r)+(κb − 1)eκ(a+2b−r) , [19] and
A= (κb − 1)(κa + 1)e2κb− (κa − 1)(κb + 1)e2κa. [20] Here κ is the reciprocal Debye length, defined by κ = [8π Z2e2n∞(0)/εkT ]1/2, in which n∞(0) can be experimentally taken as the mean bulk concentration of the electrolyte in the vicinity of the diffusiophoretic particle (or in the cell). Expres-sion [18] forψ(eq)as a power series in the surface charge density of the particle up to O( ¯σ) is the equilibrium solution to the lin-earized Poisson–Boltzmann equation, which is valid for small values of the electric potential (the Debye–H¨uckel approxima-tion). That is, the surface charge density or surface potential of the particle must be small enough for the potential fieldψ(eq)(r ) to remain small. Note that the contribution from the effects of O( ¯σ2) toψ(eq)disappears only for the case of symmetric elec-trolytes.
Using Eqs. [18]–[20], one obtains a relation between the sur-face potential and the sursur-face charge density of the dielectric sphere in a unit cell at equilibrium,
¯ σ = WZ eζ kT , [21] where W = γ cosh γ + (κ 2a2+ κaγ − 1) sinh γ
κa[(κa + γ ) cosh γ − sinh γ ] , [22] ζ = ψ(eq)(a), which is the equilibrium surface potential (known as the zeta potential) of the particle, andγ = κa(ϕ−1/3− 1). Namely, the solution forψ(eq)(r ) given by Eq. [18] with the substitution of Eq. [21] is also valid for a dielectric sphere with
a constant surface potential in the cell. In the limiting case of ϕ = 0, Eq. [22] reduces to the simple formula W = 1 + (κa)−1
for an isolated charged sphere.
To solve the small quantities δµ±, u,δp, and δψ in terms of the particle velocity U when the parameter ¯σ is small, these variables can be written as perturbation expansions in powers of ¯σ, δµ± = µ0±+ µ1±σ + µ¯ 2±σ¯2+ · · · , [23a] u= u1σ + u¯ 2σ¯2+ · · · , [23b] δp = p1σ + p¯ 2σ¯2+ · · · , [23c] δψ = ψ0+ ψ1σ + ψ¯ 2σ¯2+ · · · , [23d] U = U1σ + U¯ 2σ¯2+ · · · , [23e] where the functionsµi±, ui, pi,ψi, and Uiare independent of
¯
σ . The zeroth-order terms of u, δp, and U disappear because an uncharged particle will not move by imposing an electrolyte concentration gradient if only the electrostatic interaction is con-sidered.
Substituting the expansions given by Eq. [23] andψ(eq)given by Eq. [18] into the governing Eqs. [4] and [10]–[12] and bound-ary conditions [6a], [7c], [7d] or [7e], [14], and [15] or [17], and equating like powers of ¯σ on both sides of the respective equations, we obtain a group of linear differential equations and boundary conditions for each set of the functionsµi±, ui, pi, andψiwith i equal to 0, 1, and 2. These perturbation equations can be analytically solved, and the results for the r andθ com-ponents of u,δp (to the order of ¯σ2),δµ
±, andδψ (to the order
of ¯σ) can be written as ur = U1F0r(r )− kT ηa2βαF1r(r ) ¯ σ + U2F0r(r )+ kT ηa2αF2r(r ) ¯ σ2 cosθ, [24a] uθ = U1F0θ(r )−ηakT2βαF1θ(r ) ¯ σ + U2F0θ(r )+ kT ηa2αF2θ(r ) ¯ σ2 sinθ, [24b] δp = η a U1Fp0(r )− kT ηa2βαFp1(r )− εκ2akT 4πηZeβαψeq1(r ) × Fψ0(r ) ¯ σ + U2Fp0(r )+ kT ηa2αFp2(r ) +εκ2akT 4πηZeαψeq1(r )Fψ1(r ) ¯ σ2 cosθ, [24c] δµ±= kT (1 ∓ β)α[Fµ0(r )∓ Fµ1(r ) ¯σ ] cos θ, [25] δψ =kT Z eα[−β Fψ0(r )+ Fψ1(r ) ¯σ ] cos θ. [26]
Here Fir(r ), Fiθ(r ), Fpi(r ) (with i equal to 0, 1, and 2), Fµ0(r ), Fµ1(r ), Fψ0(r ), and Fψ1(r ) are dimensionless functions of r given by Eqs. [A1] and [A6]–[A8] in the Appendix. Note that the solutions forδµ±andδψ to the order of ¯σ do not contain the influence of the fluid motion.
The total force exerted on the charged sphere undergoing dif-fusiophoresis in a unit cell filled with an electrolyte solution can be expressed as the sum of the electric force and the hydrody-namic drag force. Since the net charge within a cell is zero, the electric force acting on the charged sphere can be represented by the integral of the electrostatic force density over the fluid volume in the cell. Because the net electric force acting on the particle at the equilibrium state is zero, the leading order of the electric force is given by
Fe= − ε 2 π 0 b a
∇2ψ(eq)∇δψ + ∇2δψ ∇ψ(eq)r2sinθ dr dθ. [27] Substituting Eqs. [18] and [26] into Eq. [27] and performing the integration, we obtain Fe= kT a α −β εκ2a3
3Z e ψeq1(a)Fψ0(a)− εκ2ab2 3Z e ψeq1(b)Fψ0(b) + 4π b a r a 3 G1(r ) dr ¯ σ + εκ2a3
3Z e ψeq1(a)Fψ1(a)
−εκ2ab2 3Z e ψeq1(b)Fψ1(b) + 4π b a r a 3 G2(r ) dr ¯ σ2+ O( ¯σ3) ez, [28] where G1(r )= εκ 2a4 12π ZerFµ0(r ) dψeq1 dr , [29a] G2(r )= − εκ2a4 12π Zer Fµ1(r )+ Z e kTψeq1(r )Fµ0(r ) dψeq1 dr . [29b] In Eqs. [28] and [29], the function ψeq1(r ) has been given by Eq. [19], and Fµi(r ) and Fψi(r ) with i equal to 0 and 1 are defined by Eqs. [A6]–[A8].
The hydrodynamic drag force acting on the colloidal sphere is given by the integral of the hydrodynamic stress over the particle surface,
Fh = 2πa2
π
0
{−δper+ η[∇u + (∇u)T]· er}r=asinθ dθ. [30]
Substitution of Eq. [24] into the above equation results in Fh = − 4πηaU1C02− 4π kT a βαC12 −εκ2a2kT
3Z e βαψeq1(a)Fψ0(a)
¯ σ + 4πηaU2C02+ 4π kT a αC22 +εκ2a2kT
3Z e αψeq1(a)Fψ1(a)
¯
σ2+ O( ¯σ3)
ez. [31] For the case of a dielectric sphere with a constant (equilibrium) surface potential in the cell, the parameter ¯σ in Eqs. [23]–[26], [28], and [31] can be replaced by Z eζ/kT in terms of Eq. [21]. At the steady state, the total force acting on the diffusio-phoretic particle is zero. Applying this constraint to the sum-mation of Eqs. [28] and [31], one obtains
U1 = εβα 4πηa kT Z e 2 1 W , [32a] U2 = εα 32πηa kT Z e 2 2 W2, [32b]
where W is defined by Eq. [22], andiwith i equal to 1 and 2 are functions ofκa and ϕ defined by
i = (−8)i−1 3(3+ 2ϕ5/3)(κa)2W iZ e kT 2 ϕ2/3ωψeq1(b)Fψ(i−1)(b) −12π Ze εκ2a3 b a 1− 3r 2 a2 + 2 r3 a3− ϕ 5/3 × 2r 2 a2− 3 r3 a3+ r5 a5 Gi(r ) dr [33a] for the Happel model, and
i = (−8)i−1 9 (κa) 2WiZ e kT 2 ϕ2/3ωψeq1(b)Fψ(i−1)(b) −12π Zeεκ2 a3 b a 1− 3r 2 a2 + 2 r3 a3 − 1 5ϕ × 2− 5r 3 a3 + 3 r5 a5 Gi(r ) dr [33b] for the Kuwabara model. In the above equations,
ω = 1−3 2ϕ 1/3+3 2ϕ 5/3− ϕ2 −1 , [34a] ω=1−9 5ϕ 1/3+ ϕ −1 5ϕ 2 −1 , [34b]
and the finite integrals can be calculated numerically.
From Eqs. [23e] and [32], the diffusiophoretic velocity of the charged sphere in the cell can be expressed as
U= εα 4πηaW kT Z e 2 β 1σ +¯ 1 8W2σ¯ 2+ O( ¯σ3) . [35] Since the solutions forδµ±andδψ given by Eqs. [25] and [26] are not influenced by the fluid flow, the effect of the polarization (or relaxation) of the diffuse ions in the electric double layer surrounding the particle is not included in Eq. [35] up to the order
¯
σ2. Substitution of Eq. [21] into Eq. [35] yields an expression for the diffusiophoretic velocity of the particle as an expansion in powers ofζ , U= εα 4πηa kT Z eβ 1ζ + 1 82ζ 2+ O(ζ3) . [36] Note that the diffusiophoretic mobility of dielectric spheres with a constant (equilibrium) surface potential ζ is the same as that of the spheres with a constant surface charge density σ = Wεκζ/4π, and it can be expressed by either Eq. [35] or Eq. [36].
4. RESULTS AND DISCUSSION
It is understood that the diffusiophoresis of a charged particle results from a linear combination of two effects: (i) chemiphore-sis due to the nonuniform adsorption of counterions in the elec-tric double layer over the particle surface, which is analogous to the diffusiophoresis in nonionic media; (ii) electrophoresis due to the macroscopic electric field generated by the concentration gradient of the electrolyte and the difference in mobilities of the cation and anion of the electrolyte, given by Eq. [15b] or [17b]. The terms in Eqs. [35] and [36] proportional toβ (involving the function1) represent the contribution from electrophoresis, while the remainder terms (containing the function2) are the chemiphoretic component. Using the boundary condition [15b] for the electric potential at the virtual surface of a unit cell, one can find that the function1given by Eq. [33b] for the Kuwabara model is identical to that obtained by Levine and Neale (14) for the electrophoretic mobility of a dielectic sphere in the cell.
In the limit of a very dilute suspension (ϕ → 0), Eq. [33] becomes
1 = 1 − eκa[5E7(κa) − 2E5(κa)], [37a]
2 = 1 +
1 3e
2κa[10E
6(2κa) + 7E8(2κa)] − 40e2κaE7(κa)
× [E3(κa) − E5(κa)] + 4 3e
κa[3E 3(κa)
where
En(κa) = (κa)n−1
∞
κa t
−ne−tdt. [38]
The formulas for1and2in Eq. [37] are the reduced results obtained earlier for the diffusiophoresis of an isolated dielectric sphere (8). Note that1given by Eq. [37a] is the same as that derived by Henry (21) for the electrophoretic mobility of the particle.
In Figs. 2 and 3, the numerical results for the function 1 calculated from Eq. [33] are plotted versus the parametersκa
FIG. 2. Plots of the function1as calculated from Eq. [33] versusκa with ϕ as a parameter: (a) when boundary condition [15] is used, and (b) when boundary condition [17] is used. The solid and dashed curves represent the calculations for the Happel and Kuwabara models, respectively.
FIG. 3. Plots of the function1as calculated from Eq. [33] versusϕ with κa as a parameter: (a) when boundary condition [15] is used, and (b) when boundary condition [17] is used. The solid and dashed curves represent the calculations for the Happel and Kuwabara models, respectively.
andϕ for the unit cell model with various boundary conditions at the virtual surface of the cell. The calculations are presented up toϕ = 0.74, which corresponds to the maximum attainable vol-ume fraction for a swarm of identical spheres (14). It can be seen that1is always positive and decreases monotonically with the decrease ofκa (or with the increase of the double-layer overlap) for a specified value ofϕ. When κa = 0, 1= 2/3 as ϕ = 0, and1= 0 for all finite values of ϕ. If the double layers are relatively thick (κa < 1), 1is always a monotonic decreasing function ofϕ for a fixed value of κa, and the particles’ volume fraction effect on the electrophoretic mobility is significant even
in fairly dilute suspensions. When the boundary condition [15] for the electrochemical potential at the virtual surface of the cell is used,1is a monotonic decreasing function ofϕ for any given finite value ofκa (and equals unity as κa → ∞, regardless of the value ofϕ) for the case of the Kuwabara model. However, for the case of the Happel model,1is not a monotonic function ofϕ and has a maximum (whose value can be greater than 1) for a given value ofκa higher than about unity. The location of this maximum shifts to greaterϕ as κa increases. On the other hand, when the boundary condition [17] for the electrochemical potential at the outer surface of the cell is used, both the Happel and the Kuwabara models predict that1decreases monotoni-cally with an increase inϕ for an arbitrary fixed value of κa. For any combination of κa and ϕ, the Kuwabara model results in a somewhat lower value of1(or a stronger particles’ volume fraction dependence for the electrophoretic mobility) than the Happel model does. This occurs because the zero-vorticity boundary condition yields a energy dissipation in the cell larger than that due to particle drag alone, owing to the additional work done by the stresses at the virtual surface (19). On the other hand, the value of1calculated using the boundary condition [17] is always smaller than that calculated using the boundary condition [15].
The results for the function2calculated from Eq. [33] are plotted versus the parametersκa and ϕ in Figs. 4 and 5 for vari-ous cases of the cell model. It can be seen that2in general is not a monotonic function ofϕ for a specified value of κa. When the boundary condition [15] is used,2is not a monotonic function ofκa for a given value of ϕ, and a local maximum and a min-imum of this function would appear at some values ofκa. The value of2 is negative in the vicinity of each minimum and positive otherwise. For relatively concentrated suspensions, the value of2in the vicinity of each maximum may be greater than unity. For a combination ofκa and ϕ not close to these minima, the Kuwabara model predicts a somewhat smaller value of2 than the Happel model does, similar to their predictions for the value of1. On the other hand, when the boundary condition [17] is used, the value of2 is always positive and in general increases with an increase inκa for a constant value of ϕ. When the value ofκa is large, 2decrease monotonically with an in-crease inϕ from the maximum value of unity at ϕ = 0. For any combination ofκa and ϕ, the Kuwabara model again leads to a slightly lower value of2than the Happel model does.
Figure 6 illustrates the dependence of the diffusiophoretic velocity for a suspension of identical charged spheres on their dimensionless surface (zeta) potential at various values ofκa andϕ calculated for the Kuwabara model with boundary con-dition [17]. The Kuwabara model with boundary concon-dition [17] is chosen because the diffusiophoretic mobility predicted by this case of the unit cell model agrees well with the ensemble-averaged result obtained by using the concept of statistical me-chanics for a dilute suspension of particles with thin but po-larized double layers (18). The consequence that the boundary condition [15] is not as accurate as the boundary condition
FIG. 4. Plots of the function2as calculated from Eq. [33] versusκa with ϕ as a parameter: (a) when boundary condition [15] is used, and (b) when boundary condition [17] is used. The solid and dashed curves represent the calculations for the Happel and Kuwabara models, respectively.
[17] is probably due to the fact that the angular component of the electrochemical/electrostatic potential gradients at the vir-tual surface of the cell is not specified in Eq. [15]. A possible reason for the outcome that the Kuwabara model is more ap-propriate than the Happel model for this suspension might be the fact that the zero-vorticity boundary condition is consistent with the irrotational-flow environment generated by a diffusio-phoretic particle with a thin polarized double layer. Note that, however, except for the case withκa → ∞, the flow caused by two or more identical diffusiophoretic spheres is not irrota-tional (11).
FIG. 5. Plots of the function2as calculated from Eq. [33] versusϕ with κa as a parameter: (a) when boundary condition [15] is used, and (b) when boundary condition [17] is used. The solid and dashed curves represent the calculations for the Happel and Kuwabara models, respectively.
The magnitude of the diffusiophoretic velocity shown in Fig. 6 is normalized by a characteristic value given by
U∗ = εα 4πηa kT Z e 2 . [39]
The case that the anion and cation diffusivities are equal (β = 0) is drawn in Fig. 6a. Only the results at positive surface poten-tials are shown because the diffusiophoretic velocity, which is due to the chemiphoretic effect entirely, is an even function of the surface potentialζ as indicated by Eq. [36]. Since our anal-ysis is based on the assumption of small surface potential, the
magnitudes of Z eζ/kT considered are less than 2. As expected, in this range of Z eζ/kT , the magnitude of the reduced dif-fusiophoretic velocity U/U∗ increases monotonically with an increase in Z eζ/kT for given values of κa and ϕ. There is no chemiphoretic motion of the particles for the special cases of Z eζ/kT = 0 or κa = 0. Figure 6b is plotted for the reduced diffusiophoretic mobility U/U∗of the particles for a case that
FIG. 6. Plots of the reduced diffusiophoretic mobility in a suspension of identical spheres versus the dimensionless zeta potential at fixed values ofκa calculated for the Kuwabara model with boundary condition [17]: (a)β = 0, and (b)β = −0.2. The solid and dashed curves represent the cases of ϕ = 0.1 andϕ = 0.2, respectively.
FIG. 7. Plots of the reduced diffusiophoretic mobility in a suspension of identical spheres versusϕ at Zeζ/kT = −1 and several values of κa calcu-lated for the Kuwabara model with boundary condition [17]: (a)β = 0, and (b)β = −0.2. The solid and dashed curves represent our present results and those obtained by using the thin-layer polarization model (18), respectively. the cation and anion of the electrolyte have different diffusion coefficients (β = −0.2 is chosen). In this case, both the chemiphoretic and the electrophoretic effects contribute to the particles’ movement and the net diffusiophoretic velocity is nei-ther an even nor an odd function of the surface potential. It can be seen that U/U∗ is not necessarily a monotonic
func-tion of Z eζ/kT given constant values of κa and ϕ. Some of the curves in Fig. 6b show that the particles might reverse di-rection of movement more than once as their surface potential varies from negative to positive values. The reversals
occur-ring at the values of Z eζ/kT other than zero result from the competition between the contributions from chemiphoresis and electrophoresis. In the limitκa = 0, the diffusiophoretic veloc-ity vanishes for any finite value ofϕ, but reduces to the H¨uckel result for electrophoresis [U/U∗ = (2/3)β(Zeζ/kT )] when the
suspension is infinitely dilute (withϕ = 0). Note that the situa-tions associated with Figs. 6a and 6b (taking Z= 1) are close to the diffusiophoresis in the aqueous solutions of KCl and NaCl, respectively.
In the previous cell-model analysis for the diffusiophoretic mobility in suspensions of charged particles, the assumption of thin but polarized double layers was made (18). It would be of interest to know the extent that this assumption is valid. A com-parison of the results of the reduced diffusiophoretic mobility obtained in this previous analysis with our present calculations for the Kuwabara model with boundary condition [17] is shown in Fig. 7. For the case of Z eζ/kT = −1 chosen in this figure, the polarization effect of diffuse ions in the double layers is neg-ligible. It can be seen that the results of U/U∗predicted by the
thin-double-layer analysis can be in significant errors when the value ofκa is less than about 20.
5. SUMMARY
In this paper, the steady-state diffusiophoresis in a homo-geneous suspension of identical charged spheres with an arbi-trary value ofκa in a solution of a symmetric electrolyte with a uniform imposed concentration gradient is analyzed using the unit cell model with various boundary conditions at the virtual surface of the cell. Solving the linearized continuity equations of electrolyte ions, Poisson–Boltzmann equation, and modified Stokes equations applicable to the system of a sphere in a unit cell by a regular perturbation method, we have obtained the ion concentration (or electrochemical potential energy) distri-butions, the electric potential profile, and the fluid flow field. The requirement that the total force exerted on the particle is zero leads to Eqs. [33]–[36] for the diffusiophoretic velocity of the charged sphere as functions of the volume fraction of the particles correct to the orderσ2orζ2.
Equations [33]–[36] are obtained on the basis of the Debye– H¨uckel approximation for the equilibrium potential distribution around the dielectric sphere with low zeta potential in a unit cell. The reduced formula of Eq. [33] for1of a single dielec-tric sphere with low zeta potential in an unbounded electrolyte solution, Eq. [37a], was shown to give a good approximation for the case of reasonably high zeta potential (with errors less than 4% for|ζ |e/kT ≤ 2) (22). Also, comparing with the nu-merical solution for the diffusiophoretic mobility of an isolated charged sphere in KCl and NaC1 aqueous solutions obtained by Prieve and Roman (4) valid for an arbitrary value of zeta potential, one can find that Eq. [36] with Eq. [37] for a dilute suspension of charged spheres with low zeta potential is also quite accurate for the entire range of|ζ|e/kT ≤ 2 (8). Therefore,
our results in Eqs. [33]–[36] might be used tentatively for the situation of reasonably high electric potentials. In order to see whether our approximate solution can be extended to the higher values of electric potential, a numerical solution of the electroki-netic equations with no assumption on the magnitude of electric potential would be needed to compare it with the approximate solution.
APPENDIX
Definitions of Some Functions in Section 3
For conciseness the definitions of some functions in Section 3 are listed here. In Eq. [24],
Fir(r ) = Ci 1+ Ci 2 a r + Ci 3 a r 3 + Ci 4 r a 2 + (δi 1+ δi 2) × 1 5 a r 3 r a r a 5 Gi(r ) dr−a r r a r a 3 Gi(r ) dr + r a r a 2 Gi(r ) dr−1 5 r a 2 r a Gi(r ) dr , [A1a] Fiθ(r ) = −Ci 1− Ci 2 2 a r +Ci 3 2 a r 3 − 2Ci 4 r a 2 + (δi 1+ δi 2) 1 10 a r 3 r a r a 5 Gi(r ) dr+ a 2r × r a r a 3 Gi(r ) dr− r a r a 2 Gi(r ) dr +2 5 r a 2 r a Gi(r ) dr , [A1b] Fpi(r ) = Ci 2 a r 2 + 10Ci 4 r a − (δi 1+ δi 2) 2r a r a Gi(r ) dr − a r 2 r a r a 3 Gi(r ) dr , [A1c]
for i = 0, 1, and 2. In the above equations, the functions Gi(r ) are defined by Eq. [29],δi jis the Kronecker delta which equals unity if i = j but vanishes otherwise,
Ci 1= − 1 2 2+ 3ϕ5/3Ai+ 5ϕBi ω, [A2a] Ci 2= 1 2 3+ 2ϕ5/3Ai+ 5ϕ2/3Bi ω, [A2b] Ci 3= − 1 2 Ai+3ϕ2/3− 2ϕBi ω, [A2c] Ci 4= 1 2 ϕ5/3Ai−2ϕ2/3− 3ϕBi ω [A2d]
for the Happel model, and
Ci 1 = −1 2 (2+ ϕ)Ai+ 2− 5ϕ + 3ϕ5/3Bi ω, [A3a] Ci 2 = 1 2 3 Ai+3− 5ϕ2/3+ 2ϕ5/3Bi ω, [A3b] Ci 3 = −1 10 (5− 2ϕ)Ai+ 5 1− 3ϕ2/3+ 2ϕBi ω, [A3c] Ci 4 = 1 10 3ϕ A i+ 5 2ϕ2/3− 3ϕ + ϕ5/3B i ω [A3d]
for the Kuwabara model, where
Ai = δi 0+ (δi 1+ δi 2) b a r a 2 Gi(r ) dr −a b b a r a 3 Gi(r ) dr , [A4a] Bi = (δi 1+ δi 2) 1 5 a b 3 b a r a 5 Gi(r ) dr − b a 2 b a r a 3 Gi(r ) dr , [A4b] Ai = δi 0+ (δi 1+ δi 2) b a r a 2 Gi(r ) dr− a b b a r a 3 × Gi(r ) dr+ 1 5 a b 3 b a r a 5 Gi(r ) dr −1 5 b a 2 b a r a 3 Gi(r ) dr , [A5a] Bi= (δi 1+ δi 2) 1 5 − a b b a r a 3 Gi(r ) dr + b a 2 b a Gi(r ) dr , [A5b]
andω and ωare defined by Eq. [34]. In Eqs. [25] and [26], Fµ0(r )= Fψ0(r )= 1 χ r a + a2 2r2 , [A6] Fµ1(r )= Z er 3kT aχ a3Aµ1(a, b) + 2(1 − χ)Bµ1(a, b) 2χr3 +1− χχ Aµ1(a, b) + 2 b3ϕBµ1(a, b) + 1 r3Bµ1(a, r) + Aµ1(r, b) , [A7]
Fψ1(r )= 1 κ3r2
×
[g1+(κa) − e2κag1−(κa)]Aψ1(a, b) − 2g1+(κa)Bψ1(a, b) e2κag 2+(κb)g1−(κa) − e2κbg2−(κb)g1+(κa) × − g2+(κb)[κr cosh(κr) − sinh(κr)] + 1 2 g2+(κb) − e2κbg 2−(κb) (κr + 1)e−κr − [κr cosh(κr) − sinh(κr)]Aψ1(r, b) + (κr + 1)e−κrBψ1(r, b) , [A8] where Aµ1(x, y) = y x 1−a 3 r3 dψ eq1 dr dr, [A9a] Bµ1(x, y) = y x (r3− a3)dψeq1 dr dr, [A9b] Aψ1(x, y) = y x e−κrκ2(κr+1) Fµ1(r )+Z e kTψeq1(r )Fµ0(r ) dr, [A10a] Bψ1(x, y) = y x κ2[κr cosh(κr) − sinh(κr)] × Fµ1(r )+ Z e kTψeq1(r )Fµ0(r ) dr, [A10b] g1±(x)= 2 ± 2x + x2, [A11]
g2±(x)= g1±(x) and χ = 1 − ϕ (if Eq. [15] is used),
[A12a,b]
g2±(x)= 1 ± x and χ = 1 + ϕ/2 (if Eq. [17] is used).
[A12c,d]
ACKNOWLEDGMENT
This research was supported by the National Science Council of the Republic of China under Grant NSC89-2214-E-002-051.
REFERENCES
1. Dukhin, S. S., and Derjaguin, B. V., in “Surface and Colloid Science” (E. Matijevic, Ed.), Vol. 7, Wiley, New York, 1974.
2. Anderson, J. L., Lowell, M. E., and Prieve, D. C., J. Fluid Mech. 117, 107 (1982).
3. Prieve, D. C., Anderson, J. L., Ebel, J. P., and Lowell, M. E., J. Fluid Mech. 148, 247 (1984).
4. Prieve, D. C., and Roman, R., J. Chem. Soc. Faraday Trans. 2 83, 1287 (1987).
5. Anderson, J. L., Annu. Rev. Fluid Mech. 21, 61 (1989).
6. Pawar, Y., Solomentsev, Y. E., and Anderson, J. L., J. Colloid Interface Sci. 155, 488 (1993).
7. Keh, H. J., and Chen, S. B., Langmuir 9, 1142 (1993). 8. Keh, H. J., and Wei, Y. K., Langmuir 16, 5289 (2000).
9. Chen, S. B., and Keh, H. J., in “Interfacial Forces and Fields” (J. Hsu, Ed.), Dekker, New York, 1999.
10. Keh, H. J., and Luo, S. C., Langmuir 12, 657 (1996).
11. Tu, H. J., and Keh, H. J., J. Colloid Interface Sci. 231, 265 (2000). 12. Happel, J., AIChE J. 4, 197 (1958).
13. Kuwabara, S., J. Phys. Soc. Jpn. 14, 527 (1959).
14. Levine, S., and Neale, G. H., J. Colloid Interface Sci. 47, 520 (1974).
15. Zharkikh, N. I., and Shilov, V. N., Colloid J. USSR (English transl.) 43, 865 (1982).
16. Kozak, M. W., and Davis, E. J., J. Colloid Interface Sci. 129, 166 (1989).
17. Ohshima, H., J. Colloid Interface Sci. 225, 233 (2000). 18. Wei, Y. K., and Keh, H. J., Langmuir 17, 1437 (2001).
19. Happel, J., and Brenner, H., “Low Reynolds Number Hydrodynamics.” Nijhoff, The Netherlands, 1983.
20. Ohshima, H., Healy, T. W., and White, L. R., J. Chem. Soc. Faraday Trans.
2 79, 1613 (1983).
21. Henry, D. C., Proc. R. Soc. London, A 133, 106 (1931).
22. O’Brien, R. W., and White, L. R., J. Chem. Soc. Faraday Trans. 2 74, 1607 (1978).
