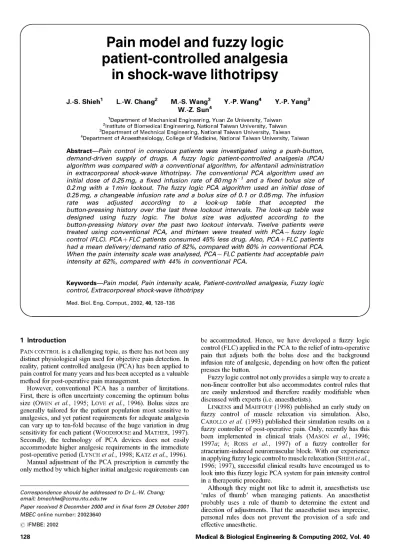

Pain model and fuzzy logic

patient-controlled analgesia

in shock-wave lithotripsy

J.-S. S h i e h I L.-W. C h a n g 2 M . - S . W a n g 3 Y.-P. W a n g 4 Y.-P. Y a n g 3 W . - Z . S u n 4

1Department of Mechanical Engineering, Yuan Ze University, Taiwan 2Institute of Biomedical Engineering, National Taiwan University, Taiwan 3Department of Mechnical Engineering, National Taiwan University, Taiwan 4Department of Anaesthesiology, College of Medicine, National Taiwan University, Taiwan Abstract--Pain control in conscious patients was investigated using a push-button, demand-driven supply of drugs. A fuzzy logic patient-controlled analgesia (PCA) algorithm was compared with a conventional algorithm, for alfentanil administration in extracorporeal shock-wave lithotripsy. The conventional PCA algorithm used an initial dose of O.25 mg, a fixed infusion rate of 60 m g h 1 and a fixed bolus size of O.2 m g with a l m i n lockout. The fuzzy logic PCA algorithm used an initial dose of O.25 mg, a changeable infusion rate and a bolus size of O. 1 or O.05 mg. The infusion

rate was adjusted according to a look-up table that accepted the

button-pressing history over the last three lockout intervals. The look-up table was designed using fuzzy logic. The bolus size was adjusted according to the button-pressing history over the past two lockout intervals. Twelve patients were treated using conventional PCA, and thirteen were treated with P C A + fuzzy logic control (FLC). P C A + FLC patients consumed 45% less drug. Also, P C A + FLC patients had a mean d e l i v e r y / d e m a n d ratio of 82%, compared with 60% in conventional PCA. When the pain intensity scale was analysed, PCA 4- FLC patients had acceptable pain intensity at 62%, compared with 44% in conventional PCA.

\

Keywords--Pain model, Pain intensity scale, Patient-controlled analgesia, Fuzzy logic control, Extracorporeal shock-wave lithotripsy

Med. Biol. Eng. Comput., 2002, 40, 128-136

J

1 I n t r o d u c t i o n

PAIN CONTROL is a challenging topic, as there has not been any distinct physiological sign used for objective pain detection, in reality, patient controlled analgesia (PCA) has been applied to pain control for many years and has been accepted as a valuable method for post-operative pain management.

However, conventional PCA has a number of limitations. First, there is often uncertainty concerning the optimum bolus

size (OWEN et al., 1995; LOVE et al., 1996). Bolus sizes are

generally tailored for the patient population most sensitive to analgesics, and yet patient requirements for adequate analgesia can vary up to ten-fold because of the huge variation in drug sensitivity for each patient (WOODMOUSE and MATHER, 1997). Secondly, the technology of PCA devices does not easily accommodate higher analgesic requirements in the immediate

post-operative period (LYNCH et al., 1998; KATZ et al., 1996).

Manual adjustment of the PCA prescription is currently the only method by which higher initial analgesic requirements can

Correspondence should be addressed to Dr L.-W. Chang; emaih [email protected]

Paper received 8 December 2000 and in final form 29 October 2001 MBEC online number: 20023640

© IFMBE: 2002

be accommodated. Hence, we have developed a fuzzy logic control (FLC) applied in the PCA to the relief of intra-operative pain that adjusts both the bolus dose and the background infusion rate of analgesic, depending on how often the patient presses the button.

Fuzzy logic control not only provides a simple way to create a non-linear controller but also accommodates control rules that are easily understood and therefore readily modifiable when discussed with experts (i.e. anaesthetists).

LINKENS and MAHFOUF (1998) published an early study on fuzzy control of muscle relaxation via simulation. Also,

CAROLLO et al. (1993) published their simulation results on a

fuzzy controller of post-operative pain. Only, recently has this

been implemented in clinical trials (MASON et al., 1996;

1997a; b; ROSS et al., 1997) of a fuzzy controller for

atracurium-induced neuromuscular block. With our experience

in applying fuzzy logic control to muscle relaxation (SHIEH et al.,

1996; 1997), successful clinical results have encouraged us to look into this fuzzy logic PCA system for pain intensity control in a therapeutic procedure.

Although they might not like to admit it, anaesthetists use 'rules of thumb' when managing patients. An anaesthetist probably uses a rule of thumb to determine the extent and direction of adjustments. That the anaesthetist uses imprecise, personal rules does not prevent the provision of a safe and effective anaesthetic.

Consider a rule of thumb such as 'if the pain is greater than the patient's expectation by a large amount and the pain is moving towards the big pain but only slowly, then set the alfentanil infusion rate to a high level'. This rule contains imprecise terms such as 'a large amount', 'slowly' and 'a high level', terms that are difficult to express and manipulate in a computer. Humans have no difficulty with such imprecise information, but it is an obstacle to exploiting an expert's knowledge in a computer system, simply because there is no language to describe imprecise data in a way that a computer understands (YING

et el., 1988).

The key to this problem was described in an article by Lofti Zadeh who introduced 'fuzzy sets' to deal with impre- cise, qualitative terms such as low, medium and high (ZADEH, 1965). A fuzzy logic control was then designed with control rules that are easy for users to understand and therefore simple for users to modify. In this research, a fuzzy logic pain controller using the fuzzy logic and rule of thumb concepts has been designed to control patient pain intensity in an easy, efficient and safe manner during an extracorporeal shock-wave lithotripsy (ESWL) operation.

ESWL is a surgical procedure to remove calculi so that urinary obstruction or infection can be prevented or cured. Calculi are hard, pebble-like stones formed within the body, particularly in the gall bladder (i.e. gallstones) or anywhere in the urinary tract (i.e. cystolithiasis). Calculi in the urinary tract are commonly composed of calcium oxalate and are usually visible on X-ray examination. Most of these stones cause pain, whether sited in the kidney, urethra, or bladder; stones passing down a duct (such as the urethra) cause severe, colicky pain.

in ESWL, used for destroying calculi in the upper urinary tract and gallstones, shock waves are generated and trans- mitted by an external power source. The specialised machine used in ESWL consists of a sophisticated radiological system to localise the stone accurately by biplanar X-ray or ultra- sound and a shock head or transducer to produce and focus the energy source.

ESWL was chosen as a procedure when we performed this research to study the application of a fuzzy logic PCA algorithm to acute pain control. Pain during ESWL has been treated successfully with epidural or general anaesthesia, and ESWL has been performed on a large number of patients since this innovative technology was introduced in 1980. In addition, modern, second-generation lithotriptors offer immersion-free treatment and decreased shock wave-induced pain, owing to the use of less shock-wave energy, and can avoid constant pain in patients. These systems are especially suitable for simplified analgesic techniques, and many such

methods have been suggested (SCHELHNG et el., 1989; 1996;

MONK et el., 1994).

Current pain control of the ESWL operation is as follows. When the patient enters the operation room for ESWL treatment, the urologist and technician first check the X-ray photograph of the patient. Secondly, the technician calibrates the position of the stones (i.e. calculi) using the X-ray machine and then spreads jelly on the head of the ESWL system. Thirdly, the nurse anaesthetist measures the clinical signs of the patient (i.e. SAP, HR, SpO2 and RR).

After these three steps, the patient undergoes ESWL treat- ment. However, if the patient has any pain during the therapy, he or she can raise a hand, and the technician stops the ESWL operation. Then, the nurse anaesthetist enters the operation room to ask the patient's conditions related to pain intensity, if the patient complains of pain, the nurse anaesthetist will give a bolus dose ofopioid to suppress the pain intensity. Hence, the current method is time-consuming, and patients suffer pain during the operation.

in the search for more comfortable pain therapy and to save operation time, the PCA is thought to be a good, suitable solution. The PCA is controlled by the patient pushing a button to administer a small dose of pain killer drugs at fixed intervals. However, the PCA still produces some clinical side effects, such as nausea, dizziness and vomiting.

According to previous clinical trials using fuzzy logic tech- nology, we propose our hypothesis in this paper that a fuzzy logic PCA algorithm (i.e. PCA + FLC) would reduce the amount of drug consumption, and the patient's satisfaction would be increased when compared with the conventional PCA method. Also, a new approach to analyse the pain intensity scale using a pharmacokinetic model combined with either PCA + FLC or the PCA method is presented.

2 C o n t r o l s y s t e m design

Fig. 1 shows the PCA and the PCA ÷ FLC control structure. The current PCA method provides the patient with a pain driven button that activates the pump to administer a bolus dose of analgesic at a fixed time interval (lockout time). However, the PCA + FLC algorithm uses a small bolus size and a changeable infusion rate. The infusion rate is adjusted according to a look-up table that accepts the button-pressing history over the last three lockout intervals. The look-up table is designed using fuzzy logic. The bolus size is adjusted according to the button-pressing history over the last two lockout intervals.

Control rules, membership functions and defuzzification are three essential elements in fuzzy logic control. To perform fuzzy inference and describe the pain control system, we chose two inputs, which were the pain intensity (Pain_intensity) and the change of pain intensity (APain Intensity), and one output, which was the change in alfentanil infusion rate (AFlow_Rate). To fuzzify the inputs and output, the pain intensity was divided into three levels: big pain (BP), small pain (SP) and zero pain (ZP). There is no negative fuzzy set because of the non- feasible nature for pain intensity. The change in pain intensity was divided into five levels: negative big (NB), negative small (NS), zero (ZR), positive small (PS) and positive big (PB). Also, the change in alfentanil infusion rate was divided into five levels: big decrease (BD), small decrease (SD), zero (ZO), small increase (SI) and big increase (BI).

According to anaesthesiologists' experience, nine rules were developed to control the pain control system, as shown in Table 1. The change in pain intensity is defined as the current pain intensity minus the previous pain intensity. Moreover, because of the non-feasible nature of a negative

pain bolus ~ button-pressing . . . . . profile ~ ~ controlled by patient

[ •

Fig. 1 Block diagram of control system to administer alJbntanil

infusion depending on button-pressing profile o f patient. (a) Conventional PCA controller," (b) PCA + FLC controller

Table 1 Anaesthesiologist's rule-base for controlling pain intensity Table 2 Look-up table for controlling pain intensity system using system using change of alJbntanil infusion rate (see text for details') change of alJbntanil infusion rate

Pain_Intensity Pain_Intensity

APain_Intensity BP SP ZP APain_Intensity BP(+2)* SP(+I)* ZP(0)*

NB BD NB( 2)* 1.50 NS SD SD NS( 1)* 0.43 0.83 ZR BI ZO ZO ZR(0/ 0.83 0.25 0.17 PS SI SI PS(+ 1)* 0.83 0.71 PB ZO PB(+ 2)* 0.50 I - 2 membership function -1 0 1 2 Pain_Intensity membership function i i i i i - 2 -1 0 1 2 A Pain_Intensity membership function i i i i i - 2 -1 0 1 2 A Flow Rate

Membership functions of two inputs" and one output

Fig. 2

fuzzy set for pain intensity, there exist six empty spaces in Table 1, where it is impossible to have rules. There are many shapes (DOMBI, 1990; KOUATLI and JONES, 1991) of possible membership functions, such as triangle, trapezoid etc., that can be used in the fuzzy logic controller. For simplicity and popularity, a triangle shape is used, and a 25% overlap for contiguous fuzzy sets is reckoned (KOSKO, 1991), as shown in Fig. 2, for two inputs (Pain intensity and APain intensity) and one output (AFlow_Rate).

When Pain intensity and APain_intensity have been obtained, their quantified levels should be determined. There are two main procedures for the implication and inference of rules that are used in most controllers, the max-min and max- product procedures (DOMBI, 1990). The former method was adopted in this study. Meanwhile, the values of membership functions can be obtained from Fig. 2. Each rule has a different grade of contribution for these inputs. There are two main methods for defuzzification procedures, mean of maximum (MOM) and centre of area (COA) (BP, AAE and RUTHERFORD, 1978). The latter procedure has been adopted because it gives smoother signals. Therefore the equation of the COA procedure for the control input can be written as follows (LI and LAU, 1989):

I _ 2 (M. × U.) 2 ? M°

where M is the membership function, U is the universe of discourse, and n is the number of rules.

*Equipped by Siemens Nixdorf

*Numbers in brackets indicate definition of pain intensity

tNumbers in brackets axe result of subtracting previous Pain_Intensity from current Pain_Intensity

Thus combining all rules produces a look-up table, as shown in Table 2. As the output fuzzy set of the controller is defuzzified, it can be sent to the process after being scaled from normalised values to real values, in this study, the scaling factor for this output was chosen to be 8.58; this choice was aimed at providing a sensitive controller to control the pain control system ac- curately (LINKENS and ABBOD, 1992).

To obtain the button-pressing profile of the patient using the fuzzy logic method, the big pain (BP), small pain (SP) and zero pain (ZP) levels of pain intensity were defined as follows: (a) BP: a button has been pushed in both the previous and

current lockout intervals

(b) SP: a button has been pushed in the current lockout interval and not in the previous lockout interval

(c) ZO: a button is pushed in neither previous nor current lockout intervals.

According to the aforementioned fuzzy logic theory, a lookup table can be obtained, as shown in Table 2, to administer the alfentanil. The drug infusion parameters are shown in Table 3 and can be compared with those in Table 4 that have been commonly used in current PCA therapy.

The conventional PCA algorithm uses an initial dose of 0.25mg, a fixed infusion rate of 6 0 m g h -1 and a fixed bolus size of 0.2 mg with a 1 min lockout. The PCA ÷ FLC algorithm uses an initial dose of 0.25 mg, a changeable infusion rate and a bolus size of 0.1 or 0.05 mg. The infusion rate is adjusted according to a look-up table that accepts the button-pressing

Table 3 AlJbntanil parameters of PCA + FLC therapy

Analgesic drag Alfentanil

Concentration mg ml 1 0.1

Initial dose, ml 2.5

Bolus dose depending on button-pressing, ml

BP 1

SP 0.5

Lockout time, min 1

Continuous infusion rate, ml h 1 changeable depending on

button-pressing profile

Table 4 AlJbntanil parameters of current PCA therapy

Analgesic drug AI fentaxfil

Concentration, mg ml 1 0.5

Initial dose, ml 0.5

Bolus dose, ml 0.4

Lockout time, min 1

history over the last three lockout intervals. The look-up table is designed using fuzzy logic. The bolus size is adjusted according to the button-pressing history over the last two lockout intervals. The infusate concentrations in Table 3 are different from those in Table 4, because the PCA + FLC system was using the continuous infusion plus small bolus doses. Also, because there is continuous infusion in the PCA + FLC system, the bolus doses can be reduced dramatically compared with those of the conventional PCA system. Therefore the drug concentra- tions were diluted with saline 5 times more than in the PCA system to prevent the infusion rate being too small for the syringe pump to administer.

catheter Fig. 3 HR I pain signals [ controlled by map] [ patient . t o r I I " i I (pushing I pain-driven I button)

Flow chart of either PCA or PCA + FLC controller where control system administers alJbntanil infusion depending on button-pressing profile of patient

3 Patients and methods

This study was approved by the National Taiwan University Hospital Ethics Committee. Twenty-five patients were studied who were American Society of Anaesthesiologist physical status 1 or 2 and were undergoing ESWL surgery for calculi in the renal pelvis using a Lithostar lithotriptor.* They were divided into two groups so that our hypothesis could be tested that the amount of alfentanyl drug consumption would be reduced and the patient's satisfaction would be increased when compared with the tra- ditional PCA method.

Group 1 (i.e. 12 patients) was the control group using conventional PCA, with five female and seven male patients, mean age 48 (range 25-71) years and mean weight 66 (range 51-91)kg. The mean duration of control was 33 (range 19-53)min. The mean alfentanyl requirement was 1.36 (range 0.25-2.0)mg. Group 2 (i.e. 13 patients) was the experimental group using the PCA ÷ FLC control technique, with three female and ten male patients, mean age 47 (range 25- 69) years and mean weight 67 (range 52-80)kg. The mean duration of control was 45 (range 34-86)min. The mean alfentanyl requirement was 0.90 (range 0.32-2.05)mg.

Patients were excluded if they had clinical evidences of severe respiratory problems, history of drug use, alcohol abuse or chronic pain, a positive pregnancy test or calculi outside the renal pelvis.

3.1 Anaesthetic techniques

Anaesthetic agents were given by staffmembers, residents or a nurse anaesthetist with at least one year's experience in anaesthesia. An attending anaesthesiologist involved in the study was always present and responsible for standard moni- toring of the patient. Also, one investigator, who designed this monitoring system, was always present and responsible for handling any device or computer malfunction to bring the system back under control by the anaesthesiologist. After the standard monitors (i.e. systolic arterial pressure (SAP), heart rate (HR), saturated oxygen (SpO2) and respiration rate (RR)) had been set up, pain intensity was controlled by either conventional PCA or the PCA ÷ FLC method.

3.2 Computer data input and data output

The whole system was programmed in the 'Borland C + + ' language. An iBM-compatible notebook was used for collec- tion, display and storage of data. The digital communications were carried out via RS232 serial ports that were interfaced to the Datex Dinamap monitor, a pain driven patient controlled button and an Ohmeda 9000 syringe pump for monitoring clinical signs, such as SAP, HR and the button-pressing profile of the patient, as well as the infusion rate of analgesic, as shown in

* E q u i p p e d by Siemens N i x d o r f

Fig. 3. in addition, the whole system was still under supervision by the anaesthesiologist. The Dinamap monitor was set to provide arterial pressure and heart rate information at 3-5 min intervals. Instruction was given to the patients by an investigator to educate them how to push the button when they felt pain during the EWSL process. Providing a pumping rate from 0.1 to 1200 mlh -1, an Ohmeda 9000 syringe pump was controlled by either the PCA or PCA + FLC controller.

3.3 Relationship o f pain intensity and drug concentration in blood

Alfentanil is an established drug for the treatment of shock

wave-related pain (MONK et al., 1991). Alfentanil is a synthetic

opioid with rapid onset and a relatively short duration. These characteristics enable the anaesthetist to adjust the level of opioid analgesia to match the changing surgical stimulus. To facilitate this titration, several computer-controlled infusion pumps based on pharmacokinetic models of alfentanil have

been developed (ALvIS et al., 1985; SHAFER et al., 1988;

AUSEMS et al., 1983), and this method is also called target-

controlled infusion (TCI) (CHECKETTS et al., 1998).

The computer-controlled infusion allows the anaesthetist to specify a 'target' alfentanil serum concentration. The infusion pump then administers the appropriate alfentanil dose according to a pharmacokinetic model. However, the performance of a pharmacokinetic model-based administration system is depen- dent on the parameter values of the model.

MAITRE et al. (1987) performed a population analysis of

alfentanil pharmacokinetics with NONMEM, a statistical non- linear regression program, using data from four published studies, if the drug had been administered using a computer- controlled infusion pump, reasonably reliable and accurate target serum concentrations of alfentanil could be achieved using the pharmacokinetic parameters of SCOTT and STANSKI

(1987) in a computer-controlled infusion pump (RAEMER et al.,

1990).

However, the classical pharmacokinetic models used in computer-controlled infusion pumps assume instantaneous mixing of the drug in blood, whereas the average recirculation time of blood in the human body is approximately 1 min. Hence, WADA and WARD (1994) proposed a hybrid three-compartment model, as shown in Fig. 4, to overcome this problem. To illustrate the effects of varying the pharmacokinetic study design on the parameter estimates of a three-compartment model, they duplicated the protocols from two clinical pharma-

cokinetic studies (SCOTT and STANSKI, 1987; CAMU et al.,

1982). They simulated peripheral arterial concentrations from the hybrid model over 4 h and estimated parameters for the three- compartment model using a weighted least squares criterion.

Rate constants, as shown in Table 5, were used in the hybrid model of the WADA and WARD (1994) method, which is thought more suitable to represent the PCA for bolus infusion and

effect ~ kle I compartment xe

I

l eo

Fig. 4

Zi =amount o f drug in ith compartment," u = a m o u n t o f drug given in time at any moment in central compartment," and kij are appropriate intereompartmental first-order rate constants"

Table 5 Rate constants" o f three-compartment model according to WADA and WARD (1994) method

Methods PCA PCA ÷ FLC

rate constants, min 1

klo 0.045 0.148

k12 0.120 0.970

k21 0.089 0.460

k13

k31

PCA + FLC for short infusion. The differences between para- meter estimates derived from the short infusion and bolus

protocols are most dramatic for k l o , k12 , k21 , and k13 , whether

determined in the clinical studies or from the hybrid model. The

hybrid model predicts that estimates of kl0 from short-infusion

data could be as little as three times the estimates from bolus

data. Similarly, estimates of k12 , k21 , and k13 could be five-ten

times greater when estimated via a short infusion. Estimates of clearance and k31 are not affected as significantly by the different protocols.

SHEINER et al. (1979) produced the findings that the dynamics

of the drug effect do not coincide with those of the plasma concentration. To characterise the temporal aspects of the drug effect, a fourth compartment, known as the effect compartment, was introduced, it is connected to the central compartment by a

first-order rate constant kle, whereas the rate constant keo

characterises the drug dissipation from the effect compartment, as also shown in Fig. 4. Regarding the rate constant of the effect compartment, the half-life of alfentanil is approximate 1 min. Hence, according to the assumption of the first order of the kinetic model during drug distribution in the effect compart-

ment, the rate constant keo can be obtained as 0.693 min -1.

To obtain more objective data and a pharmacodynamic model, the count of the buttons pushed by the patient was used to calculate the pain intensity scale according to clinical trials under either the PCA or P C A + F L C method. The methodology of this procedure is as follows.

(i) Record and calculate the drug concentration of the effect compartment according to the pharmacokinetic model, when the patient pushed the button with the PCA method; repeat the recording and calculation for each of the 12 patients

(ii) Record the number of drug demands at a fixed concentra- tion increase; for example, if the increase was chosen as 2.5ngml 1, record the number of demands at each

2.5ngml

1,

the horizontal axis; in this research, eight different con- centration increases were chosen (i.e. 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0ngml 1)

(iii) Normalise the number of drug demands for each concen- tration interval (i.e. the number of demands in an interval divided by the sum of the number of demands for the entire concentration range); repeat this step for the eight different concentration increases

(iv) Add together the ratio of demands at each concentration interval, from the first patient to the last patient, after normalisation

(v) Multiply the results of procedure (iv) by a scaling factor so that the maximum value equals 100

(vi) Repeat procedures (i)-(v) for 13 patients with the PCA + FLC method.

4 Results

Twelve patients using the PCA method and 13 patients using the PCA ÷ FLC method, all undergoing ESWL surgery, were studied. Tables 6 and 7 show the alfentanil drug consumption and the ratio of delivery to demand. According to discussions with anaesthesiologists, the ratio of delivery to demand is strongly related to patient satisfaction. Also, from a clinical view point, the higher the ratio of delivery to demand, the greater the satisfaction of the patient.

The mean (SDs) of drug consumption for the PCA and P C A + F L C methods were 41.3 (18.0) and 18.7 (9.2) ~tg.kg-lh -1, respectively. The ratios of delivery to demand for the PCA and PCA + FLC methods were 60% and 82%. Therefore the results have shown that the PCA + FLC method is more effective than the PCA method. Not only is the amount of drug consumed smaller than that for the PCA method, but also its ratio of delivery to demand is higher than that for the PCA method.

Furthermore, the relationship between the pain intensity scale and drug concentration in the effect compartment for eight different drug concentration increases is shown in Figs 5 and 6 for the PCA method and the PCA + FLC method, respectively. To obtain more objective data, the eight different drug concen- tration increases were chosen (i.e. 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0ngml-1). The larger the drug concentration increases chosen, the fewer data points represented. The numbers of

drug demands were obtained as shown in Figs 5 a - h and

Figs 6 a - h .

if the maximum of the pain intensity scale is defined as 100%, the acceptable pain intensity scale of the patient is approximately 30% according to the clinical experience of the anaesthesio- logist. Table 8 shows that the percentage of the pain intensity scale below 30% is 62% for PCA ÷ FLC, in contrast to 44% for PCA. The results tell us that the pain intensity scale of the PCA + FLC method is significantly lower than that of the PCA method, which is consistent with the greater satisfaction of the patient, as the drug consumption and the ratio of delivery to demand indicate.

5 Discussion

The use of a background infusion in PCA is the subject of some disagreement, although it is not generally used (OWEN

et al., 1989; ZACHARIAS et al., 1990), because most background

infusion in PCA is set at a constant infusion rate, according to the anaesthesiologist's experience, and does not change when the patient pushes the button, in this study, background infusion was used as well.

We utilised the fuzzy logic PCA algorithm to relieve intra- operative pain. The algorithm adjusts both the bolus dose and the background infusion rate of analgesic, depending on how often

Table 6 Drug consumption o f alJOntanil by patients" undergoing ESWL surgery with PCA method and PCA + F L C method (units are #g. kg Z h 1)

Patient number system 1 2 3 4 5 6 7 8 9 10 11 12 Mean ± SD

PCA 45.6 28.3 56.9 39.1 30.9 44.6 60.4 75.9 5.9 27.9 38.3 42.3 41.3 ± 18.0

Patient number system 13 14 15 16 17 18 19 20 21 22 23 24 25 Meaxl± SD

PCA ÷ FLC 39.7 13.4 15.8 7.7 18.5 13.1 16.5 17.1 19.6 16.2 7.6 24.5 33.7 18.7±9.2

Table 7 Ratio o f delivery to demand for patients undergoing ESWL surgery with PCA method and PCA + F L C method," 1 means that patient did not push any button, but we assume ratio is 100%

Patient number system 1 2 3 4 5 6 7 8 9 10 11 12 Mean

PCA 3/8 3/4 8/8 6/8 6/9 7/11 6/31 5/24 1 7/13 8/18 9/14 60%

Patient number system 13 14 15 16 17 18 19 20 21 22 23 24 25 Mean

PCA ÷ FLC 10/12 3/3 6/8 1 6/7 2/5 4/4 8/8 8/10 4/6 4/4 4/5 14/23 82%

the patient pushes the button. Fuzzy logic gives user-friendly interfacing with humans. In practice, a precise model m a y not exist for biological systems, or it m a y be too difficult to model. In most cases, fuzzy logic is considered to be an ideal tool, as human minds work from approximate data, extract meaningful information and produce crisp solutions (MAHFOUF et al., 2001). The purpose o f this adjustment o f both the bolus dose and the background infusion rate o f analgesic was to overcome the huge variety in patients' drug requirements for adequate analgesia.

Although we did not take a blood sample to analyse, Fig. 7 is a predicting curve o f the drug concentration profile and shows that serum alfentanil drug concentration can be achieved as closely as the analgesia level when the P C A + FLC method is used. However, the P C A method shows serum alfentanil drug concen- tration can vary very widely between pain and sedation level. That is w h y the P C A still produces some clinical side effects, such as nausea, dizziness, and vomiting. Also, in our study, P C A ÷ FLC patients had acceptable pain intensity at 62%, compared with at 44% in conventional PCA. it means that the P C A ÷ FLC method is closer to an ideal curve o f analgesic drug therapy.

In this study, the means (SDs) o f drug consumption o f the P C A and P C A + FLC methods were 41.3 (18.0) and 18.7 (9.2) pg - k g - l h -1, respectively. P C A + FLC patients consumed 45% less drug than P C A patients. From closed-loop control theory, the P C A controller is like an on-off controller. The controller does not use too much effort controlling the drug administration. When the alfentanil drug concentration has been eliminated greatly from the blood, the patient starts to feel pain and pushes the button. As the alfentanil drug concentration in the blood is low (i.e. far below the threshold o f the pain level), it needs more drug to be injected into the blood. However, the P C A ÷ FLC controller is like a proportional-integral-derivative (PID) controller but always better, it adjusts the continuous infusions and the bolus size as well, to achieve the threshold o f the pain level for each patient. When the patient starts to feel pain and pushes the button, the alfentanil drug concentration in the blood does not drop far below the threshold o f the pain level as it does with the P C A controller. Because the alfentanil drug concentra- tion in the blood is not low, it therefore needs less drug injected into the blood.

lOO 90 8o 70 ..,~. 6 0 50 0 ) . E 4 0 ' ~ 30 20 10 100 90 80 70 _~ 60 =~ 5O 0 ) .E 40 ' ~ 30 20 10 F i g . 5 o o o o o o o o o o o o o o o o o _o o o o o o o o o o o o e o o o o o o o e o o o o o o o ~ o o o o o o o o o o o o o o o o o o o o L o o o [ o o o , , , , , , ° ° o i i ° ° o o o o , i , , , , , o , o , ~ , , , , , , o o 10 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 0 10 2 0 3 0 4 0 5 0 6 0 - 7 0 8 0 9 0 0 10 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 0 10 2 0 3 0 4 0 5 0 6 0 7 0 8'0 9 0 a b c . • . . . o . . . e, . . . . o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o , I i i I I f 0 i 0 i I I i I I [ O i 0 0 0 0 0 i 0 10 20 30 40 50 60 70 80 90 10 20 30 40 50 60 70 80 90 10 20 30 40 50 60 70 80 0 10 20 30 40 50 60 70 80 90

drug concentration, ng ml 1 drug concentration, ng ml 1 drug concentration, ng ml 1 drug concentration, ng ml 1

e f g h

Relationship between pain intensity scale and drug concentration in effect compartment for different drug concentration intervals" using PCA

1 1 1 1 1 1 1 1

1 0 0 9 0 8 0 ~ 7o ._~ 6o ~ 5o = 4 0 ~ 3 0 2 0 1 0 1 0 0 9 0 8 0 ~ 7 0 . ~ 6 0 ~, 5o = 4 0 ~ 3 0 2 0 1 0 o; Fig. 6 0 0 0 0 0 0 0 0 o o o o o o o o o~ 1 0 2 0 3 0 4 0 5 0 a , a o o o o o o o o _o o 1 0 2'0 3 0 4 0 5.0 6 0 7 0 d r u g c o n c e n t r a t i o n , n g ml 1 o 6 0 0 0 13 0 0 o o o o o o o o o o o ;o ~o 3o o, 4 0 5 0 6 0 0 b 8 . o o o o o o o _{o o} o o l b 2b a'o 40 5'o 60 0 drug concentration, ng ml 1 f o o o o o o o o o _o o , , , , r o, ° 1 0 2 0 3 0 4 0 5 0 6 0 7 0 c o o o o o 6 O ~ , 0 0 0 o o o o _o o o 1 0 2'0 3 ' 0 4 0 5 ' 0 d o 0 o o o _o 1'0 2'0 3'0 4'0 50 10 20 30 40 50 drug concentration, ng ml 1 drug concentration, ng ml 1

g h

o 6O

6 0

Relationship between pain intensity scale and drug concentration in effect compartment for difJbrent drug concentration intervals" using

1 1 1 1 1

PCA + FLC method: (a) 2.5 ng ml ; (b) 3.0 ng ml ; (c) 3.5 ng ml ; (d) 4.0 ng ml ; (e) 4.5 ng ml ;(/) 5.0 ng ml Z; (g) 5.5 ng ml Z; (h) 6.0ngml z

This is the first paper using fuzzy logic control applied to clinical pain therapy. There is only one previous paper using

fuzzy logic control to simulate post-operative pain

(CAROLLO et el., 1993). This is also the first use of FLC in

PCA. it is quite similar to previous FLC methods, except that the 2.5

rule-base is totally different from other FLC methods. In this 3.0

3.5

paper, the rule-base, which can play a major part in this system, 4.0

was generated from discussions with anaesthesiologists. 4.5

However, it is still difficult to standardise how to co-operate 5.0

and discuss with clinical physicians to generate this fuzzy rule- 5.5

base. Hence, more research will have to be carried out, especially 6.0

in the area of self-ttming rules. Mean

There are many publications (SHIEH et el., 1999; MAHFOUF

et el., 2001) investigating this area of self-organising fuzzy logic

control (SOFLC). it can provide an adaptive rule-learning capability to complement a fuzzy logic control strategy. Not only can the rule-base be generated gradually according to a not very precise rule-base, but also it can be from zero knowledge. Hence, the SOFLC will be designed to modify the fuzzy rule- base so that inter-patient variations can be taken care of. Also, it will approach more accurate control of pain, although pain feeling is very subjective.

The fuzzy logic controller was simulated to assess design

variables according to the simulation of the button-pressing "~

E profile of the patient. This off-line simulation can test how

good the selection of the triangle shapes is for membership §

functions, and how good the selection of the number of levels is

for inputs and outputs. However, this off-line simulation is still -o

an open-loop system. To perform closed-loop simulation, a patient model of the pain intensity scale will be built in the following stage.

Artificial neural networks (ANNs) offer a better possibility of rapid knowledge acquisition using their self-organising learning properties. They have the ability to learn in those cases where it is possible to specify the inputs and outputs but difficult to define the relationship between them. They are also tolerant of noise in the input data and find it easy to cope with non-linear systems. These attributes of ANNs are suitable for the domain of

Table 8 Percentage o f pain intensity scale below 30 with PCA method and PCA + FLC method

Concentration increase, ng ml 1 PCA, % PCA ÷ FLC, %

63 68 58 68 50 59 47 50 35 71 33 58 36 64 31 60 44 62

anaesthesia (SHIEH et eL, 2000) and pain intensity, because the

relationships between clinical signs are not clear and are highly non-linear.

Also, an Elman network will be considered in the modelling to overcome time problems during the administration of drugs.

respiratory depression sedation analgesia pain

;,

/\

,,

/ \

/ ,

Fig. 7 Serum drug concentration profile under analgesic drug

therapy. 6--) Ideal curve; ( . . . ) PCA + FLC method," (- - -) PCA method

However, the network must first be trained. To build the patient model more completely using ARKs, further clinical monitoring data need to be collected continuously in the following stage.

6 Conclusions

in this preliminary study o f the control o f pain intensity, we have demonstrated the clinical utility o f a simplified fuzzy logic P C A algorithm approach to alfentanil-induced pain relief in extracorporeal shock-wave lithotripsy. The current research can now be expanded to encompass alternative analgesic techniques and different analgesic drugs (e.g. morphine, fentanyl), in addition, this general fuzzy logic P C A algorithm could be expanded to include other analgesia applications, such as prostate enlargement therapy in operating rooms, post-operative analgesia in recovery rooms and wards, and even more complex multivariable control problems, such as the treatment o f pain in intensive care units and cancer pain at home.

Acknowledgments" The authors wish to thank the National

Health Research Institute (NHRI) in Taiwan (Grant number NHRI-GT-EX89) for supporting this research. The work was carried out at the National Taiwan University Hospital.

References

ALVIS, J. M., REVES, J. G., GOVIER, A. V, MENKHAUS, R G., HENLING, C. E., SPAIN, J. A., and BRADLEY, E. (1985): 'Compu- ter-assisted continuous infusion of fentabyl during cardiac anesthe- sia', Anesthesiology, 63, pp. 41-49

AUSEMS, M. E., HUG, C. C. Jr., and DE LANCE, S. (1983): 'Variable rate infusion of alfentanil as a supplement to nitrous oxide anesthe- sia foe general surgery', Anesth. Analg., 62, pp. 1217-1225 BRAAE, M., and RUTHERFORD, D. A. (1978): 'Fuzzy relation in a

control setting', Kybernetes, 7, pp. 185-188

CAMU, F., GEPTS, E., RUCQUOI, M., and HEYKANTS, J. (1982): 'Phaxmacokinetics of alfentanil in man' Anesth. Analg., 61, pp. 657-661

CAROLLO, A., TOBAR, A., and HERNANDEZ, C. (1993): 'A rule-based postoperative pain controller: simulation results', Int. J. Biomed.

Comput., 33, pp. 267-276

CHECKETTS, M. R., GILHOOLY, C. J., and KENNY, G. N. C. (1998): 'Patient-maintained analgesia with taxget-controlled alfentanil infu- sion after cardiac surgery: a comparison with morphine PCA', B~ J.

Anaesthes., 80, pp. 748-751

DOMBI, J. (1990): 'Membership function as am evaluation', Fuzzy Sets"

& Syst., 35, pp. 1-21

KATZ, J., JACKSON, M., KAVANAGH, B. P., and SANDLER, A. N. (1996): 'Acute pain after thoracic surgery predicts long-term post-thoracot- omy pain', Clin. J Pain., 12, pp. 50-55

KOSKO, B. (1991): 'Neural networks and fuzzy systems' (Prentice-Hall International, Inc., Singapore, 1991)

KOUATLI, I. M., and JONES, B. (1991): 'An improved design procedure for fuzzy control systems', Int. J. Mach. Tools" Manufact., 31, pp. 107-122

LI, Y. E, and LAg, C. C. (1989): 'Development of fuzzy algorithms for servo systems', IEEE Control Syst. Mag., 9, pp. 65-72

LINKENS, D. A., and MAHFOUF, M. (1988): 'Fuzzy logic knowledge- based control for muscle relaxation anaesthesia'. IFAC Symposium on Modelling and Control in Medicine, Venice, pp. 185-190 LINKENS, D. A., and ABBOD, M. E (1992): 'Self-organizing fuzzy

logic control and the selection of its scaling factors', Trans. Ins.

Meas. Control, 14, pp. 114-125

LOVE, D. R., OWEN, H., ILSLEY, A. H., PLUMMER, J. L., HAWKINS, R. M., and MORRISON, A. (1996): 'A comparison of vaxiable-dose patient- controlled analgesia with fixed-dose patient-controlled analgesia',

Anesth. Analg., 83, pp. 1060-1064

LYNCH, E. P., LAZOR, M. A., GELLIS, J. E., ORAV, J., GOLDMAN, L., and MARCANTONIO, R. (1998): 'The impact of postoperative pain on the development of postoperative delirium', Anesth. Analg., 86, pp. 781-785

MAHFOUF, M., ABBOD, M. E, and LINKENS, D. A. (2001): 'A survey of fuzzy logic monitoring and control utilization in medicine', Artif.

Intell. Med., 21, pp. 27-42

MAITRE, P. O., VOZEH, S., HEYKANTS, J., THOMSON, D. A., and STANSKI, D. e. (1987): 'Population phaxmacokinetics of Alfentanil: the average dos-plasma concentration relationship and interindivi- dual variability in patient', Anesthesiol., 66, pp. 3-12

MASON, D. G., Ross, J. J., EDWARDS, N. D., LINKENS, D. A., and REILLY, C. S. (1996): 'Performance assessment of a fuzzy controller for atracurium-induced neuromuscular block', Br J. Anaesth., 76, pp. 396-400

MASON, D. G., LINKENS, D. A., EDWARDS, N. D., and REILLY, C. S. (1997a): 'Development of a portable closed-loop atracurium infu- sion systems: systems methodology and safety issues', Int. J. Clin.

Monit. Comput., 13, pp. 243-252

MASON, D. G., Ross, J. J., EDWARDS, N. D., LINKENS, D. A., and REILLY, C. S. (1997b): 'Self-learning fuzzy control of atracurium- induced neuromuscular block during surgery', Med. Biol. Eng.

Comput., 35, pp. 498-503

MONK, T. G., RATER, J. M., and WHITE, R E (1991): 'Comparison of alfentanil and ketamine infusions in combination with midazolam for outpatient lithotripsy', Anesthesiology, 74, p. 1023

MONK, T. G., DING, Y., WHITE, P. E, ALBALA, D. M., and CLAYMAN, R. V (1994): 'Effect of topical eutectic mixture of local anesthetic of pain response and analgesic requirement during lithotrips proce- dures', Anesth. Anal., 79, p. 506

OWEN, H., SZEKELY, S. M., PLUMMER, J. L., CUSHNIE, J. M., and MATHER, L. E. (1989): 'Variable of patient-controlled analgesia: concurrent infusion', Anaesthesia, 44, pp. 11-13

OWEN, H., PLUMMER, J. L., ILSLEY, A., HAWKINS, R., ARFEEN, Z., and TORDOFF, K. (1995): 'Variable-dose patient-controlled analgesia: a preliminary report', Anaesthesia, 50, pp. 855-857

RAEMER, D. B., BUSCHMAN, A., VARVEL, J. R., PHILIP, B. K., JOHNSON, M. D., STEIN, D. A., and SHAFER, S. L. (1990): 'The prospective use of population phaxmacokineics in a computer- driven infusion system for alfentanial', Anesthesiol., 73, pp. 66-72 Ross, J. J., MASON, D. G., LINKENS, D. A., and EDWARDS, N. D. (1997): ' Self-leaxning fuzzy logic control of neuromuscular block',

Br J. Anaesth., 78, pp. 412-415

SCHELLING, G., WEBER, W., SACKMANN, M., and PETER, K. (1989): 'Pain control during extracorporeal shock wave lithotripsy of gallstones by titrated alfentanil infusion', Anesthesiol., 70, p. 1022

SCHELLING, G., WEBER, W., MENDL, G., BRAUN, H., and CULLMANN, H. (1996): 'Patient controlled analgesia for shock wave lithotripsy: the effect of self-administered alfentanil on pain intensity and drug requirement', J. Urol., 155, pp. 43-47

SCOTT, J. C., and STANSrd, D. R. (1987): 'Decreased fentanyl and alfentanil dose requirements with age. A simultaneous phaxmaco- kunetic and phaxmacodynamic evaluation', J Pharmacol. Exp.

Ther, 240, pp. 159-166

SHAFER, S. L., SIEGEL, L. C., COOKE, J. E., and SCOTT, J. C. (1988): 'Testing computer-controlled infusion pumps by simulation',

Anesthesiol., 68, pp. 261-266

SHEINER, L. B., STANSKI, D. R., VOZEH, S., MILLER, R. D., and HAM, J. (1979): 'Simultaneous modeling of phaxmacokinetics and phar- macodynaxnics: application to d-tubocurarine', Clin. Pharmacol.

Ther, 25, pp.358-361

SHIEH, J. S., CHANG, L. W., FAN, S. Z., and LIU, C. C. (1996): 'Hierarchical monitoring and fuzzy logic control of muscle relaxation', Biomed. Eng. Appl. Basis" Comm., 8, pp. 392-402 SHIEH, J. S., CHANG, L. W., FAN, S. Z., and LIU, C. C. (1997):

'Hierarchical monitoring and fuzzy logic control of neuromuscular block with mivacurium', Biomed. Eng. Appl. Basis" Comm., 9, pp. 261-267

SHIEH, J. S., LINKENS, D. A., and PEACOCK, J. E. (1999): 'Hierarchical rule-base and self-organizing fuzzy logic control for depth of anaesthesia', IEEE Trans. Syst. Man Cybern. C, Appl. Rev., 29(1), pp. 98-109

SHIEH, J. S., CHOU, Q. E, and FAN, S. Z. (2000): 'Modelling of bispectral index using artificial neural networks during inhalational anaesthesia', Biomed. Eng. Appl. Basis Comm., 12, pp. 44-51 WADA, D. e., and WARD, D. S. (1994): 'The hybrid model: a new

pharmacokinetic model for computer-controlled infusion pumps',

WOODHOUSE, A., and MATHER, L. E. (1997): 'The influence of age upon opioid analgesic use in the patient-controlled analgesia (PCA) environment', Anaesthesia, 52, pp. 949-955

YING, H., SHEPPARD, L., and TUCKER, D. (1988): 'Expert-systems- based fuzzy control of arterial pressure by drug infusion', Med. Prog~ Through Technol., 13, pp. 672-683

ZACHARIAS, M., PFEIFER, M. V, and HERBISON, E (1990): 'Compar- ison of two methods of intravenous administration of morphine for postoperative pain relief', Anaesth. Intens. Care, 18, pp. 205-209 ZADEH, L. A. (1965): 'Fuzzy sets', Inform. Control, 8, pp. 338-353

Authors" biographies

JIANN-SHING SHIEH received his PhD in Automatic Control and Systems Engineering from the University of Sheffield, UK, in 1995. He is am Assistant Professor in the Department of Mechanical Engineering at the University of Yuan Ze, Taoyuan, Taiwa:n. His current research interests include learning systems, fuzzy control, artificial intelligence, control of anaesthesia, and pain model and control.

LIANG-WEY CHANG received his PhD in Mechanical Engineering from Purdue University, West Lafayette, IN, USA, in 1984. He is am

Associate Professor in the Institute of Biomedical Engineering at National Taiwan University. His research lies in biomechanical engineering and particularly the design and control of orthotic and therapeutic devices.

MIN-SHEN WANG graduated from the National Taiwan University and received his Master in Mechanical Engineering in 1998.

YONG-PING WANG is am anaesthesiologist at the National Taiwa:n University Hospital. He holds am MD from the College of Medicine, National Taiwa:n University.

YEE-PIEN YANG is a Professor in the Department of Mechanical Engineering at National Taiwa:n University. He obtained his PhD in Mechanical Engineering from UCLA, USA, in 1988. His research projects cover various aspects of the design and control of mechanical systems.

WEI-ZEN SUN has an MD from the College of Medicine, National Taiwan University. He currently serves as the Chairman of the Department of Anaesthesiology at the National Taiwan University Hospital.
