Plasma-induced charging damage in ultrathin (3-nm) gate oxides

IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 47, NO. 7, JULY 2000 1355

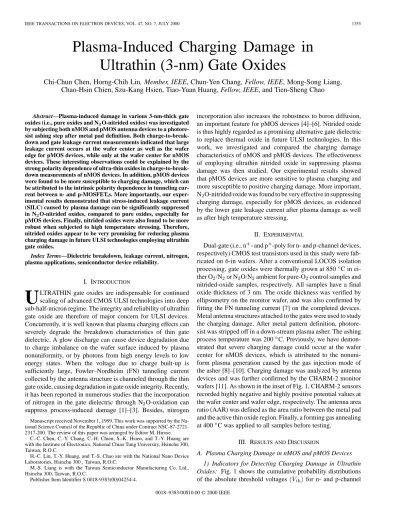

Plasma-Induced Charging Damage in

Ultrathin (3-nm) Gate Oxides

Chi-Chun Chen, Horng-Chih Lin, Member, IEEE, Chun-Yen Chang, Fellow, IEEE, Mong-Song Liang,

Chao-Hsin Chien, Szu-Kang Hsien, Tiao-Yuan Huang, Fellow, IEEE, and Tien-Sheng Chao

Abstract—Plasma-induced damage in various 3-nm-thick gate

oxides (i.e., pure oxides and N

O-nitrided oxides) was investigated

by subjecting both nMOS and pMOS antenna devices to a

photore-sist ashing step after metal pad definition. Both

charge-to-break-down and gate leakage current measurements indicated that large

leakage current occurs at the wafer center as well as the wafer

edge for pMOS devices, while only at the wafer center for nMOS

devices. These interesting observations could be explained by the

strong polarity dependence of ultra-thin oxides in

charge-to-break-down measurements of nMOS devices. In addition, pMOS devices

were found to be more susceptible to charging damage, which can

be attributed to the intrinsic polarity dependence in tunneling

cur-rent between n- and p-MOSFET,s. More importantly, our

exper-imental results demonstrated that stress-induced leakage current

(SILC) caused by plasma damage can be significantly suppressed

in N

O-nitrided oxides, compared to pure oxides, especially for

pMOS devices. Finally, nitrided oxides were also found to be more

robust when subjected to high temperature stressing. Therefore,

nitrided oxides appear to be very promising for reducing plasma

charging damage in future ULSI technologies employing ultrathin

gate oxides.

Index Terms—Dielectric breakdown, leakage current, nitrogen,

plasma applications, semiconductor device reliability.

I. I

U

LTRATHIN gate oxides are indispensable for continued

scaling of advanced CMOS ULSI technologies into deep

sub-half-micron regime. The integrity and reliability of ultrathin

gate oxide are therefore of major concern for ULSI devices.

Concurrently, it is well known that plasma charging effects can

severely degrade the breakdown characteristics of thin gate

dielectric. A glow discharge can cause device degradation due

to charge imbalance on the wafer surface induced by plasma

nonuniformity, or by photons from high energy levels to low

energy states. When the voltage due to charge built-up is

sufficiently large, Fowler–Nordheim (FN) tunneling current

collected by the antenna structure is channeled through the thin

gate oxide, causing degradation in gate oxide integrity. Recently,

it has been reported in numerous studies that the incorporation

of nitrogen in the gate dielectric through N O-oxidation can

suppress process-induced damage [1]–[3]. Besides, nitrogen

Manuscript received November 1, 1999. This work was supported by the Na-tional Science Council of the Republic of China under Contract NSC-87-2721-2317-200. The review of this paper was arranged by Editor M. Hirose.

C.-C. Chen, C.-Y. Chang, C.-H. Chien, S.-K. Hsien, and T.-Y. Huang are with the Institute of Electronics, National Chiao Tung University, Hsinchu 300, Taiwan, R.O.C.

H.-C. Lin, T.-Y. Huang, and T.-S. Chao are with the National Nano Device Laboratories, Hsinchu 300 , Taiwan, R.O.C.

M.-S. Liang is with the Taiwan Semiconductor Manufacturing Co. Ltd., Hsinchu 300, Taiwan, R.O.C.

Publisher Item Identifier S 0018-9383(00)04254-4.

incorporation also increases the robustness to boron diffusion,

an important feature for pMOS devices [4]–[6]. Nitrided oxide

is thus highly regarded as a promising alternative gate dielectric

to replace thermal oxide in future ULSI technologies. In this

work, we investigated and compared the charging damage

characteristics of nMOS and pMOS devices. The effectiveness

of employing ultrathin nitrided oxide in suppressing plasma

damage was then studied. Our experimental results showed

that pMOS devices are more sensitive to plasma charging and

more susceptible to positive charging damage. More important,

N O-nitrided oxide was found to be very effective in suppressing

charging damage, especially for pMOS devices, as evidenced

by the lower gate leakage current after plasma damage as well

as after high temperature stressing.

II. E

Dual-gate (i.e., n - and p -poly for n- and p-channel devices,

respectively) CMOS test transistors used in this study were

fab-ricated on 6-in wafers. After a conventional LOCOS isolation

processing, gate oxides were thermally grown at 850 C in

ei-ther O /N or N O/N ambient for pure-O control samples and

nitrided-oxide samples, respectively. All samples have a final

oxide thickness of 3 nm. The oxide thickness was verified by

ellipsometry on the monitor wafer, and was also confirmed by

fitting the FN tunneling current [7] on the completed devices.

Metal antenna structures attached to the gates were used to study

the charging damage. After metal pattern definition,

photore-sist was stripped off in a down-stream plasma asher. The ashing

process temperature was 200 C. Previously, we have

demon-strated that severe charging damage could occur at the wafer

center for nMOS devices, which is attributed to the

nonuni-form plasma generation caused by the gas injection mode of

the asher [8]–[10]. Charging damage was analyzed by antenna

devices and was further confirmed by the CHARM-2 monitor

wafers [11]. As shown in the inset of Fig. 1, CHARM-2 sensors

recorded highly negative and highly positive potential values at

the wafer center and wafer edge, respectively. The antenna area

ratio (AAR) was defined as the area ratio between the metal pad

and the active thin oxide region. Finally, a forming gas annealing

at 400 C was applied to all samples before testing.

III. R

D

A. Plasma Charging Damage in nMOS and pMOS Devices

1) Indicators for Detecting Charging Damage in Ultrathin

Oxides: Fig. 1 shows the cumulative probability distributions

of the absolute threshold voltages

for n- and p-channel

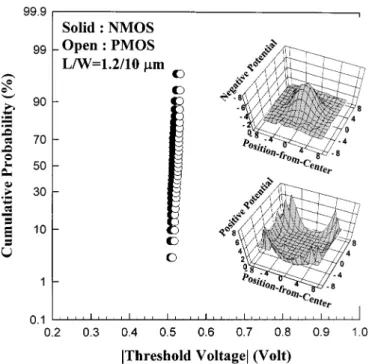

Fig. 1. Cumulative probabilities of the absolute threshold voltage values

(jV j) for n- and p-channel devices with pure oxide as the gate dielectric

on both antenna and non-antenna structures. Deviation of all the devices is within 20 mV. Inset shows wafer maps of negative and positive potential values recorded by CHARM-2 sensors. Highly negative and highly positive potentials are induced at the wafer center and the wafer edge, respectively.

devices with pure oxide as the gate dielectric for both antenna and

non-antenna (i.e., control) structures. First, it can be seen that the

threshold voltages are right on the target, i.e., both nMOS devices

with n -gate and pMOS devices with p -gate depict essentially

the same absolute

value. It is worthy to note that pMOS

transistors in this study were carefully processed with a very low

thermal budget (i.e., 900 C, 20 s in N ambient) to ensure that no

noticeable boron penetration effect was induced in these devices.

This is indeed confirmed by the minimal

shift (i.e., less than 20

mV) for pMOS transistors with pure oxide as the gate dielectric.

Thus this study offers a unique opportunity to compare the plasma

charging damage in various oxides (i.e., pure oxide and nitrided

oxide) without implications due to boron penetration in pure

oxide. From Fig. 1, it can be seen that

shift is minimal for both

antenna and nonantenna devices. However, one should not jump

to the conclusion that plasma charging damage in these antenna

devices is negligible. Rather, these results only indicate that

is no longer a sensitive charging damage detector for ultrathin

gate oxides as thin as 3 nm. Similar results were also observed in

subthreshold swing and transconductance characteristics (data

not shown). Thanks to the large tolerance of tunneling current, the

insensitivity of device parameters to charging damage could be

ascribed to insignificant surface state generation and bulk oxide

trapping after plasma charging, a property known to be intrinsic

to ultrathin oxides.

2) Charge-to-Breakdown Measurements: Since traditional

charging damage monitors are no longer sensitive for ultrathin

gate oxides, other indicators such as charge-to-breakdown

and gate leakage current

have recently been

proposed as viable indicators for detecting antenna effect in

ul-trathin oxides [12]–[14]. Charge-to-breakdown measurements

measured at a stressing current density of 0.2 A/cm under

ac-Fig. 2. Charge-to-breakdown values as a function of cell position-from-center for (a) p-channel, and (b) n-channel devices with small (AAR= 500) and large (AAR=15 K) antenna area ratios.

cumulation polarity were performed on both nMOS and pMOS

transistors with different AAR’s. As shown in Fig. 2(a) and

(b), severe charging damage was observed at the wafer center

as well as the wafer edge for pMOS antenna devices, whereas

charging damage occurs only at the wafer center for nMOS

devices. Similar results were also obtained when stressed under

inversion polarity (not shown). These interesting observations

could be explained by the strong polarity dependence of

ultrathin oxides in charge-to-breakdown

characteristics

of

MOS devices. As shown in Fig. 3,

values of nMOS

devices under substrate injection polarity (i.e.,

A/cm

are much higher than those under the gate injection polarity.

While

values of pMOS devices under both injection

polar-ities are almost at the same level. Therefore for pMOS devices,

charging damage was observed both at the wafer edge and the

wafer center, corresponding to the recorded highly positive

potential (at the wafer edge) and highly negative potential (at

the wafer center), respectively. While for nMOS devices,

ap-parently the superior oxide robustness under substrate injection

polarity (i.e., highly positive potential) protects the devices

from charging damage at the wafer edge. The strong polarity

dependence of

was believed to be due to the weakness of

structure transition layer (STL) located in the SiO /Si interface

[15], [16]. The injected energetic electrons may release energy

at the STL interface and cause bond breaking, a precursor of

dielectric breakdown, under gate injection.

CHEN et al.: ULTRATHIN (3-NM) GATE OXIDES 1357

Fig. 3. Cumulative failure of charge-to-breakdown tests for n- and p-channel devices under both gate and substrate injection polarities with constant current density of 1 A/cm :

It is interesting to note that the 50%

value for pMOS

de-vices under substrate injection is slightly lower than that under

gate injection, which is inconsistent with previous literatures [17],

[18]. The cause for this phenomenon is probably related to the

gate area of the test devices and the stressing current level. In

addition, boron segregation at the grain boundary of polysilicon

gate is also known to degrade

under substrate injection [18].

3) Gate Leakage Current Measurements: Since

charge-to-breakdown

measurement is known to be tedious and time

consuming, gate leakage current measurement is used instead

as a fast method to study charging damage [12]. Gate leakage

current measured at a gate voltage

V under inversion

polarity (i.e.,

2 V for nMOS and

V for pMOS) and with

a low drain bias (e.g.,

V) were performed on transistors

with different AAR’s. As shown in Figs. 4 and 5, large leakage

current is observed at the wafer center as well as the wafer edge

for pMOS devices [Figs. 4(a) and 5(a)], while charging damage

occurs only at the wafer center for nMOS devices [Figs. 4(b)

and 5(b)]. These results are consistent with

measurements.

Moreover, pMOS devices are shown to be more vulnerable to

charging damage since the leakage current of pMOS antenna

devices are much larger than that of nMOS devices. This is also

consistent with literature reports that charging impacts are more

significant on pMOS than on nMOS devices [13], [19]–[21].

Although electron shading effect [22] is a well-known cause for

the plasma damage susceptibility of pMOS antenna devices,

be-cause the shaded electrons lead to positive stressing of the gate

dielectric, which corresponds to carrier accumulation of pMOS

devices [20], [21]. However, in this work, electron shading

ef-fect is ruled out, since our antenna devices are with low aspect

ratio and no dense-line antenna is used (i.e., area-intensive

an-tenna only). Instead, the intrinsic polarity dependence in

tun-neling current between n- and pMOS devices is believed to be

responsible for this discrepancy since pMOS devices show

sub-stantially lower tunneling current than nMOS counterparts in

both polarities (i.e.,

and

as shown in Fig. 6. Note that

Fig. 4. Gate leakage current as a function of cell position-from-center for both pure O and N O-nitrided oxides. Gate leakage currents were measured at a gate voltageV = 2 V under inversion polarity for (a) nMOS, and (b) pMOS. Both with a low drain bias(V = 0:1 V) performed on transistors with small (AAR

= 500) and large (AAR = 15 K) antenna area ratios.

Fig. 5. Gate leakage current as a function of antenna area ratio (AAR) for both pure oxides and N O-nitrided oxides measured at the wafer center and the wafer edge, respectively. Gate leakage currents were measured at a gate voltage

V = 2 V under inversion polarity for (a) nMOS, and (b) pMOS. A low drain

bias(V = 0:1 V) was applied.

the oxide voltage

in Fig. 6 is extracted by taking

polysil-icon depletion (when biased in inversion) and flat-band voltage

(when biased in accumulation) into account. The discrepancy

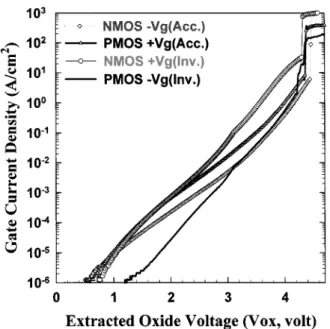

Fig. 6. Gate tunneling currents as a function of oxide voltage(V ) in n- and p-channel transistors measured under both inversion (Inv.) and accumulation (Acc.) polarities. Source/drain are grounded with the substrate during measurement. Oxide voltages are extracted from gate voltages by considering flat-band voltage (accumulation) and polysilicon depletion effect (inversion).

between n- and p-MOS devices in tunneling can be ascribed to

the fact that when biased in inversion, the number of conduction

band electrons available for tunneling is substantially lower in

pMOS (i.e.,

than in nMOS devices (i.e.,

[17]. Since

it is hypothesized that plasma charging acts more like a current

source [23], the corresponding voltage drop in pMOS devices

is thus larger than that in nMOS devices. Consequently, pMOS

devices are more vulnerable to charging damage. So despite the

fact that pMOS devices are reported to depict better TDDB

char-acteristics under normal operating condition [17], a situation

re-sembling constant-voltage stressing, pMOS devices are actually

more prone to plasma process-induced charging damage.

B. Improved Immunity to Charging Damage in Nitrided Oxides

1) Suppression of Gate Leakage Current due to Charging

Damage in Nitrided Oxides: Since charging damage has such

significant impacts on ultrathin oxide reliability, N O-nitrided

oxides, which were known to improve gate oxide reliability,

were explored in this study as a possible technique to alleviate

plasma charging damage. As shown in Figs. 4 and 5, charging

damage can indeed be substantially suppressed with N

O-ni-trided oxide. In contrast with pure oxide, leakage current of

an-tenna devices is significantly improved with nitrided oxide. In

fact, only slight increase in gate leakage current is observed on

antenna devices with nitrided oxide. The cumulative plot of gate

leakage currents shown in Fig. 7 further confirms that more than

two orders of magnitude in gate leakage reduction are achieved

on pMOS antenna devices with N O-nitrided gate dielectric.

These phenomena can be ascribed to the nitrogen incorporation

in the oxide. The formation of strong Si-N bonds in place of

strained Si-O bonds and weak Si-H bonds enhances the interface

hardness, resulting in improved gate oxide integrity [3]. Since

it has been speculated that trap creation mechanism responsible

for SILC is hydrogen-related, the incorporation of nitrogen by

Fig. 7. Cumulative probabilities of gate leakage current for p-channel devices with pure (open symbol) and N O-nitrided oxides (close symbol), with small (AAR= 500) and large (AAR = 15 K) antenna area ratios.

N O-nitridation is expected to terminate Si dangling bonds at

the SiO /Si interface as well as to reduce the stress/strain in

the structure transition layer (STL) [15], [24]. As a result, gate

leakage current after plasma charging can be reduced. Our

re-sults shown in Figs. 4, 5 and 7 indeed confirm that N

O-ni-trided oxide is extremely effective in improving the immunity

to plasma damage for ultrathin oxides.

2) Improved Temperature-Accelerated Oxide Degradation in

Nitrided Oxides: It is generally agreed that high temperature

degrades oxide reliability, and gate oxide is more susceptible to

charging damage at elevated temperature [10], [25], [26]. Since

in real plasma processing, the gate oxide is subjected to

ele-vated temperature, the superior SILC characteristics of N

O-ni-trided oxides were then further analyzed by high temperature

stressing. In this study, test devices including pure oxide and

nitrided oxide samples were subjected to a 0.1 Coulomb/cm

prestress at 180 C before room-temperature gate leakage

cur-rent measurement. As shown in Fig. 8, dramatic reduction in

SILC caused by high temperature prestressing is observed on

N O-nitrided samples for both n- and p-channel devices,

com-pared to pure oxide counterparts. As the

temperature-acceler-ated oxide degradation is believed to be reltemperature-acceler-ated to the diffusion

of hydrogen-related species caused by breaking strained Si-H

and Si-O bonds in the STL [25], [27], so SILC after high

temper-ature prestress and plasma-induced charging damage can thus be

improved in nitrided oxides where nitrogen incorporation serves

to repair the stressed/strain bonds.

IV. C

In summary, plasma damage on CMOS transistors with

various 3 nm-thick gate oxides was investigated. Our results

showed that pMOS antenna devices are more sensitive to

positive plasma charging, thus depicting large gate leakage

current both at the wafer center and the wafer edge. In contrast,

nMOS antenna devices depict large gate leakage current only

at the wafer center. These observations can be explained by

CHEN et al.: ULTRATHIN (3-NM) GATE OXIDES 1359

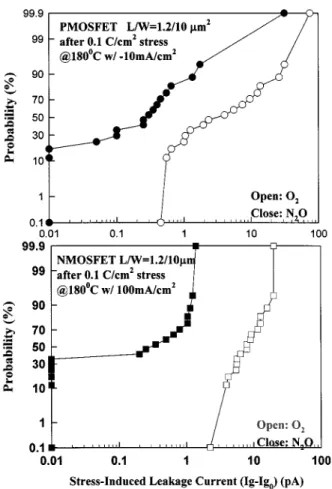

Fig. 8. Cumulative probabilities of stress-induced leakage currents of p-channel (top) and n-channel devices (bottom) for pure oxides (open symbol) and N O-nitrided oxides (close symbol), after subjecting to a high temperature prestress.

the excellent charge-to-breakdown characteristics for ultrathin

gate oxide under positive gate stressing for nMOS devices.

More importantly, our results also show that N O-nitrided

oxide depicts significant improvement to charging damage,

especially for pMOS devices. Three orders of magnitude in

gate leakage current reduction are observed on pMOS devices

with nitrided oxide. The nitrided oxide devices are also found

to be more robust when subjected to high temperature stressing.

All these results indicate that nitrided oxide is very promising

for reducing plasma damage in future ULSI technologies

employing ultrathin gate oxides.

A

The authors would like to thank the staff of National Nano

Device Laboratories for their technical assistance during the

course.

R

[1] D. Crook, M. Domnitei, M. Webb, and J. Bonini, “Evaluation of modern gate oxide technologies to process charging,” in Proc. IEEE/IRPS, 1993, p. 255.

[2] A. B. Joshi et al., “Suppressed process-induced damage in N O-an-nealed SiO gate dielectrics,” in Proc. IEEE/IRPS, 1995, p. 156. [3] B. W. Min et al., “Impact of process-induced damage on MOSFET

re-liability and suppression of damage by the user of NO-based oxynitride gate dielectrics,” in Proc. Int. Symp. VLSI TSA, 1995, p. 273.

[4] K. S. Krisch et al., “Thickness dependence of boron penetration through O and N O-grown gate oxides and its impact on threshold voltage variation,” IEEE Trans. Electron Devices, vol. 43, p. 982, June 1996. [5] H. Fang et al., “Low-temperature furnace-grown reoxidized nitrided

oxide gate dielectric as a barrier to boron penetration,” IEEE Electron Device Lett., vol. 13, p. 217, Apr. 1992.

[6] Z. J. Ma et al., “Suppression of boron penetration in p polysilicon gate p-MOSFET’s using low-temperature gate-oxide N O anneal,” IEEE Electron Device Lett., vol. 15, p. 109, Mar. 1994.

[7] K. F. Schuegraf, C. C. King, and C. Hu, “Ultra-thin silicon dioxide leakage current and scaling limit,” in Proc. Symp. VLSI Technology Tech. Dig., 1992, p. 18.

[8] C. H. Chien et al., “Resist-related damage on ultra-thin gate oxide during ashing,” IEEE Electron Device Lett., vol. 18, p. 33, Jan. 1997. [9] H. C. Lin et al., “Evaluation of plasma charging damage in ultrathin gate

oxides,” IEEE Electron Device Lett., vol. 19, p. 68, Mar. 1998. [10] H. C. Lin et al., “Characterization of plasma charging damage in

ultra-thin gate oxides,” in Proc. IEEE/IRPS, 1998, p. 312.

[11] J. Shideler et al., “A new technique for solving wafer charging prob-lems,” Semiconductor Int., p. 153, July 1995.

[12] H. C. Lin, C. H. Chien, and T. Y. Huang, “Characterization of antenna effect by nondestructive gate current measurement,” Jpn. J. Appl. Phys., vol. 35, p. L1044, 1996.

[13] Y.-H. Lee et al., “Reliability characterization of process charging impact on thin gate oxide,” in Proc. 3rd Int. Symp. P2ID, 1998, p. 38. [14] C.-C. Chen et al., “Plasma-induced charging damage in ultrathin (3 nm)

nitrided oxides,” in Proc. 4th Int. Symp. P2ID, 1999, p. 141.

[15] E. Hasegawa et al., “SiO /Si interface structures and reliability charac-teristics,” J. Electronchem. Soc., vol. 142, no. 1, p. 273, 1995. [16] L. K. Han et al., “Polarity dependence of dielectric breakdown in scaled

SiO ,” in IEDM Tech. Dig., 1994, p. 617.

[17] Y. Shi, T. P. Ma, S. Prasad, and S. Dhanda, “Polarity-dependent tunneling current and oxide breakdown in dual-gate CMOSFET’s,” IEEE Electron Device Lett., vol. 19, p. 391, 1998.

[18] E. Hasegawa et al., “The impact of nitrogen profile engineering on ultra-thin nitrided oxide films for dual-gate CMOS ULSI,” in IEDM Tech. Dig., 1995, p. 327.

[19] M. Alavi et al., “Effect of MOS device scaling on process induced gate charging,” in Proc. 2nd Int. Symp. P2ID, 1997, p. 7.

[20] M. Creusen, J. Ackaert, E. D. Backer, and G. Groesenken, “Impact of reactor- and transistor-type on electron shading effects,” in Proc. 4th Int. Symp. P2ID, 1999, p. 8.

[21] J.-P. Carrere and D. R. Heslinga, “Charging protection and degradation by antenna environment on NMOS and PMOS transistors,” in Proc. 4th Int. Symp. P2ID, 1999, p. 184.

[22] K. Hashimoto, “New phenomena of charge damage in plasma etching: Heavy damage only through dense-line antenna,” Jpn. J. Appl. Phys., vol. 32, p. 6109, 1993.

[23] H. Shin, K. Noguchi, and C. Hu, “Thickness and other effects on oxide and interface damage by plasma processing,” in Proc. IEEE/IRPS, 1993, p. 272.

[24] L. K. Han, H. H. Wang, J. Yan, and D. L. Kwong, “High quality oxyni-tride gate dielectrics prepared by reoxidation of NH -nioxyni-trided SiO in N O ambient,” Electron. Lett., vol. 31, p. 1196, 1995.

[25] K. Eriguchi and M. Niwa, “Temperature and stress polarity-dependent dielectric breakdown in ultrathin gate oxides,” Appl. Phys. Lett., vol. 73, p. 1985, 1998.

[26] C.-C. Chen et al., “Temperature-accelerated dielectric breakdown in ul-trathin gate oxides,” Appl. Phys. Lett., vol. 74, p. 3708, 1999. [27] H. Satake, N. Yasuda, S. Takagi, and A. Toriumi, “Correlation between

two dielectric breakdown mechanisms in ultra-thin gate oxides,” Appl. Phys. Lett., vol. 69, p. 1128, 1996.

Chi-Chun Chen was born in Kaohsiung, Taiwan,

R.O.C., on July 24, 1974. He received the B.S. degree in electronics engineering in 1996 from National Chiao Tung University, Hsinchu, Taiwan, where he is currently pursuing the Ph.D. degree at the Institute of Electronics.

His current research interest is focused on the study of the plasma-induced charging damage and reliability of ultrathin gate oxides for ULSI devices.

University, Chung-Li, Taiwan, in 1989, and the Ph.D. degree in Institute of Electronics from National Chiao-Tung University, Hsinchu, Taiwan, in 1994.

In 1994, he joined the National Device Laborato-ries, Hsinchu. His current research interests include plasma etching technology, salicide technology, thin-film transistor (TFT) fabrication and character-ization, and reliability of CMOS devices.

Chun-Yen Chang (F’88) received the B.S.

de-gree in electrical engineering from Cheng Kung University in 1960. He pursued advanced studies at Institute of Electronics of National Chiao Tung University (NCTU), Hsinchu, Taiwan, where he worked on the M.S. thesis on tunneling in semiconductor-superconductor junctions He has contributed to microelectronics and optoelectronics, including the invention of the method of low-pres-sure-MOCVD-using tri-ethyl-gallium to fabricate LED, laser, microwave transistors, Zn-incorporation of SiO for stabilization of power devices and nitridation of SiO for ULSI’s, etc. His Ph.D. dissertation, entitled “Carrier Transport across Metal-Semicon-ductor Barrier” was completed in 1969 and published in 1970. It is cited as a pioneering paper in this field.

He is currently National Chair, Professor, and the President of National Chiao Tung University (NCTU), Hsinchu. He has devoted himself to education and academic research more than 40 years. During 1962 through 1963, he was in the military service at NCTU, establishing the first Taiwanese experimental TV transmitter, which is the founding part of today’s CTS. In 1963, he joined to NCTU to serve as an Instructor establishing the high vacuum laboratory. In 1964, he and his colleague established the semiconductor research center (SRC) at NCTU in April 1965, and the first IC in August 1966. In 1968, he published the first Taiwanese semiconductor paper in an international journal, Solid State Electronics. In the same year, he was invited by Prof. L. J. Chu, a Webster Chair Professor, Massachusetts Institute of Technology, to join the NCTU Ph.D. pro-gram. In 1969, he became a Full Professor, teaching solid state physics, quantum mechanics, semiconductor devices and technologies. In 1987, he became Dean of Research (1987–1990), Dean of Engineering (1990–1994), and Dean of Elec-trical Engineering and Computer Science (1994–1995). Simultaneously, he was the founding President of National Nano Device Laboratories (NDL) from 1990 through 1997. Then he became Director of Microelectronics and Information System Research Center (MIRC) of NCTU (1997–1998). He has supervised more than 300 MS and 50 Ph.D. students. They are now founders of most high technology enterprises in Taiwan, namely UMC, TSMC, Winbond, MOSEL, Acer, and Leo, among others. From 1977 through 1987, a strong EECS program at NCKU was established where the GaAs,-Si, poly-Si research projects were established. In 1998, he was appointed President of NCTU. His vision is to lead the university for excellence in engineering, humanity, art, science, management and biotechnology. To strive forward to world class multideciplinery university is the main goal which President Chang and his colleagues have committed.

Dr. Chang has been a Member of Academica Sinica since 1996.

Mong-Song Liang received the B.S. and M.S.

degrees from the National Cheng-Kung University, Taiwan, R.O.C., in 1975 and 1977, respectively, and the Ph.D. degree in 1983 from the University of Cal-ifornia (UC), Berkeley, all in electrical engineering and computer sciences. At UC Berkeley, his research was on the scaling of ultrathin gate dielectrics, and device reliability physics.

In 1983, he joined Advanced Micro Devices (AMD), Sunnyvale, CA, where he worked on nonvolatile memory technologies (EEPROM and EPROM). From 1988 to 1992, he was with Mosel Electronics Corp, Sunnyvale, where he worked on SRAM technology development. In 1992, he joined Taiwan Semiconductor Manufacturing Company (TSMC). He worked on DRAM and embedded memory technology (emb-DRAM, emb-SRAM, and emb-flash) development. He was the Director of Memory Division of R&D Organization until 1998. His current assignment is Director of Advanced Module Technology Division of R&D Organization. He is responsible for all advanced modules development, including, lithography, etch, thin film, diffusion, CMP, and Cu/low-K interconnect.

Hsinchu, Taiwan, in 1990, 1992, 1997, respec-tively. His Ph.D. dissertation research focused on plasma-induced charging damage on deep-submi-cron devices with ultra-thin gate oxides.

He joined National Nano Device Laboratory in 1999 as an Associate Researcher. His research interest is mainly focused on the growth of the high-permittivity thin films and their applications for the advanced DRAM, FRAM memory cells and sub 0.1m devices.

Szu-Kang Hsien was born in Taipei, Taiwan, R.O.C.,

in 1973. He received the B.S. and M.S. degrees, both in materials science and engineering, from National Tsing-Hua University, Hsinchu, Taiwan, in 1995, and 1997, respectively.

From 1997 to 1999, he joined the Chinese Air Force specific in logistics and supplies. In the fall of 1999, he was part of the Ph.D. program of the Departmentof Electrical and Computer Engineering, Northwestern University, Evanston, IL, working as a research assistant on quantum optics and opto-electronic devices.

Tiao-Yuan Huang (F’95) was born in Kaohsiung,

Taiwan, R.O.C., on May 5, 1949. He received the BSEE and MSEE degrees from National Cheng Kung University, Tainan, Taiwan, in 1971 and 1973, respec-tively, and the Ph.D. degree in electrical engineering from the University of New Mexico, Albuquerque, in 1981

He served two years in the Taiwanese Navy and then joined Chung Shan Institute of Science and Technology, Lungtan, for two years, working on missile development. He spent two years with Semiconductor Process and Design Center, Texas Instruments. He then worked for several Silicon Valley IC companies, including Xerox Palo Alto Research Center, Integrated Device Technology, Inc., and VLSI Technology, Inc. He had worked in various VLSI areas including memories (DRAM, SRAM, and nonvolatile memories), CMOS process/device technologies and device modeling/simulation, ASIC technologies, and thin film transistors for LCD display. In 1995, he returned to Taiwan to become an Outstanding Scholar Chair Professor with National Chiao-Tung University, Hsinchu, and Vice President in charge of R&D with National Nano Device Laboratories, National Science Council.

Prof. Huang has published over 100 technical papers in international jour-nals and conferences, and holds over 20 issued U.S. patents. He served on the technical committee of the IEEE IEDM in 1991 and 1992. He also served on the program committee of the International Conference on Solid States Devices and Materials (SSDM) from 1996 to 1998. He received the 1988 Semiconductor International’s R&D Technology Achievement Award for his invention of the fully overlapped LDD transistors.

Tien-Sheng Chao was born in Penghu, Taiwan,

R.O.C., in 1963. He received the Ph.D. degree in electronics engineering from National Chiao-Tung University, Hsinchu, Taiwan, in 1992.

He joined the National Nano Device Laboratories (NDL) as an Associate Researcher in July 1992, and became as a researcher in 1996. He was engaged in developing the thin dielectrics preparations and cleaning processes. He is presently responsible for the deep submicron device integration at NDL.
