Incremental updates of closed frequent itemsets over continuous

data streams

Hua-Fu Li

a,*

, Chin-Chuan Ho

b

, Suh-Yin Lee

b

a_{Department of Computer Science, Kainan University, Taiwan} b_{Department of Computer Science, National Chiao-Tung University, Taiwan}

Abstract

Online mining of closed frequent itemsets over streaming data is one of the most important issues in mining data streams. In this paper, we propose an efficient one-pass algorithm, NewMoment to maintain the set of closed frequent itemsets in data streams with a transaction-sensitive sliding window. An effective bit-sequence representation of items is used in the proposed algorithm to reduce the time and memory needed to slide the windows. Experiments show that the proposed algorithm not only attain highly accurate mining results, but also run significant faster and consume less memory than existing algorithm Moment for mining closed frequent itemsets over recent data streams.

Keywords: Data mining; Data streams; Closed frequent itemsets; Single-pass mining; Incremental update

1. Introduction

Online mining of data streams is one of the most interest-ing research issues of data mininterest-ing in recent years. Data streams have the unique characteristics as described below (Babcock, Babu, Datar, Motwani, & Widom, 2002; Golab & O¨ zsu, 2003; Jiang & Gruenwald, 2006): (1) unbounded size of input data; (2) usage of main memory is limited; (3) input data can only be handled once; (4) fast arrival rate; (5) system cannot control the order data arrives; (6) analyt-ical results generated by algorithms should be instantly available when users request; (7) errors of analytical results should be bounded in a range that users can tolerate.

Many previous studies contributed to the eﬃcient min-ing of frequent patterns in streammin-ing data (Chang & Lee, 2004a, 2004b; Chi, Wang, Yu, & Muntz, 2004; Giannella, Han, Pei, Yan, & Yu, 2003; Jin & Agrawal, 2005; Li, Lee, & Shan, 2004, 2005; Li, Ho, Shan, & Lee, 2006;

Manku & Motwani, 2002; Teng, Chen, & Yu, 2003, 2004; Wong & Fu, 2005; Yu, Chong, Lu, & Zhou, 2004). According to the stream processing model (Zhu & Shasha, 2002), the research of mining frequent patterns over data streams can be divided into three categories: landmark win-dows (Jin and Agrawal, 2005, Li et al., 2004, 2005; Manku and Motwani, 2002; Yu et al., 2004), sliding windows (Chang & Lee, 2004b; Chi et al., 2004; Li et al., 2006;Teng et al., 2003, 2004;Wong & Fu, 2005), and damped windows (Chang & Lee, 2004a; Giannella et al., 2003), as described briefly as follows. In the landmark window model, knowl-edge discovery is performed based on the values between a specific timestamp, called landmark, and the present time-stamp. In the sliding window model, knowledge discovery is performed over a fixed number of recently generated data elements which is the target of data mining. Two types of sliding widow, i.e., transaction-sensitive sliding window and time-sensitive sliding window, are used in mining data streams. The basic processing unit of window sliding of first type is an expired transaction while the basic unit of window sliding of second one is a time unit, such as a min-ute or an hour. In the damped window model, recent slid-ing windows are more important than previous ones.

*

Corresponding author.

E-mail addresses:hﬂ[email protected],[email protected](H.-F. Li),

[email protected](C.-C. Ho),[email protected](S.-Y. Lee).

www.elsevier.com/locate/eswa Expert Systems with Applications 36 (2009) 2451–2458

Expert Systems with Applications

(2)

In Manku and Motwani (2002), Manku and Motwani developed two single-pass algorithms, sticky-sampling and lossy-counting, to mine frequent items over offline data streams with a landmark window. Moreover, Manku and Motwani proposed a lossy-counting based three module method BTS (Buffer-Trie-SetGen) for mining the set of frequent itemsets from offline data streams. Li et al. pro-posed prefix tree-based single-pass algorithms, called DSM-FI (Li et al., 2004) and DSM-MFI (Li et al., 2005), to mine the set of all frequent itemsets and maximal fre-quent itemsets over the entire history of offline data streams. Jin and Agrawal (2005) proposed an algorithm, called StreamMining, for in-core frequent itemset mining over online data streams. Yu et al. (2004) discussed the issues of false negative or false positive in mining frequent itemsets from high speed offline transactional data streams.

Chang and Lee (2004a) developed a damped window based algorithm, called estDec, for mining frequent item-sets in online streaming data in which each transaction has a weight decreasing with age. In other words, older transactions contribute less toward itemset frequencies, and it is a kind of damped windows model. Giannella et al. (2003)proposed a frequent pattern tree (abbreviated as FP-tree (Han, Pei, & Yin, 2000)) based algorithm, called FP-stream, to mine frequent itemsets at multiple time gran-ularities by a novel titled-time windows technique. FP-stream focuses on oﬄine data FP-streams.

Chang and Lee (2004b) proposed a BTS-based algo-rithm, called SWFI-stream, for mining frequent itemsets in online data streams with a transaction-sensitive sliding windows model. Li et al. (2005) proposed a single-pass algorithm, called DSM-RMFI, based on DSM-MFI to find maximal frequent itemsets over offline data streams with a time-sensitive sliding window.Teng et al. (2003) pro-posed a regression-based algorithm, called FTP-DS, to find temporal patterns (frequent inter-transaction itemsets) across multiple online data streams in a time-sensitive slid-ing window.Teng et al. (2004)proposed a resource-aware algorithm, called RAM-DS, to mine temporal patterns in multiple online data streams with a time-sensitive sliding window. Li et al. (2006) proposed efficient algorithms, called MFI-TransSW and MFI-TimeSW, and to find the set of frequent itemsets in online data streams with a trans-action-sensitive sliding window and time-sensitive sliding window, respectively. Wong and Fu (2005) proposed an efficient algorithm to mine top-k frequent itemsets in offline data streams with a transaction-sensitive sliding window without a user-defined minimum support constraint.

Chi et al. (2004)proposed a transaction-sensitive sliding window based algorithm, called Moment, which might be the ﬁrst to ﬁnd frequent closed itemsets (FCI) from online data streams with a transaction-sensitive sliding window. A summary data structure, called CET (closed enumera-tion tree), is used in the Moment algorithm to maintain a dynamically selected set of itemsets over a transaction-sen-sitive sliding window. These selected itemsets consist of closed frequent itemsets and a boundary between the

closed frequent itemsets and the rest of the itemsets. CET can cover all necessary information because any status changes of itemsets (e.g. from infrequent to frequent or from frequent to infrequent) must be through the boundary in CET. Whenever a sliding occurs, it updates the counts of the related nodes in CET and modiﬁes CET. Experiments of Moment show that the boundary in CET is stable so the update cost is little. However, Moment must maintain huge CET nodes for a closed frequent itemset. The ratio of CET nodes and closed frequent itemsets is about 30:1. If there are a large number of closed frequent itemsets, the memory usage of Moment will be ineﬃcient.

The purpose of this work is on closed frequent itemsets mining over online data streams with atransaction-sensitive sliding window. An eﬃcient algorithm, called NewMo-ment,1is proposed to mine the set of closed frequent item-sets over online data streams with a transaction-sensitive sliding window. Experiments show that the proposed New-Moment algorithm not only attain highly accurate mining results, but also run signiﬁcant faster and consume less memory than Moment algorithm (Chi et al., 2004) for min-ing closed frequent itemsets over the most recent w transac-tions of a data stream.

The remainder of the paper is organized as follows. The problem is deﬁned in Section2. Section3presents the pro-posed NewMoment algorithm. Experiments are discussed in Section4. Finally, we conclude this work in Section5. 2. Problem deﬁnition

Let W = {i1, i2, . . . , im} be a set of items. A transaction T = (TID, x1, x2, . . . , xn), xi2 W, for 1 6 i 6 n, is a set of items, while n is called the size of the transaction, and TID is the unique identiﬁer of the transaction. An itemset is a non-empty set of items. An itemset with size k is called a k-itemset. A transaction data stream TDS = T1,T2,. . .,TN is a continuous sequence of transactions, where N is the TID of latest incoming transaction TN.

A transaction-sensitive window (TransSW) in the trans-action data stream is a window that slides forward for every transaction. The window at each slide has a ﬁxed number, w, of transactions, and w is called the size of the window. Hence, the current transaction-sensitive window is TransSWNw+1= [TNw+1, TNw+2, . . . , TN], where N w + 1 is the window id of current TransSW. The support of an itemset X over TransSW, denoted as sup(X), is the number of transactions in TransSW containing X as a subset.

Deﬁnition 1 (Frequent itemset). An itemset X is called a frequent itemset (FI) if sup(X) P s w, where s is a user-deﬁned minimum support threshold (MST) in the range of [0, 1]. The value s w is called the frequent threshold (FT) of TransSW.

1 _{A New algorithm for Maintaining Closed Frequent Itemsets by} Incremental Updates.

(3)

Deﬁnition 2 (Closed frequent itemset). An itemset X is a closed frequent itemset if there exists no itemset X0such that (1) X0 _{is a proper superset of X, and (2) every transaction} containing X also contains X0_.

Problem Statement: Given a transaction-sensitive win-dow TransSW, and a minimum support threshold s, the problem is to mine the set of closed frequent itemsets in the most recent w transactions in a data stream.

Fig. 1 is an example transaction-sensitive window used in this paper. InFig. 1, the size of the sliding window is 4. The ﬁrst transaction-sensitive widow TransSW1consists of the transactions from T1 to T4. When the transaction with T5comes, the transaction-sensitive window eliminates the oldest transaction (T1) from the current window and appends the incoming transaction (T5). The second win-dow TransSW2is the result after the ﬁrst time of window sliding.

3. The proposed algorithm NewMoment

In this section, we introduce the proposed NewMoment algorithm. A bit vector based representation of items is used in the NewMoment algorithm to reduce the time and memory needed to slide the windows. A new summary data structure NewCET2based on a preﬁx tree structure is developed to maintain the essential information of closed frequent itemsets in the recent w transaction of a data stream.

3.1. Bit-vector representation of items

In the NewMoment algorithm, for each item X in the current TransSW, a bit-sequence with w bits, denoted as Bit(X), is constructed. If an item X is in the ith transaction of current TransSW, the ith bit of Bit(X) is set to be 1; otherwise, it is set to be 0.

For example, inFig. 1, the ﬁrst window TransSW1 con-sists of four transactions:hT1, (abc)i, hT2, (bcd)i, hT3, (abc)i andhT4, (bc)i, but the second window TransSW2consists of transactions: hT2, (bcd)i, hT3, (abc)i, hT4, (bc)i, and hT5, (bd)i. Because item a appears in the ﬁrst and third

transactions of TransSW1, the bit-sequence of a, Bit(a), is 1010. Similarly, Bit(b) = 111, Bit(c) = 1111, and Bit(d) = 0100. The bit-sequences of all items in each window are listed inTable 1. The most left bit of a bit-sequence repre-sents the oldest transaction in current window and the most right bit represents the newest transaction.

In the next section, we will introduce the methods to slide the transaction-sensitive windows using the bit-sequences of items.

3.2. Window sliding using bit-sequences

The bit-sequence is eﬃcient in window sliding process. The sliding process consists of two steps: delete the oldest transaction and append the incoming transaction.

3.2.1. Delete the oldest transaction

In this step, the bit-sequences of items are used to left-shift one bit to delete the oldest transaction. For example, in Fig. 1, the bit sequence of item a, Bit(a), is 1010 in the ﬁrst window TransSW1. If transaction T1 is deleted from TransSW1, Bit(a) becomes 0100. Now the most left bit rep-resents the transaction T2. The most right bit is meaning-less and is conserved for next step.

3.2.2. Append the incoming transaction

After deleting the oldest transaction from current trans-action-sensitive window, we set the most right bit of each bit-sequence of items by checking the new incoming trans-action TN. We set the most right bit of the bit-sequence of item X to 1 if TNcontains X as a subset. Otherwise, we set the bit to 0.

For example, inFig. 1, the bit-sequence of item a, Bit(a), becomes 0100 after deleting the expired transaction T1. Because the incoming transaction T5does not contain item a, we set the most right bit of Bit(a) to 0, i.e., Bit(a) changes form 1010 to 0100. Similarly, Bit(c) changes from 1111 to 1110 and Bit(d) changes from 0100 to 1001.

In the next section, we introduce an eﬃcient method to count the support of itemsets in the current transaction-sensitive window.

3.3. Counting support using bit-sequences

The concept of bit-sequence of item can be extended to itemset. For example, inFig. 1, the bit-sequence of 2-item-set ab, Bit(ab), in the TransSW1is 1010. That means trans-actions T1and T3of TransSW1contain the itemset ab.

c d T6 b d T5 b c T4 a b c T3 b c d T2 a b c T1 Transaction

TID Window size w = 4

TransSW1 TransSW2

TransSW3

Fig. 1. Example Transaction-Sensitive Window.

Table 1

Bit-sequences of items in each window

TransSW1 TransSW2 TransSW3

a 1010 0100 1000

b 1111 1111 1110

c 1111 1110 1101

d 0100 1001 0011

(4)

The process of counting support of an itemset is described as follows. Assume that there are two k-itemsets X and Y and their corresponding bit-sequences Bit(X) and Bit(Y). The bit-sequence of the (k + 1)-itemset Z = X[ Y can be obtained by the bitwise AND of Bit(X) and Bit(Y). For example, the bit-sequence of 2-itemset ab, Bit(ab), in the ﬁrst window TransSW1is 1010 which can be obtained by bitwise AND the bit-sequences of items a and b, where Bit(a) = 1010 and Bit(b) = 1111.

In the next section, we propose an eﬃcient approach to build the proposed summary data structure NewCET using sequences of itemsets. Based on the bitwise AND of bit-sequences of itemsets, candidates can be eﬃciently gener-ated when building NewCET.

3.4. Building the NewCET

The proposed summary data structure, called NewCET (New Closed Enumeration Tree), is an extended preﬁx tree structure. NewCET consists of three parts.

(1) The bit-sequences of all 1-itemsets in the current trans-action-sensitive window TransSWNNw+1.

(2) A set of closed frequent itemsets in TransSWNNw+1. (3) A hash table: For checking whether a frequent itemset is closed or not, we use a hash table to store all closed frequent itemsets with their supports as keys. Assume that there are two frequent itemsets X and Y. If the support of X is equal to the support of Y and X # Y, X and Y must be contained in the same set of transactions. That means the itemset X is not a closed frequent itemset. Moreover, the value of sup-port is suitable to be the key of the hash table. Similar to a preﬁx tree, each node nI in the NewCET represents an itemset I. A child node, nJ, is obtained by adding a new item to I. But, NewCET only maintains a set of closed frequent itemsets, not all itemsets.

Fig. 2 gives the algorithm of building NewCET. In the building algorithm, each nI has a corresponding bit-sequence, Bit(I), to store the support information in the current sliding window. Function Build is a depth-ﬁrst pro-cedure. Build visits the itemsets of the current NewCET in a lexicographical order. In the lines 1–2 of Fig. 2, function Build is performed if nI is frequent and is not contained by other closed frequent itemsets. Function leftcheck uses the support of nI as a hash key to speed up the checking. In the lines 3–5, if nIpasses the checking of the lines 1–2, Build generates all possible children of nI with frequent siblings and creates their bit-sequences by bitwise AND bit-sequences of nI and its frequent siblings. In the lines 6–7, Build recursively calls itself to check each child of nI. In the lines 8–10, if there is no child of nIwith the same sup-port as nI, nIis a closed frequent itemset and it is retained in the NewCET.

Fig. 3shows the NewCET in the ﬁrst window TransSW1 when the function Build is in process. Although a

bit-sequence is generated and a new tree node is created, only a branch of the tree is maintained in the main memory. This is because Build is a depth-ﬁrst procedure. Besides the set of 1-itemsets, the maximum number of bit-sequences in the memory is 3, i.e., bit-bit-sequences of the itemsets ab, ac, and abc. When the function Build is done, all bit-sequences of k-itemsets eliminated, where k > 1. The set of all closed frequent itemsets in the current transac-tion-sensitive window only retains their supports.

Fig. 4shows the NewCET in the ﬁrst transaction-sensi-tive window TransSW1when Build is done. The tree nodes

Fig. 2. Algorithm of building NewCET.

∅

(a): <1010> (b): <1111> (c): <1111> (d): <0100>

(a, b): <1010> (a, c): <1010> (b, c): <1111>

(a, b, c): <1010>

Fig. 3. NewCET in the ﬁrst window TransSW1.

∅

(a): <1010> (b): <1111> (c): <1111> (d): <0100>

(a, b, c): 2 (b, c): 4

Fig. 4. NewCET in the ﬁrst window TransSW1(tree nodes with shadow are closed frequent itemsets).

(5)

with shadow are closed frequent itemsets. For simplicity, the hash table is not displayed in this ﬁgure.

In Sections 3.5 and 3.6, we describe the methods to delete the oldest transaction and append a new incoming transaction in the current transaction-sensitive window, respectively.

3.5. Deleting the oldest transaction

Deleting the oldest transaction is the ﬁrst step of win-dow sliding. First of all, all bit-sequences of 1-itemsets are left-shifted one bit. Then, all items in the deleted trans-action are kept. The process can be done by observing the most left bit before the left-shifting.

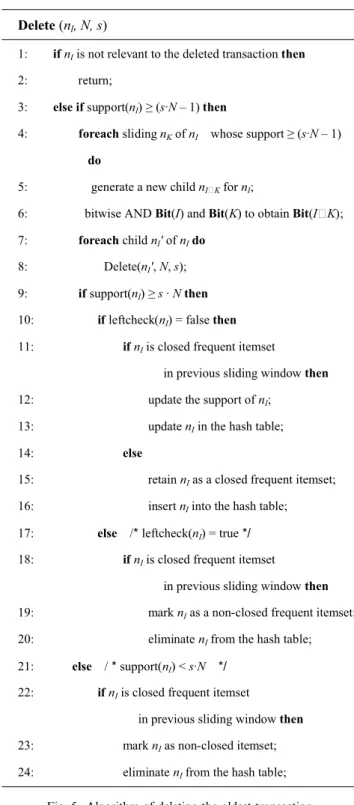

Fig. 5gives the algorithm of deleting the oldest transac-tion after left-shifting all the bit-sequences of 1-itemsets. In the Fig. 5, the function Delete generates the preﬁx tree including the itemsets whose supports are s N 1. This is because the supports of a set of closed frequent itemsets in previous window would be s N and then becomes s N 1 after the deletion.

Function Delete is a depth-ﬁrst procedure. When the recursive calls of nI’s children return, Delete is performed, if nI is a closed frequent itemset, the NewCET is main-tained and the hash table is updated. In the lines 19 and 23, if nI is closed frequent itemset in previous window, nI is marked as a non-closed itemset. In this case, nIwill not be retained when the function Delete is done.Fig. 6shows the NewCET after deleting the oldest transaction T1. 3.6. Appending a new incoming transaction

Appending the incoming transaction is the second step of window sliding. All the bit-sequences of 1-itemsets are set their most right bit to 1 or 0 based on the incoming transaction TN. We set the most right bit of the bit-sequence of itemset X to 1 if TN contains X as a subset. Otherwise, we set the bit to 0.

Fig. 7gives the algorithm of appending a new incoming transaction after setting the most right bit of each bit-sequence of 1-itemsets. Function Append is almost the same as Build. The only diﬀerence is in the lines 9–11. If the checked closed frequent itemsets are already in the New-CET, Append updates the NewCET and hash table. Fig. 8shows the NewCET in the second window TransSW2 after appending the incoming transaction T5.

4. Performance evaluation of NewMoment

In this section, the experiments are performed to com-pare the proposed NewMoment algorithm with the Moment algorithm (Chi et al., 2004). The source code of Moment algorithm, denoted as MomentFP, is provided by Chi et al. (2004). All experiments are done on a 1.3 GHz Intel Celeron PC with 512 MB memory and run-ning with Windows XP system. The proposed NewMoment algorithm is implemented in C++ STL and compiled with

Fig. 5. Algorithm of deleting the oldest transaction.

∅

(a): <0100> (b): <1110> (c): <1110> (d): <1000>

(b, c): 3

(6)

Visual C++ .NET compiler. Moreover, the synthetic data T10.I10.D200K is generated by the IBM synthetic data gen-erator (Agrawal & Srikant, 1994). Parameters of synthetic data are listed inTable 2.

The performance measurements include memory usage, the loading time of the ﬁrst window, and the average time of window sliding. Memory usage was tested by system tool to observe real memory variation. Average time of

window sliding was reported over 100 consecutive sliding windows.

4.1. Mining with diﬀerent minimum supports

In the ﬁrst experiment, the minimum support threshold is changed from 1% to 0.1%, and the size of sliding window is ﬁxed to 100,000 (100 K) transactions.

Fig. 9shows the memory usage with KB units. We can observe that memory used by Moment is more than 120 MB but used by NewMoment is about 15 MB. When the minimum support is down to 0.05%, the memory used by NewMoment is just 50 MB but memory of Moment is out of bound (more than 512 MB).

The maintaining data of NewMoment is much less than the one of Moment. NewMoment only maintains bit-sequences of 1-itemsets and closed frequent itemsets in cur-rent window. Experiment shows that NewCET is more compact than CET.

Fig. 10shows the loading time the first window. In the first window, both NewMoment and Moment need to build a prefix (lexicographic) tree. We can observe that NewMoment is a little faster than Moment. The reason is that generating candidates and counting their supports with bit-sequences is more efficient than with an indepen-dent sliding window (in MomentFP, a FP-tree (Chi et al., 2004) is used).

Fig. 11shows the average time of window sliding. In the experiment, NewMoment is a little slower than Moment because NewMoment do not use TID sum as another key to speed up left-check step. But we can observe that

Table 2

Parameters of the synthetic data

Parameter Value

Average items per transaction (T) 10

Number of transactions (D) 200 K

Number of items (N) 1000

Average length of maximal pattern (I) 10

Memory usage 0 50 100 150 200 250 1 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.05 Minsup (%) Memory (MB) NewMoment MomentFP

Fig. 9. Memory usage with diﬀerent minimum supports. Fig. 7. Algorithm of appending the incoming transaction.

∅

(a): <0100> (b): <1111> (c): <1110> (d): <1001>

(b, c): 3 (b, d): 2

Fig. 8. NewCET after appending a new incoming transaction T5in the TransSW2.

Time of Loading the First Window

0 20 40 60 80 1 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 Minimum Support (%) Loading Time (seconds) NewMoment MomentFP

Fig. 10. Time of loading the ﬁrst window with diﬀerent minimum supports.

(7)

the difference is about 0.02 s. The steps of window sliding can be finished in one second for both algorithms and the difference is meaningless.

4.2. Mining with diﬀerent window sizes

In the second experiment, the size of sliding window is changed from 10 K transactions to 100 K transactions, and the minimum support threshold s is ﬁxed to 0.1%.

Fig. 12 shows the memory usage with KB units. Both NewMoment and Moment are linearly aﬀected by the sizes of sliding windows. In this experiment, the proposed New-Moment algorithm outperforms the New-Moment algorithm in the memory requirement.

Fig. 13 shows the time of loading the ﬁrst window. Although with the increasing sliding window size, each bit-sequence becomes larger, NewMoment is still faster than Moment in the experiment of loading time of the ﬁrst

window. The reason is that the processing time of bitwise AND operation between bit-sequences is almost not eﬀected by the length of bit-sequence.

Fig. 14shows the average time of window sliding. In this experiment, the time of window sliding of NewMoment and Moment is almost the same.

4.3. Mining with diﬀerent number of items

NewMoment algorithm maintains bit-sequences of all items instead of independent sliding window structure maintained in MomentFP algorithm (Chi et al., 2004). In this section, several experiments are done to prove that with the increase of item types, NewMoment is still eﬃcient in memory usage and running time. But, MomentFP is out of memory (more than 512 MB) when the number of items exceeds 3000.

In these experiments, the number of items is changed from 1000 to 10,000. The size of sliding window is set to 100,000 and minimum support threshold is set to 0.1%. Fig. 15shows the memory usage with KB units. The mem-ory usage of NewMoment and the number of items is lin-early related. This result shows that NewMoment does not increase its memory usage suddenly when the number of items is large.

Fig. 16 shows the loading time the ﬁrst window and Fig. 17 shows average time of window sliding. The results show that loading time and window sliding time also has linear relation with the number of items. Although loading time is more than 300 s when the number of items exceeds 9000, the process of loading the ﬁrst window is only exe-cuted once. Average time of window sliding is still less than

Memory Usage 0 50000 100000 150000 200000 250000 10 20 30 40 50 60 70 80 90 100

Window Size (K transactions)

Memory Usage (KB)

NewMoment MomentFP

Fig. 12. Memory usage with diﬀerent window sizes. Time of Loading the First Window

0 20 40 60 80 10 20 30 40 50 60 70 80 90 100

Window Size (K transactions) Loading Time (seconds)

NewMoment MomentFP

Fig. 13. Time of loading the ﬁrst window with diﬀerent sliding window sizes.

Average Time of Window Sliding

0 0.02 0.04 0.06 0.08 10 20 30 40 50 60 70 80 90 100

Window Size (K transactions)

Window Sliding Time

(seconds)

NewMoment MomentFP

Fig. 14. Average time of window sliding with diﬀerent sliding window sizes.

0 0.02 0.04 0.06 1 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 Minimum Support (%)

Window Sliding Time

(seconds)

NewMoment MomentFP

Fig. 11. Average time of window sliding with diﬀerent minimum supports.

Memory Usage 0 100000 200000 300000 400000 500000 1 2 3 4 5 6 7 8 9 10 Number of Items (K) M e m o ry (K B) NewMoment MomentFP

(8)

one second. It means that the proposed NewMoment algo-rithm is still eﬃcient with a large number of items. 5. Conclusions

In this paper, we propose an eﬃcient single-pass algo-rithm NewMoment to mine the set of closed frequent item-sets over data streams with a transaction-sensitive sliding window. In NewMoment algorithm, an eﬀective bit-sequence representation is developed to reduce the memory requirement of the online maintenance of closed frequent itemsets generated so far. Experiments show that the pro-posed NewMoment algorithm outperforms the Moment, a state-of-art algorithm for mining the set of closed fre-quent itemsets over online data streams with a transac-tion-sensitive sliding window.

Acknowledgement

This paper was partially supported by the National Sci-ence Council of Taiwan, R.O.C. under research grant No. 95-2221-E-009-069-MY3 and No. NSC 96-2218-E-424-001. References

Agrawal, R., & Srikant, R. (1994). Fast algorithms for mining association rules. In Proceedings of the 20th international conference on very large data bases, (pp. 487–499).

Babcock, B., Babu, S., Datar, M., Motwani, R., & Widom, J. (2002). Models and issues in data stream systems. In Proceedings of the 21th ACM SIGMOD-SIGACT-AIGART symposium on principles of data-base systems, (pp. 1–16).

Chang, J., & Lee, W. (2004a). Decaying obsolete information in ﬁnding recent frequent itemsets over data stream. IEICE Transaction on Information and Systems, E87-D(6).

Chang, J., & Lee, W. (2004b). A sliding window method for ﬁnding recently frequent itemsets over online data streams. Journal of Information Science and Engineering, 20(4).

Chi, Y., Wang, H., Yu, P., & Muntz, R. (2004). MOMENT: Maintaining closed frequent itemsets over a stream sliding window. In Proceedings of the 4th IEEE international conference on data mining, (pp. 59–66).

Giannella, C., Han, J., Pei, J., Yan, X., & Yu, P. S. (2003). Mining frequent patterns in data streams at multiple time granularities. In H. Kargupta, A. Joshi, K. Sivakumar, & Y. Yesha (Eds.), Data mining: Next generation challenges and future directions. AAAI/ MIT.

Golab, L., & O¨ zsu, M. T. (2003). Issues in data stream management. ACM SIGMOD Record, 32(2), 5–14.

Han, J., Pei, J., & Yin, Y. (2000). Mining frequent patterns without candidate generation. In Proceedings of the 2000 international confer-ence on management of data, (pp. 1–12).

Jiang, N., & Gruenwald, L. (2006). Research issues in data stream association rule mining. ACM SIGMOD Record, 35(1).

Jin, R., & Agrawal, G. (2005). An algorithm for in-core frequent itemset mining on streaming data. In Proceedings of the 5th IEEE international conference on data mining.

Li, H.-F., Lee, S.-Y., & Shan, M.-K. (2004). An eﬃcient algorithm for mining frequent itemsets over the entire history of data streams. In Proceedings of the ﬁrst international workshop on knowledge discovery in data streams.

Li, H.-F., Lee, S.-Y., & Shan, M.-K. (2005). Online mining (recently) maximal frequent itemsets over data streams. In Proceedings of the 15th IEEE international workshop on research issues on data engineer-ing, (pp. 11–18).

Li, H.-F., Ho, C.-C., Shan, M.-K., & Lee, S.-Y. (2006). Eﬃcient maintenance and mining of frequent itemsets over online data streams with a sliding window. In Proceedings of the 2006 IEEE international conference on systems, man and cybernetics.

Manku, G.S., & Motwani, R. (2002). Approximate frequency counts over data streams. In Proceedings of the 28th international conference on very large data bases, (pp. 346–357).

Teng, W.-G., Chen, M.-S., & Yu, P.S. (2003). A regression-based temporal pattern mining scheme for data streams. In Proceedings of the 29th international conference on very large data bases, (pp. 93– 104).

Teng, W.-G., Chen, M.-S., & Yu, P.S. (2004). Using wavelet-based resource-aware mining to explore temporal and support count granularities in data streams. In Proceedings of the 4th SIAM international conference on data mining, April 22–24.

Wong, R.C.W., & Fu, A. (2005). Mining top-k itemsets over a sliding window based on Zipﬁan distribution. In Proceedings of 2005 SIAM international conference on data mining.

Yu, J.-X., Chong, Z., Lu, H., & Zhou, A. (2004). False positive or false negative: Mining frequent itemsets from high speed transactional data streams. In Proceedings of the 30th international conference on very large data bases, (pp. 204–215).

Zhu, Y., & Shasha, D. (2002). StatStream: Statistical monitoring of thousands of data streams in real time. In Proceedings of the 28th international conference on very large data bases, (pp. 358–369).

Time of Loading the First Window

0 100 200 300 400 1 2 3 4 5 6 7 8 9 10 Number of Items (K)

Loading Time (seconds)

NewMoment MomentFP

Fig. 16. Time of loading the ﬁrst window with diﬀerent number of items.

0 0.2 0.4 0.6 1 2 3 4 5 6 7 8 9 10 Number of Items (K)

Window Sliding Time

(seconds)

NewMoment MomentFP
