Liquid crystal terahertz phase shifters with functional indium-tin-oxide
nanostructures for biasing and alignment
Chan-Shan Yang,1,2Tsung-Ta Tang,3Ru-Pin Pan,4Peichen Yu,5and Ci-Ling Pan1,6,a) 1
Department of Physics, National Tsing Hua University, Hsinchu 30013, Taiwan
2
Chemical Sciences Division, Lawrence Berkeley National Laboratory, Berkeley, California 94720, USA
3
Taiwan Semiconductor Manufacturing Company, Hsinchu, Taiwan
4
Department of Electrophysics, National Chiao Tung University, Hsinchu 30078, Taiwan
5
Department of Photonics and Institute of Electro-Optical Engineering, National Chiao Tung University, Hsinchu 30010, Taiwan
6
Frontier Research Center on Fundamental and Applied Science of Matters, Hsinchu 30013, Taiwan
(Received 17 February 2014; accepted 1 April 2014; published online 10 April 2014)
Indium Tin Oxide (ITO) nanowhiskers (NWhs) obliquely evaporated by electron-beam glancing-angle deposition can serve simultaneously as transparent electrodes and alignment layer for liquid crystal (LC) devices in the terahertz (THz) frequency range. To demonstrate, we constructed a THz LC phase shifter with ITO NWhs. Phase shift exceeding p/2 at 1.0 THz was achieved in a517 lm-thick cell. The phase shifter exhibits high transmittance (78%). The driving voltage required for quarter-wave operation is as low as 5.66 V (rms), compatible with complementary metal-oxide-semiconductor (CMOS) and thin-film transistor (TFT) technologies.VC 2014 AIP Publishing LLC. [http://dx.doi.org/10.1063/1.4871255]
In the past decade, several quasi-optic components using liquid crystals (LCs) for the terahertz (THz) wave, e.g., phase shifters,1–7 phase gratings,8 modulators,9 and polar-izers,10,11 have been demonstrated. These devices are, in general, based on magnetically and electrically controlled birefringence of LCs.1–7In our earlier work on electrically tunable phase shifters, a high driving voltage (125 V (rms)) on the side electrodes was needed due to the lack of suitable materials as transparent electrodes in the THz frequency range.3,4 On the other hand, magnetically tunable devices function well, but these are not ideal for some applications because of the bulky design.2 By applying the sub-wavelength metallic grating, a self-polarizing THz phase shifter that achieved a phase shift of p/3 at 2 THz was reported. The operation voltage, 130 V (rms), was still quite high.5 Meanwhile, its transmittance decreases rapidly from 80% to 10% in the frequency range of 0.2–2.0 THz.5 Recently, the phase shifter based on polymer stabilized LCs with significantly reduced response times (7 s) than devices with neat LCs was demonstrated.6 The driving voltage needed for a phase shift of 2p at 1.0 THz was40 V. The transmittance of this device was17.8%. Clearly, materials serving as transparent electrodes for the THz frequency band need be developed. Indeed, a THz phase shifter utilizing gra-phene and LCs showed excellent transmittance.7The maxi-mum phase shift of this device, however, was just 10.8at a driving voltage of 5 V.
In the visible band, indium-tin-oxide (ITO) nanomateri-als, e.g., nanocolumn, nanorods (NRs), nanowires, and nano-whiskers (NWhs), with their omnidirectional, broadband anti-reflective properties, and superhydrophilicity, have been widely employed as transparent electrodes in a wide range of optoelectronic devices.12–18 In the THz band, we showed that ITO NWhs also exhibit superb transparency (82%).
Meanwhile, their DC mobility (92 cm2V1s1) and
con-ductivities (245 X1cm1) are comparable to sputtered ITO thin films.19An electrically tunable THz liquid-crystal phase shifter using ITO NWhs as transparent electrodes was proposed and demonstrated.1 Transmittance of the device was as high as 75%. The phase shift exceeding p/2 at 1.0 THz was achieved using a500 lm-thick cell.1The driving
voltage required for the device operating as a quarter-wave plate was as low as 17.68 V (rms),1 an improvement of nearly an order of magnitude over previous work.3
Conventionally, homeotropic or homogeneous align-ment of LC was achieved by coating or mechanically rub-bing the substrate with suitable polyimides (PIs), respectively. Drawbacks of the above so-called contact methods include electrostatic damage, residual stress, cos-metic defect, and dust pollution.20 Therefore, many groups pursued non-contact methods for LC alignment. Previous studies have shown that the oblique evaporation of silicon oxide (SiOx), TiO2, MgF2, Al2O3, and metals can result
in film growth in a preferred direction of LCs molecules.21–27 Later, it is shown that the pretilt angle and orientation of LC director depends on the angle of evaporation of these materials.23,26 However, few materi-als which can simultaneously function as transparent con-ductor and aligning mechanism for LC molecules have been disclosed to date.
In this Letter, we show that ITO NWhs obliquely evapo-rated by electron-beam glancing-angle deposition can serve simultaneously as transparent electrodes and aligned layer of LCs in a THz) phase shifter. Phase shift exceeding p/2 at 1.0 THz with high transmittance (78%) were achieved using a 500 lm-thick LC cell. The driving voltage required for operation as a quarter-wave plate is as low as 6 V (rms). The voltage and frequency-dependent characteristics of the THz phase shifter are discussed in detail.
Details of sample preparation by the electron-beam glancing-angle deposition (GLAD) method can be found in a)Author to whom correspondence should be addressed. Electronic mail:
0003-6951/2014/104(14)/141106/5/$30.00 104, 141106-1 VC2014 AIP Publishing LLC
our previous work.19,28 The tilted top view and cross-sectional image of image for ITO NWhs used in this work were examined by scanning electron microscopy (SEM). These are shown in Figs.1(a)and1(b), respectively. A sche-matic illustration of the geometric relationship between the evaporation direction and director orientation of the nematic LC is presented in Fig.1(c). The plane of incidence of THz wave is defined as the y-z plane. The angle between the z-axis (normal to the substrate) and evaporation direction, or the evaporation angle, is 70. Besides, / is the angle of inclination of the ITO NWhs from surface normal of the sub-strate. As a boundary condition of LC aligned by the evapo-ration method, the orientation of the nematic LCs is assumed to be along the x-axis, which is perpendicular to the plane of incidence of the THz wave. This is consistent with the analy-sis of Goodmanet al.,23who showed that orientation of LC molecules which are perpendicular to the plane of incidence (along the x-axis) requires the lowest elastic deformation energy. Therefore, it should be the preferred orientation of LCs molecules. Uchidaet al. also showed that evaporation angles of SiO in the range of 70–80 can reorient the LC molecules along the x-axis.26Further, J€agemalmet al. dem-onstrated a surface-controlled electro-optic device by apply-ing the SiOx to align LC in a thin LC cell (3–6 lm).
29,30
With evaporated angles in the range of 67–75, they claimed two uniform monostable types of alignments: the LC molecules lie in the evaporation plane with a certain pretilt for high evaporation angles and perpendicular to the evaporation plate and with zero tilt for low evaporation angles. As shown below, the alignment of LCs by ITO NWhs is consistent with these earlier works.
Transmission electron microscopy (TEM) studies revealed that the trunk of such ITO NWhs exhibits a core-shell structure, where the core is composed of crystalline In2O3 and the shell is tin-doped InOx in amorphous
phase.12,14 The branches of ITO NWhs are also made of
purely crystalline In2O3. We estimated the length
distribu-tion of the ITO NWhs from the SEM image. As summarized in Fig. 1(d), the height of ITO NWhs varies from 700 to 1100 nm. We estimated that the average height is 859.4 nm with a standard deviation of 108.3 nm.
The configurations of THz phase shifters studied in this work are shown in Figs. 2(a) and 2(b). The cells were constructed by sandwiching the LC (E7 by Merck) layer between two fused silica substrates that were deposited with ITO NWhs. For the phase shifters in Figs. 2(a) and 2(b), the thicknesses of the fused silica substrate and the LCs layer are 959 6 6 and 517 6 15 lm, versus 1008 6 8 lm, and 509 6 12 lm, respectively. Photoconductive (PC) antenna-based THz time-domain spectroscopy (THz-TDS) as described in our previous works were used to characterize these devices in the frequency range between 200 GHz and 1.2 THz.19,28,31,32 The mechanisms of LC alignment for the devices in Figs. 2(a) and 2(b) are different. For the device shown in Fig. 2(b), the inner surfaces of both ITO NWhs-deposited substrates were further coated with PI alignment layers, which were lacking for the devices in Fig. 2(a). Note that these are thick cells, which are much thicker than LC cells used in optical devices. This is due to the path length require-ment for phase shifting at THz frequencies.
Before undertaking the phase shifting experiments, we first checked the alignment of these LC cells by placing the cell between a pair of crossed polarizers. Dark (the director

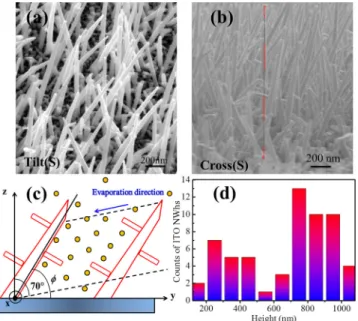

FIG. 1. (a) The tilted top SEM view and (b) the corresponding cross-sectional image of the ITO NWhs. (c) The schematic illustration of the geo-metric relationship between the evaporation direction and director orienta-tion of the nematic LCs. (d) The height distribuorienta-tion of ITO NWhs as estimated from (a) and (b).
FIG. 2. Schematic drawing of THz phase shifter (a) without PI and (b) with PI. The (c) and (d) are the dark and bright states of the THz phase shifter without PI; the (e) and (f) are the results of mechanically rubbing alignment with PI.
of LCs is parallel to one of the polarizers) and bright (the director of LCs is 45to crossed polarizers) states for the de-vice shown in Fig. 2(a) are shown in Figs. 2(c) and 2(d), while those for device drawn in Fig.2(b) are presented in Figs.2(e)and2(f), respectively. For the device with PI (Fig. 2(b)), even though the LC layer is thick, we were able to achieve the uniform alignment (see Figs.2(e)and2(f)). For the device without the PI, although the alignment was not as well as that with the PI, we were still able to observe for dark and bright states (see Figs.2(c)and2(d)). In regard to the not so apparent dark states in both of devices, particularly the one without PI, we note that the thickness of LC cells in this work are500 lm, which is 100 times that of typical LC devices for the visible light. The ability of alignment is thus expected to be worse in the super-thick THz LC devices.
To confirm that the alignment caused by the obliquely evaporated ITO NWhs, we show the relative phase at 1.05 THz of the THz phase shifter without PI as a function of the angle, b, between LC director (x-axis) and polarization direction of the incident THz wave (see Fig.3). The experi-mental data can be well-fitted by the expected sinusoid with offset of 56.93, amplitude of 48.22, and a period of 81.61 (maximum change of relative phase was 96.44). The maxi-mum and minimaxi-mum of relative phases correspond to b 0 and 90, respectively. That means the orientation of the nematic LCs must be along the x-axis, which is perpendicu-lar to the plane of incidence. In Fig.4, we have plotted the experimentally measured transmittance of ITO-NWhs-coated substrate,1phase shifters with PI layer and LC aligned by rubbing,1 and that aligned by ITO NWhs only, respec-tively, as a function of frequency from 0.2 THz to 1.2 THz. Because of the air-space among NWhs, the transmittance of ITO NWhs (90%) is much higher than that of sputtered ITO thin films (8%).1,28 The THz phase shifter based on LCs aligned by ITO NWhs and rubbing exhibit similar val-ues of transmittance, i.e., 77.8% and 75.4%, respectively.
The boundary conditions on internal surfaces of sub-strates for the LC cell require that the tilt angle of the direc-tor, h(0)¼ h(d) ¼ 0, at the inner faces of the cell. Further, LC molecules are assumed to be originally aligned along the
x-direction, as shown in Fig.1. The condition for minimum free energy (dU¼ 0) can be written as1,33
k1cos2hþ k3sin2h dh dz 2 D 2 z
ðe==sin2hþ e?cos2hÞ
¼ constants; (1)
wherek3, h,Dz, e//, and e?are the bend elastic constant, tilt
angle, the z component of the displacement field vector, the dielectric constants which are along the preferred axis and perpendicular to this axis, respectively. After assuming the maximum tilt angle, hmax, at the position ofd/2, and defining
the threshold voltage, Vth¼ p (k1/(e0 De))1/2, where
e0¼ 8.854 1012F/m, De¼ e// e?¼ 13.8,3 k1¼ 11.1
1012 N,1,3 and d are free-space permittivity, dielectric anisotropy, splay elastic constants, and the distance between two electrodes, respectively, the relationship between hmax
and the applied voltage can be derived as1,33
ðp 2 0 ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi 1þ f sin2h maxsin2a 1 þ q sin2h max q ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi 1 sin2 hmaxsin2a 1 þ q sin2 hmaxsin2a q da ¼p 2 V Vth ; (2)
where f¼ (k3 k1)/k1, q¼ (e// e?)/e?, andV is the applied
voltage, whereas sin a¼ sin h/sin hmax. Besides, Vth is the
threshold voltage and equals toEthd. After finding the hmax
at every applied voltage, the effective birefringence experi-enced by the THz wave transmitting through the LC cell can be written as1,33Dneff.Max¼ (cos2hmax/no2þ sin2hmax/ne2)1/2
no,
1,3
whereneandnoare extraordinary and ordinary
indi-ces of refraction of the LC, respectively. Because of the 500 lm-thick cell, we can write the phase shift due to the effective birefringence as d¼ 2p f d Dneff.Max/c, where
f and c are the frequency and speed of propagation of the THz wave in vacuum. Here, the values of ne andnofor E7
are 1.690–1.704 and 1.557–1.581 at 26C, respectively, giving rise to a birefringence of 0.130–0.148 in this fre-quency range.32
FIG. 3. Relative phase at 1.05 THz of the THz phase shifter based on align-ment by ITO NWhs only as a function the angle between the LC director at the substrate (black double headed arrow in the inset) and direction of THz polarization (Red double headed arrow in the inset).
FIG. 4. THz transmittance of the ITO-NWhs-deposited substrate, phase shifters with LC aligned by rubbing and ITO NWhs, respectively.
Recalling the relationship of phase shift and frequency, larger phase shift can be expected at higher frequencies. This is confirmed in Fig.5(a), in which we have plotted the phase shifts from 0.2 to 1.2 THz as a function of the frequencies. For a given voltage, in general, the measured phase shift var-ied linearly with frequency. For the phase shifter in which the LC director was aligned by ITO NWhs only, the slope of linear fits varies from 10.71/THz to 91.04/THz as the applied voltage was ramped from 1.56 to 5.66 V (rms). For our previ-ous structure, aligned by rubbing (see Fig.2(b)),1the slope of linear fits will varies from 7.12/THz to 92.14/THz as the applied voltage was ramped from 1.48 to 17.68 V (rms). In comparison, for quarter-wave operation, the structure in this work can be driven at much lower voltage (5.66 versus 17.68 V (rms)). The reduction is tentatively attributed to the weaker surface anchoring that is induced by the obliquely evaporated ITO NWhs.34,35In Fig.5(b), we plotted the phase shift as a function of driving voltage. The fitting curves in Fig.5(b)are theoretical predictions according to (1), (2), and corresponding phase shift. Far above threshold, the LC mole-cules are essentially aligned with the electric field. Here, the maximum phase shifts of theoretical curves in the different frequencies are generally in good agreements with the experiments. Meanwhile, the thresholds for voltage and elec-tric field,VthandEthare determined to be 1.06 V (rms) and
20.50 V/cm, respectively, almost the same as the theoreti-cally predicted values, 0.95 V (rms) and 18.32 V/cm.
However, the discrepancy below3 V (rms) is considerable. This can be attributed to the weak anchoring of the LC aligned by ITO NWhs only, which results in the reduction of operating voltages and the drastic change in the electro-optic response.35In order to understand the level of weak anchor-ing on the ITO NWhs surface, further studies are required.
In summary, ITO NWhs obliquely evaporated by electron-beam glancing-angle deposition served simultane-ously as transparent electrodes and aligned layer of LCs in the terahertz frequency range. To demonstrate, we con-structed a THz phase shifter using the ITO NWhs. Phase shift exceeding p/2 at 1.0 THz with high transmittance (78%) was achieved using a 517 lm-thick LC cell. The driving voltage required for operation as a quarter-wave plate is as low as 5.66 V (rms), compatible with comple-mentary metal-oxide-semiconductor (CMOS) and thin-film transistor (TFT) technologies.
