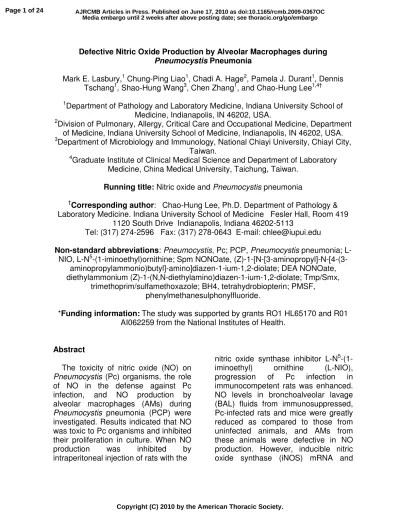

Defective Nitric Oxide Production by Alveolar Macrophages during Pneumocystis Pneumonia
Mark E. Lasbury,1 Chung-Ping Liao1, Chadi A. Hage2, Pamela J. Durant1, Dennis Tschang1, Shao-Hung Wang3, Chen Zhang1, and Chao-Hung Lee1,4†
1
Department of Pathology and Laboratory Medicine, Indiana University School of Medicine, Indianapolis, IN 46202, USA.
2Division of Pulmonary, Allergy, Critical Care and Occupational Medicine, Department
of Medicine, Indiana University School of Medicine, Indianapolis, IN 46202, USA.
3
Department of Microbiology and Immunology, National Chiayi University, Chiayi City, Taiwan.
4
Graduate Institute of Clinical Medical Science and Department of Laboratory Medicine, China Medical University, Taichung, Taiwan.
Running title: Nitric oxide and Pneumocystis pneumonia
†Corresponding author
: Chao-Hung Lee, Ph.D. Department of Pathology & Laboratory Medicine. Indiana University School of Medicine Fesler Hall, Room 419
1120 South Drive Indianapolis, Indiana 46202-5113
Tel: (317) 274-2596 Fax: (317) 278-0643 E-mail: [email protected]
Non-standard abbreviations: Pneumocystis, Pc; PCP, Pneumocystis pneumonia; L-NIO, L-N5-(1-iminoethyl)ornithine; Spm NONOate,
(Z)-1-[N-[3-aminopropyl]-N-[4-(3-aminopropylammonio)butyl]-amino]diazen-1-ium-1,2-diolate; DEA NONOate, diethylammonium (Z)-1-(N,N-diethylamino)diazen-1-ium-1,2-diolate; Tmp/Smx,
trimethoprim/sulfamethoxazole; BH4, tetrahydrobiopterin; PMSF, phenylmethanesulphonylfluoride.
*Funding information:The study was supported by grants RO1 HL65170 and R01 AI062259 from the National Institutes of Health.
Abstract
The toxicity of nitric oxide (NO) on
Pneumocystis (Pc) organisms, the role of NO in the defense against Pc infection, and NO production by alveolar macrophages (AMs) during
Pneumocystis pneumonia (PCP) were investigated. Results indicated that NO was toxic to Pc organisms and inhibited their proliferation in culture. When NO
production was inhibited by
intraperitoneal injection of rats with the
nitric oxide synthase inhibitor L-N5
-(1-iminoethyl) ornithine (L-NIO),
progression of Pc infection in
immunocompetent rats was enhanced. NO levels in bronchoalveolar lavage (BAL) fluids from immunosuppressed, Pc-infected rats and mice were greatly reduced as compared to those from uninfected animals, and AMs from these animals were defective in NO production. However, inducible nitric oxide synthase (iNOS) mRNA and
protein levels were high in AMs from Pc-infected rats and mice. Immunoblot analysis showed that iNOS in AMs from Pc-infected rats existed primarily as a monomer, but homo-dimerization of iNOS monomers was required for NO production. When iNOS dimerization cofactors, including calmodulin, were added to macrophage lysates, iNOS
dimerization increased, whereas
incubation of the same lysates with all cofactors except calmodulin did not rescue iNOS dimer formation. These data suggest that NO is important in the defense against Pc infection, but production of NO in AMs during PCP is defective due to reduced dimerization of iNOS.
Keywords: Pneumocystis, nitric oxide,
iNOS, alveolar macrophage, AIDS-related opportunistic infection, innate immunity, calmodulin Introduction
Complex interactions between host and pathogen occur during PCP, triggering both the innate and adaptive immune responses. Studies have shown that the alveolar macrophage (AM) is an important cell for the clearance of Pneumocystis organisms from the lungs during PCP (1, 2). Clearance of organisms by alveolar macrophages (AMs) is mediated by direct phagocytosis (2-4), production of toxic metabolites (5, 6), and modulation of inflammatory cytokines (2-4). Some of these functional abilities are defective (7, 8), and the number of AMs (7, 9) is decreased during PCP. The reasons for reduced function of AMs are largely unknown.
AMs are an important source of nitric oxide (NO) in the lung during infection (10). NO is a short-lived, freely diffusible molecule with many functions in normal physiology (11) and in response to cytokines (12), infectious agents, or bacterial products (13). It
has an antimicrobial effect on
organisms such as Toxoplasma gondii (14), Leishmania donovani (15), and
Cryptococcus neoformans (16). NO also causes redistribution of the actin
pool in some cells (17). This
reorganization is mediated by
calmodulin, as inhibition of calmodulin activity suppresses the redistribution
despite high NO levels (17).
Calmodulin is recently shown to be an important molecule for survival of AMs, but its level in AMs is decreased during PCP (18).
Pc organisms have been shown to stimulate AMs from humans and rats to produce NO (19), and both chemically produced (20) and IFN-γ-stimulated NO (21) are toxic to Pc organisms. However, elevated levels of iNOS mRNA and protein in AMs in Pc-infected, CD4+ cell-depleted mice were found not to reduce the organism burden or slow disease progression (22, 23). In this study, we further investigated this problem and found that the inability of the iNOS protein to form dimers was a cause of this defect.
Materials and Methods
Reagents. Spm NONOate [(Z)-1-[N-[3- aminopropyl]-N-[4-(3- aminopropylammonio)butyl]-amino]diazen-1-ium-1,2-diolate], DEA NONOate [diethylammonium (Z)-1-
(N,N-diethylamino)diazen-1-ium-1,2-diolate], and L-NIO [L-N5
from Cayman Chemical (Ann Arbor, MI). Tetrahydrobiopterin (BH4) was purchased from Alexis Biochemicals (Lausen, Switzerland). Heme was obtained from MP Biochemicals (Irvine, CA), and L-arginine hydrochloride was purchased from Fisher Bioreagents (Pittsburgh, PA). Anti-rat and mouse iNOS antibodies were acquired from Santa Cruz Biotechnology (Santa Cruz, CA), and anti-GAPDH antibody was
obtained from US Biological
(Swampscott, MA). Calmodulin protein was purchased from ANIARA (Manson,
OH). All other reagents were
purchased from Sigma-Aldrich
Chemical Co. (St. Louis, MO) unless stated otherwise.
Short-term culture of Pc organisms.
Pc organisms were grown on
monolayers of human embryonic lung (HEL 299) cells (CCL-137; ATCC, Manassas, VA) on 24-well culture dishes in 0.5 ml minimum essential medium containing 2 mM L-glutamine, 17.9 mM sodium bicarbonate, 0.1 mM nonessential amino acids, 10% fetal
calf serum (FCS), 100 units/ml
penicillin, and 0.1 mg/ml streptomycin at 37°C and 5% O2, 10% CO2, 85%
nitrogen. P. carinii innoculum was isolated and added to the cultures as previously described (24).
Rodent models of PCP.
Immunosuppression of rats with
dexamethasone (7) and mice with anti-CD4 antibody (1, 25), transtracheal
inoculation of animals with Pc
organisms (7), bronchoalveolar lavage (26), and isolation of AMs from BAL fluids (7) were performed as previously described.
Infection of mice with Histoplasma capsulatum. H. capsulatum (IU-CT)
yeasts were grown in HMM broth as described previously (27). Six-week old C57/BL6 mice (Jackson laboratories, Bar Harbor, Maine) were anesthetized
with 5% isoflurane and then
intranasally instilled with 50 µl inoculum containing 1 x 106 yeasts of H.
capsulatum. At days 7 and 14 post infection, BAL fluids and AMs were
obtained from these mice by
bronchoalveolar lavage as described above.
Assessment of nitrate/nitrite levels.
The nitrite assay was performed using the NO Quantitation Kit (Active Motif,
Carlsbad, CA) according to
manufacturer’s instructions.
RNA isolation and real-time RT-PCR. Total RNA was isolated from AMs using the TRIzol reagent according to manufacturer’s instructions (Invitrogen). Real-time RT-PCR for rat or mouse iNOS was performed using the Assays-on-DemandTM gene expression kits (Applied Biosystems, Foster City, CA) on a Smartcycler (Cepheid, Sunnyvale, CA). Ribosomal protein S8 (RPS8) mRNA was assayed in an identical manner as a control as described (28). Organism viability was estimated based on the rRNA levels of Pc mitochondrial large subunit ribosomal RNA gene as described (29).
Immunoblot blot analysis of iNOS protein. Determination of protein concentration and Western blotting were performed as described (30). For determination of iNOS dimer formation, electrophoresis was performed under partially denatured conditions to allow the iNOS dimer to remain intact as previously described (31). Immunoblot
autoradiographs were analyzed using the ImageJ software package (32).
Statistics. Comparisons between the mean values of the treatment and control groups and data of effects of NO on Pc proliferation over time were analyzed by the Mann-Whiteney U test. A p < 0.05 was considered significant.
Results
NO production by chemical generators in culture media and effect of NO on Pc viability. Spm NONOate and DEA NONOate were incubated in complete medium, and release of NO from these chemicals was induced by decreasing the pH of the medium from 8.0 to 7.4 with 1 N HCl. At pH 7.4 and 37˚C, the half-life of DEA NONOate is 2.1 min and that of Spm NONOate is 39 min (Product information, Cayman Chemical). The pH of medium in a well of each condition was checked daily and maintained at 7.0 - 7.4. Both chemicals produced NO in a dose-dependent manner. NO production (measured as nitrites) by DEA NONOate (0.1 mM) peaked (20.2 ± 2.0 µM) at 15 min after lowering the pH; little NO was produced after this time point. Production of NO by Spm NONOate (0.1 mM) was still increasing 60 min after pH change (23.7 ± 1.8 µM at 60 min). Lower concentrations (0.01 mM) of Spm
NONOate and DEA NONOate
generated roughly 30% as much NO as the higher concentrations (6.9 ± 1.2 µM for Spm NONOate and 6.5 ± 2.0 µM for DEA NONOate). The times for peak production were the same as those for the higher concentrations of each compound.
To test the toxicity of these compounds, one half-million P. carinii organisms were incubated with carrier (0.01 mM NaOH) or NO generators and
then assessed for viability by
measuring Pc mitochondrial large subunit rRNA levels at 2 or 4 h (Fig. 1). Compared to carrier-treated control levels at 4 h, 0.01 mM Spm NONOate decreased Pc viability by 17%, while 0.1 mM Spm NONOate reduced it by 33% at 2 h and 43% at 4 h (Fig. 1). Pc organisms incubated with 0.01 mM or 0.1 mM DEA NONOate did not show significant decreases in viability at either time point, probably due to the shorter duration of NO production by DEA NONOate.
Suppression of Pc proliferation in
short-term culture by NO. Pc was cultured on HEL cell monolayers. High
(0.1 mM) and low (0.01 mM)
concentrations of NO generators were included in the culture media and replenished every 24 h. Separate cultures treated with carrier (0.1%
DMSO in saline) or
trimethoprim/sulfamethoxazole
(Tmp/Smx, 50/250 µg/ml) were used as
negative and positive controls,
respectively. The cultures were
examined under an inverted
microscope every other day to assess the health of the monolayer. Any culture showing signs of contamination by other microorganisms (bacteria or fungi) was discarded. Organisms were sampled and counted every other day as described before (24). Untreated cultures showed a significant increase in organism numbers after seven days of culture (21.3 ± 4.1 organisms per 1000x microscopic field, Fig. 2). Tmp/Smx inhibited propagation of the organisms in culture by 89% (2.4 ± 0.4
organisms per 1000x microscopic field, p<0.0001 vs. untreated control) at the same time point (7 days). DEA NONOate at either concentration and Spm NONOate at 0.01 mM had minimal effects (Fig. 2), whereas Spm NONOate at 0.1 mM suppressed 97% of Pc growth at seven days (0.58 ± 0.1 organisms per 1000x field). These results indicate that the NO generated is inhibitory to Pc replication in short-term culture.
To control for the toxicity of NO to HEL cells, the health of the monolayer was monitored in each condition. Without Pc, HEL cell culture alone had only 5.4 ± 1.0% cell death, but 54.6 ± 6.6% of Pc-infected cells died (p<0.05 vs. control) after seven days of culture. Spm NONOate at 0.1 mM inhibited 97% of Pc growth as mentioned above, but caused only 10.7 ± 2.3% cell death
by Day 7, indicating that the
suppression of Pc growth in cultures by NO generators was not due to damage of the cell monolayer by NO.
Increased Pc proliferation in vivo by
suppressing NO production. To determine if NO participates in the control of Pc proliferation in vivo, uninfected (Normal) and Pc-inoculated Normal (Normal-Pc) rats were injected (i.p.) daily with L-NIO at 2 mg/kg to
inhibit NO production and then
assessed for organism burden and NO levels in AMs and BAL fluids. NO is quickly converted to nitrites and nitrates in vivo (33-35). Nitrates can be converted to nitrites through the action of nitrate reductase. Therefore, NO levels in AMs and BAL fluids were determined by measuring nitrites after conversion of nitrates to nitrites using the nitrate reductase in the NO quantitation kit. AMs were isolated,
incubated for 1 h in saline, lysed by sonication, and assayed for nitrite levels.
AMs from rats treated with L-NIO for one week produced 1.5 ± 0.2 µM (normalized to 1 mg of AM protein) of nitrites; this was 62% less than that (3.9 ± 0.5 µM) produced by AMs from untreated rats (p<0.05) (Fig. 3). The ability to produce NO by AMs was further impaired with longer treatment of L-NIO. After two weeks of L-NIO injection, nitrite production in AMs was decreased by 73% (1.0 ± 0.1 µM vs. 3.7 ± 0.2 µM for untreated controls, p<0.05) (Fig. 3).
The response of AMs to stimulation by IFN-γ and E. coli organisms to produce NO was then assessed. One hour incubation with 10 ng/ml IFN-γ and 5 x 106 E. coli organisms increased nitrite production in AMs from Normal rats by approximately 3 fold (from 3.9 ± 0.5 to 11.6 ± 2.2 µM for those treated with carrier for one week and from 3.7 ± 0.2 to 10.2 ± 1.1 µM for those treated with carrier for two weeks). In contrast, AMs from L-NIO-treated rats increased nitrite production by only 1.4 and 1.2 fold, respectively, from 1.5 ± 0.2 to 2.1 ± 0.4 µM for those treated for one week and from 1.0 ± 0.1 to 1.2 ± 0.2 µM for those treated for two weeks (Fig. 3). AMs from Normal-Pc rats which had been inoculated with Pc for one week or two weeks produced significantly more nitrites (14.7 ± 2.0 µM and 15.3 ± 1.8 µM, respectively, p<0.05 vs. controls at the same time point). IFN-γ and E. coli stimulation did not increase the levels of nitrites produced by AMs at either time point.
In contrast to the increase in nitrite production in Normal rats inoculated with Pc, AMs from L-NIO treated Normal-Pc rats did not show an
increase in nitrite production in response to Pc inoculation (3.2 ± 0.4 µM after one week and 2.3 ± 0.2 µM after two weeks of L-NIO treatment, p<0.05 for each versus Normal-Pc rats). IFN-γ and E. coli also failed to further stimulate nitrite production in these cells (3.0 ± 0.3 µM for 1 week and 2.1 ± 0.3 µM for two weeks) (Fig. 3).
Organism burdens in Normal-Pc rats with or without L-NIO treatment were also determined. After one week of infection, impression smears of lungs from Normal-Pc rats showed an average of 0.6 ± 0.1 trophic forms and 0.1 ± 0.1 cysts per 1000x microscopic field (Fig. 3). Rats treated with L-NIO showed higher burdens with an average of 1.9 ± 0.2 trophic forms and 0.2 ± 0.1 cysts at the same time point. These represent 3.1 fold and 2 fold increases in trophic forms and cysts, respectively, and both increases were statistically significant (p<0.05 vs.
Normal-Pc). At two weeks, the
difference in organism burden between untreated and L-NIO-treated rats was even larger. Normal-Pc rats had begun to clear the organisms, and both trophic form (0.5 ± 0.1) and cyst (0.1 ± 0.1) numbers were reduced or unchanged. In contrast, organism burdens in L-NIO treated rats were increased (from 1.9 ± 0.2 to 3.6 ± 0.2 trophic forms/field and from 0.2 ± 0.1 to 0.6 ± 0.1 cysts/field, p<0.0001 vs. Pc and Normal-Pc + L-NIO at one week) (Fig. 3). These results demonstrate that AMs do produce NO in response to Pc infection, and that inhibition of NO production hampers the clearance of Pc from the lungs of immunocompetent rats. Since L-NIO treated rats were not immunosuppressed, they all cleared the infection and survived.
Low nitrite levels in BAL fluids of Pc-infected rats and mice. To investigate NO production in the lung during PCP, the first 5 ml of the BAL fluids from uninfected and Pc-infected immunosuppressed rats were assayed for nitrite levels. Results showed that BAL fluids from Dex-Pc rats had 35% less nitrites than those from either Normal or Dex rats (p<0.05, Table 1). BAL fluids from Normal-Pc rats had 3 fold more nitrites than those from Normal rats that were not inoculated with Pc and 4.5 fold more than those from Dex-Pc rats (p<0.05, Table 1). Previous results indicate that CD4-depleted-Pc mice respond differently from rats in the timing of AM number decreases (9); therefore, BAL fluid (first 1 ml) nitrites were assessed at both four and seven weeks of infection and were found to have 41% (1.3 ± 0.1 µM) and 55% (1.0 ± 0.2 µM), respectively less nitrites than those from CD4-depleted mice (p<0.05, Table 1). These data suggest that the decrease in nitrites in BAL fluids during PCP is not species-specific and is not related to method of immunosuppression.
Decreased nitrite levels in AMs during PCP in rats and mice. To assess NO production by AMs from rats and mice with PCP, AM-produced nitrites were measured after 1 h of culture. Nitrite levels were first assayed in AM samples treated with saline alone to determine background values of nitrites for the assay. AMs from Dex-Pc rats (n=15) were found to produce only 20% as much NO (p<0.05 vs. Dex control, Table 1) as those from Normal or Dex rats (n=12 each). IFN-γ and E.
coli stimulation of these cells did not significantly increase nitrite levels.
Likewise, CD4-depleted-Pc mice from early (4 weeks) and late (7 weeks) infections had significantly lower nitrite levels (p<0.05, Table 1) (n=15-20). These results indicate that AMs from PCP rats and mice are defective in NO production.
NO production in AMs from H. capsulatum-infected mice. To determine whether the defect in NO production by AMs is specific to Pc infection, mice were infected with the yeast form of H. capsulatum by intranasal instillation. At 7 (mid stage) and 14 (late stage) days after infection, nitrite levels in AMs and BAL fluids were measured. Results showed that nitrite levels in both AMs and BAL fluids from mice infected for 7 days had no significant difference as compared to uninfected controls. However, a 5.56 fold and 4.62 fold increase in nitrite levels in AMs and BAL fluids, respectively were observed at 14 days after infection (Table 2). These results suggest that in contrast to Pc infection, NO production in AMs is increased during H. capsulatum infection.
iNOS transcription in PCP rats and mice. Real-time RT-PCR for iNOS mRNA levels was then performed to determine if the defect in NO production was due to reduced transcription of the iNOS gene. RNAs from two million AMs from Normal, Dex, and Dex-Pc rats, or one million AMs from Normal, CD4-depleted, or CD4-depleted–Pc mice were converted to cDNAs and then used for the real-time RT-PCR. As shown in Fig. 4, iNOS transcripts, normalized to RPS8, were 14.6 fold higher in AMs from Dex-Pc rats than in those from Dex rats (p<0.05). This is in direct contrast to the
low nitrite levels in AMs from Dex-Pc rats (Table 1). iNOS mRNA levels in AMs from Normal and Dex rats were
very similar, indicating that
immunosuppression by
dexamethasone did not significantly affect iNOS transcription in AMs. AMs from Normal-Pc rats had increased iNOS transcripts as compared to those from Normal rats (14.7 fold, p<0.05). As with rats, real-time RT-PCR results indicated that AMs from CD4-depleted-Pc mice had higher levels (13.6 fold) of iNOS mRNA than those from CD4-depleted mice (Fig. 4). These results indicate that up-regulation of iNOS transcription in AMs is a normal immune response to Pc.
iNOS protein levels in rats and mice with PCP. To determine whether the iNOS mRNA detected in AMs from rats
was translated, Western
immunoblotting was performed. Equal amounts of AM soluble protein from Normal, Dex, and Dex-Pc rats were electrophoresed on a polyacrylamide gel and then transferred to a PVDF
membrane. The membrane was
reacted with antibody against the iNOS protein, with GAPDH as a loading control. The iNOS protein was detected in all samples (Fig. 5A), and AMs from Dex-Pc rats were found to produce significantly more iNOS protein than those from Normal or Dex rats.
The CD4-depleted mouse model of PCP was also assessed for iNOS protein expression. As shown in Fig. 5B, the amount of iNOS protein was low in AMs from Normal and CD4-depleted mice, but AMs from those infected with P. murina for either four or
seven weeks had significantly
iNOS dimerization in AMs during PCP. In order to determine if the decreased NO production by AMs was due to reduced iNOS dimerization, partially denaturing immunoblotting was performed as described previously (31) to identify both the iNOS dimmer (260 kDa) and monomer (130 kDa) in AM lysates. As shown in Fig. 6A, pooled AMs from three Normal or Dex rats had approximately equal levels of iNOS monomer and dimer. This ratio was shifted in AMs from Dex-Pc rats with high levels of the iNOS monomer and low levels of the iNOS dimer (Fig. 6A). Image analysis of the immunoblots showed that Normal and Dex animals dimerized 46-58% of their AM iNOS (Fig. 6B). In contrast, AMs from Dex-Pc rats dimerized only 15% of the iNOS protein (Fig. 6B).
Effects of cofactors on iNOS dimerization. To determine whether the low iNOS dimer levels were due to reduced availability of cofactors necessary for iNOS dimerization, AM lysates from Normal, Dex, or Dex-Pc rats were incubated for 30 min with iNOS dimerization cofactors in sterile
saline containing 1 mM
phenylmethylsulphonylfluoride (PMSF) before they were analyzed for iNOS dimers. These cofactors included heme, tetrahydrobiopterin (BH4), FAD, FMN, NADPH, arginine, and in some
conditions, calmodulin. The
concentrations of cofactors used were similat to those of previously published (36, 37).
Normal or Dex AM lysates
supplemented with all cofactors
showed similar iNOS dimer levels (Fig. 7A). For Dex-Pc AM lysates, levels of iNOS monomers were high and those of iNOS dimers were low without the
presence of cofactors; addition of all cofactors significantly increased the levels of iNOS dimers, as the levels of monomers were decreased (Fig. 7A). However, when calmodulin was not included in the cofactors, Dex-Pc AM lysates had very low iNOS dimer levels (Fig. 7A). Image analysis of three independent immunoblots (Fig 7B) showed that 17.9 ± 1.9% of the iNOS
proteins were dimerized without
addition of any cofactors and that 18.4 ± 2.1% of the iNOS proteins dimerized when the cell lysate was incubated with all cofactors except calmodulin. In contrast, 62.0 ± 9.8% of the iNOS proteins were dimerized when the cofactors included 5 µM calmodulin (Fig. 7B).
Discussion
In order to survive in the lung, Pc must evade the actions of AMs. We have previously shown that Pc infection renders AMs defective in phagocytosis (8) and induces AM apoptosis (1, 7, 9). In this study, we found that AM defense is further weakened during Pc infection due to decreased NO production. We
first demonstrated that Pc is
susceptible to NO produced in vitro by NO generators, Spm NONOate or DEA NONOate. Spm NONOate at the concentration of 0.1 mM also inhibited the proliferation of Pc in culture on HEL monolayers (Fig. 2). This inhibition was due to effects of NO on the organism rather than on the feeder HEL cells. These data agree with previous results on the toxicity of NO to Pc (20, 21) and confirm that its action is directly against the organism.
NO production by AMs is mediated by iNOS, and regulation of iNOS expression takes place primarily at the transcriptional level. Therefore, Shellito
et al. determined iNOS mRNA and protein levels in AMs from uninfected and Pc-infected CD4 cell-depleted mice and SCID mice to investigate the role of NO in host defense against Pc infection (23). Since organism burden remained high despite elevated levels of iNOS mRNA and protein in AMs of these mice, they concluded that iNOS is an unlikely participant in host defense against Pc and speculated that NO is not important in this regard, but they did not measure NO or nitrite levels (23). In the present study, we also found that the levels of both iNOS mRNA and protein were increased in AMs from Pc-infected animals (Figs. 4 and 5), but NO production by these cells was defective (Table 1). This finding explains the reason why organism burden was high even though iNOS levels were high. It is possible that iNOS detected in the study of Shellito et al. (23) was not functional; therefore, insufficient NO was produced to kill the organisms. The defect in NO production was not observed in AMs from H. capsulatum-infected mice (Table 2). Since H. capsulatum can
infect immunocompetent animals,
these H. capsulatum-infected mice
were not immunosuppressed.
Therefore, whether host
immunosuppression or Pc infection itself is responsible for decreased NO production in AMs remains to be confirmed.
We found that AMs from
immunocompetent rats challenged with Pc responded to the organism by producing large amounts of NO, and the levels remained high for two weeks while the animals were clearing the organisms. These data suggest that NO production is a normal host
response to Pc infection in
immunocompetent animals. This
possibility is supported by the observation that lower NO levels in L-NIO–treated Normal-Pc rats were accompanied by increased organism burdens (Fig. 3). The increase in
organism burden was more
pronounced after two weeks of
treatment with L-NIO, suggesting that NO plays a role in the control of Pc proliferation during the normal immune response.
When AMs from normal rats were stimulated with IFN-γ and E. coli, NO
production was increased
approximately three fold (Table 1).
Surprisingly, no additional NO
production was observed when AMs from normal rats challenged with Pc were treated with IFN-γ and E. coli. This lack of response to IFN-γ and E.
coli stimulation in NO production was also seen in AMs from Pc-infected rats (Table 1). These results suggest that Pc infection can render NO production in AMs defective. This is confirmed by the finding that AMs from Pc-infected rats produced very low levels of NO and that these AMs were also unresponsive to IFN-γ and E. coli stimulation (Table 1). It is possible that expression of iNOS in AMs is maximally induced during Pc infection; therefore, additional response does not occur when the cells are stimulated with IFN-γ or E. coli.
The decrease in NO production in
Dex-Pc rats was not due to
dexamethasone, since
antibody-mediated immunosuppression of mice by depletion of CD4+ cells showed the same phenomena. Previous studies indicate that these mice have a transient increase in AM number prior to a profound decrease by seven weeks of infection (9). The fact that
nitrite levels are low in mouse lung at four weeks of infection when AM number is maximal suggests that NO production in AMs is suppressed even at the early stage of infection.
In addition to transcription regulation, production of iNOS can also be regulated at the translational or post-translational level. TGF-β can promote degradation of the iNOS protein and decrease the translation of the transcript (36). Imidazole-based
anti-fungal agents (37) and carbon
monoxide (38) can inhibit dimerization of iNOS or activity of the dimer. Cofactor availability and binding also modulate the stability of iNOS as suppression of BH4 by cytokines results in reduced iNOS dimerization (39). In this study, we showed that iNOS protein synthesis was increased during PCP (Fig. 5), indicating that the reduction in NO production during PCP was not due to defects in the production of the iNOS protein.
iNOS must homodimerize to form a functional enzyme and requires the
cofactors BH4, heme, arginine,
NADPH, FAD+, FMN, and calmodulin for this action (40, 41). iNOS converts it substrate arginine to citrulline and NO (40, 42). If arginine levels are low, the iNOS protein will not dimerize (41). Dimerization of iNOS is initiated by binding of calmodulin, FAD+, and FMN to the monomer, followed by addition of a heme molecule near the N-terminus of the monomer. This stimulates addition of another iNOS monomer, which is stabilized by arginine and BH4 (41). The results of the present study showed that dimerization of the iNOS monomers takes place normally in AMs from uninfected and Pc-challenged
immunocompetent animals, but was reduced in AMs from Dex-Pc rats (Figs. 6 and 7).
The observation that addition of calmodulin and other cofactors, but not the other cofactors alone rescued iNOS dimer formation (Fig. 7) suggested that available calmodulin was insufficient in AMs during PCP. This conclusion is supported by our recent results indicating that calmodulin mRNA and protein levels are significantly decreased in AMs during PCP (18). Calmodulin is a ubiquitous calcium-sensing protein. Binding of calcium to calmodulin results in an altered conformation and permits it to bind other proteins. iNOS dimerization requires apocalmodulin (calcium-free calmodulin) as a cofactor (40, 43). Results of the present study suggest that NO production is an important host response to Pc and that the defect in iNOS dimerization confers a survival advantage to the organism. The AM attempts to increase NO production by up-regulating iNOS expression, but fails to achieve its goal due to decreased calmodulin availability for dimerization. Since calmodulin down-regulation also contributes to AM defects in survival and GM-CSF signaling (18), additional study is required to define mechanisms which prevent calmodulin down-regulation and to restore iNOS dimerization. Although NO inhalation in conjunction with Tmp/Smx and prednisolone has been used to treat PCP (44, 45), the roles of iNOS and NO in the defense against Pc infections in humans are not known. This animal study will serve as a model for further study of the involvement of NO in human PCP.
References
1. Lasbury ME, Durant PJ, Ray CA, Tschang D, Schwendener R, Lee CH.
Suppression of alveolar macrophage apoptosis prolongs survival of rats and mice with Pneumocystis pneumonia. J Immunol 2006;176(11):6443-6453.
2. Limper AH, Hoyte JS, Standing JE. The role of alveolar macrophages in
Pneumocystis carinii degradation and clearance from the lung. J Clin Invest 1997;99(9):2110-2117.
3. Ezekowitz RA, Williams DJ, Koziel H, Armstrong MY, Warner A, Richards FF, Rose RM. Uptake of Pneumocystis carinii mediated by the macrophage mannose receptor. Nature 1991;351(6322):155-158.
4. Masur H, Jones TC. The interaction in vitro of Pneumocystis carinii with macrophages and L-cells. J Exp Med 1978;147(1):157-170.
5. Hidalgo HA, Helmke RJ, German VF, Mangos JA. Pneumocystis carinii induces an oxidative burst in alveolar macrophages. Infect Immun 1992;60(1):1-7. 6. Laursen AL, Møller B, Rungby J, Petersen CM, Andersen PL. Pneumocystis
carinii-induced activation of the respiratory burst in human monocytes and macrophages. Clin Exp Immunol 1994;98(2):196-202.
7. Lasbury ME, Durant PJ, Bartlett MS, Smith JW, Lee CH. Correlation of organism burden and alveolar macrophage counts during infection with Pneumocystis
carinii and recovery. Clin Diagn Lab Immunol 2003;10(2):293-302.
8. Lasbury ME, Tang X, Durant PJ, Lee CH. Effect of transcription factor GATA-2 on phagocytic activity of alveolar macrophages from Pneumocystis carinii-infected hosts. Infect Immun 2003;71(9):4943-4952.
9. Lasbury ME, Merali S, Durant PJ, Tschang D, Ray CA, Lee CH. Polyamine-mediated apoptosis of alveolar macrophages during Pneumocystis pneumonia. J
Biol Chem 2007;282(15):11009-11020.
10. Farley KS, Wang LF, Razavi HM, Law C, Rohan M, McCormack DG, Mehta S. Effects of macrophage inducible nitric oxide synthase in murine septic lung injury.
Am J Physiol Lung Cell Mol Physiol 2006;290(6):L1164-1172.
11. Bogdan C. Nitric oxide and the immune response. Nat Immunol 2001;2(10):907-916.
12. Ding AH, Nathan CF, Stuehr DJ. Release of reactive nitrogen intermediates and reactive oxygen intermediates from mouse peritoneal macrophages. Comparison of activating cytokines and evidence for independent production. J Immunol 1988;141(7):2407-2412.
13. Fleming SD, Iandolo JJ, Chapes SK. Murine macrophage activation by staphylococcal exotoxins. Infect Immun 1991;59(11):4049-4055.
14. Jun CD, Kim SH, Soh CT, Kang SS, Chung HT. Nitric oxide mediates the toxoplasmastatic activity of murine microglial cells in vitro. Immunol Invest 1993;22(8):487-501.
15. Liew FY, Li Y, Millott S. Tumour necrosis factor (TNF-alpha) in leishmaniasis. II. TNF-alpha-induced macrophage leishmanicidal activity is mediated by nitric oxide from L-arginine. Immunology 1990;71(4):556-559.
16. Lee SC, Kress Y, Dickson DW, Casadevall A. Human microglia mediate anti-cryptococcus neoformans activity in the presence of specific antibody. J
17. Ke X, Terashima M, Nariai Y, Nakashima Y, Nabika T, Tanigawa Y. Nitric oxide regulates actin reorganization through cGMP and Ca(2+)/calmodulin in raw 264.7 cells. Biochim Biophys Acta 2001;1539(1-2):101-113.
18. Lasbury ME, Durant PJ, Liao CP, Lee CH. Effects of decreased calmodulin protein on the survival mechanisms of alveolar macrophages during
Pneumocystis pneumonia. Infect Immun 2009;77(8):3344-3354.
19. Sherman MP, Loro ML, Wong VZ, Tashkin DP. Cytokine- and Pneumocystis
carinii- induced L-arginine oxidation by murine and human pulmonary alveolar macrophages. J Protozool 1991;38(6):234S-236S.
20. Downing JF, Kachel DL, Pasula R, Martin WJ, 2nd. Gamma interferon stimulates rat alveolar macrophages to kill Pneumocystis carinii by L-arginine- and tumor necrosis factor-dependent mechanisms. Infect Immun 1999;67(3):1347-1352. 21. Ishimine T, Kawakami K, Nakamoto A, Saito A. Analysis of cellular response and
gamma interferon synthesis in bronchoalveolar lavage fluid and lung homogenate of mice infected with Pneumocystis carinii. Microbiol Immunol 1995;39(1):49-58. 22. Hanano R, Reifenberg K, Kaufmann SH. Activated pulmonary macrophages are
insufficient for resistance against Pneumocystis carinii. Infect Immun 1998;66(1):305-314.
23. Shellito JE, Kolls JK, Olariu R, Beck JM. Nitric oxide and host defense against
Pneumocystis carinii infection in a mouse model. J Infect Dis 1996;173(2):432-439.
24. Queener SF, Bartlett MS, Nasr M, Smith JW. 8-aminoquinolines effective against
Pneumocystis carinii in vitro and in vivo. Antimicrob Agents Chemother 1993;37(10):2166-2172.
25. Kolls JK, Habetz S, Shean MK, Vazquez C, Brown JA, Lei D, Schwarzenberger P, Ye P, Nelson S, Summer WR, et al. IFN-gamma and CD8+ T cells restore host defenses against pneumocystis carinii in mice depleted of CD4+ Tcells. J
Immunol 1999;162(5):2890-2894.
26. Lasbury ME, Lin P, Tschang D, Durant PJ, Lee CH. Effect of bronchoalveolar lavage fluid from pneumocystis carinii-infected hosts on phagocytic activity of alveolar macrophages. Infect Immun 2004;72(4):2140-2147.
27. Worsham PL, Goldman WE. Quantitative plating of Histoplasma capsulatum without addition of conditioned medium or siderophores. J Med Vet Mycol 1988;26(3):137-143.
28. Wang SH, Zhang C, Lasbury ME, Liao CP, Durant PJ, Tschang D, Lee CH. Decreased inflammatory response in toll-like receptor 2 knockout mice is associated with exacerbated Pneumocystis pneumonia. Microbes Infect 2008;10(4):334-341.
29. Zhang C, Wang SH, Lasbury ME, Tschang D, Liao CP, Durant PJ, Lee CH. Toll-like receptor 2 mediates alveolar macrophage response to Pneumocystis murina.
Infect Immun 2006;74(3):1857-1864.
30. Liao CP, Lasbury ME, Wang SH, Zhang C, Durant PJ, Murakami Y, Matsufuji S, Lee CH. Pneumocystis mediates overexpression of antizyme inhibitor resulting in increased polyamine levels and apoptosis in alveolar macrophages. J Biol Chem 2009;284(12):8174-8184.
31. Eissa NT, Yuan JW, Haggerty CM, Choo EK, Palmer CD, Moss J. Cloning and characterization of human inducible nitric oxide synthase splice variants: A
domain, encoded by exons 8 and 9, is critical for dimerization. Proc Natl Acad Sci
U S A 1998;95(13):7625-7630.
32. Abramoff M. Image processing with imagej. Biophoton Intl 2004;11:36-42.
33. Ignarro LJ, Fukuto JM, Griscavage JM, Rogers NE, Byrns RE. Oxidation of nitric oxide in aqueous solution to nitrite but not nitrate: Comparison with enzymatically formed nitric oxide from L-arginine. Proc Natl Acad Sci U S A 1993;90(17):8103-8107.
34. Castillo L, deRojas TC, Chapman TE, Vogt J, Burke JF, Tannenbaum SR, Young VR. Splanchnic metabolism of dietary arginine in relation to nitric oxide synthesis in normal adult man. Proc Natl Acad Sci U S A 1993;90(1):193-197.
35. Stuehr DJ, Marletta MA. Mammalian nitrate biosynthesis: Mouse macrophages produce nitrite and nitrate in response to Escherichia coli lipopolysaccharide. Proc
Natl Acad Sci U S A 1985;82(22):7738-7742.
36. Perrella MA, Yoshizumi M, Fen Z, Tsai JC, Hsieh CM, Kourembanas S, Lee ME. Transforming growth factor-β1, but not dexamethasone, down-regulates nitric-oxide synthase mrna after its induction by interleukin-1β in rat smooth muscle cells. J Biol Chem 1994;269(20):14595-14600.
37. Blasko E, Glaser CB, Devlin JJ, Xia W, Feldman RI, Polokoff MA, Phillips GB, Whitlow M, Auld DS, McMillan K, et al. Mechanistic studies with potent and selective inducible nitric-oxide synthase dimerization inhibitors. J Biol Chem 2002;277(1):295-302.
38. Watts RN, Ponka P, Richardson DR. Effects of nitrogen monoxide and carbon monoxide on molecular and cellular iron metabolism: Mirror-image effector molecules that target iron. Biochem J 2003;369(Pt 3):429-440.
39. Taylor BS, Alarcon LH, Billiar TR. Inducible nitric oxide synthase in the liver: Regulation and function. Biochemistry (Mosc) 1998;63(7):766-781.
40. Alderton WK, Cooper CE, Knowles RG. Nitric oxide synthases: Structure, function and inhibition. Biochem J 2001;357(Pt 3):593-615.
41. Panda K, Rosenfeld RJ, Ghosh S, Meade AL, Getzoff ED, Stuehr DJ. Distinct dimer interaction and regulation in nitric-oxide synthase types i, ii, and iii. J Biol
Chem 2002;277(34):31020-31030.
42. Stuehr DJ, Kwon NS, Nathan CF, Griffith OW, Feldman PL, Wiseman J. N omega-hydroxy-L-arginine is an intermediate in the biosynthesis of nitric oxide from L-arginine. J Biol Chem 1991;266(10):6259-6263.
43. Mayer B, Hemmens B. Biosynthesis and action of nitric oxide in mammalian cells.
Trends Biochem Sci 1997;22(12):477-481.
44. López A, Bernardo B, López-Herce J, Cristina AI, Carrillo A.
Methaemoglobinaemia secondary to treatment with trimethoprim and sulphamethoxazole associated with inhaled nitric oxide. Acta Paediatr 1999;88(8):915-916.
45. Buratti T, Joannidis M, Pechlaner C, Wiedermann CJ. Systemic hypotension on withdrawal from inhaled nitric oxide in an adult patient with acute respiratory distress syndrome. Crit Care Med 1999;27(2):441.
Figure Legends
Figure 1. Effect of NO on Pneumocystis organisms. P. carinii organisms were incubated with 0.01 or 0.1 mM Spm NONOate or DEA NONOates for 2 or 4 h and then assayed for viability by real-time RT-PCR for P. carinii mitochondrial large
subunit rRNA. * p<0.05 vs. carrier (0.01 mM NaOH) controls at the same time point. $ p<0.05 vs. same condition at 2 h.
Figure 2. Inhibitory effect of NO on Pc proliferation in short-term culture. P. carinii organisms were inoculated onto HEL cell monolayers in 24-well plates, and numbers of organisms in the cultures were counted every other day. Some wells contained Tmp/Smx (50/250 µg/ml) or the nitric oxide generators Spm NONOate or DEA NONOate at 0.1 mM or 0.01 mM, and the media were adjusted to pH 7.4 daily. Results are averages ± SD of quadruplicate wells of each condition in five independent experiments.
Figure 3. Effect of L-NIO on AM nitrite levels and Pneumocystis burden. (A). Uninfected (Normal) and Pc-challenged (Normal-Pc) immunocompetent rats were injected (i.p.) daily with 2 mg/kg of L-NIO, starting two days after Pc inoculation. AMs were isolated from these rats one or two weeks after initiation of L-NIO treatment and assessed for nitrite levels with or without stimulation of the AMs with 10 ng/ml IFN-γ and 5 x 106 E. coli. Nitrite levels are expressed in µM relative to 1 mg AM protein in cell lysate. (B). The numbers of Pneumocystis organisms (both trophic and cyst forms) in Normal-Pc rats after L-NIO treatment were determined by examining
Giemsa-stained lung impression smears. Numbers of organisms were average counts of ten 1,000X microscopic fields. Asterisk (*) denotes p<0.05 as compared to untreated group.
Figure 4. iNOS mRNA levels in AMs during PCP. Levels of iNOS mRNA relative to those of the control gene RPS8 in AMs from Pneumocystis-infected rats (A) and mice (B) were determined by real-time RT-PCR. Dex-Pc AMs were from rats that had been infected with P. carinii for 6 weeks. CD4-depl-Pc AMs were from mice infected with P.
murinii for 4 weeks. Normal-Pc AMs were isolated from normal rats 17 days after inoculation with P. carinii. Results represent mean fold change ± SD relative to normal control from 4 to 7 animals in each group. Asterisk (*) denotes p<0.05 vs.
immunosuppressed group (Dex or CD4-depl), and the pound sign (#) indicates p<0.05 vs. Normal group.
Figure 5. iNOS protein levels in AMs from PCP rats and mice. (A) Total soluble protein from AMs of Normal, Dex, and Dex-Pc rats was separated by SDS-PAGE and then reacted with an anti-iNOS antibody. (B) AM proteins from Normal, CD4+
lymphocyte depleted (CD4-depl), and CD4-depleted Pc-infected (CD4-depl-Pc) mice were treated as described for rat AMs in Panel A. CD4-depl-Pc mice were infected with P. murina for four or seven weeks prior to sacrifice. The iNOS protein shown in the figure is the130 kDa monomer. Results are representative of four independent experiments.
Figure 6. iNOS dimer formation in rat AMs during PCP. (A) Total soluble protein from rat AMs was separated by SDS-PAGE under partially denaturing conditions as
previously described (31) and then subjected to Western blotting with an anti-iNOS antibody. Pooled AMs from three Normal and Dex rats and five Dex-Pc rats were used. The molecular weight of iNOS monomer and dimer are 130 and 260 kDa, respectively. Image analysis of four independent Western blots was performed by normalizing iNOS monomer and dimer signals to that of the control protein GAPDH. Average iNOS dimer levels ± SD are plotted as a percent of iNOS monomer levels. Asterisk (*) denotes p<0.05 versus Dex control samples.
Figure 7. iNOS dimer formation in AM lysates after incubation with cofactors and calmodulin. (A) AMs from Normal (3 rats), Dex (3 rats), and Dex-Pc (5 rats) rats were pooled and sonicated on ice. AM lysates were incubated with iNOS dimerization cofactors including heme (10 µM), BH4 (10 µM), FAD (4 µM), FMN (4 µM), NADPH (2 mM), and arginine (2 mM) with or without calmodulin (5 µM) in sterile saline containing 1 mM PMSF. After 30 min of incubation, cell lysates were subjected to partially
denaturing Western blot analysis as described in Fig. 6 legend. The histogram (B) represents average iNOS dimerization levels ± SD from three independent trials. Asterisks (*) denotes p<0.05 versus Dex controls.
Table 1. Nitrite levels in BAL fluids and AMs from rats and mice with PCP1
1
BALF (BAL fluid) and AM lysates were treated with nitrate reductase to convert nitrates to nitrites prior to determination of nitrite levels. Nitrite levels in the first 5 ml rat BALF or the first 1 ml mouse BALF are expressed in µM, and those in AMs (1 x 106 from rats and 5 x 105 from mice) are expressed in µM relative to 1 mg of protein in the cell lysates. 2Rats were immunosuppressed with dexamethasone, and mice were immunosuppressed with anti-CD4 antibody. 3Preincubated with 10 ng/ml IFN-γ and 5 x 106 E. coli for 1 h prior to assay. 4Normal rats challenged with P. carinii. NA, not assessed. *p<0.05 vs. immunosuppressed control. †p<0.05 vs. Normal control.
Sample Animal Normal Suppressed2 4 wk PCP 7 wk PCP IFN-γ/E. coli3 Normal-Pc4 Rat 3.2 ± 0.2 3.4 ± 0.6 NA6 2.1 ± 0.3* NA 9.6 ± 1.3† BALF Mouse 2.3 ± 0.4 2.2 ± 0.2 1.3 ± 0.1* 1.0 ± 0.1* NA NA Rat 4.2 ± 0.3 4.5 ± 0.4 NA 0.8 ± 0.1* 1.0 ± 0.1* 15.6 ± 1.2† AMs Mouse 4.8 ± 0.4 4.3 ± 0.3 2.0 ± 0.2* 1.7 ± 0.2* 2.1 ± 0.3* NA
Table 2. Nitrite levels in BAL fluids and AMs from H. capsulatum-infected mice*.
H. capsulatum-infected
Uninfected Day 7 Day 14
BALF 0.29 ± 0.35 0.26 ± 0.41 1.34 ± 0.34*
AMs 0.18 ± 0.20 0.10 ± 0.32 1.00 ± 0.12*
*BALF (BAL fluid) and AM lysates were treated with nitrate reductase to convert nitrates to nitrites prior to determination of nitrite levels. Nitrite levels in the first 1 ml BALF are expressed in µM, and those in AMs (5 x 105) are expressed in µM relative to 1 mg of protein in the cell lysates. *p<0.05 vs. uninfected control.
Figure 1 e Pneumocystis (%)
*
*
*
$ ViablFigure 2 Untreated Tmp/Smx DEA NONOate (0.1 mM) DEA NONOate (0.01 mM) Spm NONOate (0.1 mM) Spm NONOate (0.01 mM) 25 20 15 10 s trophs / 1000 X field 10 5 0
Day 1 Day 3 Day 5 Day 7
Pneum
ocysti
A Figure 3 Nitrites (µM) * A IFN-r + E. coli 1 week 2 weeks 1 week 2 weeks
No treatment * * * * * * * * field * B Pneum ocystis / 1000X f * Cyst form 1 week 2 weeks 1 week 2 weeks
A Figure 4 iNO S mRNA levels A * # N A levels B * iNO S mR N
Figure 5
Normal Dex Dex Pc
A
Normal CD4-depl CD4-depl-Pc
Normal Dex Dex-Pc
iNOS
GAPDH
A
B Normal CD4 depl CD4 depl Pc
4 weeks 7 weeks iNOS
GAPDH
Figure 6
N l D D P
iNOS dimer iNOS monomer
GAPDH
Normal Dex Dex-Pc
A zed iNOS (%) B Dimeri z
*
Figure 7
iNOS dimer iNOS monomer
AMs Normal Dex Dex-Pc
+ + - + + + + - + -Cofactors Calmodulin A GAPDH N OS (%) B Dimerized iN
