Synthesis and mesomorphic properties of
a-methylstilbene-based liquid crystals
Chin-Yen Changa, Kang-Wei Hoa, Chain-Shu Hsua*, Chih-Hung Linb, Sebastian Gauzacand Shin-Tson Wuc
a
Department of Applied Chemistry, National Chiao Tung University, Hsinchu, Taiwan 300, Republic of China;bCenter for General Education, Chang Gung Institute of Technology, Kwei-Shan, Taoyuan, Taiwan 333, Republic of China;cCollege of Optics and Photonics, University of Central Florida, Orlando, FL 32816, USA
(Received 18 December 2008; accepted 15 March 2009)
Six series of -methylstilbene-based liquid crystals, i.e. 4-(4-alkylphenyl)-4’-amino--methylstilbenes (2a–e), 4-(4-alkylphenyl)-4’-cyano--methylstilbenes (3a–e), 4-(4-alkylphenyl)-4’-isothiocyanato--methylstilbenes (4a–e), 4’-(trans-4-alkylcyclohexyl)-4-fluoro--methylstilbenes (5a–e), 4’-(trans-4-alkylcyclohexyl)-4-amino--methylstil-benes (7a–e) and 4’-(trans-4-alkylcyclohexyl)-4-isothiocyanato--methylstil4’-(trans-4-alkylcyclohexyl)-4-amino--methylstil-benes (8a–e) were synthesised. All of these -methylstilbene-based compounds exhibit an enantiotropic nematic phase. Some of the 4-(4-alkylphenyl)-4’-isothiocyanato--methylstilbenes with longer alkyl chains exhibit a smectic A phase. All of the liquid crystals obtained exhibit a wide nematic range and high birefringence of 0.16–0.46. Both series of isothiocyanato-based, liquid crystal compounds 4a–e and 8a–e containing -methylstilbenes revealed much lower melting points and clearing temperatures than their cyano and amino homologues.
Keywords: -methylstilbene liquid crystals; isothiocyanato liquid crystals; high birefringence
1. Introduction
Liquid crystals (LCs), which exhibit high birefringence (n), low viscosity, large LC range, small heat fusion enthalpy and good stability are essential for both dis-play and optical applications. From the Schroder–Van Laar equation (1, 2), the individual LC components possessing a low melting temperature and high clear-ing point, and small heat fusion enthalpy are better candidates for widening the nematic range of the eutectic mixture. Highly birefringent LCs are attrac-tive materials for applications in reflecattrac-tive type LC displays (3), infrared spatial light modulators (4), polymer-dispersed LCs (5), holographic switching devices (6), polarisers and directional reflectors (7, 8) and laser beam steering devices (9). Furthermore, they are also used in super-twisted nematic (STN) displays for faster response times.
The high birefringence molecular structures, such as diphenyldiacetylene (10, 11), bistolane (12–15), naphthalene tolanes (16), thiophenyldiacetylene (17, 18) and diacetylene compounds (19) have been stu-died. The birefringence of these LCs is in the range of 0.4–0.6. From the single band model (20), the n of a LC is mainly determined by its molecular conjuga-tion, differential oscillator strength and order para-meter. It is well known that a high n value can be achieved by increasing the molecular conjugation length (21). However, a general problem of these highly conjugated molecules is that their melting points are usually very high. A major technical chal-lenge in n LC studies is how to reduce the melting
temperature. In our previous work, we reported the study of the lateral substituted tolane (22, 23) and the stilbene LCs (24), which contained an isothiocyanato end group. As the result, the substitution of a methyl group is a major ingredient to decreasing the melting temperature. In addition, we reported the biphenyl-tolane materials with isothiocyanato and fluoride end groups displaying high n values but high transition temperatures (25). In 2002, the synthesis of fluorinated stilbene–tolane LCs was reported by Spells and cow-orkers (26). However, these molecules show high melt-ing points above 200C. Recently, we synthesised a series of -methylstilbene-tolane LCs (27). The -methylstilbene moiety has a performed effect on their phase transitions; both melting and clearing temperatures decrease dramatically.
In this study, we demonstrate the synthesis of LC materials with an -methylstilbene core and isothiocyanato end group to decrease their transi-tion temperatures and increase their n values. Six series of -methylstilbene-based LCs were prepared by palladium-catalysed Heck coupling of aryl bro-mide with -methylstilbene derivatives. The Heck reaction was reported by Heck (28, 29). The detailed mechanism of the Heck reaction was reported by Meijere and Meyer (30). The -methyl-stilbene group and terminal cyclohexyl structure play an important role in lowering the melting point and clearing temperature of the obtained LCs. The mesomorphic property as well as
*Corresponding author. Email: CSH: [email protected]
ISSN 0267-8292 print/ISSN 1366-5855 online
#2009 Taylor & Francis
DOI: 10.1080/02678290902927536 http://www.informaworld.com
birefringence of the synthesised LCs is discussed. The general chemical structure is shown below:
X
CnH2n+1 ,
X CnH2n+1
. Here, n is limited from 2 to 6 and X = NH2, NCS, CN or F.
2. Experimental details 2.1 Materials
4-Fluoro--methylstyrene, 4-bromo--methylstyrene, 4-alkyl-1-iodobenzene, 4-bromoaniline, 4-iodoani-line, 4-bromo-1-cyanobenzene, palladium acetate, tri-(o-tolyl)phosphine and other reagents were pur-chased from Sigma-Aldrich and used as received. Dichloromethane and triethylamine were dried over CaH2. Tetrahydrofuran (THF) was dried over LiAlH4 and distilled before use. We synthesised 4-(trans-4-alkylcyclohexyl)-1-iodobenzenes according to the pre-vious literature reported by our laboratory (31).
2.2 Characterisation
Proton nuclear magnetic resonance (1H NMR) spectra (300 MHz) were recorded on a Varian VXR-300 spec-trometer. Thermal transitions and thermodynamic parameters were determined by using a Seiko SSC/ 6200 differential scanning calorimeter equipped with a liquid nitrogen cooling accessory. Heating and cooling rates were 5C min-1. Transition temperatures reported here were collected during the second heating and cool-ing scans. A Carl Zeiss Axiphot optical polariscool-ing microscope equipped with a Mettler FP 82 hot stage and a FP 80 central processor was used to observe thermal transitions and analyse the anisotropic tex-tures. The birefringence was measured by a Perkin-Elmer lambda-9 spectrophotometer with a He–Ne laser at 23C in 633 nm.
2.3 Synthesis
Scheme 1 outlines the synthetic procedures for 4-(4 alkylphenyl)-4’-4’-amino--methylstilbenes (2a–e), 4-(4-alkylphenyl)-4’-cyano--methylstilbenes (3a–e), 4-(4-alkylphenyl)-4’-isothiocyanato--methylstilbenes I CN NCS Br Br X NH2 Mg, I2 Pd(PPh3)2Cl2 NiCl2, THF Pd(OAc)2 ,P(o-Tol)3 Et3N CSCl2 ,CaCO3 H2O, CHCl3
+
n=2-6 CnH2n+1 CnH2n+1 1a-1e: n=2-6 CnH2n+1 CnH2n+1 2a-2e: n=2-6 4a-4e: n=2-6 3a-3e: n=2-6 X = NH2, CN+
CnH2n+1Scheme 1. Synthesis of compounds 2a–e, 3a–e and 4a–e.
426 C.-Y. Chang et al.
(4a–e). Schemes 2 and 3 outline the synthetic procedures used to prepare fluoro--methylstilbenes (5a–e), 4-(trans-4-alkylcyclohexyl)-4’-amino--methylstilbenes (7a–e) and 4’-(trans-4-alkyl-cyclohexyl)-4-isothio-cyanato--methylstilbenes (8a–e).
2.3.1 4-(4-Alkylphenyl)--methylstyrene (1a–e) Compounds 1a–e were prepared by the coupling reac-tion of 4-alkyliodobenzene with Grignard reagent of 4-bromo--methylstyrene (32). The synthesis of com-pound 1a is described below.
Magnesium (1.4 g, 60 mmol) was charged into a flask under nitrogen, ethyl bromide (0.3 g, 2.7 mmol) in 1 ml of THF was added in order to activate the metal. After the solution was heated to 60C, a solution of 4-bromo--methylstyrene (5.9 g, 30 mmol) in 20 ml of THF was added dropwise over 10 minutes. The reaction mixture was refluxed for 15 minutes and stirred without heating for another 45 minutes to form a Grignard reagent of 4-bromo--methylstyr-ene. 4- Bromo-1-ethyl benzene (6.1 g, 33 mmol), NiCl2(0.1 g) and THF (20 ml) were charged into a 100 ml flask, and the prepared Grignard reagent of 4-bromo--methylstyrene was added dropwise. The reaction mixture was heated at 55C for 2 hours, and then cooled to room temperature. Diethyl ether (100 ml) and 1.4 M HCl (20 ml) were added to the flask. The organic layer was separated and dried over anhydrous MgSO4. The solvent was removed in vacuo and purified by column chromatography (sili-cal gel, with n-hexane as eluent) to yield 4.1 g (62%) of white crystals; mp = 130.4C. 1 H NMR (CDCl3, TMS, 300 MHz), = 1.17–1.23 (m, 3H), 2.24 (s, 3H), 2.60–2.67 (q, 2H), 5.06–5.08 (q, 1H), 5.39 (s, 1H), 7.19–7.22 (m, 2H), 7.47–7.53 (m, 6H). 2.3.2 4-(4-Alkylphenyl)-4’-amino--methylstilbene (2a–e) and
4-(4-alkylphenyl)-4’-cyano--methylstilbene (3a–e)
Compounds 2a-2e and 3a-3e were prepared by the Heck reaction of 4-(4-alkylphenyl)--methylstyrene (1a-1e) with 4-bromoaniline and 4-bromo-benzoni-trile (33). The synthesis of compound 2a is described below.
4-Ethyl--methylstyrene (1.5 g, 6.76 mmol), 4-bromoaniline (0.9 g, 5.63 mmol), palladium(II) acet-ate (13 mg, 0.06 mmol), tri(o-tolyl)phosphine (0.18 g, 0.6 mmol), triethylamine (4 ml) were dissolved in 8 ml of acetonitrile under nitrogen. The reaction mixture was heated at 110C for 3 days. After cooling to room temperature, 10 ml of water was added. The mixture was extracted twice with 20 ml of CH2Cl2.The collected organic layer was dried over anhydrous MgSO4. After solvent was removed in vacuo, the residue was purified by column chromatography (silical gel, ethyl acetate/ n-hexane = 1/4 as eluent) to yield 0.59 g (34%) of yel-lowish crystals. 2a: IR (KBr) max/cm-1: 3396, 3316, 3028, 1622, 1508;1H NMR (CDCl3, TMS, 300 MHz), = 1.17– 1.23 (t, 3H), 2.24 (s, 3H), 2.60–2.67 (q, 2H), 3.64 (br, 2H), 6.62–6.65 (d, 2H), 6.73 (s, 1H), 7.13–7.22 (m, 4H), 7.46–7.51 (m, 6H); MS m/z (M+) 313. Analysis calcu-lated for C23H23N: C, 88.14; H, 7.40; N, 4.17; found C, 87.60; H, 7.67; N, 4.20. I F F Pd(OAc)2 ,P(o-Tol)3 Et3N
+
CnH2n+1 n=2-6 CnH2n+1 5a-5e: n=2-6 Scheme 2. Synthesis of compounds 5a–e.I BrMg I NH2 NH2 NCS NiCl2 THF + CnH2n+1 n=2-6 CnH2n+1 6a-6e: n=2-6 + Pd(OAc)2 ,P(o-Tol)3 Et3N CnH2n+1 7a-7e: n=2-6 CSCl2 , CaCO3 H2O, CHCl3 CnH2n+1 8a-8e: n=2-6
Scheme 3. Synthesis of compounds 7a–e and 8a–e.
2.3.3 4-(4-Alkylphenyl)-4’-isothiocyanato--methylstilbene (4a–e)
Compounds 4a–e were prepared by isothiocyanation of 4-(4-ethyl phenyl)-4’-amino--methylstilbene (2a–e) (24). The synthesis of compound 4a is described below. Calcium carbonate (60 mg, 0.65 mmol) and thio-phosgen (0.07 g, 0.65 mmol) were dissolved in a mixed solvent of water (1 ml) and CHCl3(2 ml). The resulting solution was cooled to 0C, and a solution of 4-(4-ethyl-phenyl)-4’-amino--methylstilbene (0.17 g, 0.54 mmol) in 6 ml of CHCl3 was added. The reaction mixture was heated at 35C for 1.5 hour and then poured into water. The aqueous solution was extracted twice with CH2Cl2 (10 ml). The collected organic layer was dried over anhydrous MgSO4. After the solvent was removed in vacuo, the residue was pur-ified by column chromatography (silical gel, with n-hexane as eluent) to yield 0.19g (99%) of white crystals.
4a: IR (KBr) max/cm-1: 3431, 3025, 2081, 1596, 1499;1H NMR (CDCl3, TMS, 300 MHz), = 1.25– 1.30(t, 3H), 2.30 (s, 3H), 2.67–2.73(q, 2H), 6.83 (s, 1H), 7.22–7.30(m, 4H), 7.34-7.37(d, 2H), 7.53–7.61 (m, 6H); MS m/z (M+) 355. Analysis calculated for C24H21NS: C, 81.09; H, 5.95; N, 3.94; found: C, 81.30; H, 6.13; N, 3.65.
2.3.4 4’-(Trans-4-alkyl-cyclohexyl)-4-fluoro--methylstilbene (5a–e)
Compounds 5a–e were prepared by Heck reaction of 4-(trans-4-n-alkylcyclohexyl)-1-iodobezene (33) and 4-fluoro--methylstyrene. The synthesis of compound 5b is described below.
Fluoro--methylstyrene (0.9 g, 6.7 mmol), 4-(trans-4-n-propylcyclohexyl)-1-iodobezene (1.8 g, 5.4 mmol), palladium(II) acetate (2.4 mg, 0.01 mmol), tri(o-tolyl)phosphine (6.6 mg, 0.22 mmol), triethyla-mine (4 ml) were dissolved in 8 ml of acetonitrile under nitrogen. The reaction mixture was heated at 110C for 2 days. After cooling to room temperature, 10 ml of water was added. The mixture was extracted twice with 20 ml of CH2Cl2. The collected organic layer was dried over anhydrous MgSO4. After solvent was removed in vacuo, the residue was purified by column chromatography (silical gel, with n-hexane as eluent) to yield 0.6 g (30%) of white crystals.
5b: IR (KBr) max/cm-1: 2963, 2928, 2849, 1596, 1508, 1450, 1217, 969, 829;1H NMR (CDCl3, TMS, 300 MHz), = 0.85–1.95 (m, 16H), 2.40–2.66 (tt, 1H), 2.27 (s, 3H), 6.74 (s, 1H), 7.01–7.07 (t, 2H), 7.19–7.22 (d, 2H), 7.41–7.49 (m, 4H); MS m/z (M+) 336. Analysis calculated for C23H27F: C, 85.67; H, 8.69; found: C, 85.89; H, 8.77.
2.2.5 4-(Trans-4-n-alkylcyclohexyl)--methylstyrene (6a–e)
Compounds 6a–e were prepared by the coupling reac-tion of 4-(trans-4-n-alkylcyclohexyl)-1-iodobezene with isopropenylmagnesium bromide. The synthesis of compound 6a is described below.
4-(Trans-4-n-ethylcyclohexyl)-1-iodobezene (4.2 g, 13.5 mmol), NiCl2 (0.1 g) and THF (20 ml) were stirred in a 100 ml flask, and isopropenylmagnesium bromide was added dropwise. The reaction mixture was heated at 55C for 16 hours, and then cooled to room temperature. Diethyl ether (100 ml) and 1.4 N HCl (20 ml) were added to the flask. The organic layer was separated and dried with MgSO4. The solvent was removed in vacuo and purified by column chromato-graphy (silical gel, with n-hexane as eluent) to yield 3.1 g (90%) of colourless liquid. 6a:1H NMR (CDCl3, TMS, 300 MHz), = 0.85– 1.95 (m, 17H), 2.40–2.66 (tt, 1H), 6.94–6.97 (d, 2H), 7.57–7.60 (d, 2H). 2.3.6 4’-(Trans-4-alkylcyclohexyl)-4-amino--methylstilbene (7a–e)
Compounds 7a–e were prepared by Heck reaction of 4’-(trans-alkyl-cyclohexyl)--methylstyrene with 4-iodoaniline. The synthesis of compound 7e is described below.
4’-(Trans-4-hexylcyclohexyl)--methylstyrene (2.50 g, 8.79 mmol), 4-iodoaniline (1.92 g, 8.79 mmol), palladium(II) acetate (0.04 g, 0.18 mmol), tri-(o-tolyl)-phosphine (0.43 g, 1.41 mmol), triethylamine (4 ml) were dissolved in 8 ml of acetonitrile under nitrogen. The reaction mixture was heated at 110C for 3 days. After cooling to room temperature, 10 ml of water was added. The mixture was extracted twice with diethyl ether (20 ml). The collected organic layer was dried over anhydrous MgSO4. After solvent was removed in vacuo, the residue was purified by column chromato-graphy (silical gel, n-hexane and ethyl acetate (4:1) was used as eluent) to yield 0.43 g (13%) of white crystals.
7e:1H NMR (CDCl3, TMS, 300 MHz), = 0.85– 1.95(m, 22H), 2.40–2.66 (tt, 1H), 2.27 (s, 3H), 3.70 (br, 2H), 6.68–6.70 (d, 2H), 6.74(s, 1H), 7.18–7.21 (d, 2H), 7.26–7.29(d, 2H), 7.34–7.36 (d, 2H). 2.3.7 4’-(Trans-4-alkylcyclohexyl)-4-isothiocyanato--methylstilbene (8a-8e)
Compounds 8a–e were prepared by isothiocyanation of 4’-(trans-4-alkylcyclohexyl)-4-amino--methylstil-bene (7a–e). The synthesis of compound 8e is described below.
428 C.-Y. Chang et al.
Calcium carbonate (0.2 g, 2 mmol) and thiophos-gen (0.18 g, 1.6 mmol) were dissolved in a mixed solvent of water (3 ml) and CHCl3(2 ml). The resulting solution was cooled to 0C, and a solution of 4’-(trans-4-hexyl-cyclohexyl)-4-amino--methylstilbene (0.50 g, 1.33 mmol) in 10 ml of CHCl3was added. The reaction mixture was heated to 35C for 2 hours and then poured into water. The aqueous solution was extracted twice with CH2Cl2 (10 ml). The collected organic layer was dried over anhydrous MgSO4. After the solvent was removed in vacuo, the residue was purified by column chromatography (silical gel, n-hexane as eluent) to yield 0.5 g (90%) of white crystals. 8e: IR (KBr) max/cm–1: 2963, 2919, 2840, 2090, 1508, 1427; 1H NMR (CDCl3, TMS, 300 MHz), = 0.85–1.95 (m, 22H), 2.40–2.66 (tt, 1H), 2.27 (s, 3H), 6.81 (s, 1H), 7.20–7.30 (m, 6H), 7.48–7.51 (d, 2H); MS m/z (M+) 417. Analysis calculated for C28H35NS: C, 80.52; H, 8.45; N, 3.35; found: C, 80.68; H, 8.48; N, 3.19.
3. Results and discussion
3.1 Thermal transitions and mesomorphic property Table 1 reports the elemental analysis data of the synthesised -methylstilbene-based LCs. The purities
of the listed LC compounds, which have been checked by high-performance liquid chromatography (HPLC), are higher than 99.0%. Table 2 summarises the phase transition temperatures and corresponding enthalpy changes of compounds 2a–e, 3a–e and 4a–e. All com-pounds 2a–e and 3a–e exhibit an enantiotropic nematic phase. For the isocyanato compounds 4a–e, both 4a and 4b with short alkyl chain show an enan-tiotropic nematic phase, while compounds 4c–e with long alkyl chain exhibit both enantiotropic smectic A and nematic phases.
Compounds 2a–e, 3a–e, 4a–e possess the same meso-genic core; the only difference is their terminal end groups. The melting points of amino series 2a–e are in a range from 143.8 to 160.1C, and their clearing points are in a range from 156.6 to 195.7C. Both melting and clearing temperatures decrease as the alkyl chain length increases. Compound 2a shows the highest clearing point of 195.7C, and the widest temperature range (35.6o), of the nematic phase in this series. The cyano series 3a–e showed much lower melting points which range from 91.6 to 138.8C. Their clearing points are in a range from 179.9 to 251.5C. Both melting and clearing temperatures decrease as the alkyl chain length increases (Figure 1). The compound 3d showed the widest tem-perature range (127.3o) of the nematic phase in this series. The isothiocyanato series 4a–e shows melting

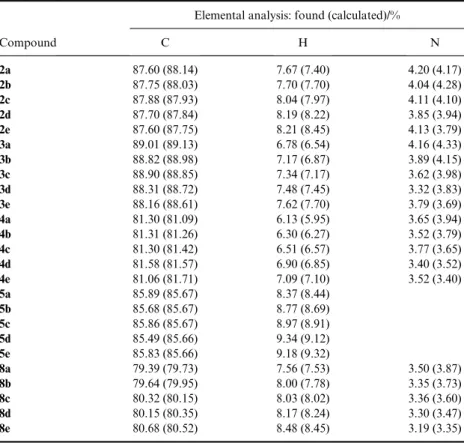

Table 1. The elemental analysis data for -methylstilbenes.
Elemental analysis: found (calculated)/%
Compound C H N 2a 87.60 (88.14) 7.67 (7.40) 4.20 (4.17) 2b 87.75 (88.03) 7.70 (7.70) 4.04 (4.28) 2c 87.88 (87.93) 8.04 (7.97) 4.11 (4.10) 2d 87.70 (87.84) 8.19 (8.22) 3.85 (3.94) 2e 87.60 (87.75) 8.21 (8.45) 4.13 (3.79) 3a 89.01 (89.13) 6.78 (6.54) 4.16 (4.33) 3b 88.82 (88.98) 7.17 (6.87) 3.89 (4.15) 3c 88.90 (88.85) 7.34 (7.17) 3.62 (3.98) 3d 88.31 (88.72) 7.48 (7.45) 3.32 (3.83) 3e 88.16 (88.61) 7.62 (7.70) 3.79 (3.69) 4a 81.30 (81.09) 6.13 (5.95) 3.65 (3.94) 4b 81.31 (81.26) 6.30 (6.27) 3.52 (3.79) 4c 81.30 (81.42) 6.51 (6.57) 3.77 (3.65) 4d 81.58 (81.57) 6.90 (6.85) 3.40 (3.52) 4e 81.06 (81.71) 7.09 (7.10) 3.52 (3.40) 5a 85.89 (85.67) 8.37 (8.44) 5b 85.68 (85.67) 8.77 (8.69) 5c 85.86 (85.67) 8.97 (8.91) 5d 85.49 (85.66) 9.34 (9.12) 5e 85.83 (85.66) 9.18 (9.32) 8a 79.39 (79.73) 7.56 (7.53) 3.50 (3.87) 8b 79.64 (79.95) 8.00 (7.78) 3.35 (3.73) 8c 80.32 (80.15) 8.03 (8.02) 3.36 (3.60) 8d 80.15 (80.35) 8.17 (8.24) 3.30 (3.47) 8e 80.68 (80.52) 8.48 (8.45) 3.19 (3.35)
points in a range from 81 to 120.1C. Their melting points show an odd–even effect as chain length increases. Their clearing points are in a range from 232.3 to 192.8C. The compound 4c showed the widest meso-morphic temperature range (134o). Comparing the three series of LC compounds, their melting points follow the trend: 2a–e . 3a–e . 4a–e. Basically the melting point relates to the dipole interaction between
LC molecules. Compounds 2a–e, having an H-bond-ing due to the amino group, exhibit a higher meltH-bond-ing point and larger melting enthalpy.
Table 3 reports the phase transition temperatures and corresponding enthalpy changes of compounds 5a–e, 7a–e and 8a–e. All compounds 5a–e, 7a–e and 8a–e with a cyclohexyl structure exhibit an enantiotro-pic nematic phase. Compounds 5a–e, 7a–e and 8a–e
Table 2. Phase transition temperatures and corresponding enthalpy change for the compounds 2a–e, 3a–e and 4a–e.
X
CnH2n+1
Heating TC (Kcal mol-1)
Compound n X Cr SA N I 2a 2 NH2 160.1 (5.13) – – 195.7 (0.13) 2b 3 NH2 149.3 (5.18) – – 175.4 (0.10) 2c 4 NH2 145.7 (5.94) – – 175.0 (0.08) 2d 5 NH2 147.3 (5.52) – – 174.3 (0.08) 2e 6 NH2 143.8 (5.85) – – 156.6 (0.05) 3a 2 CN 138.8 (5.64) – – 251.5 (0.33) 3b 3 CN 105.4 (2.32) – – 238.4 (0.07) 3c 4 CN 93.7 (3.43) – – 219.2 (0.18) 3d 5 CN 91.6 (2.58) – – 218.9 (0.14) 3e 6 CN 96.3 (3.77) – – 179.9 (0.08) 4a 2 NCS 120.1 (3.22) – – 232.3 (0.17) 4b 3 NCS 93.7 (1.48) – – 192.8 (0.05) 4c 4 NCS 92.0 (2.48) 119.2 (0.08) 226.0 (0.28 4d 5 NCS 81.0 (1.20) 112.2 (0.06) 206.1 (0.17) 4e 6 NCS 86.2 (1.62) 135.0 (0.09) 211.6 (0.26)
Table 3. Phase transition temperatures and corresponding enthalpy change for the compounds 5a–e, 7a–e and 8a–e.
X CnH2n+1
Heating TC (Kcal mol-1)

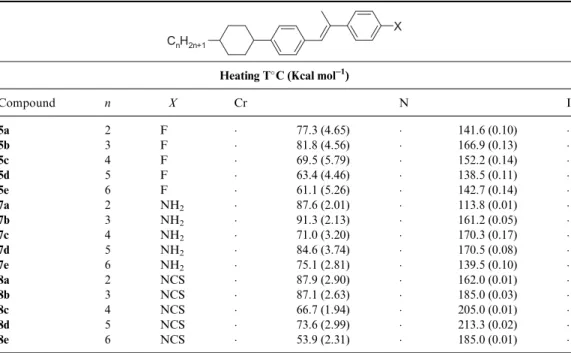

Compound n X Cr N I 5a 2 F 77.3 (4.65) 141.6 (0.10) 5b 3 F 81.8 (4.56) 166.9 (0.13) 5c 4 F 69.5 (5.79) 152.2 (0.14) 5d 5 F 63.4 (4.46) 138.5 (0.11) 5e 6 F 61.1 (5.26) 142.7 (0.14) 7a 2 NH2 87.6 (2.01) 113.8 (0.01) 7b 3 NH2 91.3 (2.13) 161.2 (0.05) 7c 4 NH2 71.0 (3.20) 170.3 (0.17) 7d 5 NH2 84.6 (3.74) 170.5 (0.08) 7e 6 NH2 75.1 (2.81) 139.5 (0.10) 8a 2 NCS 87.9 (2.90) 162.0 (0.01) 8b 3 NCS 87.1 (2.63) 185.0 (0.03) 8c 4 NCS 66.7 (1.94) 205.0 (0.01) 8d 5 NCS 73.6 (2.99) 213.3 (0.02) 8e 6 NCS 53.9 (2.31) 185.0 (0.01)
430 C.-Y. Chang et al.
possess the same mesogenic core; the only difference is in their terminal end groups (Figure 2). The melting points of the fluorine series 5a–e are in a range from 61.1 to 81.8C, which exhibit an odd-even effect as the chain length increases. Their clearing temperatures are in a range from 138.5 to 166.9C, which decreases as alkyl chain length increases. The compound 5b showed the widest temperature range (85.1o) of nematic phase in this series. The melting points of the 7a–e series are in a range from 71 and 91.3C, which also exhibit an odd-even effect as chain length increases. Their clearing points are in a range from 113.8 to 170.5C. The melt-ing points of 8a–e series are in a range from 53.9 to 87.9C, which decrease as alkyl chain length increases. Their clearing points are in a range from 162 to 205C. Compound 8d showed the highest clearing point of 213.3C, and the widest temperature range (139.7o
) of the nematic phase in this series. Comparing the three series of compounds, their clearing points follow the trend: 8a–e . 5a–e . 7a–e. The compounds 8a–e turned out to have lower melting points and a wider mesomorphic temperature range among three series, since they contain both a cyclohexyl moiety and NCS end group. Comparing the mesomorphic properties of the 4a–e and 8a–e series, it seems that introducing the
cyclohexyl moiety to replace the phenyl ring decreases both melting and clearing temperatures and inhibits the formation of the smectic phase.
3.2 Effect ofa-methylstilbene linking group
Table 4 lists the phase transitions of 4-alkylcyclohexyl-4’-isothiocyanato tolane (n-CPTP-NCS), 4-propyl-phenyl-4’-isothiocyanato tolane (3-BPTP-NCS), and 4’-(trans-4-butylcyclohexyl)-4-fluoro-stilbene (4-CPDP-F) LCs published by our laboratory (24, 25) and Spadlo et al. (34). Comparing the phase transition of n-CPTP-NCS compounds with that of 8a–d and the phase transition of 3BPTP-NCS with that of 4b, it was seen that 8a–d and 4b show much lower melting and isotropic temperatures than those of the n-CPTP-NCS and 3BPTP-n-CPTP-NCS series. If we compare the phase transitions of 4-CPDP-F with those of 5c, the melting point of 5c is 43.5o lower than that of 4-CPDP-F. This proves that the -methylstilbene moiety plays an important role in lowering the melting and isotropisation temperatures of the obtained LC compounds. Furthermore, it also inhibits the forma-tion of the smectic phase.
Table 4. Phase transition temperatures and corresponding enthalpy change for the compounds n-CPTP-NCS, 3-BPTP-NCS and 4CPDP-F. NCS CnH2n+1 Heating TC Compound n Cr Sm N I 2CPTP-NCS 2 140.2 – – 243.0 3CPTP-NCS 3 137.2 – – 265.4 4CPTP-NCS 4 106.9 139.9 257.4 5CPTP-NCS 5 119.5 147.6 254.9 C3H7 NCS Heating TC Compound n Cr SmA N I 3BPTP-NCS 3 200.0 209.0 266.0 F C4H9 Heating TC Compound Cr Sm N I 4CPDP-F 113 118 206.7
Data obtained from Liao et al. (24), Lin et al. (25) and Spadlo et al. (34).
3.3 Optical anisotropy
The n value, defined as the difference between the two principal refractive indices of a uniaxial material, was estimated by the guest–host method. The n value of a guest–host system can be approximated from the equation:
ðnÞgh¼ xðnÞgþ ð1 xÞðnÞh: ð1Þ In Equation (1), the subscripts g, h and gh refer to guest, host and guest–host cells, respectively, and x is the concentration (in wt %) of the guest compound. The n value of the guest compounds can be deduced by the results of guest–host mixtures.
The n value of -methylstilbene-based LC com-pounds are listed in Table 5. The commercial LC ZLI-1565 was used as a host. The n values are in the range 0.16 to 0.46. Compound 8c containing isothiocya-nato end group shows a n value of 0.25, which is higher than that of the fluoro compound 5d. Compound 4b containing an isothiocyanato end group also showed a higher n value of 0.46 than that of the cyano compound 3a. This is because the isothiocyanato group has an elongated conjugation compared with the fluoro and cyano groups. Comparing n values of com-pound 4b with those of 3BPTP-NCS and 3BPDP-NCS, these three compounds show very close n values. This
result proves that the conjugation lengths of tolane, stilbene and -methylstilbene are similar. The com-pound 4b which shows the highest n value is expected to be useful for polymer-dispersed liquid crystals, STN display and laser beam steering applications.
Table 5. The n values of some single compounds.
Compounds Chemical structure n
3a C2H5 CN 0.36a 4b C3H7 NCS 0.46a 5b F C3H7 0.16a 8c NCS C4H9 0.25a 3BPTPNCS C3H7 NCS 0.50b 3BPDPNCS NCS C3H7 0.48b a
Data calculated from the guest–host systems using host mixture ZLI-1565, n = 0.12 at 23.5C.
b
Data calculated from the guest–host systems using host mixture E44, at 23C.
2 3 4 5 6 100 150 200 250 SA N I Cr
n ( Carbon number of terminal alkyl group )
Pha s e t ra n si ti on t empe ra tu re / ° C
3a-3e-Tm 3a-3e-Ti 4a-4e-Tm 4a-4e-Ts 4a-4e-Ti
Figure 1. Melting and isotropic temperatures of compounds 3a–e, 4a–e as a function of the carbon number (n) of the alkyl group (27).
432 C.-Y. Chang et al.
4. Conclusion
Six series of high birefringce -methylstilbene-based LCs were synthesised. All synthesised LCs revealed an enantiotropic nematic phase. The 4-alkylcyclohexyl--methylstilbene series showed much lower melting points than those of the 4-alkylphenyl--methyltilbene series. Those compounds, which contain both biphenyl and isothiocyanato moieties, have high n values. Compound 4b has the highest n value at 0.46 and a wide nematic range (99.1o), which could make it a good candidate for many display applications. In this study we also synthesised the cyclohexyl containing -methylstilbene LCs. These compounds, which show moderate n values and low melting temperature, are useful for formulating a high birefringent eutectic mixture.
Acknowledgement
The authors are grateful to the National Science Council of the Republic of China and the Ministry of Education (MOE ATU Program) for financial support of this work.
References
(1) Demus, D.; Fietkau, Ch.; Schubert, R. and Kehlen, H. Mol. Cryst. Liq. Cryst., 1974, 25, 215–232.
(2) Van Laar, J.J. Z. Phys. Chem. 1908, 63, 216–253. (3) Fergason, J.L. SID Digest 1986, 68, 68–70.
(4) Wu, S.T.; Efron, U.; Grinberg, J.; Hess, L.D. SID Tech. Dig. 1985, 16, 262–265.
(5) Doane, J.W.; Vaz, N.A.; Wu, B.G.; Zumer, S. Appl. Phys. Lett. 1986, 48, 269–271.
(6) Sutherland, R.L.; Natarajan, L.V.; Tondiglia, V.P.; Bunning, T. J. Mater. Chem. 1993, 5, 1533–1538. (7) Bowley, C.C.; Yuan, H.; Crawford, G.P. Mol. Cryst.
Liq. Cryst. 1999, 331, 209–216.
(8) Tokumaru, T.; Iwauchi, K.; Higashigayi, Y.; Matsuura, M. In Proceedings of the Anglo Japanese Seminar on Liquid Crystals, 1999; p. 72.
(9) Juang, T.M.; Chen, Y.N.; Lung, S.H.; Lu, Y.H.; Hsu, C.S.; Wu, S.T. Liq. Cryst. 1993, 15, 529–540.
(10) Wu, S.T.; Hsu, C.S.; Shyu, K.F. Appl. Phys. Lett. 1999, 74, 344–346.
(11) Wu, S.T.; Hsu, C.S.; Chuang, Y.Y.; Cheng, H.B. Jpn. J. Appl. Phys. 1999, 39, L38–L41.
(12) Hsu, C.S.; Shyu, K.F.; Chuang, Y.Y.; Wu, S.T. Liq. Cryst. 2000, 27, 283–287.
(13) Seed, A.J.; Toyne, K.J.; Goodby, J.W.; Hird, M. J. Mater. Chem. 2000, 10, 2069–2080.
(14) Wu, S.T.; Hsu, C.S.; Chuang, Y.Y. Jpn. J. Appl. Phys. 1999, 38, L286–L288.
(15) Gauza, S.; Du, F.; Wu, J.R.; Wu, S.T.; Spadlo, A.; Dabrowsk, R.; Janarthanan, N.; Hsu, C.S. SID Digest 2003, 34, 159–164.
(16) Hird, M.; Toyne, K.J.; Goodby, J.W.; Gray, G.W.; Minter, V.; Tuffin, R.P.; McDonnell, D.G. J. Mater. Chem. 2004, 14, 1731–1743.
(17) Sekine, C.; Konya, N.; Minai, M.; Fujisawa, K. Liq. Cryst. 2001, 28, 1361–1367.
(18) Sekine, C.; Ishitobi, M.; Iwakura, K.; Minai, M.; Fujisawa, K. Liq. Cryst. 2002, 29, 355–367.
(19) Wu, S.T.; Magerine, J.D.; Meng, J.B.; Hsu, C.S.; Lung, S.H.; Dolton, L.R. Appl. Phys. Lett. 1992, 61, 630–632. (20) Wu, S.T.; Neubert, M.; Keast, S.S.; Abdallah, D.G.; Lee, S.N.; Walsh, M.E.; Dorschner, T.A. Appl. Phys. Lett. 2000, 77, 957–959.
(21) Wu, S.T. Mol. Cryst. Liq. Cryst. 1995, 261, 79–86. (22) Liao, Y.M.; Chen, H.L.; Hsu, C.S.; Gauza, S.; Wu, S.T.
Liq. Cryst. 2007, 34, 507–517.
(23) Yao, Y.H.; Kung, L.R.; Chang, S.W.; Hsu, C.S. Liq. Cryst. 2006, 33, 33–39.
(24) Liao, M.; Janarthanan, N.; Hsu, C.S.; Gauza, S.; Wu, S.T. Liq. Cryst. 2006, 33, 1199–1206.
(25) Lin, P.T.; Wu, S.T.; Chang, C.Y.; Hsu, C.S. Mol. Cryst. Liq. Cryst. 2004, 411, 243–253.
(26) Spells, D.J.; Lindsey, C.; Dalton, L.R.; Wu, S.T. Liq. Cryst. 2002, 29, 1529–1532.
(27) Chang, C.Y.; Chien, S.Y.; Hsu, C.S.; Gauza, S.; Wu, S.T. Liq. Cryst. 2008, 35, 1–9.
(28) Patel, B.A.; Ziegler, C.B.; Cortese, N.A.; Plevyak, J.E.; Zebovitz, T.C.; Terpko, M.; Heck, R.F. J. Org. Chem. 1977, 42, 3903–3907.
(29) Heck, R.F. Acc. Chem. Res. 1979, 12, 146–151. (30) Meijere, A.D.; Meyer, F.E. Angew. Chem. Int. Ed. Engl.
1994, 33, 2379–2411.
(31) Wang, J.; Pomerantz, M. Tetrahedron Lett. 1995, 15, 2571–2574.
(32) Larhed, M.; Hallberg, A. J. Org. Chem. 1996, 61, 9582–9584.
(33) Hsu, C.S.; Chen, J.M. Mol. Cryst. Liq. Cryst. 1997, 304, 2319–2323.
(34) Spadlo, A.; Dabrowski, R.; Filipowicz, M.; Stolarz, Z.; Przedmojski, J.; Gauza, S.; Fan, C.; Wu, S.T. Liq. Cryst. 2003, 30, 191–198. 2 3 4 5 6 40 60 80 100 120 140 160 180 200 220 240 I N Cr
Phase transition temperature / °C
n ( Carbon number of terminal alkyl group )
5a-e-Tm 5a-5e-Ti 7a-7e-Tm 7a-7e-Ti 8a-8e-Tm 8a-8e-Ti
Figure 2. Melting and isotropic temperatures of compounds 5a–e, 7a–e and 8a–e as a function of the carbon number (n) of the alkyl group (27).
