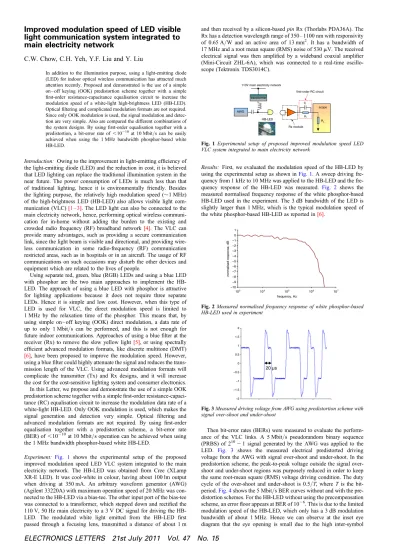

Improved modulation speed of LED visible
light communication system integrated to
main electricity network
C.W. Chow, C.H. Yeh, Y.F. Liu and Y. Liu
In addition to the illumination purpose, using a light-emitting diode (LED) for indoor optical wireless communication has attracted much attention recently. Proposed and demonstrated is the use of a simple on – off keying (OOK) predistortion scheme together with a simple first-order resistance-capacitance equalisation circuit to increase the modulation speed of a white-light high-brightness LED (HB-LED). Optical filtering and complicated modulation formats are not required. Since only OOK modulation is used, the signal modulation and detec-tion are very simple. Also are compared the different combinadetec-tions of the system designs. By using first-order equalisation together with a predistortion, a bit-error rate of ,10210at 10 Mbit/s can be easily achieved when using the 1 MHz bandwidth phosphor-based white HB-LED.
Introduction: Owing to the improvement in light-emitting efficiency of the light-emitting diode (LED) and the reduction in cost, it is believed that LED lighting can replace the traditional illumination system in the near future. The power consumption of LEDs is much less than that of traditional lighting, hence it is environmentally friendly. Besides the lighting purpose, the relatively high modulation speed (1 MHz) of the high-brightness LED (HB-LED) also allows visible light com-munication (VLC)[1 – 3]. The LED light can also be connected to the main electricity network, hence, performing optical wireless communi-cation for in-home without adding the burden to the existing and crowded radio frequency (RF) broadband network [4]. The VLC can provide many advantages, such as providing a secure communication link, since the light beam is visible and directional, and providing wire-less communication in some radio-frequency (RF) communication restricted areas, such as in hospitals or in an aircraft. The usage of RF communications on such occasions may disturb the other devices and equipment which are related to the lives of people.
Using separate red, green, blue (RGB) LEDs and using a blue LED with phosphor are the two main approaches to implement the HB-LED. The approach of using a blue LED with phosphor is attractive for lighting applications because it does not require three separate LEDs. Hence it is simple and low cost. However, when this type of LED is used for VLC, the direct modulation speed is limited to 1 MHz by the relaxation time of the phosphor. This means that, by using simple on – off keying (OOK) direct modulation, a data rate of up to only 1 Mbit/s can be performed, and this is not enough for future indoor communications. Approaches of using a blue filter at the receiver (Rx) to remove the slow yellow light[5], or using spectrally efficient advanced modulation formats, like discrete multitone (DMT)
[6], have been proposed to improve the modulation speed. However, using a blue filter could highly attenuate the signal and reduces the trans-mission length of the VLC. Using advanced modulation formats will complicate the transmitter (Tx) and Rx designs, and it will increase the cost for the cost-sensitive lighting system and consumer electronics. In this Letter, we propose and demonstrate the use of a simple OOK predistortion scheme together with a simple first-order resistance-capaci-tance (RC) equalisation circuit to increase the modulation data rate of a white-light HB-LED. Only OOK modulation is used, which makes the signal generation and detection very simple. Optical filtering and advanced modulation formats are not required. By using first-order equalisation together with a predistortion scheme, a bit-error rate (BER) of ,10210at 10 Mbit/s operation can be achieved when using the 1 MHz bandwidth phosphor-based white HB-LED.
Experiment: Fig. 1 shows the experimental setup of the proposed improved modulation speed LED VLC system integrated to the main electricity network. The HB-LED was obtained from Cree (XLamp XR-E LED). It was cool-white in colour, having about 100 lm output when driving at 350 mA. An arbitrary waveform generator (AWG) (Agilent 33220A) with maximum operation speed of 20 MHz was con-nected to the HB-LED via a bias-tee. The other input port of the bias-tee was connected to a transformer, which stepped down and rectified the 110 V, 50 Hz main electricity to a 3 V DC signal for driving the HB-LED. The modulated white light emitted from the HB-LED first passed through a focusing lens, transmitted a distance of about 1 m
and then received by a silicon-based pin Rx (Thorlabs PDA36A). The Rx has a detection wavelength range of 350 – 1100 nm with responsivity of 0.65 A/W and an active area of 13 mm2. It has a bandwidth of 17 MHz and a root mean square (RMS) noise of 530 mV. The received electrical signal was then amplified by a wideband coaxial amplifier (Mini-Circuit ZHL-6A), which was connected to a real-time oscillo-scope (Tektronix TDS3014C). AWG C R RL scope transformer Rx module 110V main electricity network
first-order RC circuit
HB-LED
Fig. 1 Experimental setup of proposed improved modulation speed LED VLC system integrated to main electricity network
Results: First, we evaluated the modulation speed of the HB-LED by using the experimental setup as shown inFig. 1. A sweep driving quency from 1 kHz to 10 MHz was applied to the HB-LED and the fre-quency response of the HB-LED was measured. Fig. 2 shows the measured normalised frequency response of the white phosphor-based HB-LED used in the experiment. The 3 dB bandwidth of the LED is slightly larger than 1 MHz, which is the typical modulation speed of the white phosphor-based HB-LED as reported in[6].
–10 –9 –8 –7 –6 –5 –4 –3 –2 –1 0 1 103 104 105 106 107 frequency, Hz normalised response, dB
Fig. 2 Measured normalised frequency response of white phosphor-based HB-LED used in experiment
20 µs –2 –1.5 –1 –0.5 0 0.5 1 1.5 2
Fig. 3 Measured driving voltage from AWG using predistortion scheme with signal over-shoot and under-shoot

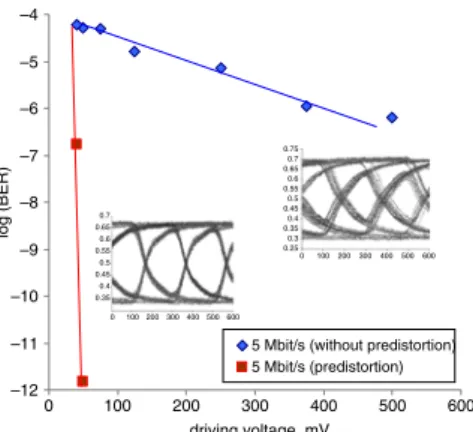

Then bit-error rates (BERs) were measured to evaluate the perform-ance of the VLC links. A 5 Mbit/s pseudorandom binary sequence (PRBS) of 2102 1 signal generated by the AWG was applied to the LED. Fig. 3 shows the measured electrical predistorted driving voltage from the AWG with signal over-shoot and under-shoot. In the predistortion scheme, the peak-to-peak voltage outside the signal over-shoot and under-over-shoot regions was purposely reduced in order to keep the same root-mean square (RMS) voltage driving condition. The duty cycle of the over-shoot and under-shoot is 0.5/T, where T is the bit-period.Fig. 4shows the 5 Mbit/s BER curves without and with the pre-distortion schemes. For the HB-LED without using the precompensation scheme, an error floor appears at BER of 1026. This is due to the limited modulation speed of the HB-LED, which only has a 3 dB modulation bandwidth of about 1 MHz. Hence we can observe at the inset eye diagram that the eye opening is small due to the high inter-symbol
interference (ISI). When using the predistortion scheme, error free (,10212) operation can be achieved without observing any error floor.
–11 –10 –9 –8 –7 –6 –5 –12 –4 100 200 300 400 500 0 600 driving voltage, mV log (BER)
5 Mbit/s (without predistortion) 5 Mbit/s (predistortion) 0.35 0 100200300400500600 0 100200300400500600 0.4 0.45 0.5 0.55 0.6 0.65 0.7 0.35 0.3 0.25 0.4 0.450.5 0.55 0.6 0.65 0.7 0.75
Fig. 4 Measured 5 Mbit/s BER curves without and with predistortion scheme
Insets: Corresponding eye diagrams
Next, we increased the modulation speed to 10 Mbit/s. BER cannot be measured even in the case of using signal predistortion. Hence, we included a RC equalisation circuit at the Rx as shown inFig. 1. The first-order RC equalisation circuit is a parallel-connected resistor and capacitor[6]. The values of the resistor (2.5 kV) and capacitor (30 pF) were properly selected to optimise the experiment.Fig. 5 shows the 10 Mbit/s BER measurements. We can observe that the eye diagrams are completely closed for the following cases: without using predistor-tion and RC-equalisapredistor-tion, and using predistorpredistor-tion only, as shown in
Figs. 5a and b, respectively. When only the RC-equalisation was used, improved performance can be observed, and a BER of 1025can be measured with an error floor. When using both the predistortion and RC-equalisation, error-free operation of BER , 10210 can be measured, with a widely open eye diagram as shown inFig. 5d. The experimental results show that the equalisation plays an important role for synchronisation, and the predistortion scheme can further improve the signal-to-noise ratio.
–11 –10 –9 –8 –7 –6 –5 –4 –3 –2 –1 200 300 400 500 600 700 800 driving voltage, mV log (BER) 10 Mbit/s (with equalisation only) 10 Mbit/s (with equalisaiton and predistortion) a b c d 100ns
Fig. 5 Measured 10 Mbit/s BER curves with equalisation only and with both equalisation and predistortion
Insets: Eye diagrams of a without using predistortion and RC-equalisation, b using predistortion only,
c using RC-equalisation only, and
d using both predistortion and RC-equalisation
Conclusions: We have developed a 10 Mbit/s white LED VLC system. By using simple signal predistortion and simple first-order RC-equalisa-tion, a BER of ,10210at 10 Mbit/s operation can be easily achieved when using the 1 MHz bandwidth white-light HB-LED. Optical filtering and advanced modulation formats are not required.
