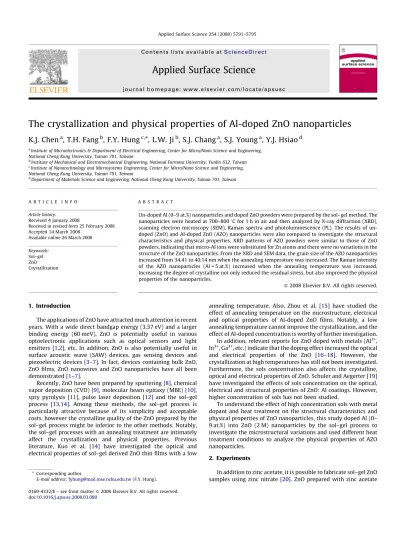

The crystallization and physical properties of Al-doped ZnO nanoparticles
K.J. Chen
a, T.H. Fang
b, F.Y. Hung
c,*, L.W. Ji
b, S.J. Chang
a, S.J. Young
a, Y.J. Hsiao
daInstitute of Microelectronics & Department of Electrical Engineering, Center for Micro/Nano Science and Engineering,
National Cheng Kung University, Tainan 701, Taiwan
b
Institute of Mechanical and Electromechanical Engineering, National Formosa University, Yunlin 632, Taiwan
c
Institute of Nanotechnology and Microsystems Engineering, Center for Micro/Nano Science and Engineering, National Cheng Kung University, Tainan 701, Taiwan
d
Department of Materials Science and Engineering, National Cheng Kung University, Tainan 701, Taiwan
1. Introduction
The applications of ZnO have attracted much attention in recent
years. With a wide direct bandgap energy (3.37 eV) and a larger
binding energy (60 meV), ZnO is potentially useful in various
optoelectronic applications such as optical sensors and light
emitters
[1,2]
, etc. In addition, ZnO is also potentially useful in
surface acoustic wave (SAW) devices, gas sensing devices and
piezoelectric devices
[3–7]
. In fact, devices containing bulk ZnO,
ZnO films, ZnO nanowires and ZnO nanoparticles have all been
demonstrated
[1–7]
.
Recently, ZnO have been prepared by sputtering
[8]
, chemical
vapor deposition (CVD)
[9]
, molecular beam epitaxy (MBE)
[10]
,
spry pyrolysis
[11]
, pulse laser deposition
[12]
and the sol–gel
process
[13,14]
. Among these methods, the sol–gel process is
particularly attractive because of its simplicity and acceptable
costs, however the crystalline quality of the ZnO prepared by the
sol–gel process might be inferior to the other methods. Notably,
the sol–gel processes with an annealing treatment are intimately
affect the crystallization and physical properties. Previous
literature, Kuo et al.
[14]
have investigated the optical and
electrical properties of sol–gel derived ZnO thin films with a low
annealing temperature. Also, Zhou et al.
[15]
have studied the
effect of annealing temperature on the microstructure, electrical
and optical properties of Al-doped ZnO films. Notably, a low
annealing temperature cannot improve the crystallization, and the
effect of Al-doped concentration is worthy of further investigation.
In addition, relevant reports for ZnO doped with metals (Al
3+,
In
3+, Ga
3+, etc.) indicate that the doping effect increased the optical
and electrical properties of the ZnO
[16–18]
. However, the
crystallization at high temperatures has still not been investigated.
Furthermore, the sols concentration also affects the crystalline,
optical and electrical properties of ZnO. Schuler and Aegerter
[19]
have investigated the effects of sols concentration on the optical,
electrical and structural properties of ZnO: Al coatings. However,
higher concentration of sols has not been studied.
To understand the effect of high concentration sols with metal
dopant and heat treatment on the structural characteristics and
physical properties of ZnO nanoparticles, this study doped Al (0–
9 at.%) into ZnO (2 M) nanoparticles by the sol–gel process to
investigate the microstructural variations and used different heat
treatment conditions to analyze the physical properties of AZO
nanoparticles.
2. Experiments
In addition to zinc acetate, it is possible to fabricate sol–gel ZnO
samples using zinc nitrate
[20]
. ZnO prepared with zinc acetate
Applied Surface Science 254 (2008) 5791–5795A R T I C L E I N F O Article history:
Received 4 January 2008
Received in revised form 25 February 2008 Accepted 14 March 2008
Available online 26 March 2008 Keywords:
Sol–gel ZnO Crystallization
A B S T R A C T
Un-doped Al (0–9 at.%) nanoparticles and doped ZnO powders were prepared by the sol–gel method. The nanoparticles were heated at 700–800 8C for 1 h in air and then analyzed by X-ray diffraction (XRD), scanning electron microscopy (SEM), Raman spectra and photoluminescence (PL). The results of un-doped (ZnO) and Al-un-doped ZnO (AZO) nanoparticles were also compared to investigate the structural characteristics and physical properties. XRD patterns of AZO powders were similar to those of ZnO powders, indicating that micro-Al ions were substituted for Zn atoms and there were no variations in the structure of the ZnO nanoparticles. From the XRD and SEM data, the grain size of the AZO nanoparticles increased from 34.41 to 40.14 nm when the annealing temperature was increased. The Raman intensity of the AZO nanoparticles (Al = 5 at.%) increased when the annealing temperature was increased. Increasing the degree of crystalline not only reduced the residual stress, but also improved the physical properties of the nanoparticles.
ß2008 Elsevier B.V. All rights reserved.
* Corresponding author.
E-mail address:[email protected](F.Y. Hung).
C o n t e n t s l i s t s a v a i l a b l e a t
S c i e n c e D i r e c t
Applied Surface Science
j o u r n a l h o m e p a g e : w w w . e l s e v i e r . c o m / l o c a t e / a p s u s c
0169-4332/$ – see front matter ß 2008 Elsevier B.V. All rights reserved. doi:10.1016/j.apsusc.2008.03.080
Al concentration, the crystalline quality of ZnO degenerated, which
is associated with the stress generated which resulted in lattice
disorder. For Raman spectroscopy, the 438 and 582 cm
1modes
decreased with increasing Al concentration, which is attributed to
Al ions bonding with oxygen or Al ions substituting for oxygen
deficiency. In addition, the two peaks at 543 and 658 cm
1were
assigned as Zn–C and Zn–CH
2modes, respectively. The PL
characteristics show that the optical quality degenerated gradually
with increasing the Al concentration. 5 at.% Al-doped ZnO powders
had the best characteristics and optical properties in this study.
Acknowledgement
The authors are grateful to the Chinese National Science Council
for its financial support (Contract: NSC 96–2221-E-006–103-MY2;
NSC 97–2218-E-006–011).
