Type-2 fuzzy controller design using a sliding-mode
approach for application to DC–DC converters
P.-Z. Lin, C.-M. Lin, C.-F. Hsu and T.-T. Lee
Abstract: Fuzzy controllers and fuzzy sliding-mode controllers have found extensive use in a variety of applications. Generally, type-1 fuzzy sets are used for the membership functions of these controllers. However, in real-time applications, uncertainty associated with the available information always occurs. A type-2 fuzzy controller and a type-2 fuzzy sliding-mode controller are proposed that are able to solve the problem that the words used in the inference rules can mean different things to different people. Since the membership functions use type-2 fuzzy sets then, the proposed control schemes can handle the rule uncertainties when the operation is extremely uncertain and/or the membership grades cannot be exactly determined. The proposed control systems are applied to control a buck DC–DC converter. A comparison between a PI controller, a type-2 fuzzy controller and a type-2 fuzzy sliding-mode controller is made. The experimental results show that the type-2 fuzzy sliding-mode controller achieves the best control performance.
1 Introduction
Type-1 fuzzy controllers (T1FC) include those based on a fuzzifier, rules, an inference engine or a defuzzifier. They have been successfully used in numerous applications many of which are too complex to be analysed using conventional mathematical techniques[1, 2]. Many of the operations in a T1FC system use the error and change-of-error as the fuzzy input variables. However, the large number of fuzzy rules required by a T1FC system makes the analysis complex. In order to reduce the number of required fuzzy rules, approaches based on sliding-mode control, referred to as type-1 fuzzy sliding-mode control (T1FSMC) have been proposed [3–5]. Since in this case only one variable is required to be defined as the fuzzy input variable in the fuzzy rules, the main advantage of T1FSMC is that its number of fuzzy rules is smaller than that for T1FC. Moreover, the use of sliding-mode control, results in the system being more robust against parameter variation and external disturbances [4]. The design of T1FC and T1FSMC requires the experience and knowledge of human experts to decide both the membership functions and the fuzzy rules. Since the membership grade of the T1FC and T1FSMC is a crisp number in [0,1], they are unable to directly handle rule uncertainties. In addition, in real-time applications, the words that are used in the fuzzy rules can often mean different things to different people. This will result in rule uncertainty with the available information.
To tackle this problem, Zadeh[6]proposed the concept of a type-2 fuzzy system which is an extension of a type-1 fuzzy system. A type-2 fuzzy system is again characterised by IF-THEN rules, but its membership functions are now type-2 fuzzy sets. The structures of type-1 and type-2 fuzzy systems are shown in Figs. 1a and 1b, respectively. The structure of a type-2 fuzzy system is very similar to the structure of a type-1 fuzzy system with differences only occuring in the output processing. The output processor includes a type reducer and a defuzzifier to generate a type-1 fuzzy system output from the type reducer or a crisp number from the defuzzifier. Thus, the type reduction captures more information about rule uncertainties than does the defuzzified value (a crisp number). A type-2 fuzzy system is characterised by a fuzzy membership function, i.e. the membership grade for each element is a fuzzy set in [0, 1], unlike the type-1 fuzzy system in which the membership grade is a crisp number in [0, 1]. Thus, a type-2 fuzzy system is very useful in circumstances in which the membership grades are difficult to exactly determine[6–10].
DC–DC converters are power electronic systems that convert one level of electrical voltage into another level using a switching action[11, 12]. They are used extensively in personal computers, computer peripherals, and adapters for consumer electronic devices. A control technique for DC–DC converters must not only cope with their wide input voltage and load variations to ensure stability in any operating condition but also still provide a fast transient response. The control of DC–DC converters has been attempted using: (i) output feedback linearisation theory [12, 13]; (ii) a sliding-mode control approach[14]; and (iii) a fuzzy control technique[14–16]. In the feedback linearisa-tion control design, although the controller is simple to implement and easy to design, its performance generally depends on the working point. However, the control parameters which ensure proper behaviour in any operating conditions are difficult to obtain. In sliding-mode control design, a system model is required for the controller design. The main disadvantage of this approach is control chattering. In fuzzy control design the fuzzy controller is able to regulate the output voltage to a desired value P.-Z. Lin and C.-F. Hsu are with Department of Electrical and Control
Engineering, National Chiao-Tung University, Hsinchu 300, Taiwan, Republic of China
C.-M. Lin is with Department of Electrical Engineering, Yuan-Ze University, Chung-Li, Tao-Yuan 320, Taiwan, Republic of China
T.-T. Lee is with Department of Electrical Engineering, National Taipei University of Technology, Taipei 106, Taiwan, Republic of China
E-mail: fei@cn.nctu.edu.tw rIEE, 2005
IEE Proceedings online no. 20045232 doi:10.1049/ip-epa:20045232
Paper first received 22nd November 2004 and in final revised form 27th April 2005
without steady-state oscillations despite changes in the load resistance or input voltage. However, too many fuzzy rules need to be constructed to create a successfull design.
In[14–16], since the membership functions of the fuzzy controller for the DC–DC converters use type-1 fuzzy sets, the grades of the membership function need to be determined using a time-consuming trial-and-error tuning procedure to achieve a satisfactory performance. To tackle this problem, we intend to propose a type-2 fuzzy controller (T2FC) for a DC–DC converter. Moreover, to reduce the number of fuzzy rules and to strengthen the robust characteristics, a type-2 fuzzy sliding-mode controller (T2FSMC) will also be developed. The T2FC and T2FSMC will be able to handle any uncertainties due to linguistic interpretation by using type-2 fuzzy sets to determine the membership functions. Thus, they will be suitable to control a buck DC–DC converter. We will perform experiments to demonstrate that the T2FC and T2FSMC can achieve robust characteristics and regulation performance for the input voltage and load resistance variations. The use of the T2FSMC will not only reduce the implementation complexity but will also achieve a better regulation performance by defining a sliding surface as the fuzzy input variable. Thus, the proposed T2FSMC will be highly suitable to control a buck DC–DC converter. 2 Converter modelling and control objective A buck DC–DC converter is used to drop DC voltages. The circuit of a buck DC–DC converter is shown in Fig. 2, where C is output capacitor, L is the inductor, R is the load resistor, rL is the inductor series resistance, rC is the
capacitor series resistance, Vsis the input voltage, and Vois
output voltage. The state equation for a buck DC–DC converter can be written as[11]:
_x¼ Aixþ BiVs ð1Þ
Vo¼ Cix ð2Þ
where x¼ ½iLvcT, and Ai, Biand Ciare system matrices of
the constituent linear circuits. The system matrices represent different operating modes (a subscript ‘1’ stands for a transistor being on, and a subscript ‘2’ stands for a transistor being (off) of the converter circuit. The system matrices can be obtained for different operating modes as:
A1¼ A2¼ 1 L RrC Rþ rC þ rL 1 L R Rþ rC 1 C R Rþ rC 1 C 1 Rþ rC 2 6 6 4 3 7 7 5 ð3Þ B1¼ 1 L 0 2 4 3 5 ð4Þ B2 ¼ 0 0 ð5Þ C1¼ C2¼ RrC Rþ rC R Rþ rC ð6Þ The state-space averaging method is a very useful technique to analyse the low-frequency small-signal performance of switch circuits [11, 12]. It is applicable when the converter switching period is short as compared to the response time of the output voltage. Using the state-space averaging method, the state equation can be obtained as:
_x¼ Ax þ BVs ð7Þ
Vo¼ Cx ð8Þ
where A¼ dA1þ ð1 dÞA2, B¼ dB1 þð1 dÞB2,
C ¼ dC1þ ð1 dÞC2 and d is the switching duty cycle.
The control problem is to control the duty cycle so that the output voltage can supply a fixed voltage under the occurrence of uncertainties such as a wide input voltage and load resistance variations. The error voltage is defined as:
e¼ Vref Vo ð9Þ
where Vrefis the reference output voltage. The control law
of the switching duty cycle is determined by the error voltage signal to provide a fast transient response. The output of the designed controller ddðkÞ is the change in the duty cycle. The duty cycle d (k), at the kth sampling time, is determined by adding the previous duty cycle d (k1) to the calculated change in duty cycle:
dðkÞ ¼ dðk 1Þ þ ddðkÞ ð10Þ
The calculated duty cycle signal is then sent to a pulse width modulation (PWM) output stage that generates the appropriate switching pattern for the switch in the DC– DC converter. In addition, a ramp waveform voltage Vramp
in the PWM output stage should be limited to be a constant voltage at the operation point.
3 Design of type-2 fuzzy controller
The block diagram of a T2FC for a DC–DC converter is shown in Fig. 3. Assume that there are M rules in the type-2 fuzzy system, each of which has the following form
Rule i: IF e is ~Gieand _e is ~Gi_eTHEN ddfcis½wil; w
i r ð11Þ L C rL Vs rC V0 vC iL + − + − R
Fig. 2 A Buck DC–DC converter
a
crisp output defuzzifier
rule base type-1 fuzzy system
crisp input fuzzifier fuzzy input sets inference engine fuzzy output sets b rule base crisp input fuzzifier fuzzy
input sets inference engine type-2 fuzzy system
output processing defuzzifier
type reducer
fuzzy output sets
crisp output type reduced
set
Fig. 1 The structures of the fuzzy systems a A type-1 fuzzy system
where i¼ 1, 2, y, M, ~Gi e and ~G
i
_e are the interval type-2 fuzzy sets of the IF-part, and wi
r and wil are the singleton
upper and lower control actions of THEN-part. The membership functions of the IF-part and the THEN-part are shown in Figs. 4a and 4b, respectively. The fuzzy labels are negative big (NB), negative small (NS), zero (ZO), positive small (PS) and positive big (PB). The firing strength of the ith rule can be obtained as:
Fi¼ fh i fii ð12Þ where fi¼ mG~i eðeÞ mG~i_e ð_eÞ ð13Þ fi¼ mG~i eðeÞ mG~i_eð_eÞ ð14Þ in which mðÞ and mðÞ denote the grade of the lower membership function and the upper membership function, respectively. A singleton fuzzification with a minimum t-norm is used in this work and is shown in Fig. 5. The output can be expressed as:
ddcos¼ dd½ l; ddr ð15Þ
where ddcosis an interval type-1 set determined by the left
and right end points (ddl and ddr), which can be derived
from the consequent centriod set ½wi
l; w
i
r and firing
strength fi2 Fi¼ ½fi
; fi. The interval set ½wi
l; w
i
r
(i¼ 1, y, M) should be computed or set first before the
computation of ddcos. The left-most point ddland the
right-most point ddrcan be expressed as[8, 9]:
ddl¼ PM i¼1fliw i l PM i¼1fli ð16Þ and ddr¼ PM i¼1friwir PM i¼1fri ð17Þ We briefly state the procedure to compute ddland ddr. First
of all, we compute the right-most point ddr. Without loss of
generality, assume that the wi
r are arranged in ascending
order, i.e. w1
r w2r wMr .
Step 1: Compute ddrin (17) by initially using fri¼ ðf
iþfiÞ=2 for i¼ 1, 2, y, M, where fi
and fiare pre-computed by (13) and (14); and let dd0r¼ ddr.
Step 2: Find Rð1R M 1Þ such that wR
r ddr0 w
Rþ1 r .
Step 3: Compute ddr in (17) with fri¼ f
i for irR, and fi
r ¼ f
i
for i4R, then set ddr00¼ ddr.
Step 4: If dd00
r 6¼ ddr0, then go to step 5. If ddr00¼ ddr0, then set
ddr¼ ddr00and go to step 6.
Step 5: Let dd0
r¼ ddr00 and return to step 2.
Step 6: End.
Hence, ddr in (17) can be re-expressed as:
ddr¼ ddrðf1; . . . ; fR; f Rþ1 ; . . . fM; w1r; . . . ; wMr Þ ¼ PR i¼1f iwi rþ PM i¼Rþ1f i wi r PR i¼1f iþPM i¼Rþ1f i ð18Þ
The procedure to compute ddlis similar to that for ddrwith
slight modifications as stated below. In step 2, we need to find Lð1 L M 1Þ, such that wL l dd 0 l w Lþ1 l . In
step 3, let fil¼ fi for irL, and fi
r ¼ fi for i4L.
Therefore, ddlin (16) can be expressed as:
ddl¼ ddlðf 1 ; . . . ; fL; fLþ1; . . . ; fM; w1l; . . . ; wMl Þ ¼ PL i¼1f i wi lþ PM i¼Lþ1fiwil PL i¼1f i þPMi¼Lþ1fi ð19Þ
Then, the defuzzified crisp output from an interval type-2 fuzzy system is the average of ddrand ddl, i.e.:
type-2 fuzzy control V ramp V ref V o V s driver d (k ) = d(k−1) + dfc(k ) fuzzifier dfc type reducer inference engine e d dt DC-DC converter + + − − + + − − human knowledge fuzzy rules defuzzifier

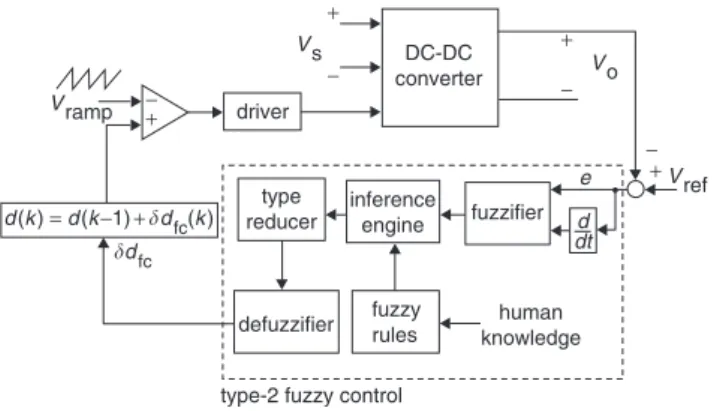

Fig. 3 A Block diagram of type-2 fuzzy control for a DC–DC converter system 0 0.3 −0.3 0.6 0.9 −0.9 −0.6 e, e· NB NS ZO PS PB a b NB NS ZO PS PB dfc 0 0.2 −0.2 0.4 −0.6 −0.4 0.6
Fig. 4 Type-2 membership functions for the T2FC system a The IF-part b The THEN-part e e· min min fi fi
Fig. 5 An interval type-2 fuzzy system using singleton fuzzification and a minimum t-norm
ddfc¼
ddlþ ddr
2 ð20Þ
The fuzzy rules for a T2FC are summarised in Fig. 6, which is constructed for the scenario in which e and _e approach zero with a fast rise time and without a large overshoot. Generally, determination of these rules comes from human knowledge and via some trial-and-error processes.
4 Design of a T2FSMC
The sliding surface plays a very important role in the design of a T2FSMC. It can dominate the dynamic behaviour of the control system as well as reduce the size of the fuzzy rule base. The sliding surface is chosen as the input variable of the fuzzy inference rules so that the number of fuzzy rules can be less than those where the state error variables (e and _e) are used as the input variables. A sliding surface is defined by the following scale function:
s¼ _e þ le ð21Þ
where l40 is a given positive constant. A block diagram of a T2FSMC for a DC–DC converter is shown in Fig. 7. Assume that there are N rules for the T2FSMC, each of which has the following form
Rule j: IF s is ~Gjs; THEN ddfsmcis½rjl; r
j
r ð22Þ
where j¼ 1, 2, y, N, ~Gj
sis the interval type-2 fuzzy sets of the antecedent part, and rj
r and r
j
l are the singleton upper
and lower control actions. The fuzzy rules for the T2FSMC are summarised in Fig. 8, which is constructed using the basic idea that if the state is far away from the sliding
surface then a large control effort needs to be applied, and if the state is near the sliding surface then only a small control effort needs to be applied. Therefore, the state can quickly reach the sliding surface without a large overshoot. Based on the above discussion, the controller output is accom-plished.
5 Experimental results
The experimental system for the computer control of a buck DC–DC converter is shown in Fig. 9. A servo control card was installed in the control computer which has D/A, A/D, PIO and encoder interface circuits. The control problem consists in the control of the duty cycle so that the output voltage can supply a fixed voltage (Vref¼ 10 V) despite the
occurrence of uncertainties such as a wide input voltage and load variations. The proposed control algorithms were realised for the Pentium chip using the Turbo C language. Two experimental cases were addressed and they are as follows: (i) the nominal case (the input voltage is set as Vs¼ 20 V); and (ii) the input variation case (the input
voltage is changed to Vs¼ 25 V). In both cases, some load
resistance variations with step changes were tested: (i) from 20 to 5 O at 300 ms; (ii) from 5 to 20 O at 500 ms; and (iii) from 20 to 5 O at 700 ms. The circuit parameter values of the buck DC–DC converter were chosen to be R¼ 20 O, L¼ 500 mH and C ¼ 2200 mF. The converter ran at a switching frequency of 20 kHz and the controller ran at a sampling frequency of 2 kHz. The duty cycle was generated using a PWM IC SG1825. The generated duty cycle is directly proportional to the analog output of the controller. To compare the regulation efficiency, first a proportional-integral (PI) controller proposed in [13] is applied to the buck DC–DC converter. The controller output is computed as:
ddpi¼ 0:2 e þ 0:05 _e ð23Þ
The experimental results for the PI controller for the two studied two cases are shown in Fig. 10. The converter responses are shown in Figs. 10a and 10c; and the e e⋅ NB NB NB NB NB NB NB NB NS ZO ZO ZO ZO ZO ZO NS PS PS PS ZO PS NS NS NS NS PS PB PS PB PB PB PB PB PB PB
Fig. 6 Fuzzy rules of T2FC for a buck DC–DC converter
Vs Vo dt d Vref e s driver Vramp sliding surface
type-2 fuzzy sliding-mode control d (k ) = d (k −1)+dfsmc(k ) dfsmc + + − − + + − − DC - DC converter type reducer inference engine fuzzifier defuzzifier fuzzy rules human knowledge
Fig. 7 Block diagram of T2FSMC for a DC-DC converter system
s NB NB NS NS d ZO ZO PS PS PB PB
associated control efforts are shown in Figs. 10b and 10d, respectively. The experimental results, show that the PI controller can achieve a fast tracking performance, however,
there exists a 10% overshoot and the state feedback gain should be constructed using trial-and-error techniques to ensure proper behaviour in the operating conditions. The T2FC was then applied to the buck DC–DC converter. The experimental results for the T2FC system for the two considered cases are shown in Fig. 11. The converter responses are shown in Figs. 11a and 11c; and the associated control efforts are shown in Figs. 11b and 11d, respectively. It can be seen that the regulation performance of the T2FC is better than that of the PI controller, and no overshoot do not appears in the T2FC system. However, the large number of fuzzy rules required by the T2FC system results in a complex analysis and difficult imple-mentation. Finally, the T2FSMC with l¼ 5 was applied to the buck DC–DC converter. The experimental results of the T2FSMC system for the two considered cases are shown in Fig. 12. The converter responses are shown in Figs. 12a and 12c; and the associated control efforts are shown in Fig. 9 Experimental setup
0 V start 10 V 100ms 5 V 1 V a 0 V start 100ms 5 V d 0 V start 100ms 5 V b 0 V start 10 V 100ms 5 V 1 V c
Fig. 10 Experimental results obtained using the PI controller to control the buck DC–DC converter
a Output voltage for the nominal case b Control effort for the nominal case c Output voltage for the input variation case d Control effort for the input variation case
0 V start 10 V 100ms 5 V 1 V a 0 V start 100ms 5 V d 0 V start 100ms 5 V b 0 V start 10 V 100ms 5 V 1 V c
Fig. 11 Experimental results obtained using T2FC to control the buck DC–DC converter
a Output voltage for the nominal case b Control effort for the nominal case c Output voltage for the input variation case d Control effort for the input variation case
Figs. 12b and 12d, respectively. It can be seen that the T2FSMC can achieve a better regulation performance than the PI controller and the T2FC, and that again to overshoot occurred. A settling time comparison between the PI controller, the T2FC and the T2FSMC is made in Fig. 13. For the nominal case, as shown in Fig. 13a, the settling times of the PI controller, the T2FC and the T2FSMC are 33, 21 and 20 ms, respectively. For the input variation case, as shown in Fig. 13b, the settling times of the PI controller, the T2FC and the T2FSMC are 27, 19 and 18 ms, respectively. In conclusion, the T2FC and T2FSMC can achieve a better performance than the PI controller. In addition, the number of fuzzy rules can be minimised by use of the T2FSMC. This in turn reduces the complexity of the analysis and case of implementation when using the sliding surface. Thus, the T2FSMC design method is highly suitable for application to DC–DC converters.
6 Conclusions
We have clearly demonstrated that T2FC and T2FSMC can effectively control a buck DC-DC converter. A type-2 fuzzy system was used to handle the rule uncertainties when the operation is extremely uncertain and/or the membership grades cannot be exactly determined. A comparison between a PI controller, a T2FC and a T2FSMC was performed. Experimental results show that the proposed T2FC and T2FSMC are more robust against input voltage and load resistance variations than the PI controller. Moreover, the T2FSMC can reduce the complexity of analysis and implementation by using the sliding surface. Thus, the proposed T2FSMC is highly suitable for applications to the control of a buck DC–DC converter.
7 Acknowledgments
The authors are grateful to the reviewers for their valuable comments. The authors appreciate the partial financial support from the National Science Council of Republic of China under grant NSC 92-2213-E-157-002.
8 References
1 Lee, C.C.: ‘Fuzzy logic in control systems: fuzzy logic controller-part I/II’, IEEE Trans. Syst. Man Cybern., 1990, 20, (2), pp. 404–435 2 Timothy, J.R.: ‘Fuzzy logic with engineering applications’
(McGraw-Hill, New York, 1995) 0 V start 10 V 100ms 5 V 1 V a 0 V start 100ms 5 V d 0 V start 100ms 5 V b 0 V start 10 V 100ms 5 V 1 V c
Fig. 12 Experimental results obtained using T2FSMC to control the buck DC–DC converter
a Output voltage for the nominal case b Control effort for the nominal case c Output voltage for the input variation case d Control effort for the input variation case
0 V start 10ms 10 V 2 V T2FC PI controller T2FSMC b 0 V 10ms 2 V a 10 V start T2FC PI controller T2FSMC
Fig. 13 Settling time comparison of the PI controller, the T2FC and the T2FSMC
a Output voltage for the nominal case b Output voltage for the input variation case
3 Yu, X., Man, Z., and Wu, B.: ‘Design of fuzzy sliding-mode control systems’, Fuzzy Sets Syst., 1998, 95, pp. 295–306
4 Choi, B.J., Kwak, S.W., and Kim, B.K.: ‘Design of a single-input fuzzy logic controller and its properties’, Fuzzy Sets Syst., 1999, 106, pp. 299–308
5 Lin, C.M., and Hsu, C.F.: ‘Hybrid fuzzy sliding-mode control of an aeroelastic system’, J. Guid., Control, Dyn., 2002, 25, pp.
829–832
6 Zadeh, L.A.: ‘The concept of a linguistic variable and its application to approximate reasoning’, Inf. Sci., 1975, 8, pp. 199–249
7 Liang, Q., and Mendel, J.M.: ‘Interval type-2 logic systems: theory and design’, IEEE Trans. Fuzzy Syst., 2000, 8, (5), pp.
535–550
8 Karnik, N.N., Mendel, J.M., and Liang, Q.: ‘Type-2 fuzzy logic systems’, IEEE Trans. Fuzzy Syst., 1999, 7, (6), pp. 643–658 9 Liang, Q., Karnik, N., and Mendel, J.: ‘Connection admission
control in ATM networks using survey-based type-2 fuzzy logic systems’, IEEE Trans. Syst. Man Cybern. C, Appl. Rev., 2000, 30, (4), pp. 329–339
10 Hagras, H.A.: ‘A hierarchical type-2 fuzzy logic control architecture for autonomous mobile robots’, IEEE Trans. Fuzzy Syst., 2004, 12, (4), pp. 524–539
11 Middlebrook, R.D., and Cuk, S.: ‘Advances in switched-mode power conversion’ (Teslaco, Pasadena, QA, 1981)
12 Krein, P.T., Bentsman, J., Bass, R.M., and Lesieutre, B.L.: ‘On the use of averaging for the analysis of power electronic systems’, IEEE Trans. Power Electron., 1990, 5, (2), pp. 182–190
13 Alvarez-Ramirez, J., Cervantes, I., Espinosa-Perez, G., Maya, P., and Morales, A.: ‘A stable design of PI control for DC-DC converters with an RHS zero’, IEEE Trans. Circuits Syst. I, Fundam. Theory Appl., 2001, 48, (1), pp. 103–106
14 Vidal-Ldiarte, E., Martine-Salamero, L., Guinjoan, F., Calvente, J., and Gomariz, S.: ‘Sliding and fuzzy control of a boot converter using an 8-bit microcontroller’, IEE Proc., Electr. Power Appl., 2004, 151, (1), pp. 5–11
15 So, W.C., Tse, C.K., and Lee, Y.S.: ‘Development of a fuzzy logic controller for DC/DC converters: design, computer simulation and experimental evaluation’, IEEE Trans. Power Electron., 1996, 11, (1), pp. 24–32
16 Gupta, T., Boudreaux, R.R., Nelms, R.M., and Hung, J.Y.: ‘Implementation of a fuzzy controller for DC-DC converters using an inexpensive 8-b microcontroller’, IEEE Trans. Ind. Electron., 1997, 44, (5), pp. 661–669
