Novel Ratiometric Turn-on Fluorescent Probe for Selective Sensing
of Cyanide ions, Effect of substitution and Bio-imaging Studies
Gopal Balamurugan
a, Parthiban Venkatesan
b, Shu Pao Wu
b, Sivan Velmathi
a,*
Novel fluorogenic receptors S1-S4 (imidazo anthraquinone derivatives) were synthesized from o-substituted benzaldehyde and 1,2-diaminoanthraquinone and characterised well with various spectroanalytical techniques. In case of S1, the selectivity towards cyanide ions with turn on fluorescence output among other anions due to the inhibition of twisted intramolecular charge transfer (TICT) mechanism Effect of substitution was successfully compared with sensing studies of
S2-S4. S1 showed good binding constant with 1:1 stoichiometric ratio and micromolar detection limit. The sensing
behaviour was further supported by 1
H NMR Titration, TD-DFT calculations and lifetime measurement studies. S1 was applied for the bio-imaging of the cell line RAW264.7 and successfully sensed the cyanide ions in the physiological conditions.
Introduction
Cyanide ion is highly toxic and severe health hazard anion that could be lethal dose for human beings even as low as 1.5 mg/kg of body weight. Consequently, the utmost tolerant level of cyanide in drinking water was set at 1.9µM by the World Health Organization (WHO). The inhibition of cytochrome-c-oxidase in the mitochondria of the eukaryotic cells has been occurred by cyanide ions due to the rapid coordination with the iron center led to the inhibition of oxygen intake by the cells of an organism1. Because of the extensive usage of cyanide worldwide in industries such as Gold mining (cyanide leaching process), electroplating, refineries (fluid catalytic cracking and coking), printed circuit board manufacturing, steel and chemical industries, the environmental pollution could not be outmanoeuvre entirely1-4. By considering the above facts, a center of attention has been created for the articulate design and synthesis of efficient probes to selectively detect CN- at the environmental and biological medium. There are surplus of articles published for bio-imaging of cyanide anion (CN-) in the cells based on the strategies such as the formation of cyanide complexes5, 6, nucleophilic addition of CN− to activated double bond or a boron center and relay recognition7-18. Recently, anthraquinone based imidazole receptors have been reported for the detection of anions and metal ions.19-26 In most of the cases, imidazole based receptors performed as colorimetric sensors and very few of them showed fluorescence turn off behaviour. Fluorescent off-on imidazo anthraquinone probes for cyanide may not be prominent in the picture. From the clear literature review over the structural aspects like chromophore, fluorophore, electron withdrawing and donating substitutents in the imidzole based receptors, we could achieve the fluorescent enhancement for the anions based on Twisted Intra
Scheme 1: Design strategy using TICT mechanism.
Molecular Charge Transfer (TICT) mechanism27-30. A clear picture of the TICT process in case of 2’- substituted imidazole in the ground state and excited state was shown in scheme 1. (a) Free rotation could be possible in case of no substitution. The presence of substitution in 2’ position inhibit the rotation as well in the excited state (S1),(b) intramolecular charge transfer took place as TICT process followed by the relaxation to the ground state (S0) (c)But
the deprotonation of the imidazole –NH may liberate the steric hindrance followed by the inhibition of TICT process resulted in the enhanced fluorescence. Based on this strategy, we designed the receptor S1, synthesized in good yield and characterized well with various spectroscopic techniques, sensing studies towards the highly toxic anions and biological important anions. Further supporting information to prove the sensing behaviour and fluorescence enhancement were obtained using UV-vis, photoluminescence and 1H NMR titration, fluorescence life measurement and DFT calculation. Effect of substitution using electron donating group was also performed by synthesizing S2-S4 to precise the sensing behaviour of S1. Binding constants, detection limit and quantum yield were thoroughly determined for the receptors. To reach the ultimate destination of chemosensors, S1 was applied lucratively for real time selective detection of cyanide ions in domestic waste water. Ultimately, S1 was successfully applied for bio-imaging of RAW264.7 cell lines.
RSC
Advances
Accepted
Manuscript
ARTICLE
RSC Advances
Scheme 2: Syntheses of o-substituted imidazo anthraquinone derivatives S1-S4.
Fig. 1 (a) 200µL of anions (1.5 x10-3 M in ACN) was added in 3 mL of S1 (5 x10-5 M in ACN) (b) 200µL of anions (1.5 x10-3 M in H2O) was
added in 3 mL of S1 taken in 97:3 ACN: water.
Reagents and Instruments
1,2-Diaminoanthraquinone (DAAQ), 2-nitrobenzaldehyde were purchased from Sigma Aldrich and utilized without further purification. Tetrabutylammonium (TBA) salts of anions such as CN-, F-, Cl-, Br-, I-, OAc-, H2PO4-, HSO4- , OH- and analytical grade solvents
were purchased commercially and used as such. NMR spectra were obtained using a Bruker 500 MHz spectrometer using Tetramethylsilane (TMS) as an internal standard. Thermo Fisher FT IR Spectrometer was used to record IR spectra in pellet mode. UV-vis spectroanalysis were done on Shimadzu UV-2600 UV-UV-vis spectrophotometer in quartz cell with 1 cm path length. Photoluminescence spectra were recorded using Shimadzu RF-5301PC spectrophotometer. 1.5 × 10−3 M aq. solutions of the anions with 5×10−5 M solutions of S1 in ACN medium had been utilized for the studies. UV titrations were carried out by the incremental addition of 0.1 eq. (10 µL) - 2 eq. (200 µL) of guest solutions to 3 mL of receptor solution in the UV cuvette. 1H NMR titration was carried out using 0.1 M solution of TBACN in DMSO-d6 and 0.01 M solution
of S1 in DMSO-d6 in Bruker Avance III 500 MHz NMR Spectrometer.
Life time measurement studies were done at Horiba Delta time instrument coupled with TCSPC. Confocal fluorescence imaging of cells was performed with a Leica TCS SP5 X AOBS Confocal Fluorescence Microscope (Germany), and a 63x oil-immersion objective lens was used. The cells were excited with a white light laser at 456 nm, and emission was collected at 540 ±580nm. DFT calculation was performed using Gaussian 09 software package and the optimized structures and MOs were processed from GaussView 5.0 package.
Synthesis of o- substituted anthra(1,2-d)imidazole-6,11-dione (S1-S4):
o-substituted benzaldehyde (0.5 mmol) and 1,2-diaminoanthraquinone (0.5 mmol) were taken in DMSO (1 mL) and heated to 120°C for 6 h. (Scheme 2) The completion of the reaction was monitored by thin layer chromatography (TLC) using hexane: ethylacetate (6:4) as an eluent. After cooling the reaction mixture
to room temperature, cold ethanol (5 mL) was added and stirred for few minutes. The solid obtained was filtered, washed with ethanol (5 mL x 3), dried. The crude product obtained was again triturated with hot ethanol (5 mL) to yield pure receptor.
2-(2-nitrophenyl)-1H-anthra[1,2-d]imidazole-6,11-dione (S1) Yield: 73%. M.p. 248-250°C. 1H NMR 500 MHz, DMSO-d6: δ 13.85 (s, 1H), 8.28-8.29 (m, 4H), 8.22 (dd, J = 8.50, 32.00 Hz, 2H), 8.01-8.02 (m, 2H), 8.02 (dd, J = 8.00, 23.75 Hz, 2H), 7.92 (t, J = 7.50 Hz, 1H). 13C NMR (75 MHz, DMSO-d 6) 120.17, 124.91, 125.46, 125.84, 126.1, 127.27, 128.87, 132.07, 133.30, 133.43, 133.53, 133.74, 134.74, 134.93, 149.01, 155.46, 182.90, 183.50. FTIR ( ν-cm-1) 3427 (N-H str.), 1666 (C=O str.), 1537 (Nitro asymmetric), 1476 (C=N str.), 1365 (Nitro asymmetric), 715 (N-H bending) HRMS: Calcd. for C21H12N2O4:
m/z 369.075. Found: m/z 370.083(M+1). 2-(2-hydroxyphenyl)-1H-anthra[1,2-d]imidazole-6,11-dione (S2) Yield: 85%. M.p. 265-267°C. 1H NMR 500 MHz, DMSO-d6: δ 12.65 (s, 1H, -OH), 11.96 (s, 1H, -NH), 8.461-8.269 (m, 2H), 8.177-8.088(m, 2H), 8.044-7.944 (m, 2H), 7.882-7.797 (m, 1H), 7.38 (t, J = 7.30 Hz, 1H), 7.04 (d, J = 8.10 Hz, 1H), 6.98 (t, J = 7.35 Hz, 1H). 13C NMR (75 MHz, DMSO-d6) 117.56, 118.35, 120.29, 121.67, 124.82, 126.70, 127.26, 128.23, 129.55, 133.31, 134.65, 134.96, 156.63, 157.42, 182.58. FTIR ( ν-cm-1) 3548 (O-H str.), 3442 (N-H str.), 1660 (C=O str.), 1476 (C=N str.), 715 (N-H bending) HRMS: Calcd. for C21H12N2O4: m/z 340.332. Found: m/z 341.071(M+1). 2-(2-methoxyphenyl)-1H-anthra[1,2-d]imidazole-6,11-dione (S3) Yield: 78%. M.p. 233-236°C. 1H NMR 500 MHz, DMSO-d6: δ 12.35 (s, 1H), 8.50 (d, J = 6.50 Hz, 1H), 8.22-8.42 (m, 2H), 8.06 (dd, J = 8.00, 32.25 Hz, 2H), 7.74-7.82 (m, 2H), 7.55 (t, 1H), 7.33 (d, J = 7.50 Hz, 1H), 7.16 (d, J = 7.00 Hz, 1H), 4.28 (s, 3H). 13C NMR (75 MHz, DMSO-d6) 57.11, 113.24, 121.54, 121.99, 125.30, 126.80, 127.42, 130.32, 132.52, 133.54, 134.75, 135.16, 155.46, 158.00, 184.56. FTIR ( ν-cm-1) 3485 (N-H str.), 1668 (C=O str.), 1472 (C=N str.), 1054 (-OMe), 714 (N-H bending) HRMS: Calcd. for C21H12N2O4: m/z 354.358.
Found: m/z 355.140 (M+1). 2-(2-aminophenyl)-1H-anthra[1,2-d]imidazole-6,11-dione (S4) Yield: 81%. M.p. 248-250°C. 1H NMR 300 MHz, DMSO-d6: δ 12.43 (s, 1H), 8.13 (s, 2H), 7.99-0.00 (m, 2H), 7.89-7.91 (m, 2H), 7.16-7.24 (m, 2H), 7.21 (d, J = 6.60 Hz, 1H), 6.87 (d, J = 6.00 Hz, 1H), 6.68 (d, J = 6.60 Hz, 1H). 13C NMR (75 MHz, DMSO-d6) 116.66, 118.11, 119.05, 121.38, 124.28, 126.68, 127.11, 128.02, 129.02, 132.18, 133.34, 134.74, 134.70, 149.52, 182.52, 183.49. FTIR ( ν-cm-1) 3432 (N-H str.), 1661 (C=O str.), 1469(C=N str.), 1102 (C-N str.), 715 (N-H bending) HRMS: Calcd. for C21H12N2O4: m/z 339.105. Found: m/z
340.086(M+1).
RSC
Advances
Accepted
Manuscript
Published on 26 February 2016. Downloaded by New York University on 27/02/2016 05:18:32.
Fig. 2 (a) UV-vis spectral studies of S1 (5 x10-5 M in ACN) with 200µL of anions (1.5 x10-3 M in ACN) (b) UV-vis spectral studies of S1 (5 x10-5 M in 97:3 ACN: water) with 200µL of anions (1.5 x10-3 M in H2O)
Fig. 3 (a) Incremental addition of CN- to S1 (b) Support for the ratiometric detection of CN- by S1 with 1:1 stoichiometric ratio (c) Interference of other anions in the sensing behaviour of S1 with cyanide ions.
Fig. 4 (a) 2D contour image of Photoluminescence S1 (b) S1-
Fig. 5 (a) Photoluminescence studies of S1 (5 x10-5 M in 97:3 ACN: water) with 200µL of Anions (1.5 x10-x10-3 M in H2O) (b)
Photoluminescence studies of the incremental addition of CN- to S1.
Results and Discussion
Naked eye sensing
Initially, 200 µL of anions, CN-, F-, Cl-, Br-, I-, OAc-, H2PO4
-, HSO4
-& OH- (1.5x10-3 M in ACN) were added to 3 mL of S1-S4 (5x10-5 M in ACN) to examine the sensitivity visually. S1 (Fig. 1a), S2 and S4 were shown strong color change for CN- ions whereas F- and OAc- ions showed slight colour change. But S3 did not show any color change, this may be furnished as the electron donating –OMe in S3 decrease the acidity of the imidazole –NH. (Supporting information fig. A1) By taking into account the compatibility of the receptor with water to analyze the environmental measures, anions were taken in H2O for further analysis. Interestingly, S1 showed the
intense yellow color change selectively for cyanide among anions. To increase the ecological factor, the percentage of water in ACN for S1 had been altered and it showed intense yellow color change only for cyanide ions in 3% Aq. ACN medium(Fig. 1b). No sensing was observed above 3% aq. ACN solution of S1. In the same way, S2 and S4 were displayed the same result alike S1. (Supporting Information fig. A1)
UV-vis spectral studies
By analyzing the sensing behaviour using UV-vis spectroscopy, under 100% ACN medium, S1 showed an absorbance maxima at 384 nm and the addition of cyanide ion into S1 suppress the corresponding band and formed a new band at 460 nm whereas fluoride and acetate ions interact with S1 weakly compared to cyanide. (fig. 2a)This proves the higher nucleophilicity of cyanide played a vital role in the sensing behaviour. While using aq. solution of anions to S1 in ACN, due to the effect of solvation by water molecules, cyanide ions only showed the bathochromic shift to 450 nm. (fig. 2b) As we saw in the naked eye experiment, beyond 10% of water content in ACN, no shift was observed. The incremental addition of cyanide ions (20-200 µL) to S1 clearly exposes the gradual decrease in the band at 384 nm and increase in the band at 455 nm. (fig. 3a) The ratiometric behaviour of S1 towards cyanide ions could be helpful to quantitatively analyze the same in the real sample by using Beer-Lambert’s law.(fig. 3b) Interference of other anions towards cyanide sensing of S1 was demonstrated successfully that shows there is no effective interference in the absorbance maxima of R1-CN- complex. (fig. 3c) In case of S2 and S4 band at 410 nm and 448 nm were red-shifted to 480 nm and 500 nm respectively. (Supporting Information fig. A2, A3). Using Benesi-Hildebrand plot, from the incremental addition of CN- ions to S1, S2 and S4, S1 displayed a very good association contant (1.5x10-4) whereas S2 and S4 showed slightly lesser binding constants. By using Job’s plot, the stoichiometric ratio of the guest-host complexes were calculated and listed in table 1. Except S2, others possess 1:1 stoichiometry. Both the binding sites in S2 (-OH and imidazole –NH) were deprotonated to give 1:2 host:guest stoichiometric ratio. In addition, detection limit and limit of quantification were also calculated for the receptors. All the experiments were reiterated to assure the repeatability and confirmed with the low error percentage.
RSC
Advances
Accepted
Manuscript
ARTICLE
RSC Advances
Table 1: Binding constant, detection limit and stoichiometric ratio of the host-guest complexes formed.
Species Binding Constant Detection Limit LOD Limit of Quantificaiton LOQ Stoichiometric Ratio
S1-CN- 15466 3.960 x 10-6 M 1.31 x 10-5M 1:1
S2-CN- 13862 2.96 x 10-6 M 9.87x10-6 M 1:2
S4-CN- 7103 7.25 x 10-7 M 2.41 x 10-6 M 1:1

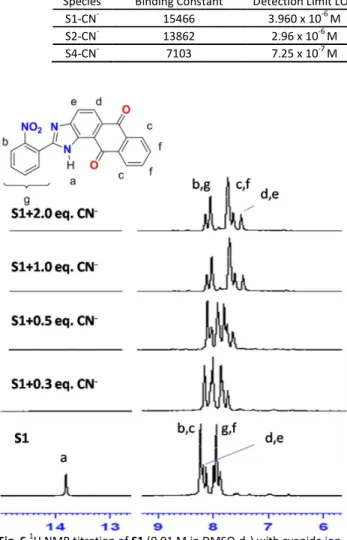

Fig. 6 1H NMR titration of S1 (0.01 M in DMSO-d6) with cyanide ion
(0-2.0 eq. of 0.1 M in DMSO-d6)
Fluorescence spectral studies
3D fluorescence spectral study was carried out to prop up the effective fluorogenic sensing of cyanide by S1. The fluorescence property of the receptor S1 was investigated by using 3D scan recording emission spectra from 300 to 600 nm while the excitation was subsequently tuned from 300 to 600 nm. The contour image of the spectra of the receptor showed very weak fluorescence whereas after the addition of cyanide to the receptor, there was a new band formed around λem 570 - 625 nm range in the excitation
wavelength of (λex) 425 - 475nm (Fig 4a, b). The photolumiscence
spectral studies were carried out with the excitation at 455 nm and the slit width of 5 nm. S1 showed very weak fluorescent and an emission peak at 554 nm. Among various anions, only for the addition of cyanide ion, S1 displayed 10-fold fluorescent enhancement with a bathochromic shift from 554 nm to 570 nm (Fig 5a, b). It could be inferred from the results that the coplanarity of the system was retained by the deprotonation of 1-H of imidzole moiety of S1 followed by the fluorescence enhancement via the inhibition of twisted intramolecular charge transfer (TICT) mechanism. S2 was excited with 500 nm and emission was observed at 558 nm by adding cyanide ions into S2, fluorescence quenching took place whereas in case of S4, comparatively
fluorescent enhancement was observed. (Supporting Information fig. A3) It can be inferred from the above the observation that the introducing bulkier electron withdrawing group in the 2’ position of phenyl ring will induce the fluorescent enhancement through TICT process.
Quantum yield
Quantum Yield of S1 and depronated form of S1(S1-) have been calculated by using the following method with Rhodamine-B as a reference(R). Φ Φ I I x 1 10A 1 10A xn 2 n2 (Equation 1) Φs – Quantum Yield of the sample; ΦR – Quantum yield of the
reference (Quantum yield of Rhodamine B is 0.68 in EtOH); I – Fluorescence intensities of the sample (S) and reference(R); A – Uv-vis absorbance of the sample (S) and reference(R); n – Refractive Index of the solvent used (For EtOH - 1.36 and for DMSO – 1.47); As quantum yield is temperature dependent, in both the cases temperature was maintained same. By applying the experimental value in the equation 1, quantum yields of S1 and S1+CN- were found to be 0.0033 and 0.033 in DMSO. 10-fold enhancement clearly tells the efficient usage of the receptor S1 as a selective fluorescent probe.
1H NMR Titration
The recognition of cyanide by S1 can further be supported by 1H NMR titration (fig 6). 0.01 M solution of S1 and 0.3-2.0 eq of TBACN (0.1 M in DMSO-d6) were used for the 1H NMR titrations. Highly
acidic in nature and the ability to interact through hydrogen bonding of the –OH and imidazole NH with cyanide drives the proton to appear at down field. Due to the addition of cyanide ion with the receptor, the peak at 13.85 ppm (a) corresponding for imidazole –NH, was disappeared. On increasing the concentration of cyanide, the shifting of the peaks at 7.8-8.0 ppm (c-f protons) were shifted to 7.4-7.8 ppm belonged to the anthraquinone protons and the protons (b and g) in the nitrophenyl ring were remained same. As the deprotonation occurred during the addition of cyanide ions, the electron density around anthraquinone moiety might be increased and resulted in the local diamagnetic shielding of the corresponding protons. But the electron density around nitrophenyl ring may not be altered much by the deprotonation process therefore no change was observed in the corresponding protons of the same.
Life Time Measurement
Further, time dependent photoluminescence decay process had been carried out for the life time measurement of S1 and S1-CN ion pair complex. A pinch of milk powder in water had been used to
RSC
Advances
Accepted
Manuscript
Published on 26 February 2016. Downloaded by New York University on 27/02/2016 05:18:32.
prompt the instrument. The proposed mechanism was also well propped up by the fluorescence lifetime data. In the fluorescence
Fig.7 Lifetime measurement studies of S1 (a) and S1- (b)
Fig.8 DFT Theoretical studies using Gaussian 09 software with B3LYP 6-31G basis set of S1 and S1-.
Table 2: The comparison of experimental and theoretical λmax of S1
and S1- using TD-DFT Studies.
Species Calculated λmax
(nm) Experimental λmax (nm) S1 and S1- 382.12/455.33 384/455 S2 and S2- 380.76/495.22 410/480 S4 and S4- 380.97/521.00 443/500

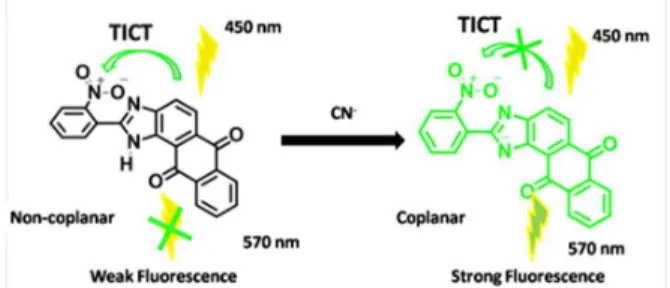

Fig. 9: The proposed mechanism for the sensing behaviour of S1 lifetime decay experiment (λem = 554 nm), the average luminescence lifetime of S1 was found to be 3.5 ns at which 455 nm nanoLED source was used. After the addition of 10µM of CN- ions to the solution of S1, the average luminescence lifetime (λem = 570 nm) of S1-CN system increased to 4.7 ns. In both the cases, the fluorescence decay curve was fitted to double-exponential decay theoretical calculation. From the obtained results, there is a delay (1.5 ns) in the decay process when cyanide ion interacts with the receptor; hence it is proved that there is a platform for the enhanced fluorescence in the case S1-CN- interaction. (Fig. 7a, b)
DFT theoretical calculations
DFT theoretical calculations were demonstrated for S1 and S1- for supporting the deprotonation occurred during the addition of cyanide ion. The structural optimization and the computational calculations were carried out using Gaussian09 quantum chemistry package and the results were viewed with GaussView5 GUI.31 Geometry optimizations were conducted by DFT using Becke’s three parameter exchange functional (B3)32 and includes a mixture of HF with DFT exchange terms associated with the gradient corrected correlation functional of Lee, Yang, and Parr (LYP)29, 33and the 6-31G basis set. Highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) for S1 and its deprotonated form (S1-) have been generated from optimized structures of the same (fig. 8). From the calculated results, the energy gap between HOMO and LUMO of S1 had decreased after deprotonation of –NH of imidazole by cyanide ions. The calculated absorbance maxima of S1 and S1- from the energy gap (∆ES1 and
∆ES1
-) were 364 nm and 454 nm respectively and well coincided with the experimental values. From the TD-DFT studies of the receptors S1, S2 and S4 and their corresponding deprotonated form S1- , S2- and S4- were carried out with TD-SCF CAM-B3LYP with the basis set 6-31G (keyword- td cam-b3lyp/6-31g geom=connectivity). From the results, it could be concluded that the experimental λmax
of the receptors and their respective deprotonated forms were well agreed with those of calculated λmax which further supports the
sensing behaviour of the receptor. (Table 2) Mechanism
From 1H NMR spectral titration, DFT Calculation and life time measurement studies, S1 was deprotonated at –NH imidazole by cyanide ions and the electron density over benzimidazo anthraquinone (chromophore) moiety was increased that driven the color change. The phenomenon was simply illuminated by the following statements; the bulkier nitro group in the o-position and 1-H of imidazole tend to disturb the co-planarity of the molecule whereas the co-planarity may be achieved in the excited state on deprotonation of the same followed by the fluorescence
RSC
Advances
Accepted
Manuscript
ARTICLE
RSC Advances
Table 3: Real sample analysis of S1 using waste water sample. Sample (ppm) Average Recovery
(ppm) % Recovery 0 0 Nil 5 4.3 86% 10 9.2 92% 15 14.4 96%
Fig.10 Fluorescence images of macrophage (RAW 264.7) cells treated with S1 (a) and CN- (b) ions. (Left) Bright field image; (Middle) fluorescence image; and (Right) merged image. (Ex 456nm, Em.540-580nm.)
enhancement; In other words, the higher electron withdrawing nature of nitro group makes the phenyl ring as an acceptor and there will be a Twisted Intramolecular Charge transfer (TICT) from electron rich imidazoanthraquinone moiety to nitrophenyl ring in S1 whereas the deprotonation inhibits the TICT followed by the fluorescent enhancement. (Fig. 9)
Real Sample Analysis
Role of a chemosensor could be accomplished only when it might be useful in practical applications. Sensing cyanide ions in waste water collected in our premises was demonstrated with S1. The samples were collected every one hour and mixed with together. The resulting turbid sample as a whole was filtered to remove the suspended particle led to a light grey solution (pH 8.0). On testing the filtered sample with S1, no color change was observed. 5, 10 and 15 ppm cyanide solutions prepared from the filtered water samples were added with S1. The color change as well as bathochromic shift in the UV-vis spectra were observed. From the absorbance at 455 nm of the three solutions, using Beer-Lambert’s Law, the corresponding concentrations were calculated for all the solutions. Overall 90% recovery was observed it could be concluded that S1 acts as a highly sensitive and selective chemoreceptor for CN- ion (Table 3).
Fluorescence imaging of Living Cells
The cell line RAW264.7 was provided by the Food Industry Research and Development Institute (Taiwan). RAW264.7 cells were cultured in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with
10% fetal bovine serum (FBS) at 37 °C under an atmosphere of 5% CO2. Cells were plated on 18 mm glass coverslips and allowed to
adhere for 24 h. Experiments to assess CN- ions uptake were performed in PBS with 10μΜ (CH3CH2CH2CH2)4N(CN). Treated the
cells with 2 μL of 10 mM CN- ions (final concentration: 10 μM) dissolved in sterilized PBS (pH 7.4) and incubated for 30 min at 37°C. The treated cells was washed PBS (3×2 mL) to remove remaining (CH3CH2CH2CH2)4N(CN) ions. Culture media (2 mL) was
added to the cell culture, which was treated with a 10 mM solution of S1 (2μL; final concentration: 10 μM) dissolved in DMSO. The samples were incubated at 37°C for 30 min. The culture media was removed, and the treated cells were washed with PBS (3×2 mL) before observation. (Fig. 10) From the images, it could be inferred that S1 has very good permeability through the cell membrane and has very weak fluorescent whereas after the addition of cyanide ions, S1 sensed the guest selectively with enhanced yellowish green fluorescent.
Conclusion
Novel TICT based fluorescent turn on probe S1 was synthesized from 2-nitrobenzaldehyde and 1,2-diaminoanthraquinone and characterized well with various spectroanalytical techniques. Cyanide ions were selectively sensed by S1 through the deprotonation of 1-H imidazole followed by the inhibition of TICT occurred led to 10-fold fluorescent enhancement. Effect of substitution was discussed using S2-S4. In case of S2, fluorescence quenching was observed due to the deprotonation of both the sites (-OH and imidazole –NH). But S4 showed sufficient bulkiness to give slight fluorescent enhancement. S1 showed relatively very good association constant with 1:1 stoichiometric ratio and micromolar detection limit. 1H NMR titration clearly supported the deprotonation of 1-H imidazole and the sensing behaviour was further supported by DFT as well as TD-DFT studies. Moreover, lifetime measurement showed that there is a delay (1.5 ns) in double exponential decay of S1 and S1- which was essential information for the fluorescence enhancement behaviour. S1 was successfully applied for the real time analysis of waste water and the bio-imaging of the cell line RAW264.7 and sensed the cyanide ions with yellowish green fluorescence output under physiological conditions.
Acknowledgement
Author GB thanks UGC (University Grant Commission, India) for the financial support through Junior Research Fellowship scheme (F.2-8/2011(SA-1) dated 29/11/2013).
