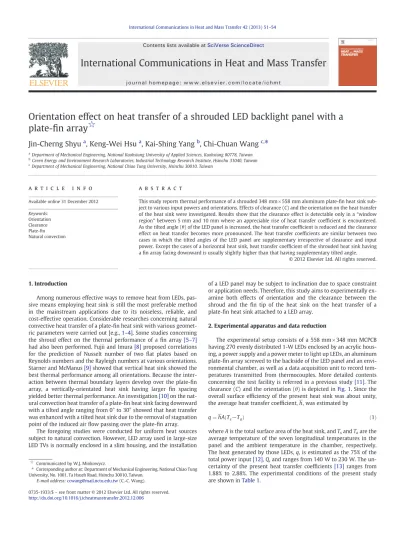

Orientation effect on heat transfer of a shrouded LED backlight panel with a plate-fin array

Orientation effect on heat transfer of a shrouded LED backlight panel with a

plate-

fin array

☆

Jin-Cherng Shyu

, Keng-Wei Hsu

, Kai-Shing Yang

, Chi-Chuan Wang

⁎

Department of Mechanical Engineering, National Kaohsiung University of Applied Sciences, Kaohsiung 80778, Taiwan

b_{Green Energy and Environment Research Laboratories, Industrial Technology Research Institute, Hsinchu 31040, Taiwan} c

Department of Mechanical Engineering, National Chiao Tung University, Hsinchu 30010, Taiwan

a b s t r a c t

a r t i c l e i n f o

Available online 31 December 2012 Keywords:

Orientation Clearance Plate-fin Natural convection

This study reports thermal performance of a shrouded 348 mm × 558 mm aluminum plate-fin heat sink sub-ject to various input powers and orientations. Effects of clearance (C) and the orientation on the heat transfer of the heat sink were investigated. Results show that the clearance effect is detectable only in a“window region” between 5 mm and 10 mm where an appreciable rise of heat transfer coefficient is encountered. As the tilted angle (θ) of the LED panel is increased, the heat transfer coefficient is reduced and the clearance effect on heat transfer becomes more pronounced. The heat transfer coefficients are similar between two cases in which the tilted angles of the LED panel are supplementary irrespective of clearance and input power. Except the cases of a horizontal heat sink, heat transfer coefficient of the shrouded heat sink having afin array facing downward is usually slightly higher than that having supplementary tilted angle.

© 2012 Elsevier Ltd. All rights reserved.

1. Introduction

Among numerous effective ways to remove heat from LEDs, pas-sive means employing heat sink is still the most preferable method in the mainstream applications due to its noiseless, reliable, and cost-effective operation. Considerable researches concerning natural convective heat transfer of a plate-fin heat sink with various geomet-ric parameters were carried out [e.g.,1–4]. Some studies concerning the shroud effect on the thermal performance of afin array[5–7]

had also been performed. Fujii and Imura[8]proposed correlations for the prediction of Nusselt number of two flat plates based on Reynolds numbers and the Rayleigh numbers at various orientations. Starner and McManus[9]showed that vertical heat sink showed the best thermal performance among all orientations. Because the inter-action between thermal boundary layers develop over the plate-fin array, a vertically-orientated heat sink having larger _{fin spacing} yielded better thermal performance. An investigation[10]on the nat-ural convection heat transfer of a plate-fin heat sink facing downward with a tilted angle ranging from 0° to 30° showed that heat transfer was enhanced with a tilted heat sink due to the removal of stagnation point of the induced airflow passing over the plate-fin array.

The foregoing studies were conducted for uniform heat sources subject to natural convection. However, LED array used in large-size LED TVs is normally enclosed in a slim housing, and the installation

of a LED panel may be subject to inclination due to space constraint or application needs. Therefore, this study aims to experimentally ex-amine both effects of orientation and the clearance between the shroud and thefin tip of the heat sink on the heat transfer of a plate-fin heat sink attached to a LED array.

2. Experimental apparatus and data reduction

The experimental setup consists of a 558 mm × 348 mm MCPCB having 270 evenly distributed 1-W LEDs enclosed by an acrylic hous-ing, a power supply and a power meter to light up LEDs, an aluminum plate-fin array screwed to the backside of the LED panel and an envi-ronmental chamber, as well as a data acquisition unit to record tem-peratures transmitted from thermocouples. More detailed contents concerning the test facility is referred in a previous study[11]. The clearance (C) and the orientation (_{θ) is depicted in}Fig. 1. Since the overall surface efficiency of the present heat sink was about unity, the average heat transfer coefficient, h, was estimated by

q¼ hA Tð s−TaÞ ð1Þ

where A is the total surface area of the heat sink, and Tsand Taare the average temperature of the seven longitudinal temperatures in the panel and the ambient temperature in the chamber, respectively. The heat generated by those LEDs, q, is estimated as the 75% of the total power input[12], Q, and ranges from 140 W to 230 W. The un-certainty of the present heat transfer coefficients [13]ranges from 1.88% to 2.88%. The experimental conditions of the present study are shown inTable 1.
