Lots Using Wide-Angle Cameras
Shen-En Shih and Wen-Hsiang Tsai, Senior Member, IEEE
Abstract—A convenient indoor vision-based parking lot system using wide-angle fisheye-lens or catadioptric cameras is proposed, which is easy to set up by a user with no technical background. Easiness in the system setup mainly comes from the use of a new camera model that can be calibrated using only one space line without knowing its position and direction, as well as from the allowance of convenient changes in detected parking space boundaries. After camera calibration based on the new camera model is completed, parking space boundary lines are automat-ically extracted from input wide-angle images by a modified Hough transform with a new cell accumulation scheme, which can generate more accurate equal-width curves using the geometric relations of line positions and directions. In addition, the user may easily add or remove the boundary lines by single clicks on images, and parking spaces can be segmented out by region growing with the use of the boundary lines. Finally, vacant parking spaces can be detected by a background subtraction scheme. A real vision-based parking lot has been established and relevant experiments conducted. Good experimental results show the cor-rectness, feasibility, and robustness of the proposed methods.
Index Terms—Hough transform, parking lot analysis, parking lot system, space line analysis, wide-angle cameras.
I. INTRODUCTION
N
OWADAYS, more and more cameras are equipped in our environment for various applications such as video surveillance, event recording, evidence collection, etc. In this paper, we investigate the use of cameras for parking lot man-agement. Most cameras used in parking lot systems are per-spective cameras; wide-angle cameras, such as fisheye-lens or catadioptric cameras, are not commonly adopted yet. No matter what type of camera systems is used, one problem in using them is the complicated system setup procedure, including camera calibration, environment learning, object modeling, etc., whose implementation usually requires the user to have a lot oftech-Manuscript received April 25, 2013; revised October 30, 2013; accepted December 13, 2013. Date of publication January 2, 2014; date of current version July 10, 2014. This work was supported in part by the National Science Council, Taiwan under Grant 102-2218-E-009-003 and in part by the Ministry of Education, Taiwan under the five-year project “Aiming for the Top University” (2011–2015). The review of this paper was coordinated by Dr. Y. Gao.
S.-E. Shih is with the Institute of Computer Science and Engineering, National Chiao Tung University, Hsinchu 30010, Taiwan (e-mail: peter159. [email protected]).
W.-H. Tsai is with the Department of Computer Science, National Chiao Tung University, Hsinchu 30010, Taiwan, and also with the Department of In-formation Communication, Asia University, Taichung 41354, Taiwan (e-mail: [email protected]).
Color versions of one or more of the figures in this paper are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/TVT.2013.2297331
nical knowledge. In addition, finding vacant parking spaces is often a trouble for people, particularly in large indoor parking lots, where one has to spend much time with concentration to drive through the entire parking area to visually search for a vacant space if the parking lot is nearly fully occupied. From these viewpoints, this study aims to develop an intelligent vision-based system using wide-angle cameras for parking lot management, which has the following merits: 1) the camera system can be set up easily by a common user with no technical background; 2) parking spaces can be detected precisely; and 3) vacant parking spaces can be identified automatically for convenient car parking.
On existing vision-based parking lot systems that use only perspective cameras, Blumer et al. [1] detected vacant parking spaces by a single perspective camera using edge and road color information and constructed the regions of the parking spaces manually. Huang and Wang [2] detected vacant parking spaces by perspective cameras and used a three-layer Bayesian hierarchical framework to tackle the problems of luminance variations, shadow effects, occlusions among vehicles, etc., after the 3-D models of the parking spaces were constructed in advance. Ichihashi et al. [3] detected vacant parking spaces using perspective cameras based on fuzzy c-means clustering and particle swarm optimization and marked the regions of parking spaces manually. Lixia and Dalin [4] determined the vacancy of a parking space based on image segmentation and local binary patterns, providing that the pixels of the parking space are known in advance. In these methods, the regions of the parking spaces were segmented out manually. On the contrary, the method proposed in this study aims to conduct this major step automatically to construct an easy-to-set-up system. As to camera calibration, which also influences the conve-nience in system usage, the goal of this study is to provide a smart calibration process for a wide-angle camera that can be easily performed by a user with no technical knowledge. It is desired to utilize only a single image of the application envi-ronment and common features existing in it without knowing their directions, positions, etc. Many self-calibration methods have been proposed to make the calibration process easy. Deng et al. [5] proposed a method for calibrating a central (single-viewpoint) catadioptric camera by the use of a 1-D object with unknown motions by deriving the principal point and the image center first, followed by calculating the focal length, skew factor, and mirror parameters of the camera. Ramalingam et al. [6] calibrated the projection rays of a central camera purely from matches between images. Gasparini et al.
0018-9545 © 2014 IEEE. Personal use is permitted, but republication/redistribution requires IEEE permission. See http://www.ieee.org/publications_standards/publications/rights/index.html for more information.
Fig. 1. Proposed parking lot system.
[7] showed that at least three homographies obtained from a grid-pattern board are required to calibrate a general central camera, and a single homography is enough to calibrate a parabolic catadioptric camera.
The indoor parking lot system proposed in this study utilizes multiple wide-angle cameras affixed on the ceiling and looking downward vertically. The system operations can be divided into four stages, as shown in Fig. 1: camera calibration, space line detection, parking space segmentation, and vacancy detection. In the first stage, a new camera model is proposed, leading to the use of fewer parameters than conventional models and a single space line for calibrating the model. This is why the proposed calibration process can be done by a user with no technical background. In the second stage, space lines appearing in the captured image are detected by an edge detection process, fol-lowed by a Hough transform based on a new cell accumulation scheme. Equal-width curves are so generated, leading to more precise space line detection results for use as the boundary lines of the parking spaces.
In the third stage, the detected boundary lines are analyzed and displayed automatically, and the user can then simply click on the image to add or remove the boundary lines. In addition, by clicking on any position within each parking space, the space region is generated by a region-growing process. Finally, after “learning” the background parameters of the vacant park-ing spaces for various environment conditions, vacant spaces can be found by background subtraction for use in parking management.
The proposed vision-based parking lot system has at least the following merits: 1) wide-angle cameras are used so that less cameras are needed to cover the area of a given parking lot; 2) the camera system can be calibrated using only one line in the environment, so that the system can be set up easily by a user with no technical background; 3) the pro-posed Hough transform with the new cell accumulation scheme
Fig. 2. Illustration of two-step spherical mapping.
generates equal-width curves, so that the proposed system is capable of directly dealing with distorted images captured by wide-angle cameras, and the space line detection results are more precise than those yielded by conventional methods; and 4) unlike many previous studies, which specify parking spaces manually, the proposed method detects them automatically for a convenient system setup as well.
In the remainder of this paper, the details of the proposed calibration scheme are described in Section II, the proposed space line detection method is described in Section III, and the proposed parking space segmentation and vacancy detection techniques are presented in Section IV. Experimental results and discussions are provided in Section V to show the correct-ness, feasibility, and robustness of the proposed method.
II. PROPOSEDCAMERAMODEL ANDCALIBRATIONMETHOD
To design an easy-to-set-up vision-based parking lot system, the camera calibration process must be easy to carry out by users with no technical knowledge. In this paper, a simplified camera model is proposed for this aim. A calibration method is proposed accordingly, which makes use of only one space line in the environment without knowing its position and direction. In the following, an existing unifying camera model for wide-angle cameras is briefly reviewed first in Section II-A. Then, the proposed camera model is described in Section II-B, and the proposed calibration method is presented in Section II-C. A. Review of a Unifying Model for Wide-Angle Cameras
In the unifying model proposed by Geyer and Daniilidis [8], the relation between a space point P and its corresponding pixel p is described by a two-step mapping via a unit sphere, as shown in Fig. 2. Specifically, point P is first projected onto point Ps
on the unit sphere as being viewed from the effective viewpoint O through the sphere. Then, Psis perspectively projected onto
pixel p on image plane Π as being viewed from the “pinhole” point Oc(usually the lens center). The two involved parameters
l and fe, as shown in Fig. 2, are defined in the same way as
suggested by Ying and Hu [9].
The unifying model previously described has been proved to be equivalent to models for perspective, parabolic catadiop-tric, and hyperbolic catadioptric cameras [8]. Additionally, it was shown by Ying and Hu [10] to be suitable for modeling fisheye-lens cameras as well. In this paper, we simplify it to
Fig. 3. Fitting a space line using different values of l. (a) Space line to be fit (marked as blue). (b) Fitting results using l = 2.0, 1.5, 1.0, 0.8, and 0.5 with larger ellipses corresponding to smaller values of l, and the two yellow crosses indicate the fixed vanishing points.
model fisheye-lens and hyperbolic catadioptric cameras, as will be described in the following section.
B. Proposed Camera Model for Wide-Angle Cameras
The proposed simplified unifying camera model is based on the use of an optimal approximation value of parameter l, which is the distance from the effective viewpoint O to the pinhole point Oc, as shown in Fig. 2. The model has two merits: 1) it
reserves important characteristics of space lines, as shown in this section; and 2) it can be easily calibrated by the use of a single space line, as described in Section II-C. These merits make the corresponding system setup process easy to conduct.
The rationale of finding a fixed optimal value of parameter l can be explained as follows. In Fig. 3(a), the image of a space line, called line image hereafter, is marked as a blue curve, and in Fig. 3(b), this line image is shown to be fit well enough by conic sections [i.e., by (2) derived later in this section] with different values of parameter l, whereas the two vanishing points are fixed (marked in yellow in the figure). This phenomenon leads to two conclusions: 1) parameter l cannot be well calibrated from line images; and 2) reversely, the value of parameter l did not affect the space line detection process. The first conclusion is consistent with some previous studies [9], [11]. Specifically, parameter l was fixed in the simulation experiments described by Ying and Hu [9]; hence, parameter l was not derived in the calibration process. Furthermore, as seen in the work of Deng et al. [11], parameter l is assumed to be known before the calibration. The second conclusion makes it possible to find an optimal value of parameter l to approximate that of any kind of wide-angle camera, without affecting the space line detection process.
To find the optimal value of l, we define first the range of parameter l of each kind of wide-angle camera. For parabolic catadioptric cameras, the value of l is known to be 1.0 [8]; for hyperbolic catadioptric cameras, the value of l is smaller than 1.0 and larger than 0.0 [8]; and for fisheye-lens cameras, the value of l is larger than 1.0 [10]. In this paper, we define the interesting range of parameter l to be 0.5 < l < 2.0, which includes the commonly used values of l. For example, the values of l derived in [9] and [11] are 0.8, 0.966, and 1.0, the value derived in [12] is 0.9663, and the value derived in [7] is 1.07.

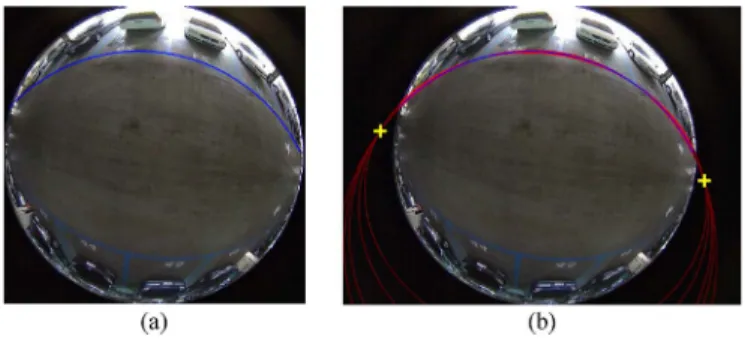

Fig. 4. Finding the optimal value l∗. (a) A line image Ii(marked in blue) and
its best-fitting curve Iij∗ (marked in red). (b) The trend of the average distjof
the distances between the best-fitting curve and the line images. The optimal value of l∗jis 1.24, with distj= dist being about 1.1941 pixels.
Then, the optimal value l∗ of l is found by a simulation process, as described in the following.
1) Generate simulated line images Iiwith size 1000× 1000
for a set of sampled values of l in the interesting range 0.5 < l < 2.0 and for a set of sampled positions and directions of space lines.
2) For each sample value l∗jin the range 0.5 < l∗j < 2.0, do steps 2a) through 2c) as follows:
a) find the best-fitting curve Iij∗ to each line image Ii,
where Iij∗ is computed by (2) with l = lj∗ described in Section II-C and a Levenberg–Marquardt process; b) compute distance distij between Iiand Iij∗ as
distij = 1 n n k=1 pk− p∗k (1)
where n denotes the number of pixels on line image Ii, pk is a pixel on Ii, p∗k is the nearest pixel on
Iij∗ to pk, andpk− p∗k is the distance between pk
and p∗k;
c) calculate the average distance distjof all distij of all
Ii as a measure of optimality of the sampled value
lj∗, with a smaller distj indicating a better fit of l∗jto
all Ii.
3) Choose as the desired optimal value l∗ the l∗j with the smallest distj, which is called the average fitting error
and denoted as dist subsequently.
An experimental result of the given process is shown in Fig. 4, where Fig. 4(a) shows line image Iimarked in blue and
a best-fitting curve Iij∗ marked in red, and Fig. 4(b) shows the trend of the value of distjfor different lj∗values, from which it
can be seen that an optimal value of li∗does exist and is located at 1.24 for choice as l∗ and that the line images can be well approximated by (2) with l = l∗resulting in an average fitting error dist≈ 1.1941 pixels.
As a result of utilizing the aforementioned second con-clusion, we propose a camera model that is identical to the unifying model proposed in [8] but with its parameter l fixed to be the optimal value 1.24 previously derived. One merit of this model is that it leads to the possibility of calibrating
wide-angle cameras using only one line image. This property is a great advantage over those of the conventional models [8], [13], by which the camera cannot be reliably calibrated from line images as previously proved in Section II-B. It also facilitates a nontechnical user being able to conduct the calibration process without difficulty as previously mentioned. C. Proposed Calibration Method Using Only One Space Line Based on the proposed camera model using the fixed pa-rameter l = 1.24, the idea of the proposed calibration process using a single line can be divided into three steps. First, a space line is chosen with its line image (in the shape of a conic-section curve) manually marked. Then, the best-fitting ellipse to this line image is computed, from which the unknown camera parameters and the space line are roughly estimated. Finally, a Levenberg–Marquardt algorithm is conducted to find the precise values of the camera parameters.
In more detail, let L be a chosen space line, IL be its line
image, and EL be the best-fitting ellipse to IL. As derived in
[9] and [13], ILcan be expressed as
F (u, v) = ⎡ ⎣uv 1 ⎤ ⎦ T⎡ ⎣(l 2−1)n2 x+l2n2z (l2−1)nxny −fenznx (l2−1)nxny (l2−1)n2y+l2n2z −fenzny −fenznx −fenzny −fe2n2z ⎤ ⎦ ⎡ ⎣uv 1 ⎤ ⎦=0 (2) where (u, v) are coordinates of pixels on IL, (nx, ny, nz) is
the normal vector of plane Π formed by line L and the origin of the camera’s lens center, and (l, fe) are the parameters used
in the unifying camera model, as described in Section II-A. In addition, let ellipse ELbe described by
⎡ ⎣uv 1 ⎤ ⎦ T⎡ ⎣ab bc de d e f ⎤ ⎦ ⎡ ⎣uv 1 ⎤ ⎦ = 0. (3)
Note that when nz= 0, the line image is a straight line going
through the image center so that parameter fe, which is the
effective focal length of the camera, cannot be calibrated [9], [14]. Ignoring this, we may rewrite (2), after dividing it by n2z= 0, as ⎡ ⎣uv 1 ⎤ ⎦ T⎡ ⎣(l 2−1)G2+l2 (l2−1)GH −f eG (l2−1)GH (l2−1)H2+l2 −f eH −feG −feH −fe2 ⎤ ⎦ ⎡ ⎣uv 1 ⎤ ⎦=0 (4) where G = nx/nz, and H = ny/nz.
Now, the problem is to estimate roughly the values of pa-rameters (l, fe, G, H) such that (3) and (4) are close to each
other. Since only rough estimation is needed, we first simplify (4) by assuming l = 1.0. Accordingly, the problem is reduced to finding parameters (fe, G, H) that satisfy
⎡ ⎣ 10 01 −f−feeHG −feG −feH −fe2 ⎤ ⎦ ∼ ⎡ ⎣ab bc de d e f ⎤ ⎦ (5)

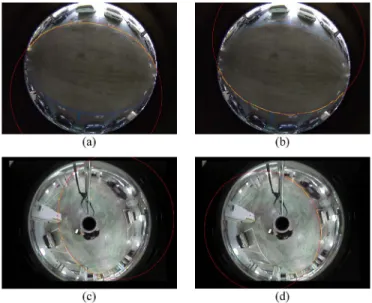

Fig. 5. Calibration results with yellow curves indicating manually marked pixels and red ellipses being the best-fitting results. (a) and (b) Results using a fisheye-lens camera with calibrated values of fe being 319.90 and 319.57,
respectively. (c) and (d) Results using a hyperbolic catadioptric camera with calibrated values of febeing 266.73 and 269.53, respectively.
where “∼” means “equals up to a scale.” Let λ be the hidden unknown parameter for this scaling. Then, we have
⎡ ⎣ λ0 0λ −λf−λfeeHG −λfeG −λfeH −λfe2 ⎤ ⎦ = ⎡ ⎣ab bc de d e f ⎤ ⎦ . (6) One solution to the given equation for use as rough estimates of the parameters is λ =a+c 2 ; fe= −f λ; G = −d λfe ; and H =−e λfe . (7) A Levenberg–Marquardt process is finally conducted to de-rive the precise values of (fe, G, H), with the initial values
being specified by (7) and the criterion being to minimize the value of ⎡ ⎣uv 1 ⎤ ⎦ T⎡ ⎣(l 2−1)G2+l2 (l2−1)GH −f eG (l2−1)GH (l2−1)H2+l2 −f eH −feG −feH −fe2 ⎤ ⎦ ⎡ ⎣uv 1 ⎤ ⎦ (8) with respect to all the pixels (u, v) on line image IL. After this
optimization process is done, parameter feof the camera model
is derived, completing the calibration process.
Four results of this calibration process are shown in Fig. 5. The calibrated values fe in Fig. 5(a) and (b) are 319.90 and
319.57, respectively, and those in Fig. 5(c) and (d) are 266.73 and 269.53, respectively. The validity of the proposed calibra-tion method can be shown by the good fitness of the best-fitting ellipse to the manually marked line image in each case and the closeness of the calibrated values fein the first two cases using
a fisheye-lens camera and in the remaining two cases using a hyperbolic catadioptric camera.
Fig. 6. Illustration of an equal-width curve along a curve F = 0 with width r, defined to be the regions of all the gray circles (not all drawn) or, equivalently, the thick area bounded by the two dashed curves.
III. PROPOSEDSPACELINEDETECTIONMETHOD
One of the important features in man-made environments is a straight line, and as formulated by (2), these space lines are projected by wide-angle cameras to form conic sections in the resulting image, called the line image so far. Here, the proposed method for detecting the conic-section curve is de-scribed, which, different from conventional methods, generates equal-width regions along a curve, as shown in Fig. 6. As a result, the proposed method can detect thick curves in images more reliably, overcome the noise produced by edge detection, and be utilized in accordance with the proposed camera model (described in Section II-B) for more accurate detection of parking space boundary lines.
A. Proposed Detection Method
The proposed space line detection method is based on the Hough transform with a new cell accumulation scheme to achieve the ability to detect equal-width thick curves. As de-scribed by (2), a line image, which appears to be a conic section in the acquired wide-angle image, can be parameterized by the normal vector (nx, ny, nz) of plane Π formed by the
corresponding space line and the origin of the camera. The normal vector can be expressed as
(nx, ny, nz) = A, B, 1− A2− B2 (9) where A = nx n2 x+ n2y+ n2z , B = ny n2 x+ n2y+ n2z (10)
and 0≤ A, B ≤ 1. Parameters (A, B) are quantized into n × n values to form Hough cells in this study, with the line im-ages (conic-section curves) corresponding to the cells being described by the equation F (u, v) = 0 in (2), and the values (nx, ny, nz) in (2) defined by (9) and (10).
The first step in the proposed detection method is to obtain a binary version Ib of the input wide-angle image by edge
detection. Then, for each Hough cell at parameters (A, B) and for each “black” pixel p in B with coordinates (u, v), if p is in the equal-width curve region of the line specified by parameters (A, B), then the cell value at (A, B) is incremented by 1.
In more detail, by referring to Fig. 7, it can be figured out that pixel (u, v) is in the equal-width region with width r if and only if the curve F = 0 intersects circle C centered at (u, v) with radius r. Furthermore, according to the intermediate value theorem [16], the curve F = 0 intersects circle C if there exists a point (u, v) = (u + Δu, v + Δv) on C such that F (u, v) and F (u, v) are with opposite signs. Accordingly, if F (u, v) is
Fig. 7. Illustration for determining whether or not a pixel at (u, v) lies inside an equal-width curve.
positive, we try to find point (u, v) on C with the minimum value of F (u, v) and then determine whether F (u, v) and F (u, v) are with opposite signs. Reversely, if F (u, v) is neg-ative, we try to find point (u, v) on C with the maximum value of F (u, v) and then determine whether F (u, v) and F (u, v) are with opposite signs. For the first case with F (u, v)≥ 0, since F (u, v) should be the minimum value and since gradient ∇F specifies the direction of increasing the function value F (u, v), vector (Δu, Δv) should be in the negated direction of gradient ∇F . Hence, under the constraint that the length of (Δu, Δv) is radius r, vector (Δu, Δv) may be expressed as [−∇F (u, v)/∇F (u, v)] × r. For the second case with F (u, v) < 0, since F (u, v) should be the maximum value, it can be derived by similar reasoning that vector (Δu, Δv) should be in the same direction of gradient ∇F so that it can be expressed as [∇F (u, v)/∇F (u, v)] × r. As a summary, we have u v = u v + Δu Δv Δu Δv = −∇F (u,v) ∇F (u,v)r, if F (u, v)≥ 0 ∇F (u,v) ∇F (u,v)r, if F (u, v) < 0. (11) Accordingly, the function value F (u, v) can now be derived by the second-order Taylor expansion to be
F (u, v) = F (u, v) +∇F (u, v)T Δu Δv +1 2 Δu Δv T HF (u, v) Δu Δv (12) where HF (u, v) is the Hessian matrix of function F described by
HF = ∂2F ∂u2 ∂ 2F ∂u∂v ∂2F ∂u∂v ∂2F ∂v2 (13) whose details may be derived from (2) and are omitted here.
In conclusion, to detect an equal-width line in a binarized wide-angle image Ib by the proposed Hough transform, we
conduct the following process.
1) For each pixel p with coordinates (u, v) in Iband for each
Hough cell with parameters (A, B), calculate (Δu, Δv) and (u, v) by (11), and F (u, v) and F (u, v) by (2) and (12), respectively.
2) If F (u, v) and F (u, v) are with opposite signs, decide the pixel p at (u, v) to be in the equal-width region of the line specified by parameters (A, B) and increment the value of the Hough cell with (A, B) by 1.
3) Find out the parameters (A, B) of the desired line images (conic-section curves) from the resulting Hough space by the following steps.
Fig. 8. Results of the proposed space line detection method. (a) Input image. (b) Canny edge result. (c) Hough space. (d) Hough space after applying filter (14). (e) and (f) Results of 30 and 50 lines, respectively.
a) Enhance the local maxima of the Hough space by applying the following sharpening filter:
1 25 ⎡ ⎢ ⎢ ⎢ ⎣ −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 24 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 −1 ⎤ ⎥ ⎥ ⎥ ⎦. (14)
b) Pick out all the Hough cells with values larger than a preselected threshold δ and take the cells’ parameters (A, B) for use as those of the detected line images. 4) Use the derived parameters (A, B) to draw the conic
sections of the detected line images on the input image as the output.
Moreover, the curve width r used in (11) is defined by con-sidering the error introduced in the edge detection process as well as the error introduced by the approximation of parameter l, as mentioned in Section II-B. The former is approximated to be 1 pixel, and the latter is approximated to be 1.2 pixels, according to the data shown in Fig. 4. As a result, the width r used in this study is taken to be r = 1.0 + 1.2 = 2.2 pixels.
A result of the given line image detection method is shown in Fig. 8. The input image captured by a hyperbolic catadioptric camera is shown in Fig. 8(a), with the Canny edge detection result obtained from it shown in Fig. 8(b). The generated Hough space is shown in Fig. 8(c), and the result of applying filter (14) is shown in Fig. 8(d). Finally, some cells with larger values were picked out, and the line images corresponding to the cells’ parameters (Ai, Bi) were drawn, as shown in Fig. 14(e) and (f),
where the numbers of drawn lines are 30 and 50, respectively.
Fig. 9. Comparison of the conventional and proposed accumulation methods. (a) and (b) Non-equal-width results yielded by the conventional method with thresholds T = 40 and 150, respectively. (c) and (d) Equal-width results yielded by the proposed method with widths r = 1 and 2, respectively.
B. Effectiveness of Proposed Cell Accumulation Scheme As previously stated, each Hough cell is specified by two parameters A and B and corresponds to a conic-section curve F (u, v) = 0 in the input image. Since parameters A and B and image coordinates u and v are all quantized to be discrete, the function value F (u, v) for a certain coordinate pair (u, v) may not be exactly zero. A conventional way to deal with this problem is to define threshold T and consider pixels with coordinates (u, v) satisfying the following inequality as being on the conic section described by F (u, v) = 0:
|F (u, v)| ≤ T. (15)
Two results yielded by this method are shown in Fig. 9(a) and (b) with different thresholds T = 40 and 150, respectively. As can be seen, the generated conic sections are not with equal widths. This phenomenon results from some undesirable opera-tions that cause some edge pixels not belonging to the conic sec-tion to be accumulated into wrong Hough cells, and vice versa. In contrast, the proposed method described in Section III-A yields equal-width curves, as shown in Fig. 9(c) and (d), for different curve widths r = 1 and 2 pixels, respectively. These results show the capability of the proposed method for detecting equal-width curves, which is superior to conventional methods and suitable for applications requiring higher line detection accuracy.
Some experiments were also conducted to compare the space line detection results yielded by the conventional Hough cell accumulation scheme and those by the proposed method. An input image and the corresponding Canny edge detection result are shown in Fig. 10(a) and (b), respectively. The 10 and 30 detected space line images yielded by the conventional scheme are drawn in Fig. 10(c) and (d), respectively, and those yielded by the proposed method are shown in Fig. 10(e) and (f),
Fig. 10. Comparisons of space line detection results yielded by the con-ventional and proposed methods. (a) Input image. (b) Edge detection result. (c) and (d) The 10 and 30 detected curves using the conventional method. (e) and (f) The 10 and 30 detected curves using the proposed method.
respectively. As shown in the figure, the curves detected by the conventional scheme mostly go through the image center, which are not good results. This undesirable phenomenon may be explained from the simulation results shown in Fig. 9. Specifically, as shown in Fig. 9(b), the conventional scheme generates a thicker curve when the real curve appears nearer the image center, and vice versa. This means that each Hough cell corresponding to a curve nearer the image center will collect “votes” from a thicker line band in the input image (i.e., more edge pixels will be “accumulated” into such a cell), and vice versa. Therefore, when using the conventional scheme to detect curves by picking up Hough cells with larger votes, those curves nearer to image center are more likely to be chosen first, yielding the results shown in Fig. 10(c) and (d). In contrast, since the proposed method generates equal-width curves everywhere, this phenomenon does not appear in the detection results yielded by the proposed method shown in Fig. 10(e) and (f).
IV. DETECTION OFPARKINGSPACEVACANCY
Each parking space is usually marked by some colored boundary lines. Here, some properties of such boundary lines are first derived in Section IV-A. Then, a method to detect such boundary lines is proposed in Section IV-B. Finally, in Section IV-C, a method to mark the regions of parking spaces using boundary lines and a simple vacancy detection method based on background subtraction are proposed, by which whether a car is parked in a parking space can be decided.
detail as follows.
As stated in Section I, the wide-angle cameras used in the proposed parking lot system are affixed on the ceiling to look right downward; hence, the optical axis of the camera, namely, the Z-axis of the camera coordinate system as shown in Fig. 2, is vertical with respect to the ground specified as the XY -plane. Given a boundary line L1on the ground, its directional vector
(d1x, d1y, d1z) is parallel to the XY -plane; hence, we have
d1z= 0. (16)
Let (A1, B1) be the Hough parameters of line L1 found by
the space line detection method proposed in Section III and (n1x, n1y, n1z) be the normal vector of the plane formed by
L1and the camera origin. Then, from (9), we have
(n1x, n1y, n1z) = A1, B1, 1− A2 1− B21 . (17)
In addition, since (n1x, n1y, n1z) is perpendicular to the
direc-tional vector (d1x, d1y, d1z) of L1, we have
(n1x, n1y, n1z)· (d1x, d1y, d1z) = 0 (18)
which, when combined with (16) and (17), leads to
A1d1x+ B1d1y= 0 (19)
so that the directional vector (d1x, d1y, d1z) can be expressed
in terms of A1and B1as
(d1x, d1y, d1z) = (B1,−A1, 0). (20)
Let (A2, B2) be the parameters of another boundary line L2.
Then, the directional vector (d2x, d2y, d2z) of L2can be
simi-larly derived to be
(d2x, d2y, d2z) = (B2,−A2, 0). (21)
Now, since the two boundary lines L1and L2are either
par-allel or perpendicular to each other, two cases can be identified. For the first case where the two boundary lines are parallel, their directional vectors satisfy
(d1x, d1y, d1z) = λ(d2x, d2y, d2z) (22)
which, when combined with (20) and (21), leads to
(A1, B1) = λ(A2, B2) (23)
where λ is a scalar value. For the other case where the two lines are perpendicular, the inner product of their directional vectors satisfy
(d1x, d1y, d1z)· (d2x, d2y, d2z) = 0 (24)
which, with the use of (20) and (21), leads to
Fig. 11. Definition of the elevation angle Ψ of a boundary line L1. Moreover, to ignore boundary lines that are too far away, we check the elevation angle ψ of each boundary line, which is defined in a way as shown in Fig. 11 such that the larger the angle Ψ is, the farther the boundary line is from the camera. According to our experimental experience, if the camera is mounted at 2.5 m high, the farthest usable boundary line is at a distance about 10.0 m from the camera. As a result, the maximum value of Ψ is tan−1(10.0/2.5) = 75.96◦, which is equivalent to n1z≤ sin(Ψ) = 0.970. Using this result with
(17), we can derive another constraint on parameters (A, B) as n1z=
1− A2
1− B12≤ 0.970 or, equivalently, as
A21+ B12≥ 0.059. (26)
B. Automatic Detection of Boundary Lines
As shown in Fig. 8(e) and (f), the results of the line image detection method proposed in Section III are too noisy to be used directly. Here, a method is proposed to make use of the geometric properties previously mentioned in Section IV-A to generate a better segmentation result.
As previously defined, let L1and L2be two boundary lines
with parameter pairs (A1, B1) and (A2, B2), respectively. If
(A1, B1) and (A2, B2) are treated as two vectors, then if
the two lines are parallel to each other, (23) can be derived. Similarly, if the two lines are perpendicular to each other, (25) can be derived. Recalling that the boundary lines are either mutually parallel or perpendicular, we define the direction θ of the boundary lines in such a way that the parameters (A, B) of each boundary line are either “parallel” or “perpendicu-lar” to (cos θ, sin θ), i.e., are equal, up to a scalar, to either (cos θ, sin θ) or (cos(90◦+ θ), sin(90◦+ θ)).
To find the correct value of the direction θ, we first generate the Hough space and apply the filter, as stated in Section III. From this Hough space, about 0.3% of the Hough cells with the largest values and satisfying (26) are chosen and put into set S. In addition, we create 90 bins in the range 0◦∼ 90◦for different values of θ. For each cell with parameters (Ai, Bi) in set S, we
find the closest bin biwith value θisuch that (Ai, Bi) is either
parallel or perpendicular to (cos θi, sin θi) and increment bin bi
by the value of the Hough cell with (Ai, Bi). After applying a
Gaussian filter with standard deviation σ = 1, the bin with the largest accumulation value is chosen to be the direction of the boundary lines θ.
An experimental result of the given process is described in the following. An image captured by a hyperbolic catadioptric camera for use as the input is shown in Fig. 8(a). By following
Fig. 12. Example of parking space detection results with input image shown in Fig. 8(a). (a) Cell accumulation result of the direction θ of boundary lines. (b) Results of boundary lines found by the proposed method, showing improve-ment over line detection results shown in Fig. 8(e) and (f).
the line image detection method proposed in Section III, the 2-D Hough space, after applying the filter, becomes as that shown in Fig. 8(d). The results of the accumulated bin values of θ are shown in Fig. 12(a), where the largest bin is with value θ = 76.5◦, which is taken finally as the direction of the boundary lines.
After the direction θ of the boundary lines is derived, the boundary lines that do not satisfy the direction θ are removed as follows. For each Hough cell in set S with parameters (Ai, Bi),
if there exists a real number θoffset within the range−10◦≤
θoffset≤ 10◦ such that the two vectors (Ai, Bi) and (cos(θ +
θoffset), sin(θ + θoffset)) are parallel or perpendicular to each
other, then the cell is considered to satisfy the direction θ and so kept in set S; otherwise, it is removed. Afterward, the connected components Si in set S are found according to the criterion
that two cells with parameter values (A1, B1) and (A2, B2) are
connected if
|A1− A2| ≤ 0.05 and |B1− B2| ≤ 0.05. (27)
Finally, the center of each connected component Si is
calcu-lated, and their parameters (Ai, Bi) are then used to specify
the boundary lines. By this process, the result corresponding to Fig. 12(a) is shown in Fig. 12(b), in which one can see that all the boundary lines of the parking spaces have been detected. C. Parking Space Segmentation and Vacancy Detection
Two more steps are proposed here to segment out the regions of the parking spaces in the acquired wide-angle image. Then, a vacancy detection scheme based on background subtraction is adopted. These three steps are designed to be easily performed by a user with no technical background, so that the vision-based parking lot system can be set up and utilized conveniently as claimed.
The first step is to adjust the boundary lines manually by clicking on the image to add and remove the boundary line, i.e., one line at a time. The boundary lines are first divided into two “mutually” perpendicular groups, as shown in Fig. 13(a), and distinguished by colors. The user may select either group and then simply click on an existing boundary line to remove it or click on any other position to add a new boundary line going through the mouse position. It is important to note that, with the direction θ previously found, the boundary line can now be uniquely determined with only one point marked by the
Fig. 13. Parking space segmentation. (a) Boundary lines detected by the pro-posed method are divided into two groups marked by red and blue, respectively. (b) Boundary lines after being manually adjusted. (c) and (d) Regions of two green-marked parking spaces automatically found by the proposed scheme.
Fig. 14. Parking space vacancy detection. (a) Input image. (b) Vacant parking spaces marked as green regions.
user; without θ, there will be an infinite number of lines going through the point marked by the user. For example, from the de-tection results shown in Fig. 13(a), the result after two lines are added and one line is removed manually is shown in Fig. 13(b). The second step is to find parking space regions. In this step, the user may simply click on any position of a parking space in the image, and a region-growing algorithm is immediately performed to find the region of the parking space using the boundary lines. Two results are shown in Fig. 13(c) and (d).
The final step is to find vacant parking spaces. To implement this, the user has to capture beforehand an image of each parking space when it is vacant and consider the image as the background of the parking space. Subsequently, to determine the vacancy of the parking space, each pixel in the acquired wide-angle image is considered a foreground pixel if the ab-solute difference between the pixel’s value and that of the background pixel is larger than a threshold value in at least one of the R, G, and B channels. Then, if the number of foreground pixels is larger than 20% of that of the pixels in the parking space region, the parking space is considered occupied; otherwise, it is considered vacant. An experimental result is shown in Fig. 14. A real indoor vision-based parking lot system implemented in this study is described later in Section V-D.
Fig. 15. Definition of the elevation angle Ψ of a space line L on the ground.
V. EXPERIMENTALRESULTS ANDDISCUSSIONS
Experiments have been conducted to demonstrate the cor-rectness, feasibility, and robustness of the proposed method. Some results and discussions are presented here.
A. Experimental Results of Proposed Calibration Method The proposed camera calibration method described in Section II uses the image of only a space line, without knowing its position or direction, to derive the parameters of the pro-posed general model for fisheye-lens, parabolic catadioptric, and hyperbolic catadioptric cameras. By assuming that the im-age center has been already calibrated by the use of the circular boundary of the omni-image as done in [11] and [15], the effective focal length value feis the only remaining parameter
to be calibrated. For this, a series of experiments was conducted using space lines lying on the ground at different positions, with the camera affixed on the ceiling and looking downward. Specifically, as shown in Fig. 15, one of the parameters of space line L is its elevation angle ψ; hence, several simulated space lines with different elevation angles ψ in the range of 0◦∼ 90◦ were generated for use in the experiments. The parameter fe
of these simulated lines was set to be fe∗= 500, and their line
images generated to be of the size 800× 800 identically. In ad-dition, the coordinates of the pixels on each line image were dis-turbed by Gaussian noise with zero mean and varying standard deviations σ. Then, the proposed calibration method was ap-plied to derive parameter feusing these simulated line images.
This process was repeated 100 times, and the mean and vari-ances of the derived values of feare plotted in Fig. 16(a)–(c) for
different noise levels σ = 1.0, 3.0, and 5.0 pixels, respectively. Recalling that the actual value of parameter fe is fe∗= 500,
one can see in the figure that parameter fe can be robustly
calibrated under a large noise level when the elevation angle Ψ > 15◦. Note also that a space line with elevation angle Ψ near 0◦will appear to be a short and nearly straight line segment going through the image center, so that parameter fecannot be
reliably calibrated using it, as expected according to the theory of the proposed calibration method described in Section II-C. B. Calibration of Camera Parameters
The main objective of the proposed methods is the ease for a nontechnical user to set up the system. Here, achievement of this goal is demonstrated, i.e., the user only has to select a single space line with its position and direction unknown. Images such as those shown in Fig. 17 were captured by a hyperbolic catadioptric camera with MapCam MRC530N manufactured by EeRise, Inc. Four experimental results are shown in Fig. 17(a)–(d). In each experiment, the user only has
Fig. 16. Computed mean and variances of calibrated values fefor simulated
space lines with different elevation angles Ψ, where the standard deviation of Gaussian noise is 1.0 pixel for panel (a), 3.0 pixels for panel (b), and 5.0 pixels for panel (c).
Fig. 17. Applying the proposed calibration method to derive the parameter
fe of a hyperbolic catadioptric camera. (a)–(d) Four results with calibrated
values fe= 265.34, 258.14, 276.84, and 272.36, respectively. (e) Boundary
lines found by the proposed detection method with fe= 265.34.
to arbitrarily choose an obvious space line in the captured image and mark roughly the pixels on the line as yellow points by mouse dragging. Then, the proposed calibration method was
Fig. 18. Use of the proposed calibration method to calibrate a fisheye-lens camera. (a)–(d) Four results with calibrated values fe= 323.74, 331.12,
339.74, and 328.57, respectively. (e) Boundary lines found by the proposed detection method with fe= 331.12.
applied to derive the value of the effective focal length fe
using the yellow points. The values of fe so derived for the
cases shown in Fig. 17(a)–(d) are 265.34, 258.14, 276.84, and 272.36, respectively, and the best-fitting ellipses to the marked space lines are shown in red. With parameter fe= 265.34, the
boundary lines of the parking spaces were finally found and drawn in Fig. 17(e) using the proposed detection method. In addition, conducted were similar experiments with a fisheye-lens camera manufactured by Hunt Electronic, Inc. with model No. HLC-1NAD, and the results are shown in Fig. 18. The results of both experimental series show the feasibility and robustness of the proposed calibration method by the fitness of the drawn red ellipses to the marked yellow points, the closeness of the calibrated values feto the real value, and the
nearly perfect overlapping of the drawn boundary lines on the real ones.
C. Experimental Results of Boundary Line Detection
In the boundary line detection method proposed in Section IV-B, the direction of the boundary lines, denoted by θ, is computed first, and the boundary lines are derived accordingly. Some experiments were conducted to test the capability of this scheme of finding θ as described next. First, an image of an indoor parking lot was captured by a hyperbolic catadioptric camera, as shown in Fig. 19(a). Then, this image was rotated through angles 30◦, 60◦, and 90◦, as shown in Fig. 19(b)–(d), respectively. The boundary line directions θ in these four images were first derived. Then, the boundary lines were automatically detected and superimposed on the original images, as shown in Fig. 19(b)–(d), respectively. In the figure, one can see that the boundary lines fit well to the real ones appearing in the captured images, which means that the
Fig. 19. Automatic detection results of boundary lines. Rotation angles of these images are (a) 0◦, (b) 30◦, (c) 60◦, and (d) 90◦, respectively. The detected boundary lines are drawn and superimposed on the images.
Fig. 20. Results of two experiments under bad conditions, with those of the first experiment shown in panels (a), (c), (e), and (g) and those of the second experiment shown in panels (b), (d), (f), and (h). (a) and (b) Input images. (c) and (d) Edge detection results. (e) and (f) Automatic detection results of boundary lines. (g) and (h) Adjusted boundary lines.
directions of the boundary lines were correctly found by the proposed method.
To demonstrate that the direction θ of the boundary lines can be robustly found even under bad conditions, two more
exper-Fig. 21. Steps in setting up the proposed system. (a) Image captured at midnight. (b) Manually marked pixels (in yellow) of a space line for the calibration task. (c) Results of automatic detection of boundary lines. (d) Result of boundary line adjustment. (e) and (f) Regions of two found parking spaces (marked in green).
iments were conducted with input images shown in Fig. 20(a) and (b), in which noise was present, cars were parked in the spaces, and the lighting situations were poor. The results of the first experiment are shown in Fig. 20(c), (e), and (g), and those of the second experiment are shown in Fig. 20(d), (f), and (h). Specifically, the edge detection results are shown in Fig. 20(c) and (d), respectively, in which one can see that the boundary lines were poorly detected; moreover, some of the boundary lines are missing, as shown in Fig. 20(e) and (f). However, the directions of the detected and drawn boundary lines are correct, which means that the direction θ can be precisely derived even under bad conditions. With this correct value of θ, the boundary lines can be easily adjusted by the proposed method, as demonstrated by the results shown in Fig. 20(g) and (h). D. Setup of a Real Vision-Based Indoor Parking Lot System
A real indoor vision-based parking lot system was estab-lished, and its use for this study is introduced here. A fisheye-lens camera manufactured by Hunt Electronic, Inc. with model No. HLC-1NAD was affixed on the ceiling of the parking lot. An image, as shown in Fig. 21(a), was first acquired at midnight and then used both for calibration and for detecting the boundary lines of the parking spaces. Specifically, a space line in the image was arbitrarily chosen according to a rule of thumb that the line should be long enough and not straight. The line pixels were traced and marked in yellow, as shown in Fig. 21(b), by which parameter fewas calibrated to be 331.1.
Afterward, the direction θ of the boundary lines was derived, and the boundary lines were automatically detected, with the results drawn in Fig. 21(c). Subsequently, boundary lines were added or removed by single clicks on the image, as previously
described. A result of such adjustments is shown in Fig. 21(d). Finally, the parking spaces were segmented out by clicking on any point within the region of each space and applying a region-growing algorithm. The regions of two parking spaces so found and drawn in green are shown in Fig. 21(e) and (f), respectively. After using the captured image shown in Fig. 21(a) as background, the system setup process was completed, and parking space vacancy detection was started. In one of the experiments we conducted, this system was maintained to run for 24 hours to detect vacant parking spaces every minute. The resulting detection accuracy was 99.67%, which is good enough for real applications.
VI. CONCLUSION ANDFUTUREWORKS
A convenient indoor vision-based parking lot system has been proposed in this study, which is easy to set up by a typical user with no technical background and can detect vacant parking spaces automatically. The system uses wide-angle cameras, such as fisheye-lens or catadioptric cameras, and analyzes parking space boundary lines based on a new camera model proposed in this study. This model approximates optimally one of the parameters used in a conventional model (the distance l from the effective viewpoint O to the pinhole point Oc) while reserving some important characteristics of
line images, including the shape of the curve and the locations of the vanishing points. A new line-based calibration method has been also proposed to calibrate the camera model using only one space line without knowing its location and direction, so that the calibration process can be easily done by a user without any technical background. A new Hough transform has been proposed as well to detect space lines, in which a skill-ful cell accumulation scheme is used to generate equal-width curves, yielding a more robust and accurate detection result of parking space boundary lines. A convenient adjustment method has been also developed such that a user can add or remove boundary lines by simple clicks on input images.
Currently, the background images should be learned for various lighting conditions to conduct parking space vacancy detection based on background subtraction. More intelligent methods may be developed to remove this weakness in the future study.
REFERENCES
[1] K. Blumer, H. R. Halaseh, M. U. Arsan, H. Dong, and N. Mavridis, “Cost-effective single-camera multi-car parking monitoring and vacancy detection towards real-world parking statistics and real-time reporting,” in
Proc. Neural Inf. Process., 2012, pp. 506–515.
[2] C. C. Huang and S. J. Wang, “A hierarchical Bayesian generation frame-work for vacant parking space detection,” IEEE Trans. Circuits Syst. Video
Technol., vol. 20, no. 12, pp. 1770–1785, Dec. 2010.
[3] H. Ichihashi, T. Katada, M. Fujiyoshi, A. Notsu, and K. Honda, “Improve-ment in the performance of camera based vehicle detector for parking lot,” in Proc. IEEE Int. Conf. Fuzzy Syst., 2010, pp. 1950–1956.
[4] W. Lixia and J. Dalin, “A method of parking space detection based on image segmentation and LBP,” in Proc. 4th IEEE Int. Conf. Multimedia
Inf. Netw., 2012, pp. 229–232.
[5] X. Deng, F. Wu, Y. Wu, L. Chang, W. Liu, and H. Wang, “Calibration of central catadioptric camera with one-dimensional object undertaking general motions,” in Proc. 18th IEEE Int. Conf. Image Process., 2011, pp. 637–640.
[6] S. Ramalingam, P. Sturm, and S. K. Lodha, “Generic self-calibration of central cameras,” Comput. Vis. Image Understanding, vol. 114, no. 2, pp. 210–219, Feb. 2010.
[7] S. Gasparini, P. Sturm, and J. P. Barreto, “Plane-based calibration of central catadioptric cameras,” in Proc. IEEE 12th Int. Conf. Comput. Vis., 2009, pp. 1195–1202.
[8] C. Geyer and K. Daniilidis, “A unifying theory for central panoramic systems and practical implications,” in Proc. 6th Eur. Conf. Comput. Vis., 2000, pp. 445–462.
[9] X. Ying and Z. Hu, “Catadioptric camera calibration using geometric invariants,” IEEE Trans. Pattern Anal. Mach. Intell., vol. 26, no. 10, pp. 1260–1271, Oct. 2004.
[10] X. Ying and Z. Hu, “Can we consider central catadioptric cameras and Fisheye cameras within a unified imaging model?” in Proc. Eur. Conf.
Comput. Vis., 2004, pp. 442–455.
[11] X. M. Deng, F. C. Wu, and Y. H. Wu, “An easy calibration method for central catadioptric cameras,” Acta Autom. Sinica, vol. 33, no. 8, pp. 801– 808, Aug. 2007.
[12] Y. Bastanlar, L. Puig, P. Sturm, J. J. Guerrero, and J. Barreto, “DLT-like calibration of central catadioptric cameras,” in Proc. 8th Workshop
Omnidirectional Vis., Camera Netw. Non-Classical Cameras, Oct. 2008.
[13] C. Geyer and K. Daniilidis, “Catadioptric projective geometry,” Int. J.
Comput. Vis., vol. 45, no. 3, pp. 223–243, Dec. 2001.
[14] J. P. Barreto and H. Araujo, “Geometric properties of central catadioptric line images,” in Proc. 7th Eur. Conf. Comput. Vis., 2002, pp. 237–251. [15] J. Fabrizio, J. P. Tarel, and R. Benosman, “Calibration of panoramic
catadioptric sensors made easier,” in Proc. 3rd IEEE Workshop
Omni-directional Vis., 2002, pp. 45–52.
[16] T. Apostol, Calculus, 2nd ed. Hoboken, NJ, USA: Wiley, Jun. 1967.
Shen-En Shih received the B.S. degree in
com-puter science from National Chiao Tung University, Hsinchu, Taiwan, in 2009, where he is currently working toward the Ph.D. degree with the College of Computer Science.
Since August 2009, he has been a Research As-sistant with the Computer Vision Laboratory, De-partment of Computer Science, National Chiao Tung University. His current research interests include computer vision, image processing, human–machine interfacing, and stereo vision.
Wen-Hsiang Tsai (S’78–M’79–SM’91) received the
B.S. degree from National Taiwan University, Taipei, Taiwan, in 1973; the M.S. degree from Brown Uni-versity, Providence, RI, USA, in 1977; and the Ph.D. degree from Purdue University, West Lafayette, IN, USA, in 1979, all in electrical engineering.
Since 1979, he has been with National Chiao Tung University (NCTU), Hsinchu, Taiwan, where he is currently a Chair Professor of computer science. At NCTU, he has served as the Head of the Department of Computer Science, the Dean of General Affairs, the Dean of Academic Affairs, and a Vice President. From 2004 to 2007, he was the President of Asia University, Taichung, Taiwan. He has published 157 journal papers and 245 conference papers. His current research interests include computer vision, information security, video surveillance, and autonomous vehicle applications.
Dr. Tsai has served as the Editor or Editor-in-Chief of several international journals, including Pattern Recognition, the International Journal of Pattern
Recognition and Artificial Intelligence, and the Journal of Information Science and Engineering. From 1999 to 2000, he was the Chair of the Chinese Image
Processing and Pattern Recognition Society of Taiwan, and from 2004 to 2008, he was the Chair of the Computer Society of the IEEE Taipei Section in Taiwan. He has received many awards, including the Annual Paper Award from the Pattern Recognition Society of the United States; the Academic Award of the Ministry of Education, Taiwan; the Outstanding Research Award of the National Science Council, Taiwan; the ISI Citation Classic Award from Thomson Scientific, and more than 40 other academic paper awards from various academic societies. He is a Life Member of the Chinese Pattern Recognition and Image Processing Society, Taiwan.
